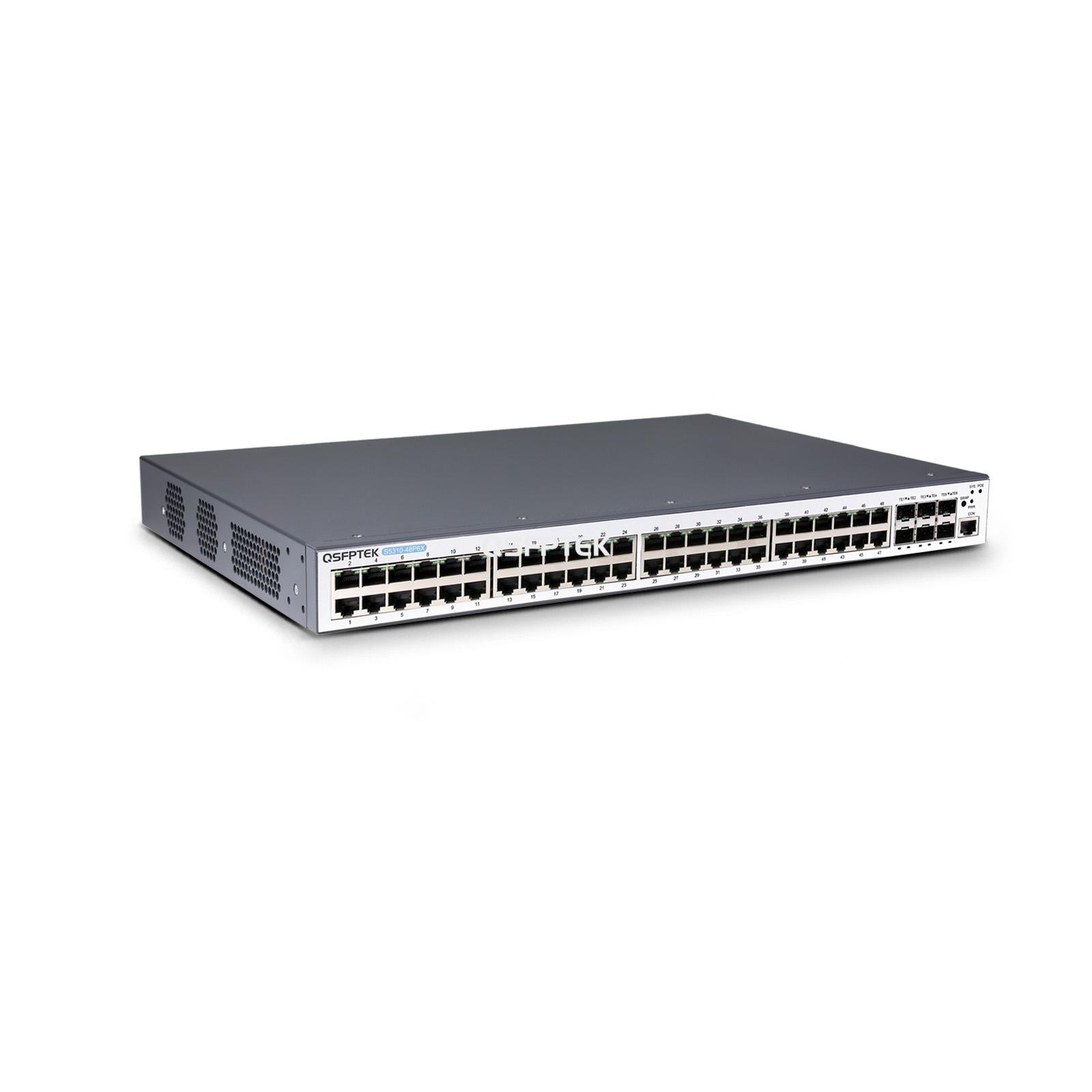

S5310-48P6X, 48-Port Gigabit Ethernet L3 Active 802.3af/at PoE+ Switch, 48x 10/100/1000BASE-T RJ45 PoE+ Ports @ 760w, with 6x 10G SFP+ Uplinks, Up to 100M Transmit, Support Stacking

Product No :100514
US$ 1232.90  US$ 1299.00
Series
100 in stock
20 in the U.S. Warehouse, 20 in the EU Warehouse | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange ;jsessionid=4DF297921FBDCA94691D70FE6C6A45FF
-
+
1. 48x 10/100/1000BASE-T RJ45 PoE+ ports, total power budget 760W AC, 6x 10G SFP+ uplink ports
2. Active PoE switch compliant with IEEE 802.3 af/at, protects your equipment from damage
3. 1 hot-swap AC power supply (1+1 hot-swap redundant power slots), 3 built-in smart fans
4. Rich L3 Features: BGP, PBR, ECMP
5. Supports CLI/WEB/Telnet/SSH/SSL/SNMP management
6. Supports IEEE 802.1x, Tacacs+, Radius for security
7. Supports LACP, BFD, MSTP, ERPS, VRRP, ISSU for reliability
See more

Specifications

S5310-48P6X, 48-Port Gigabit Ethernet L3 Active 802.3af/at PoE+ Switch, 48x 10/100/1000BASE-T RJ45 PoE+ Ports @ 760W, with 6x 10G SFP+ Uplinks, Up to 100M Transmit, Support Stacking



QSFPTEK S5310-48P6X L3 PoE+ switch is designed with 48x 10/100/1000BASE-T ports supporting IEEE 802.3af/at (30w max) for powering attached wireless access points, IP cameras, or other PoE and PoE+ standard terminal devices. And 6x 10G SFP+ uplinks enable establishing up to 60 Gbps links with the aggregation layer switch. It supports stacking up to eight units, making them logically regarded as one switch stack for interconnection and management.



The S5310-48P6X 48 port PoE switch is shipped with 1 hot-swap AC power supply (2 hot-swap power slots) and 3 built-in smart fans to provide excellent performance and improve the network's reliability. The PoE switch supports Layer 3 functions and can be easily managed through the CLI command line or WEB management. It also has flexible IPv6 parts, supporting MSTP、ERPS、VRRP、ISSU for high reliability. The access/aggregation switch is a good choice for SMBs, surveillance systems, and campus networks.



Part Number S5310-48P6X Vendor Name QSFPTEK
Ports 48x 10/100/1000BASE-T RJ45 PoE | 6x 10G SFP+ MAC Address 32K
Switching Capacity 216 Gbps Forwarding Rate 162 Mpps
DRAM 512MB Packet Buffer 2MB
Jumbo Frame 9K VLAN IDs 4K
Flash Memory 16MB Input Voltage 100V-240VAC, 50Hz±10%

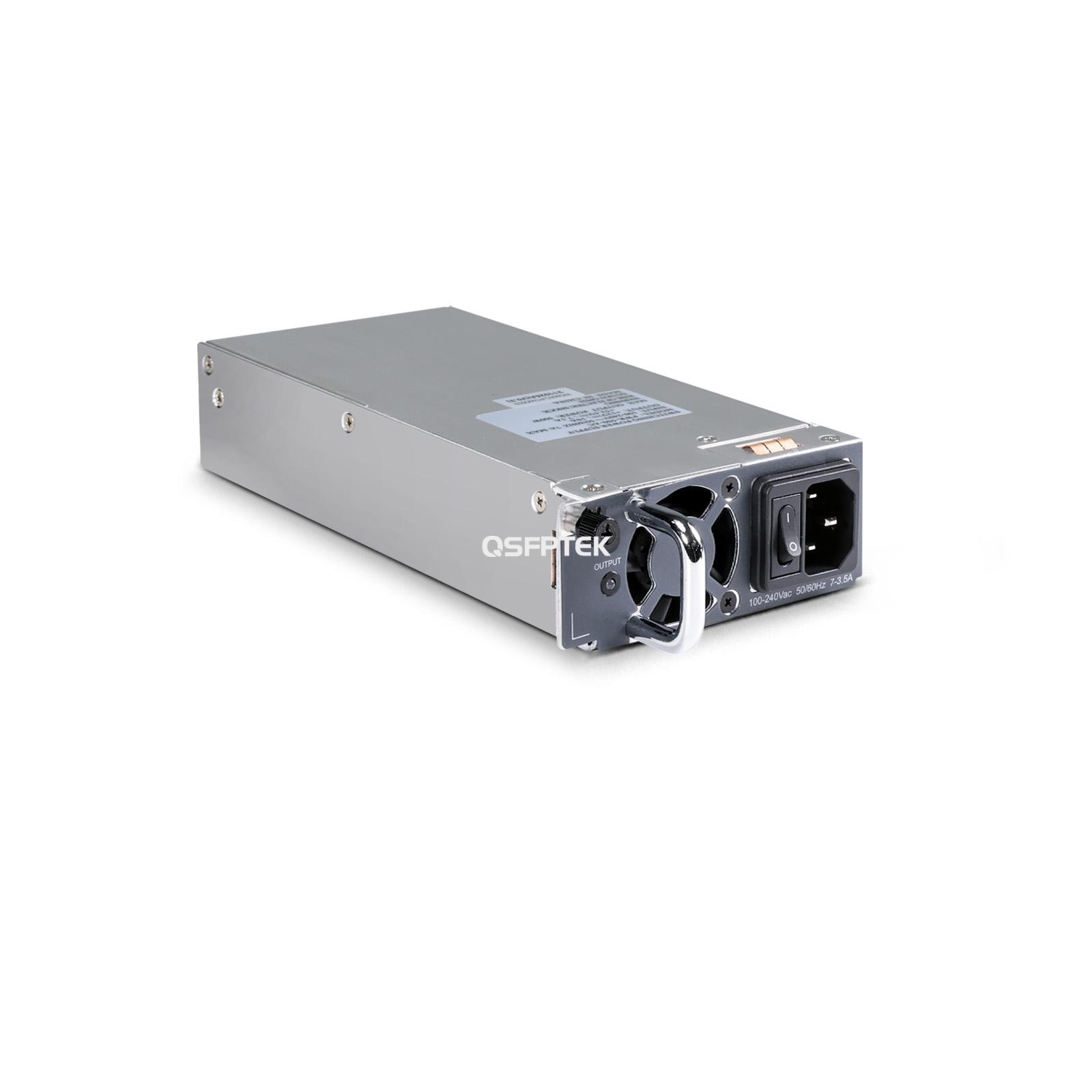

Power Supply 1 hot-swap AC power supply (default)
1+1 redundant power slots, DC optional
Max. Power Consumption 62W (without PoE); ≤1000W(with PoE)
Fan Quantity 3 built-in smat fans Air Flow Left to right
PoE Standard IEEE 802.3af/at PoE Power Budget 760 W
Stackability 8 Weight 6 kg
MTBF > 20,000 Hours Operating Temperature -10 to 45℃ (14 to 113℉)
Dimensions (H x W x D) 44.6 x 442.5 x 355 mm
(1.76 x 17.42 x 13.98″)
Warranty 5 Years
Quality Testing Program
Quality Certifications

Features

  • 1. All round Stackable L3 Managed POE+ switch
    Support Layer 2 and Layer 3 multicast routing protocol Support Stack up to 8 units
  • 2. Security+
    Supports IEEE 802.1x, QoS, Radius, Tacacs+, Anti-attack from DDoS, TCP/UDP Flood, IP+MAC+port binding, etc.
  • 3. High power budget
    Supports 760W of PoE+ power;
  • 4. Management
    Supports CLI, WEB, Telnet, FTP, SSH, SSL, SNMP.

Product details

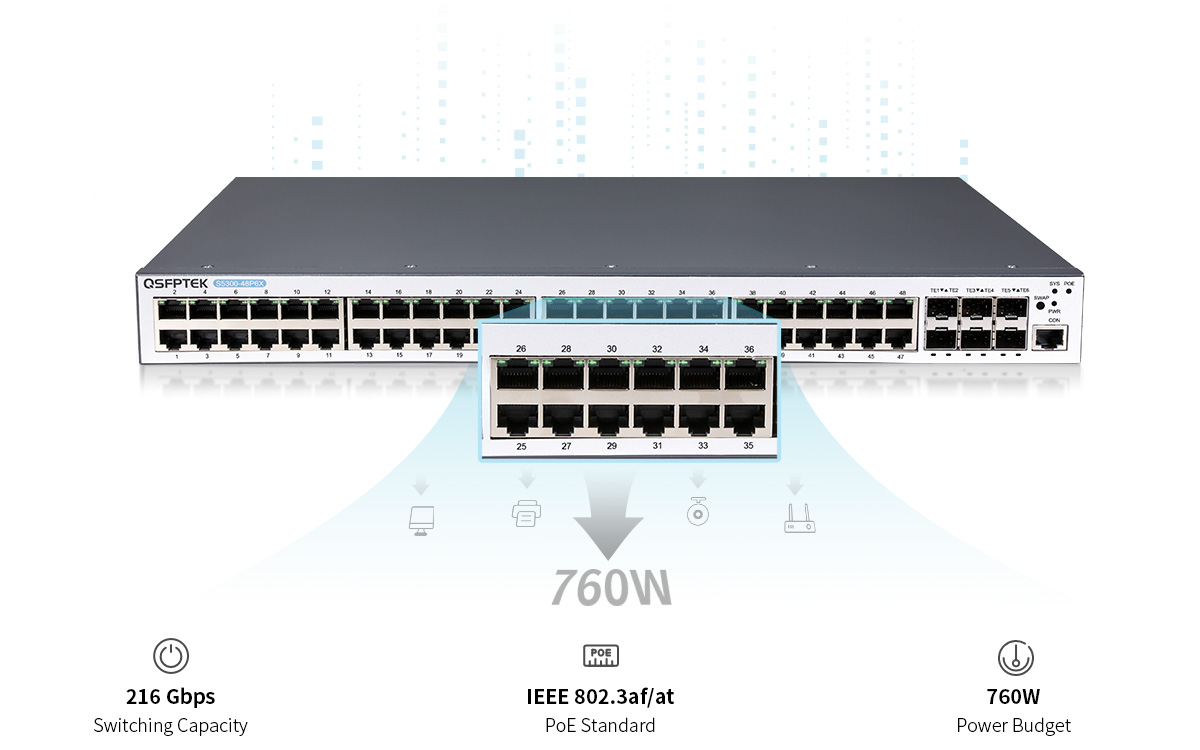

L3 Gigabit PoE/PoE+ Access Switch for Different Power Applications



S5310-48P6X has 48x 1G RJ45 PoE ports and 6x 10GE/GE, SFP+/SFP combo ports, providing high-density and converged copper and fiber connections.

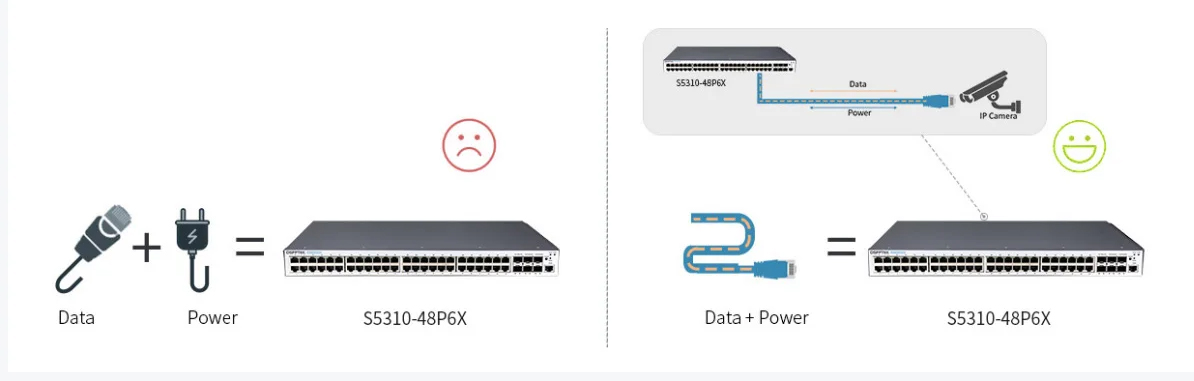

Compliant with PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) standards, it can auto-negotiate to the power required by the PDs and deliver a max 15.4W or 30W per port power and 760W total PoE budget.

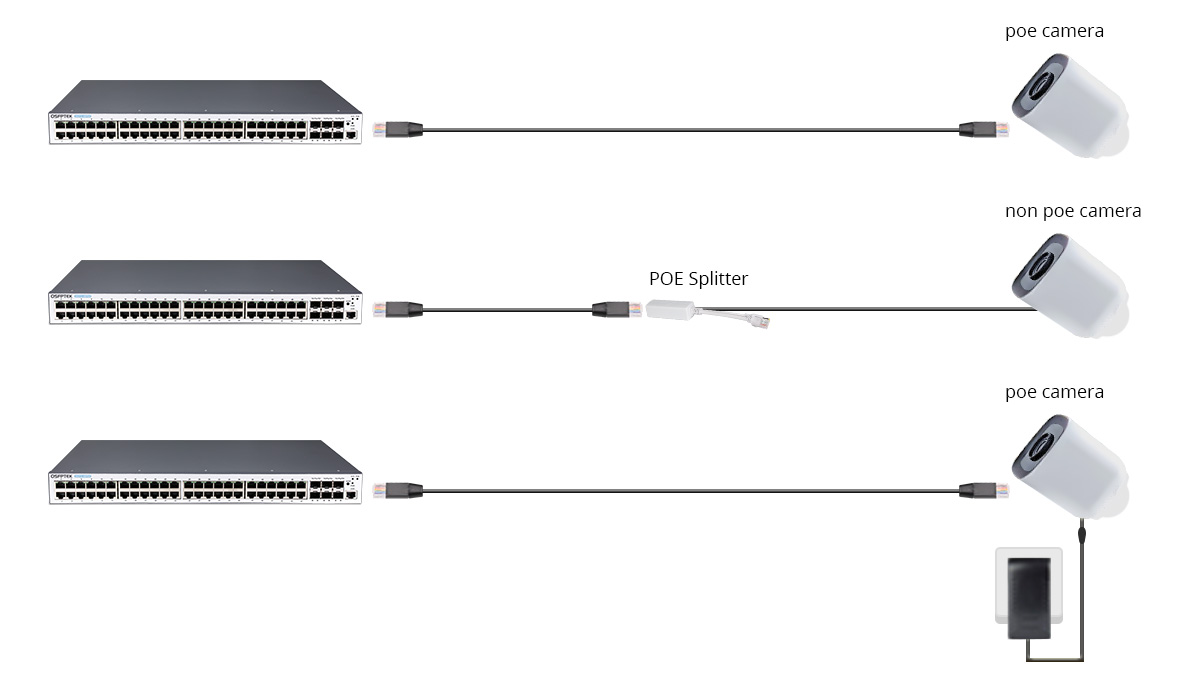

PoE and Non PoE Device Connection



PoE devices can be directly connected through cables. If non-PoE devices require simultaneous power and data transmission, a PoE splitter is needed. For data transmission only, an Ethernet cable can be used for direct connection. The PoE switch will identify whether the device is a PoE device, and if not, it will not deliver power to the device, preventing damage to the equipment.

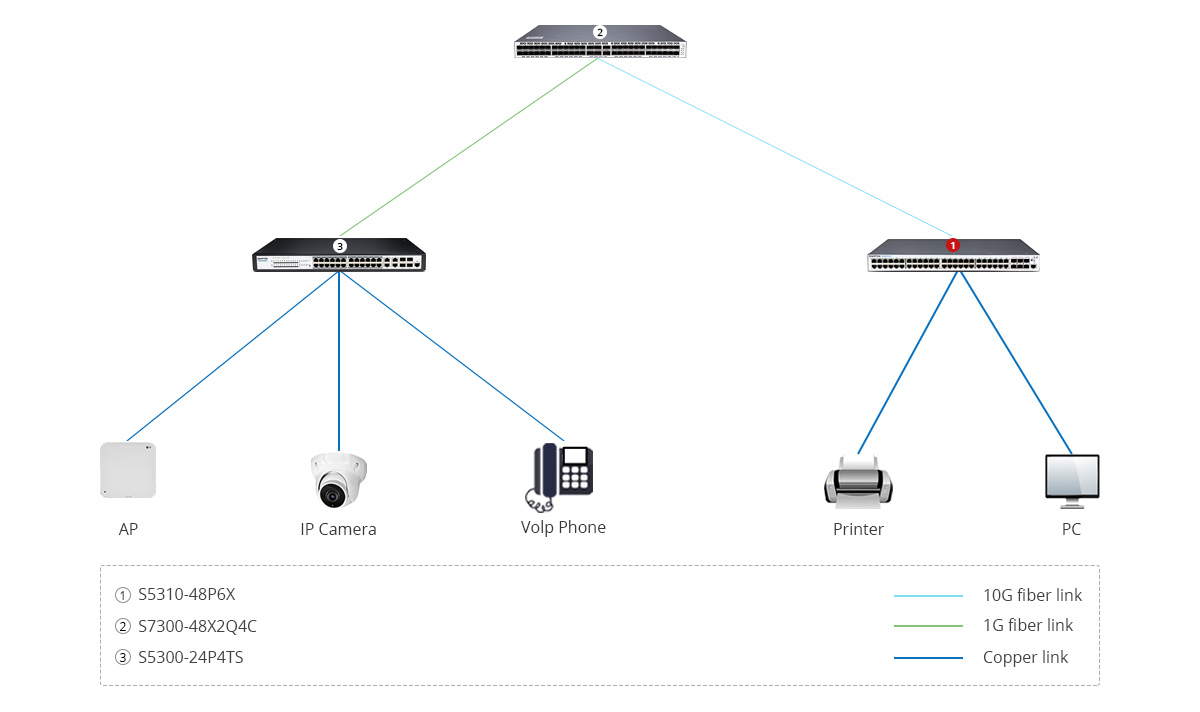

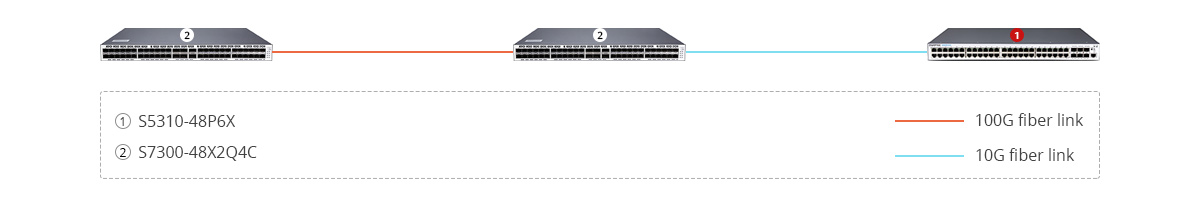

Cater to Multiple Application Scenarios



PoE switches are widely used to power PDs such as IP phones, IP cameras, wireless APs.

The most common applications are remote security solutions, VoIP solutions, surveillance solutions, wired and wireless deployment in almost all business scenarios.








GE PoE Switches Contrast Table



Model S5300-8P2S S5300-24P4TS S5300-24P4X S5300-48P6X S5310-48P6X
RJ45 Ports 8x 10/100/1000BASE-T 24x 10/100/1000BASE-T 24x 10/100/1000BASE-T 48x 10/100/1000BASE-T 48x 10/100/1000BASE-T
Fiber Ports 2x 1G SFP 4x 1G RJ45/SFP Combo 4x 10G SFP+ 6x 10G SFP+ 6x 10G SFP+
PoE IEEE 802.3af/at IEEE 802.3af/at IEEE 802.3af/at IEEE 802.3af/at IEEE 802.3af/at
Management Layer L2+ Managed L2+ Managed L2+ Managed L2+ Managed L3 Managed
Power Supply 1 Built-in AC Power Supply 1 Built-in AC Power Supply 1 Built-in AC Power Supply 1 + 1 Redundant Power Supplies (1 Built-in AC + 1 Built-in DC) 1 Hot-Swap AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
Fan Fanless 3 Built-in Fans 2 Built-in Fans 2 Built-in Fans 3 Built-in Fans
Stackability / / 2 Units 8 Units 8 Units
Data Link Layer QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP
Routing Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP v1/v2, OSPF, BGP
Security IGMP Snooping, DHCP Snooping, DAI, Port security IGMP Snooping, DHCP Snooping, DAI, Port security IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, DHCP snooping, Port security
IPv6 IPv4/v6 dual stack IPv4/v6 dual stack IPv6 Static Routing, RIPng,
OSPFv3
IPv6 Static Routing, RIPng,
OSPFv3
IPv6 Static Routing, RIPng, OSPFv3, BGP4+
Reliability QoS, ISSU QoS, ISSU QoS, VRRP, ISSU QoS, VRRP, ISSU BFD, QoS, LLDP, VRRP, PBR


Questions & Answers

more+
  • Can I use S5300-24P4TS to power 6x IP cameras at each up to 30w PoE+?
    Yes, this switch has a max of 370W PoE budget. It can power up to 12x 30W PoE+ cameras theoretically.
  • Is S5300-24P4TS stackable?
    No, this switch does not support stacking. If you need a stackable PoE+ switch, the S5300-24P4X PoE+ switch is recommended.
  • Can I use S5300-24P4TS to connect non-PoE devices such as computers?
    Yes, this switch will auto-detect whether the device is PoE or non-PoE. If not, it will run as a regular non-PoE switch.
