S5300-24P4TS, 24-Port Gigabit Ethernet L2+ Managed Active 802.3af/at PoE+Switch, 24x 10/100/1000BASE-T RJ45 PoE+ Ports @370W, with 4x 1G RJ45/SFP Combo, Up to 100M Transmit, Support OSPF

Product No :100489
US$ 384.00  US$ 535.00
Series
100 in stock
20 in the U.S. Warehouse, 20 in the EU Warehouse | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange ;jsessionid=178385834B90167D43436055E77AEA1C
-
+
1. Supports PoE+ non-stop power Supply. 24x PoE+ ports provide up to 30W per port, total budget 370W
2. Active PoE switch compliant with IEEE 802.3 af/at, protects your equipment from damage
3. 3 Built-in Smart Fans and 1 built-in AC Power Supply
4. Rich L2+ Features: Static Routing, RIP, OSPF, etc.
5. Supports QinQ, IPv6, VLAN, etc.
6. Supports IGMP-Snooping and MVR Multicast Routing
7. Supports LACP, ERPS, ISSU, STP, RSTP, MSTP for Reliability
8. Anti-attack from DDoS and TCP/UDP Flood, and IEEE 802.1x, Radius, Tacacs+ for Security+
9. Supports Port Isolation, and ACL, QoS, DHCP-Snooping for Access and Traffic Control
10. Supports CLI/WEB/Telnet/SSH/SSL/SNMP management
See more

Specifications

S5300-24P4TS, 24-Port Gigabit Ethernet L2+ Managed Active 802.3af/at PoE+Switch, 24x 10/100/1000BASE-T RJ45 PoE+ Ports @370W, with 4x 1G RJ45/SFP Combo, Up to 100M Transmit, Support OSPF



The S5300-24P4TS is a managed Ethernet L2+ access PoE+ switch with 24x 10/100/1000BASE-T RJ45 PoE+ ports and 4x 1G RJ45/SFP combo ports, up to 100M Transmit, supporting OSPF. This 24 port PoE switch, supporting a switching capacity of up to 56 Gbps and a forwarding rate of 42 Mpps for stable transmission, functioning as a Power Sourcing Equipment (PSE), delivers both power and data over one Ethernet cable to Powered Devices (PDs) such as Wireless APs, IP security cameras, and VoIP phones. Its integrated power and data delivery simplifies installation, reduces costs, and provides a cost-effective SMB secure wireless solution. S5300-24P4TS ethernet managed switch is equipped with 3 smart fans to enhance network reliability. Effortlessly control and manage the switch through both CLI and WEB interfaces. The S5300-24P4TS PoE+ switch is an excellent choice for enterprise network requirements, surveillance systems, and SMBs.


Part Number S5300-24P4TS Vendor Name QSFPTEK
Ports 24x 10/100/1000BASE-T RJ45 PoE+| 4x 1G RJ45/SFP Combo Packet Buffer 512 KB
Switching Capacity 56 Gbps Forwarding Rate 42 Mpps
MAC Address 8K ARP Table 384
VLAN IDs 4K Jumbo Frame 9K
Flash Memory 16 MB RAM 128 MB
Airflow Left-to-right Fan 3 built-in fans
Input Voltage 100 to 240 VAC, 50Hz±10% Power Supply 1 built-in AC power supply (default)
Stackability None MTBF > 50,000 Hours
PoE Standard IEEE 802.3af/at Power Budget 370 W
Dimensions (H x W x D) 44 x 440 x 210 mm
(1.73 x 17.32 x 8.27")
Weight 3.1 kg
Operating Temperature -10 to 45℃ (14 to 113℉) Warranty 5 years



Quality Testing Program
Quality Certifications

Features

  • 1. PoE/PoE+
    IEEE 802.3af/at PoE/PoE+ standards, up to 15.4W/30W power per port with 370W PoE+ budget
  • 2. IPv6
    Supports IPv4/IPv6 dual-stack, IPv6 routing, IPv6 neighbor discovery, ICMPv6, IPv6-based Telnet, Ping, Traceroute, ACL.
  • 3. Security+
    Supports IEEE 802.1x, QoS, Radius, Tacacs+, Anti-attack from DDoS, DHCP Snooping, IP+MAC+Port Security, etc.
  • 4. Reliability & Management
    LACP, ERPS, ISSU, STP, RSTP, MSTP for Reliability; CLI, WEB, Telnet, FTP, SSH, SSL, SNMP management

Applications

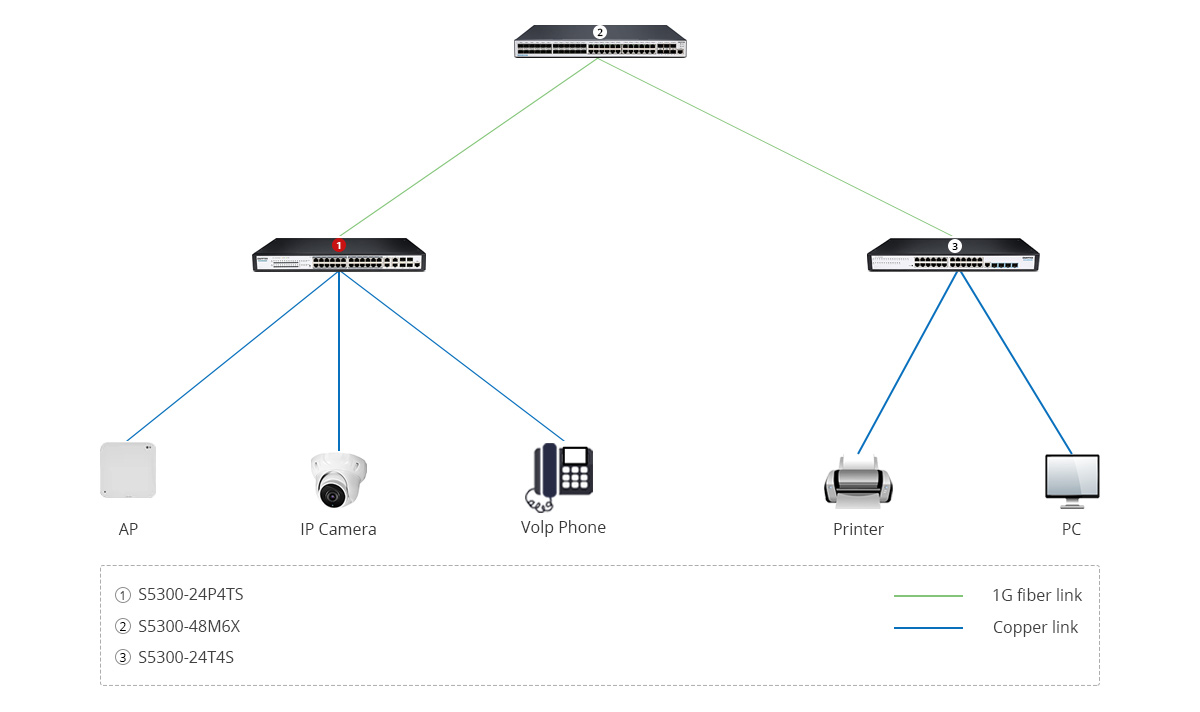

Scenario 1: Converged Wired and Wireless Solution



Related Products:

Network switches:

S5300-48M6X 48-Port Stackable L3 Switch, 24x 1G RJ45, 24x 1G SFP with 6 x 10Gb SFP+ Uplinks

S5300-24T4S 24-Port Fanless Gigabit Ethernet L2+ Access Switch, 24x 1G RJ45 Ports with 4x 1G SFP Uplinks



1G fiber link:

Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module

1m LC UPC to LC UPC Duplex OM4 Multimode Fiber Patch Cable



Copper link:

Cat6 Network Ethernet Patch Cable Snagless Unshielded (UTP), PVC CM, Blue

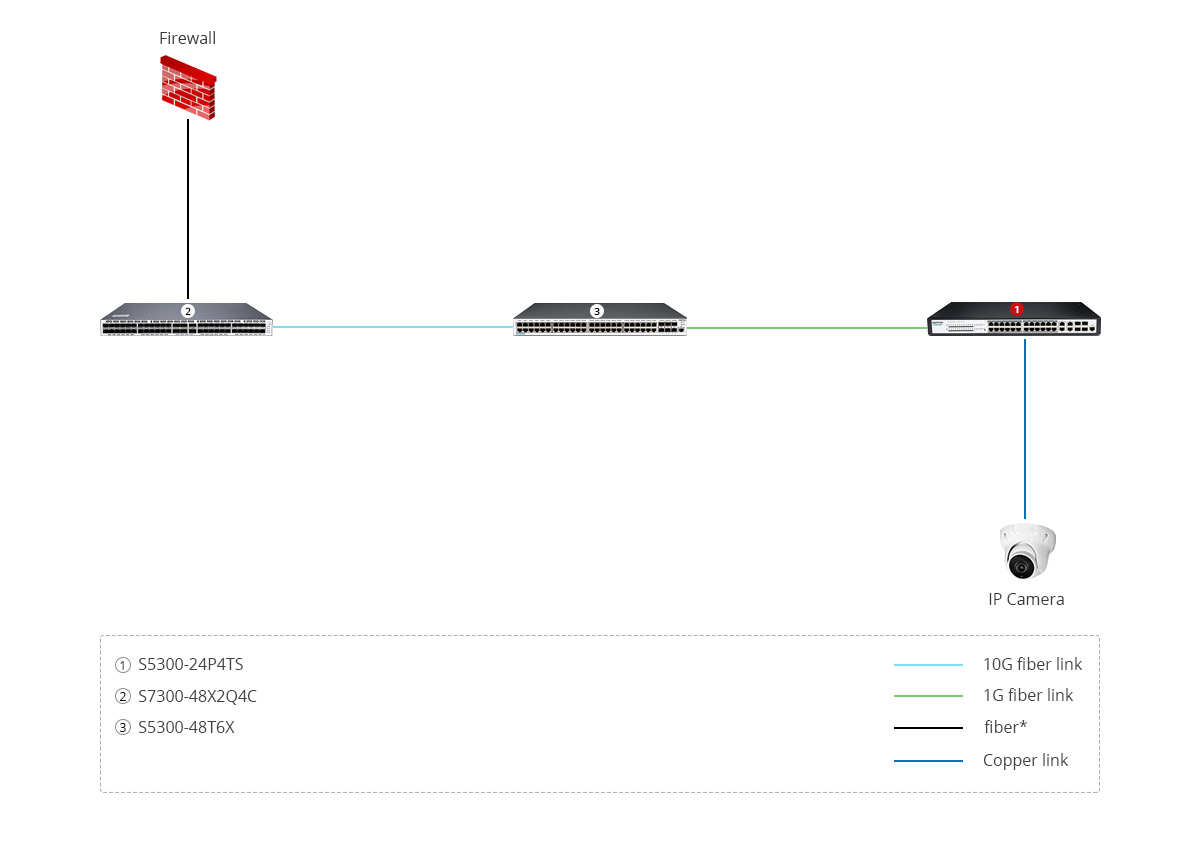

Scenario 2: Security Surveillance Solution



Related Products:

Network switches:

S7300-48X2Q4C 48-Port Stackable Ethernet L3 Campus Switch, 48x 10Gb SFP+ with 2x 40Gb QSFP+ and 4x 100Gb QSFP28 Uplinks

S5300-48T6X 48-Port Stackable L3 Switch with 48x 1G RJ45 and 6 x 10Gb SFP+ Uplinks



10G fiber link:

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

LC UPC to LC UPC Duplex OM3 Multimode Fiber Patch Cable



1G fiber link:

Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module

1m LC UPC to LC UPC Duplex OM4 Multimode Fiber Patch Cable



Copper link:

Cat6 Network Ethernet Patch Cable Snagless Unshielded (UTP), PVC CM, Blue



fiber*: The black line represents the optical fiber. The specific fiber type depends on the user's application scenario.





Product details

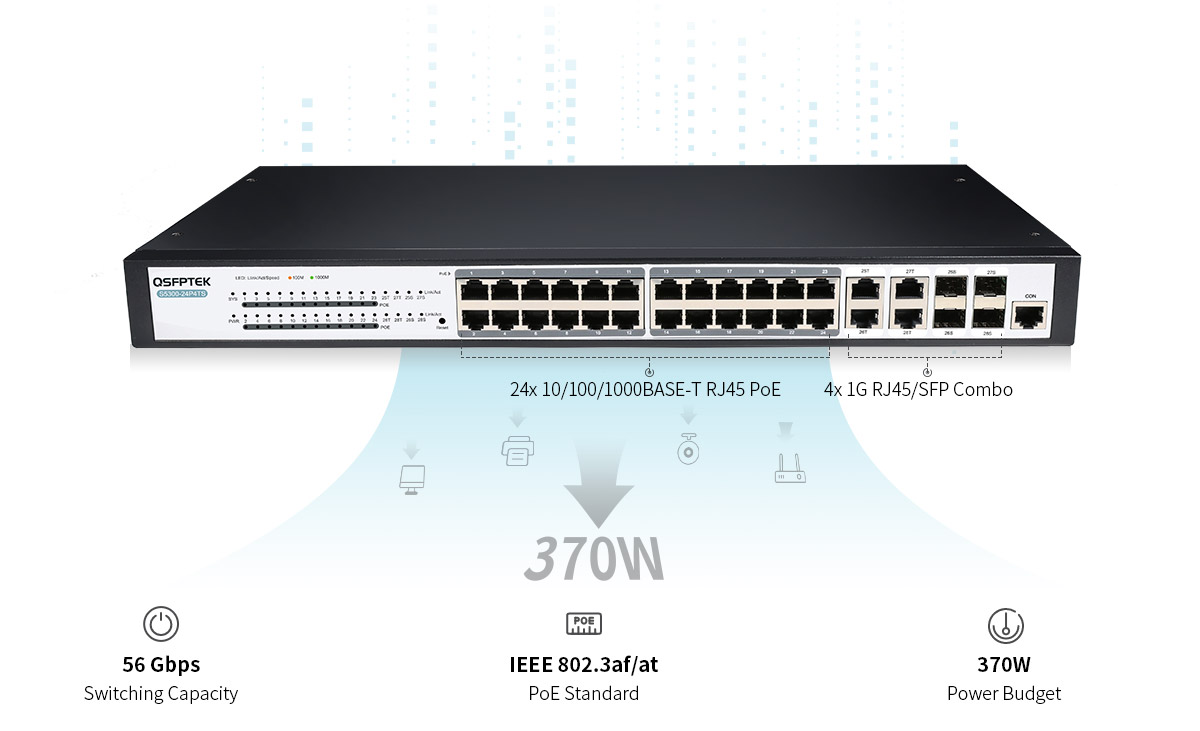

L2+ Gigabit PoE/PoE+ Access Switch for Different Power Applications



S5300-24P4TS has 24x 1G RJ45 PoE ports and 4x 1G RJ45/SFP combo ports, providing high-density and converged copper and fiber connections.

Compliant with PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) standards, it can auto-negotiate to the power required by the PDs and deliver a max 15.4W or 30W per port power and 370W total PoE budget.

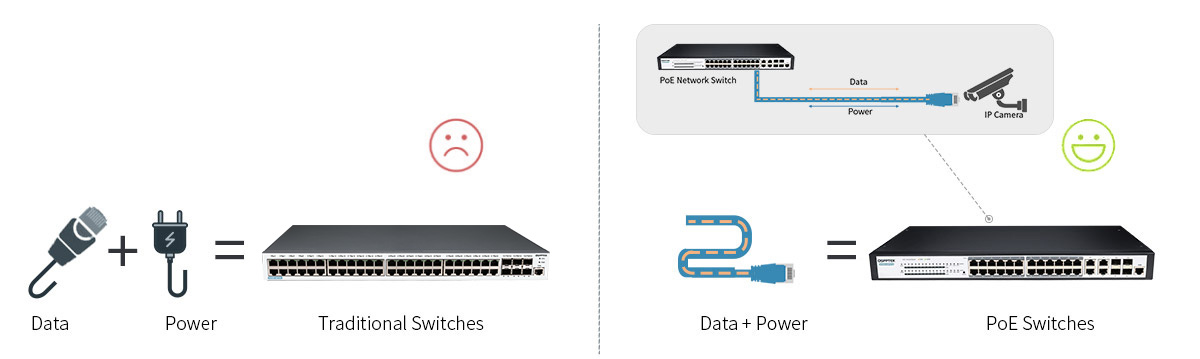

Unlock Switch PoE Benefits



PoE Switches can deliver data and power via a single Ethernet cable simultaneously, saving extra PSEs and power extension cables compared to traditional non-PoE switches.

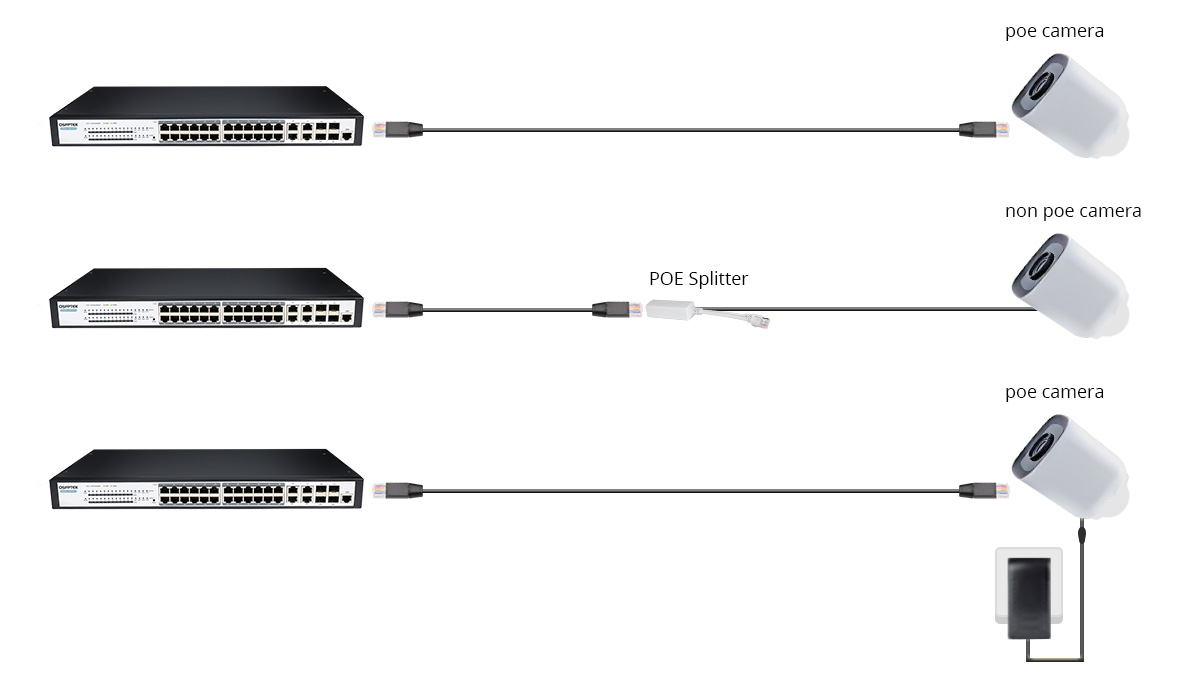

PoE and Non PoE Device Connection



PoE devices can be directly connected through cables. If non-PoE devices require simultaneous power and data transmission, a PoE splitter is needed. For data transmission only, an Ethernet cable can be used for direct connection. The PoE switch will identify whether the device is a PoE device, and if not, it will not deliver power to the device, preventing damage to the equipment.






Cater to Multiple Application Scenarios

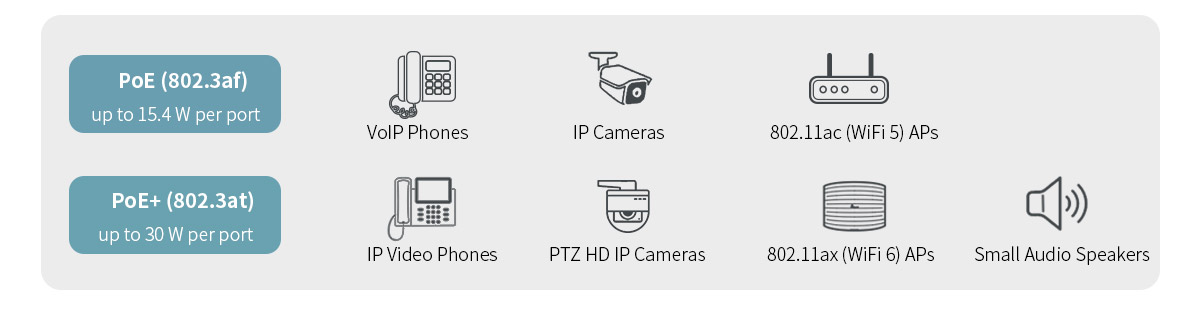

PoE switches are widely used to power PDs such as IP phones, IP cameras, wireless APs.

The most common applications are remote security solutions, VoIP solutions, surveillance solutions, wired and wireless deployment in almost all business scenarios.








GE PoE Switches Contrast Table



Model S5300-8P2S S5300-24P4TS S5300-24P4X S5300-48P6X S5310-48P6X
RJ45 Ports 8x 10/100/1000BASE-T 24x 10/100/1000BASE-T 24x 10/100/1000BASE-T 48x 10/100/1000BASE-T 48x 10/100/1000BASE-T
Fiber Ports 2x 1G SFP 4x 1G RJ45/SFP Combo 4x 10G SFP+ 6x 10G SFP+ 6x 10G SFP+
PoE IEEE 802.3af/at IEEE 802.3af/at IEEE 802.3af/at IEEE 802.3af/at IEEE 802.3af/at
Management Layer L2+ Managed L2+ Managed L2+ Managed L2+ Managed L3 Managed
Power Supply 1 Built-in AC Power Supply 1 Built-in AC Power Supply 1 Built-in AC Power Supply 1 + 1 Redundant Power Supplies (1 Built-in AC + 1 Built-in DC) 1 Hot-Swap AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
Fan Fanless 3 Built-in Fans 2 Built-in Fans 2 Built-in Fans 3 Built-in Fans
Stackability / / 2 Units 8 Units 8 Units
Data Link Layer QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP
Routing Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP v1/v2, OSPF, BGP
Security IGMP Snooping, DHCP Snooping, DAI, Port security IGMP Snooping, DHCP Snooping, DAI, Port security IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, DHCP snooping, Port security
IPv6 IPv4/v6 dual stack IPv4/v6 dual stack IPv6 Static Routing, RIPng,
OSPFv3
IPv6 Static Routing, RIPng,
OSPFv3
IPv6 Static Routing, RIPng, OSPFv3, BGP4+
Reliability QoS, ISSU QoS, ISSU QoS, VRRP, ISSU QoS, VRRP, ISSU BFD, QoS, LLDP, VRRP, PBR


Questions & Answers

more+
  • Can I use S5300-24P4TS to power 6x IP cameras at each up to 30w PoE+?
    Yes, this switch has a max of 370W PoE budget. It can power up to 12x 30W PoE+ cameras theoretically.
  • Is S5300-24P4TS stackable?
    No, this switch does not support stacking. If you need a stackable PoE+ switch, the S5300-24P4X PoE+ switch is recommended.
  • Can I use S5300-24P4TS to connect non-PoE devices such as computers?
    Yes, this switch will auto-detect whether the device is PoE or non-PoE. If not, it will run as a regular non-PoE switch.
