    16CH C21-36 Dual Fiber Unidirectional DWDM OADM, East Or West, 1U Rack Mount

    Product No: 100541
    19 Reviews
    210 Sold
    US$ 580.90  US$ 599.00
    Series
    Model
    100 in real-time stock, 24 Jun, 2026
    3-Year Warranty 90-Day Returns 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. This DWDM OADM MUX DEMUX has an insertion loss of less than 3.5dB at 100GHz.
2. A dark fiber network is used for dropping and adding 16 multiplexed channels.
3. All ITU-T 1G/10G/25G/40G/100G DWDM optics are fully compatible with this setup.
4. These are passive devices and do not require any power or cooling.
5. This setup supports DWDM networks for metro, regional, and long haul distances.
    See more

    Specifications

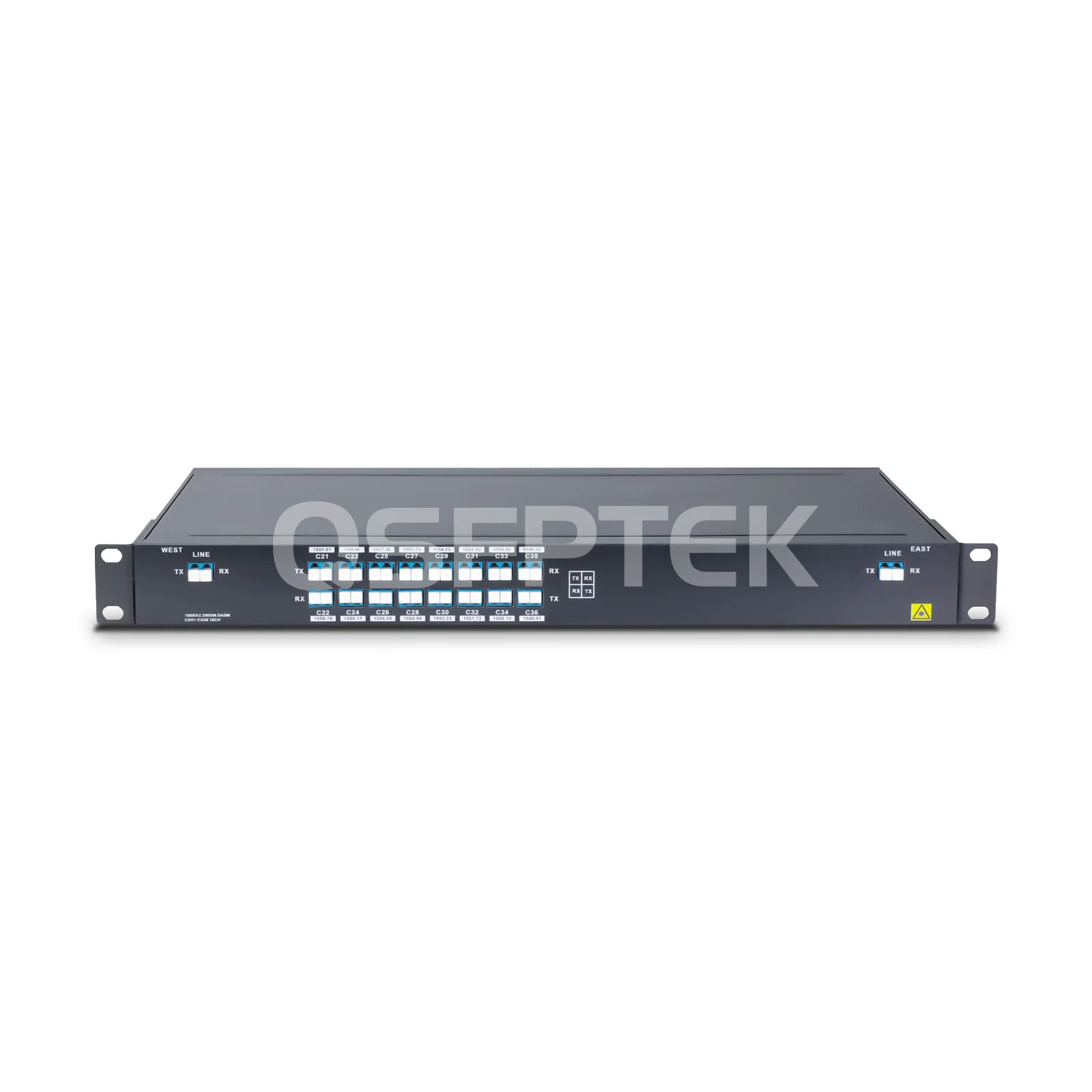

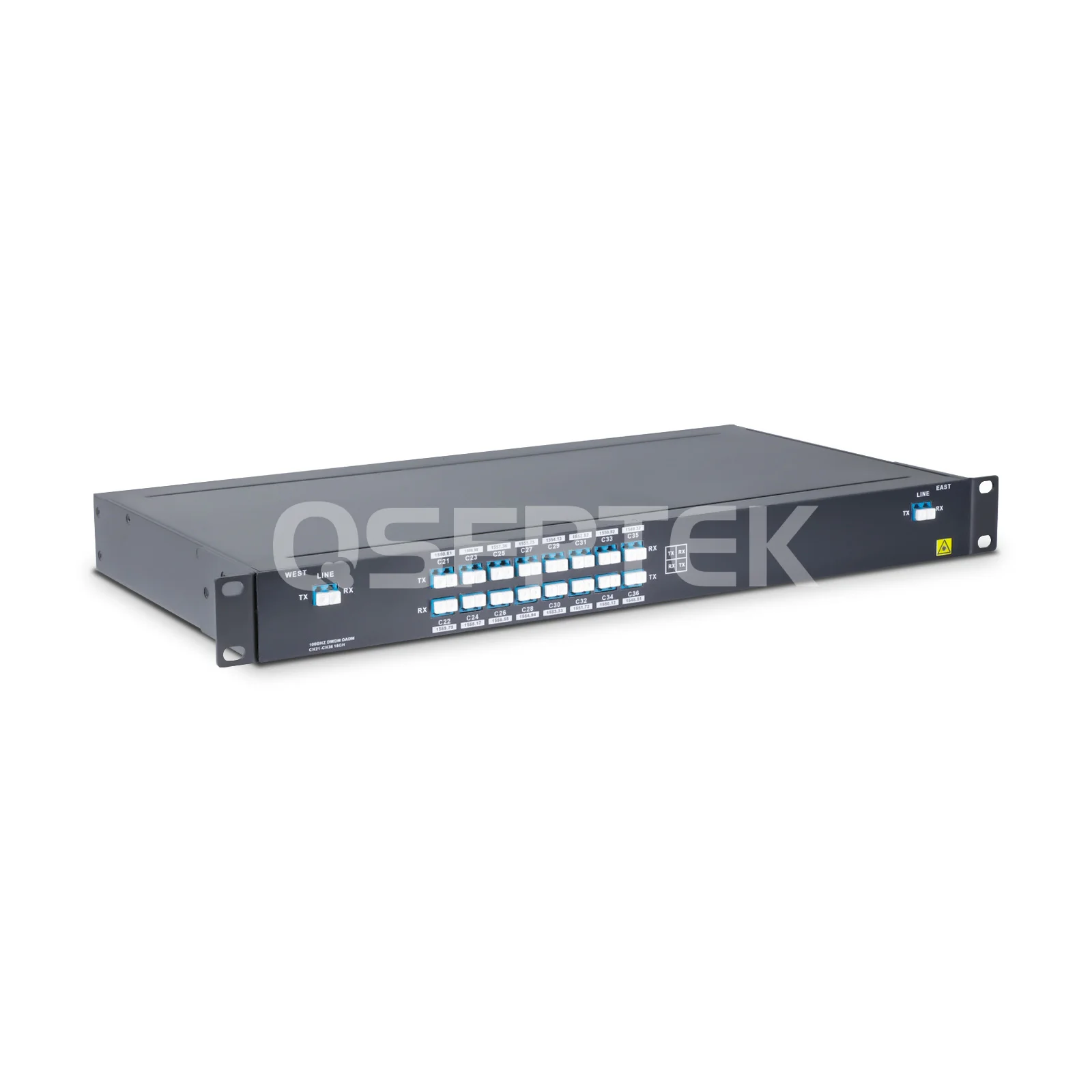

    Dual Fiber 16CH C21-C36 DWDM OADM, EAST Or West, LC/UPC, 1U Rack



    QSFPTEK has designed the 16-channel DWDM OADM with drop and add wavelengths ranging from C21 to C36, which correspond to 1560.61nm to 1548.51nm. The device supports a west-to-east wavelength range of 1270nm to 1547nm / 1553nm to 1620nm in accordance with the ITU-T G.694.1 100GHZ grid, allowing for maximum capacity within the C-band range.



    This is a completely passive DWDM device with 16 channels available for both drop and add functions using two fibers. The loss of waves in the west or east direction is less than 3.5dB, while the line loss in either direction is less than 3.3 dB.



    Part Number QT-1U-D16-EOW Installation Method 1U Rack Mount
    Wavelength 16 Channels C21-C36 Channel Spacing 100GHz (0.8nm)
    Channel Passband ±0.11nm Passband Ripple ≤ 0.2dB
    Insertion Loss ≤3.5dB ( Waves to West or East) Technology TFF (Thin Film Filter)
    Directivity ≥45dB Link Loss (West to East) ≤ 3.3dB
    Polarization Mode Dispersion (PMD) ≤ 0.1ps Return Loss ≥ 45dB
    Polarization Dependent Loss (PDL) ≤ 0.3dB Channel Isolation Adjacent ≥30dB
    Non-adjacent ≥ 45dB
    Operating Temperature -40 to 85°C (-40 to 185°F) Storage Temperature -40 to 85°C (-40 to 185°F)
    Dimensions (H x W x D) 44 x 440 x 230mm Net Weight 3.5KG
    Quality Certifications

    Features

    • 1. Optimal Optical Performance
      Low optical insertion loss, zero electrical power, no temperature control requirements, and easy installation make the best-in-class operational efficiency.
    • 2. Widely Application Scenarios
      It works with colored transceivers and supports such applications as 1G/10G/25G/40G/100G Ethernet, SDH/SONET.
    • 3. Optimize Fiber Capacity with WDM Network.
      In WDM networks, a single fiber can be shared for multiple different data or services. This maximizes the usefulness of fiber and generates substantial savings.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

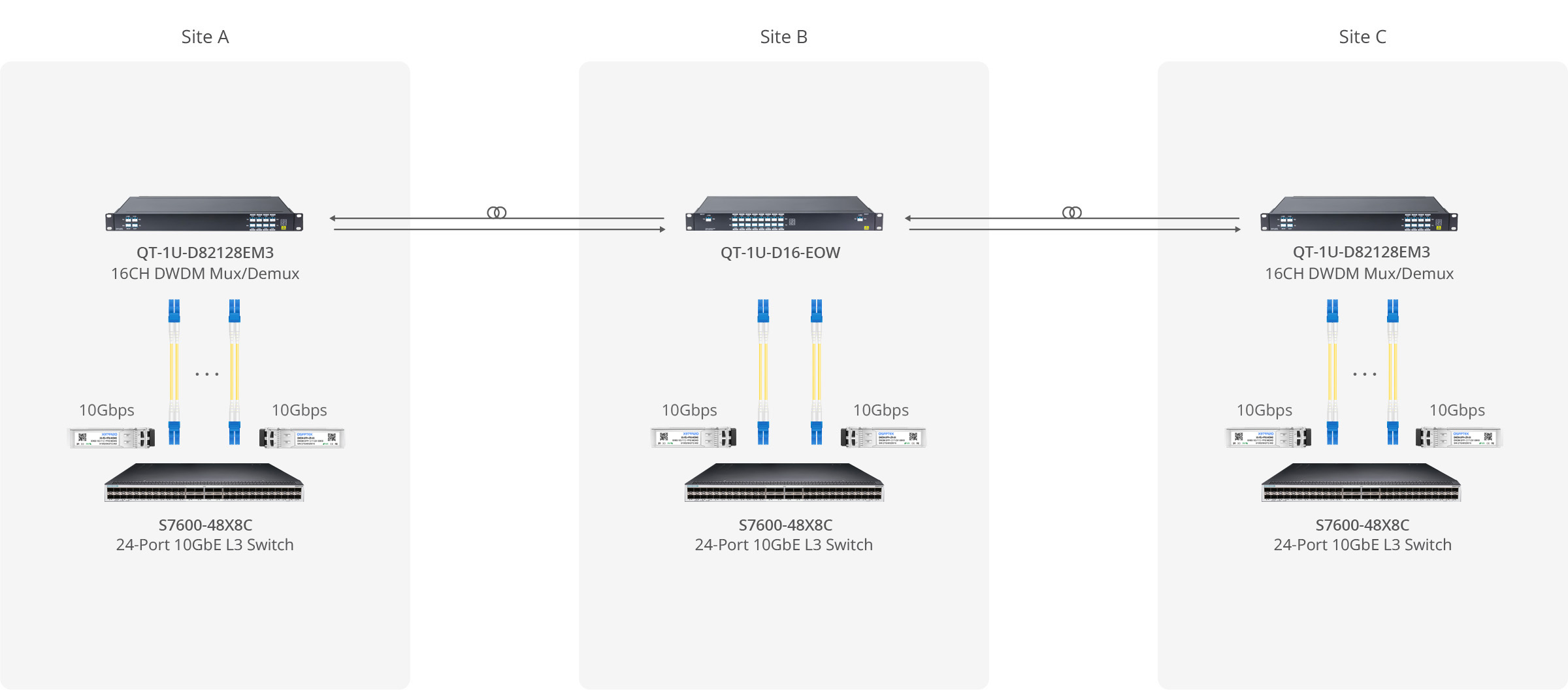

    Use Dual Fiber DWDM OADM for Unidirectional Passive 10G DWDM Network Solution up to 40KM

    Use Dual Fiber DWDM OADM for Unidirectional Passive 10G DWDM Network Solution up to 40KM

    Product details

    Rich Ports of the 16-Channel OADM Mux Demux

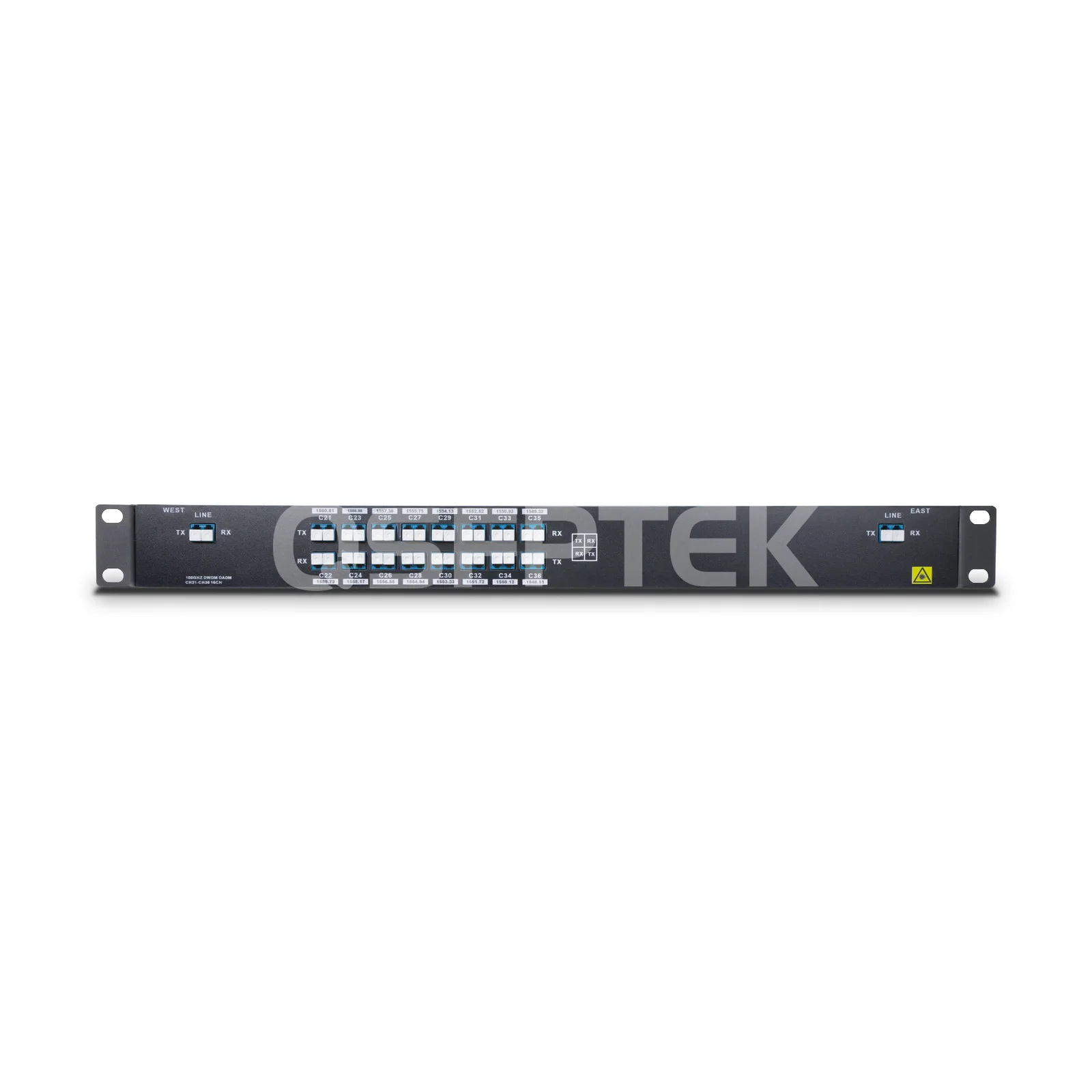

    The 16-channel ports (CH21 to CH36) are designed for OADM traffic. Supports custom addition of MON port and 1310 port.

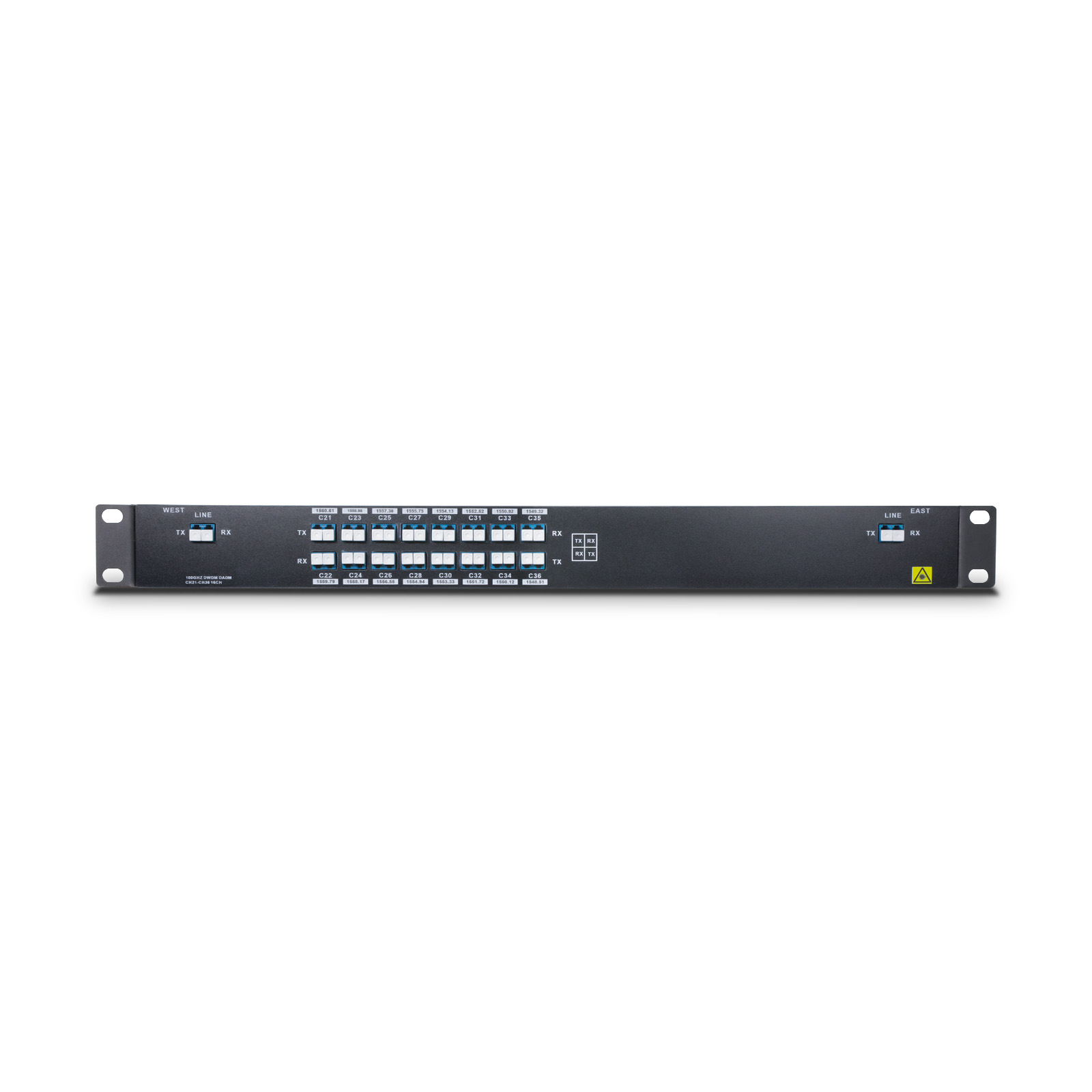

      Ports of QT-1U-D16-EOW DWDM Mux Demux

     Basic Principles of DWDM Multiplexing and Demultiplexing



    The Dual-fiber Unibidirectional DWDM OADM essentially combines multiplexing (Mux) and demultiplexing (Demux) functions. At the transmitting end, the Mux combines optical signals of different wavelengths into the same fiber for transmission; at the receiving end, the Demux separates these mixed multi-wavelength signals and restores them to their individual channels. The overall process is one of "merging" at one end and "demultiplexing" at the other, corresponding to each other.



    Dual Fiber





    QSFPTEK OADM Network Solution



    Using QSFPTEK OADM products to connect transponders, muxponders, and other WDM products enables a customizable Passive 10G DWDM Network Solution.

    West

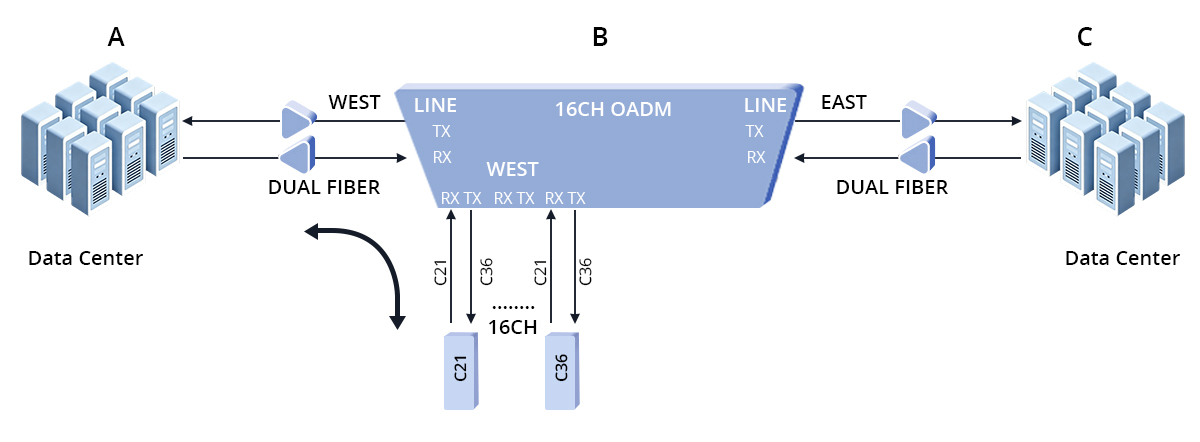

    16CH DWDM OADM to Wast Dual Fiber Transmission





    Comprehensive Network Solution Design for Free



    Individually crafted solutions meeting your specific requirements perfectly.

         Comprehensive Network Solution Design for Free
