1. Flexible 7.5mm Min. Bend Radius 2. Optimized for 40G/100G/200G/400G Transmission 3. MTP Connector with 12 Fibers 4. Compliant with ROSH 2.0 and MCD 5. LSZH jacketSee more

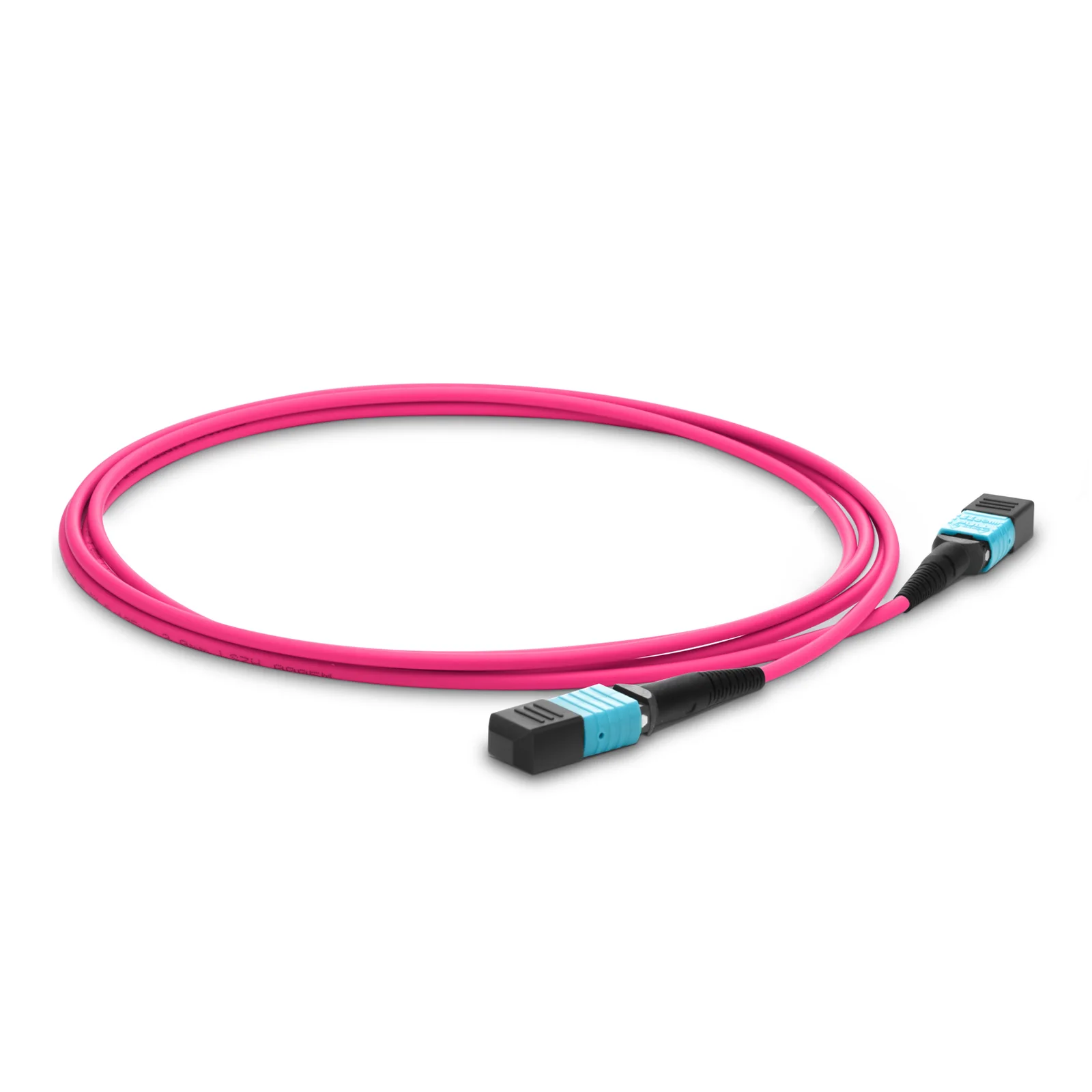

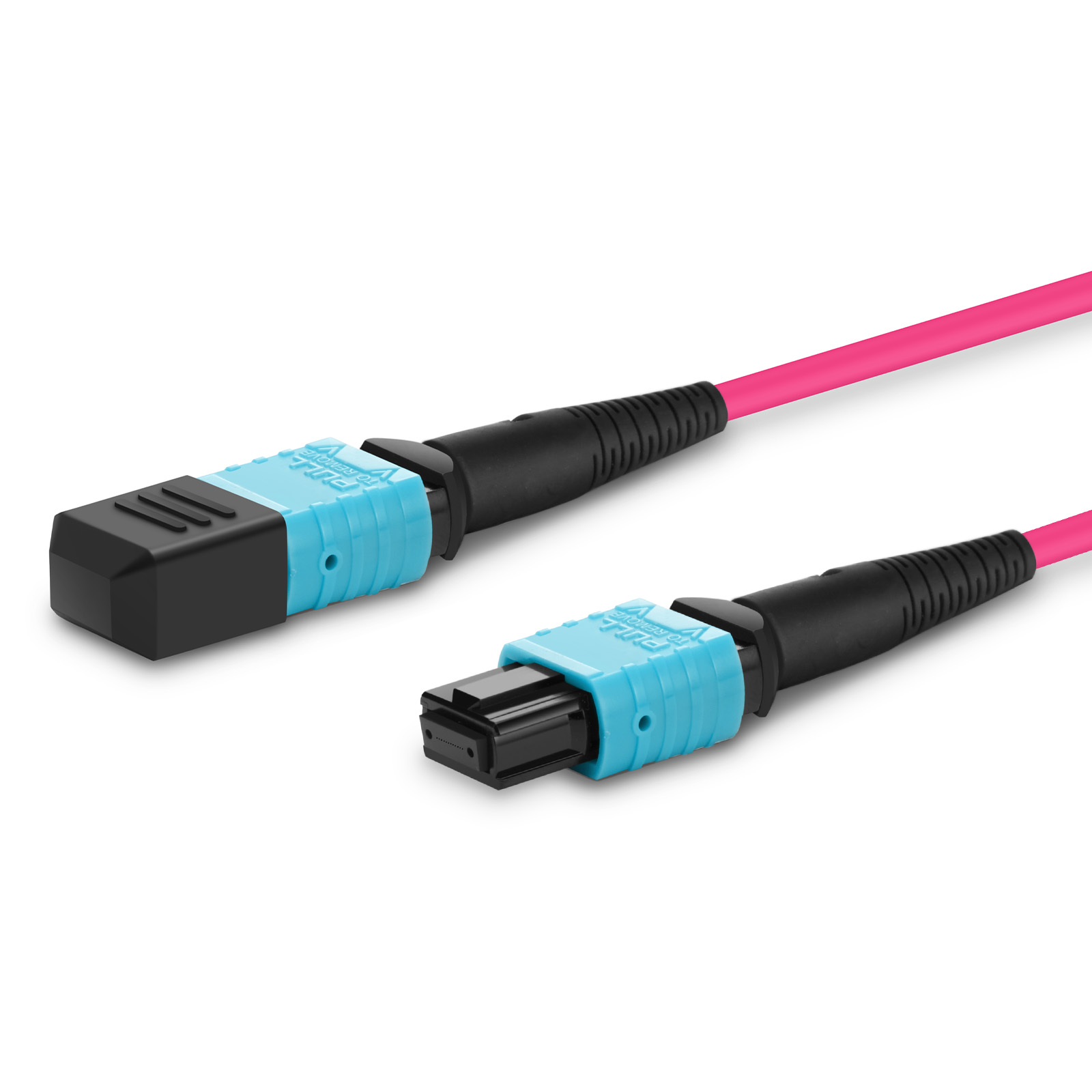

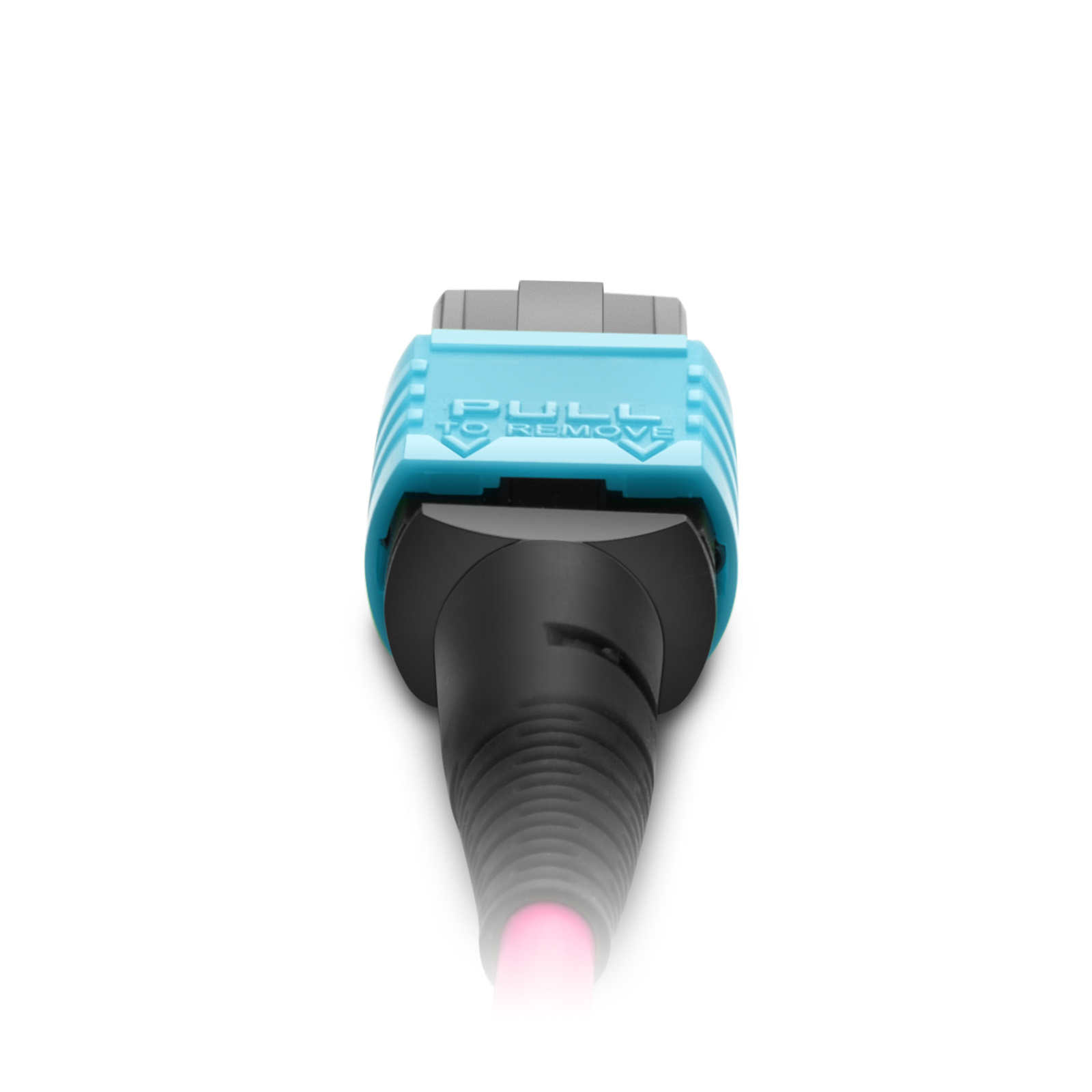

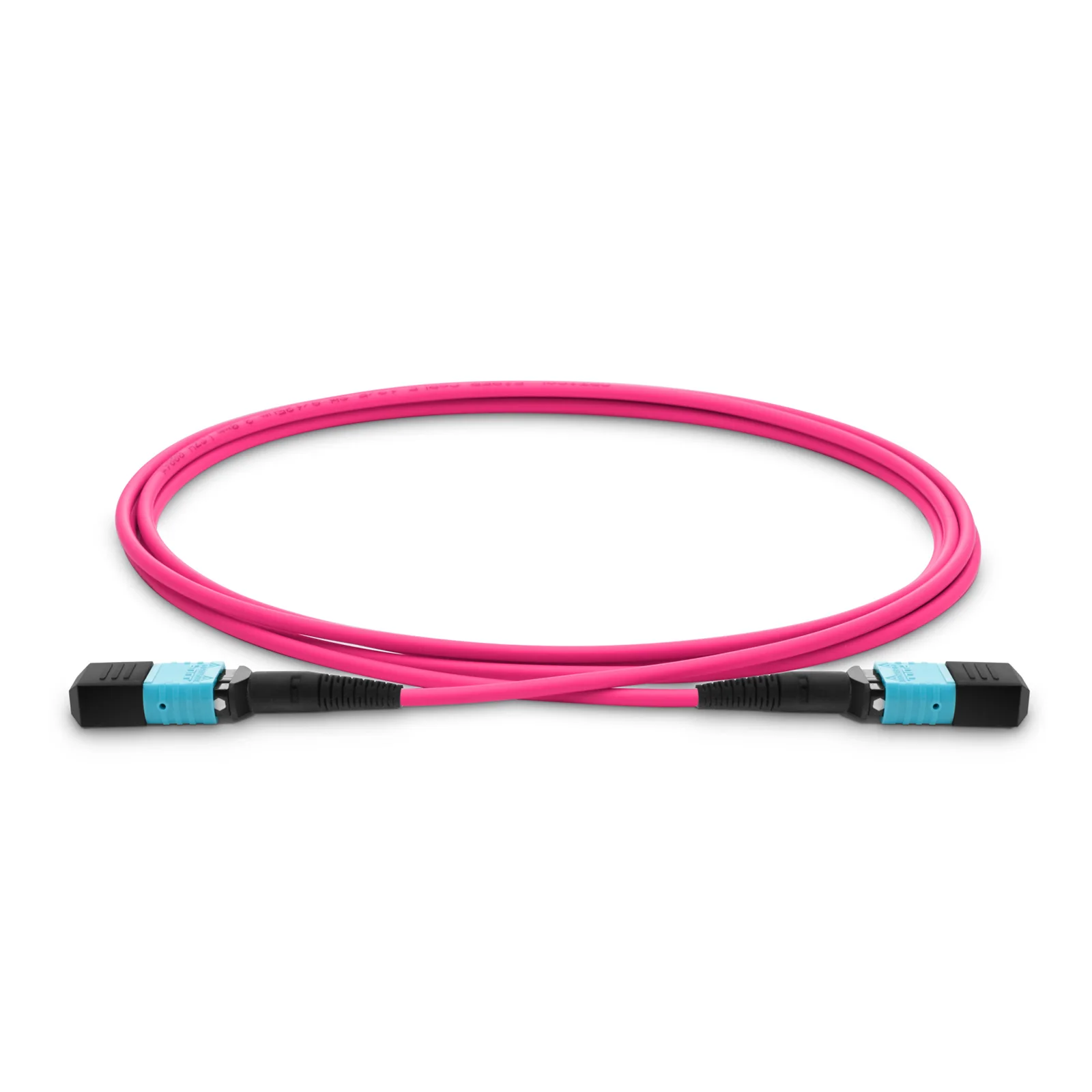

MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable
The MTP trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of standard duplex fiber optic cable connector. This MTP female to MTP female OM4 multimode trunk cable is specially optimized for 40G QSFP+ SR4, 100G QSFP28 SR4 optics direct connection, data centers and telecommunications systems applications.
|
Connector A: |
MTP Female |
Connector B: |
MTP Female |
|
Fiber Count: |
12 Fibers |
Fiber Type: |
OM4 MMF 50/125μm |
|
Polish Type: |
UPC to UPC |
Wavelength: |
850nm |
|
Armoured: |
No |
Cable Material: |
LSZH |
|
Insert Loss: |
0.35dB |
Return Loss: |
≥30dB |
|
Approximate Diameter: |
3.0mm |
Length: |
0.5m/1m/1.5m/2m/3m/5m/7m/10m |
|
Min. Bend Radius (Fiber Cable) Dynamic: |
10mm |
Min. Bend Radius (Fiber Cable) Static: |
10mm |
|
Operating Temperature: |
-20℃~+70℃ |
Storage Temperature: |
-40℃~+80℃ |
Take a look at our test program to get the reliable and high-performance optical transceivers.
Connection 1:
Related Products:
S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG
Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module
5m (16ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)
Connection 2:
Related Products:
S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG
Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module
1U 19" Modular Rack Mount Enclosure Unloaded, Holds up to 4 Fiber Adapter Panels, 96 Fibers (LC)
1U Horizontal Cable Management with 5 D-Rings, Rackmount, Single-Sided, 19 inch
5m (16ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)
With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.
This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.
Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.
Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.
Ensure high reliability and performance connections by maintaining clean fiber end-faces.
