    Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Multi Mode Trunk Cables / 100802

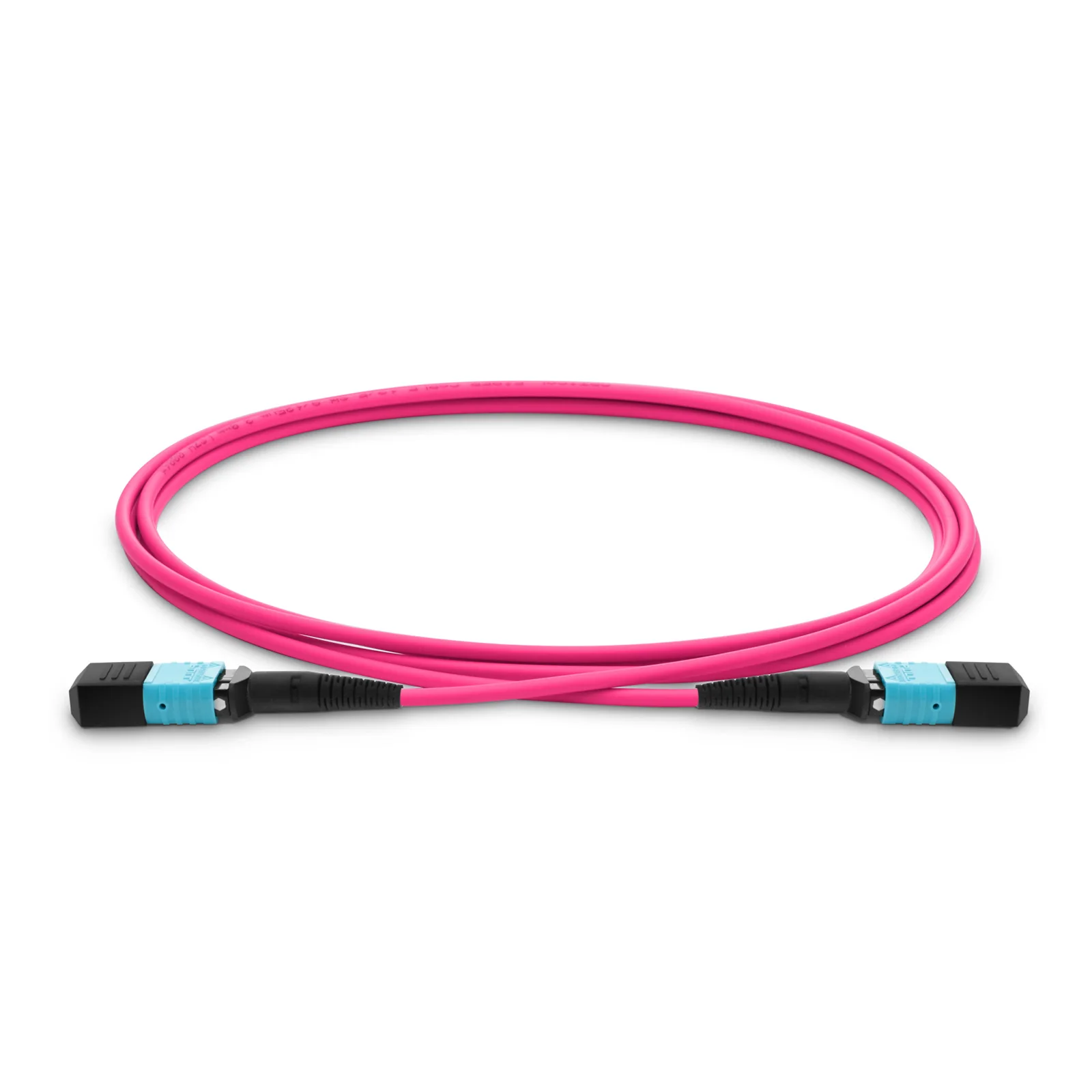

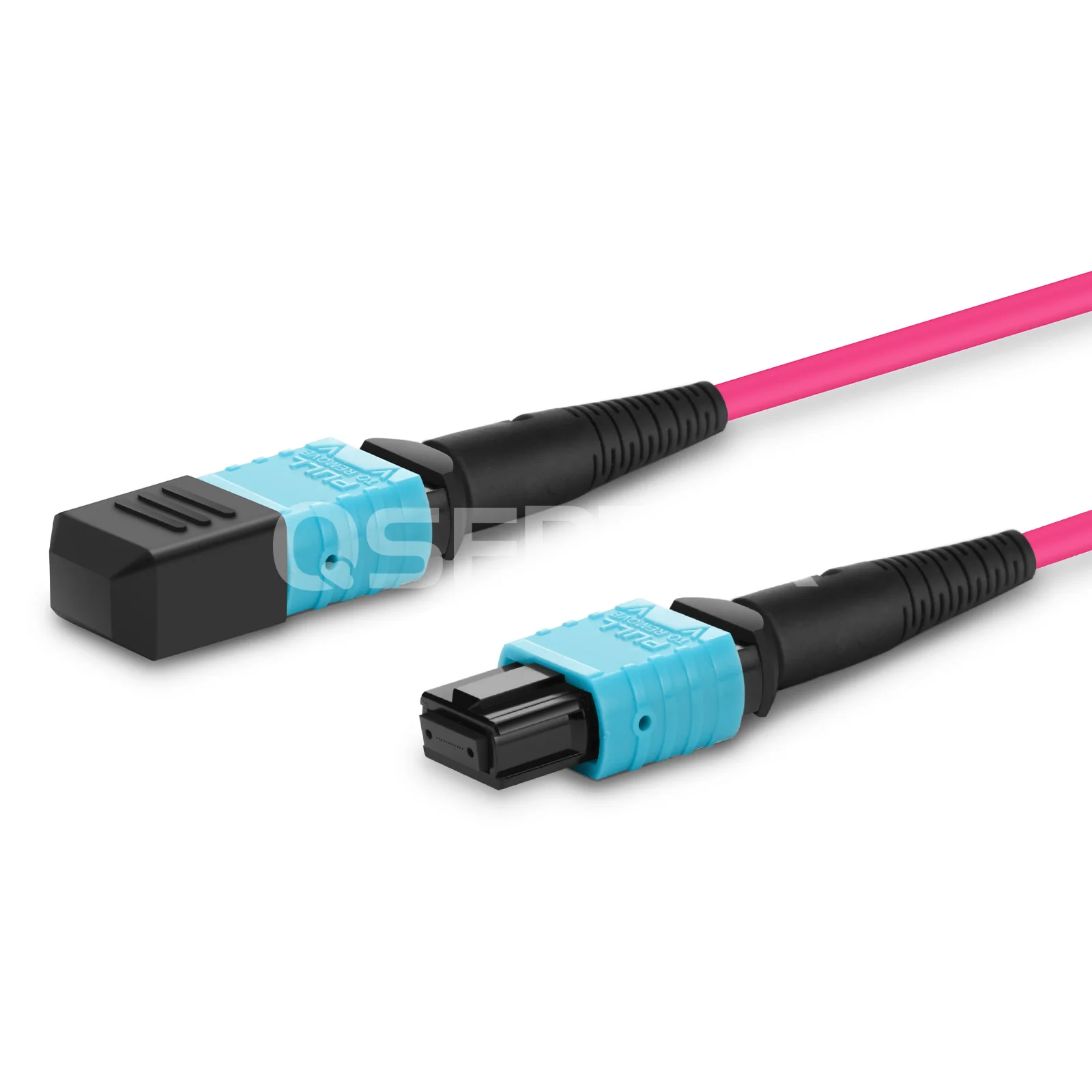

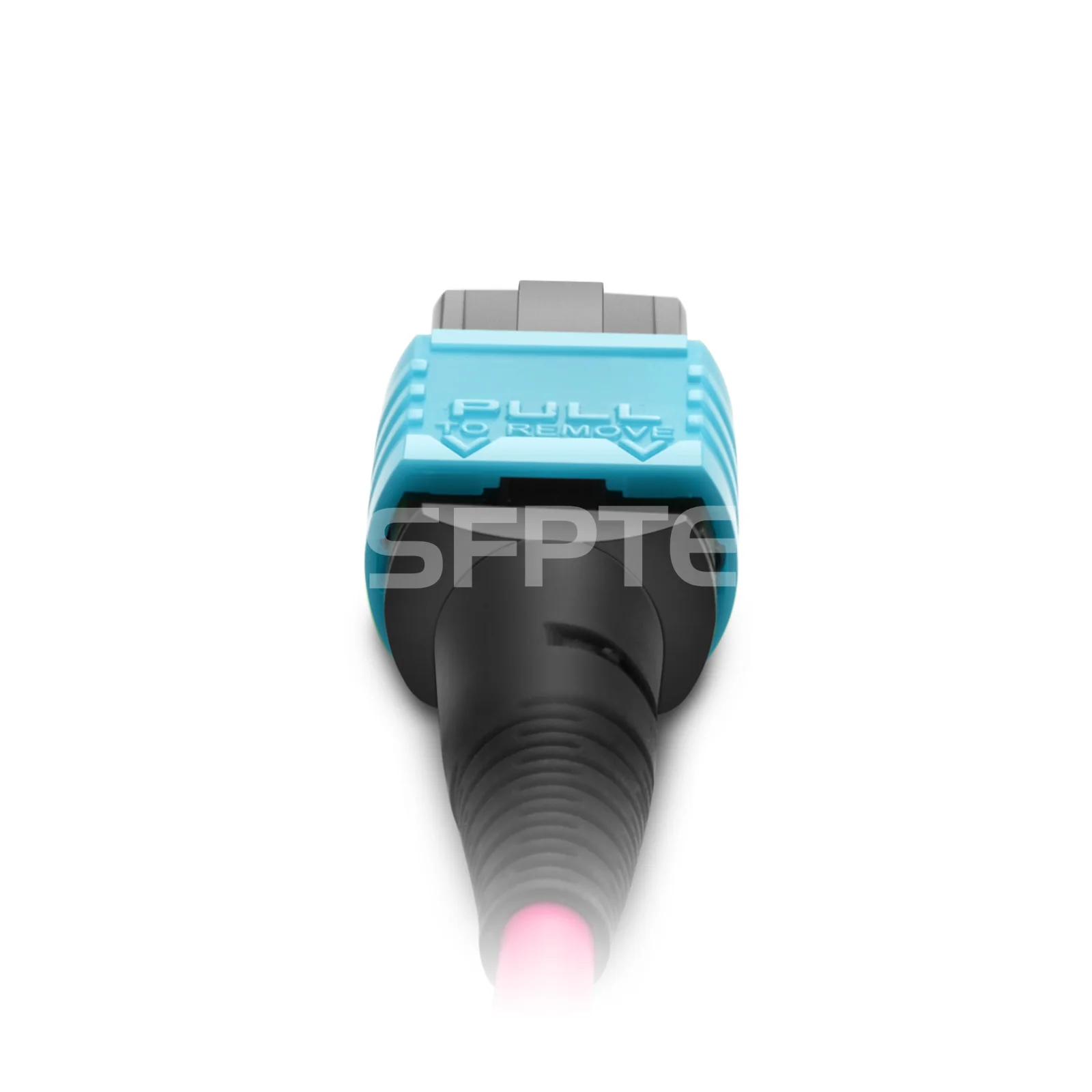

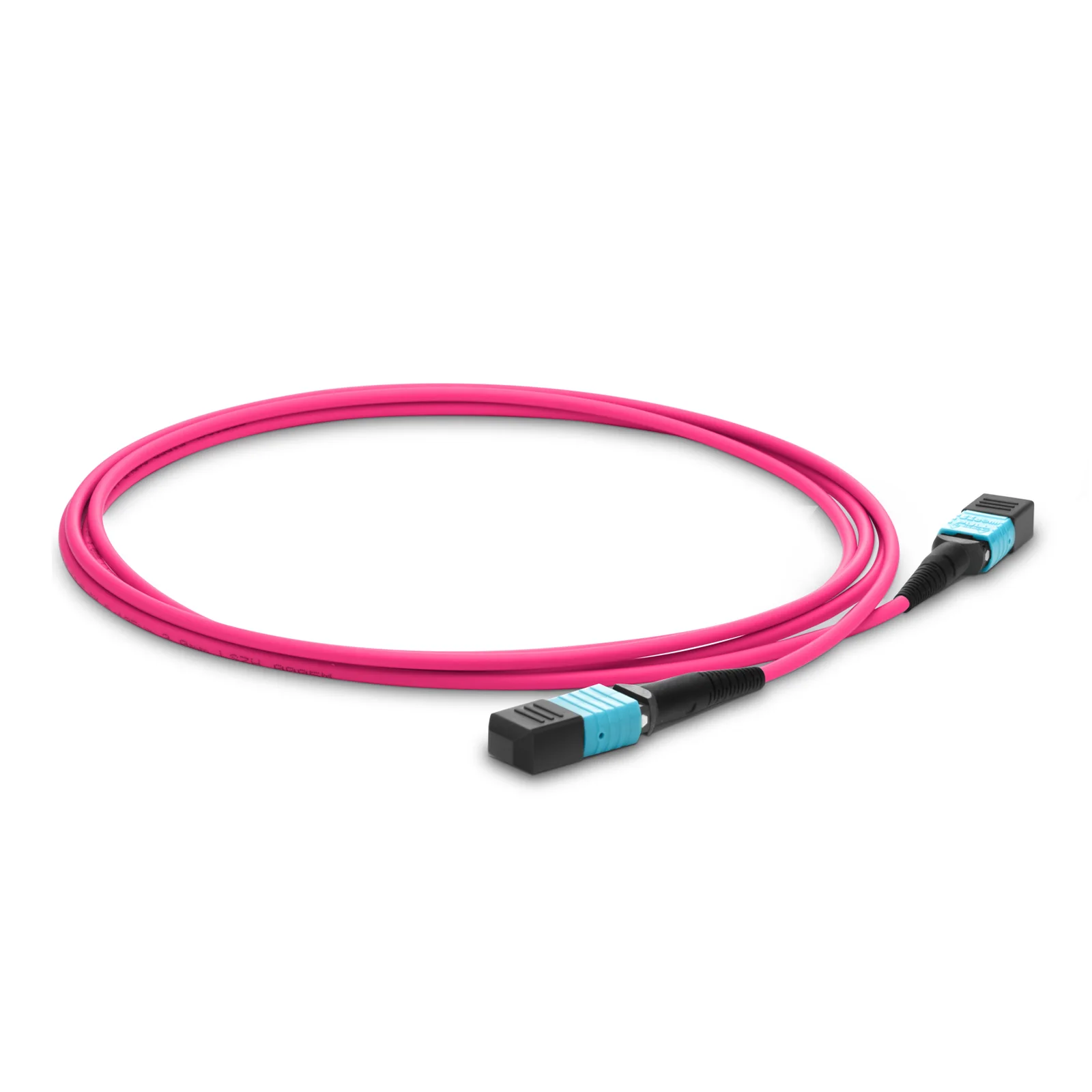

    10m (33ft) MTP-12 UPC (Female) to MTP-12 UPC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    Product No: 100802
    30 Reviews
    3.9K Sold
    US$ 69.30
    Series
    Length
    21 in real-time stock, 23 Jun, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Flexible 7.5mm Min. Bend Radius
2. Optimized for 40G/100G/200G/400G Transmission
3. MTP Connector with 12 Fibers
4. Compliant with ROSH 2.0 and MCD
5. LSZH jacket
    See more

    Specifications

    MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable


    The MTP trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of standard duplex fiber optic cable connector. This MTP female to MTP female OM4 multimode trunk cable is specially optimized for 40G QSFP+ SR4, 100G QSFP28 SR4 optics direct connection, data centers and telecommunications systems applications.





    Connector A:

    MTP Female

    Connector B:

    MTP Female

    Fiber Count:

    12 Fibers

    Fiber Type:

    OM4 MMF 50/125μm

    Polish Type:

    UPC to UPC

    Wavelength:

     850nm

    Armoured:

     No

    Cable Material:

     LSZH

    Insert Loss:

    0.35dB

    Return Loss:

    ≥30dB

    Approximate Diameter:

    3.0mm

    Length:

    0.5m/1m/1.5m/2m/3m/5m/7m/10m

    Min. Bend Radius

    (Fiber Core)

    7.5mm

    Min. Bend Radius

    (Fiber Cable)

    20/10D (Dynamic/Static)

    Operating Temperature:

      -20℃~+70℃

    Storage Temperature:

     -40℃~+80℃



    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 0.35dB Max. IL
      Designed for low insertion loss links, flexible and robust.
    • 7.5mm Min. Bend Radius
      Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
    • 6kg Tensile Strength
      Extremely tensile resistant to prevent cable breakage and extend service life.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    Connection 1:

    MTP-12 Female to MTP-12 Female OM4 Trunk Cable

    Connection 2:

    MTP-12 Female to MTP-12 Female OM4 Trunk Cable 2

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.

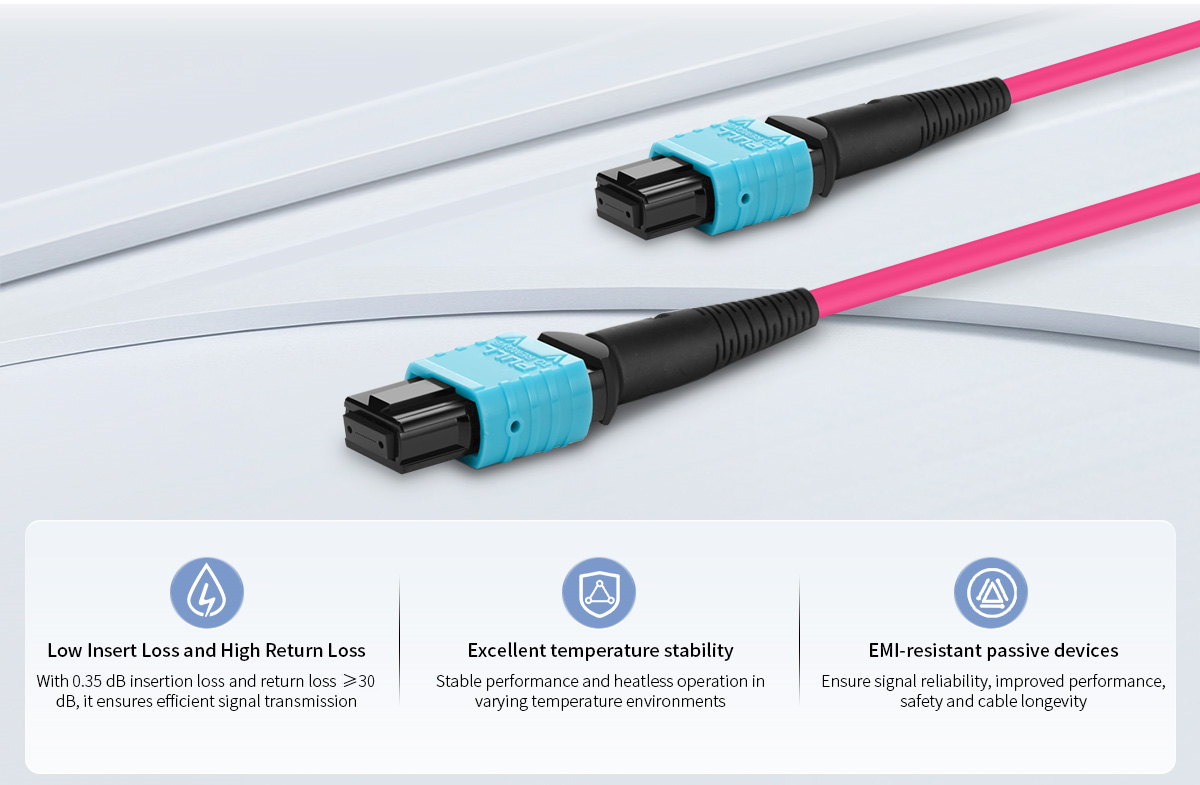

    MTP Connector



    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.

    High-Performance Fiber with Superior Durability



    Flexible High-Density Cabling Solutions



    Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.

    High-Density Cabling Solutions



    Spine-Leaf Architecture for Scalable Networks



    Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.

    Spine-Leaf Architecture for Scalable Networks



    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.

    MTP cables cleaner
