Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Multi Mode Trunk Cables / 100809

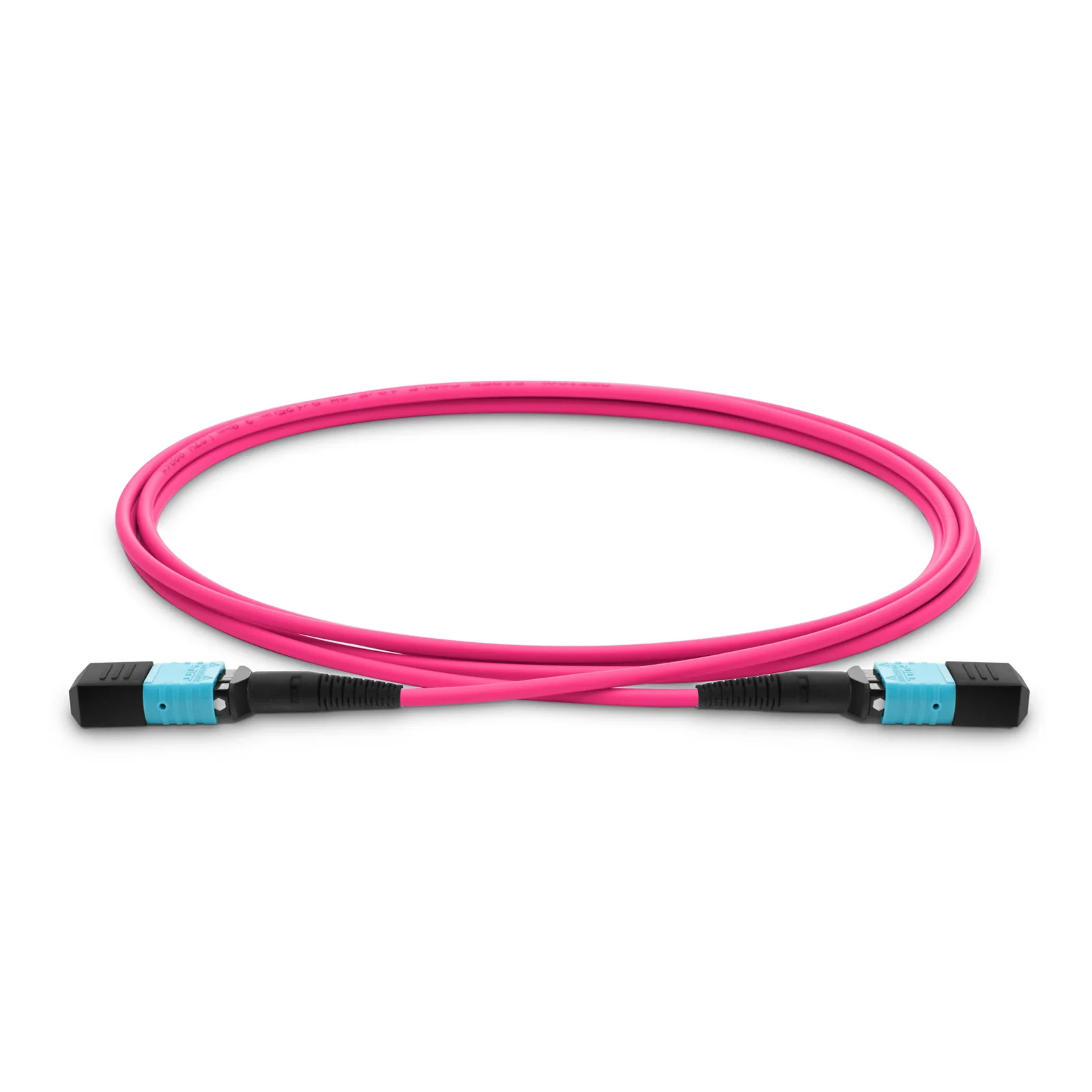

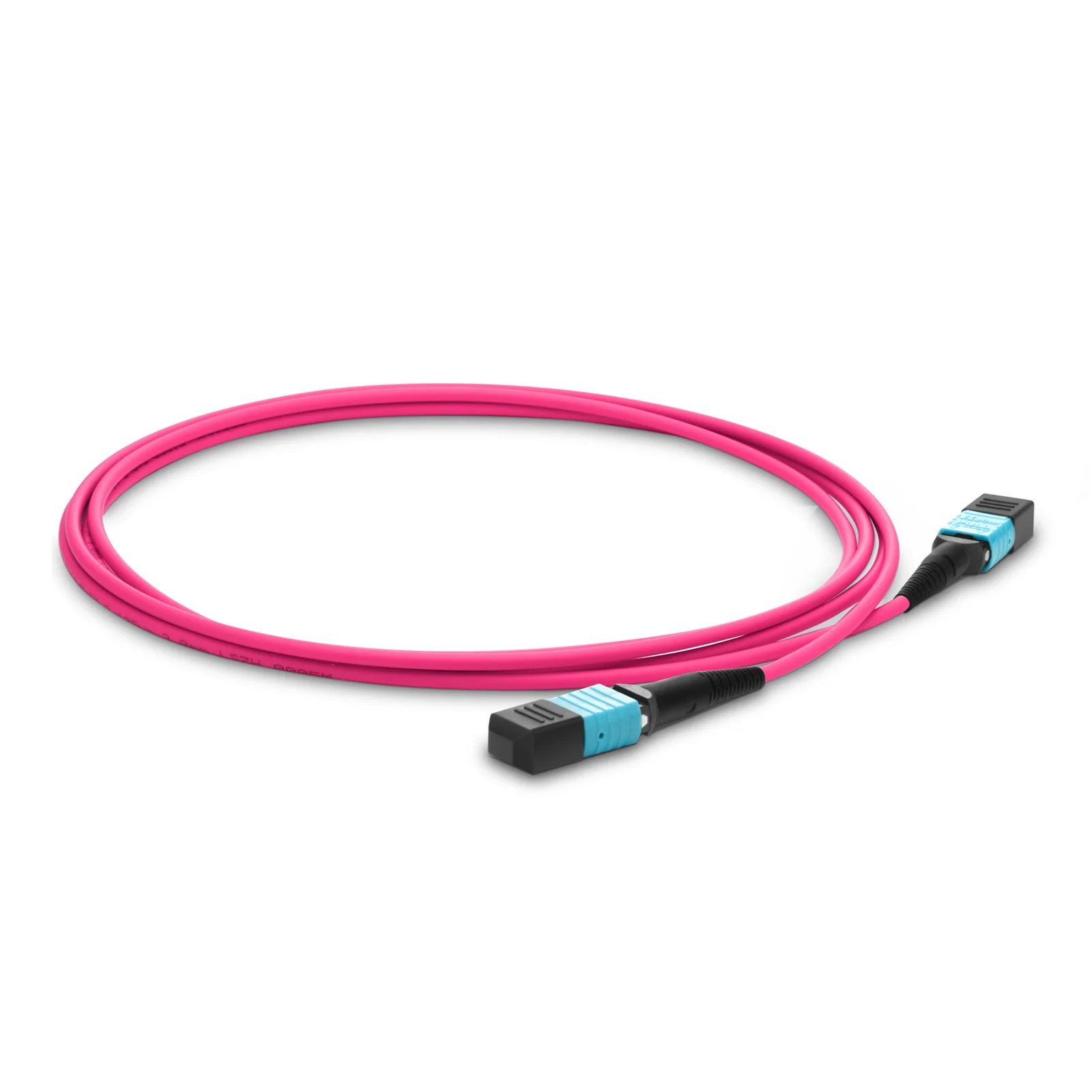

20m (66ft) MTP-12 (Female) to MTP-12 (Female) OM4 Elite Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)

Product No :100809
US$ 84.20
Series
Length
12 in real-time stock, 02May, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

;jsessionid=BF8CD4DA91AD7875C5AAD5B42DE78B5B
-
+
Add to Cart Bulk Order Quotes
1. Flexible 7.5mm Min. Bend Radius
2. Optimized for 40G/100G/200G/400G Transmission
3. MTP Connector with 12 Fibers
4. Compliant with ROSH 2.0 and MCD
5. LSZH jacket
See more

Specifications

MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable


The MTP trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of standard duplex fiber optic cable connector. This MTP female to MTP female OM4 multimode trunk cable is specially optimized for 40G QSFP+ SR4, 100G QSFP28 SR4 optics direct connection, data centers and telecommunications systems applications.





Connector A:

MTP Female

Connector B:

MTP Female

Fiber Count:

12 Fibers

Fiber Type:

OM4 MMF 50/125μm

Polish Type:

UPC to UPC

Wavelength:

 850nm

Armoured:

 No

Cable Material:

 LSZH

Insert Loss:

0.35dB

Return Loss:

≥30dB

Approximate Diameter:

3.0mm

Length:

0.5m/1m/1.5m/2m/3m/5m/7m/10m

Min. Bend Radius

(Fiber Core)

7.5mm

Min. Bend Radius

(Fiber Cable)

20/10D (Dynamic/Static)

Operating Temperature:

  -20℃~+70℃

Storage Temperature:

 -40℃~+80℃



Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 0.35dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 7.5mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 6kg Tensile Strength
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

Connection 1:

Direct connect through MTP OM4 cable

Related Products:

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

5m (16ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)

Connection 2:

Connect with Adapter Panel

Related Products:

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG

S7300-24X2C, 24-Port Gigabit Ethernet L3 Campus Switch, 24 x10GE SFP+, with 2 x100GE QSFP28 Uplink, Support Stacking

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

1U 19" Modular Rack Mount Enclosure Unloaded, Holds up to 4 Fiber Adapter Panels, 96 Fibers (LC)

High-Density Fiber Adapter Panel With 12x LC UPC Duplex Blue Adapter 24x OS2 Single Mode Fibers Ceramic Sleeve

1U Horizontal Cable Management with 5 D-Rings, Rackmount, Single-Sided, 19 inch

5m (16ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.

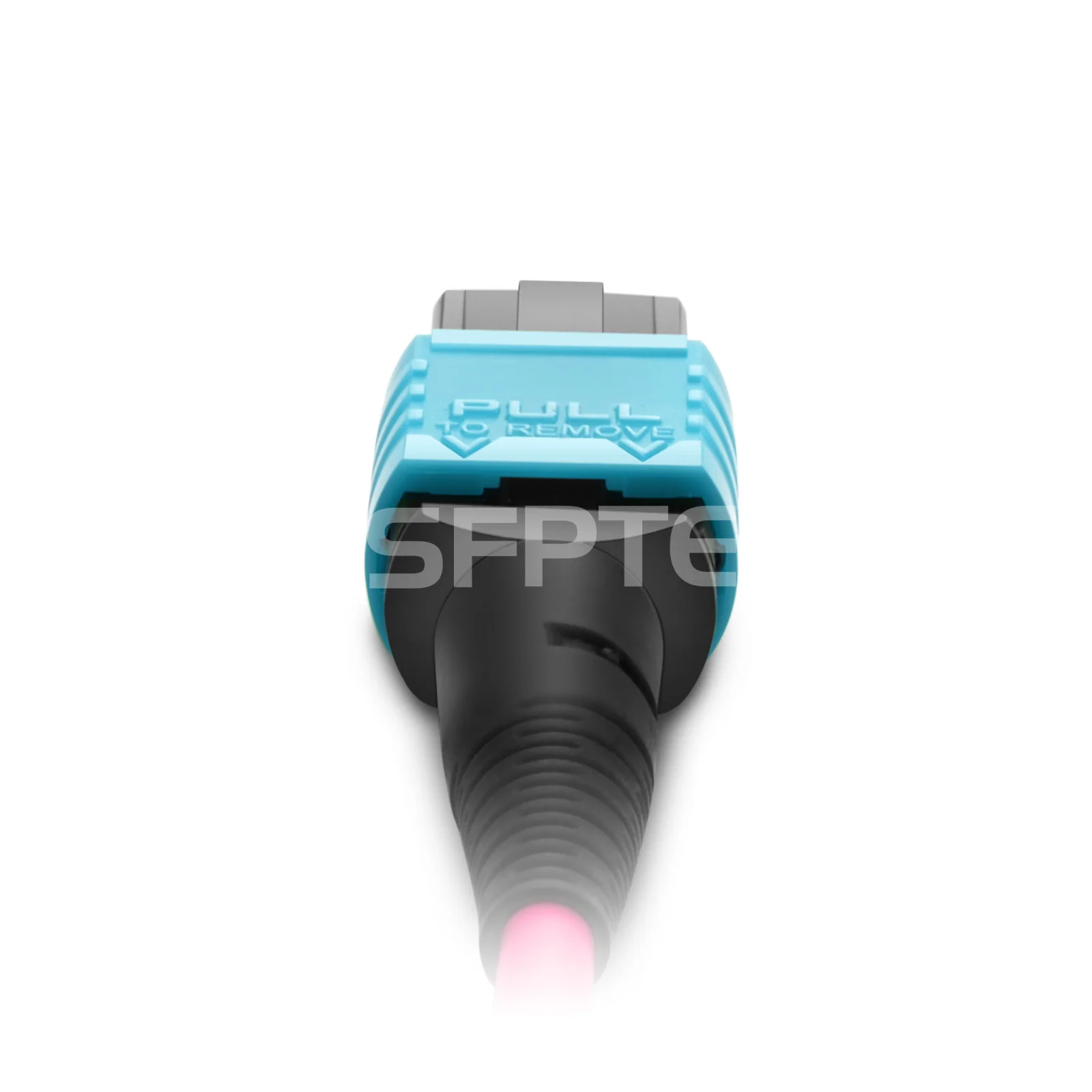

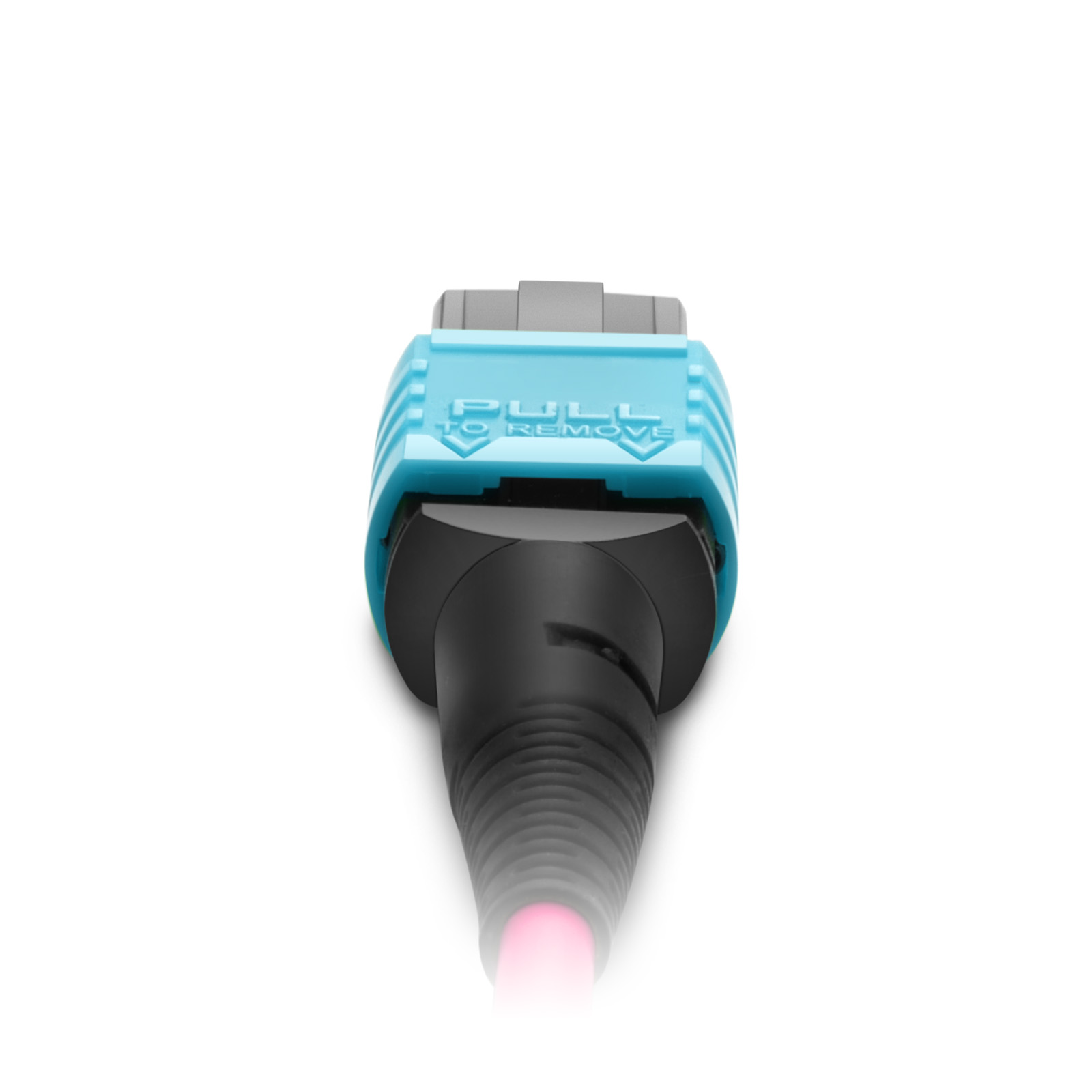

MTP Connector



High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.

High-Performance Fiber with Superior Durability



Flexible High-Density Cabling Solutions



Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.

High-Density Cabling Solutions



Spine-Leaf Architecture for Scalable Networks



Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.

Spine-Leaf Architecture for Scalable Networks



Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.

MTP cables cleaner

;jsessionid=BF8CD4DA91AD7875C5AAD5B42DE78B5B

Questions & Answers

Customer Reviews

Write a Review
Sign in to write a review
Write a Review

5 stars

43 Reviews

4 stars

1 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

Reviews with images

See all photos

Read reviews that mention

  • ALL (3)
  • Premium Service (2)
  • Excellent Quality (2)
  • High Reliability (2)
  • Cost-effective (1)
  • Customer Support (2)
  • Good Packaging (1)
  • Fast Delivery (2)
  • Demarionna China
    2023-11-22

    The cables I received from QSFPTEK are truly excellent in terms of both quality and value for money. I am thoroughly satisfied with my purchase, and I wholeheartedly recommend QSFPTEK to anyone in need of reliable and cost-effective solutions.

    Length20m

    SeriesMTP to MTP OM4 LSZH

    Verified Purchase

    Helpful

    0

  • Bryasia Canada
    2023-11-15

    Exemplary experience with this fiber optic patch cable purchase! The delivery was remarkably swift, underscoring the company's commitment to seamless logistics. The customer service team was highly responsive and knowledgeable, ensuring a smooth transaction. Moreover, the product's impeccable quality surpassed my expectations, delivering reliable and efficient connectivity. A commendable all-around service!

    Length20m

    SeriesMTP to MTP OM4 LSZH

    Verified Purchase

    Helpful

    0

  • Oscar Morgan United Kingdom
    2023-09-04

    The cables arrived promptly in securely packaged parcels. Upon opening the bags and inspecting them closely, I found no signs of damage whatsoever. The staff was exceptionally pleasant, providing outstanding customer service, and the products and prices were both impressive. I now turn to them every time I require any type of cables.

    Length20m

    SeriesMTP to MTP OM4 LSZH

    Verified Purchase

    Helpful

    0

Resources

  • PDF Document
    MTP Trunk Cables Datasheet.pdf
  • PDF Document
    MTP Fiber Cables Quick Start Guide.pdf
  • PDF Document
    Fiber Optic Cabling Solutions.pdf
Contact us
Write a Review
20m (66ft) MTP-12 (Female) to MTP-12 (Female) OM4 Elite Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)

Series 12 Fibers MTP to MTP OM4 LSZH

Length 20m

* Review
0/1000
Allow files type of JPG, PNG, MP4. Maximum file size: 5MB

Maximum size: 5MB

Satisfaction
Customer Gallery
View All Customer Gallery

Mark

2023-12-15
This product works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent value fo ct works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent valur money!

Verified Purchase

Helpful

8

Sign in to vote
Added to Cart
20m (66ft) MTP-12 (Female) to MTP-12 (Female) OM4 Elite Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)
US$ 84.20
Series
12 Fibers MTP to MTP OM4 LSZH
Length
20m
Quantity
Subtotal
View Cart
Check Out
Continue shopping

Confirmation

Successfully added shopping cart

Bulk Order Quotes
20m (66ft) MTP-12 (Female) to MTP-12 (Female) OM4 Elite Trunk Cable, 12 Fibers, Type B, Plenum (LSZH) ;jsessionid=BF8CD4DA91AD7875C5AAD5B42DE78B5B

Series 12 Fibers MTP to MTP OM4 LSZH ;jsessionid=BF8CD4DA91AD7875C5AAD5B42DE78B5B

Length 20m ;jsessionid=BF8CD4DA91AD7875C5AAD5B42DE78B5B

  • Qty:

  • Name:

  • E-mail:

  • Country
