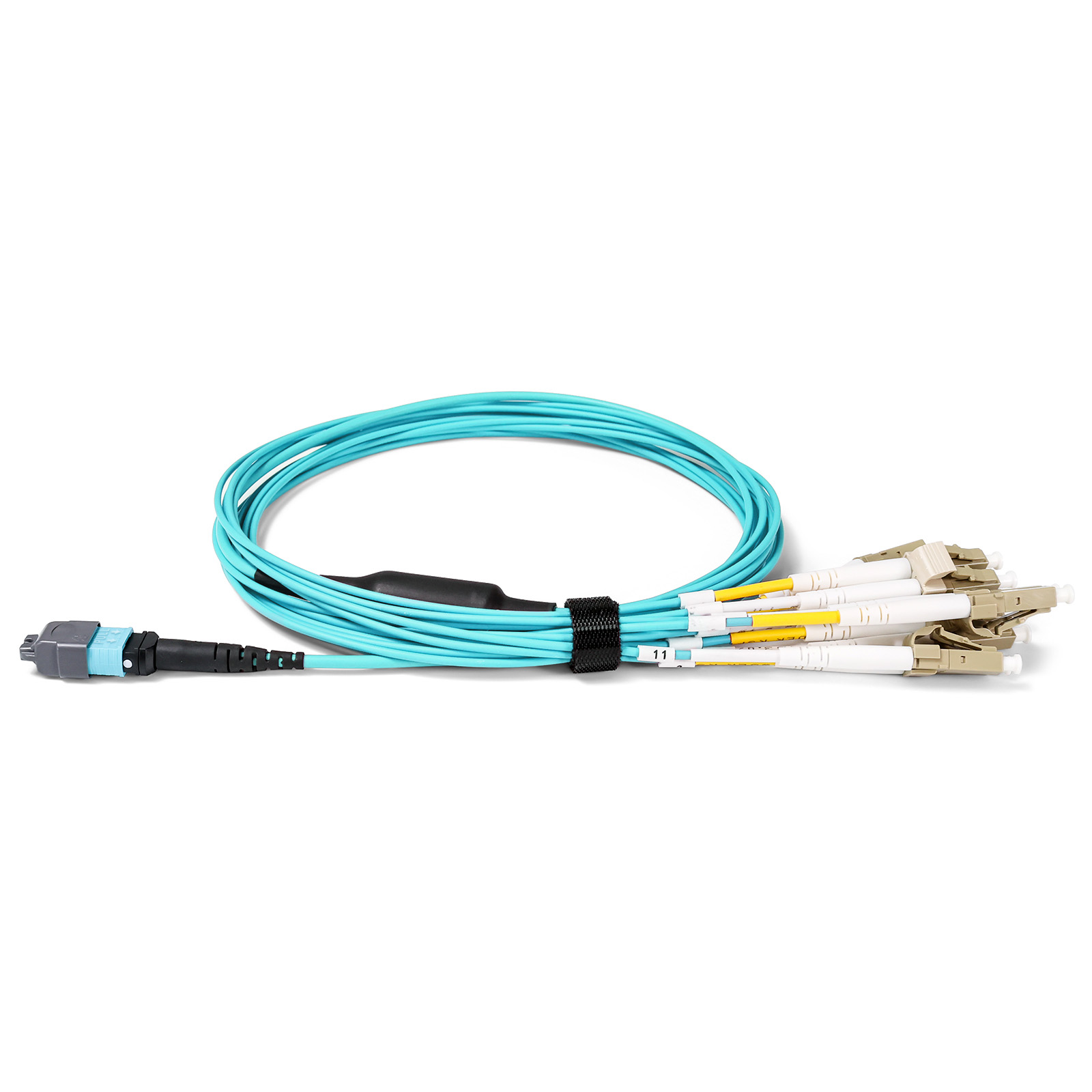

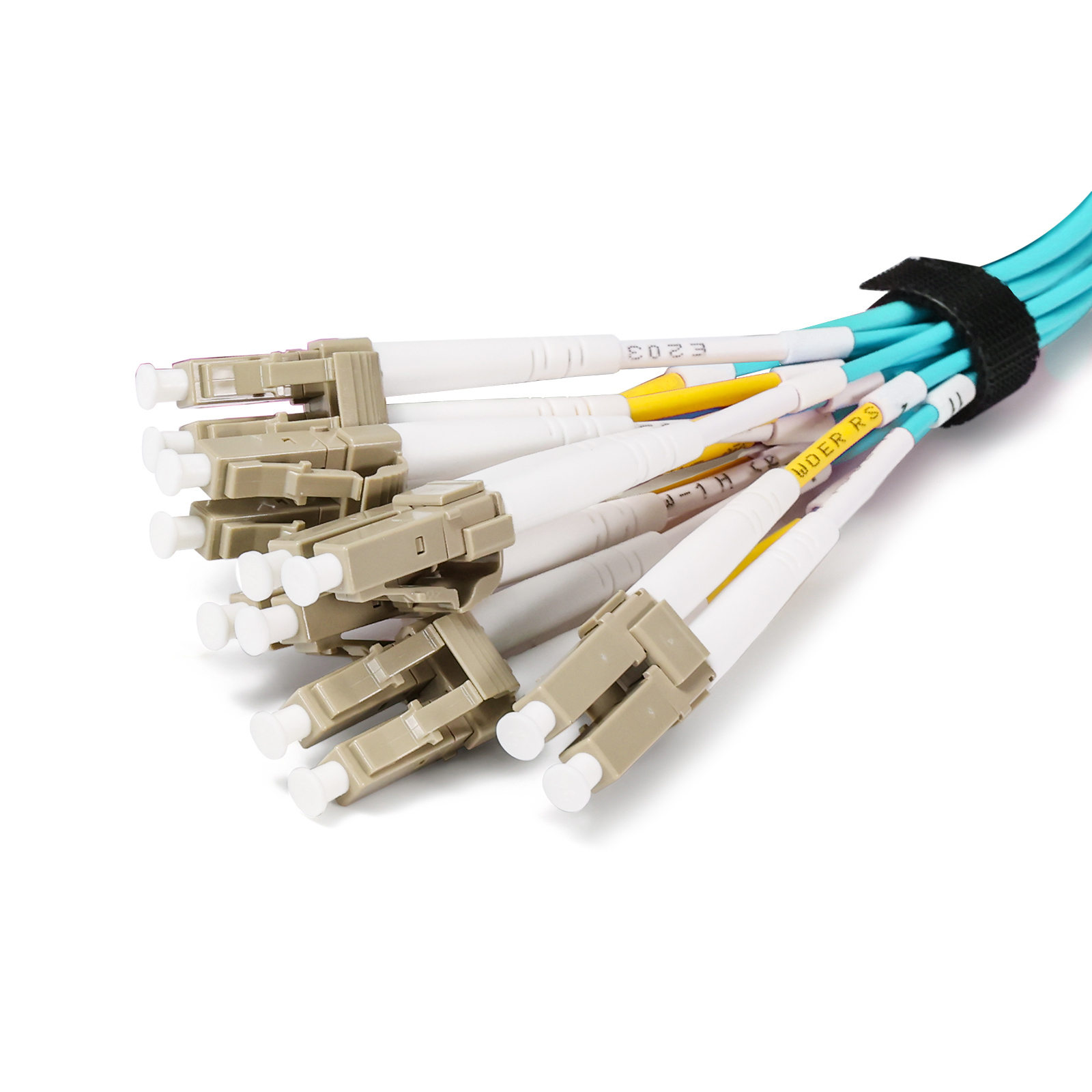

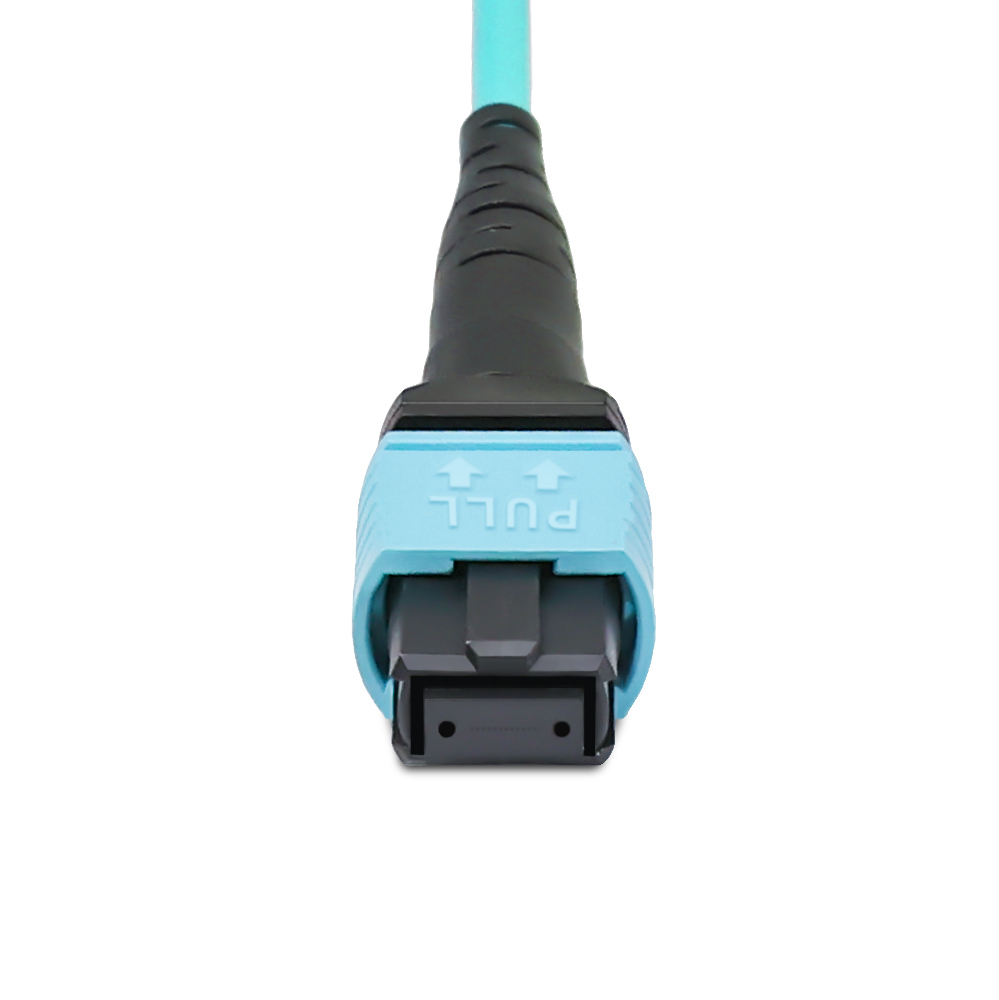

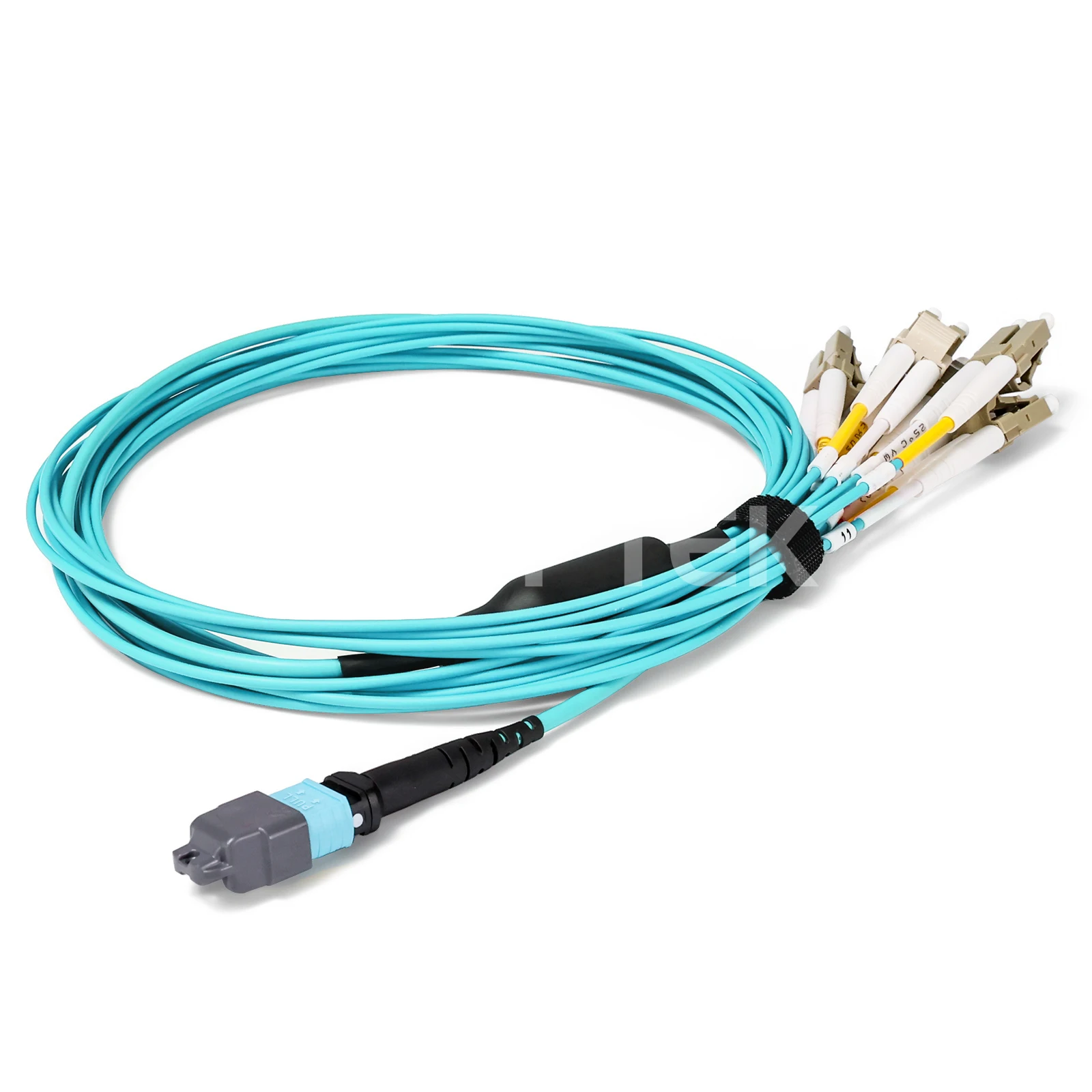

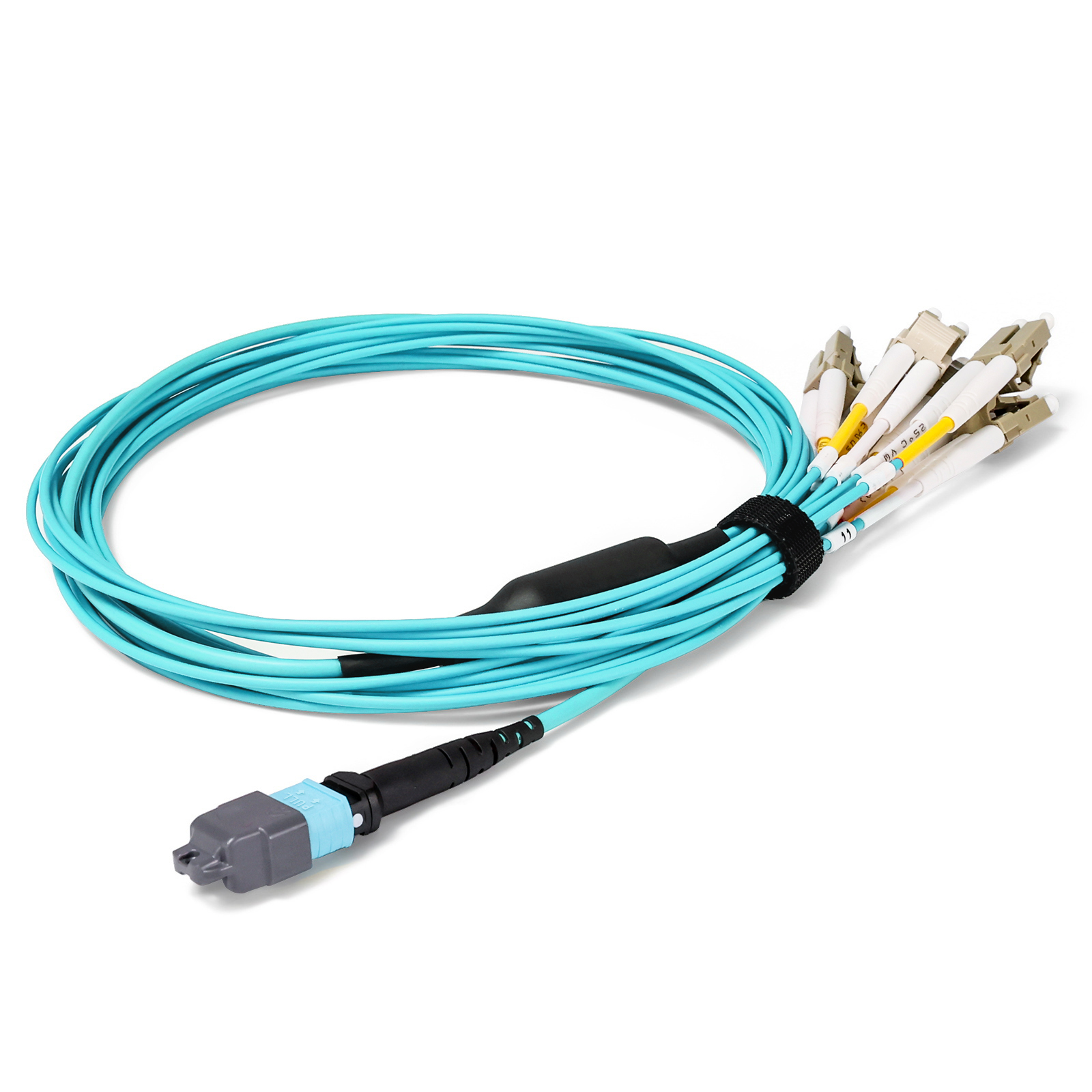

15m (49ft) MPO-12 UPC (Female) to 6x LC UPC Duplex OM3 Multimode Elite Breakout Cable, 12 Fibers, Type B, LSZH, Aqua

Product No :103279
US$ 45.10
Series
Length
50 in real-time stock, 01Jul, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. Flexible 7.5mm Min. Bend Radius
2. With 0.35dB low insertion loss
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly
4. Full bandwidth ≥1500MHz·km at 850nm, ≥500MHz·km at 1300nm
5. Meticulous design and standard testing ensure stable high-speed data transmission
See more

Specifications

15m (49ft) MPO-12 UPC (Female) to 6x LC UPC Duplex OM3 Multimode Elite Breakout Harness Cable, 12 Fibers, Type B, LSZH, Aqua



The MPO breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MPO connector to an LC duplex connector. Since the MPO-12 also supports the MPO-8 fiber system, it is specially optimized for 40G QSFP+ SR4 to 4x 10G SFP+ SR, 100G QSFP SR4 to 4x 25G SFP28 SR optics direct connection, data centers, and telecommunications systems applications.



Connector A MPO Female Connector B LC UPC Duplex
Fiber Count 12 Fibers Fiber Type OM3 MMF 50/125μm
Polish Type UPC to UPC Cable Material LSZH
Armoured no Wavelength 850/1300nm
Insert Loss ≤0.35dB Return Loss ≥30dB
Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
Min. Bend Radius
(Fiber Core)		 7.5mm Min. Bend Radius
(Fiber Cable)		 20/10D (Dynamic/Static)
Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
Max Transmission Distance 300M Effective Bandwidth ≥2000MHz·km with 850nm
Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 0.35dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 7.5mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 80/150N (Long/Short Term)
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

Connection 1:

Related Products:

S5300-48M6X, 48-Port Gigabit Ethernet L3 Switch, 24 xGE RJ45, 24 xGE SFP Ports, with 6 x10GE SFP+, Support Stacking

S5300-48T6X, 48-Port Gigabit Ethernet L3 Switch, 48 xGE RJ45, with 6 x10GE SFP+, Support Stacking

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

Cisco QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150M DDM MTP/MPO MMF Optical Transceiver Module

Connection 2:

100G to 40G Breakout Connection

Related Products:

S7600-48Y8C, 48-Port Ethernet L3 Data Center Switch, 48 x25Gb SFP28, 8 x100Gb QSFP28, Support MLAG, VXLAN

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 850nm 100M optical transceiver Module

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.








High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.







Reliable Transmission Quality with Carrier-Grade Cables



Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.









Optimizing Network Upgrade Solutions for Superior Efficiency



Simply the network configuration enables migration from 10G to 40G effortlessly, ensuring low insertion loss and perfect performance.



Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.
