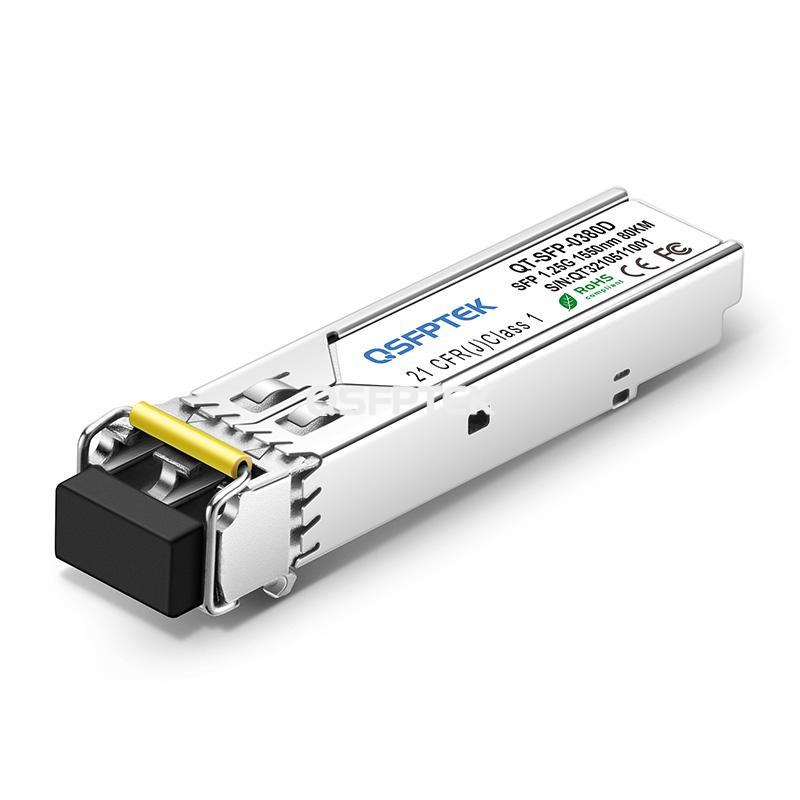

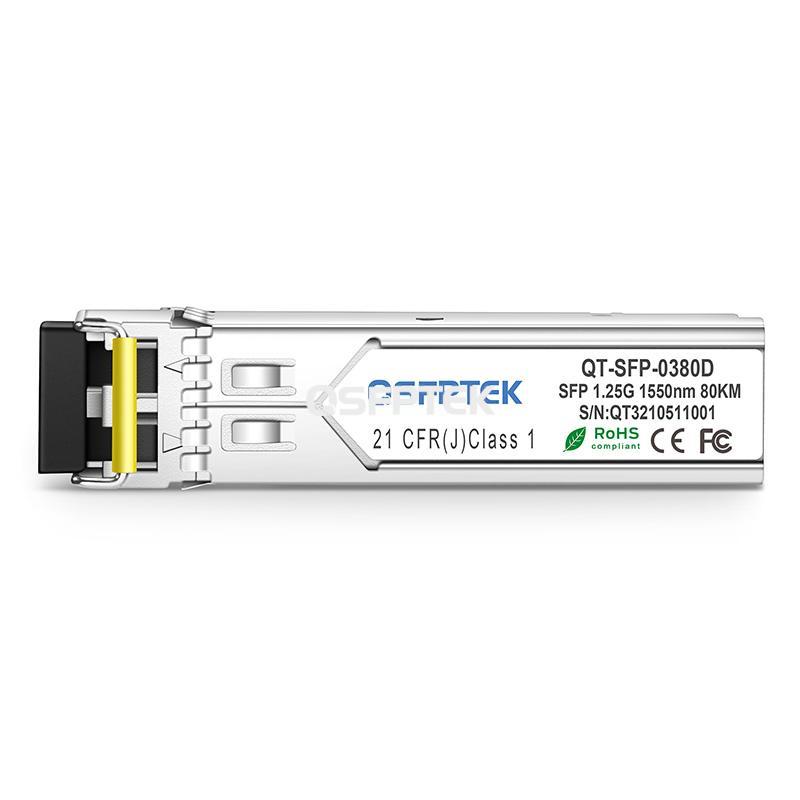

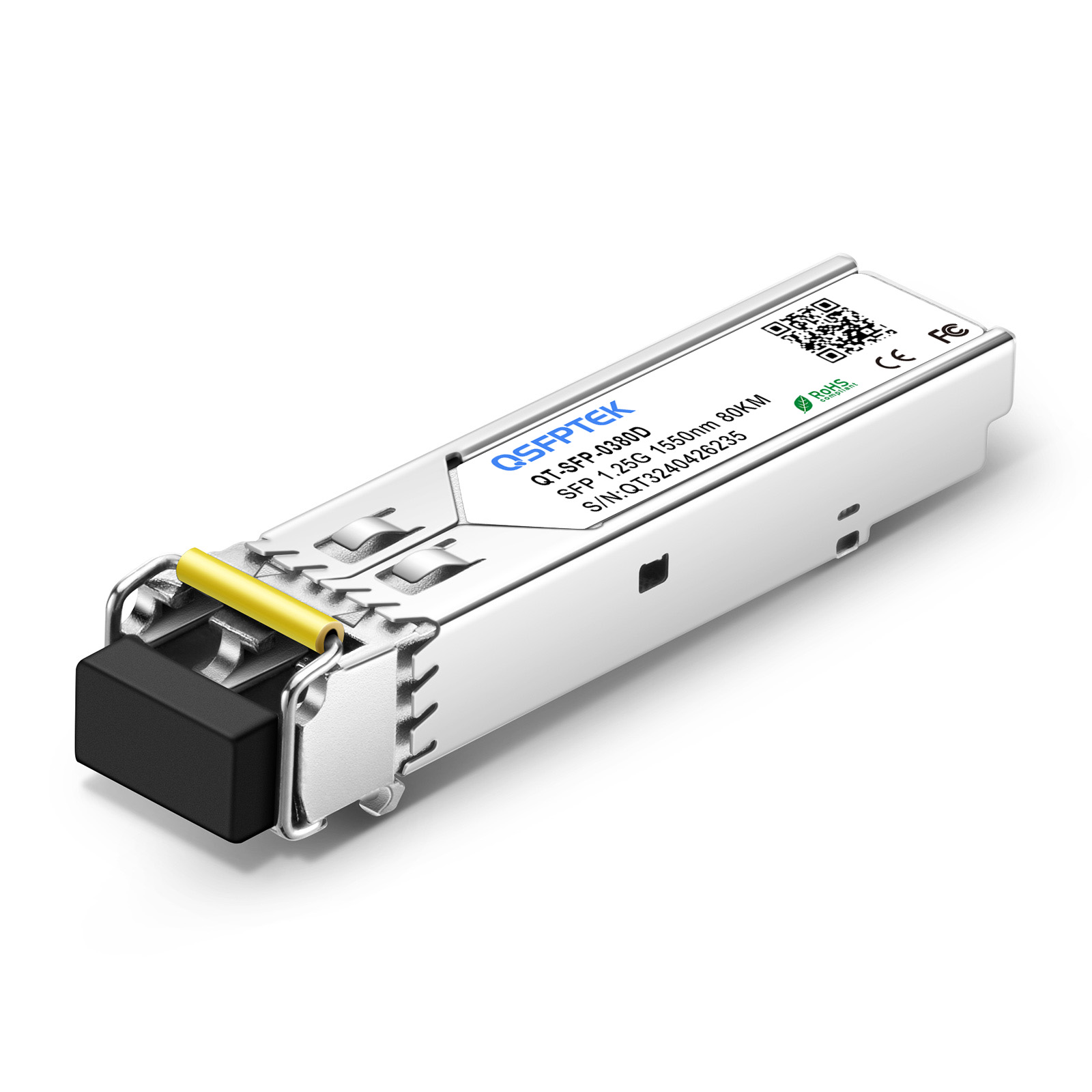

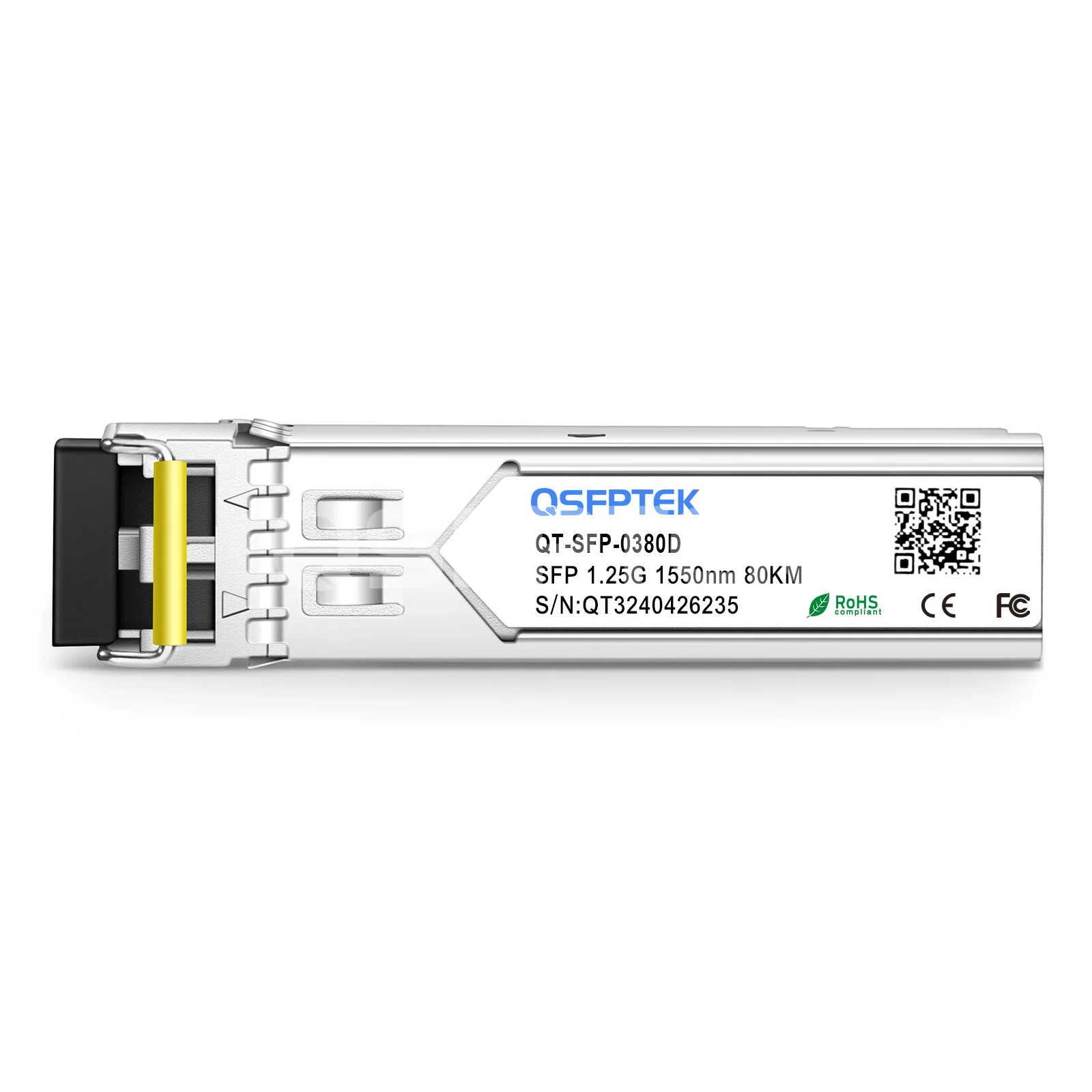

JD063B HPE H3C Compatible 1000BASE-ZX SFP 1550nm 80km Transceiver Module

Product No :39752
US$ 19.90  US$ 24.88
2000 in stock
Free Shipping via UPS over $99, delivered in 5 business days in the U.S.

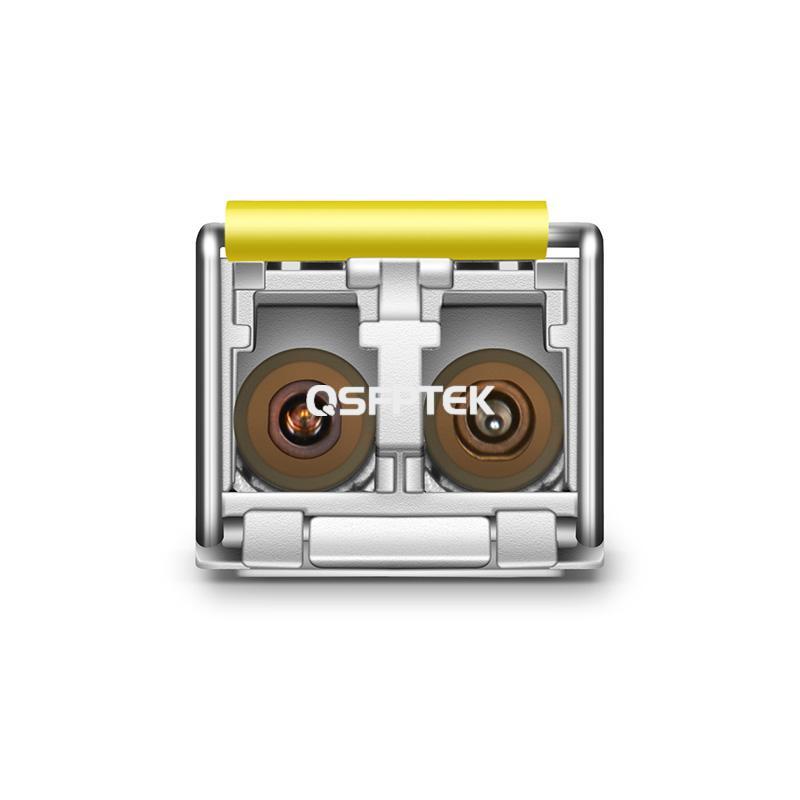

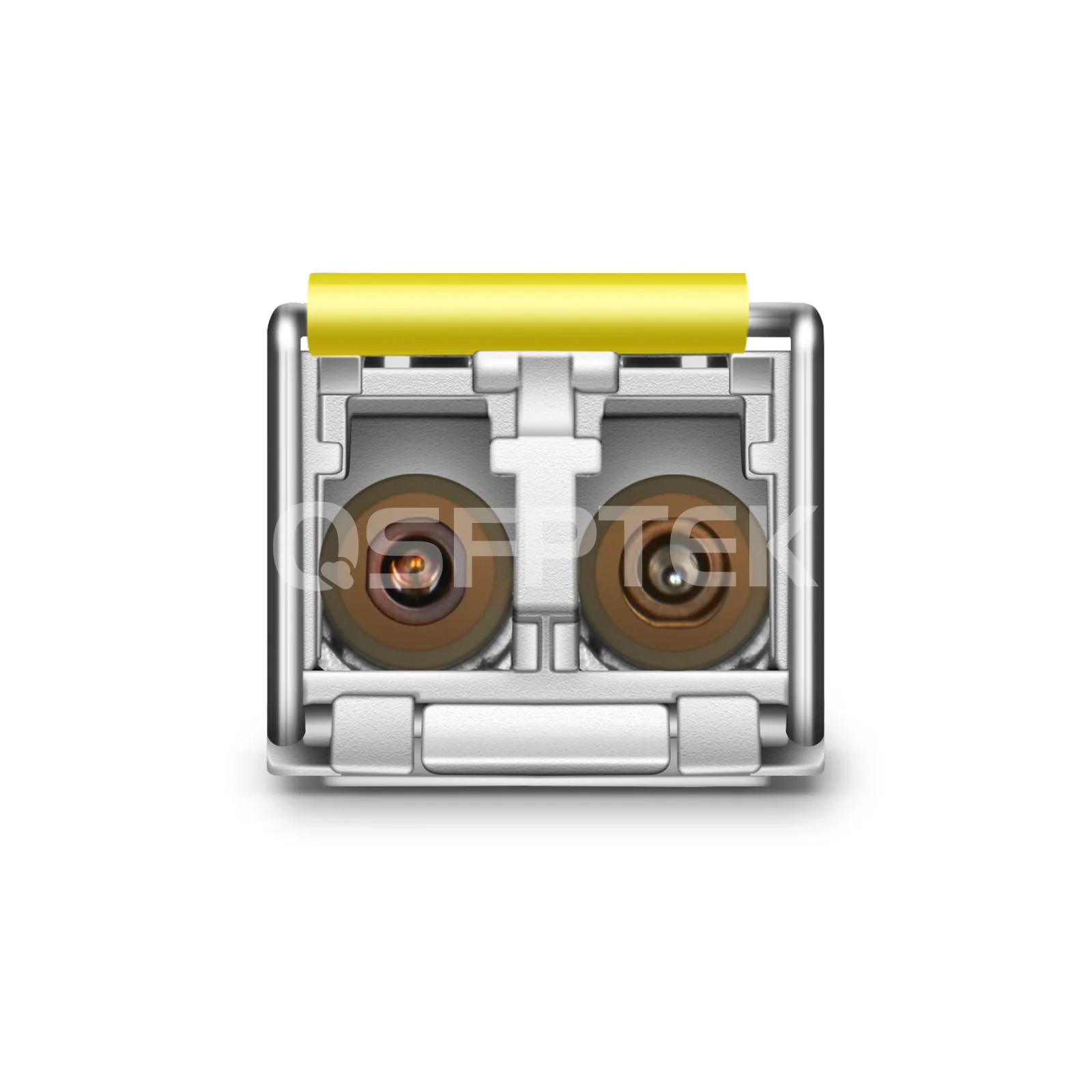

1. Connector: Duplex LC; with DDM
2. Low Power Consumption <1W
3. Ideal for Campus network, Metro network, Long-Haul etc
4. Compatible with 200+ Vendors
5. Hot Pluggable SFP MSA Compliant
See more +

Specifications

JD063B HPE H3C Compatible 1000BASE-ZX SFP Transceiver Module (SMF, 1550nm, 80KM, LC)



JD063B HPE H3C compatible 1000BASE ZX SFP  transceiver module is equipped with an LC duplex connector, which is high-performance, cost-effective, supporting 1.25Gbps data rate and 80KM transmission distance over single-mode fiber (SMF). QSFPTEK 1000BASE ZX transceiver is compatible with the IEEE 802.3z 1000BASE-ZX standard.



This compatible 1000BASE-ZX SFP fiber optic transceiver module consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All QSFPTEK manufactured 1G SFP optical transceivers satisfy class I laser safety requirements.



Part Number

SFP-1G-ZX

Vendor Name

QSFPTEK

Form Factor

SFP

Data Rate

1.25Gbps

Wavelength

1550nm

Distance

80km

Connector

LC Duplex

Cable Type

OS2 SMF

Transmitter Type

DFB

Receiver Type

PIN

TX Power

0 ~ 5dBm

Receiver Sensitivity

< -24dBm

Power Consumption

< 1W

Modulation Format

NRZ

DDM

Support

Bit Error Ratio (BER)

1E-12

Protocols

SFF-8472 MSA Compliant, IEEE 802.3ah-2004

Warranty

3 Years

Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2.Convenient and Flexible Use, Easy to Install, Plug and Play.
  • 3.EMC Support, Anti Electro-Static Discharge and Radiation Resistant.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.
1. High Reliablility and Best Price
Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2.Convenient and Flexible Use, Easy to Install, Plug and Play.
3.EMC Support, Anti Electro-Static Discharge and Radiation Resistant.
4. Quality Certifications
Backed by CE, FCC, ROSH, ISO9001.

Applications

1000BASE-ZX SFP Transceiver Interconnection Solution



Product details

Each SFP transceiver module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







SFP transceiver module installation guide:

Questions & Answers

more+
  • Can this SFP+ module work at lower data rates (155Mbps) than specified?
    Yes, it can work at 155Mbps.
  • What is the Tx power and Receiver Overload of 1G EX?
    TX Power: -5 ~-0 dBm. Receiver Overload: -3 dBm
  • I notice that the 1G LX/LH supports both SMF and MMF. So what's the diffrence?
    If you use MMF cables like OM2/OM3/OM4, the max diatance is 550m. If you use SMF cables, it can reach up to 10km. So you can choose cable type according to your application.
See more +

Customer Reviews

Write a Review
Write a Review
  • Ronald Malcolm Australia
    2022-04-02

    The SFP optical modules I purchased were Plug and Play, and they were delivered still well packaged and delivered very quickly, and they all plugged into my Cisco switch port very well. We are only a small office, so if we choose the original Cisco brand it would be very expensive and that is a price we can't afford, so we ordered these from QSFPTEK and they performed equally well!

    Transceivers typeGLC-SX-MM

    CompatibleCisco

    0

    0

  • Robert Washington United States of America
    2022-04-01

    I received the 1G 1000BASE-SX SFP just five days after I ordered it, the module is very well made and we can use it well in our data center, thanks to the professional service provided by Talia and the complete test report and datasheet when we were confused about its parameters.

    Transceivers typeGLC-SX-MM

    CompatibleCisco

    0

    0

Datasheet

  • QT-SFP-0380D.pdf
