Home / Products / Transceivers / 25G/40G Transceivers / 40G QSFP+ / 100023

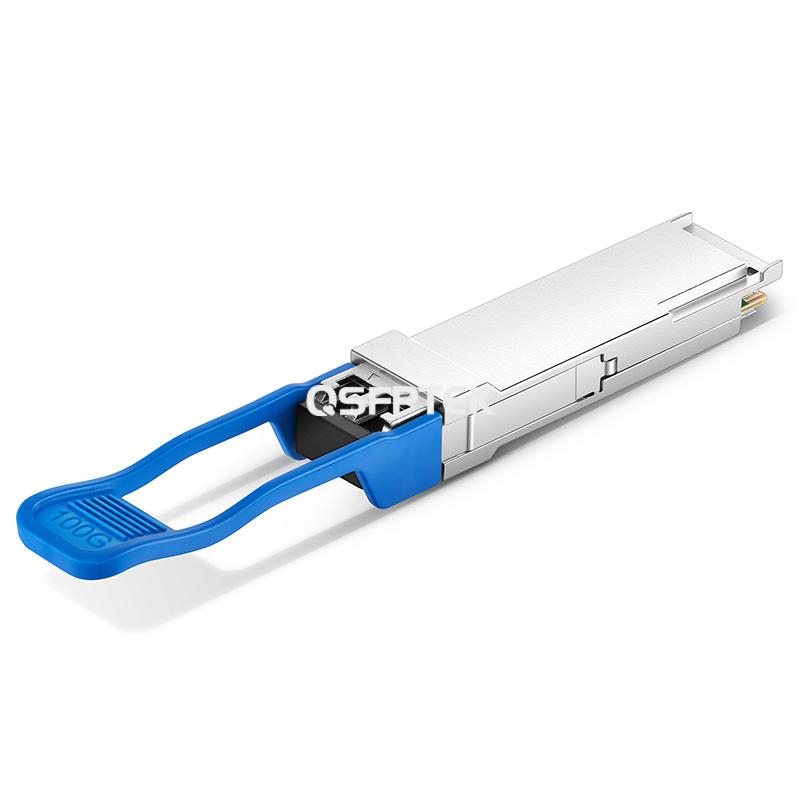

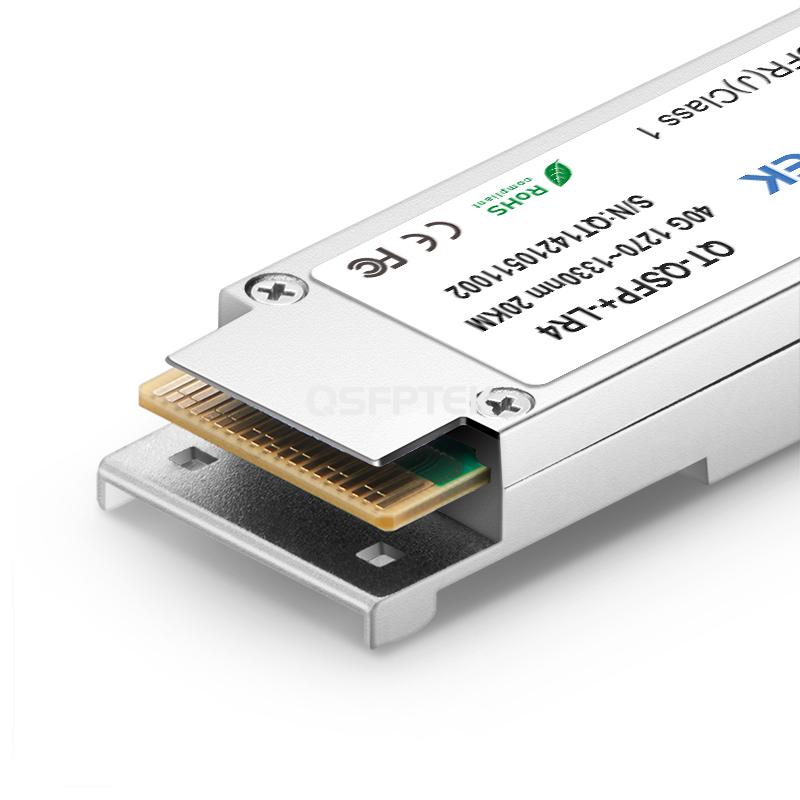

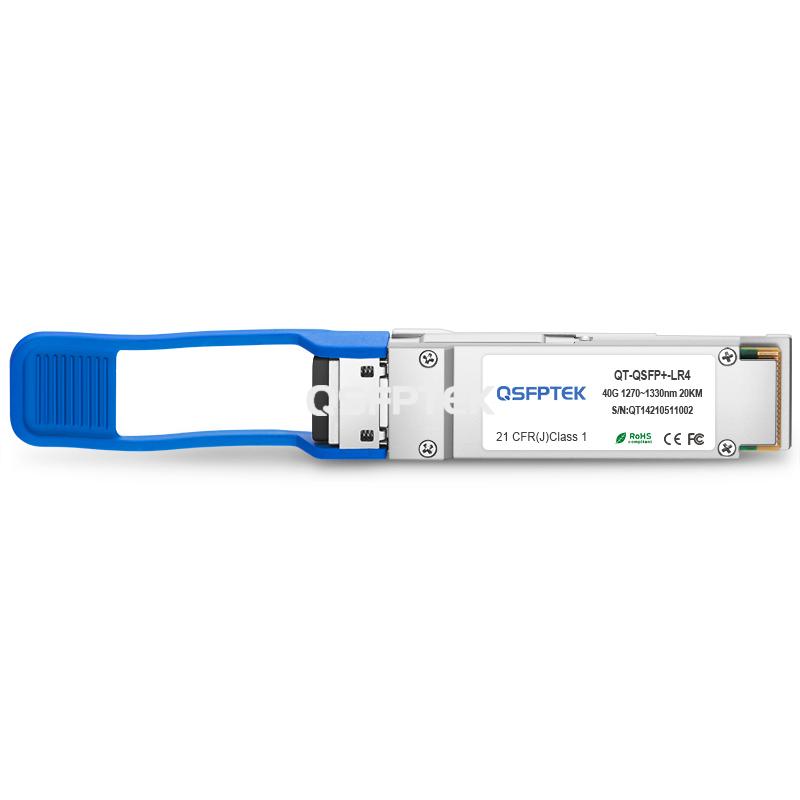

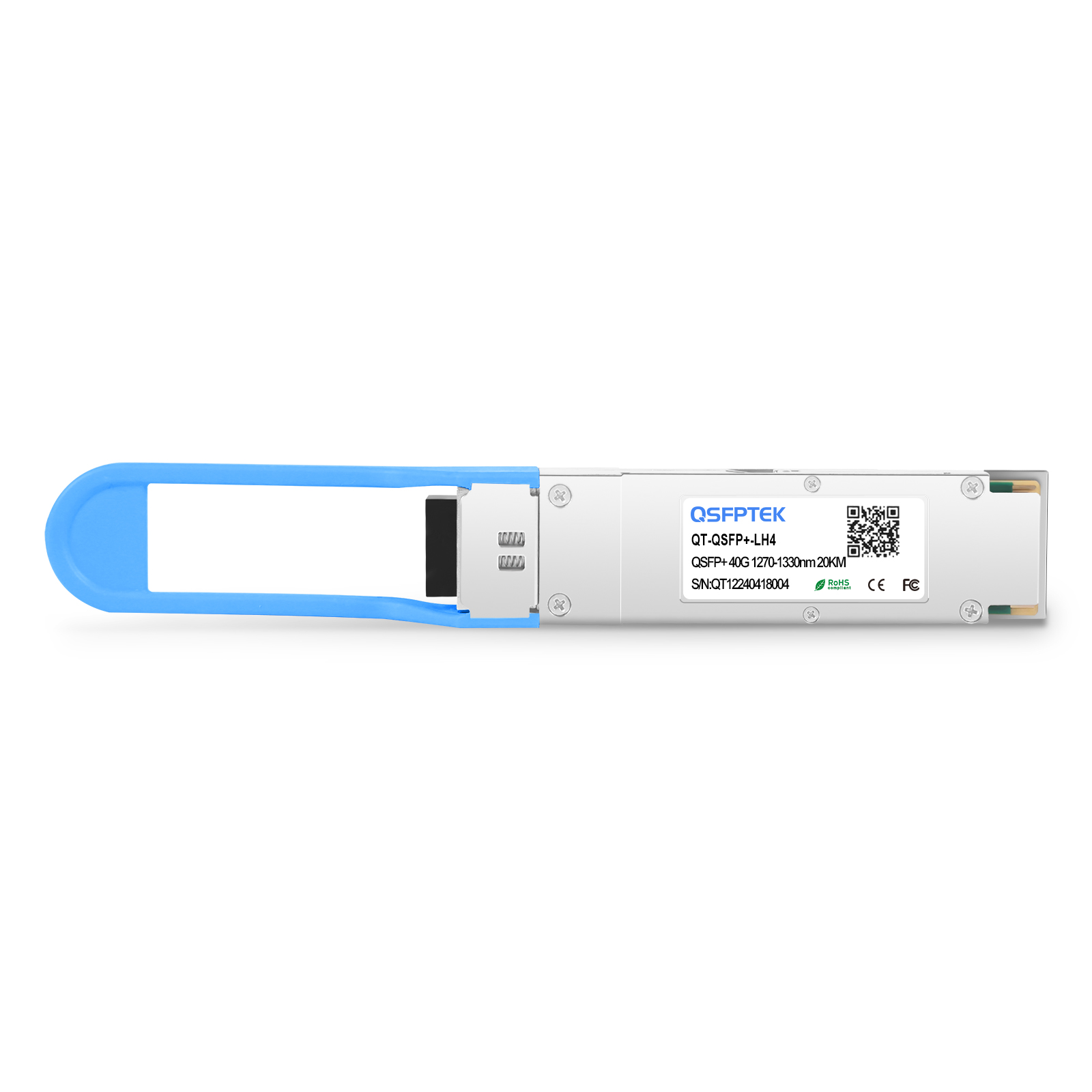

Cisco QSFP-LR4-40G-20 Compatible 40GBASE-LR4 QSFP+ 1310nm 20km DDM LC SMF Optical Transceiver Module

Product No :100023
US$ 125.00
Compatible
Transceivers type
699 in real-time stock, 02May, 2025

Free Shipping over US$ 79.8

US/EU/Global warehouses in stock

30-day Return and Refund

;jsessionid=C147B0E382F28E5907C92569F8704633
-
+
Add to Cart Bulk Order Quotes
1. < 3.5W Low Power Consumption.
2. Link Up to 20 km via Singlemode OS2.
2. LC Duplex Connector, DFP+PIN.
3. Fully Compatible with 100+ Vendors.
4. For Data Center and 40G Ethernet Applications.
5. Hot Pluggable QSFP+ MSA Compliant.
See more

Specifications

Cisco QSFP-LR4-40G-20 Compatible 40GBASE-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 20km, LC, DDM)



The Cisco QSFP-LR4-40G-20 compatible 40G QSFP+ LR4 transceiver module is equipped with LC duplex connectors, reaching a link up to 20km over OS2 single-mode fiber (SMF). This 40G optical transceiver comes with a bidirectional 4-channel QSFP+ connector, enabling a total of 40 Gbps bandwidth by each channel carrying a 10 Gbps data rate. DOM/DDM (digital diagnostics monitoring) function is supported on the QSFP 40G fiber optic transceiver to achieve real-time operating parameters monitoring.



QSFPTEK manufactured 40GBASE-LR4 QSFP+ module is compliant with QSFP+ MSA and 40GBASE-LR4 specifications. Besides, the QSFP LR4 optic has been tested on host devices to ensure full compatibility with Cisco equipment, such as data center switches, enterprise routers, and server network interface cards (NICs). The third-party 40G SFP module is an ideal substitute to the QSFP-40GE-LR4 QSFP+ 40G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 40G connectivity.



LR4 40G QSFP optics cater to 40 Gigabit Ethernet (40GbE) optical fiber connections, ideal for high-performance and long-distance applications in the data center, enterprise core and distribution layers, campus networks, metro networks, etc.



Model Name QSFP-LR4-40G-20 Vendor Name QSFPTEK
Form Factor QSFP+ Data Rate 40 Gbps
Wavelength 1310nm Distance 20km@OS2

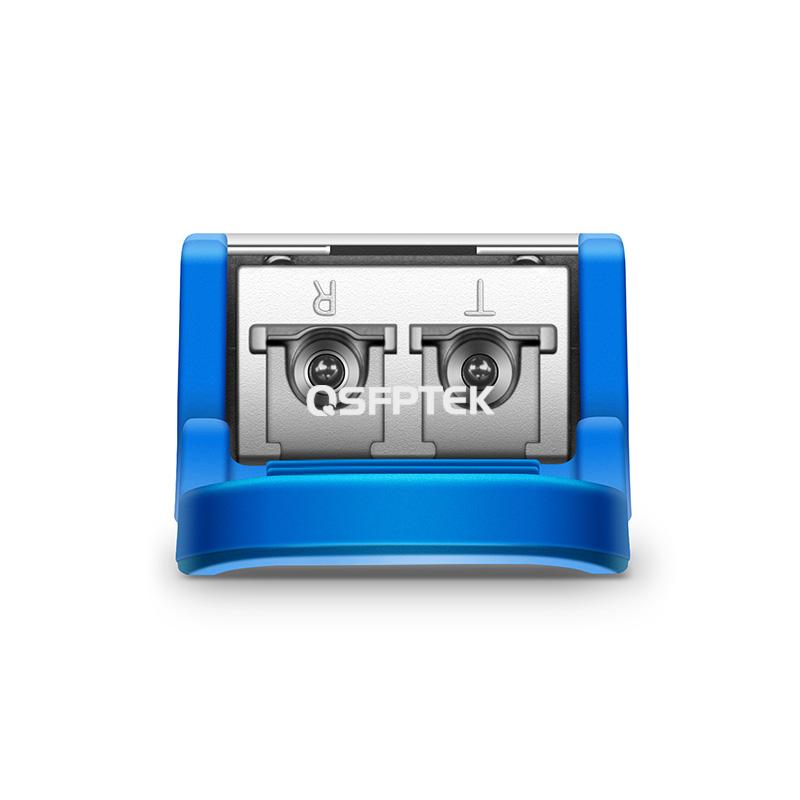

Connector LC Duplex Cable Type OS2 SMF
Transmitter Type DFB Receiver Type PIN
TX Power -4~2.3dBm Receiver Sensitivity <-11.5dBm
Power Consumption <3.5W Modulation Format NRZ
DDM Support Bit Error Ratio (BER) 1E-12
Protocols QSFP+ MSA, SFF-8436, 40G Ethernet Warranty 5 Years
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at a trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Cisco devices. Ideal for data center, campus network, metro network, etc.
  • 3. Protocols
    Compliant with QSFP+ MSA, SFF-8436, 40G Ethernet.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Scenario 1: 40G to 40G Direct Connectivity

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

S7600-24X2Q, 24-Port Ethernet L3+ 10G Switch, 24 x10Gb SFP+, with 2 x40Gb QSFP+ Uplinks, Support MLAG, VXLAN

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 10m





Scenario 2: 40GBASE-LR4 Connectivity with NIC

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 10m

Intel XL710-BM2 Based Network Interface Card, 40G Dual-Port QSFP+, PCIe 3.0 X 8, Half & Full Bracket





Scenario 3: 40GBASE-LR4 Connectivity with Adapter Panel

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 10m

1U Horizontal Cable Management with 5 D-Rings, Rackmount, Single-Sided, 19 inch



Product details

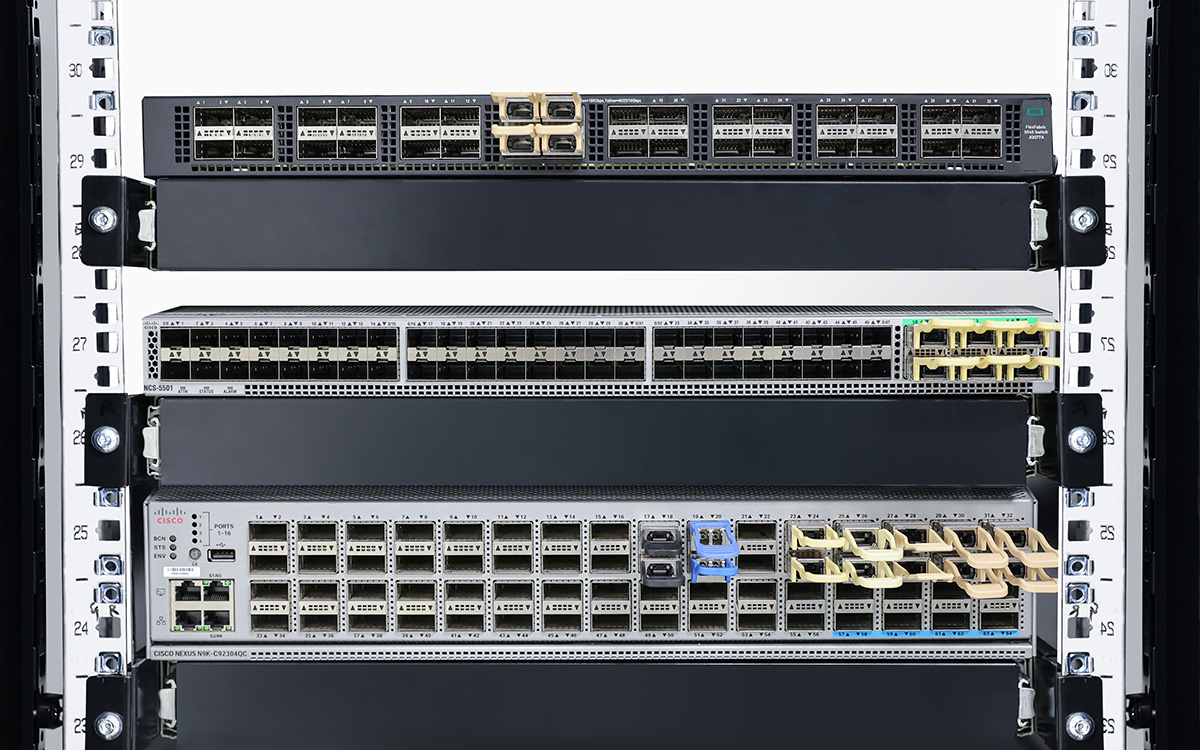

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack





Various Switch Tests



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

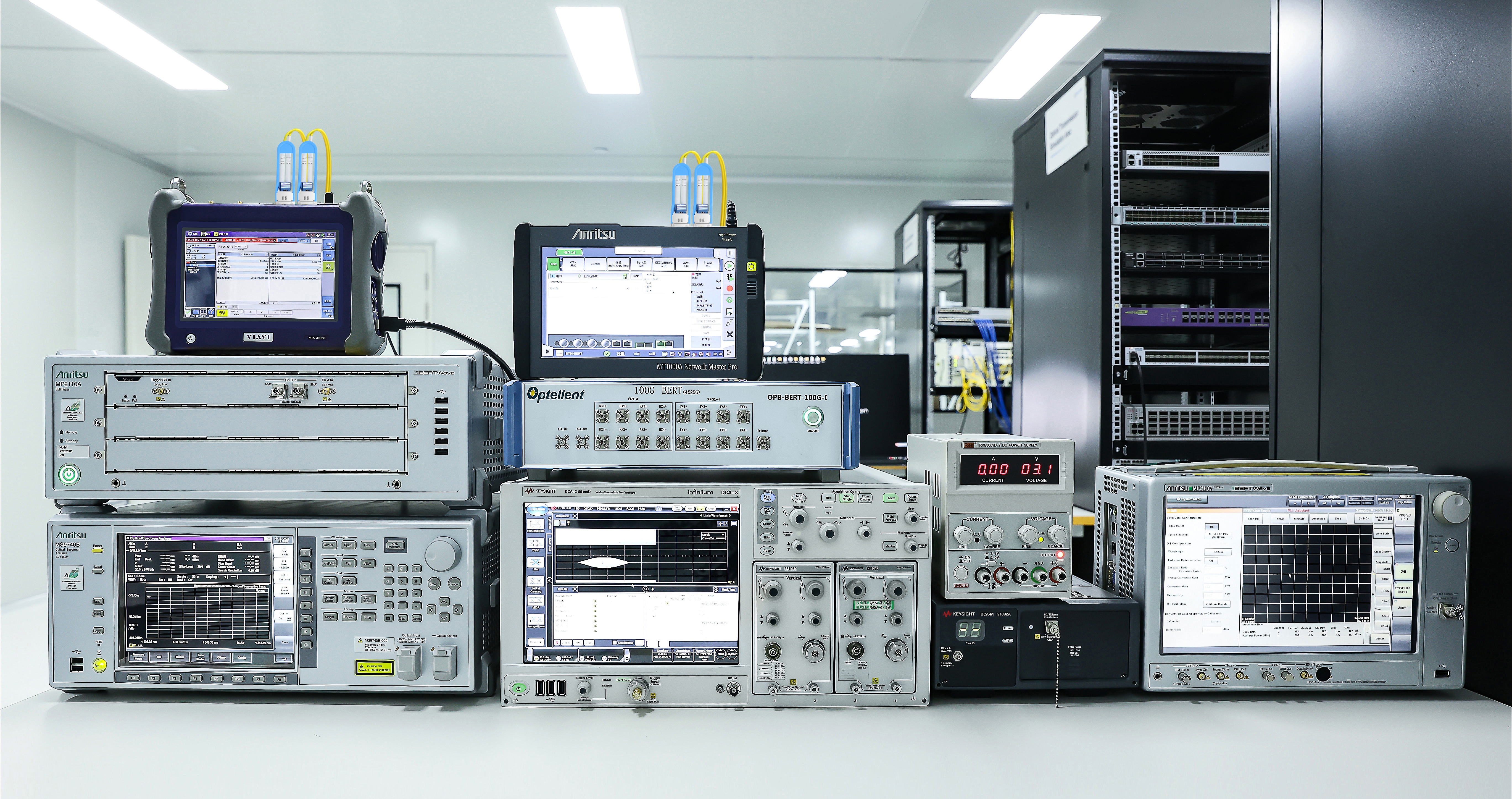

QSFPTEK Test Devices





40G QSFP+ Model Contrast Table



Part Number

QT-QSFP+-SR4

QT-QSFP+-IR4

QT-QSFP+-PSM4

QT-QSFP+-LR4

QT-QSFP+-LR4-20

QT-QSFP+-ER4

QT-QSFP+-ZR4


Wavelength

850nm

CWDM

1310nm

CWDM

CWDM

CWDM

LWDM 1294~1310nm

Max Distance

150m

2km

10km

10km

20km

40km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

LC Duplex

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

Tx Power(dBm)

-7 ~ 1

-7 ~ 2.3

-6 ~ -1

-7 ~ 2.3

-4 ~ 2.3

-2.7 ~ 4.5

-2.7 ~ 4.5

Rx Sensitivity(dBm)

-9.5

-11.5

-14.4

-13.7

-11.5

-19

-28

Power Consumption

<0.7W

<2.5W

<2.5W

< 2.5W

<3.5W

<3.5W

<5W

Source

VCSEL + PIN

DFB + PIN

4xDFB + PIN

DFB + PIN

DFB + PIN

DFB + PIN

4xDFB + APD

Operating Temperature

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

Questions & Answers

Customer Reviews

Write a Review
Sign in to write a review
Write a Review

5 stars

161 Reviews

4 stars

7 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

Reviews with images

See all photos

Read reviews that mention

Resources

  • PDF Document
    QT-QSFP+-LH4 Datasheet.pdf
  • PDF Document
    Transceiver Module User Guide.pdf
Contact us
Write a Review

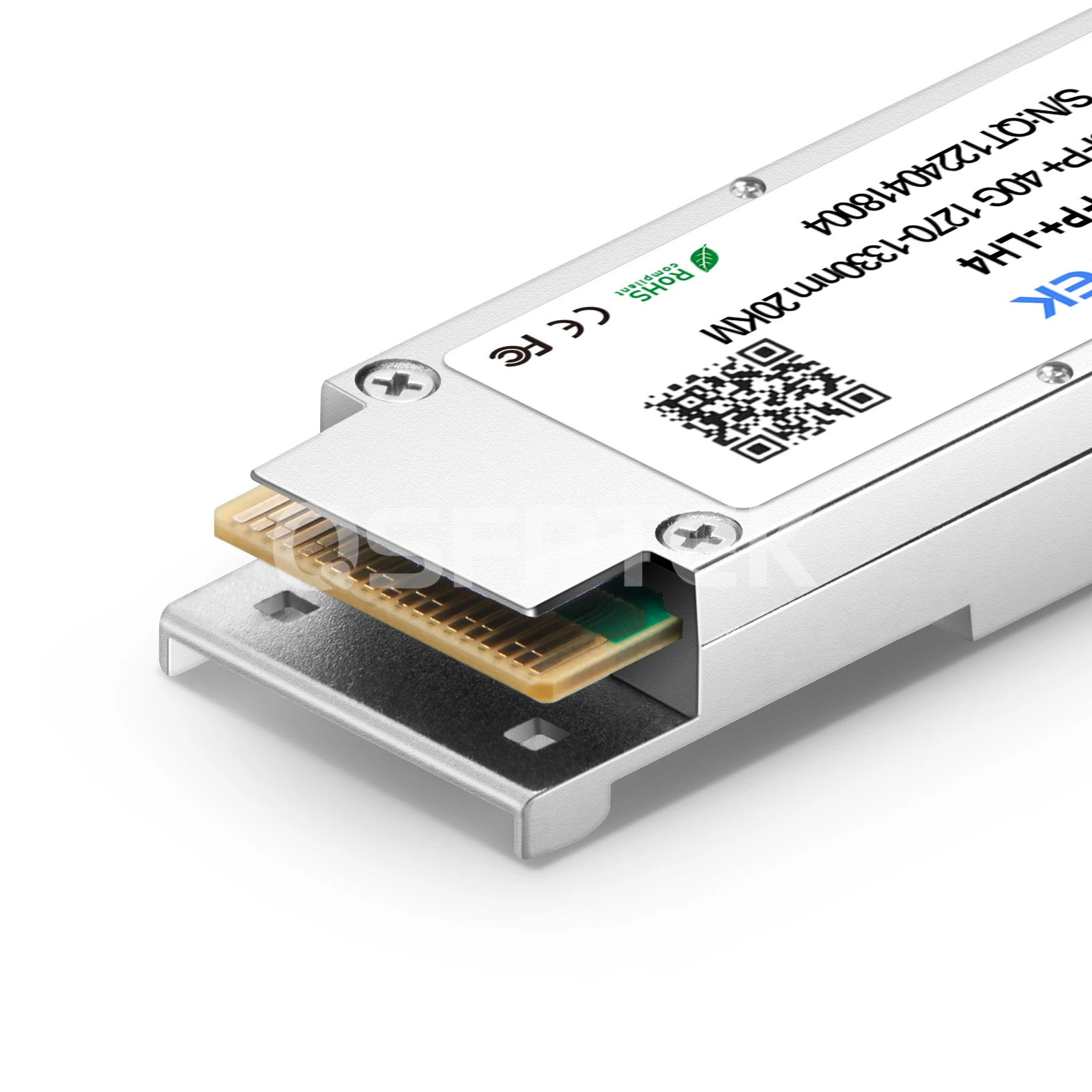

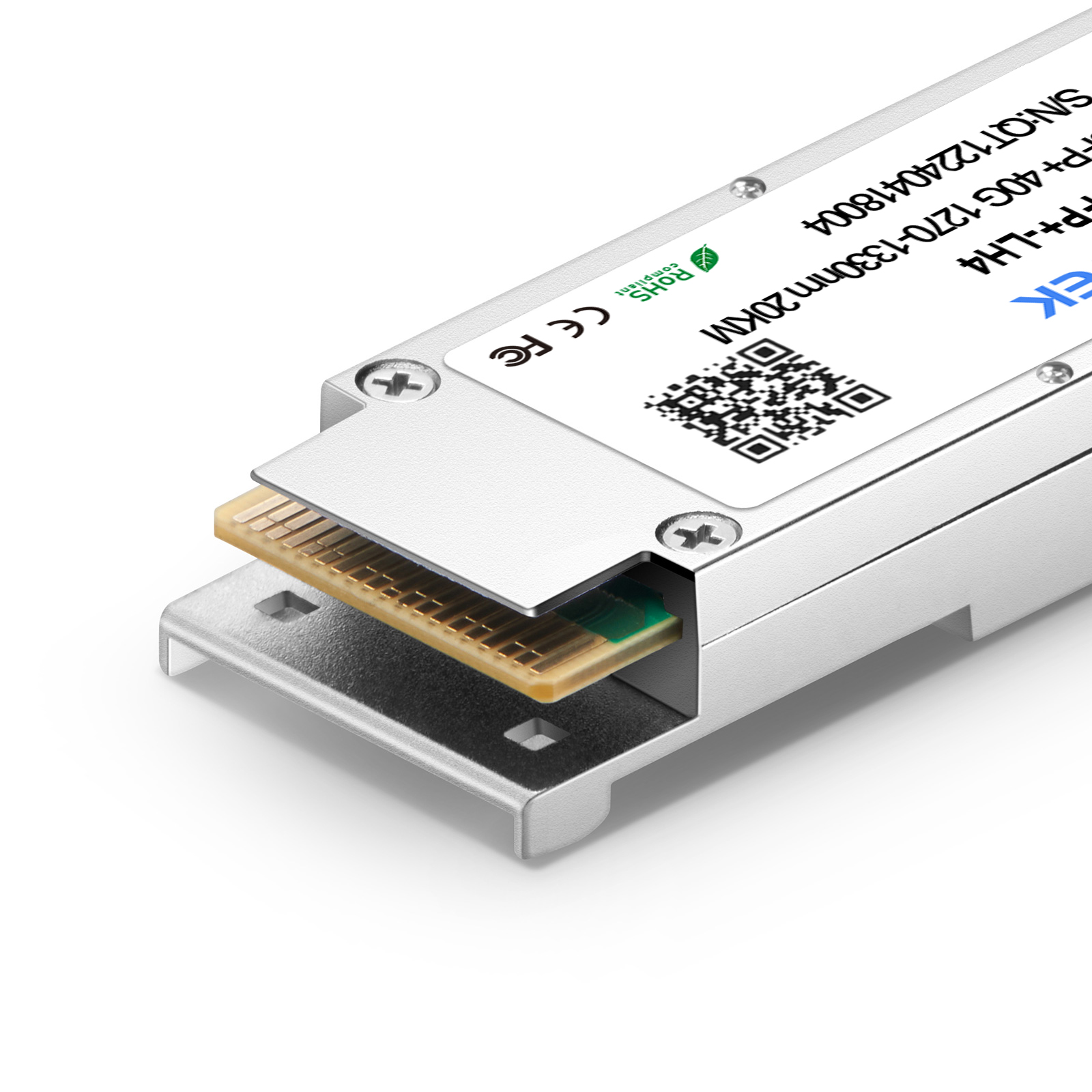

Cisco QSFP-LR4-40G-20 Compatible 40GBASE-LR4 QSFP+ 1310nm 20km DDM LC SMF Optical Transceiver Module

Compatible Cisco

Transceivers type QSFP-LR4-40G-20

* Review
0/1000
Allow files type of JPG, PNG, MP4. Maximum file size: 5MB

Maximum size: 5MB

Satisfaction
Customer Gallery
View All Customer Gallery

Mark

2023-12-15
This product works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent value fo ct works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent valur money!

Verified Purchase

Helpful

8

Sign in to vote
Added to Cart
Cisco QSFP-LR4-40G-20 Compatible 40GBASE-LR4 QSFP+ 1310nm 20km DDM LC SMF Optical Transceiver Module
US$ 125.00
Compatible
Cisco
Transceivers type
QSFP-LR4-40G-20
Quantity
Subtotal
View Cart
Check Out
Continue shopping

Confirmation

Successfully added shopping cart

Bulk Order Quotes
Cisco QSFP-LR4-40G-20 Compatible 40GBASE-LR4 QSFP+ 1310nm 20km DDM LC SMF Optical Transceiver Module ;jsessionid=C147B0E382F28E5907C92569F8704633

Compatible Cisco ;jsessionid=C147B0E382F28E5907C92569F8704633

Transceivers type QSFP-LR4-40G-20 ;jsessionid=C147B0E382F28E5907C92569F8704633

  • Qty:

  • Name:

  • E-mail:

  • Country
