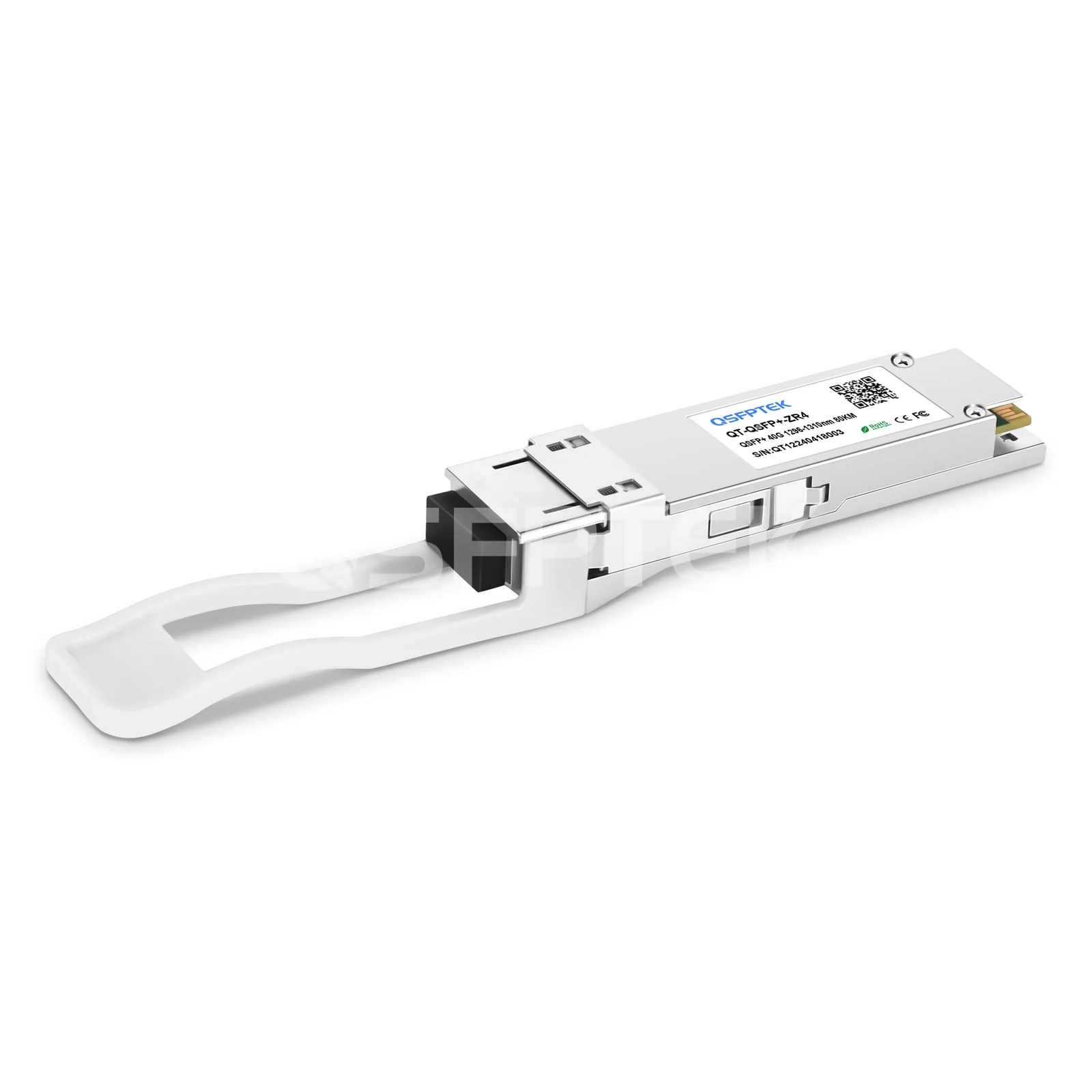

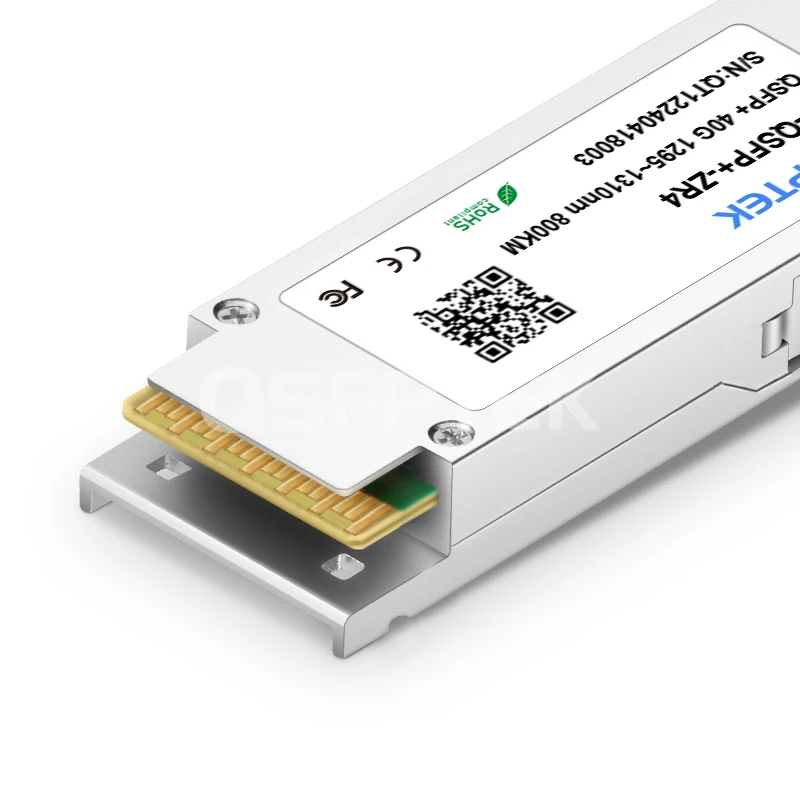

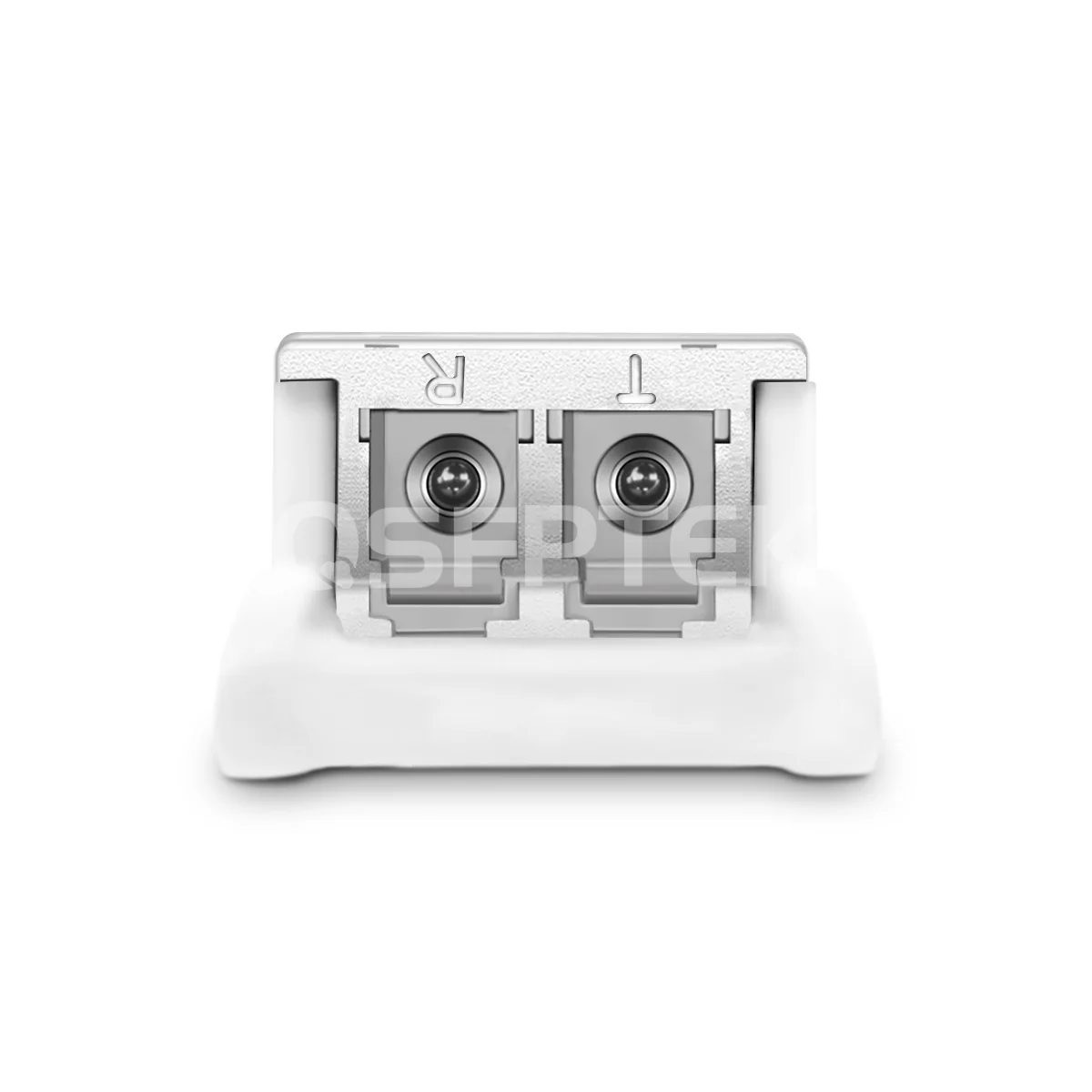

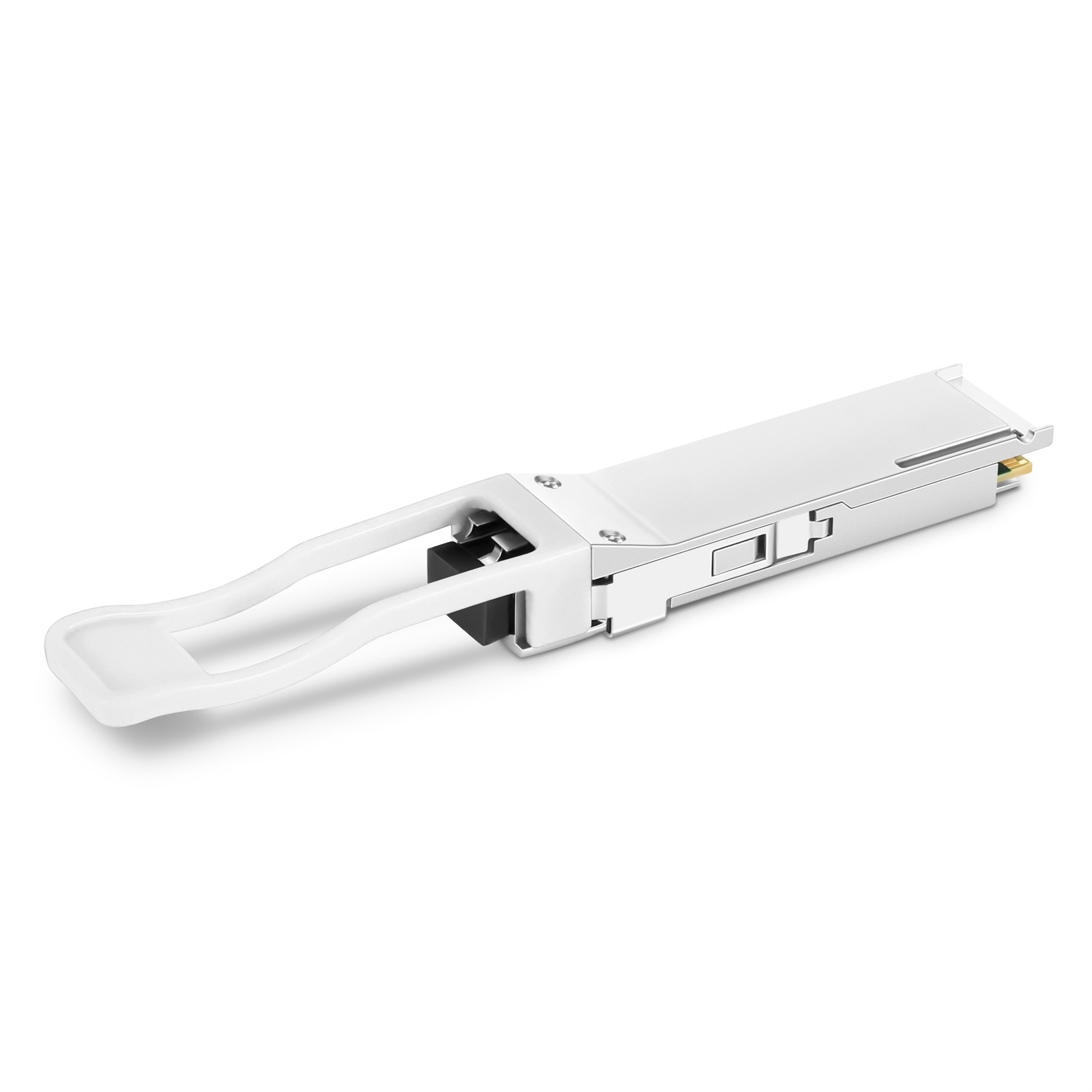

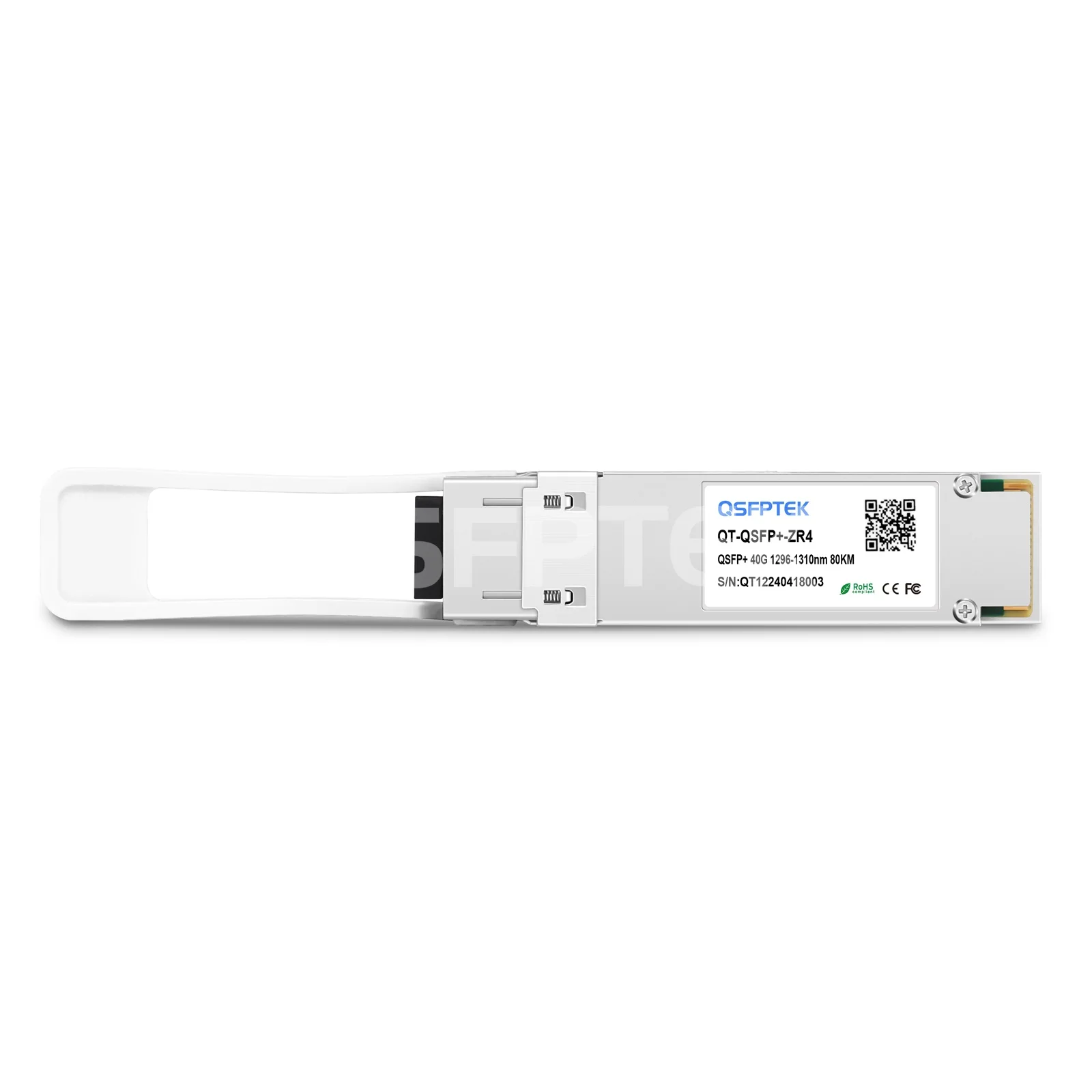

Generic QSFP-40G-ZR4 Compatible 40GBASE-ZR4 QSFP+ 1310nm 80km optical transceiver Module

Product No :100059
US$ 1099.00  US$ 1300.00
Compatible
0 in stock
Free Shipping over US$ 84.9 US/EU Warehouses in stock, Overnight Shipping
1. Rate: 40G; Connector: Duplex LC; with DDM
2. DFB+APD; Low Power Consumption <5W
3. Applied in data center interconnect, metropolitan area network
4. The Best choice for 40Gbps long-haul transmission
5. QSFP+ MSA Compliant
See more

Specifications

Generic QSFP-40G-ZR4 Compatible 40GBASE-ZR4 QSFP+ Optical Transceiver Module (1294~1310nm, SMF, 80KM, LC, DDM)



Generic QSFP-40G-ZR4 compatible QSFP+ optical transceiver is equipped with LC duplex connectors, reaching a link up to 80km over OS2. QSFPTEK manufactured 40GBASE-ZR4 QSFP+ transceiver module is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-ZR4. Besides, DDM (digital diagnostics monitoring) function is supported on the 40G fiber optic transceiver to achieve real-time operating parameters monitoring. This 40G QSFP+ transceiver caters for long-haul networks, campus networks, metropolitan area networks, etc.



Part Number:

QSFP-40G-ZR4

Vendor Name:

QSFPTEK

Form Factor:

QSFP+

Data Rate:

40Gbps

Wavelength:

1294~1310nm

Distance:

 80km@OS2

Connector:

Duplex LC

Cable Type:

OS2 SMF

Transmitter:

 4x DFB

Receiver Type:

APD

TX Power:

-2.7~4.5dBm

Receiver Sensitivity:

<-28dBm

Power Consumption:

≤ 5W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1.00E-12

Protocols:

IEEE 802.3ba IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636, Infiniband 40G QDR

Warranty:

3 Years

Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Ideal for long-haul networks, campus networks, metropolitan area networks.
  • 3. Extremely long transmission distance
    QSFP-40G-ZR4 supports up to 80km transmission.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

1. Data Center Solution for 40G Gigabit Ethernet Switches

2. 40G to 4X10G Break-out Connection



Related Products:

• SFP-10G-SR

• MTP Female to 4 LC UPC Duplex 8 Fibers OM4 Multimode Breakout Cable



The QSFP 40GBASE-SR4 Connectivity Testing on Switches



Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Various Switch Tests



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.








40G QSFP+ Model Contrast Table



Part Number

QT-QSFP+-SR4

QT-QSFP+-IR4

QT-QSFP+-PSM4

QT-QSFP+-LR4

QT-QSFP+-SH4

QT-QSFP+-ER4

QT-QSFP+-ZR4


Wavelength

850nm

CWDM

1310nm

CWDM

CWDM

CWDM

LWDM 1294~1310nm

Max Distance

150m

2km

10km

10km

20km

40km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

LC Duplex

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

Tx Power(dBm)

-7 ~ 1

-7 ~ 2.3

-6 ~ -1

-7 ~ 2.3

-4 ~ 2.3

-2.7 ~ 4.5

-2.7 ~ 4.5

Rx Sensitivity(dBm)

-9.5

-11.5

-14.4

-13.7

-11.5

-19

-28

Power Consumption

<0.7W

<2.5W

<2.5W

< 2.5W

<3.5W

<3.5W

<5W

Source

VCSEL + PIN

DFB + PIN

4xDFB + PIN

DFB + PIN

DFB + PIN

DFB + PIN

4xDFB + APD

Operating Temperature

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

Questions & Answers

more+
  • What is the difference between Cisco qspf-40g-lr4 and qsfp-40g-lr4-s?
    They are actually the same one.
  • Does the qsfp-40g-sr4 transceivers allow 4x 10g connectivity?
    Yes. The connectivity is achieved by using an 8-fibers OM4 MTP-LC Type B break-out cable, which connects the qfp-40g-sr4 transceivers to four sfp-10g-sr optical interfaces.
  • Can this module work at 80°C?
    No, it can't. The working temperature range is 0 to 70°C.
