1. Compliant to 100G Single Lambda MSA 2. Supporting 10km reach of single mode fiber 3. 1311nm EML laser and PIN Receiver 4. Hermetically sealed TO Based design 5. Maximum power consumption 4.5W 6. KP4 FEC termination inside the moduleSee more

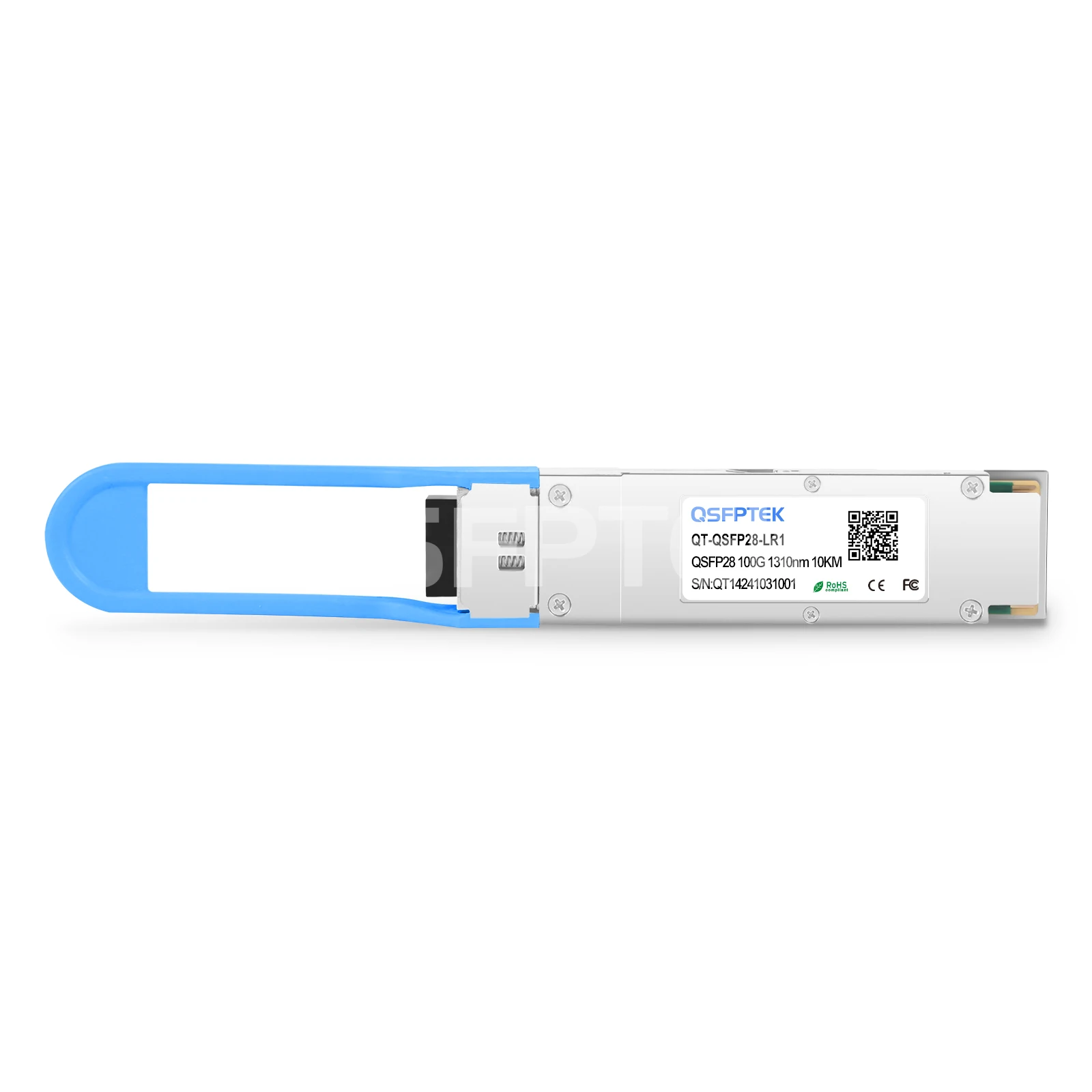

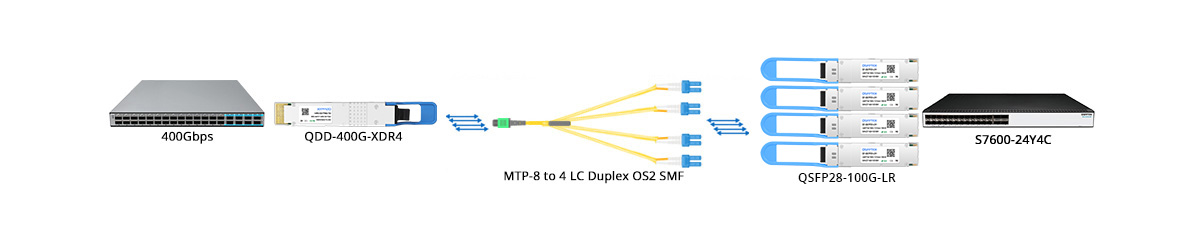

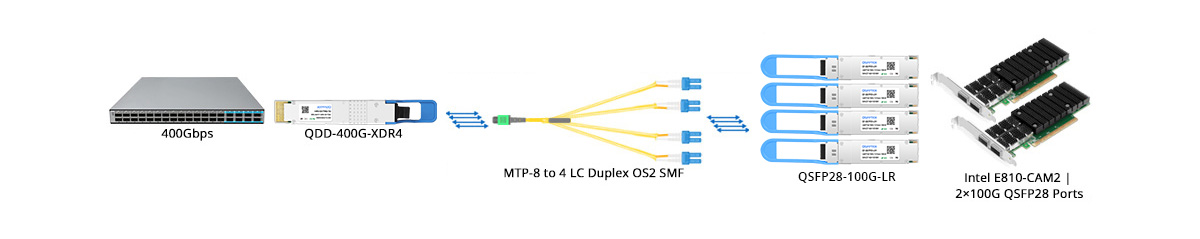

The Cisco QSFP-100G-LR-S compatible optical transceiver module is designed with duplex LC connectors, reaching a link up to 10km over single-mode fiber (OS2). QSFPTEK manufactured the 100G LR1 can convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. This transceiver is compliant with QSFP28 MSA and 100G Lambda MSA standards. Besides, the DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in Data Centers and 400G to 100G breakout applications.
|
Part Number: |
QT-QSFP28-LR1 |
Vendor Name: |
QSFPTEK |
|
Form Factor: |
QSFP28 |
Data Rate: |
103.125Gbps |
| Wavelength: | 1310nm |
Distance: |
10km |
|
Connector: |
Duplex LC |
Cable Type: |
OS2 SMF |
|
Transmitter: |
EML |
Receiver Type: |
PIN |
|
TX Power: |
-1.4 to +4.5dBm |
RX Power: |
-7.7 to +4.5 dBm |
|
Power Consumption: |
≤4.5W |
Modulation Format: |
PAM4 |
|
DDM: |
Support |
FEC: |
Yes (built-in KP4 FEC) |
|
Protocols: |
100G Lambda MSA 100G-LR Specification compliant, QSFP28 MSA, SFF-8636 |
Warranty: |
5 Years |
Take a look at our test program to get the reliable and high-performance optical transceivers.
.svg)
.jpg!thumb)
Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.
Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
5 stars
3 Reviews
4 stars
0 Reviews
3 stars
0 Reviews
2 stars
0 Reviews
1 star
0 Reviews
Verified Purchase
Helpful
8
Confirmation
Successfully added shopping cart
Compatible Cisco
Transceivers type QSFP-100G-LR-S
.jpg)

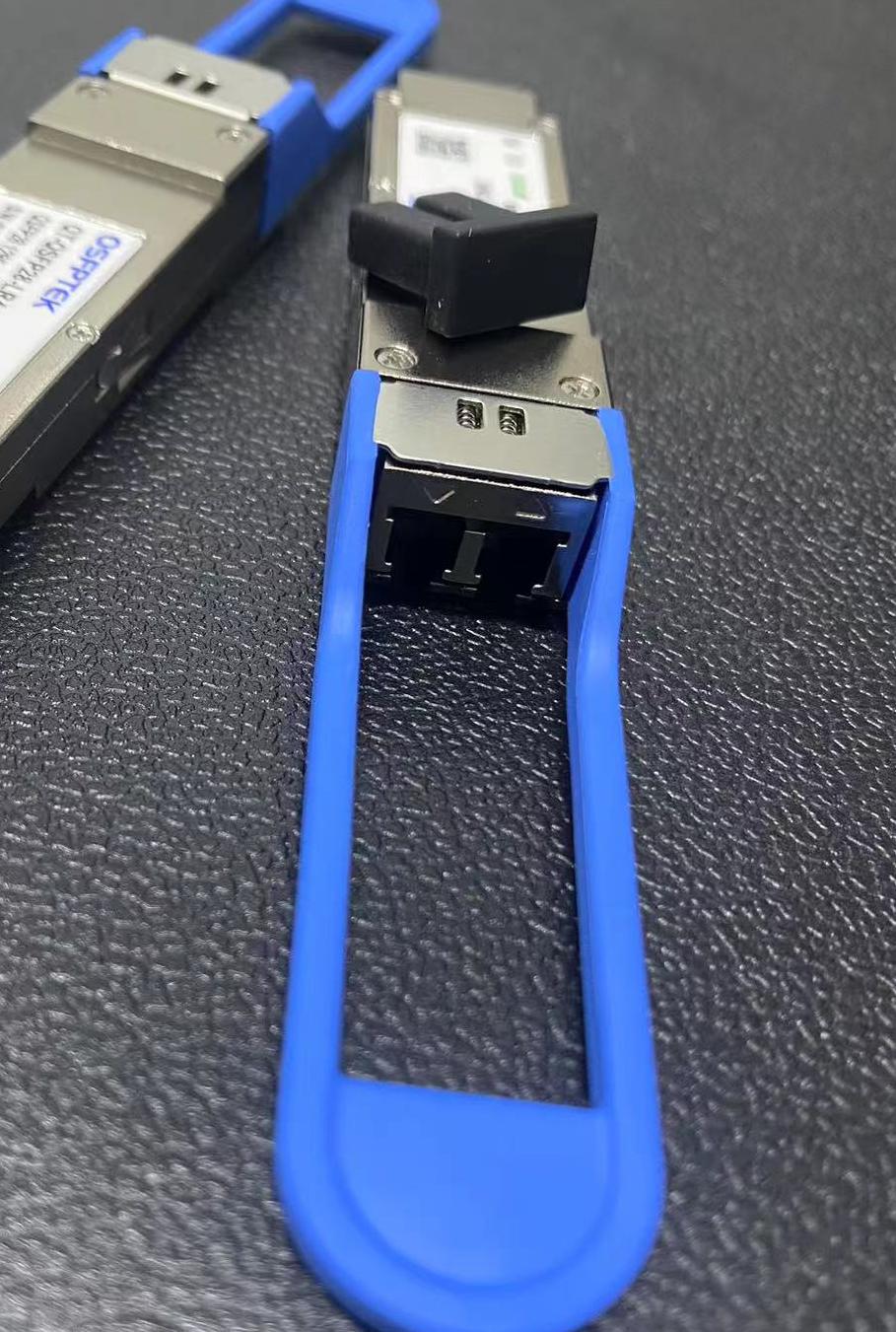

These 100G LR modules linked up instantly and have been running reliably on our 10 km SMF link. Diagnostics look consistent across units. Ordering and delivery were smooth, and support was responsive. Very satisfied overall.
