    Home / Products / Transceivers / 400G/800G/1.6T Ethernet Transceivers / 400G QSFP-DD / 100263

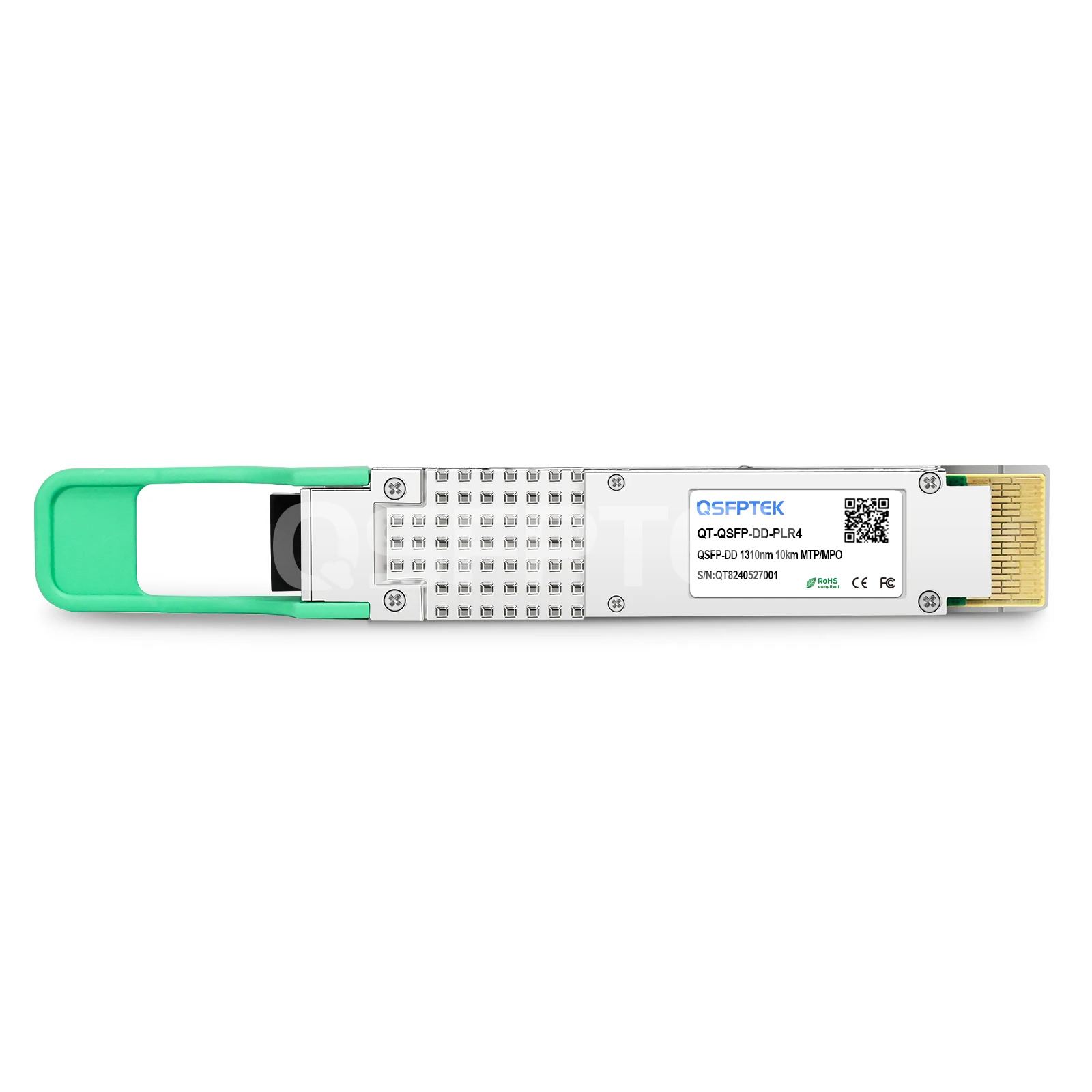

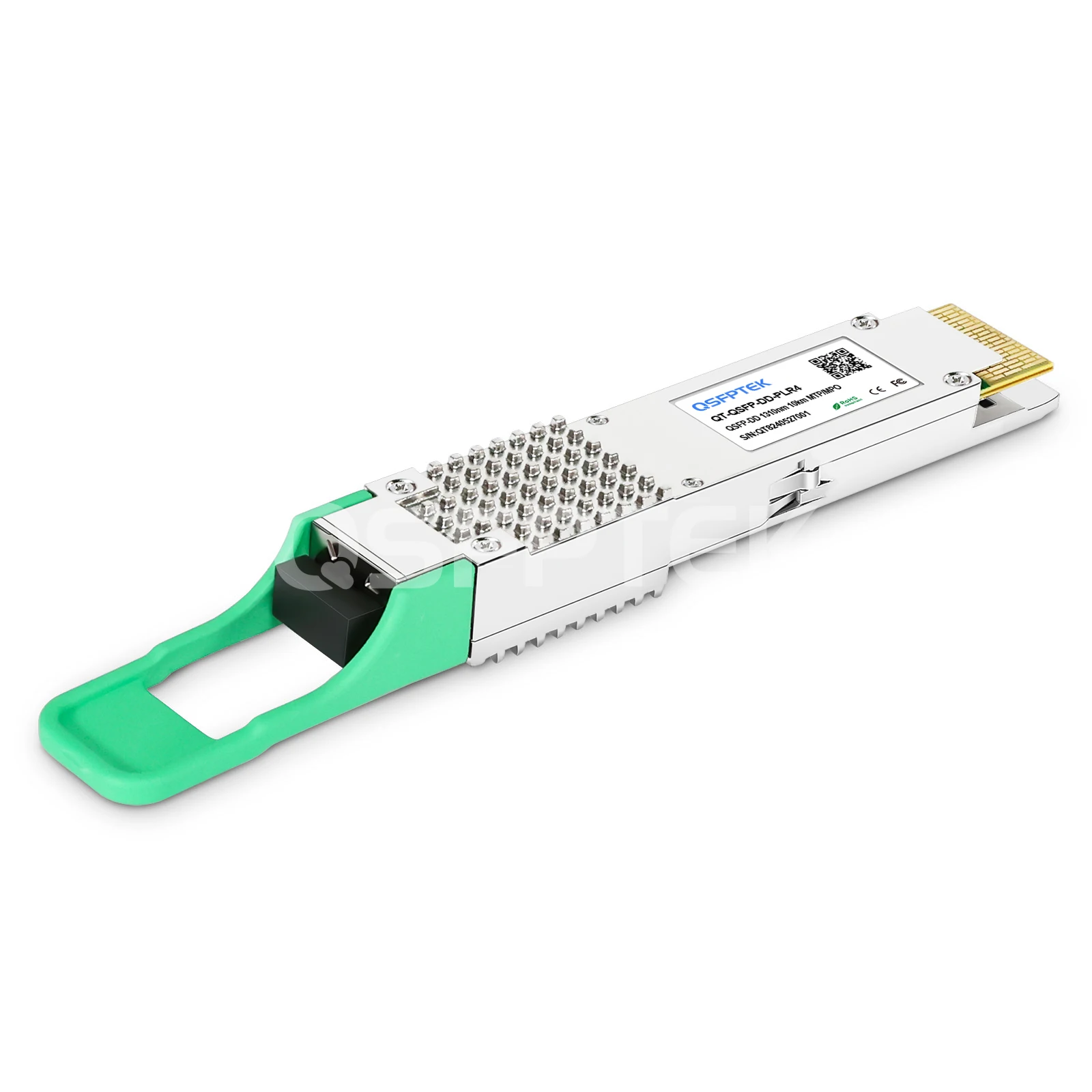

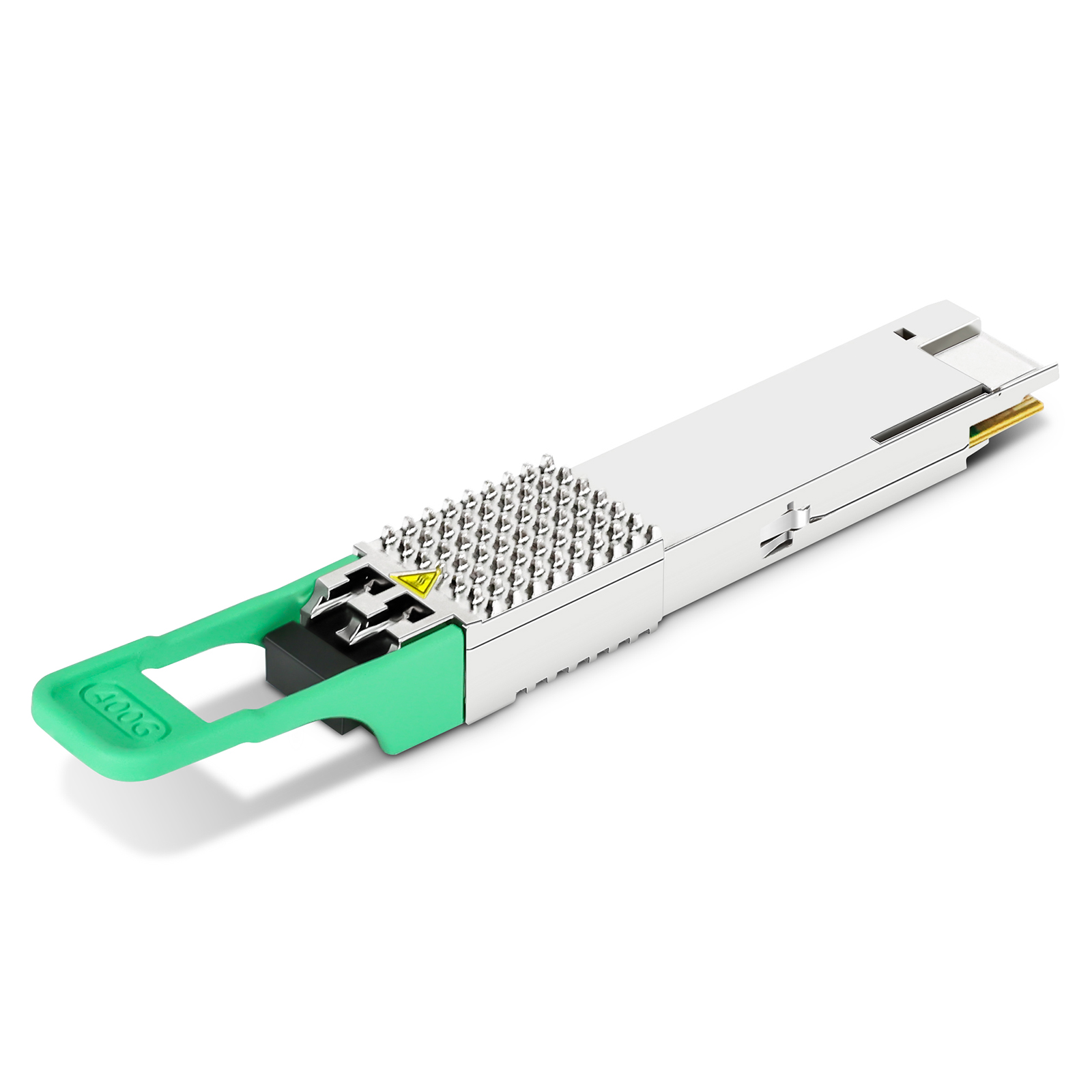

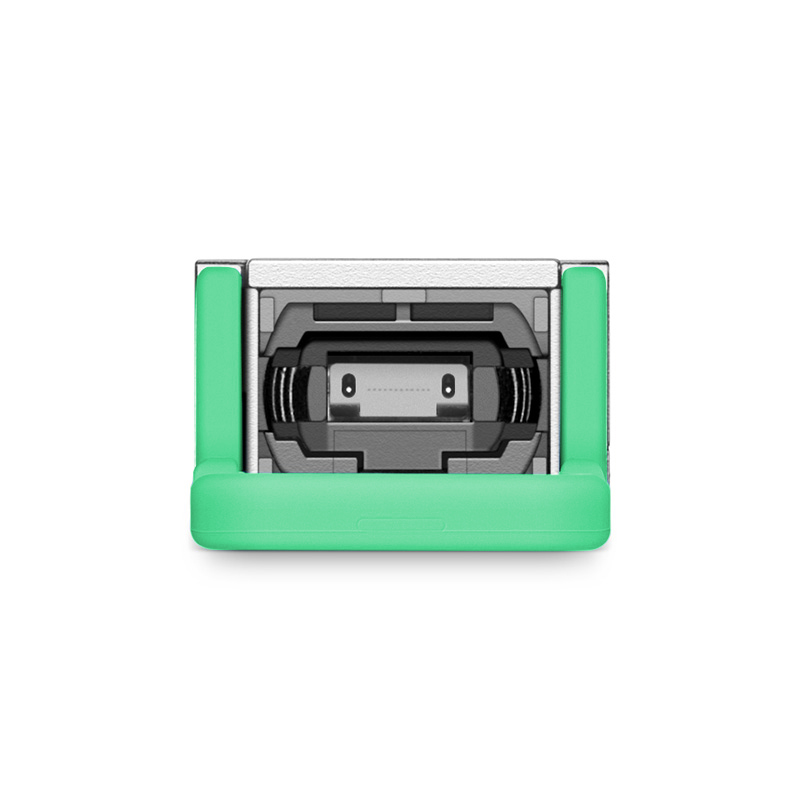

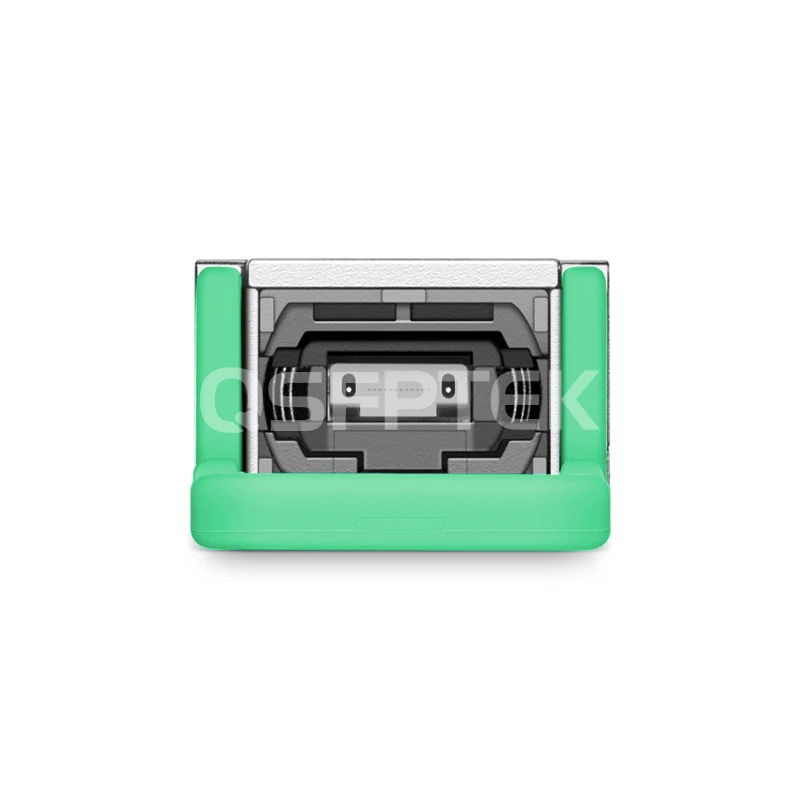

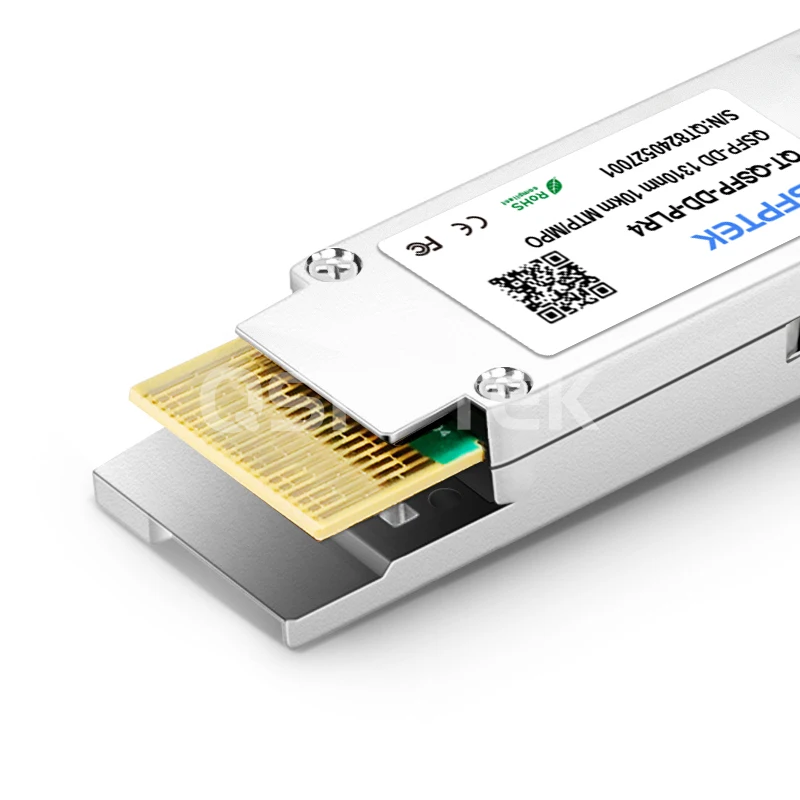

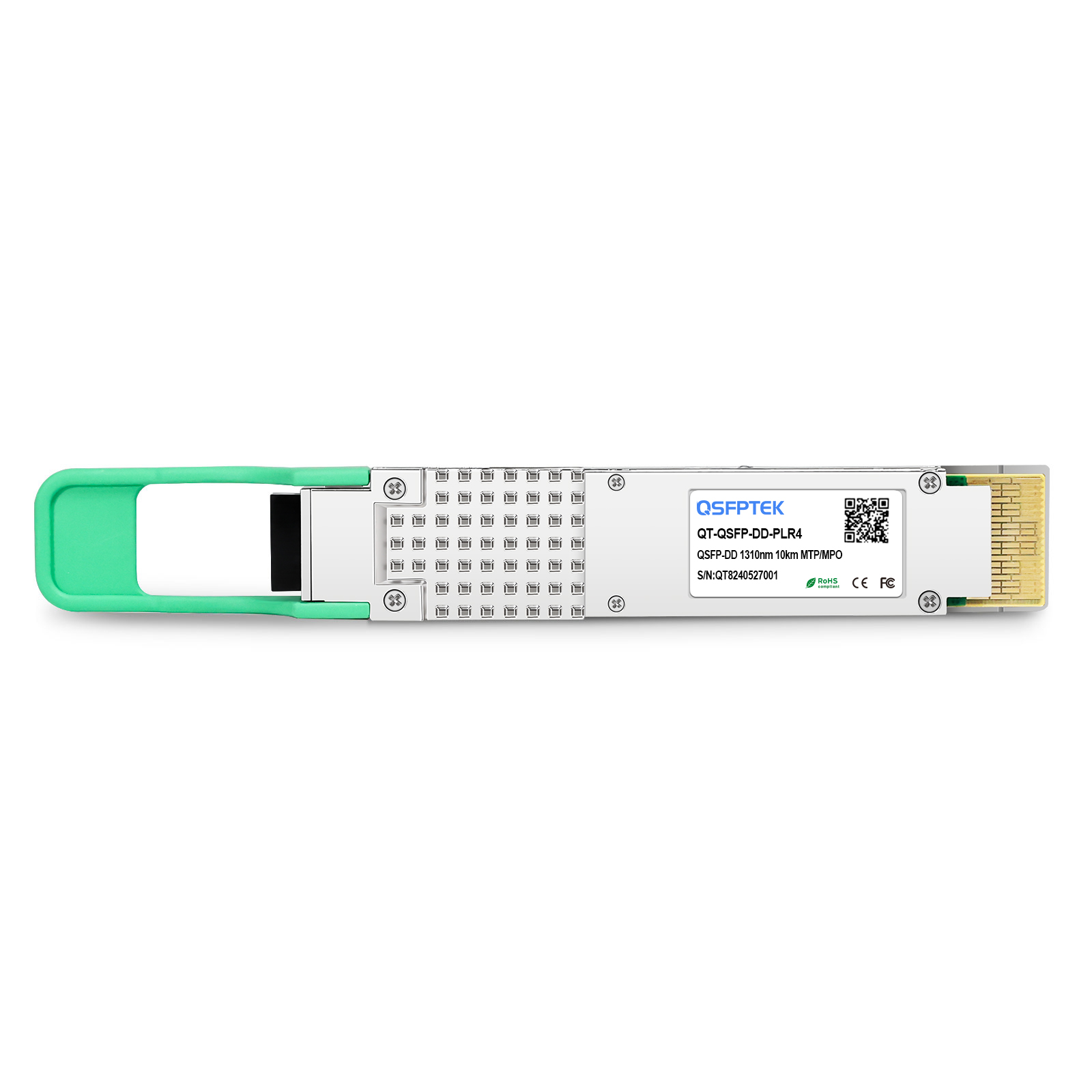

    Generic Compatible 4x100GBASE-LR QSFP-DD 400G 1310nm 10km DOM MTP/MPO-12/APC SMF Optical Transceiver Module

    Product No: 100263
    4 Reviews
    100 Sold
    US$ 778.90
    Compatible
    Transceivers type
    23 in real-time stock, 25 Aug, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Hot Pluggable QSFP-DD form factor
2. Max power consumption 12W
3. Link length up to 10km via MTP/MPO-12 connector
4. Support 4x100G breakout connectivity
5. Compliant to QSFP-DD MSA, 100G Lambda MSA, OIF 56G PAM4, IEEE 802.3cu
    See more

    Specifications

    Generic 4x100GBASE-LR QSFP-DD PAM4 1310nm 10Km DOM Transceiver Module (SMF, 1310nm, 10Km, MTP/MPO, DOM)



    The QDD-4X100G-LR 400G-PLR4 module is designed to reach 10km distances over single-mode fiber (SMF) for 400 Gigabit Ethernet transmission. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. The 4x100GBASE-LR module uses MTP/MPO-12 connector, supporting breakout mode. It can be applied in the 4x100G breakout connectivity of QSFP-DD to QSFP28 100G-LR.



    QSFPTEK QDD-4X100G-LR 4x100GBASE-LR QSFP-DD module is compliant with QSFP-DD MSA, 100G Lambda MSA, OIF 56G PAM4, and IEEE 802.3cu for 100GBASE- LR1 and is mainly applied in 400G Ethernet, Data Center and Cloud Networks.



    Model Name QT-QSFP-DD-PLR4 Vendor Name QSFPTEK
    Form Factor QSFP-DD Data Rate 425 Gbps
    Wavelength 1310nm Distance 10km
    Connector MTP/MPO-12/APC Cable Type SMF
    Transmitter Type EML Receiver Type PIN
    TX Power -1.9~4.8dBm Receiver Sensitivity <-8.2dBm
    Power Consumption ≤12W Extinction Ratio 3.5dB
    DDM/DOM Supported Working Temperature Range 0 to 70°C (32 to 158°F)
    Protocols QSFP-DD MSA Compliant Warranty 1 Year
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. High Reliablility and Best Price
      Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
    • 2. Super High-density
      Industry’s highest bandwidth density 400G optical module for 400 Gigabit Ethernet connectivity.
    • 3. Protocols
      Compliant with QSFP-DD MSA, 100G Lambda MSA, OIF 56G PAM4, and IEEE 802.3cu for 100GBASE- LR1.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

    Scenario 1: 400G to 400G Direct Connectivity

    QT-QSFP-DD-PLR4 Scenario 1 400G to 400G Direct Connectivity





    Scenario 2: 400G to 4x 100GE Breakout Connectivity

    QT-QSFP-DD-PLR4 Scenario 2 400G to 4x 100GE Breakout Connectivity



    Product details

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QT-QSFP-DD-PLR4 compatibility test





    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.







    Long-Haul 400G QSFP-DD Optics Contrast Table



    Part Number

    QT-QSFP-DD-FR4

    QT-QSFP-DD-LR4

    QT-QSFP-DD-PLR4

    QT-QSFP-DD-LR8

    QT-QSFP-DD-ER8


    Center Wavelength

    1310nm

    1310nm

    1310nm

    1310nm

    1310nm

    Connector

    Duplex LC

    Duplex LC

    MTP/MPO-12

    Duplex LC

    Duplex LC

    Cable Distance (Max.)

    2km

    10km

    10km

    10km

    40km

    Modulation

    PAM4

    PAM4

    PAM4

    PAM4

    PAM4

    Transmitter + Receiver Type

    CWDM EML + PIN

    CWDM EML + PIN

    EML + PIN

    LWDM EML + PIN

    LWDM EML + APD

    TX Power

    -3.2~3.5dBm

    -2.7~1.5dBm

    -1.9~4.8dBm

    -2.8~5.3dBm

    -0.6~5.6dBm

    Receiver Sensitivity

    <-7.3dBm

    <-9.0dBm

    <-8.2dBm

    <-9.1dBm

    <-16.1dBm (SECQ–17.5dBm)

    Power Consumption

    ≤12W

    ≤12W

    ≤12W

    ≤13W

    ≤15.4W

    Temperature

    0 to 70°C (32 to 158°F)

    0℃ to 70℃

    0℃ to 70℃

    0℃ to 70℃

    0℃ to 70℃

    Application

    Data Center

    800G to 2x400G Breakout

    Data Center

    Data Center

    400G to 4x100G Breakout

    Data Center

    Data Center
