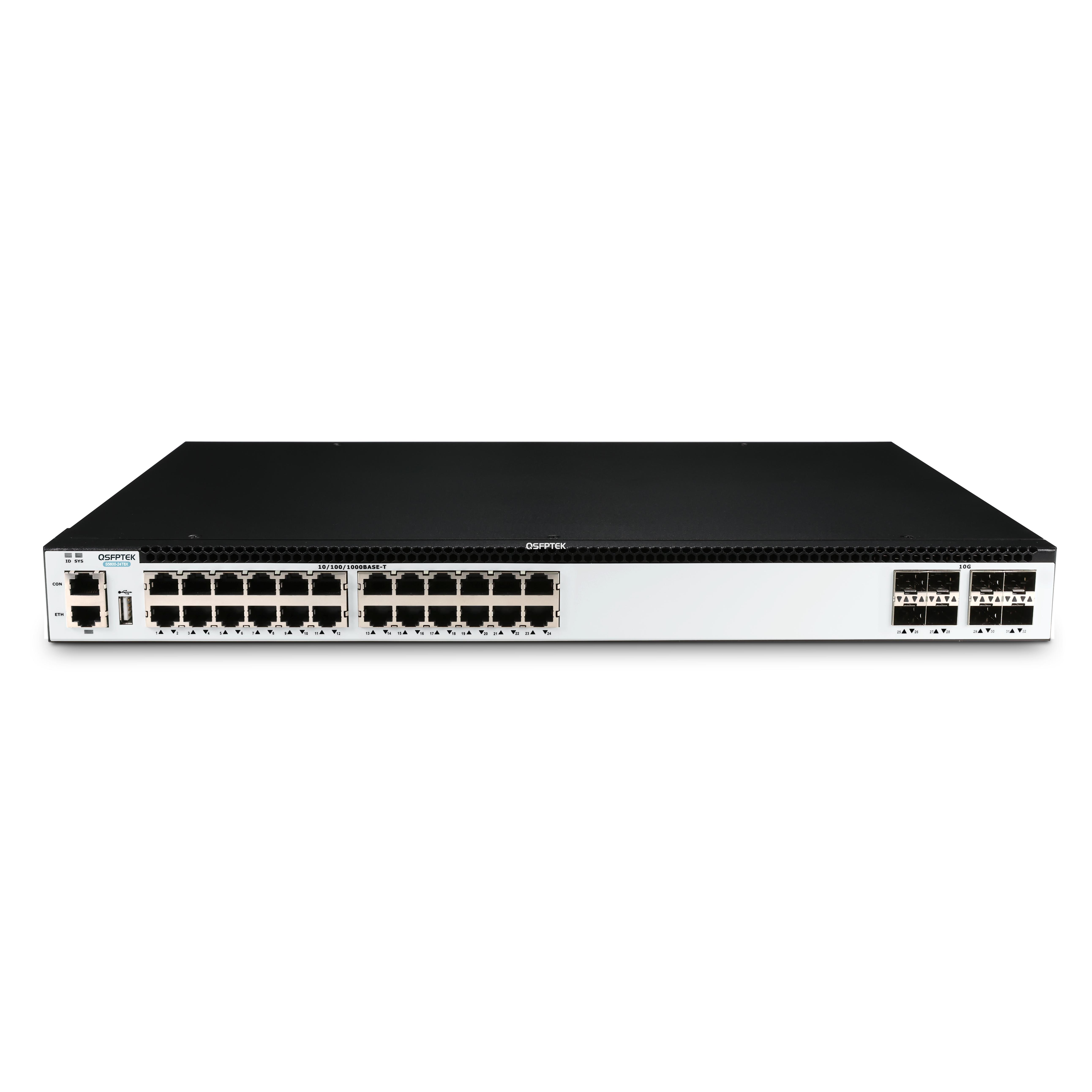

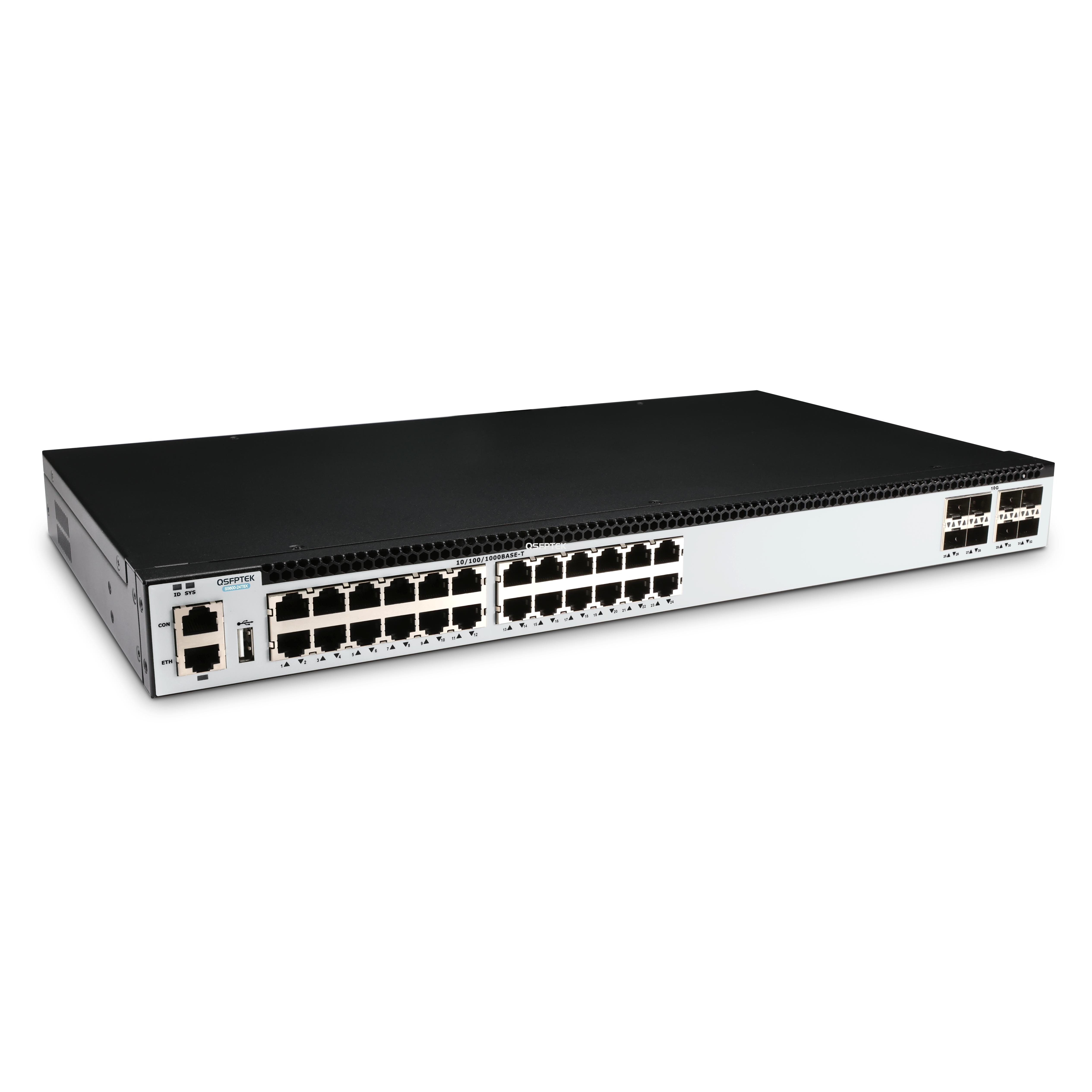

S5600-24T8X, 24-Port Gigabit Ethernet L3+ Switch, 24x GE RJ45, with 8x 10GE SFP+ Uplinks, Support MLAG

Product No :100486

US$ 905.00 ~~US$ 1099.00~~

Series

1G/10G Switches

Models

100 in stock
20 In U.S. Warehouse，20 In EU Warehouse Free Shipping，5-Year Warrant, 14-Day Returns&Exchange

-

+

Add to Cart Bulk Order Quotes

1. 24x 10/100/1000BASE-T RJ45, 8x 10G SFP+ uplink ports
2. RDMA reduces latency and CPU consumption
3. Support data center features include MLAG/VXLAN/EVPN/VARP/PFC
4. Support CLI/WEB/SNMP/SSH2.0/SSL for easy management
5. Support QoS/ACL/DHCP Snooping for high security
6. Support LACP/VRRP/ERPS/MSTP/BFD/Smart Link for high reliability

Specifications

S5600-24T8X, 24-Port Gigabit Ethernet L3+ Switch, 24x GE RJ45, with 8x 10GE SFP+ Uplinks

QSFPTEK S5600-24T8X is designed as a high-performance computing L3+ switch with 24×10/100/1000BASE-T RJ45 and 8×10GE SFP+ Uplink Ports. It is equipped with single AC built-in power supply and 3 built-in fans to ensure good redundancy and heat dissipation.

The S5600-24T8X can be simply managed by supporting SNMP v1/v2/v3, WEB, and CLI management ports for high flexibility. Perform as layer 3+ managed switch, S5600-24T8X supports advanced features including MLAG, PFC, VXLAN, EVPN, and VARP, which make it widely used for large scale enterprises, campus networks, data center networks for effective and reliable network solutions.

Ports	24x 10/100/1000BASE-T RJ45 \| 8x10G SFP+	Packet Buffer	9MB
Switching Capacity	208bps	Forwarding Rate	155 Mpps
MAC Address	98304	ARP Table	12288
VLAN IDs	4K	Jumbo Frame	9600 bytes
IPv4 Routes	57344	IPv6 Routes	4096
FLASH	8 GB	RAM	2 GB
Latency	660ns	Airflow	Front-to-Back
Power Supply	AC build-in	Fan Number	3 build-in fans
Max. Power Consumption	55W	MTBF	215,299 hours
Operating Temperature	0°~45°C (32°~113°F)	Weight	3.6kg
Dimensions (H×W×D)	44 x 442 x 245 mm	Warranty	5 Years

Features

Convenient and Secure Management

Support SNMP v1/v2/v3, CLI, web management, Telnet and FTP connection, OAM, SSH2.0, SSL, etc. to offer easy management. Support QoS, ACL, and DHCP Snooping to ensure high security.
Complete Layer 2/3 Functionality

Support complete L2 and L3 features, including L2 switching, L2 multicast, QoS, advanced L3 routing, OSPF, BGP, Bidirectional Forwarding Detection (BFD), and L3 multicast, etc.
Multiple Data Center Features

Support data center features including MLAG/VXLAN/EVPN/VARP/PFC.
Mature IPv6 Technology

Supports IPv4/IPv6 dual stack, IPv6 RIPng, and IPv6 over IPv4 TUNNEL. It can be deployed on a pure IPv4/IPv6 network, or a shared IPv4/IPv6 network.

Applications

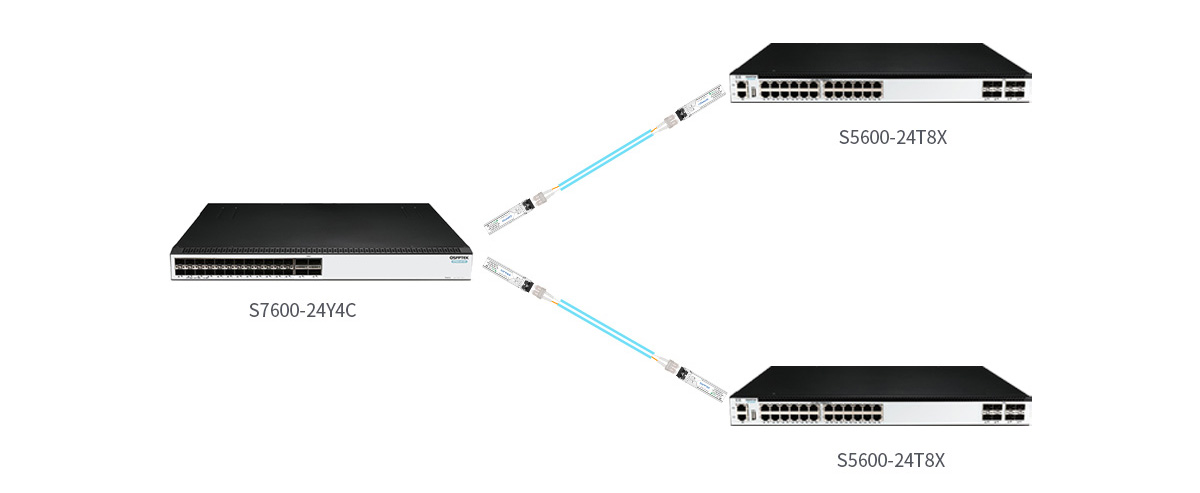

Scenario 1:

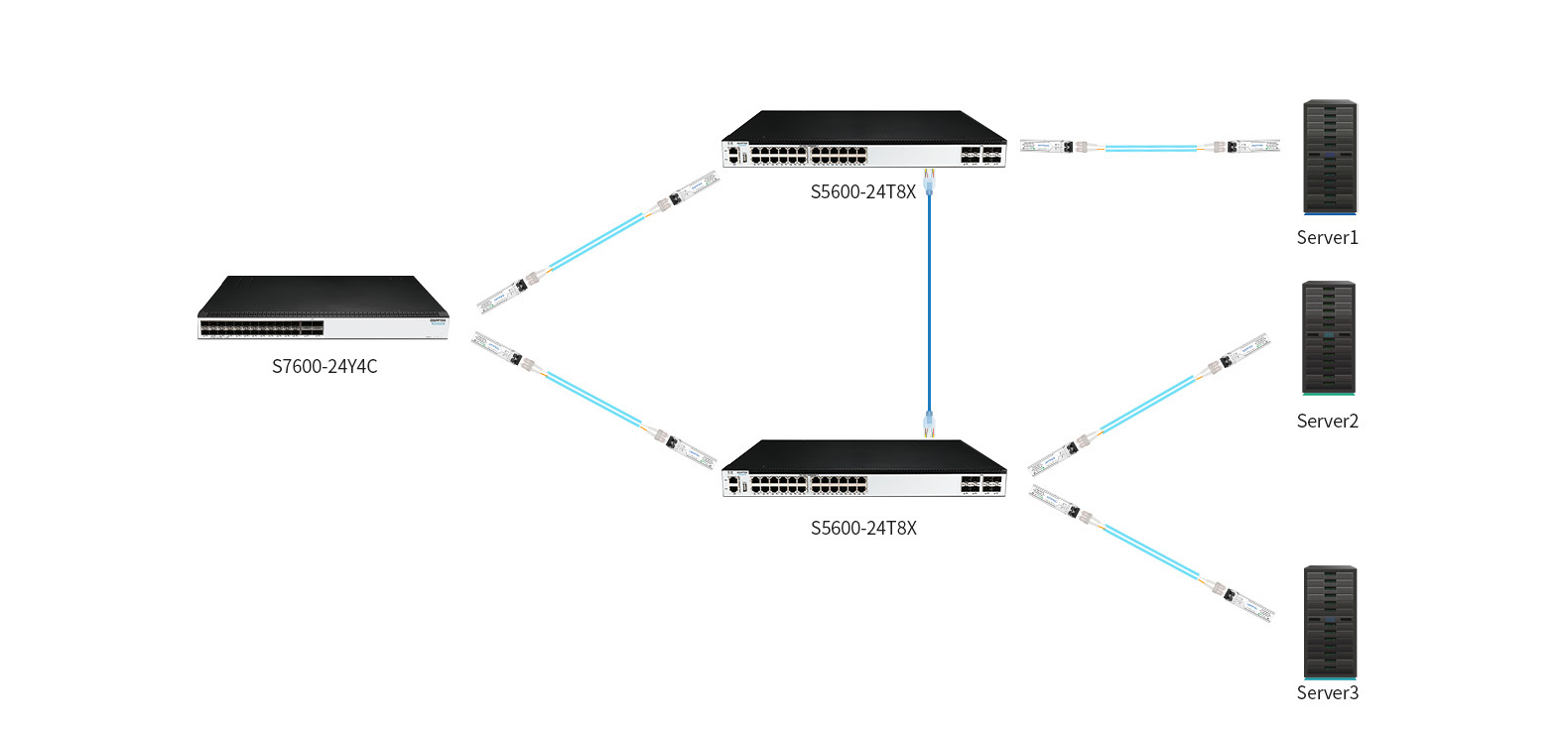

Scenario 2:

Related Products:

10G SFP+ Optical Transceiver Modules

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24x 25GE SFP28, with 4x 100GE QSFP28, Support MLAG

Product details

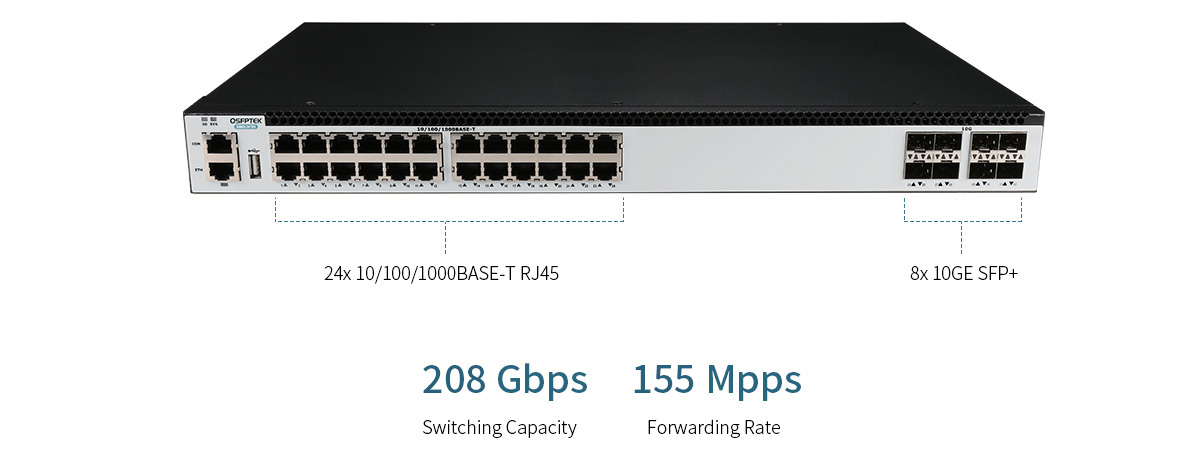

High-density Gigabit Access Capability with 8x 10GE Uplink

S5600-24T8X switch provides 24*RJ45 10/100/1000 ports, allowing for high-density Gigabit access. 8*10GE uplink ports provide 10G high bandwidth to the backbone through the 10G SFP+ SR/LR modules. Its 208 Gbps switching capacity and 155 Mpps forwarding rate also help to ensure smooth and reliable data transfers. This can be used as an ideal access or aggregation layer switch for large-scale campus and enterprise networks.

ECN and PFC Ensure Lossless Transmission of End-To-End Data

RDMA(Remote Direct Memory Access) provides high throughput and ultra-low latency with low CPU overhead. Once end-to-end network connectivity is established, PFC(Priority Flow Control) and ECN (Explicit Congestion Notification) can be enabled to ensure lossless transport for RoCE traffic.

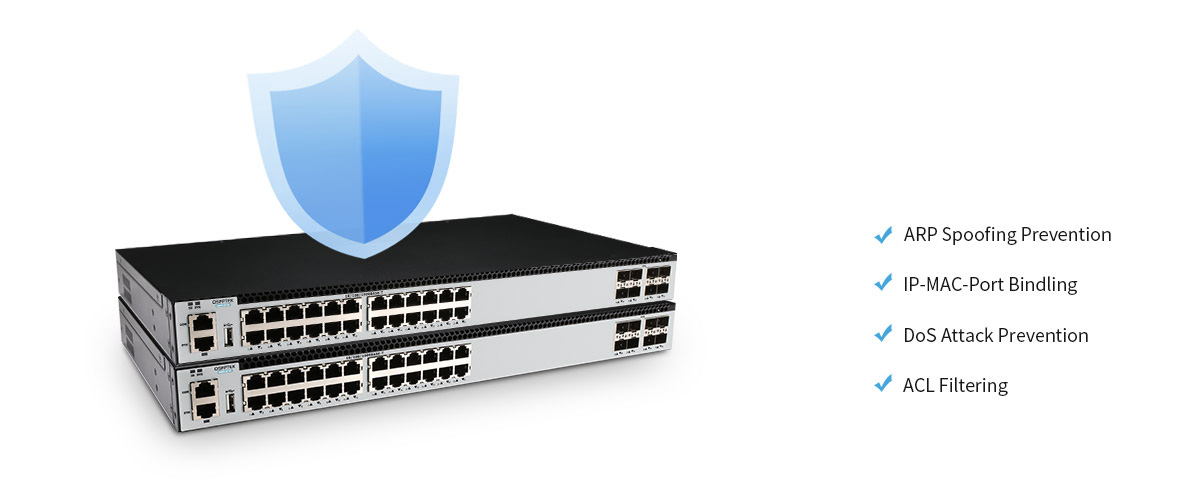

Advanced Security Feature for Enterprise

S5600-24T8X is equipped with advanced security features perfect for enterprises to neutralize threats such as ARP spoofing prevention, IP-MAC-Port Binding to prevent Man-in the middle attacks, and DoS attack prevention.

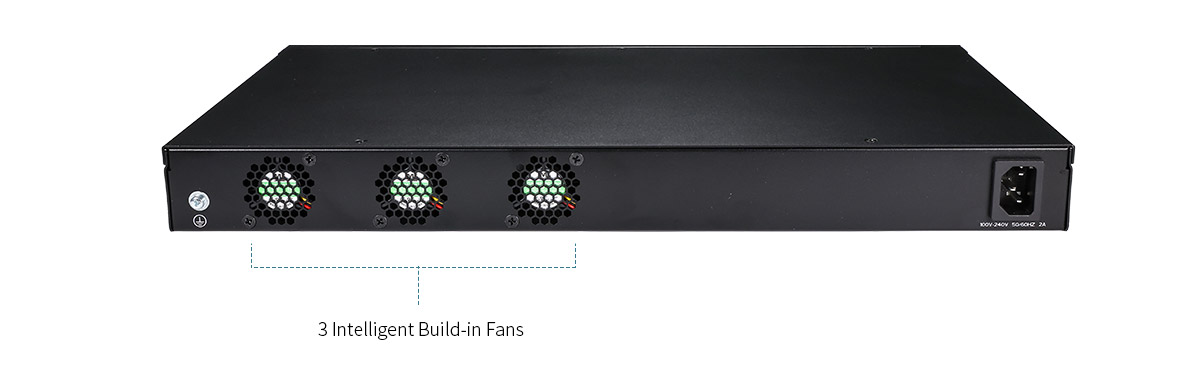

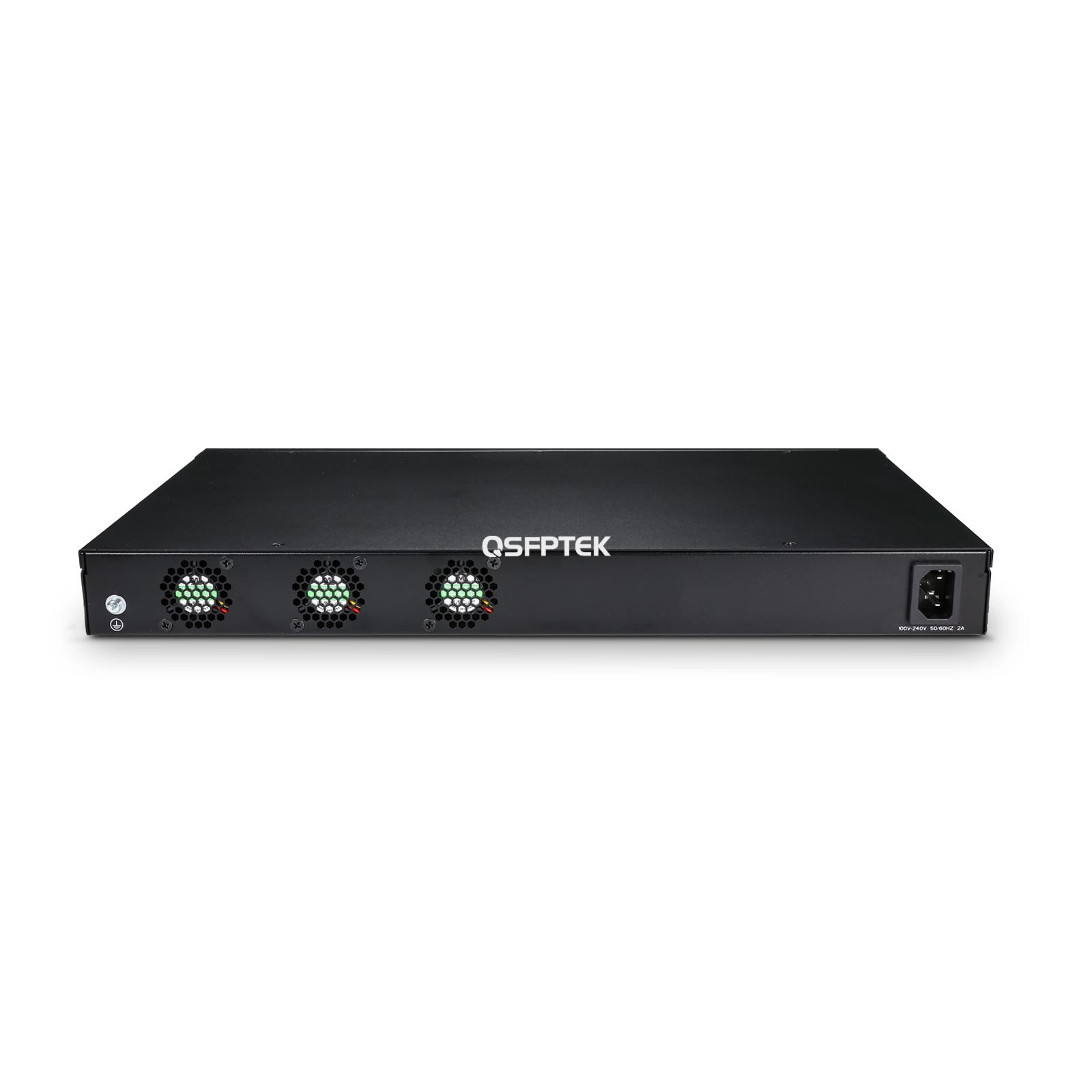

Intelligent FAN Design, Energy-saving Technology

S5600-24T8X switch features front-to-back airflow that optimizes air circulation inside the rack. This design meets heat dissipation requirements in equipment rooms. Power consumption monitoring technology can measure system power consumption in real-time, reducing power consumption and O&M costs.

Questions & Answers

more+

Do your S5600 or S7600 series switches support NG-mVPN?

Sorry, Our S5600 and S7600 series switches support BGP EVPN, L2VPN, and L3VPN, but don't support NG-mVPN.
What is the difference between S7600-48Y8C and S7600-48X8C?

The main difference between the two is that the downstream port of 48Y8C is SFP28 port, which supports 10G/25G, while the downstream port of 48X8C is SFP+ port. The rest of the features and functions are basically the same.
What is MLAG? What are the advantages of MLAG？

MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG uses a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all ports can transmit the data traffic.
Can the S7600-48X8C support advanced features such as VXLAN/EVPN?

Yes, the switch supports VXLAN and EVPN. You can check all the functions it supports through the datasheet.
