QT-G400A, 10/100/1000Base-T RJ45 to 1000Base-X SFP Slot Gigabit Ethernet PoE+ Media Converter, DC 48~57V

Product No :100689
US$ 59.90  US$ 75.00
100 in stock
;jsessionid=49BCFE6A75ABB066F7C45C9D3B846BE0
-
+
1. The Auto-Negotiation PoE RJ45 port supports MDI/MDI-X adaptive functionality with a speed of 10/100/1000Mbps.
2. A High-performance QoS function is available on each port to enhance network performance.
3. The low-power consumption chip includes a built-in heat sink, ensuring efficient and long-lasting operation.
4. LEDs provide convenient status indications for Ethernet and fiber link connections.
5. The maximum transmission distance is determined by the inserted modules.
See more

Specifications

Gigabit Ethernet Network Media Converter 10/100/1000Base-T RJ45 to 1000Base-X SFP Slot PoE+ Media Converter



The PoE+ Gigabit Ethernet Media Converter extends transmission distance by copper (CATx/UTP)-to-fiber connection. Furthermore, it can supply more than 30 watts of power and a 1Gbps data connection by using an ethernet cable. The poe+ media converter is designed to satisfy the growing demand for high-power required network equipment such as cameras, Wifi access points, etc. The PoE+ Gigabit Ethernet Media Converter is an ideal solution to deliver data and power network devices directly via the RJ45 interface without the need to install extra power outlets and electrical cabling.



The media converters are compatible with a wide range of SFP transceivers, such as 100Base SFP, 1G BIDI SFP, 1G CWDM SFP, 1G DWDM SFP transceiver modules, etc. Furthermore, QSFPTEK also provides other versions of 1g media converter with built-in optical modules, the transmission distance is from 2km to 40km, and LC or SC connector types can be selected.



Ports

1 x Gigabit SFP Port

1 x 10/100/1000M RJ45 Port (Auto MDI/MDIX)

Standards and Protocols IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
PoE Standard IEEE802.3af/ IEEE802.3at Cable Type (Copper)

UTP Cat 5, 5e, 6 Cable (Maximum 100m)

EIA/TIA-568 100Ω STP (Maximum 100m)

LED Indicators Power: Red;Fiber: Link 2(Green);Ethernet: Yellow DIP Switch LFP/ ALS/ FX Speed/FX Reset
Power Consumption Full-load<50W Jumbo Frame 9k
Surge protection ±4KV Dimensions (HxWxD) 20x60x90mm
MTBF (hrs) >50,000Hrs Latency 1us
Enclosure IP40 aluminum housing Input Power DC 48-57V
Operating Temperature -40°C to 85°C Storage Temperature -40°C to 85°C
Relative Humidity 5%~95% (Non-condensation) Warranty 1 Year



Quality Testing Program
Quality Certifications

Features

  • Support IEEE802.1d Spanning Tree
    By supporting the IEEE 802.1d Spanning Tree protocol to prevent loops, provide fault tolerance and high availability to maintain the stability of the Ethernet network.
  • Ensure Stable Transmission
    Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x to ensure the interoperability, stability and performance of Ethernet networks.
  • Low power consumption
    Full load power consumption < 3W, which can save the cost of use and maintenance.
  • Plug-and-play
    Support plug and play, no additional configuration required

Product details

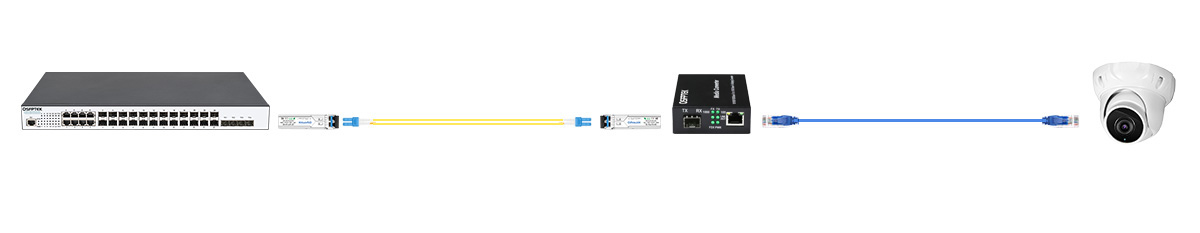

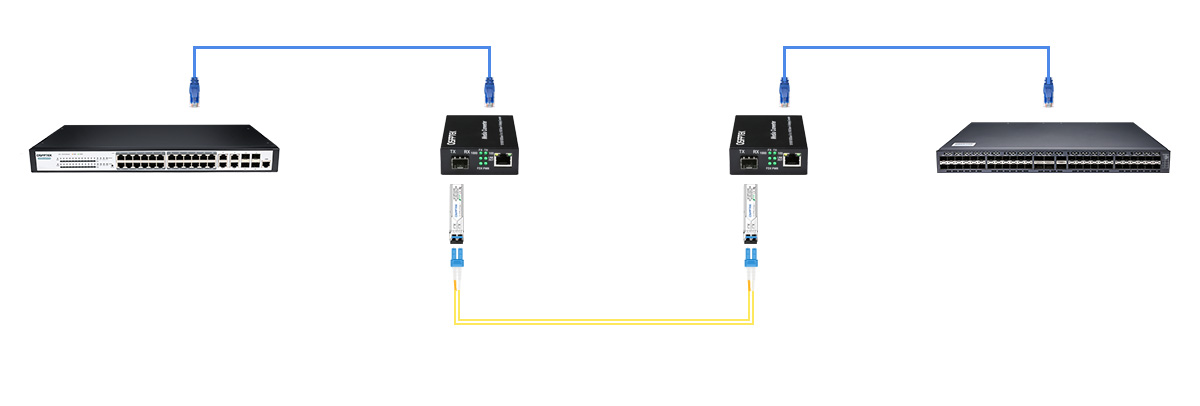

Convert and Extend Signals Across Your Ethernet Network



The Fiber Optic Converter enhances connectivity over long distances, particularly in locations where power outlets are scarce. It offers a convenient solution for powering Ethernet devices, making it the simplest and most efficient option available.





Easy and Efficient Operation



Hot-swappable design, plug-and-play. Easy to install and troubleshoot, no additional configuration is required for connectivity.





LFP Rapid Alarm Link Failure



LFP (Link Fault Pass-through) functionality enables quick detection of failed links within a short timeframe, minimizing potential losses caused by link failures.



;jsessionid=49BCFE6A75ABB066F7C45C9D3B846BE0

Questions & Answers

more+
  • What is the maximum power supply of this media transceiver?
    It can provide a power of 30W and a data connection of 1Gbps through Ethernet cables.
  • Is this product suitable for supplying power to a PoE-enabled access point?
    Absolutely, it can be utilized to power a PoE-capable access point.
  • Can this be used with 1g bd sfp? such as T1310/R1490 Bidirectional SFP module.
    Yes, it is. The media converter can support a wide range of transceiver modules, including BIDI SFP, CWDM SFP, DWDM SFP.
