    Home / Products / Transceivers / 100G/200G Transceivers / 100G BiDi QSFP28 / 102718

    Cisco QSFP-40/100-SRBD Compatible Dual Rate 40/100GBASE-SWDM4 QSFP28 SR-BiDi 850nm & 900nm 100m LC Optical Transceiver Module

    Product No: 102718
    8 Reviews
    585 Sold
    US$ 439.90
    Compatible
    Transceivers type
    241 in real-time stock, 09 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    30-day Return and Refund

    5-Year Warranty 30-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Hot-pluggable QSFP28 form factor
2. 4x25Gb/s 850mm VCSEL-based transmitter
3. Supports 103.1Gbps aggregate bit rate
4. Power dissipation<3.5W
5.  Maximum link length of 150m on OM5 MMF
    See more

    Specifications

    Cisco QSFP-40/100-SRBD Compatible 40/100GBASE-SWDM4 QSFP28 Optical Transceiver Module (850nm & 900nm MMF 100m LC DDM)



    The Cisco QSFP-40/100-SRBD compatible 40G/100G QSFP28 BIDI module is a versatile optical solution, supporting both 40Gb/s and 100Gb/s bit rates. This module, designed in a parallel Quad Small Form-factor Pluggable (QSFP28) Bi-Directional format, efficiently integrates four host electrical data streams into two optical lanes. It achieves this through the use of Dual Wavelength VCSEL Bi-Directional Optical Interface, utilizing wavelengths at 850nm and 900nm. This innovative design enables seamless optical communication over a 2-fiber duplex LC optical multi-mode fiber.



    Part Number

    QT-QSFP-40/100-SRBD

    Vendor Name

    QSFPTEK

    Form Factor

    QSFP28

    Data Rate

    40Gbps/100Gbps

    Wavelength

    850nm & 900nm

    Distance

    100m

    Connector

    Duplex LC

    Cable Type

    MMF

    Transmitter

    850/900nm VCSEL

    Receiver Type

    PIN

    TX Power

    -6.0 to +4.0 dBm (100G)

    -4.0 to +5.0 dBm (40G)

    Receiver Sensitivity

    <-7.9.0 dBm (100G)

    <-6.0.0 dBm (40G)

    Protocols

    100G Ethernet, QSFP28 MSA, SFF-8636

    Warranty

    5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. High Reliablility and Best Price
      Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
    • 2. Wide Application Scenarios
      Fully compatible with almost all Cisco devices. Ideal for data centers, campus network, enterprise core layer, etc.
    • 3. Protocols
      Compliant with IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

    Scenario 1: 100G Switch to 100G Switch Direct Connectivity

    QT-QSFP-40-100-SRBD Scenario 1100G Switch to 100G Switch Direct Connectivity



    Scenario 2: 100G Switch to 100G NIC Direct Connectivity

    QT-QSFP-40-100-SRBD Scenario 2 100G Switch to 100G NIC Direct Connectivity

    Product details

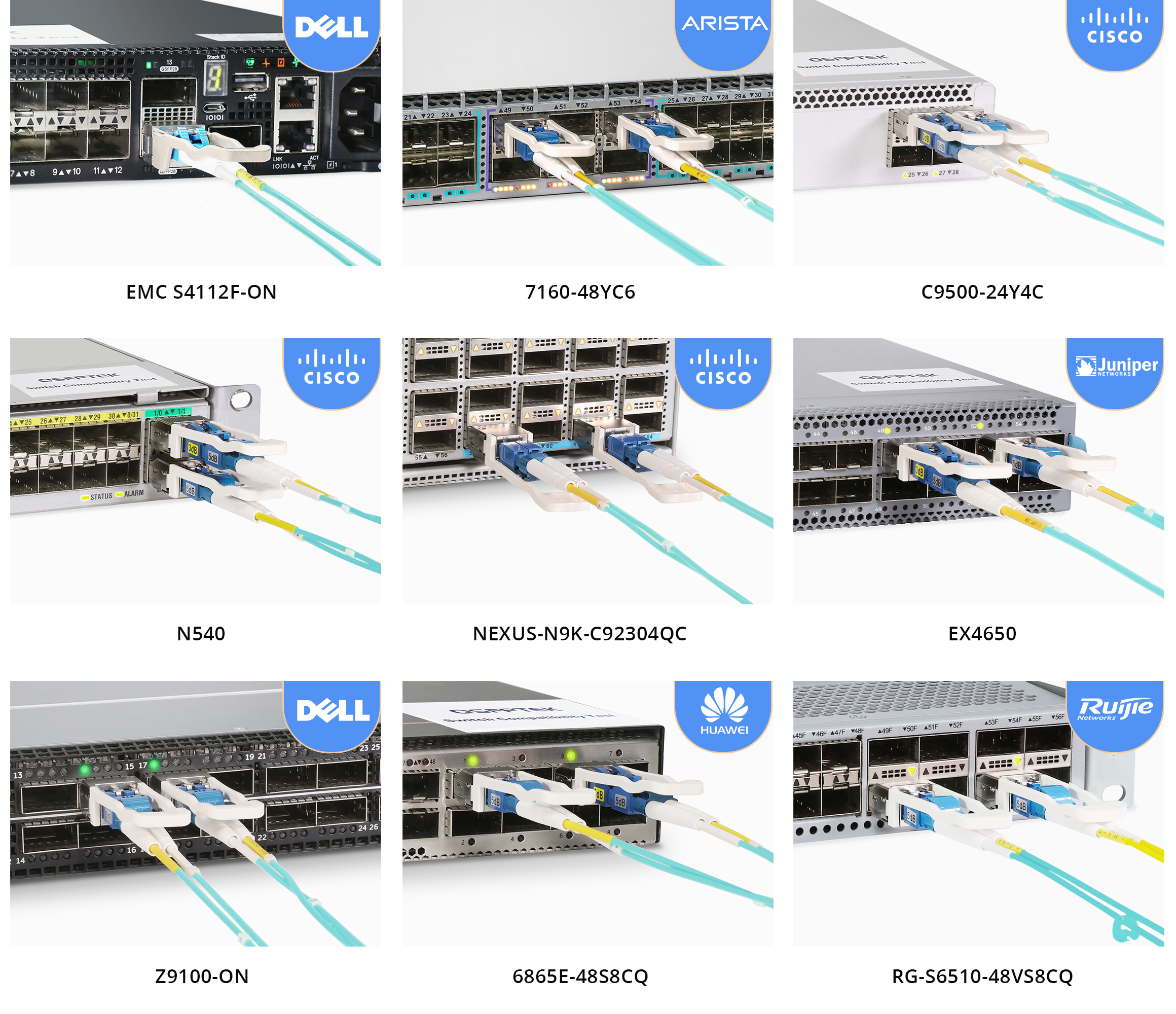

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



    QT-QSFP-40 100-SRBD compatibility test





    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QSFPTEK Test Rack





    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

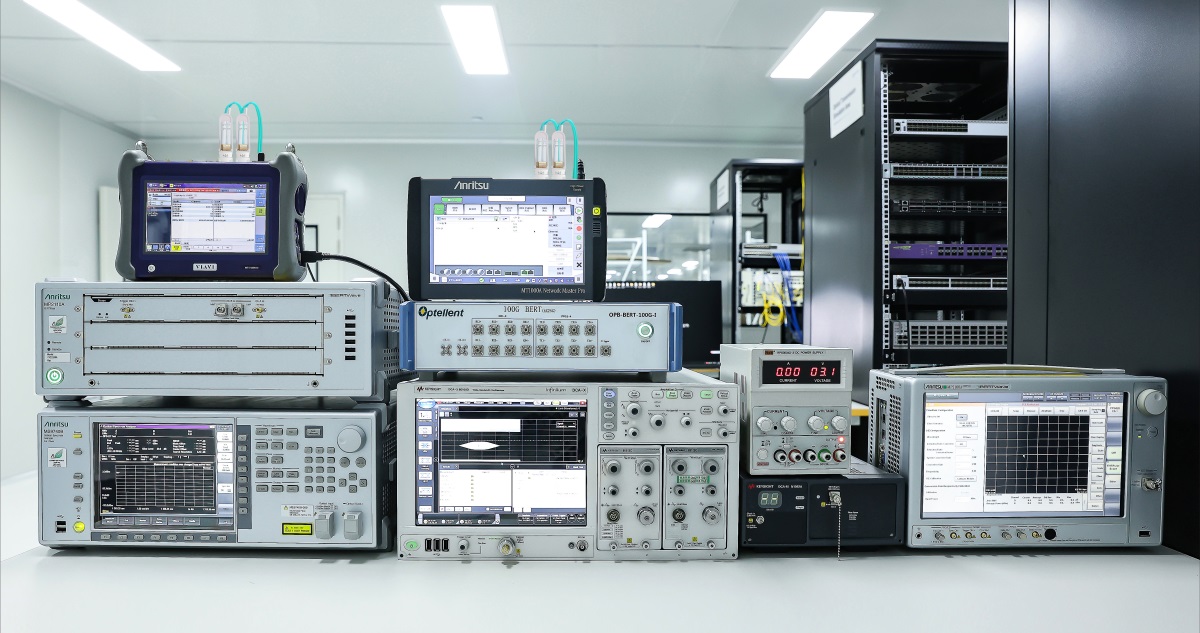

    QSFPTEK Test Devices





    100G QSFP28 Model Contrast Table



    Part Number

    QT-QSFP28-SR4

    QT-QSFP28-PSM4

    QT-QSFP28-IR4

    QT-QSFP28-LR4

    QT-QSFP28-CWDM-LR4

    QT-QSFP28-ER4 (Rx SOA)

    QT-QSFP28-ZR4

    DWDM-QSFP28-ZR-XX


    Wavelength

    850nm

    1310nm

    1271~1331nm

    1310nm

    1271~1331nm

    1310nm

    1310nm

    DWDM CH13~60

    Max Distance

    100m

    500m

    2km

    10km

    10km

    40km

    80km

    80km

    Cable Type

    OM3/OM4 MMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    Connector

    MPO/MTP-12

    MPO/MTP-12

    LC Duplex

    LC Duplex

    LC Duplex

    LC Duplex

    LC Duplex

    CS Duplex

    Tx Power(dBm)

    -8.4~+2.4

    -9.4~+2

    -6.5~+2.5

    -4.3~+4.5

    -6.5~+2.5

    -2.9~+4.5

    +2~+7

    -1~+4

    Rx Sensitivity(dBm)

    -10.3

    -12.66

    -11.5

    -10.6

    -11.5

    -20.9

    -27

    -12.5

    Max Power Consumption

    3.5W

    3.5W

    3.5W

    4W

    3.5W

    4.5W

    5.5W

    5W

    Source

    VCSEL+PIN

    DFB+PIN

    CWDM DFB+ PIN

    EML+PIN

    CWDM DFB +PIN

    4x EML+SOA+PIN

    EML+SOA+PIN

    EML+APD

    Operating Temperature

    0~70°C

    0~70°C

    0~70°C

    0~70°C

    -40~85°C (Available)

    0~70°C

    0~70°C

    -20~85°C (Available)

    0~70°C

    -40~85°C (Available)

    0~70°C
