Home / Products / Transceivers / 100G/200G Transceivers / 100G BiDi QSFP28 / 102959

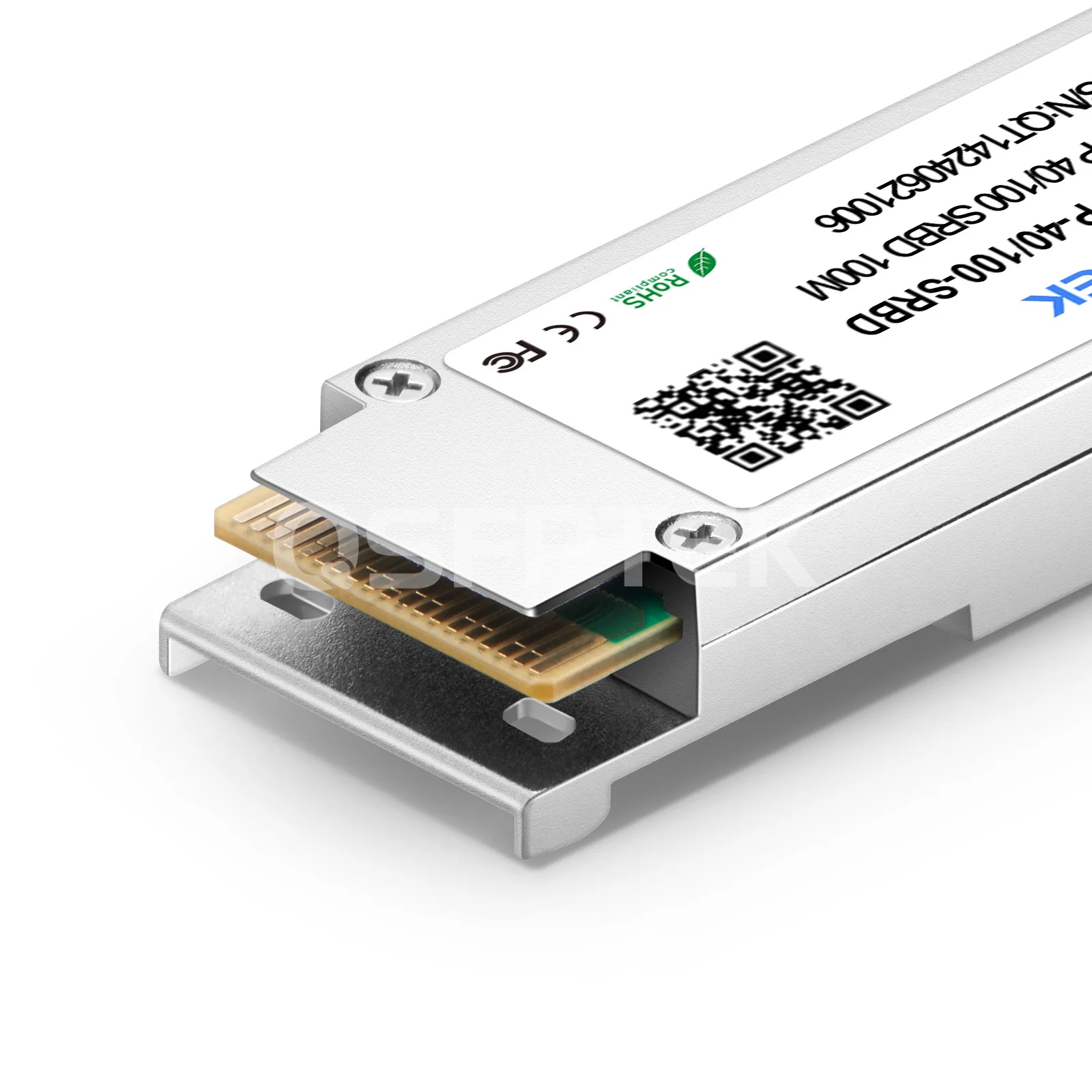

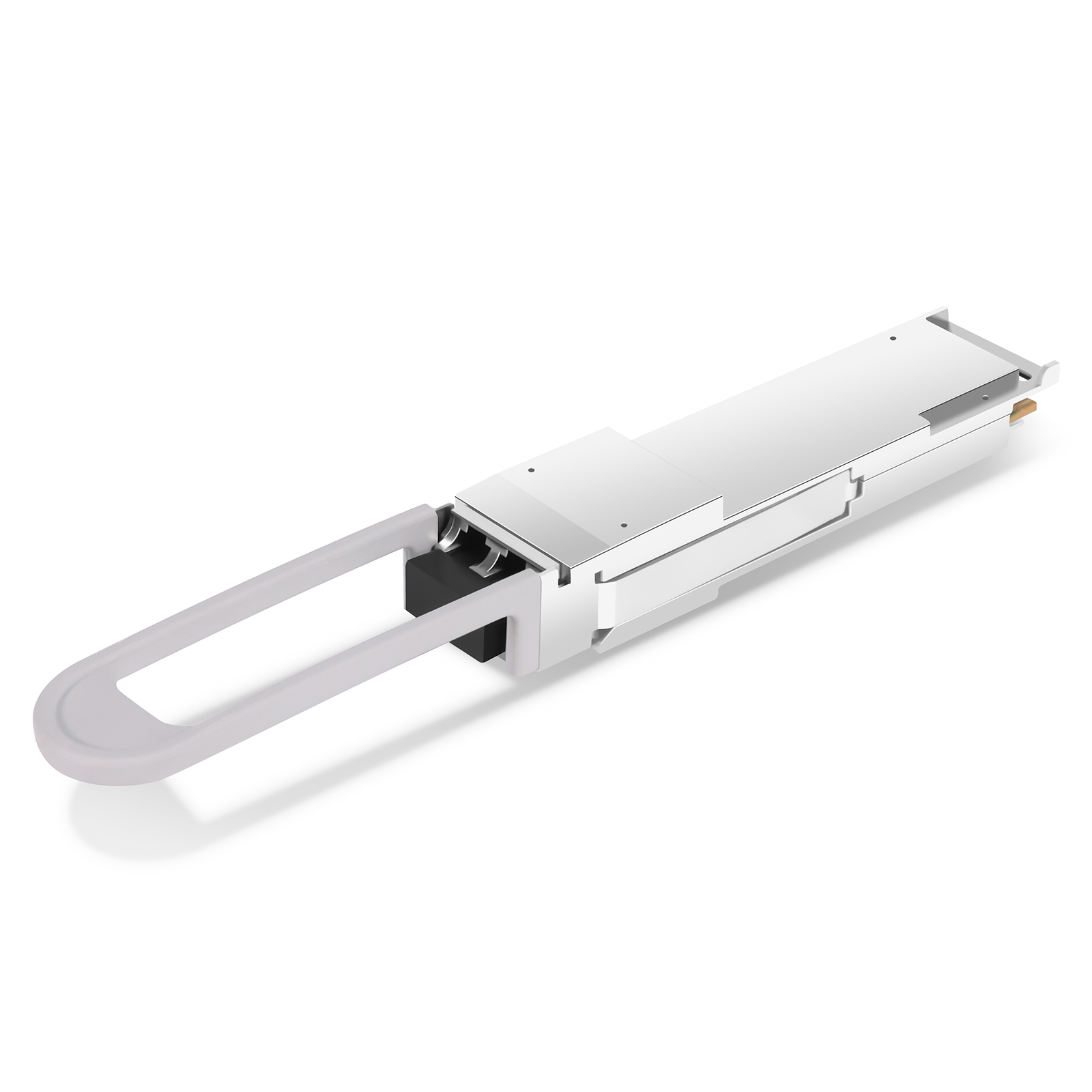

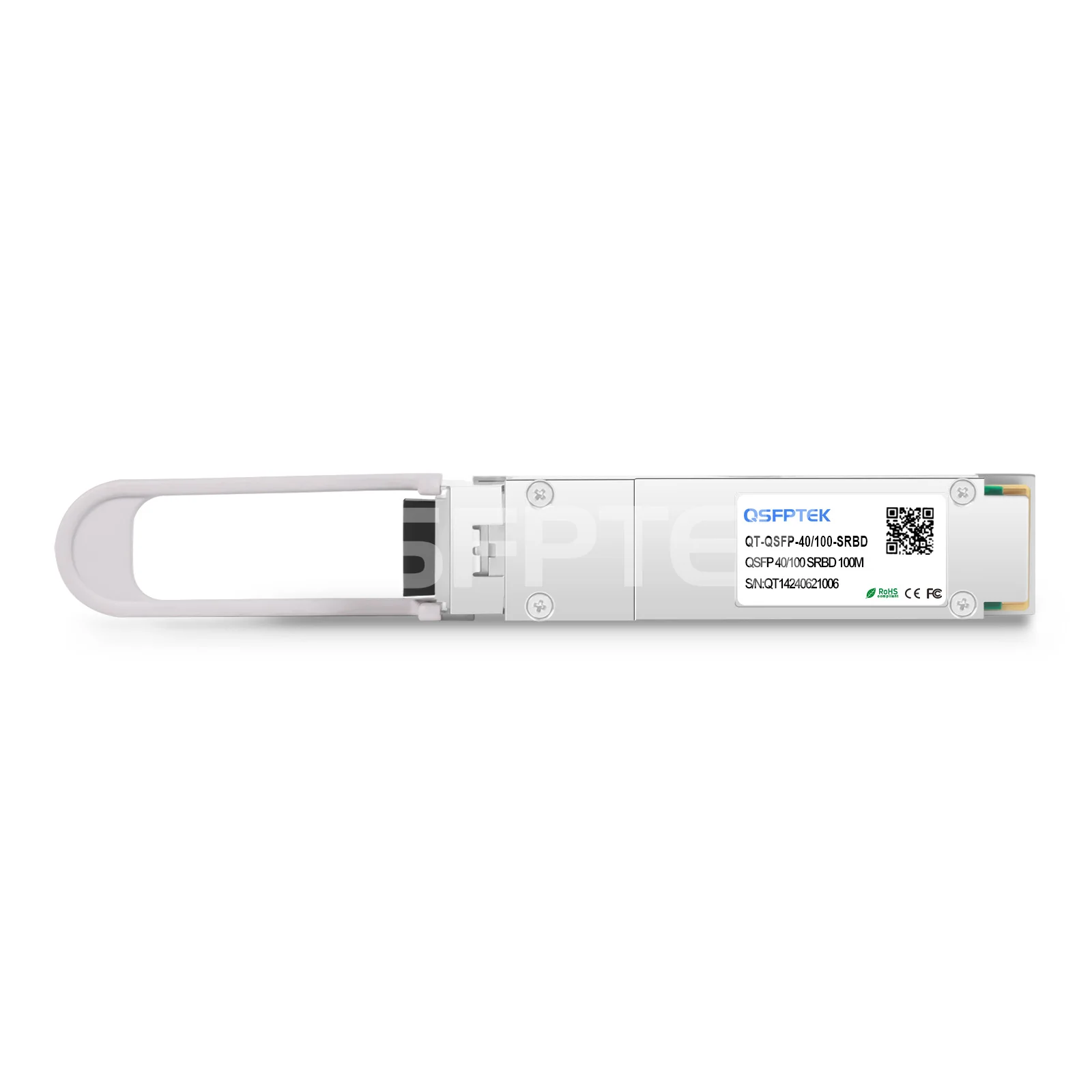

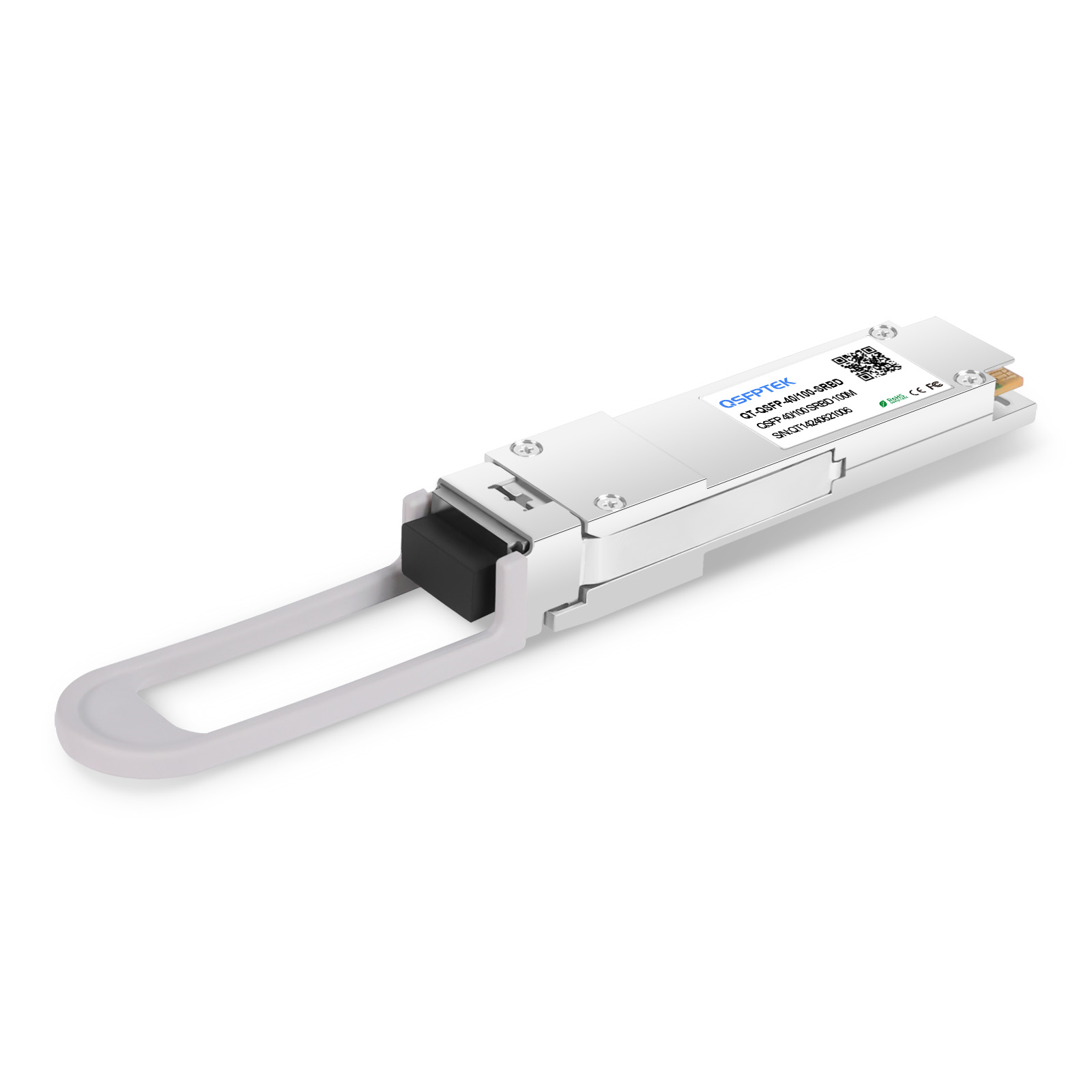

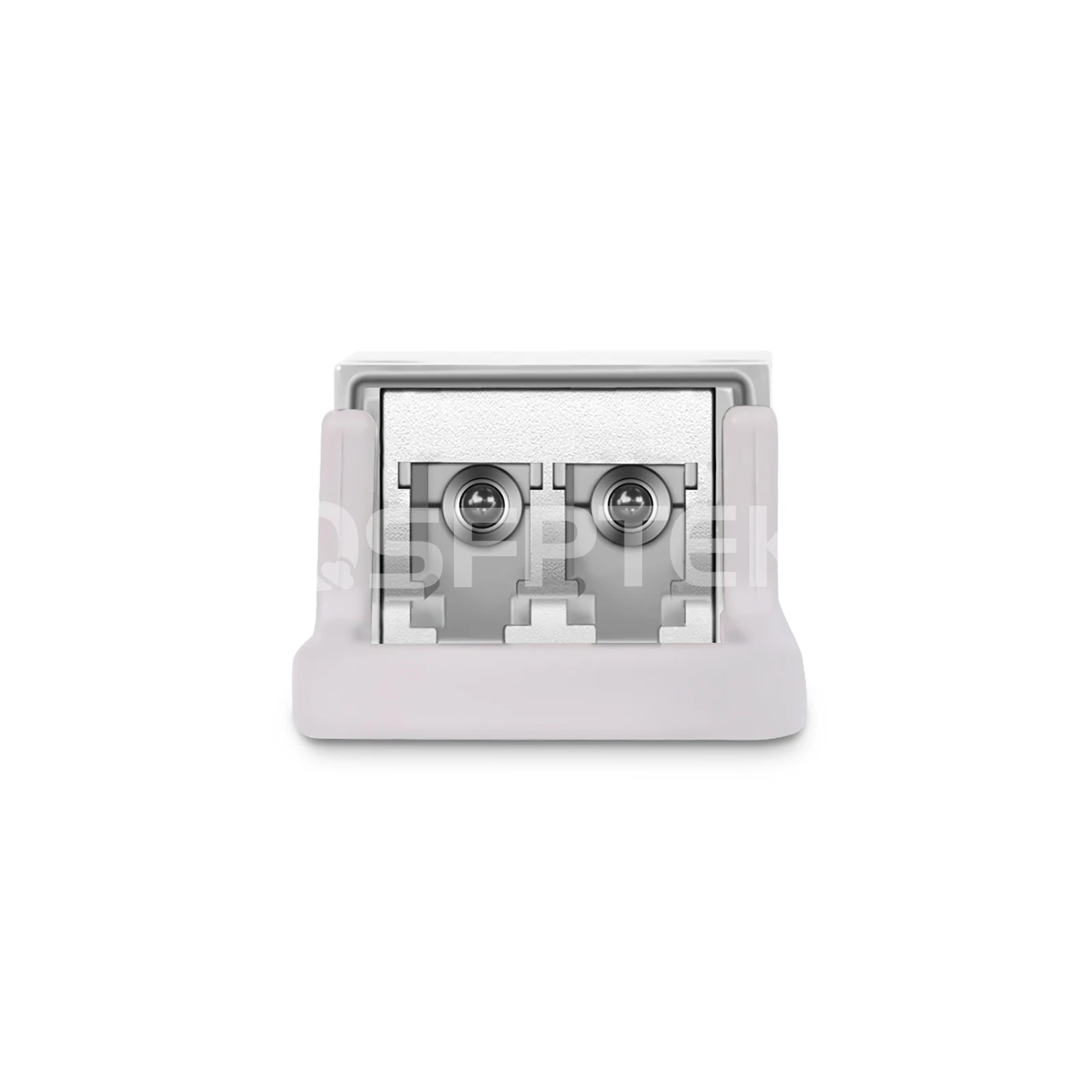

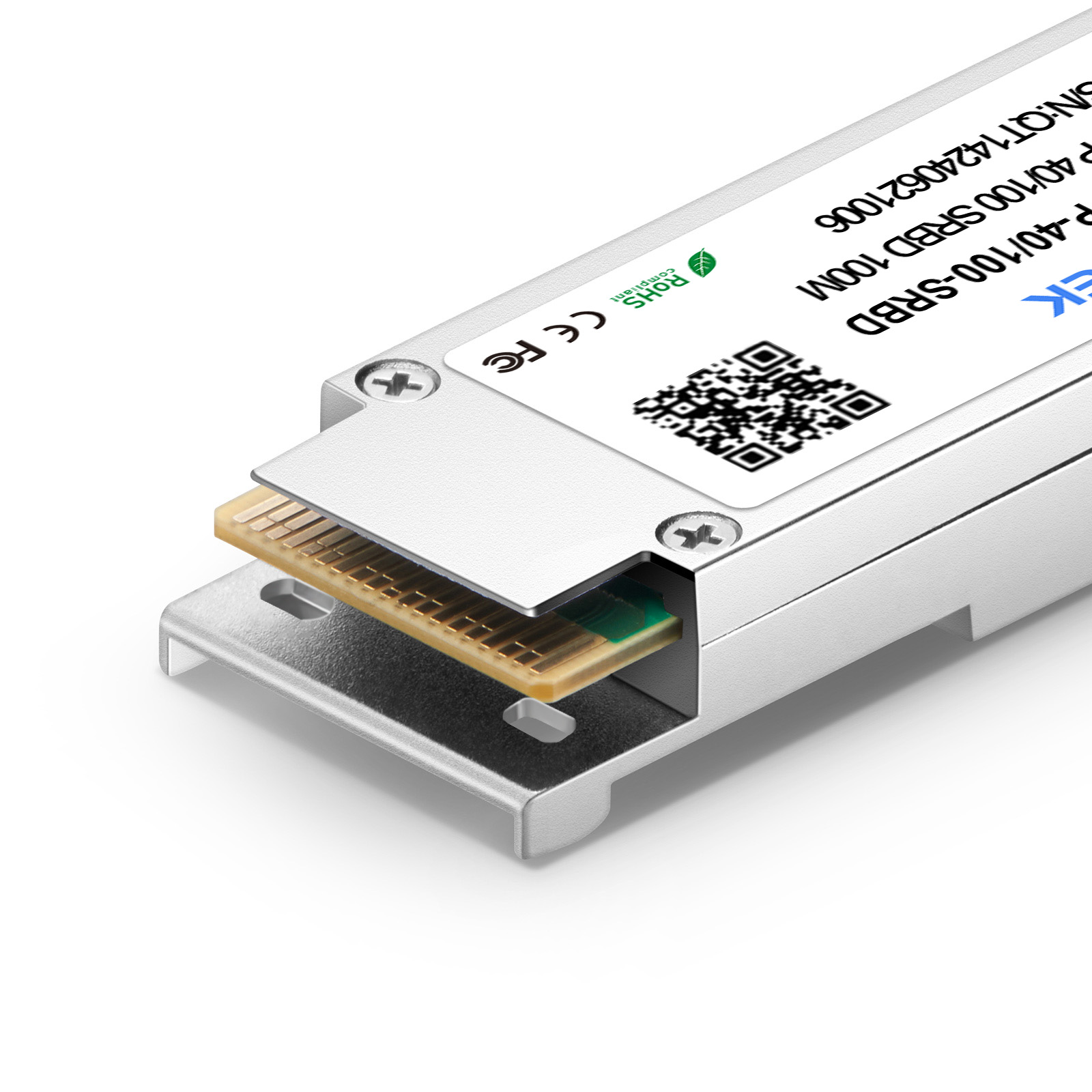

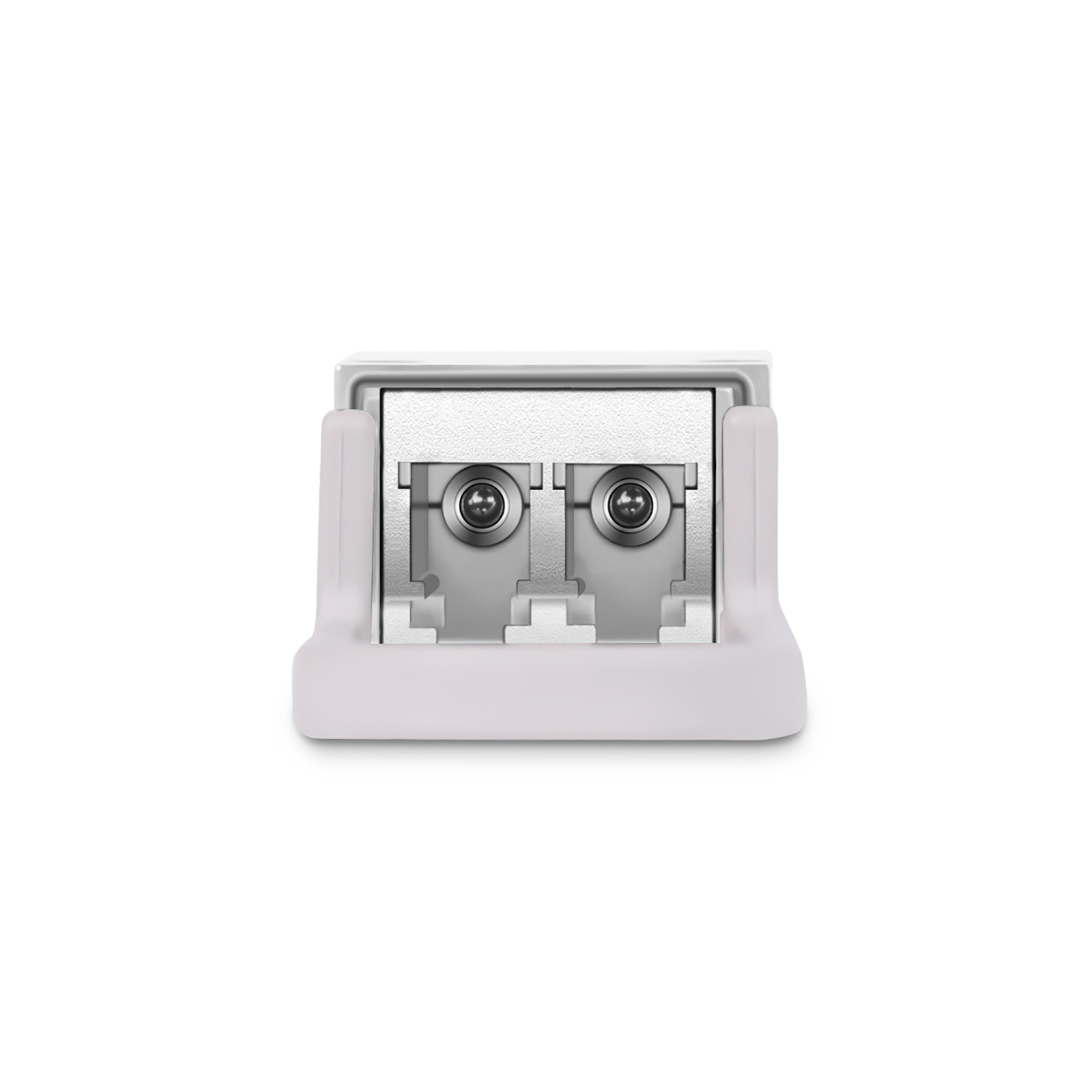

Customized Dual Rate 40/100GBASE-SWDM4 QSFP28 SR-BiDi 850nm & 900nm 100m LC Optical Transceiver Module

Product No :102959
US$ {{customPrice}}
US$ 439.90

{{hg.name}}

226 in real-time stock, 02Jul, 2025

Free Shipping over US$ 79.8

Global warehouses in stock

30-day Return and Refund

-
+
Add to Cart
1. Hot-pluggable QSFP28 form factor
2. 4x25Gb/s 850mm VCSEL-based transmitter
3. Supports 103.1Gbps aggregate bit rate
4. Power dissipation<3.5W
5.  Maximum link length of 150m on OM5 MMF
See more

Specifications

Customized 40/100GBASE-SWDM4 QSFP28 Optical Transceiver Module (850nm & 900nm MMF 100m LC DDM)



The Customized 40G/100G QSFP28 BIDI module is a versatile optical solution, supporting both 40Gb/s and 100Gb/s bit rates. This module, designed in a parallel Quad Small Form-factor Pluggable (QSFP28) Bi-Directional format, efficiently integrates four host electrical data streams into two optical lanes. It achieves this through the use of Dual Wavelength VCSEL Bi-Directional Optical Interface, utilizing wavelengths at 850nm and 900nm. This innovative design enables seamless optical communication over a 2-fiber duplex LC optical multi-mode fiber.



Part Number

QT-QSFP-40/100-SRBD

Vendor Name

QSFPTEK

Form Factor

QSFP28

Data Rate

40Gbps/100Gbps

Wavelength

850nm & 900nm

Distance

100m

Connector

Duplex LC

Cable Type

MMF

Transmitter

850/900nm VCSEL

Receiver Type

PIN

TX Power

-6.0 to +4.0 dBm (100G)

-4.0 to +5.0 dBm (40G)

Receiver Sensitivity

<-7.9.0 dBm (100G)

<-6.0.0 dBm (40G)

Protocols

100G Ethernet, QSFP28 MSA, SFF-8636

Warranty

1 Year
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all brand devices. Ideal for data centers, campus network, enterprise core layer, etc.
  • 3. Protocols
    Compliant with IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

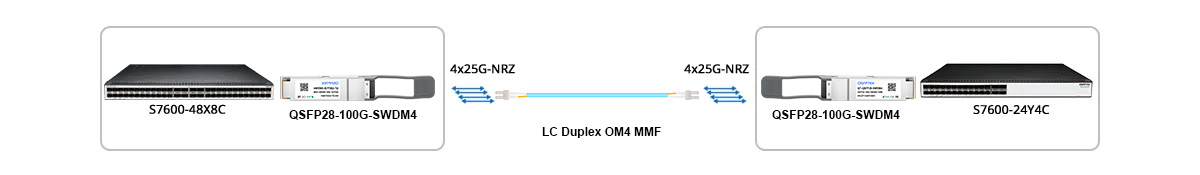

Scenario 1: 100G Switch to 100G Switch Direct Connectivity

100G SWDM scenario 1

Related Products:

S7600-48X8C, 48-Port Ethernet L3+ Data Center Switch, 48 x10Gb SFP+, 8 x100Gb QSFP28, Support MLAG

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG

LC UPC to LC UPC Duplex OM4 2.0mm LSZH Multimode Fiber Optic 10M

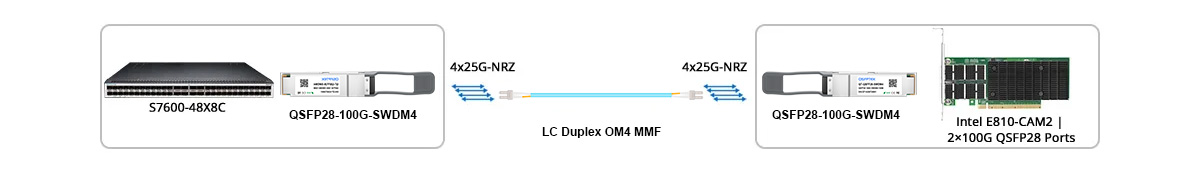

Scenario 2: 100G Switch to 100G NIC Direct Connectivity

100G SWDM4 Scenario 2

Related Products:

S7600-48X8C, 48-Port Ethernet L3+ Data Center Switch, 48 x10Gb SFP+, 8 x100Gb QSFP28, Support MLAG

Intel E810-CAM2 Based Network Interface Card, 100G Dual Port QSFP28, PCIe 4.0 X 16, Half & Full Bracket

LC UPC to LC UPC Duplex OM4 2.0mm LSZH Multimode Fiber Optic 10M



Product details

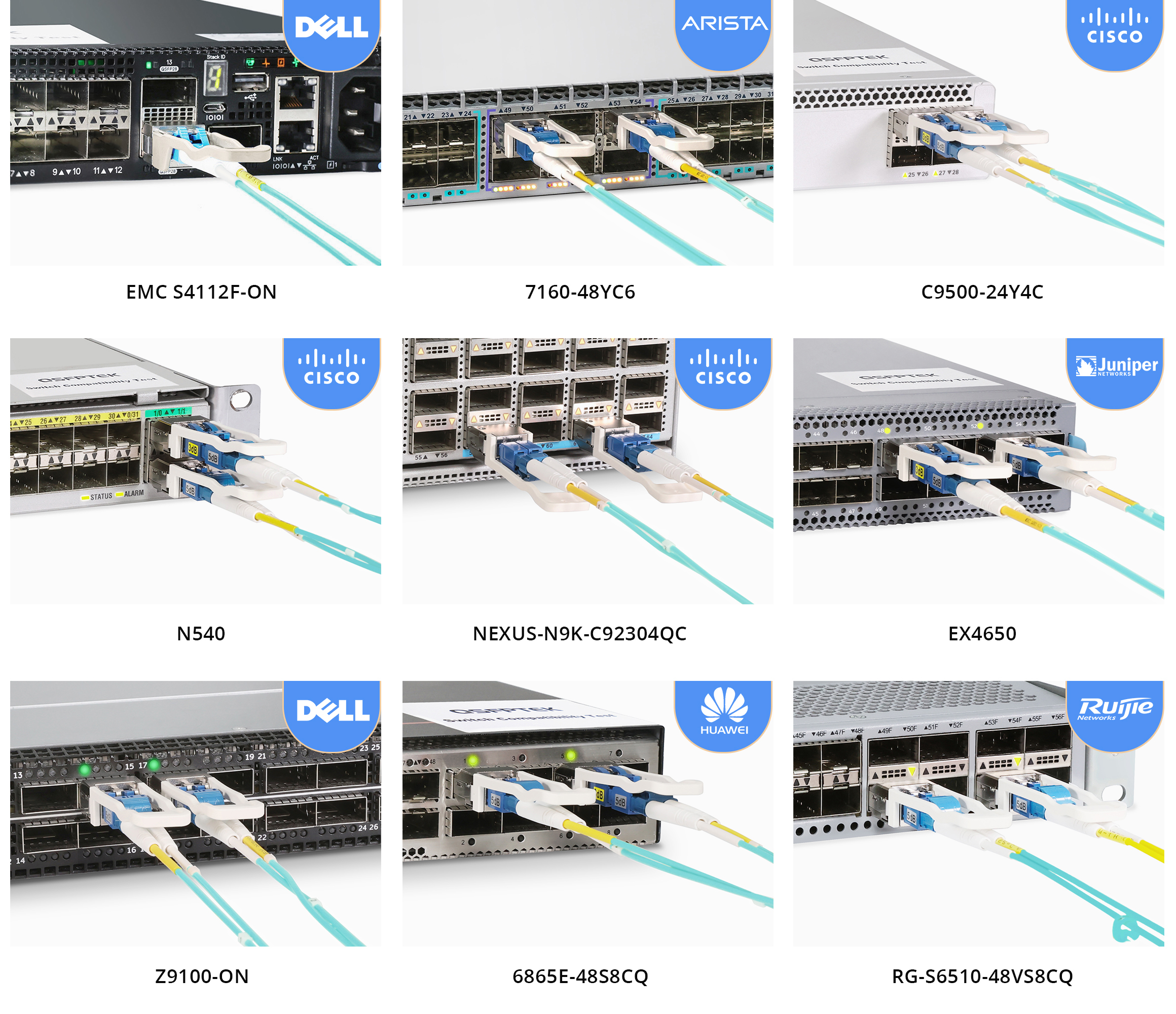

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



QT-QSFP-40 100-SRBD compatibility test





Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack





Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



QSFPTEK Test Devices





100G QSFP28 Model Contrast Table



Part Number

QT-QSFP28-SR4

QT-QSFP28-PSM4

QT-QSFP28-IR4

QT-QSFP28-LR4

QT-QSFP28-CWDM-LR4

QT-QSFP28-ER4 (Rx SOA)

QT-QSFP28-ZR4

DWDM-QSFP28-ZR-XX


Wavelength

850nm

1310nm

1271~1331nm

1310nm

1271~1331nm

1310nm

1310nm

DWDM CH13~60

Max Distance

100m

500m

2km

10km

10km

40km

80km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

CS Duplex

Tx Power(dBm)

-8.4~+2.4

-9.4~+2

-6.5~+2.5

-4.3~+4.5

-6.5~+2.5

-2.9~+4.5

+2~+7

-1~+4

Rx Sensitivity(dBm)

-10.3

-12.66

-11.5

-10.6

-11.5

-20.9

-27

-12.5

Max Power Consumption

3.5W

3.5W

3.5W

4W

3.5W

4.5W

5.5W

5W

Source

VCSEL+PIN

DFB+PIN

CWDM DFB+ PIN

EML+PIN

CWDM DFB +PIN

4x EML+SOA+PIN

EML+SOA+PIN

EML+APD

Operating Temperature

0~70°C

0~70°C

0~70°C

0~70°C

-40~85°C (Available)

0~70°C

0~70°C

-20~85°C (Available)

0~70°C

-40~85°C (Available)

0~70°C
