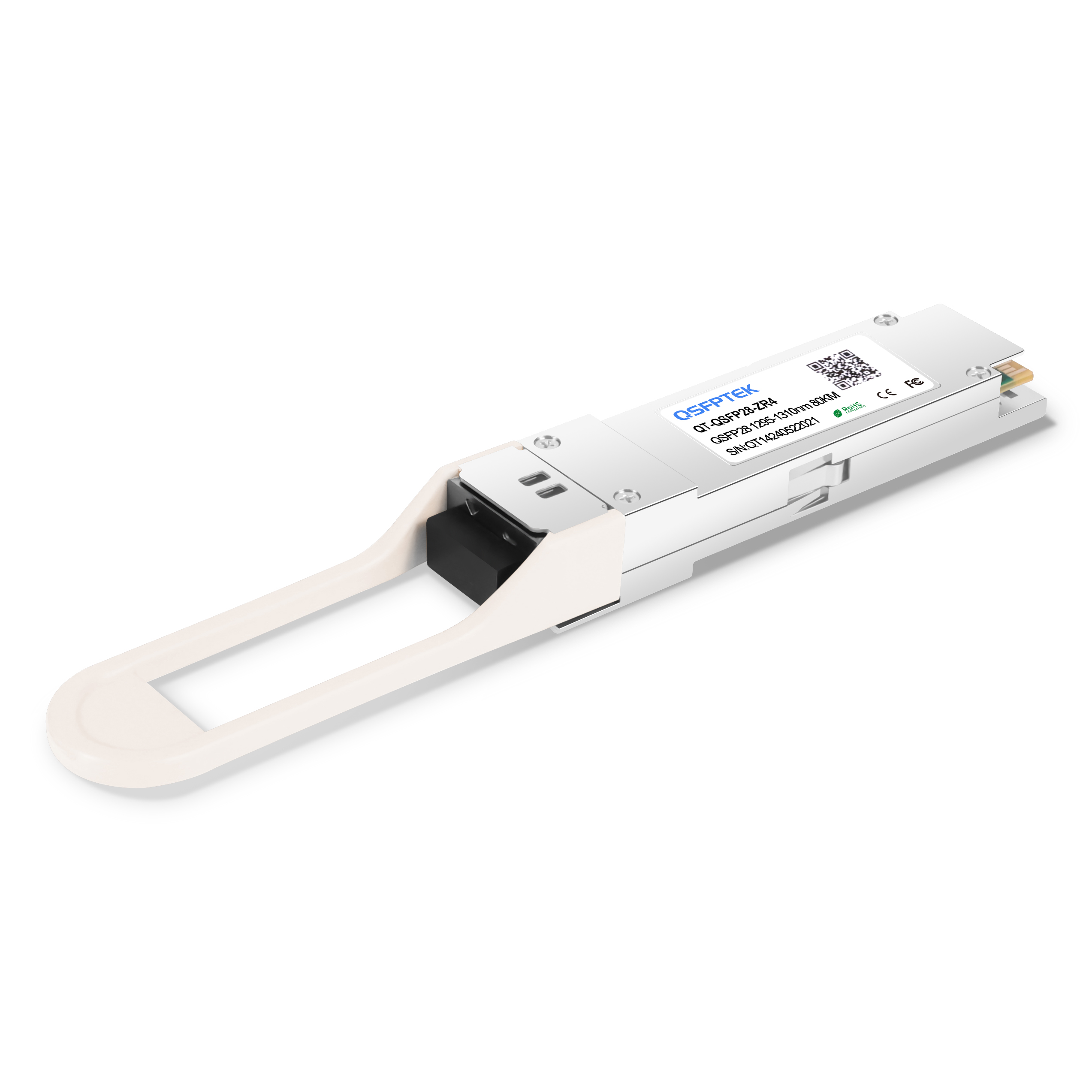

Cisco QSFP-100G-ZR4-S Compatible 100GBASE-ZR4 QSFP28 80km 1310nm Optical Transceiver Module

Product No :67915
US$ 2199.00  US$ 3499.00
100 in stock
Free Shipping over US$ 84.9. US/EU Warehouses in stock.
1. Rate: 100G; Connector: LC; with DDM
2. EML+APD; Low Power Consumption ≤6W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 200+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
See more

Specifications

Cisco QSFP-100G-ZR4-S Compatible 100GBASE-ZR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 80km, LC, DDM)



The Cisco QSFP-100G-ZR4-S compatible optical transceiver module is designed with duplex LC connectors, reaching a link up to 80km over single-mode fiber(OS2). QSFPTEK manufactured 100G ZR4 QSFP28 80km transceiver module is compliant with QSFP28 MSA Compliant standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 ZR4 transceiver is widely applied in 100G telecom connections, DCI, metro network, long-haul, and high-performance computing networks application.



Part Number:

QSFP28-100G-ZR4

Vendor Name:

QSFPTEK

Form Factor:

QSFP28

Data Rate:

103.125Gbps (4x 25.78Gbps)

Wavelength:

 1295~1310nm

Distance:

80km@G.652

Connector:

Duplex LC

Cable Type:

OS2 SMF

Transmitter:

EML

Receiver Type:

APD

TX Power:

+2~6.5dBm

Receiver Sensitivity:

<-28dBm

Power Consumption:

6W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

5E-5

Protocols:

QSFP28 MSA

Warranty:

3 Years

Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Each module that goes into stock has been fully tested on host devices for compatibility. Test before shipment further guarantees product availability. Quality product & service at a competitive price is our pursuit.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Cisco devices. Ideal for 100G telecom connections, DCI, metro network, Long-Haul, etc.
  • 3. Protocols
    Compliant with QSFP28 MSA Compliant.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

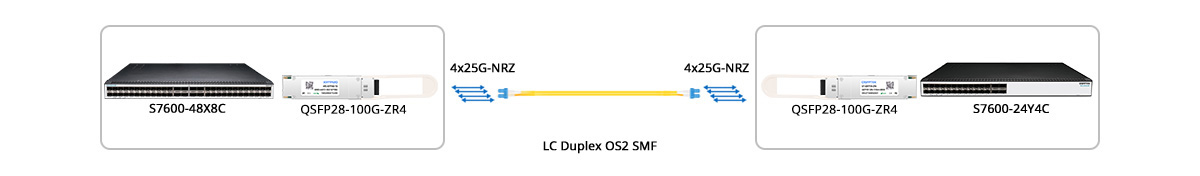

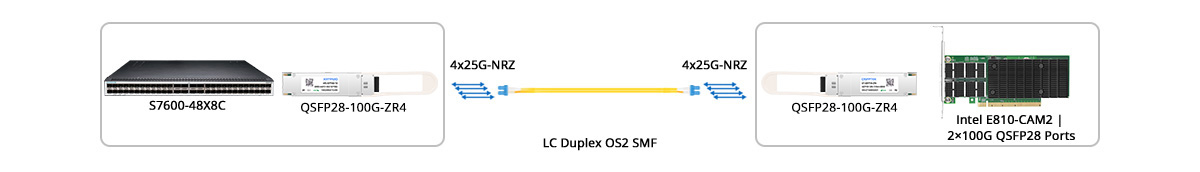

Applications

100Gbps DWDM Connection for DCI

100Gbps DWDM Connection for DCI







Compatibility

   Catalyst 8500/9300X/9500 Series Switches                                           ASR 1000/9000/903
 NCS 4200/540/5500/560//6000 Series Router
  Nexus 3000/4000/9500  Series Switches
  Nexus 8000/9000/ 9300/9500 /9600 Series Switches

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.








100G QSFP28 Model Contrast Table



Part Number

QT-QSFP28-SR4

QT-QSFP28-PSM4

QT-QSFP28-IR4

QT-QSFP28-LR4

QT-QSFP28-CWDM-LR4

QT-QSFP28-ER4

QT-QSFP28-ZR4

DWDM-QSFP28-ZR-XX


Wavelength

850nm

1310nm

1271~1331nm

1310nm

1271~1331nm

1310nm

1310nm

DWDM CH13~60

Max Distance

100m

500m

2km

10km

10km

40km

80km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

CS Duplex

Tx Power(dBm)

-8.4~2.4

-5~2

-6.5~2.5

-4.3~4.5

-6.5~2.5

-2.9~4.5

2~6.5

-1~4dBm

Rx Sensitivity(dBm)

-10.3

-11.4

-11.5

-10.6

-13

-20.9

-28

-12.5

Max Power Consumption

1.8W

3.5W

3.5W

3.5W

3.5W

4.5W

6W

5W

Source

VCSEL+PIN

DFB+PIN

CWDM DFB+ PIN

EML+PIN

CWDM DFB +PIN

EML+APD

EML+APD

EML+APD

Operating Temperature

0~70°C

0~70°C

0~70°C

0~70°C

-40~85°C

0~70°C

0~70°C

-20~85°C

0~70°C

-40~85°C

0~70°C





Questions & Answers

more+
  • What is the laser level of 100G SR4? Can you provide a test report of the laser level of this module?
    Class I. Of course, you can contact our sales to get the report.
  • The transmission distance is less than 550m, should I use multi-mode?
    I'm afraid you should purchase the single-mode optics, like 100G LR4.
  • What is the Packaging Technology of the 100g lr4?
    BOX Packaging
