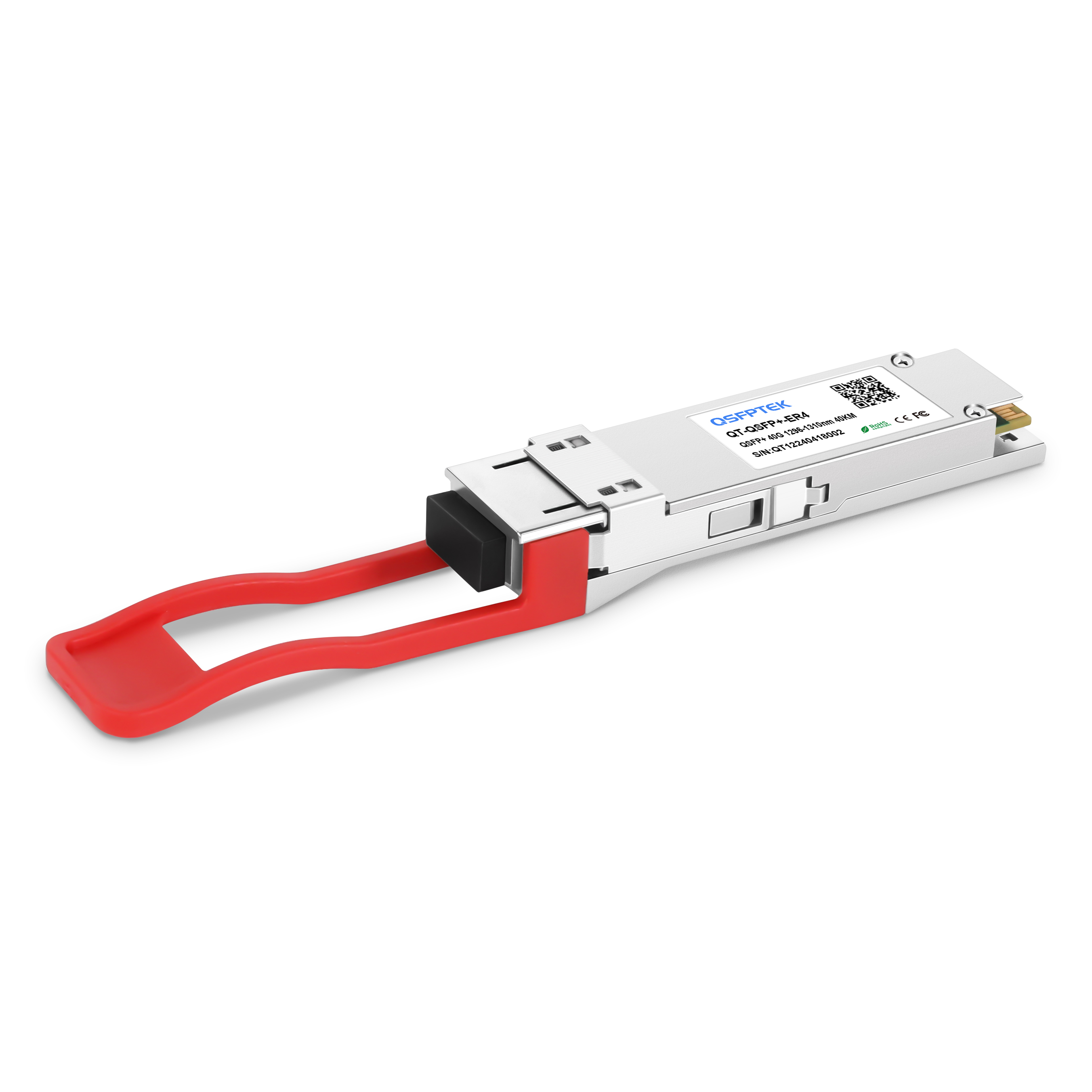

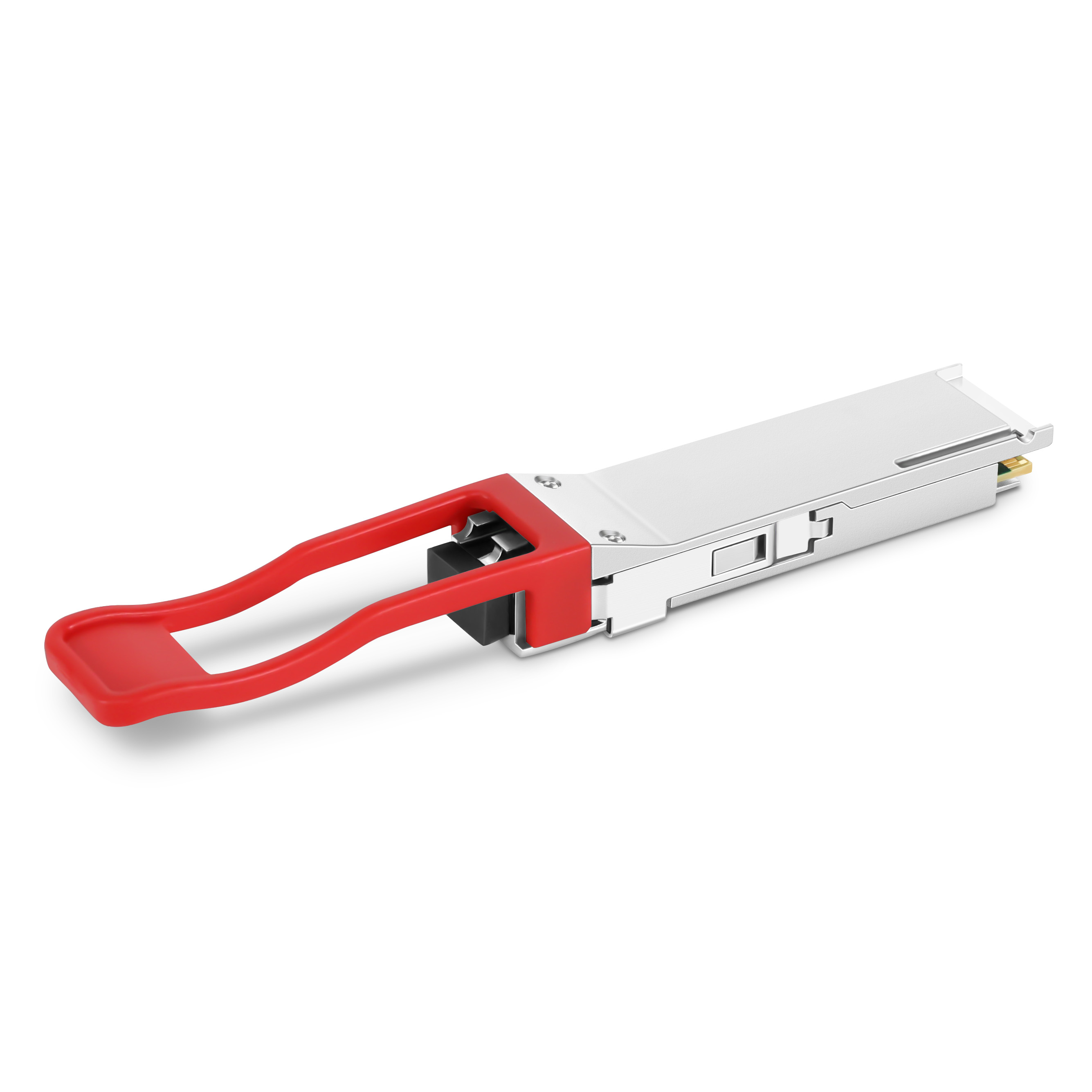

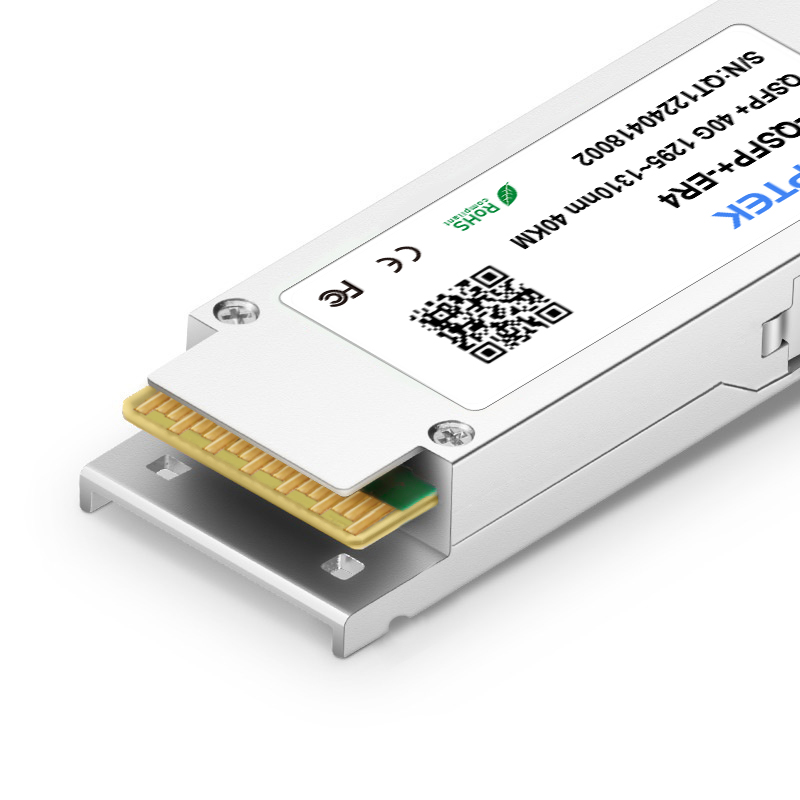

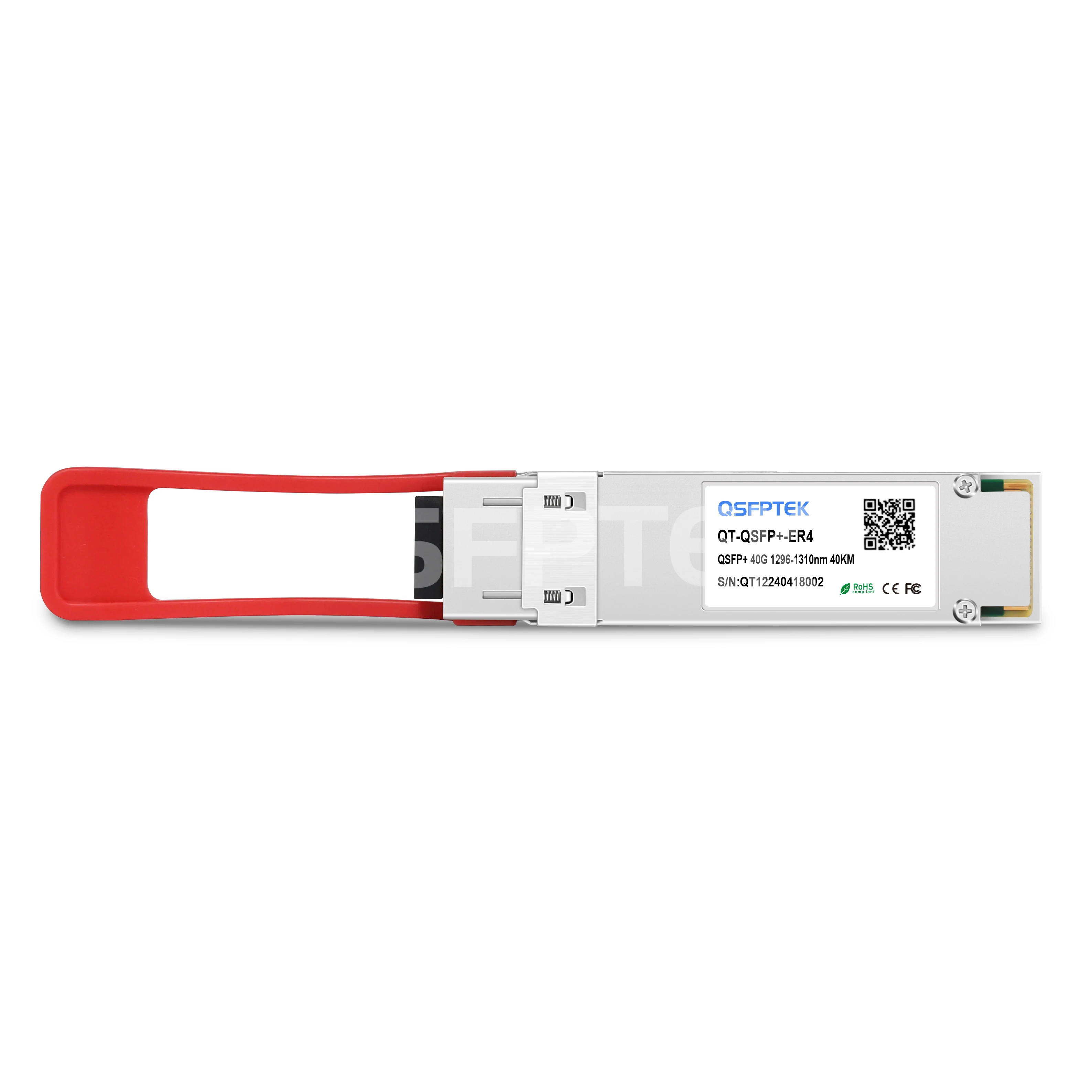

    Huawei QSFP-40G-ER4 Compatible 40GBASE-ER4 QSFP+ 1310nm 40km Optical Transceiver Module

    Product No: 56037
    22 Reviews
    1.3K Sold
    US$ 419.00
    Compatible
    Transceivers type
    215 in real-time stock, 19 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    30-day Return and Refund

    5-Year Warranty 30-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Rate: 40G; Connector: Duplex lC; with DDM
2. DFB+PIN; Low Power Consumption <3.5W
3. Applied in Campus Network and Data Center
4. Fully Compatible with 100+ Vendors
5. QSFP+ MSA Compliant
    See more

    Specifications

    Huawei QSFP-40G-ER4 Compatible 40GBASE-ER4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 40km, LC, DDM)



    The Huawei QSFP-40G-ER4 compatible 40G QSFP+ transceiver module is equipped with LC duplex connectors, reaching a link up to 10km over OS2 single-mode fiber (SMF). This 40G optical transceiver comes with a bidirectional 4-channel QSFP+ connector, enabling a total of 40 Gbps bandwidth by each channel carrying a 10 Gbps data rate. DOM/DDM (digital diagnostics monitoring) function is supported on the 40G fiber optic transceiver to achieve real-time operating parameters monitoring.



    QSFPTEK manufactured 40GBASE-ER4 QSFP+ module is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-ER4 specifications. Besides, the quad small form-factor pluggable (QSFP) ER4 optic has been tested on host devices to ensure full compatibility with Huawei equipment, such as data center switches, enterprise routers, and server network interface cards (NICs). The third-party 40G SFP module is an ideal substitute to the Huawei QSFP-40G-ER4 QSFP+ 40G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 40G connectivity.



    ER4 40G QSFP optics cater to 40 Gigabit Ethernet (40GbE) optical fiber connections, ideal for high-performance and long-distance applications in long-haul networks, campus networks, metro networks, etc.



    Model Name QSFP-40G-ER4 Vendor Name QSFPTEK
    Form Factor QSFP+ Data Rate 40 Gbps
    Wavelength 1310nm Distance 40km@OS2

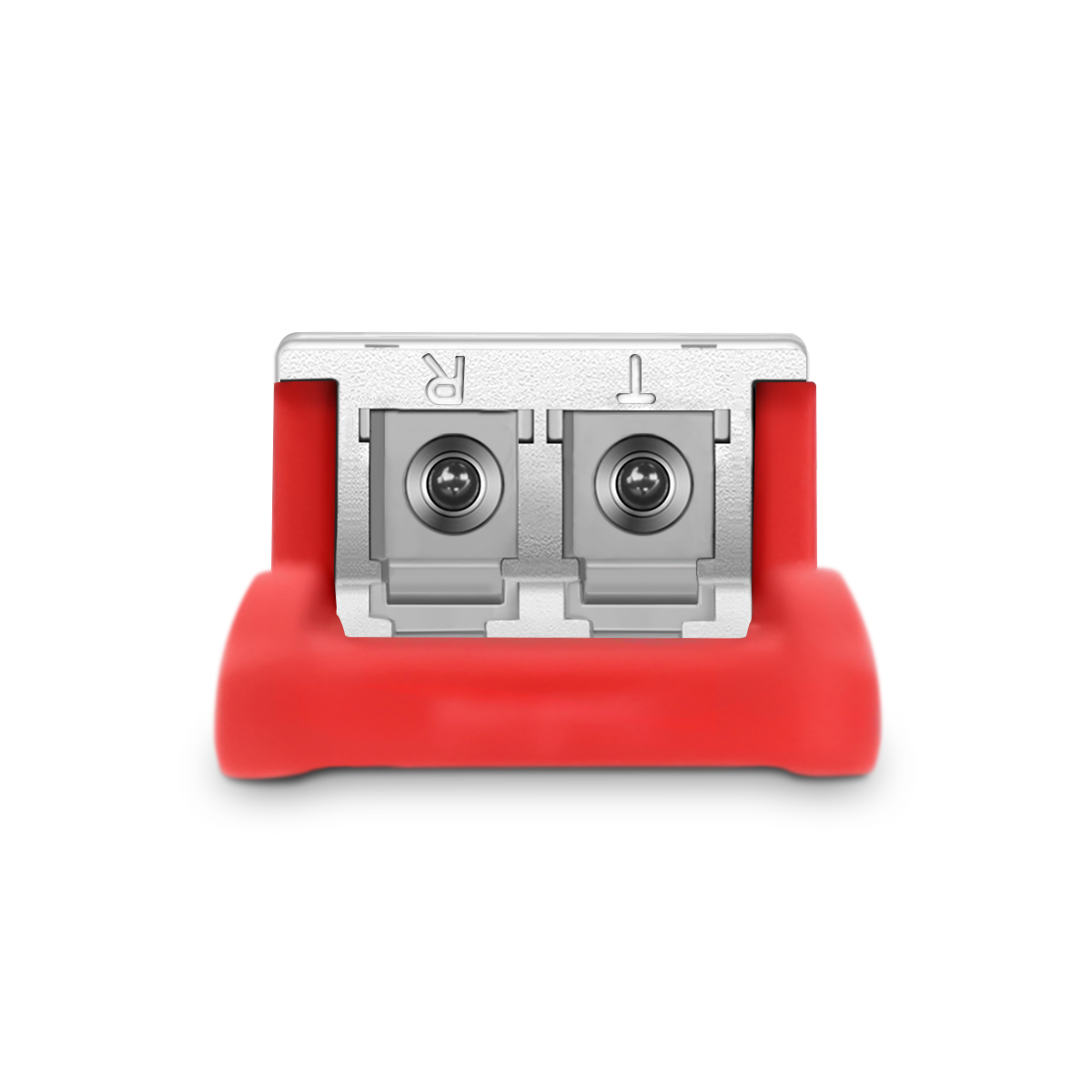

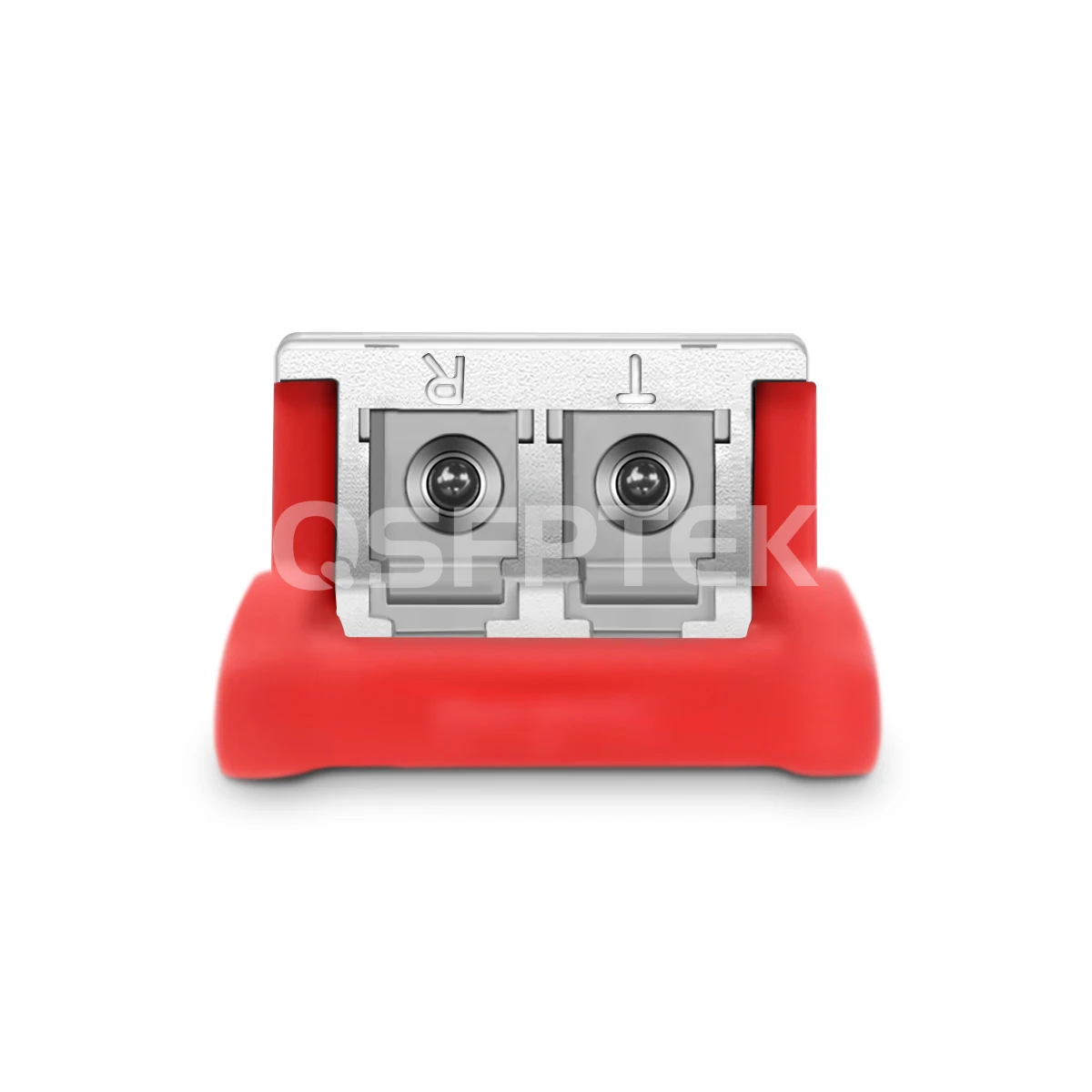

    Connector LC Duplex Cable Type OS2 SMF
    Transmitter Type DFB Receiver Type PIN
    TX Power -2.7~4.5dBm Receiver Sensitivity <-19dBm
    Power Consumption <3.5W Modulation Format NRZ
    DDM Support Bit Error Ratio (BER) 1E-12
    Protocols IEEE 802.3ba, QSFP+ MSA, SFF-8436, Infiniband 40G QDR Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. High Reliablility and Best Price
      Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
    • 2. Wide Application Scenarios
      Fully compatible with almost all Huawei devices. Ideal for long-haul networks, campus networks, metro networks.
    • 3. Protocols
      Compliant with IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

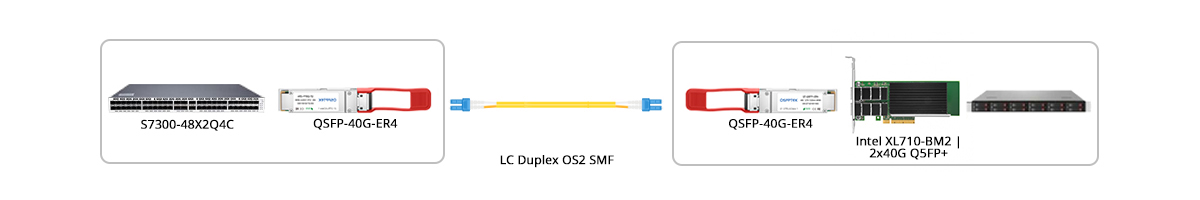

    Scenario 1: 40GBASE-ER4 Connectivity with NIC

    40GBASE-ER4 Connectivity with NIC

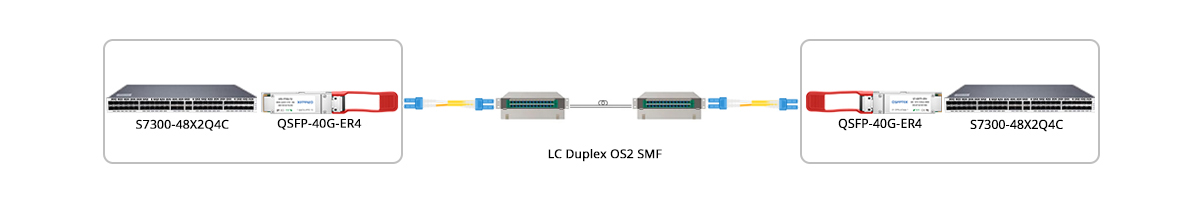

    Scenario 2: 40GBASE-ER4 Connectivity with ODF

    40GBASE-ER4 Connectivity with ODF



    Product details

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QSFPTEK Test Rack





    Various Switch Tests



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



    QSFPTEK Test Devices





    40G QSFP+ Model Contrast Table



    Part Number

    QT-QSFP+-SR4

    QT-QSFP+-IR4

    QT-QSFP+-PSM4

    QT-QSFP+-LR4

    QT-QSFP+-LR4-20

    QT-QSFP+-ER4

    QT-QSFP+-ZR4


    Wavelength

    850nm

    CWDM

    1310nm

    CWDM

    CWDM

    CWDM

    LWDM 1294~1310nm

    Max Distance

    150m

    2km

    10km

    10km

    20km

    40km

    80km

    Cable Type

    OM3/OM4 MMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    Connector

    MPO/MTP-12

    LC Duplex

    MPO/MTP-12

    LC Duplex

    LC Duplex

    LC Duplex

    LC Duplex

    Tx Power(dBm)

    -7 ~ 1

    -7 ~ 2.3

    -6 ~ -1

    -7 ~ 2.3

    -4 ~ 2.3

    -2.7 ~ 4.5

    -2.7 ~ 4.5

    Rx Sensitivity(dBm)

    -9.5

    -11.5

    -14.4

    -13.7

    -11.5

    -19

    -28

    Power Consumption

    <0.7W

    <2.5W

    <2.5W

    < 2.5W

    <3.5W

    <3.5W

    <5W

    Source

    VCSEL + PIN

    DFB + PIN

    4xDFB + PIN

    DFB + PIN

    DFB + PIN

    DFB + PIN

    4xDFB + APD

    Operating Temperature

    0 to 70°C

    0 to 70°C

    0 to 70°C

    0 to 70°C

    0 to 70°C

    0 to 70°C

    0 to 70°C
