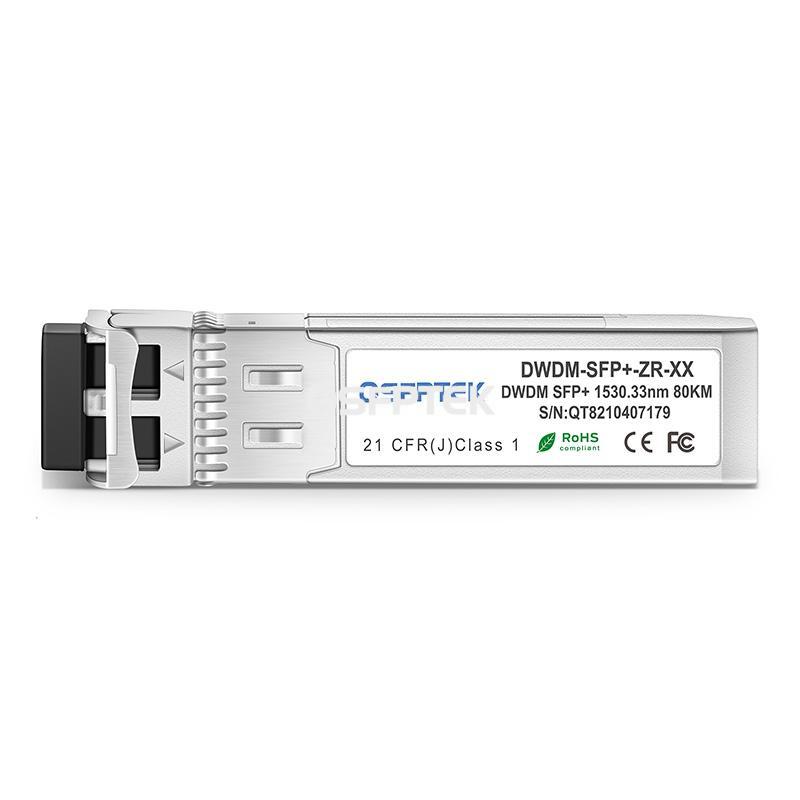

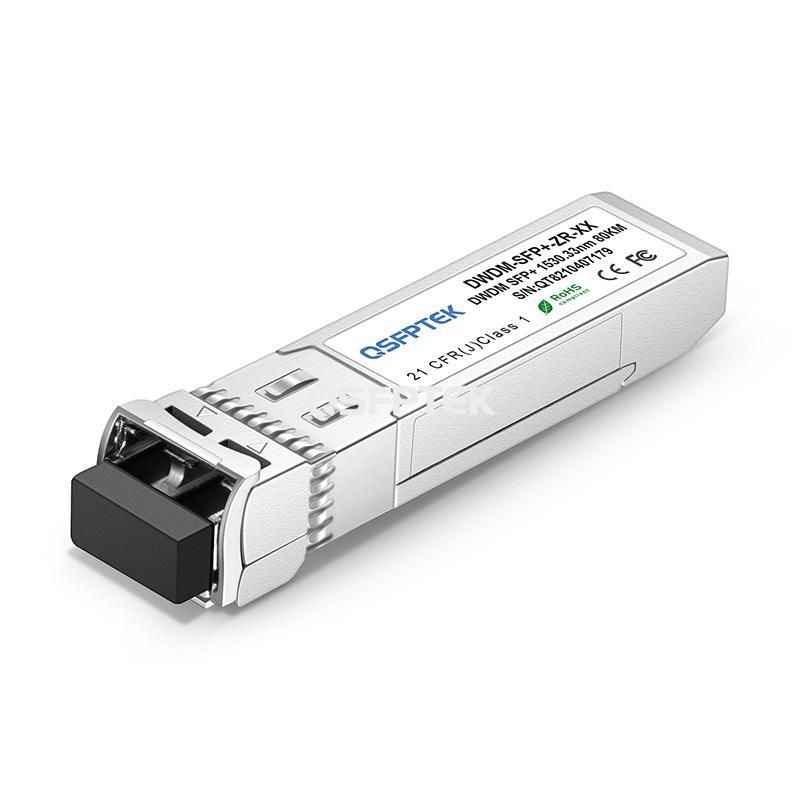

Cisco C60 DWDM-SFP10G-29.55 Compatible 10G DWDM SFP+ 1529.55nm 80km DOM LC SMF Transceiver

Name: Cisco C60 DWDM-SFP10G-29.55 Compatible 10G DWDM SFP+ 1529.55nm 80km DOM LC SMF Transceiver
Brand: QSFPTEK
SKU: 99229
Price: 119.0 USD
Rating: 5.0 (43 reviews)

Product No :99229

US$ 119.00 ~~US$ 139.99~~

Specifications

Cisco C60 DWDM-SFP10G-29.55 Compatible 10G DWDM SFP+ Optical Transceiver Module (SMF, 1529.55nm, 80km, LC, DDM)

The Cisco C60 DWDM-SFP10G-29.55 compatible DWDM-SFP10G-80 series 10G SFP+ transceiver module is equipped with an LC duplex connector, reaching a link up to 80km over G.652/655 single-mode fiber (SMF). This 10G DWDM SFP+ transceiver operates at a nominal DWDM wavelength at 1529.55nm as specified by the ITU-T, designed for DWDM networking equipment connectivity.

QSFPTEK manufactured 10GBASE-DWDM SFP+ module is compliant with the SFF-8431 MSA and SFF8432 MSA specifications. Besides, the small form-factor pluggable plus (SFP plus) optic has been tested on host devices to ensure full compatibility with Cisco equipment, such as Ethernet switches, enterprise routers, and server network interface cards (NICs). The third-party DWDM 10G SFP module is an ideal substitute to the Cisco DWDM SFP+ 10G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 10G connectivity.

DWDM 10G SFP+ optics cater to 10 Gigabit Ethernet (10GbE) optical fiber connections, ideal to be deployed for Long Haul DWDM Solution in metropolitan access and core networks.

Model Name	C60 DWDM-SFP10G-29.55	Vendor Name	QSFPTEK
Form Factor	SFP+	Data Rate	9.95 to 11.3Gb/s bit rates
Wavelength	1529.55nm	Distance	80km@G.652
Connector	LC Duplex	Cable Type	OS2 SMF
Transmitter Type	EML	Receiver Type	APD
TX Power	0~+5dBm	Receiver Sensitivity	<-24dBm
Power Consumption	<1.5W	Modulation Format	NRZ
DDM	Support	Bit Error Ratio (BER)	1E-12
Protocols	IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432	Warranty	3 Years

Quality Testing Program

Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2. Wide Application Scenarios

Deploy in the DWDM networking equipment in metropolitan access and core networks.
3. Protocols

Compliant with IEEE 802.3ae, SFF-8431 MSA, SFF8432 MSA.
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

Connection 1: 10G-DWDM Connectivity for 80KM

10G-DWDM Connectivity for 80KM
