;jsessionid=4F8905EEF916ED8CFC647E8938D538741. Ultra-low Inset loss ≤0.25dB 2. G.652D, 10mm Min. Bend Radius 3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc) 4. High Temperature Stability 5. Compliant with ROSH 2.0 and MCDSee more

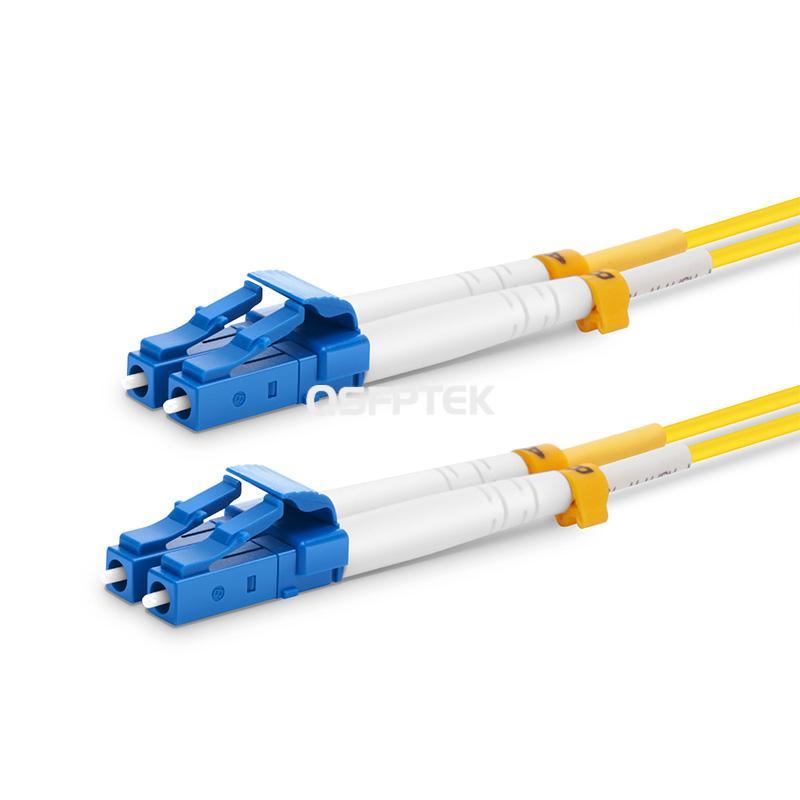

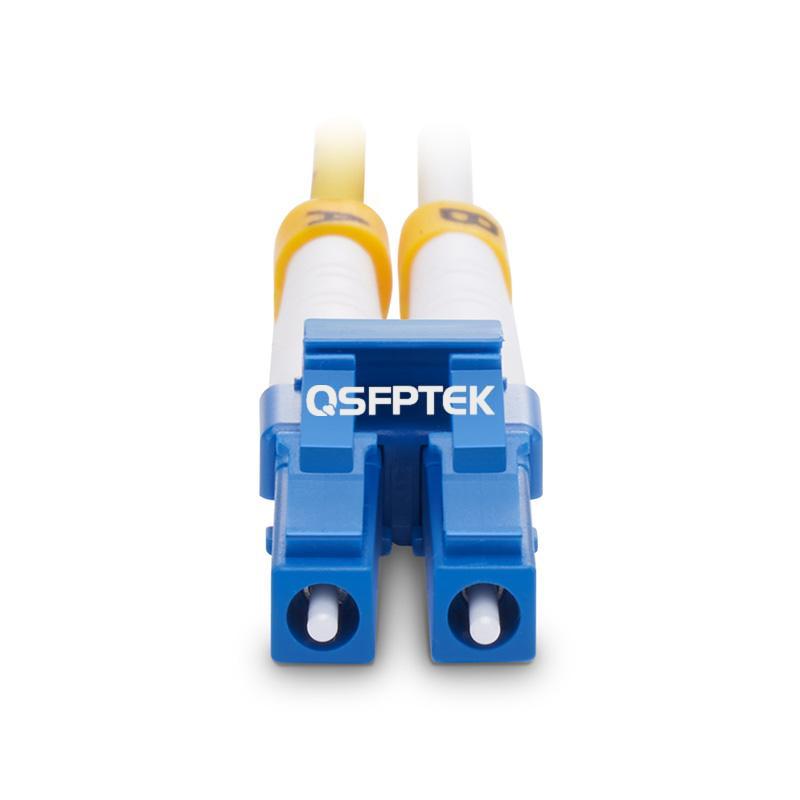

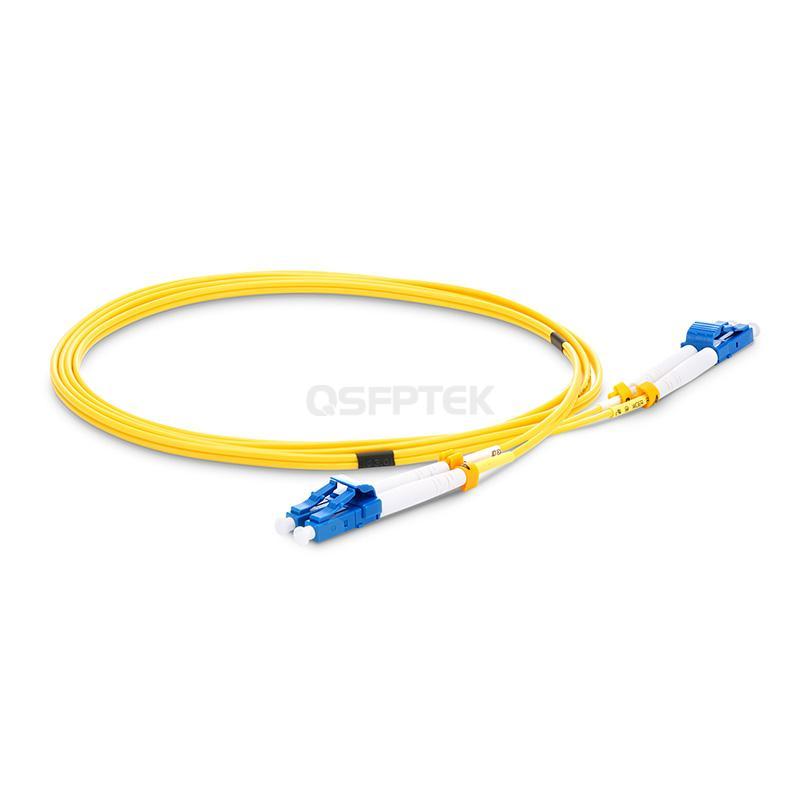

The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.
| Fiber Count |
2 Fibers |
Fiber Type |
OS2 SMF 9/125μm |
| Connector Type |
LC UPC to LC UPC |
Wavelength |
1310nm/1550nm |
| Armoured |
No |
Cable Material |
PVC |
| Insert Loss |
0.25dB |
Return Loss |
≥50dB |
| Approximate Diameter |
2.0mm |
Length |
0.5m/1m/1.5m/2m/3m/5m/7m/10m |
| Min. Bend Radius (Fiber Cable) Dynamic |
10mm |
Min. Bend Radius (Fiber Cable) Static |
10mm |
| Operating Temperature |
-20~+70°C |
Storage Temperature |
-40~+80°C |
Scenario 1:
Related Products:
Cisco QSFP-40G-LR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km Optical Transceiver Module
LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable
Intel X710-BM2 Network Interface Card, 10G 2 × SFP+ Port , PCIe 3.0 X 8, Half & Full Bracket
Scenario 2:
Related Products:
Cisco QSFP-40G-LR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km Optical Transceiver Module
LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable
With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission
Reliable Transmission Quality with Carrier-Grade Cables
Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.
Perfect for network cabinet connectivity, ceiling wiring, and under-floor wiring within the data center environment.
