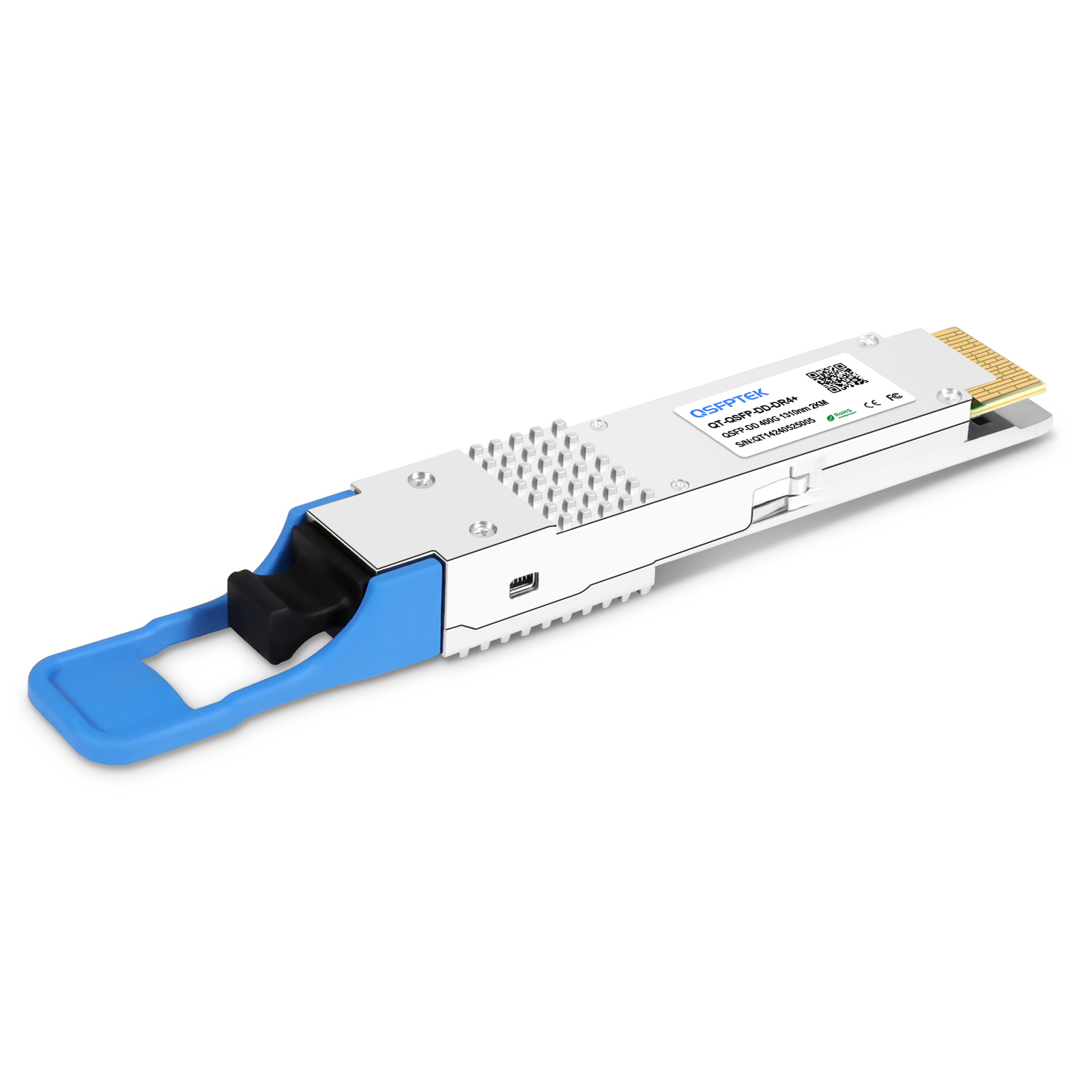

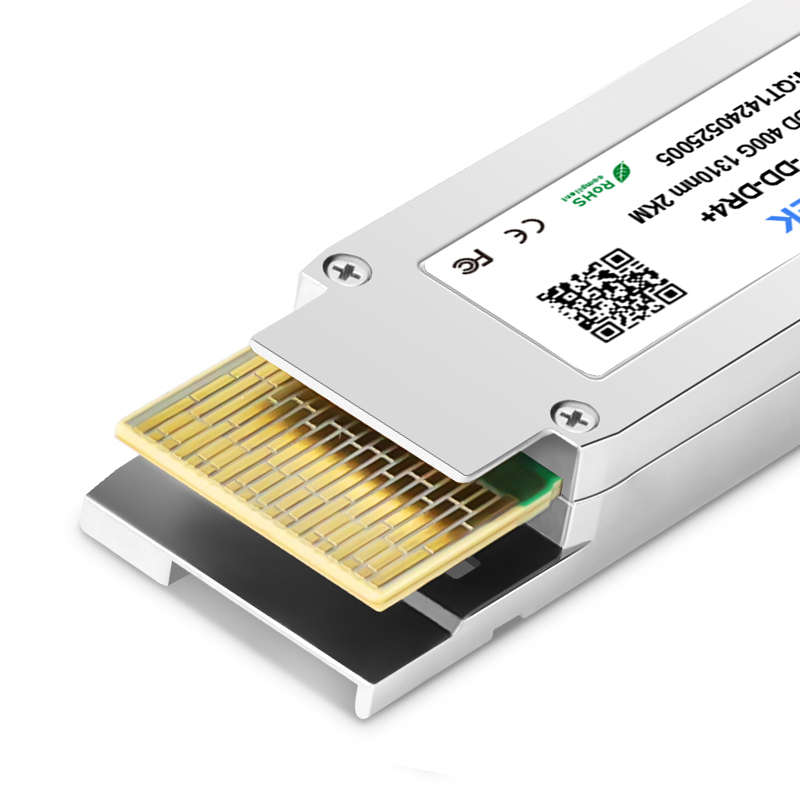

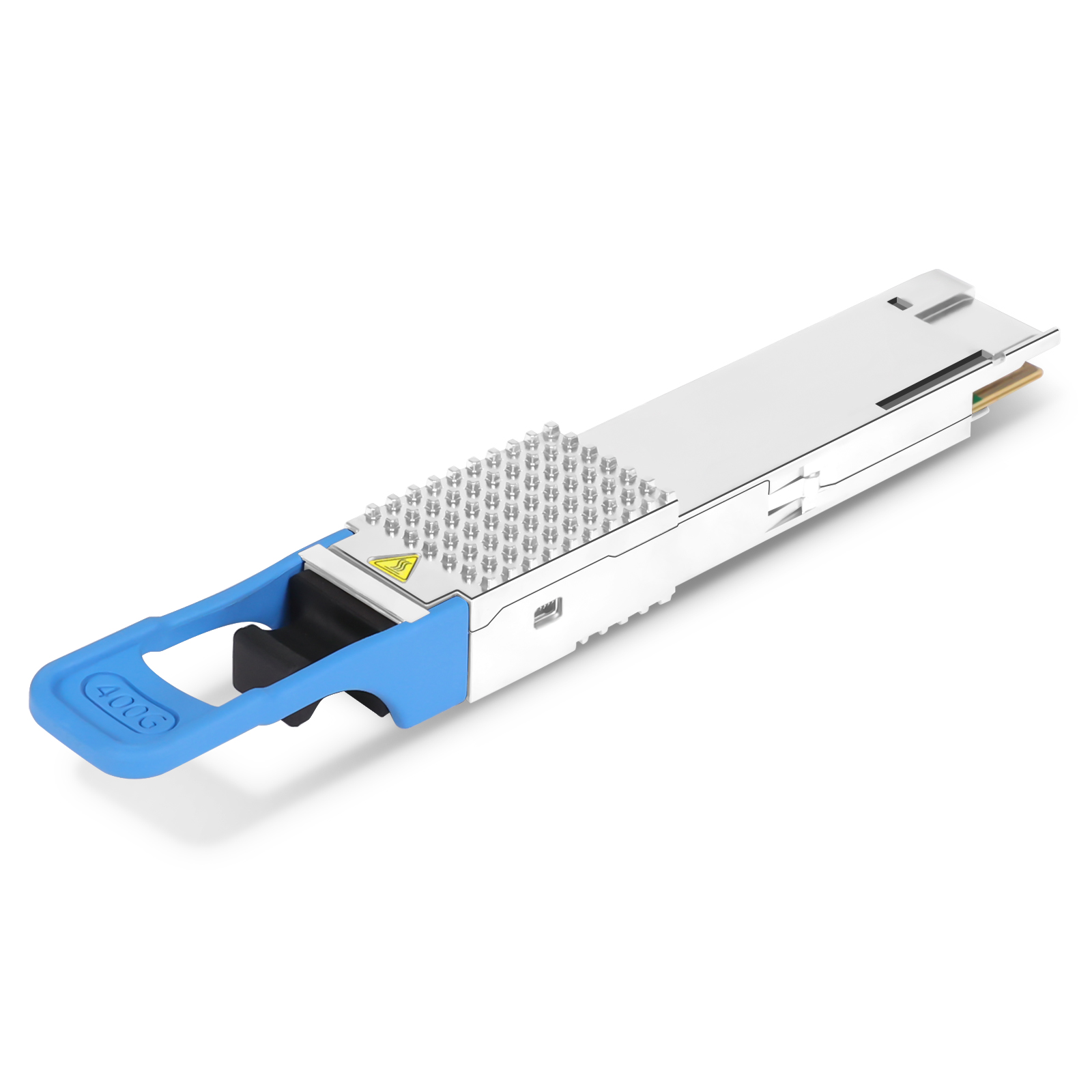

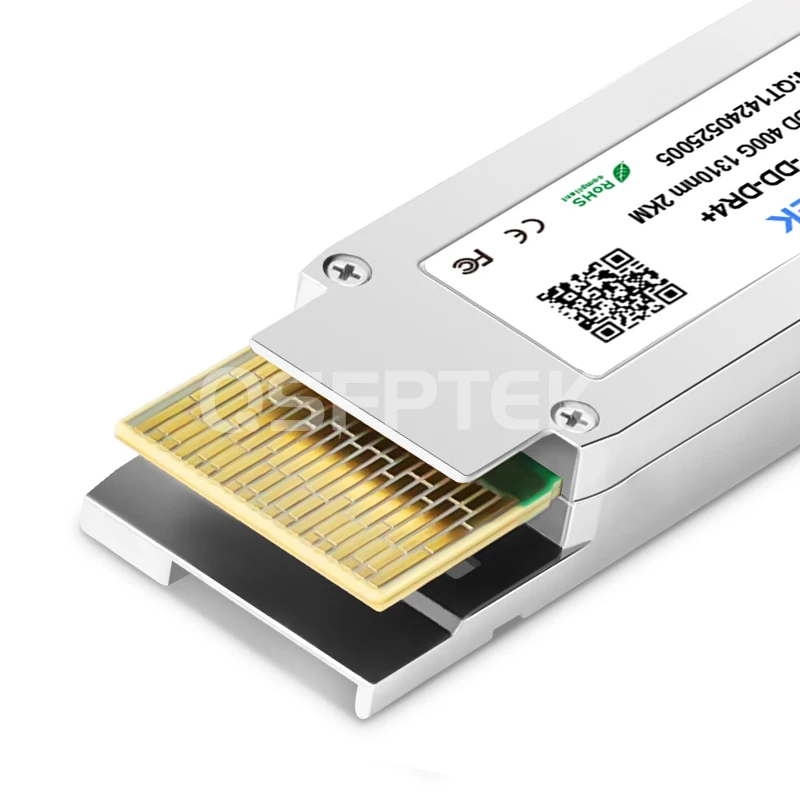

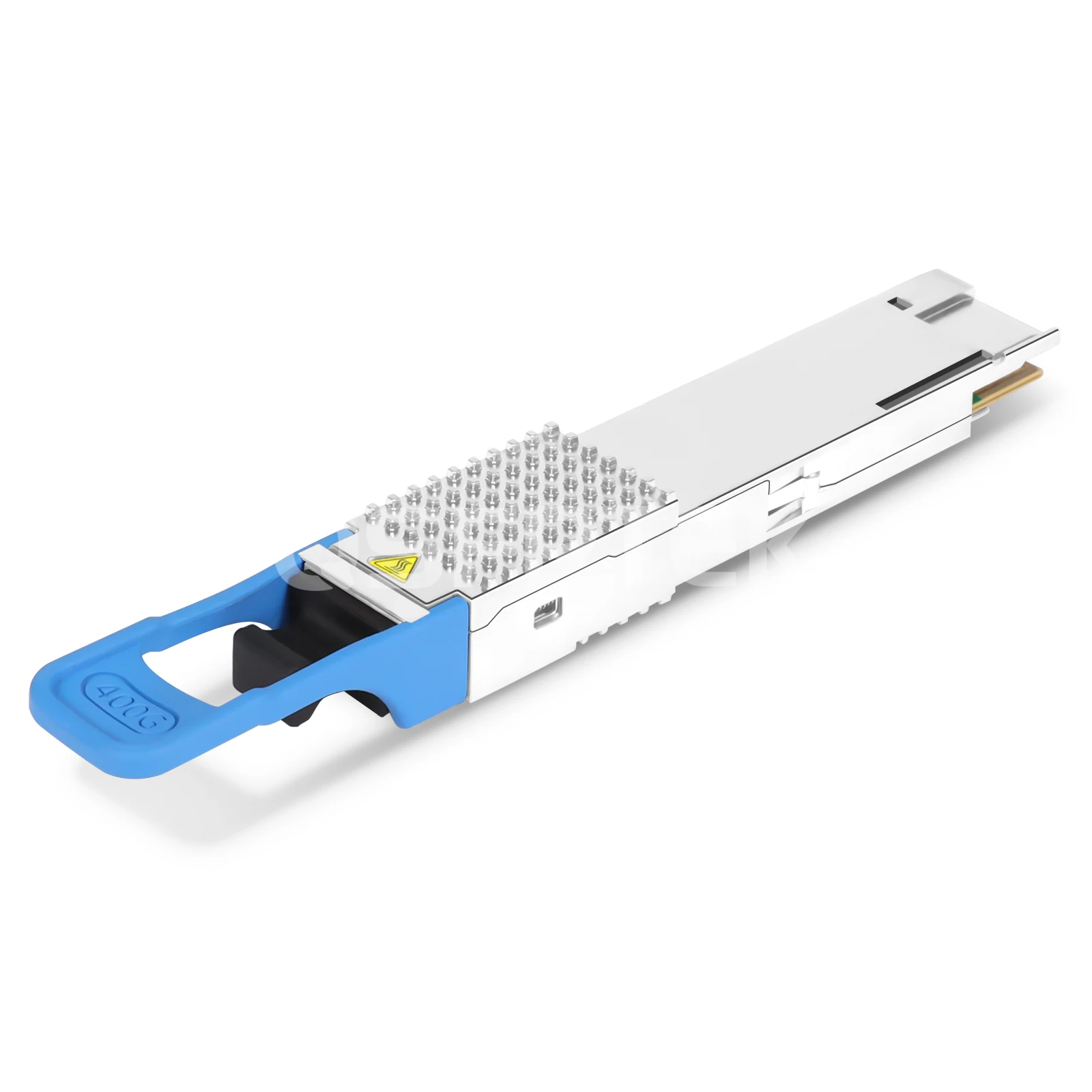

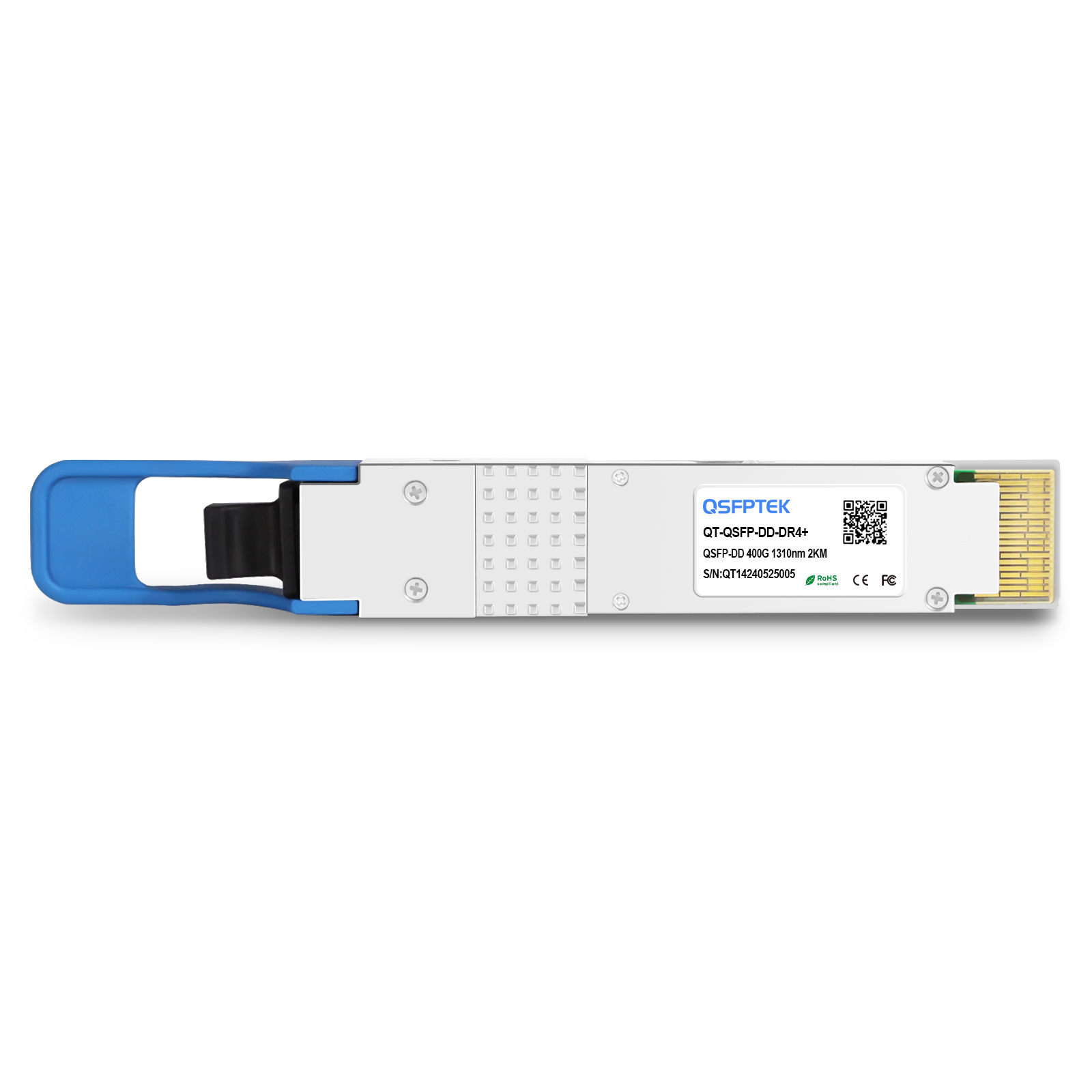

    Arista QDD-400G-XDR4 Compatible 400GBASE-XDR4 QSFP-DD PAM4 1310nm 2km DOM MTP/MPO-12/APC SMF Optical Transceiver Module

    Product No: 100253
    0 Reviews
    102 Sold
    $490.00
    Compatible
    Transceivers type
    29 in real-time stock, 26Oct, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Hot Pluggable QSFP-DD form factor
2. Max power consumption 12W
3. Link length up to 2km via MTP/MPO-12 connector
4. Support 4x100G breakout connectivity
5. Compliant to QSFP-DD MSA, 100G Lambda MSA 400G-DR4+, CMIS 4.0, IEEE 802.3bs
    See more

    Specifications

    Arista QDD-400G-XDR4 Compatible 400GBASE-XDR4 QSFP-DD PAM4 1310nm 2km DOM Optical Transceiver Module (SMF, 1310nm, 2km, MTP/MPO, DOM)



    QDD-400G-XDR4 400G QSFP-DD optical module, namely 4X100G-FR, or 400GBASE-DR4+, is designed to reach 2km distances over single-mode fiber (SMF). The 400 Gigabit Ethernet signal is carried over four parallel and independent Single Lambda 100G PAM4 lanes. 400GBASE-XDR4 uses MTP/MPO-12 connector, supporting breakout mode. It can be applied in the 4x100G breakout connectivity of QSFP-DD to QSFP28 100G-FR.



    QSFPTEK 400GBASE-DR4+ module is compliant with QSFP-DD MSA, 100G Lambda MSA 400G-DR4+, CMIS 4.0, and IEEE 802.3bs and is mainly applied in 400G Ethernet, Data Center, and Cloud Networks.



    Model Name QT-QSFP-DD-DR4+ Vendor Name QSFPTEK
    Form Factor QSFP-DD Data Rate 425 Gbps
    Wavelength 1310nm Distance 2km

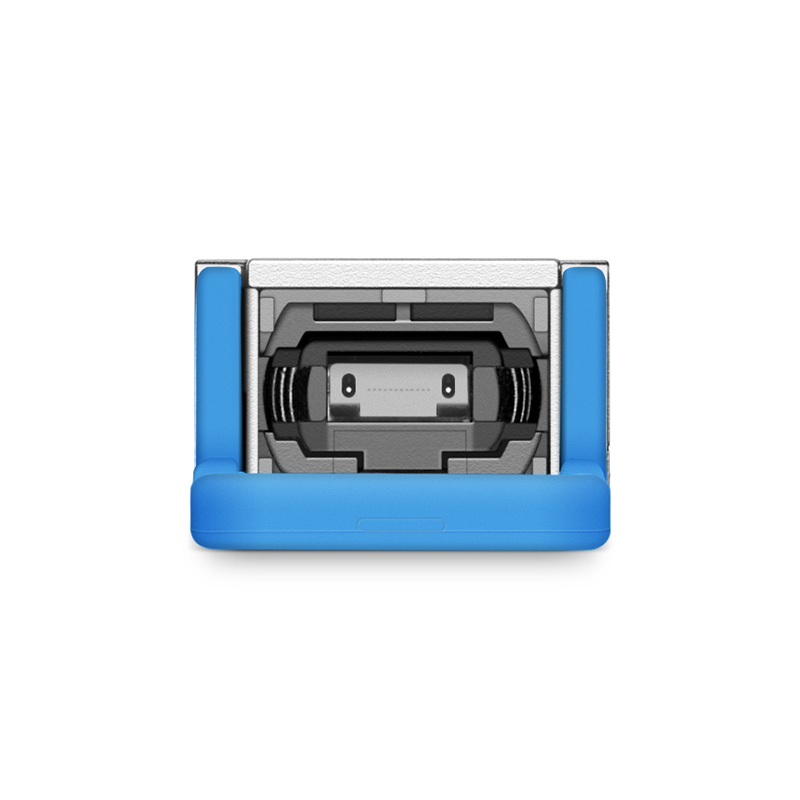

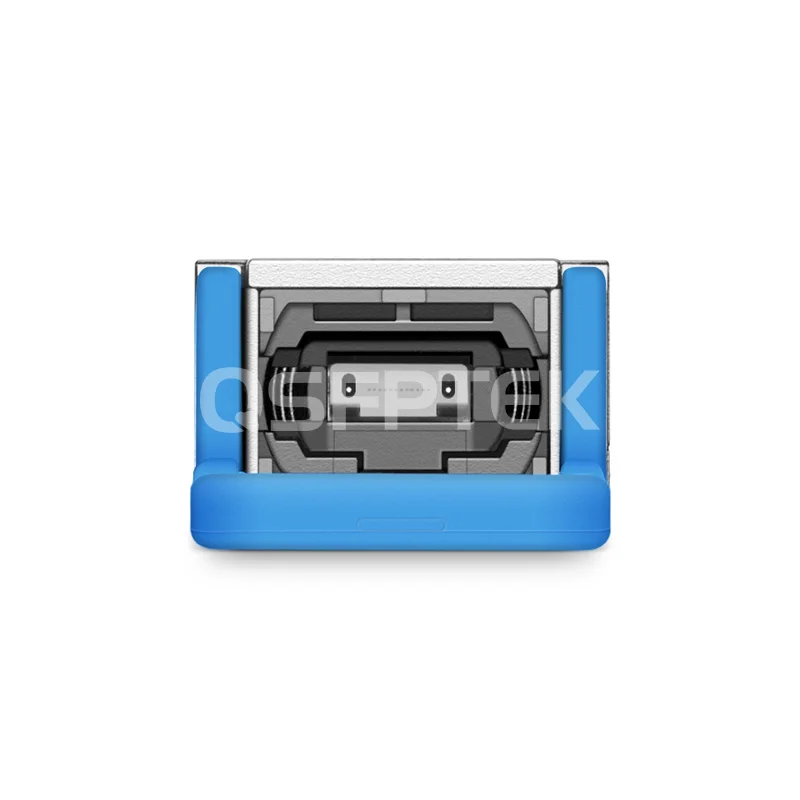

    Connector MTP/MPO-12/APC Cable Type SMF
    Transmitter Type 1310nm EML Receiver Type PIN
    TX Power -3.1~4.0dBm Receiver Sensitivity <-7.1dBm
    Power Consumption ≤12W Extinction Ratio 3.5dB
    DDM/DOM Supported Working Temperature Range 0 to 70°C (32 to 158°F)
    Protocols QSFP-DD MSA Compliant Warranty 1 Year
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    1m (3ft) MPO-12 APC (Female) to MPO-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $15.60
    11.0K Sold
    79 Reviews
    Hot

    1m (3ft) MTP-12 APC (Female) to MTP-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $68.60
    9.5K Sold
    79 Reviews

    1m (3ft) MPO-8 APC (Female) to 4x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 8 Fibers, Type B, LSZH, Yellow

    $19.06
    8.5K Sold
    79 Reviews

    1m (3ft) MTP-8 APC (Female) to 4x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 8 Fibers, Type B, LSZH, Yellow

    $45.56
    10.7K Sold
    79 Reviews

    Cisco QSFP-100G-FR-S Compatible 100GBASE-FR Single Lambda QSFP28 1310nm 2km LC Duplex SMF DDM Optical Transceiver Module

    $219.00
    732 Sold
    7 Reviews

    Intel E810-CAM2 Based Network Interface Card, 100G Dual Port QSFP28, PCIe 4.0 X 16, Half & Full Bracket

    $521.90 $799.00
    128 Sold
    1 Reviews

    Generic Compatible 800GBASE-DR8 QSFP-DD PAM4 1310nm 500m DDM MPO-16/APC SMF Optical Transceiver Module, Support 2 x 400G-DR4 and 8 x 100G-DR

    $1021.90
    137 Sold
    40 Reviews

    Features

    • 1. High Reliablility and Best Price
      Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
    • 2. Super High-density
      Industry’s highest bandwidth density 400G optical module for 400 Gigabit Ethernet connectivity.
    • 3. Protocols
      Compliant with QSFP-DD MSA,100G Lambda MSA 400G-DR4+, IEEE 802.3bs.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

    Scenario 1: 400G to 400G Direct Connectivity

    QT-QSFP-DD-XDR4 Scenario 1 400G to 400G Direct Connectivity

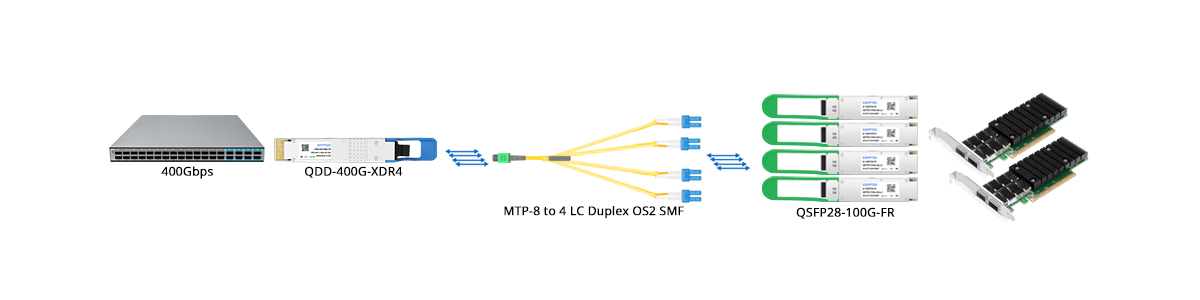

    Scenario 2: 400G to 4x 100GE Breakout Connectivity

    QT-QSFP-DD-XDR4 Scenario 2 400G to 4x 100GE Breakout Connectivity

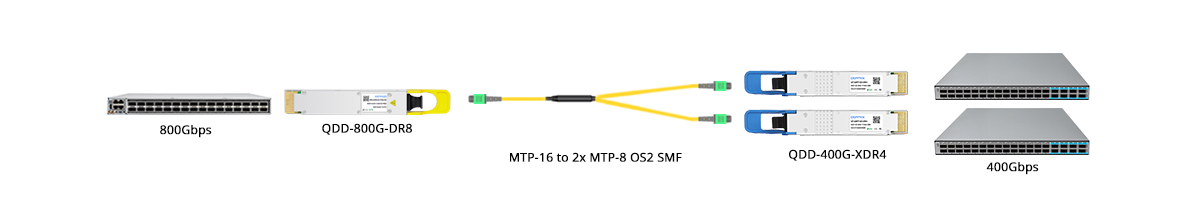

    Scenario 3: 800G to 2x 400GE Breakout Connectivity

    QT-QSFP-DD-XDR4 Scenario 3 800G to 2x 400GE Breakout Connectivity



    Product details

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

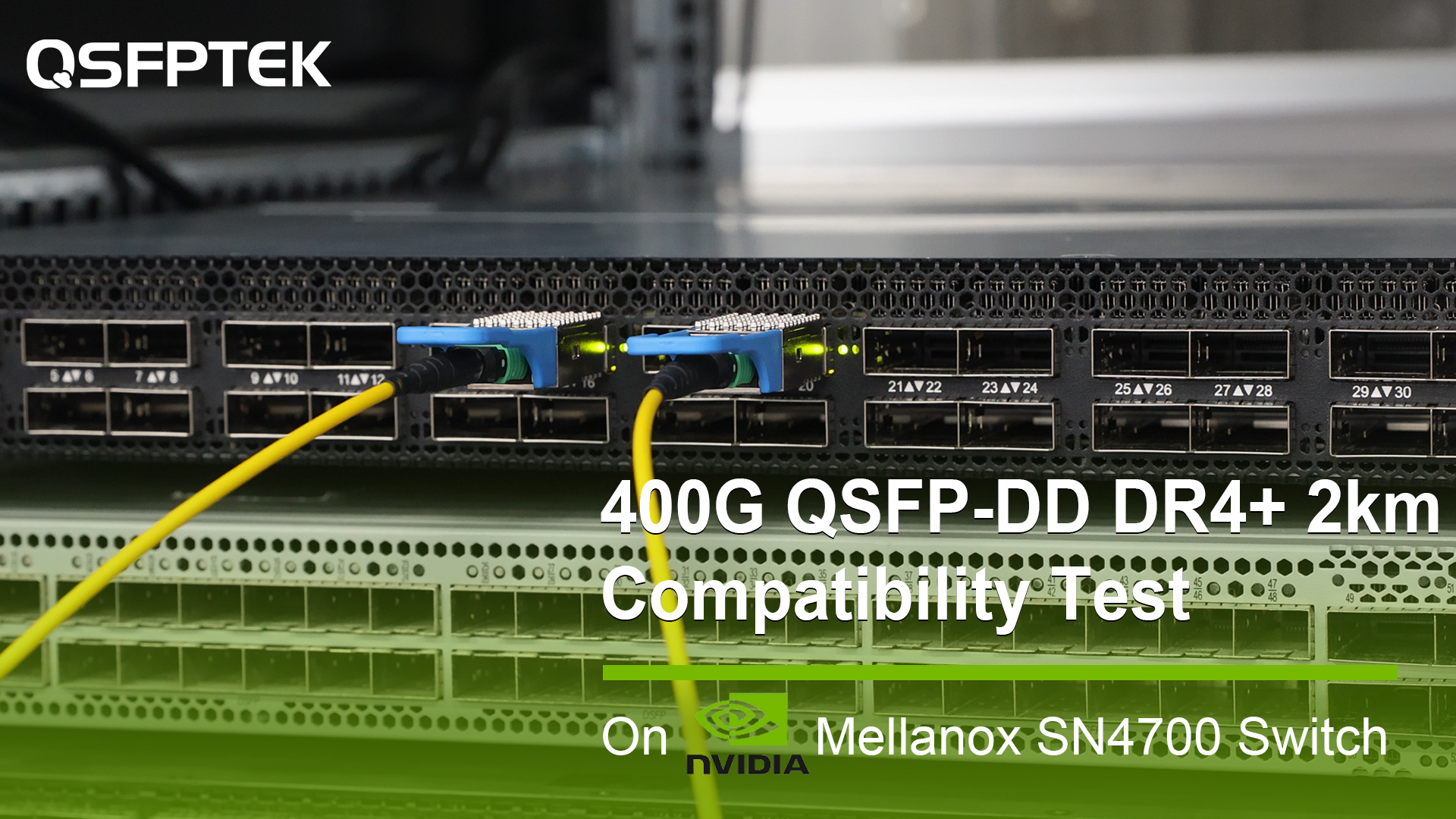

    400GBASE-XDR4 compatibility test





    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.







    Short to Medium Reach 400G QSFP-DD Optics Contrast Table



    Part Number

    QT-QSFP-DD-SR4

    QT-QSFP-DD-SR8

    QT-QSFP-DD-DR4

    QT-QSFP-DD-DR4+

    QT-QSFP-DD-FR4


    Center Wavelength

    850nm

    850nm

    1310nm

    1310nm

    1310nm

    Connector

    MTP/MPO-12

    MTP/MPO-16

    MTP/MPO-12

    MTP/MPO-12

    Duplex LC

    Cable Distance (Max.)

    100m

    100m

    500m

    2km

    2km

    Modulation

    PAM4

    PAM4

    PAM4

    PAM4

    PAM4

    Transmitter + Receiver Type

    VCSEL 850nm + PIN

    VCSEL 850nm + PIN

    EML + PIN

    EML + PIN

    CWDM EML + PIN

    TX Power

    -4.6~4.0dBm

    -6.5~4.0dBm

    -2.9~4.0dBm

    -3.1~4.0dBm

    -3.2~3.5dBm

    Receiver Sensitivity

    <-6.3dBm

    <-8.4dBm

    <-5.9dBm

    <-7.1dBm

    <-7.3dBm

    Power Consumption

    ≤8W

    ≤12W

    ≤12W

    ≤12W

    ≤12W

    Temperature

    0 to 70°C (32 to 158°F)

    0 to 70°C (32 to 158°F)

    0 to 70°C (32 to 158°F)

    0 to 70°C (32 to 158°F)

    0 to 70°C (32 to 158°F)

    Application

    Data Center

    Data Center

    400G to 2x200G Breakout

    400G to 8x50G Breakout

    Data Center

    400G to 4x100G Breakout

    800G to 2x400G Breakout

    Data Center

    400G to 4x100G Breakout

    800G to 2x400G Breakout

    Data Center

    800G to 2x400G Breakout



    Questions & Answers

    • All (11)
    • 400G QSFP-DD (2)
    • QT-QSFP-DD-DR4 (3)
    • QT-QSFP-DD-SR8 (4)
    • QT-QSFP-DD-FR4 (1)
    • QT-OSFP-400G-SR8 (1)
    • What is the difference between using 4x100 vs 8x50 of 400G QSFP-DD transceivers?
      The main difference is that the optical signal transmission method, 4x100G means transmitting optic signals in 4 channels, and 100G each channel, while 8x50G is transmitted optic signal in 8 channels, and 50G each channel.
    • What's the meaning of ''DR4''?
      ''DR'' means that the 500m transmission distance and using Singlemode fiber, ''4'' implies there refers to 4 optical channels. The 4 independent optical channels inside the DR4 modules transmitting data on separate fibers make up a total of 8 fibers(4 Tx and 4 Rx). Each of the optical channel transmission rates is 100Gb/s.
    • What type of optical cable should be used with 400G-SR8?
      The 400G-SR8 optical module employs a single-row, angled (APC) MTP16 connector to establish a connection with parallel multi-mode fiber, facilitating the linkage of 8 fiber pairs. We recommend utilizing the QSFPTEK MTP-16 APC OM4 Cable for optimal performance.
