    Products / Transceivers / 100G/200G Transceivers / 100G QSFP28 / 100726
    Product image
    Product image
    Product image

    Customized 100GBASE-LR4 QSFP28 1310nm 10km LC Duplex SMF DDM Optical Transceiver Module

    Product No: 100726
    0 Reviews
    199 Sold
    {{formatCurrency(customPrice) }}
    $189.90  $299.00

    {{hg.name}}

    1,540 in real-time stock, 23Oct, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    30-day Return and Refund

    5-Year Warranty 30-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart
    1. Rate: 100G; Connector: LC; with DDM
2. DFB+PIN; Low Power Consumption ≤3.5W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 200+ Vendors
5. Hot Pluggable QSFP29 MSA Compliant
    See more

    Specifications

    Customized 100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DDM)



    The Customized 100GBASE-LR4 optical transceiver module is designed with duplex LC connectors, reaching a link up to 10km over single-mode fiber(SMF). QSFPTEK manufactured 100GBASE-LR4 QSFP28 transceiver module is compliant with IEEE 802.3ba 100GBASE-LR4, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in 100G telecom connections, data centers, high-performance computing networks, enterprise core and distribution layers, campus networks, etc.



    Part Number:

    QT-QSFP28-LR4

    Vendor Name:

    QSFPTEK

    Form Factor:

    QSFP28

    Data Rate:

    100Gbps

    Wavelength:

    1295~1310nm

    Distance:

    10km

    Connector:

    Duplex LC

    Cable Type:

    OS2 SMF

    Transmitter:

    4x LAN WDM DML (DFB)

    Receiver Type:

    PIN

    TX Power:

    -4.3~4.5dBm

    Receiver Sensitivity:

    <-10.6dBm

    Power Consumption:

    ≤4W

    Modulation Format:

    NRZ

    DDM:

    Support

    Bit Error Ratio (BER):

    1.00E-12

    Protocols:

    IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636

    Warranty:

    1 Year
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 10m

    $9.10
    4.3K Sold
    30 Reviews
    Hot

    S7600-48X8C, 48-Port Ethernet L3+ Switch, 48x 10G SFP+, 8x 100G QSFP28, Support MLAG, VXLAN

    $4157.00 $5099.00
    200 Sold
    171 Reviews

    Intel E810-CAM2 Based Network Interface Card, 100G Dual Port QSFP28, PCIe 4.0 X 16, Half & Full Bracket

    $521.90 $799.00
    128 Sold
    1 Reviews

    Features

    • 1. High Reliablility and Best Price
      Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
    • 2. Wide Application Scenarios
      Fully compatible with almost all Cisco devices. Ideal for 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers etc.
    • 3. Protocols
      Compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

    Scenario 1: 100G Switch to 100G Switch Direct Connectivity

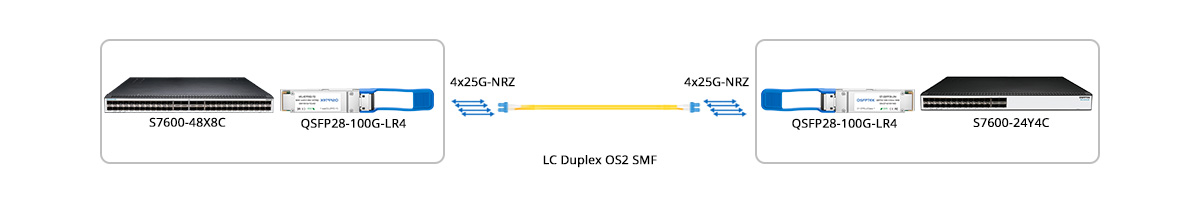

    QT-QSFP28-LR4 Scenario 1: 100G Switch to 100G Switch Direct Connectivity



    Scenario 2: 100G Switch to 100G NIC Direct Connectivity

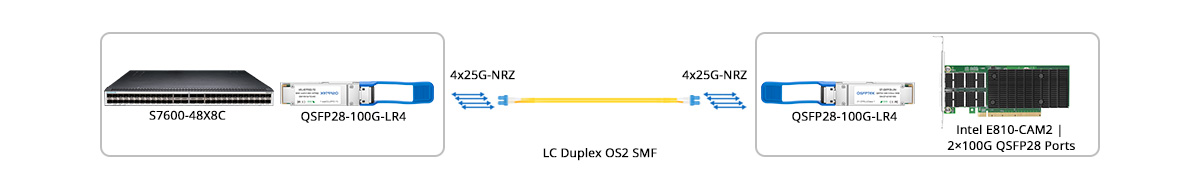

    QT-QSFP28-LR4 Scenario 2: 100G Switch to 100G NIC Direct Connectivity

    Product details

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



    100G QSFP28 Model Contrast Table



    Part Number

    QT-QSFP28-SR4

    QT-QSFP28-PSM4

    QT-QSFP28-IR4

    QT-QSFP28-LR4

    QT-QSFP28-CWDM-LR4

    QT-QSFP28-ER4 (Rx SOA)

    QT-QSFP28-ZR4


    Wavelength

    850nm

    1310nm

    1271~1331nm

    1310nm

    1271~1331nm

    1310nm

    1310nm

    Max Distance

    100m

    500m

    2km

    10km

    10km

    40km

    80km

    Cable Type

    OM3/OM4 MMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    Connector

    MPO/MTP-12

    MPO/MTP-12

    LC Duplex

    LC Duplex

    LC Duplex

    LC Duplex

    LC Duplex

    Tx Power(dBm)

    -8.4~+2.4

    -9.4~+2

    -6.5~+2.5

    -4.3~+4.5

    -6.5~+2.5

    -2.9~+4.5

    +2~+7

    Rx Sensitivity(dBm)

    -10.3

    -12.66

    -11.5

    -10.6

    -11.5

    -20.9

    -27

    Max Power Consumption

    2.5W

    3.5W

    3.5W

    4W

    3.5W

    5W

    5.5W

    Source

    VCSEL+PIN

    DFB+PIN

    CWDM DFB+ PIN

    EML+PIN

    CWDM DFB +PIN

    4x EML+SOA+PIN

    EML+SOA+PIN

    Operating Temperature

    0~70°C

    0~70°C

    0~70°C

    0~70°C

    -40~85°C (Available)

    0~70°C

    0~70°C

    -20~85°C (Available)

    0~70°C

    -40~85°C (Available)



    Questions & Answers

    • All (26)
    • What is the laser level of 100G SR4? Can you provide a test report of the laser level of this module?
      Class I. Of course, you can contact our sales to get the report.
    • The transmission distance is less than 550m, should I use multi-mode?
      I'm afraid you should purchase the single-mode optics, like 100G LR4.
    • What is the Packaging Technology of the 100g lr4?
      BOX Packaging
