    Products / Transceivers / 100G/200G Transceivers / 100G BiDi QSFP28 / 102627

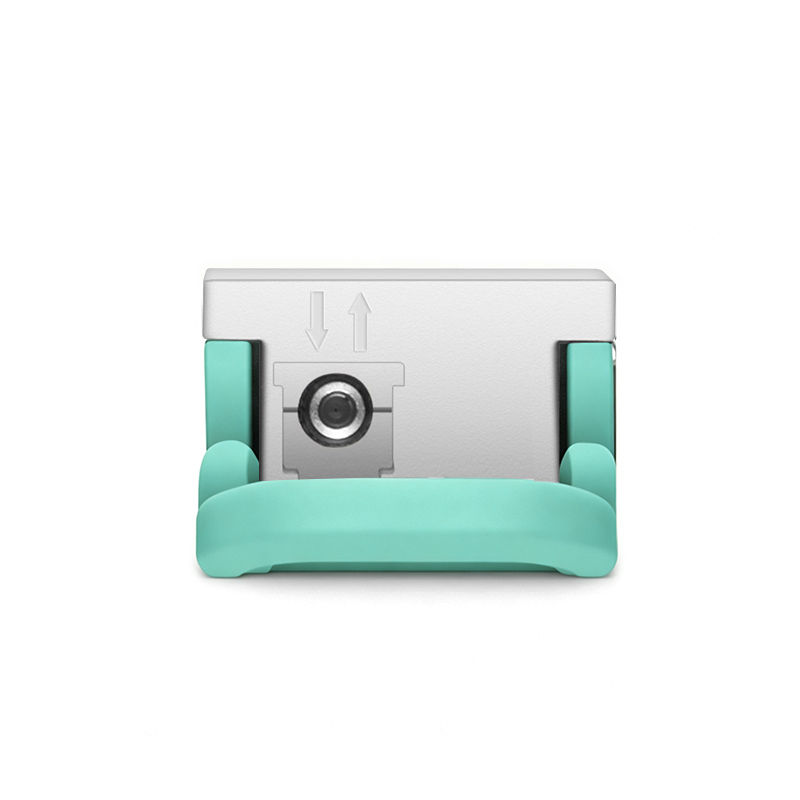

    Product image
    Product image

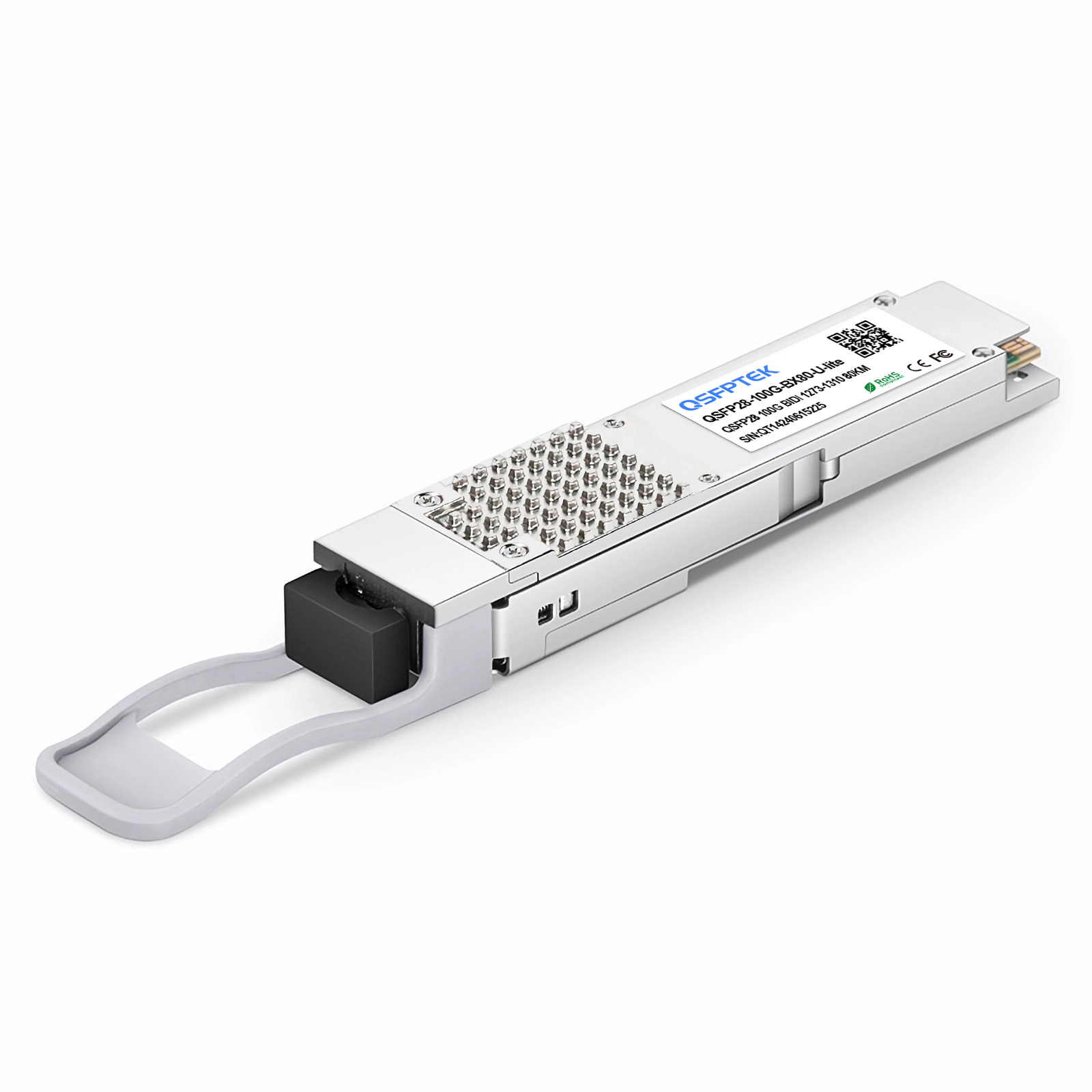

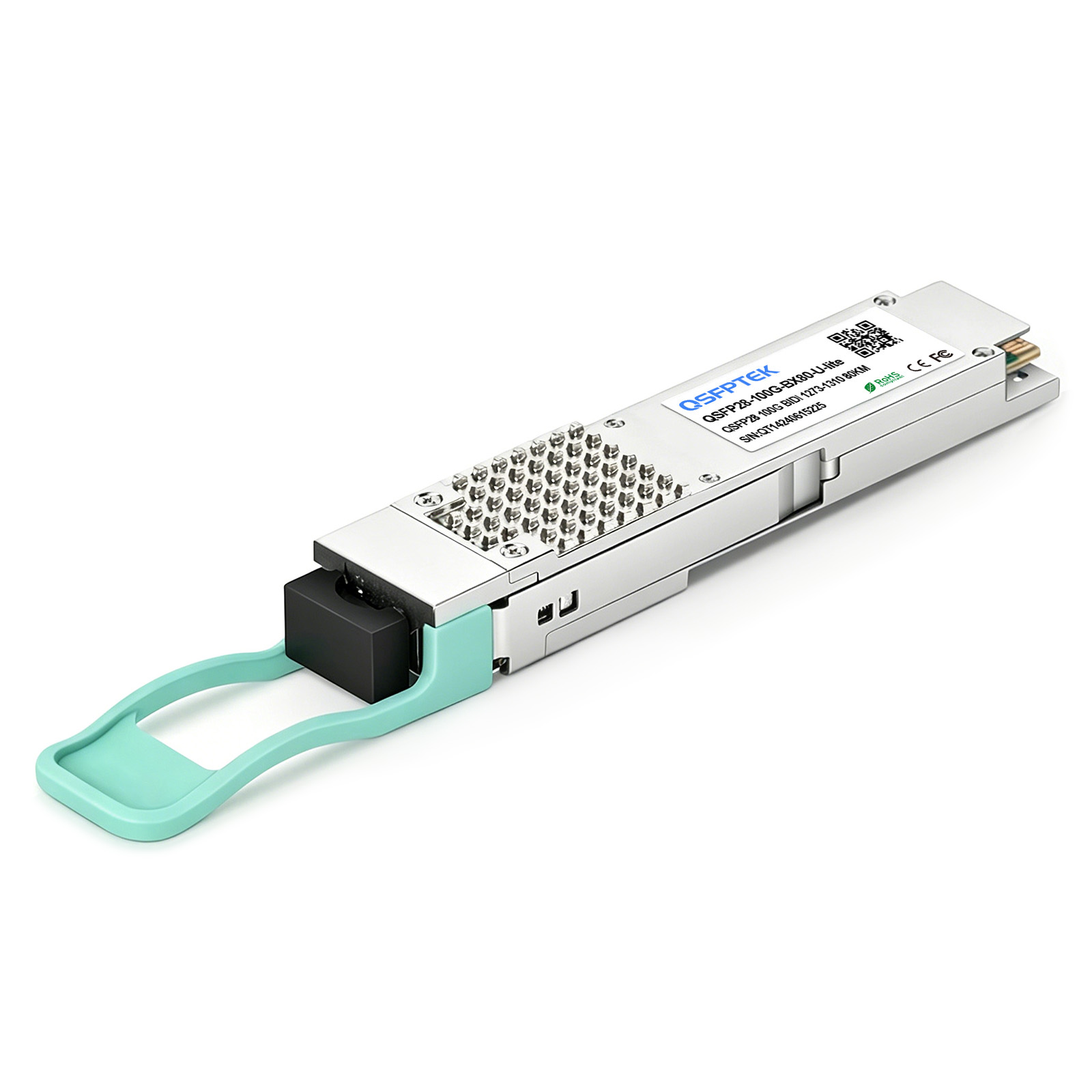

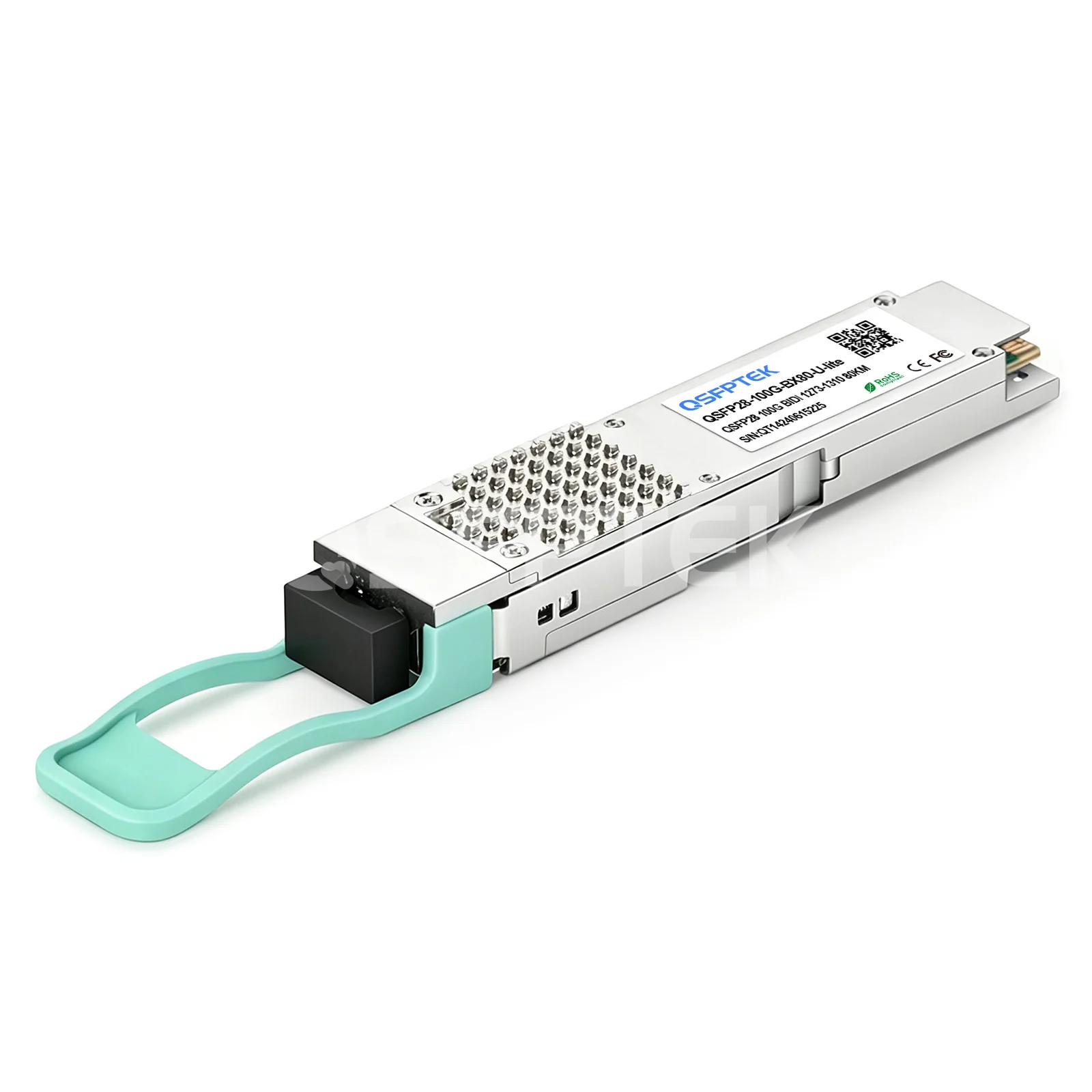

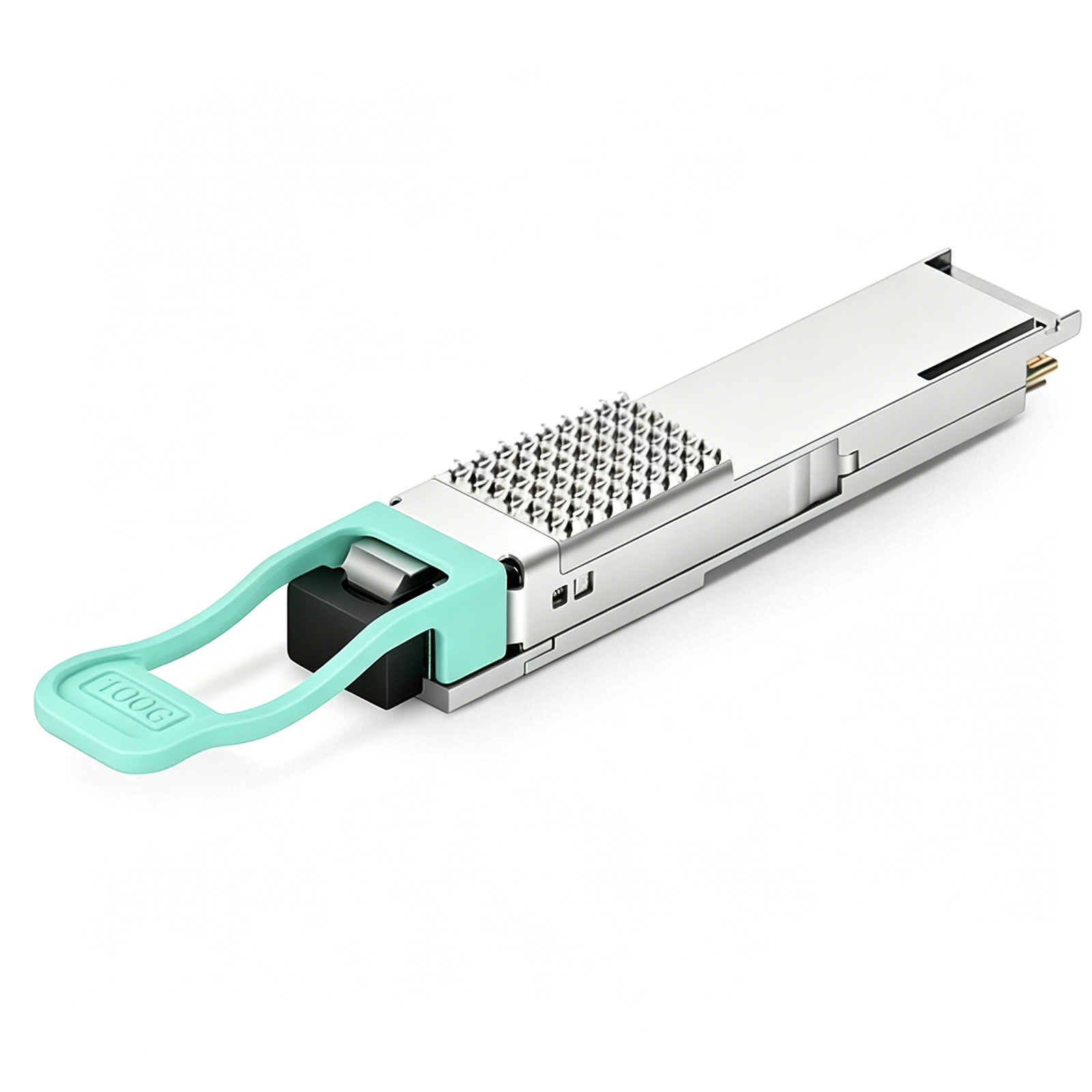

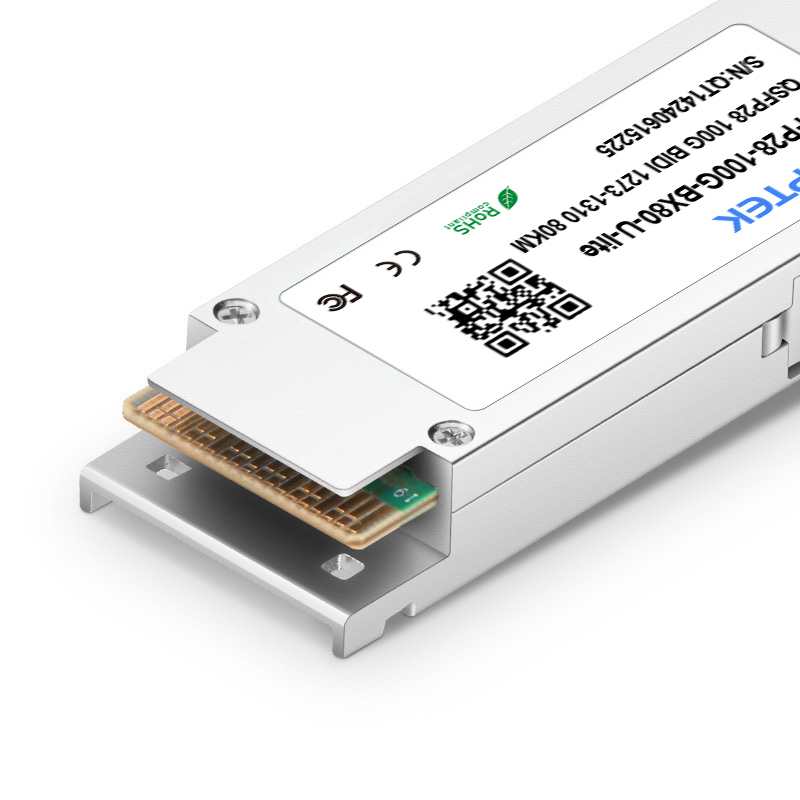

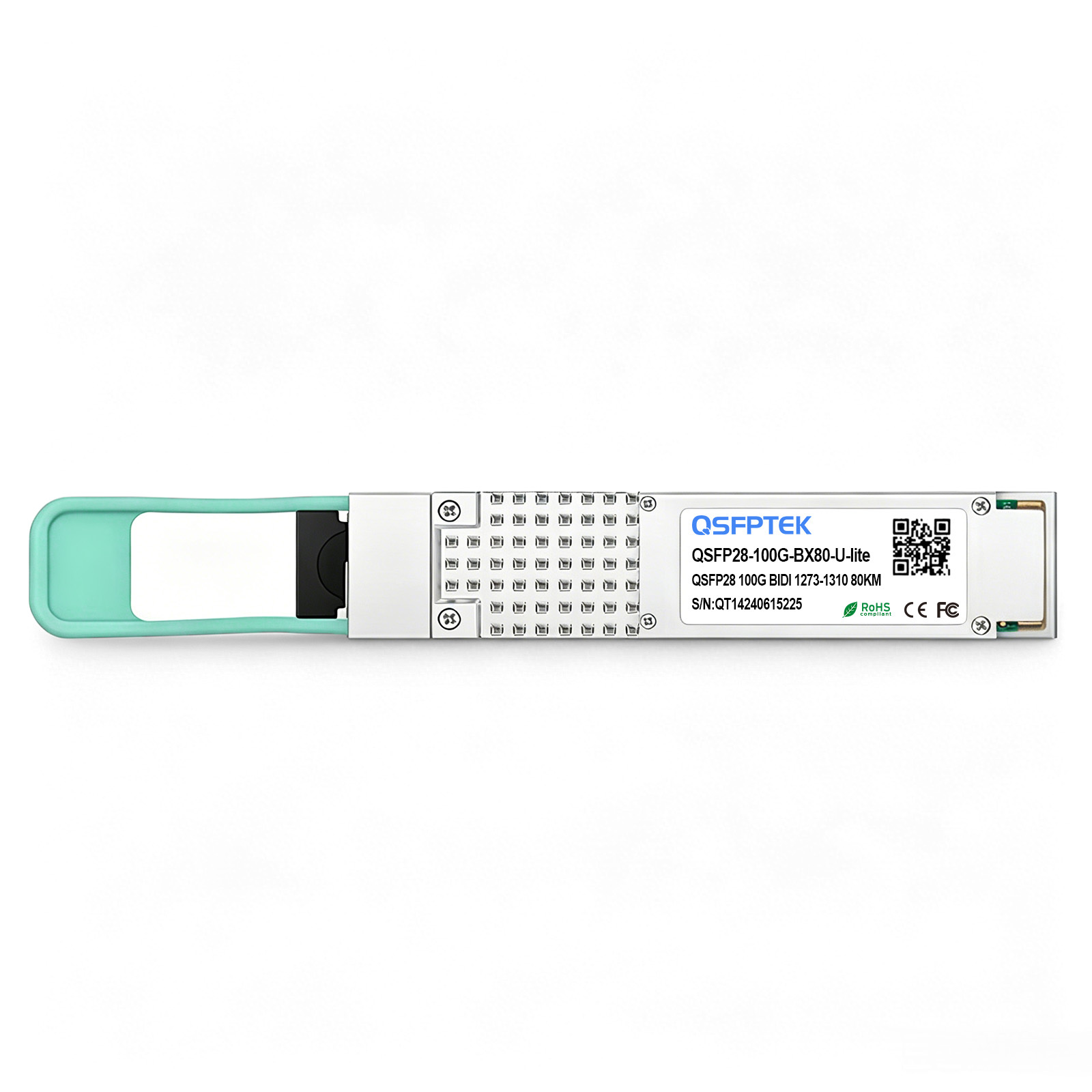

    Juniper Compatible 100GBASE-BX80-U BiDi QSFP28 1273nm-TX/1310nm-RX 80km DDM Simplex LC SMF Transceiver

    Product No: 102627
    1 Reviews
    392 Sold
    $2,499.00
    Compatible
    Transceivers type
    237 in real-time stock, 27Oct, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    30-day Return and Refund

    5-Year Warranty 30-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Support Simplex Fiber Transmission
2. Tx 4x25Gb/s LWDM EML, Rx SOA+PIN
3. Low Power Consumption <5W
4. Applied in Region Networks
5. Fully Compatible with 100+ Vendors
6. QSFP28 MSA Compliant
    See more

    Specifications

    Juniper Compatible 100GBASE-BX80-U BiDi QSFP28 Transceiver Module (SMF, 1273nm-TX/1310nm-RX, 80km, Simplex LC, DDM)



    The Juniper compatible 100GBASE-BX80-U BiDi QSFP28 optical transceiver is equipped with an LC simplex connector, reaching a link up to 80km with KR4 FEC over G.652 SMF. This 100G BiDi QSFP28 transceiver, features carrying information in both directions via a single strand, can double your network capacity and save your cable resources. QSFPTEK manufactured 100GBASE-BX BiDi SFP+ transceiver module is compliant with QSFP28 MSA. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all OEM devices.



    Part Number QSFP28-100G-BX80-U-lite Vendor Name: QSFPTEK
    Form Factor: QSFP28 Data Rate: 100Gbps
    Wavelength: 1273nm-TX/1310nm-RX Distance: 80km with KR4 FEC
    Connector: LC Simplex Cable Type: OS2 SMF
    Transmitter Type:
    4x25Gb/s LWDM EML
    		Receiver Type:
    SOA+PIN
    TX Power: 1.0~7.0dBm Receiver Sensitivity: <-26dBm
    Power Consumption: <5W Modulation Format: NRZ
    DDM: Support Bit Error Ratio (BER): 1E-12
    Protocols: QSFP28 MSA Compliant, SFF-8636 Warranty: 5 Years



    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    LC UPC to LC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable 0.5m

    $1.69
    2.8K Sold
    20 Reviews

    Cisco Compatible 100GBASE-BX80-D BiDi QSFP28 1310nm-TX/1273nm-RX 80km DDM Simplex LC SMF Transceiver

    $2499.00
    102 Sold
    1 Reviews
    Hot

    S7300-48X2Q4C, 48-Port Ethernet L3 Switch, 48x 10G SFP+, with 2x 40G QSFP+ and 4x 100G QSFP28 Uplinks, Support Stacking

    $2409.40 $2999.00
    123 Sold
    171 Reviews

    S7300-24X2C, 24-Port Ethernet L3 Switch, 24x 10G SFP+, with 2x 100G QSFP28 Uplink, Support Stacking

    $1024.80 $1299.00
    107 Sold
    157 Reviews

    Intel E810-CAM2 Based Network Interface Card, 100G Dual Port QSFP28, PCIe 4.0 X 16, Half & Full Bracket

    $521.90 $799.00
    128 Sold
    1 Reviews

    Features

    • 1. High Reliablility and Best Price
      Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
    • 2. Wide Application Scenarios
      Fully compatible with almost all OEM brand devices. Ideal for data centers, campus network, enterprise core layer, etc.
    • 3. Protocols
      Compliant with QSFP28 MSA, SFF-8636.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

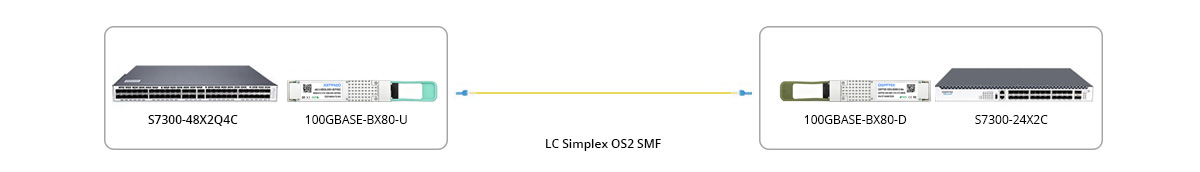

    Connection 1: 100G BIDI Connectivity



    QSFP28-100G-BX80-UD Connection 1 100G BIDI Connectivity

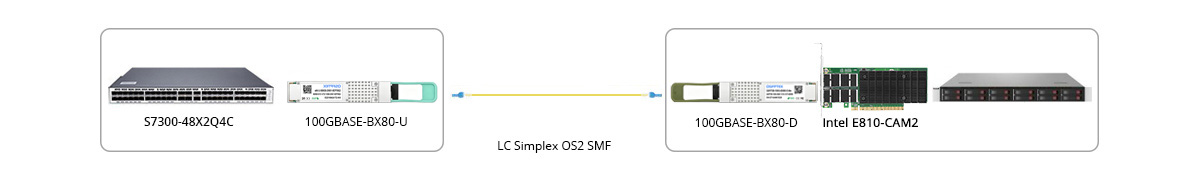

    Connection 2: 100G BIDI Connectivity With NIC



    QSFP28-100G-BX80-UD Connection 2 100G BIDI Connectivity With NIC

    Product details

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



    QSPFTEK LAB All Brands Switches Show





    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QSFPTEK Test Rack





    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

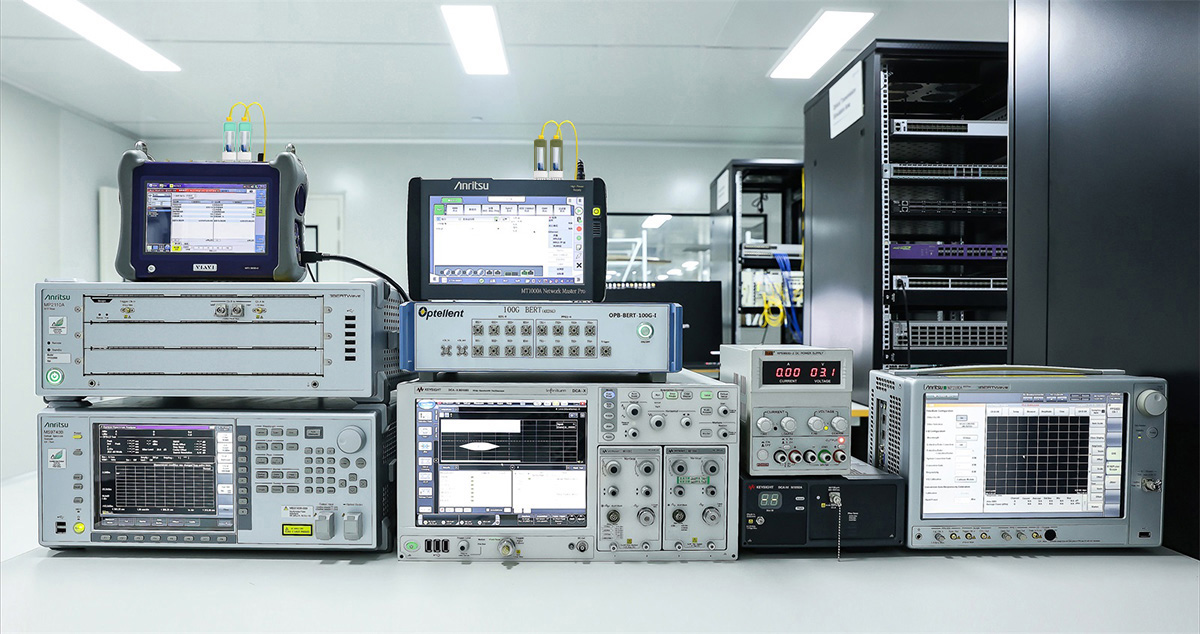

    QSFPTEK Test Devices





    100G QSFP28 Model Contrast Table



    Part Number

    QT-QSFP28-SR4

    QT-QSFP28-PSM4

    QT-QSFP28-IR4

    QT-QSFP28-LR4

    QT-QSFP28-CWDM-LR4

    QT-QSFP28-ER4 (Rx SOA)

    QT-QSFP28-ZR4

    DWDM-QSFP28-ZR-XX


    Wavelength

    850nm

    1310nm

    1271~1331nm

    1310nm

    1271~1331nm

    1310nm

    1310nm

    DWDM CH13~60

    Max Distance

    100m

    500m

    2km

    10km

    10km

    40km

    80km

    80km

    Cable Type

    OM3/OM4 MMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    Connector

    MPO/MTP-12

    MPO/MTP-12

    LC Duplex

    LC Duplex

    LC Duplex

    LC Duplex

    LC Duplex

    CS Duplex

    Tx Power(dBm)

    -8.4~+2.4

    -9.4~+2

    -6.5~+2.5

    -4.3~+4.5

    -6.5~+2.5

    -2.9~+4.5

    +2~+7

    -1~+4

    Rx Sensitivity(dBm)

    -10.3

    -12.66

    -11.5

    -10.6

    -11.5

    -20.9

    -27

    -12.5

    Max Power Consumption

    3.5W

    3.5W

    3.5W

    4W

    3.5W

    4.5W

    5.5W

    5W

    Source

    VCSEL+PIN

    DFB+PIN

    CWDM DFB+ PIN

    EML+PIN

    CWDM DFB +PIN

    4x EML+SOA+PIN

    EML+SOA+PIN

    EML+APD

    Operating Temperature

    0~70°C

    0~70°C

    0~70°C

    0~70°C

    -40~85°C (Available)

    0~70°C

    0~70°C

    -20~85°C (Available)

    0~70°C

    -40~85°C (Available)

    0~70°C



    Questions & Answers

    • All (10)
    • is it an LC or SC connector?
      100G BiDi QSFP28 optical transceivers supported by QSFPTEK deploy LC connectors.
    • When should I choose between the 100G-SWDM4 and 100G-SRBD transceivers, both supporting 100G over duplex multi-mode fiber?
      The 100G-SWDM4 and 100G-SRBD, also known as a "BIDI" transceiver, share the same optical reach and are commonly utilized in the industry, offering 70m/100m over OM3/OM4 duplex MMF. It's essential to note that these two transceivers do not have interoperability with each other. If considering interoperability with future 400G optics, the QSFP-100G-SRBD is recommended, as it can interoperate with upcoming Arista "400G-BIDI" transceivers. Specifically, an Arista OSFP-400G-SRBD or QDD-400G-SRBD transceiver can support breakout into 4x QSFP-100G-SRBD. Contrastingly, the 100G-SWDM4 lacks a pathway for interoperability with future 400G optics. The choice between these transceivers often hinges on interoperability requirements. For instance, if optical interoperability with third-party 100G BIDI optics is essential, the QSFP-100G-SRBD is the preferred option.
    • What are the temperature grade of 100G BiDi QSFP28?
      The online 100G QSFP28 BiDi optics are commercial grade, suitable for the temperature range of 0-70℃. If you need other types of 100G BiDi QSFP28, please contact sales.
