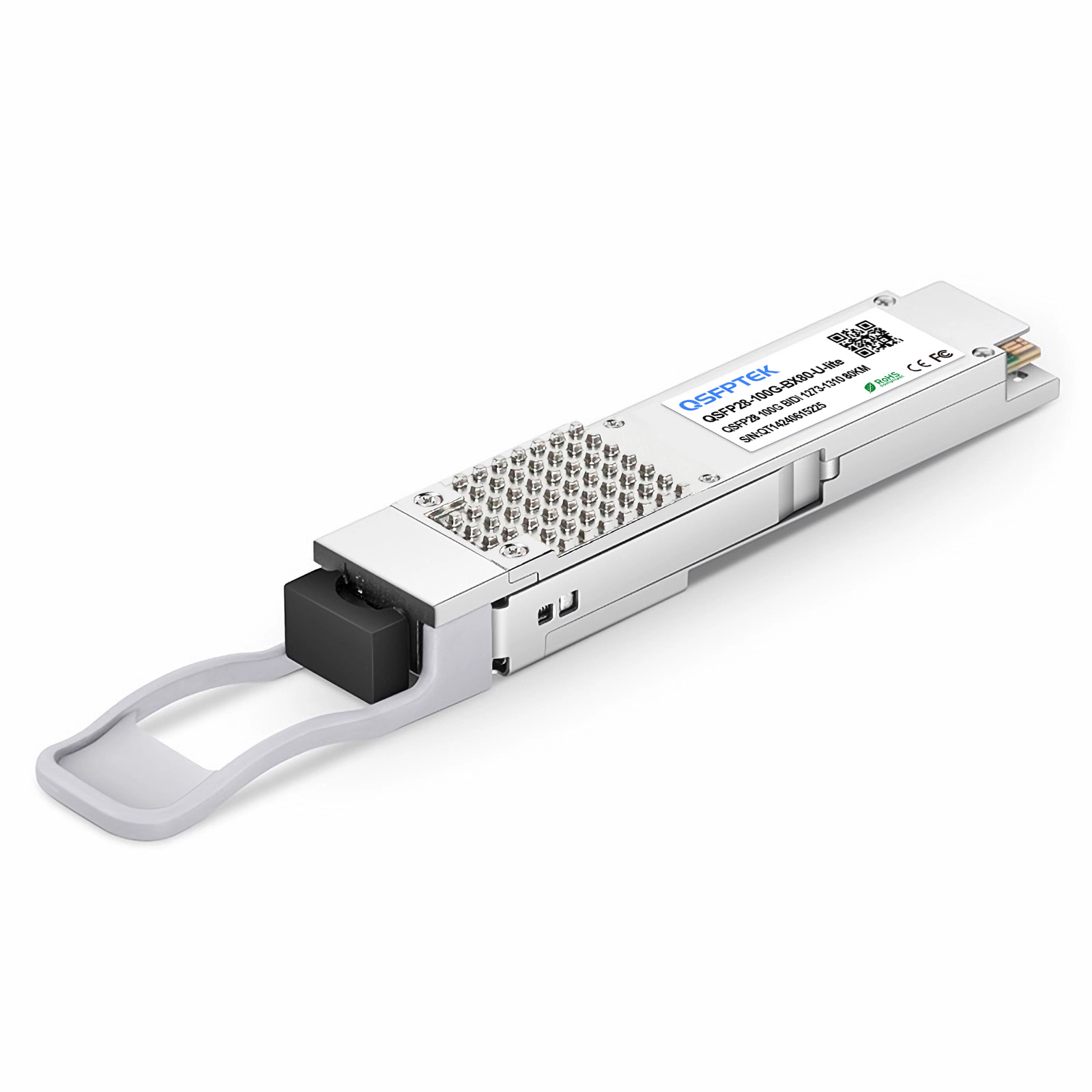

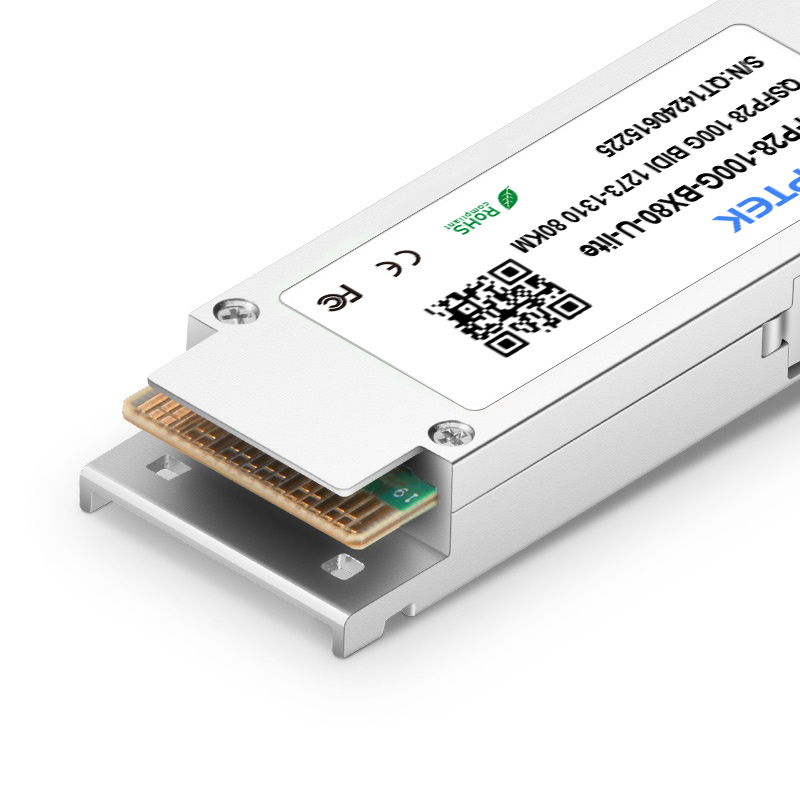

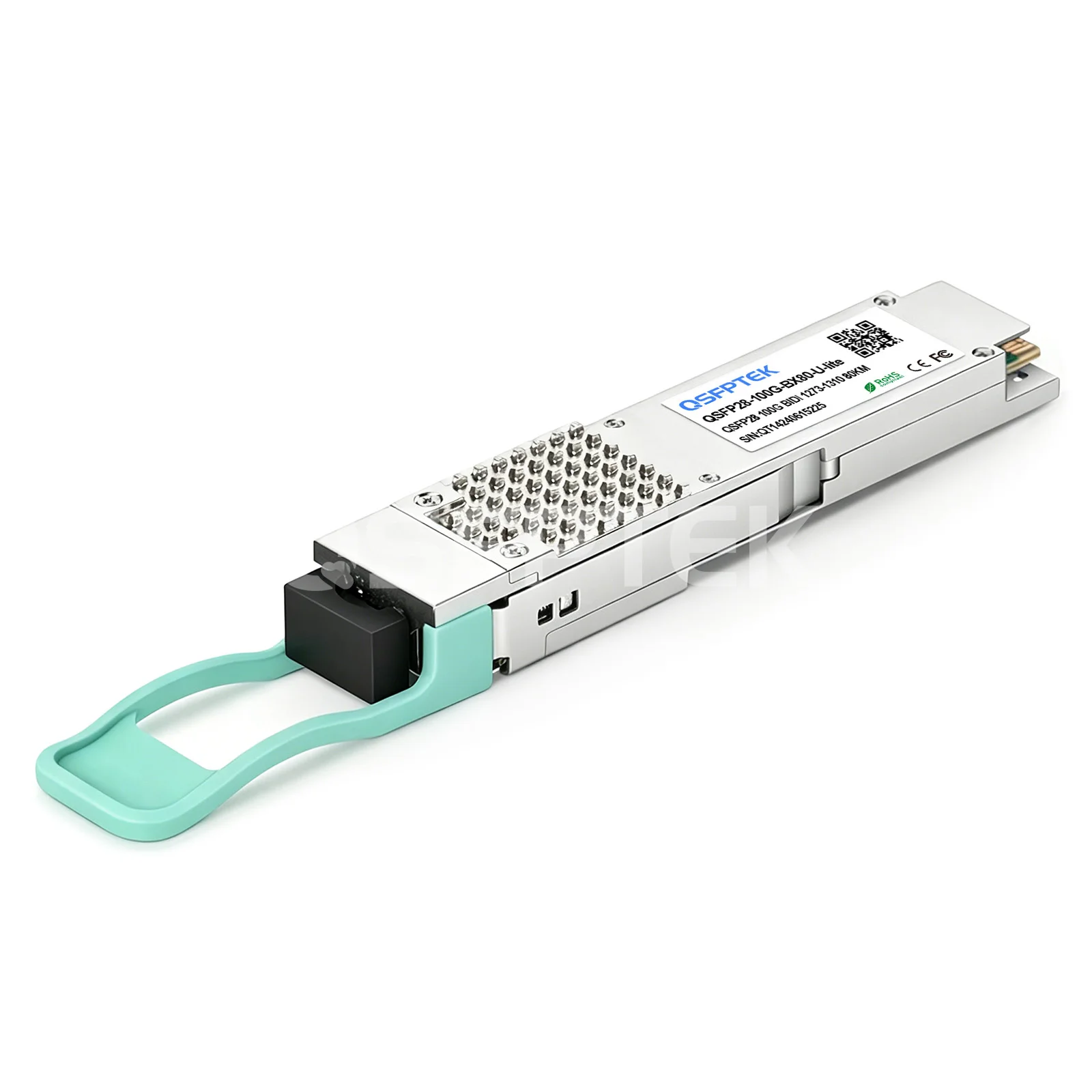

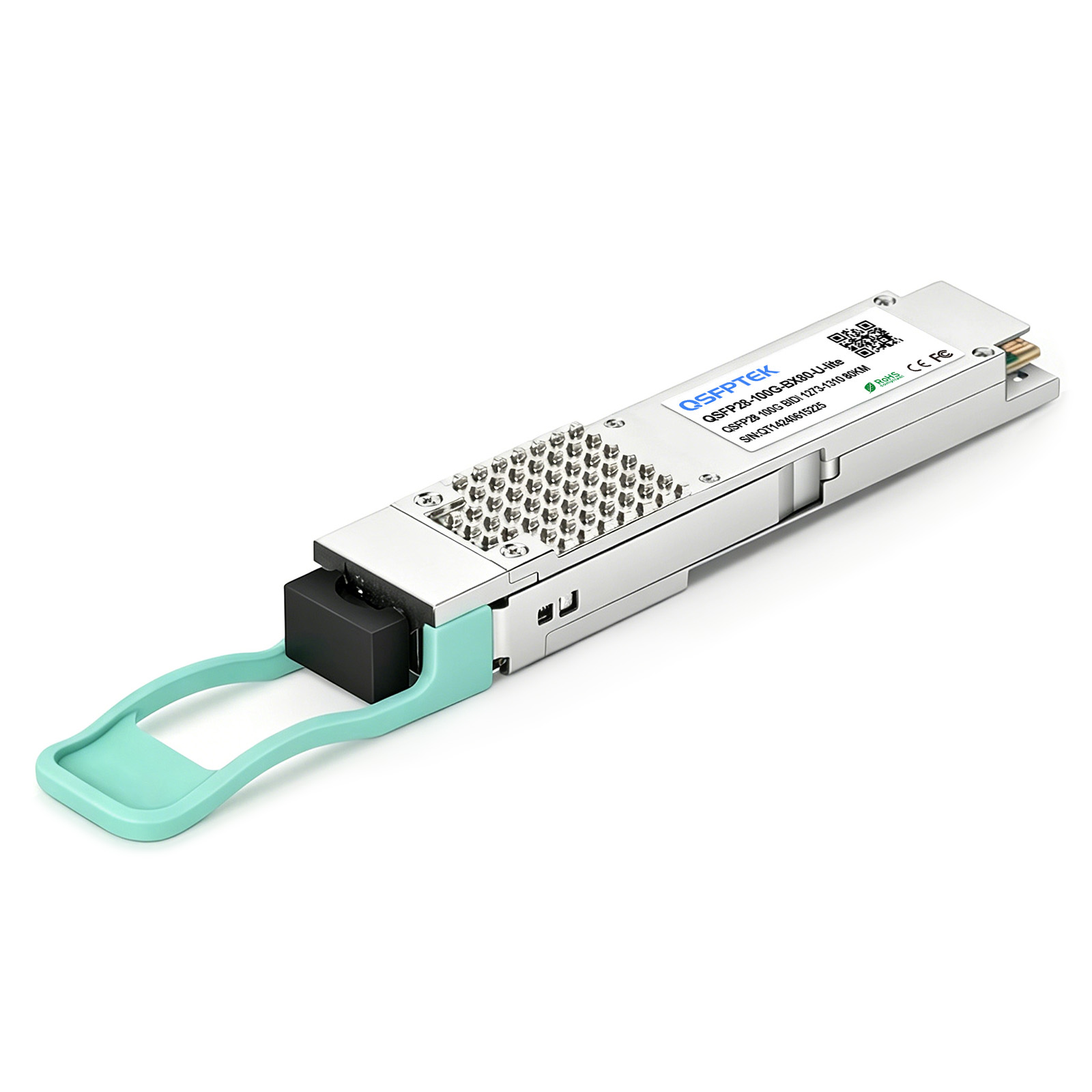

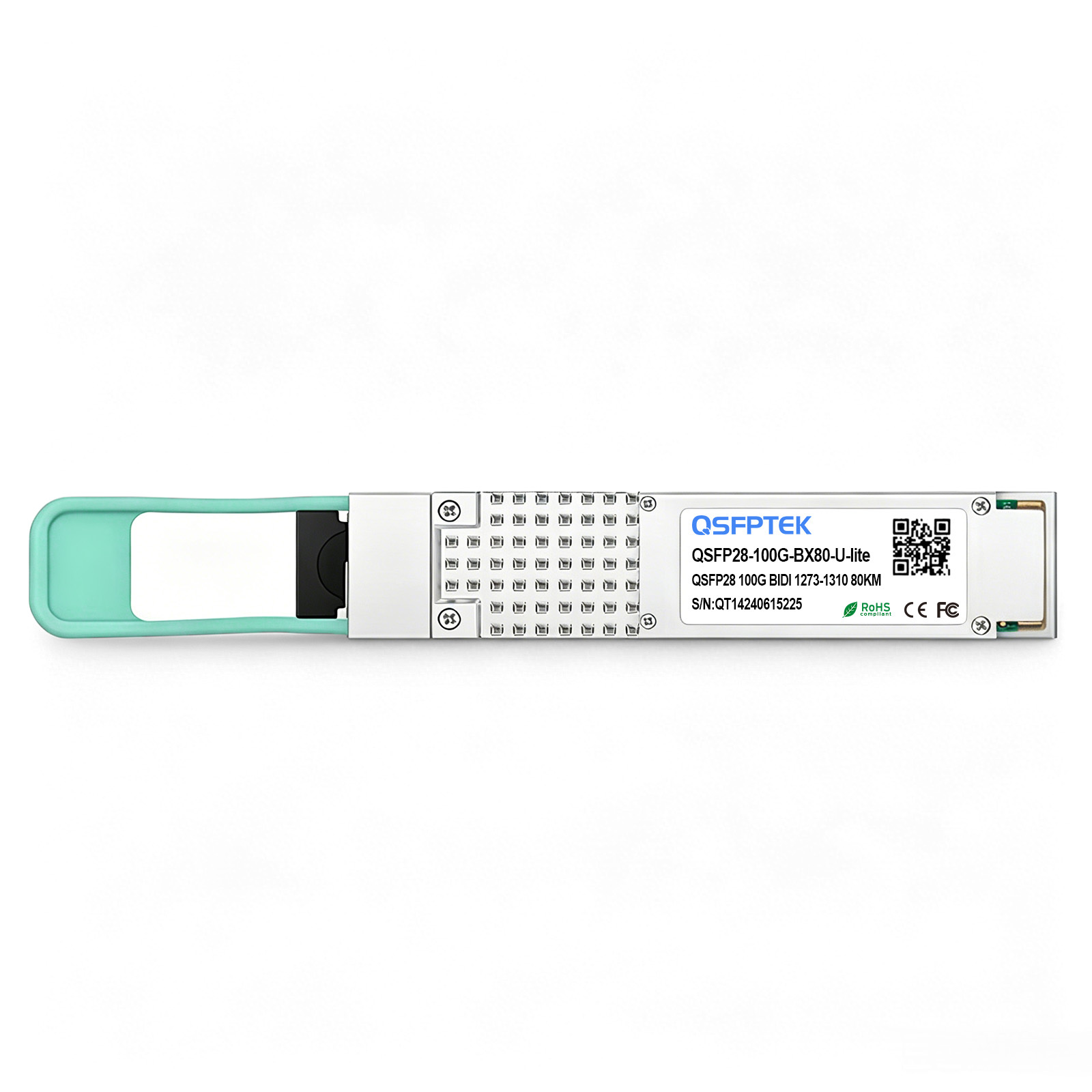

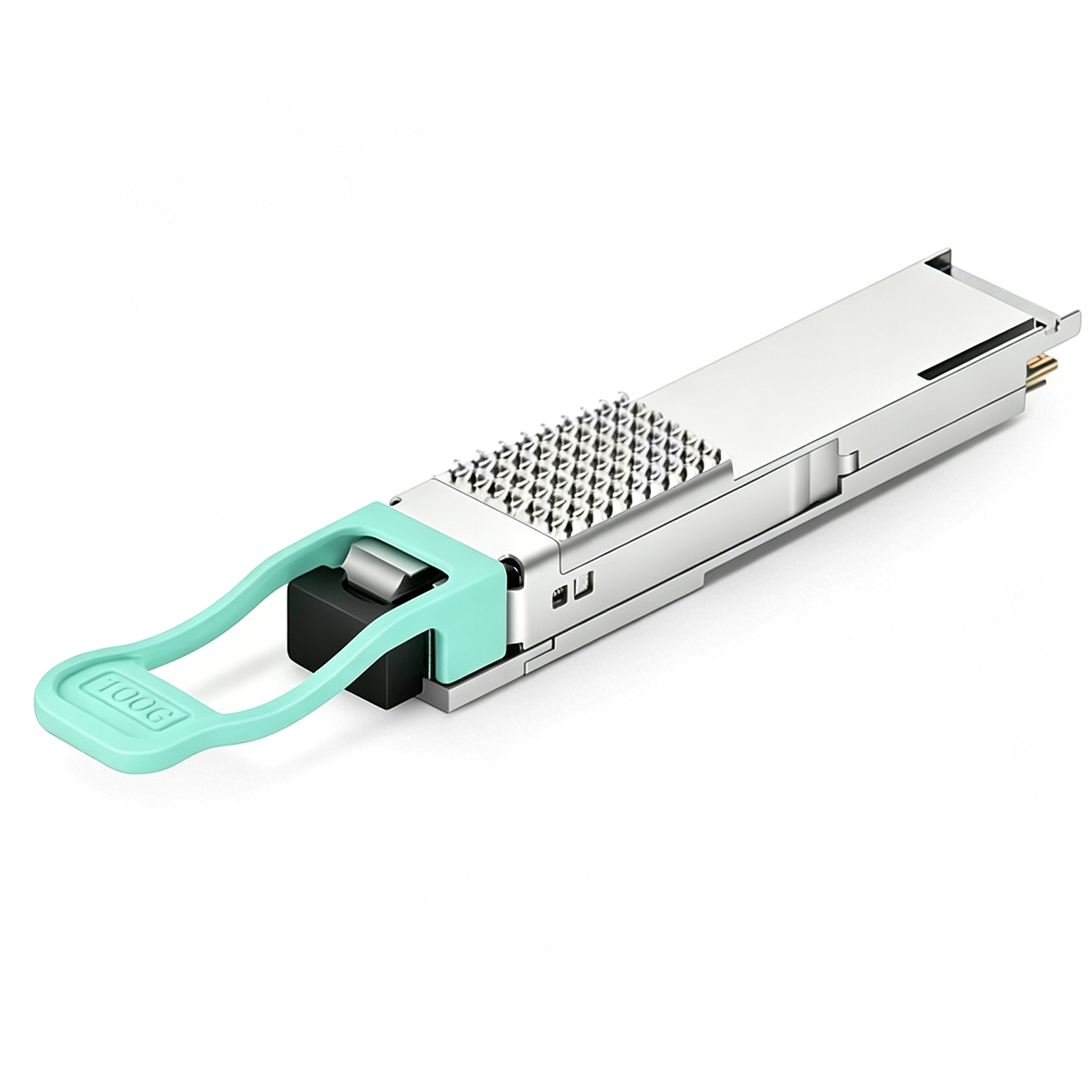

Arista Compatible 100GBASE-BX80-U BiDi QSFP28 1273nm-TX/1310nm-RX 80km DDM Simplex LC SMF Transceiver

Product No :102630
US$ 2999.00  US$ 3499.00
Compatible
100 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=B87705F14A49FEB198B59A80E35DAC00
-
+

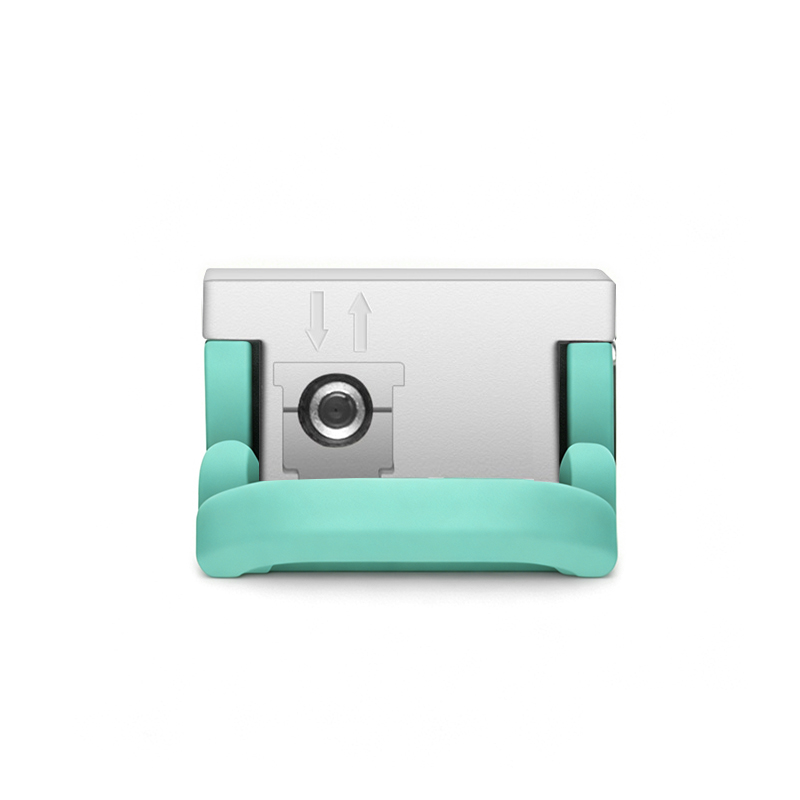

1. Support Simplex Fiber Transmission
2. Tx 4x25Gb/s LWDM EML, Rx SOA+PIN
3. Low Power Consumption <5W
4. Applied in Region Networks
5. Fully Compatible with 100+ Vendors
6. QSFP28 MSA Compliant
See more

Specifications

Arista Compatible 100GBASE-BX80-U BiDi QSFP28 Transceiver Module (SMF, 1273nm-TX/1310nm-RX, 80km, Simplex LC, DDM)



The Arista compatible 100GBASE-BX80-U BiDi QSFP28 optical transceiver is equipped with an LC simplex connector, reaching a link up to 80km with KR4 FEC over G.652 SMF. This 100G BiDi QSFP28 transceiver, features carrying information in both directions via a single strand, can double your network capacity and save your cable resources. QSFPTEK manufactured 100GBASE-BX BiDi SFP+ transceiver module is compliant with QSFP28 MSA. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all OEM devices.



Part Number QT-QSFP28-100G-BX80-U-lite Vendor Name: QSFPTEK
Form Factor: QSFP28 Data Rate: 100Gbps
Wavelength: 1273nm-TX/1310nm-RX Distance: 80km with KR4 FEC
Connector: LC Simplex Cable Type: OS2 SMF
Transmitter Type:
4x25Gb/s LWDM EML
Receiver Type:
SOA+PIN
TX Power: 1.0~7.0dBm Receiver Sensitivity: <-26dBm
Power Consumption: <5W Modulation Format: NRZ
DDM: Support Bit Error Ratio (BER): 1E-12
Protocols: QSFP28 MSA Compliant, SFF-8636 Warranty: 5 Years



Quality Testing Program
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all OEM brand devices. Ideal for data centers, campus network, enterprise core layer, etc.
  • 3. Protocols
    Compliant with QSFP28 MSA, SFF-8636.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



QSPFTEK LAB All Brands Switches Show






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack

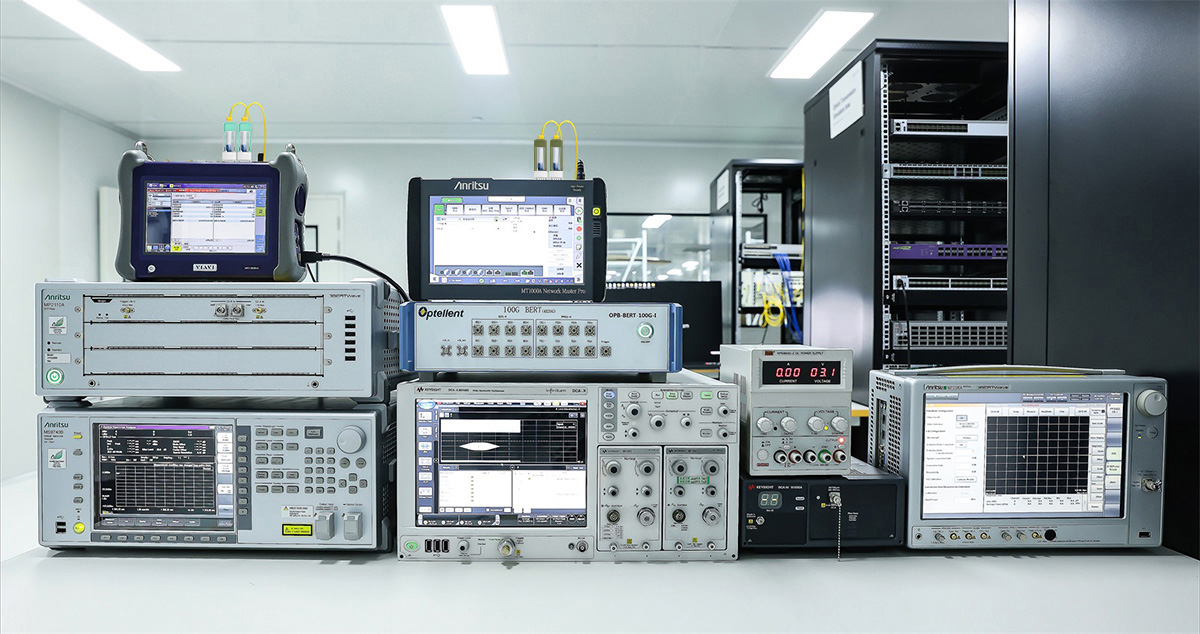

Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



QSFPTEK Test Devices



;jsessionid=B87705F14A49FEB198B59A80E35DAC00

Questions & Answers

more+
  • is it an LC or SC connector?
    100G BiDi QSFP28 optical transceivers supported by QSFPTEK deploy LC connectors.
  • When should I choose between the 100G-SWDM4 and 100G-SRBD transceivers, both supporting 100G over duplex multi-mode fiber?
    The 100G-SWDM4 and 100G-SRBD, also known as a "BIDI" transceiver, share the same optical reach and are commonly utilized in the industry, offering 70m/100m over OM3/OM4 duplex MMF. It's essential to note that these two transceivers do not have interoperability with each other. If considering interoperability with future 400G optics, the QSFP-100G-SRBD is recommended, as it can interoperate with upcoming Arista "400G-BIDI" transceivers. Specifically, an Arista OSFP-400G-SRBD or QDD-400G-SRBD transceiver can support breakout into 4x QSFP-100G-SRBD. Contrastingly, the 100G-SWDM4 lacks a pathway for interoperability with future 400G optics. The choice between these transceivers often hinges on interoperability requirements. For instance, if optical interoperability with third-party 100G BIDI optics is essential, the QSFP-100G-SRBD is the preferred option.
  • What are the temperature grade of 100G BiDi QSFP28?
    The online 100G QSFP28 BiDi optics are commercial grade, suitable for the temperature range of 0-70℃. If you need other types of 100G BiDi QSFP28, please contact sales.
