    Products / Transceivers / NVIDIA InfiniBand Transceivers / 800G OSFP InfiniBand NDR / 203115
    Product image
    Product image
    Product image

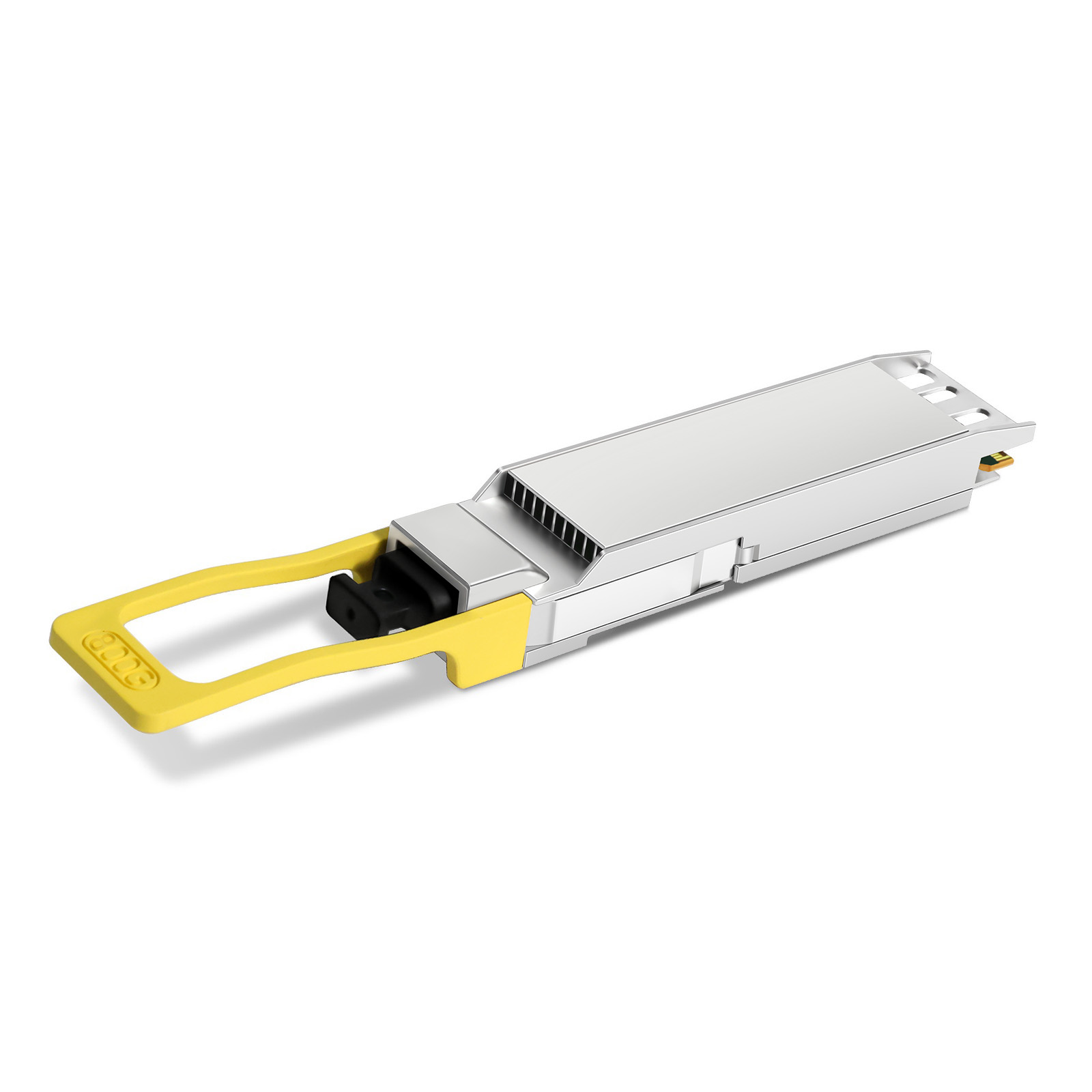

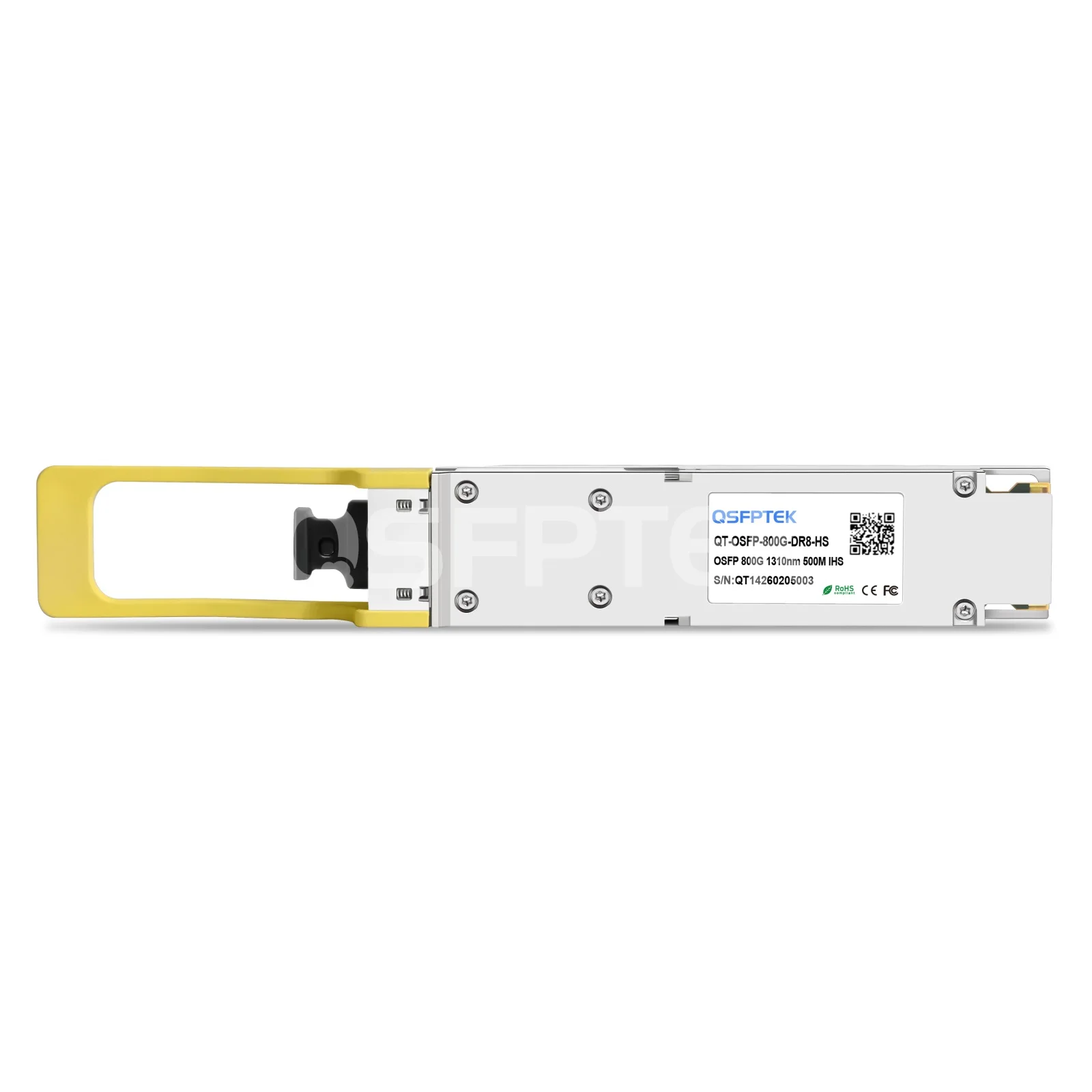

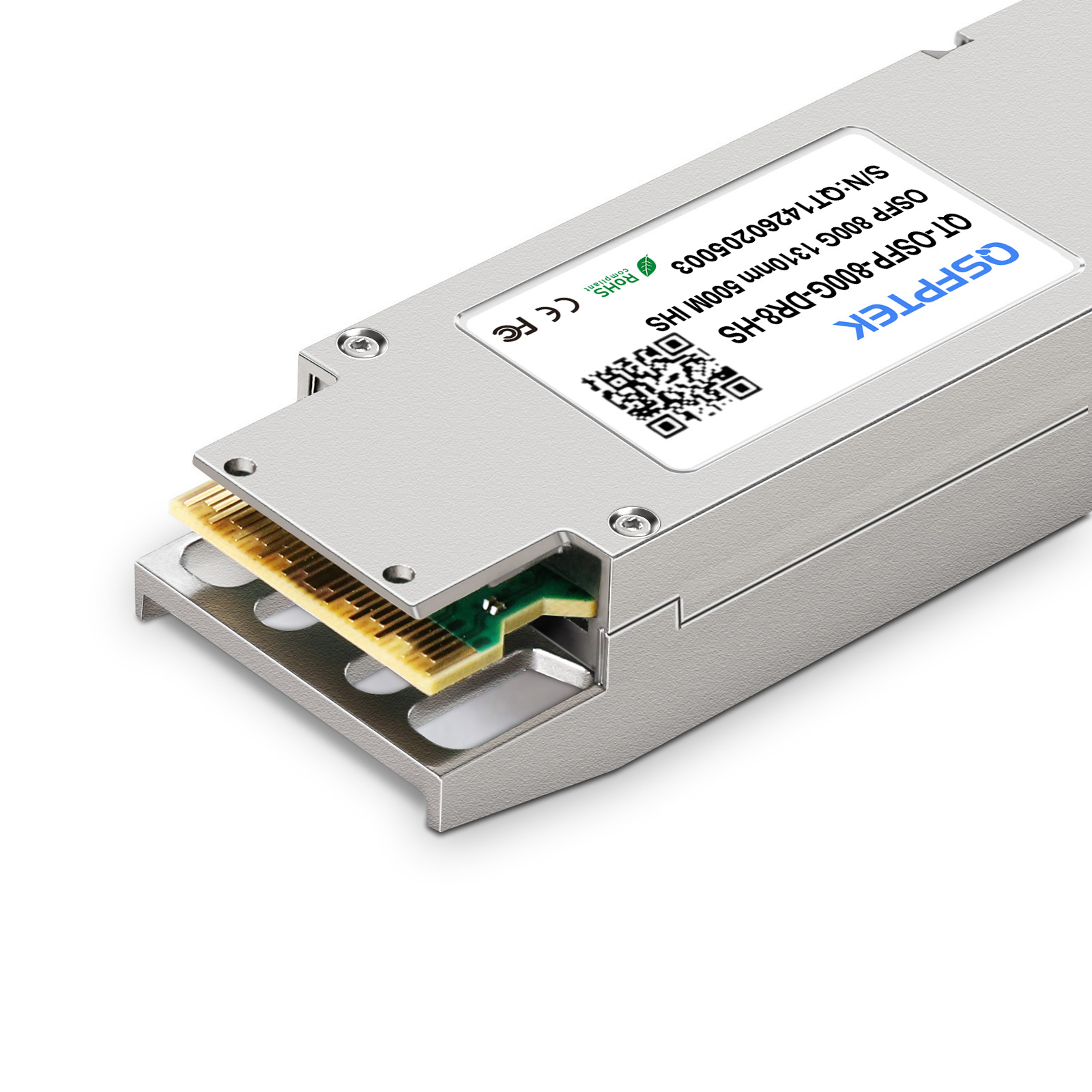

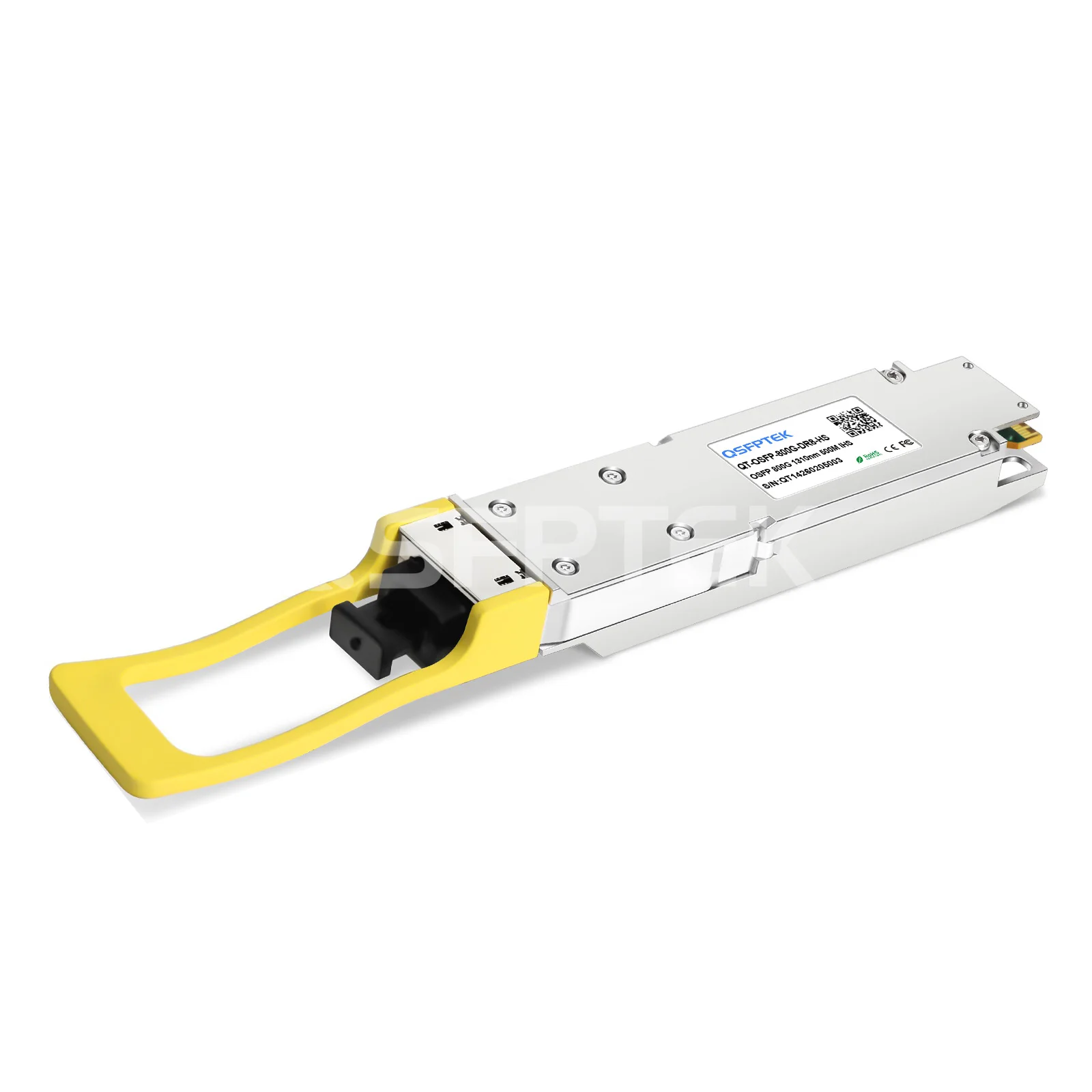

    NVIDIA/Mellanox Compatible 800GBASE-DR8 Single-port OSFP IHS/Closed Finned Top PAM4 1310nm 500m MPO-16/APC DDM SMF InfiniBand NDR Optical Transceiver Module for Quantum-2 InfiniBand and Spectrum-4 Ethernet Air-Cooled Switches

    Product No: 203115
    0 Reviews
    8 Sold
    $888.90
    Compatible
    Transceivers type
    18 in real-time stock, 25Oct, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. 100% verified by the original
2. Closed finned top design for Quantum-2 InfiniBand or Spectrum-4 Ethernet air-cooled switches
3. Support InfiniBand NDR (IB) and Ethernet (ETH)
4. 8x 100G-PAM4 electrical and optical ParallelS
5. Maximum power consumption <16W
    See more

    Specifications

    NVIDIA/Mellanox Compatible 800G DR8 OSFP IHS/Closed Finned Top PAM4 InfiniBand NDR Optical Transceiver Module (1310nm, 500m, an MPO-16/APC Connector, SMF, 0℃ to +70℃, DDM)



    NVIDIA/Mellanox compatible 800G DR8 OSFP transceiver module enables the fiber link of 500m at 800Gb/s over single-mode fiber (SMF) with an MPO-16 APC connector. It supports InfiniBand NDR and Ethernet Protocols. With the Pulse-amplitude Modulation (PAM4) modulation, the datacenter reach 8-channel (DR8) OSFP adopts 8-channels of 100G-PAM4 electrical and optical Parallel modulation.



    With a closed top design, the OSFP-IHS is offered for Quantum-2 InfiniBand and Spectrum-4 air-cooled switches. Its main application is to link two switches together up to 500 meters. QSFPTEK NVIDIA InfiniBand compatible optics are 100% tested in NVIDIA InfiniBand host devices, ideal for NVIDIA end-to-end InfiniBand systems.



    Part Number QT-OSFP-800G-DR8-IHS Vendor Name QSFPTEK
    Form Factor Twin-port OSFP-IHS/Closed Finned Top Max Data Rate 850Gbps (8x 106.25Gbps)
    Wavelength 1310nm Distance 500m

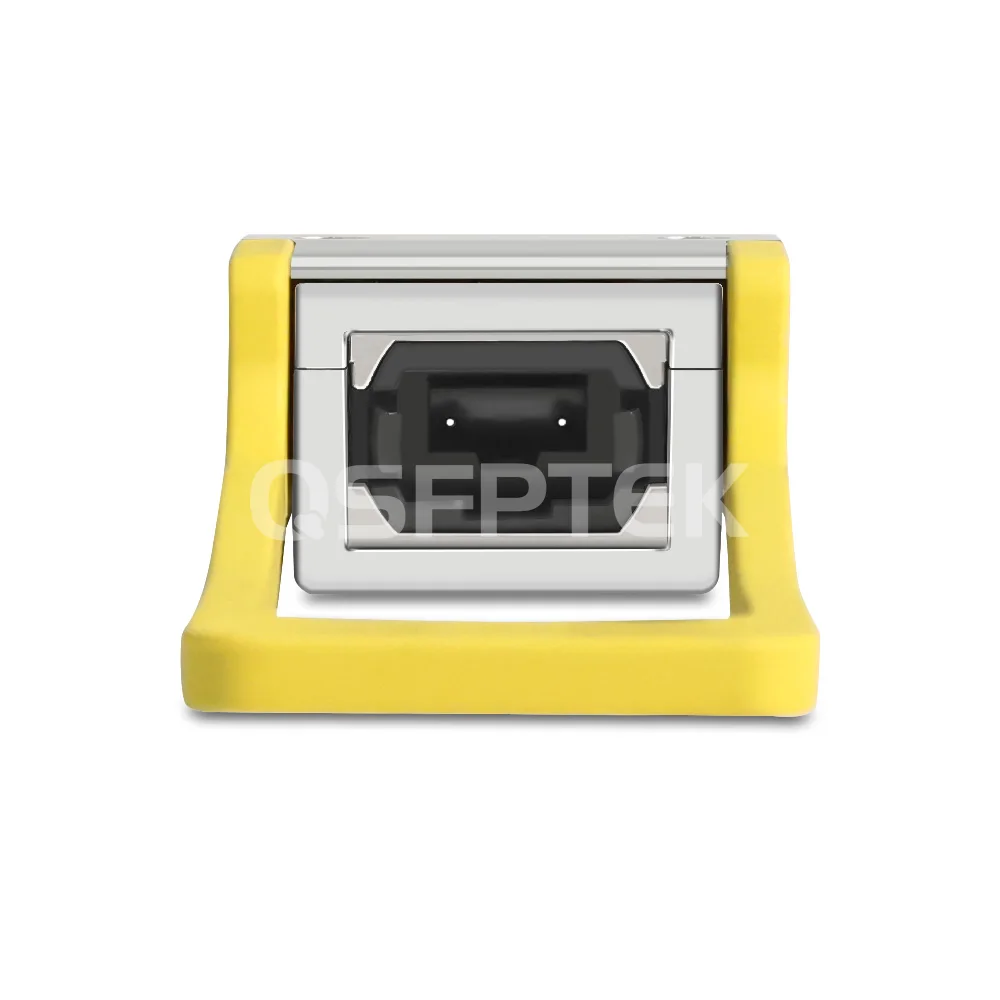

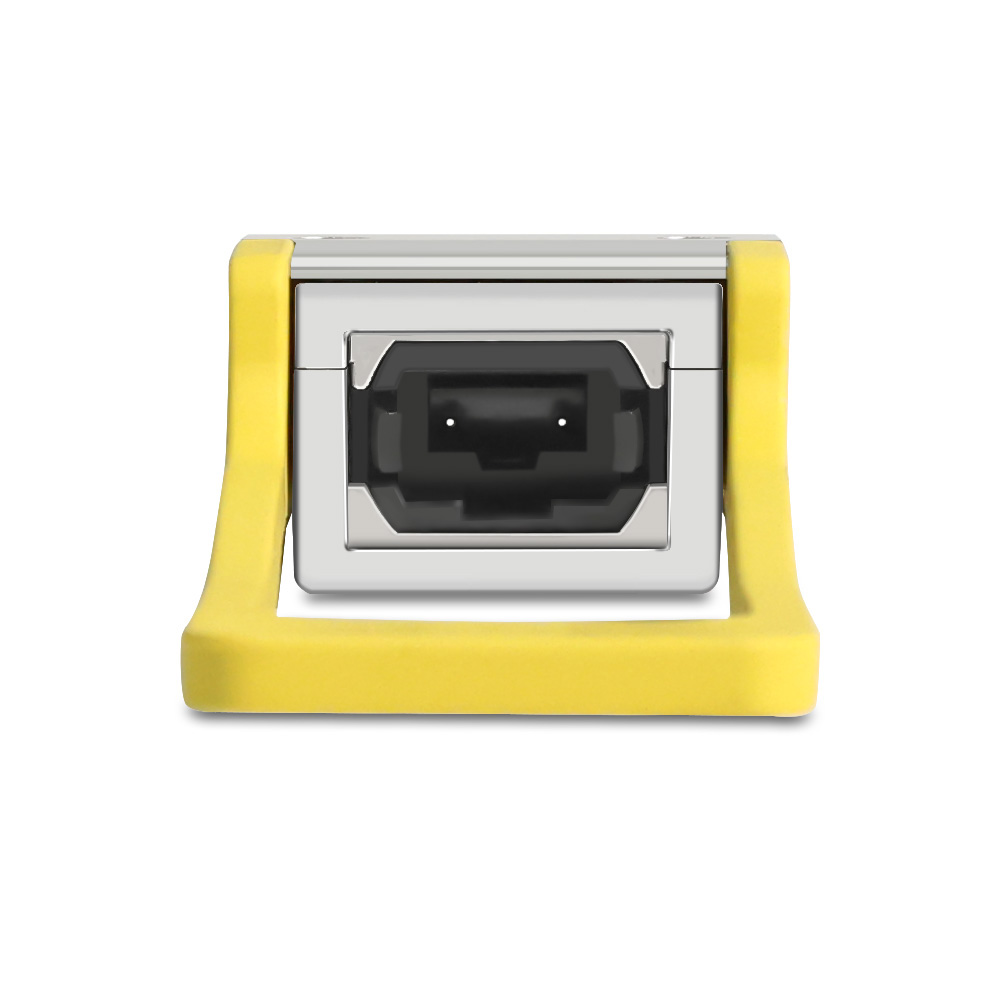

    Connector Single MPO-16/APC Cable Type SMF
    Transmitter Type EML Receiver Type PIN PD
    TX Power -2.9 to 4 dBm Receiver Sensitivity < -5.9 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption < 16W Modulation Format 8x 100G-PAM4 electrical and optical Parallel
    Extinction Ratio >3.5dB CDR (Clock and Data Recovery) TX and RX Built-in CDR
    Application Quantum-2 InfiniBand and Spectrum-4 Ethernet Air-Cooled Switches MTBF 3289474 Hours
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols OSFP MSA, IEEE 802.3ck, CMIS Rev 5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    1m (3ft) MTP-16 APC (Female) to MTP-16 APC (Female) OS2 Singlemode Elite Trunk Cable, 16 Fibers, Type B, LSZH, Yellow

    $162.68
    10.2K Sold
    79 Reviews

    1m (3ft) MPO-16 APC (Female) to MPO-16 APC (Female) OS2 Singlemode Elite Trunk Cable, 16 Fibers, Type B, LSZH, Yellow

    $33.48
    10.2K Sold
    79 Reviews

    Applications

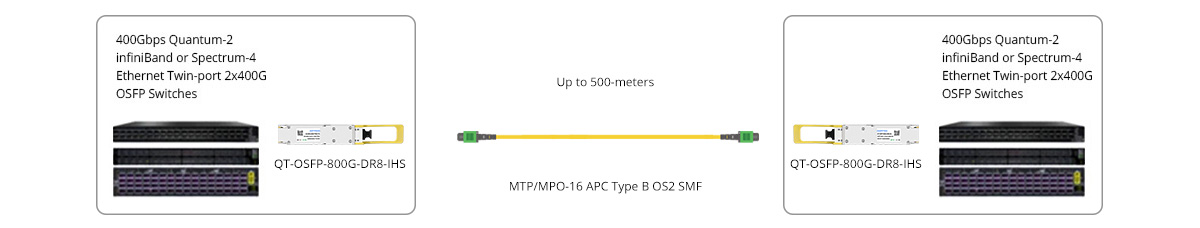

    800G-to-800G Link for Switch-to-Switch:

    800G-to-800G Link for Switch-to-Switch

    Product details

    100% Verified in the NVIDIA InfiniBand Environment to Ensure Interoperability



    Every 800G OSFP DR8 module undergoes rigorous compatibility tests and simulated transmission tests on the original NVIDIA Quantum-2 switches in the InfiniBand environment to ensure optics-to-device interoperability and perfect operation.

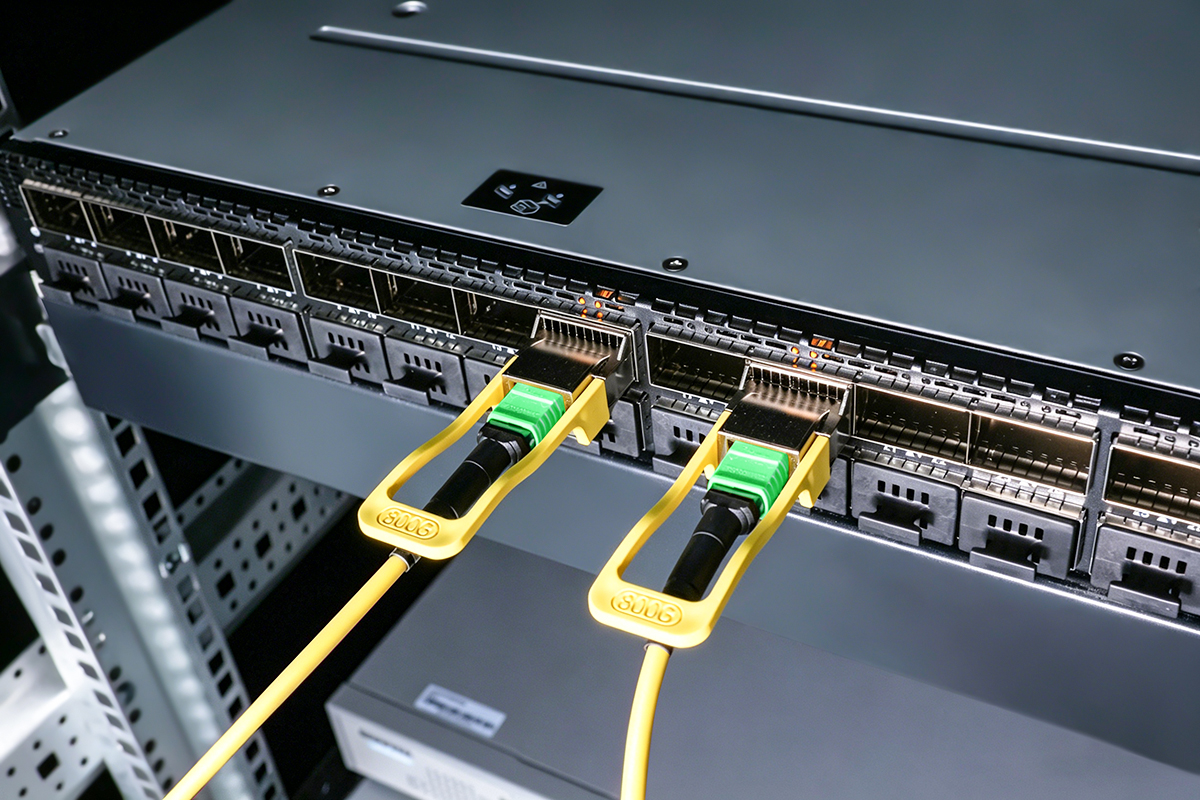

    QT-OSFP-800G-DR8-IHS compatibility test on NVIDIA QM9700



    Undergoes Comprehensive Performance Testing to Guarantee Optimal Reliability



    The QSFPTEK test center conducts complete testing procedures with advanced professional test equipment, including BER test, eye diagram test, Optical Spectrum test, jitter test, etc. Each module has been stringently tested by world-class test devices from Keysight and Anritsu to guarantee flawless operation and optimal reliability.



    Performance test devices





    Select a Proper Heat Dissipation Design for Your Needs

    Open Finned Top vs Closed Finned Top vs Flat Top

    Open Finned Top 800G OSFP optics with Integrated Heat Sink (IHS) design are used only in Quantum-2 InfiniBand or Spectrum-4 Ethernet air-cooled switches. Closed Finned Top 800G OSFP optics with Integrated Heat Sink (IHS) design are used for both Quantum-2 InfiniBand or Spectrum-4 Ethernet air-cooled and liquid-cooled systems. Flat top 800G OSFP optics with Riding Heat Sink (RHS) design are used in Liquid-cooled and DGX H100 Cedar7 Systems.

    Questions & Answers

    • All (15)
    • QT-OSFP-800G-2FR4 (2)
    • QT-OSFP-800G-2SR4 (2)
    • 800G InfiniBand NDR (4)
    • QT-OSFP-800G-2VR4 (4)
    • QT-OSFP-800G-2DR4 (1)
    • Should I prepare to buy special cables if buying these 800G twin port FR4 OSFP modules?
      No, not necessary. No matter whether you should directly connect 800G 2FR4 OSFP or connect 800G 2FR4 OSFP to two 400G FR4 OSFPs, you can make it by using a pair of duplex OS2 single-mode fibers.
    • Can I connect 400G OSFP SR4 modules with the 800G OSFP twin-port SR4?
      Yes. 400G OSFP SR4 (QT-OSFP-400G-SR4) is designed with an MTP-12 connector. Your 800G twin-port SR4 OSFP (QT-OSFP-800G-2SR4) is designed with two MTP-12 connectors. So you can use two separate MTP-12 OM4 multimode fibers (https://www.qsfptek.com/product/99508.html) to connect the 800G OSFP twin-port SR4 to two QT-OSFP-400G-SR4 modules.
    • Can I connect 400G OSFP FR4 with the 2x FR4 800G OSFP?
      Yes, you can. 800G OSFP 2FR4 is designed with dual duplex LC connectors while 400G OSFP FR4 is designed with a single duplex LC connector. You can use two LC duplex OS2 single-mode fibers (https://www.qsfptek.com/product/99386.html) to connect the 800G OSFP 2FR4 to two 400G OSFP FR4 modules.
