    Home / Products / Transceivers / NVIDIA InfiniBand Transceivers / 800G OSFP InfiniBand NDR / 203119

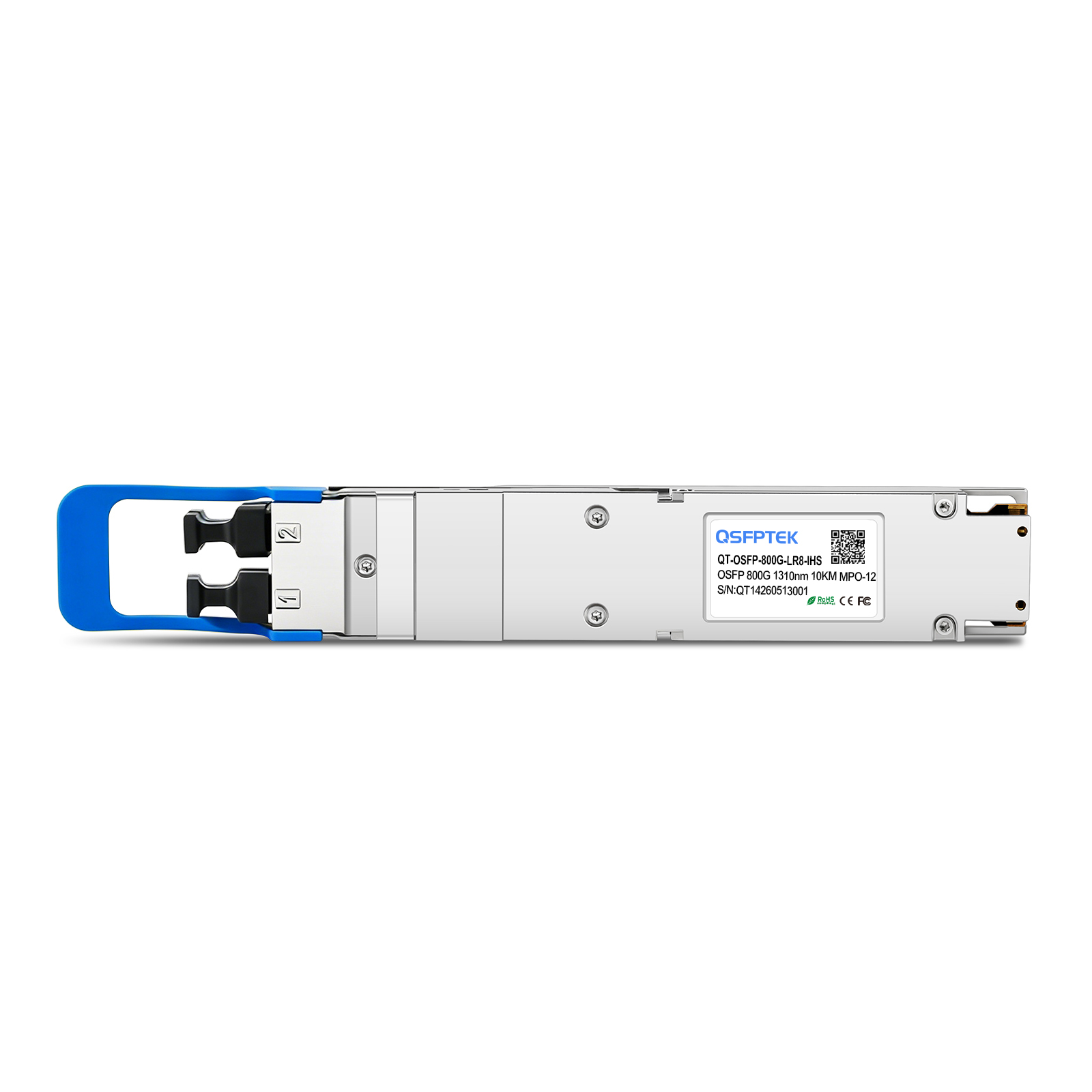

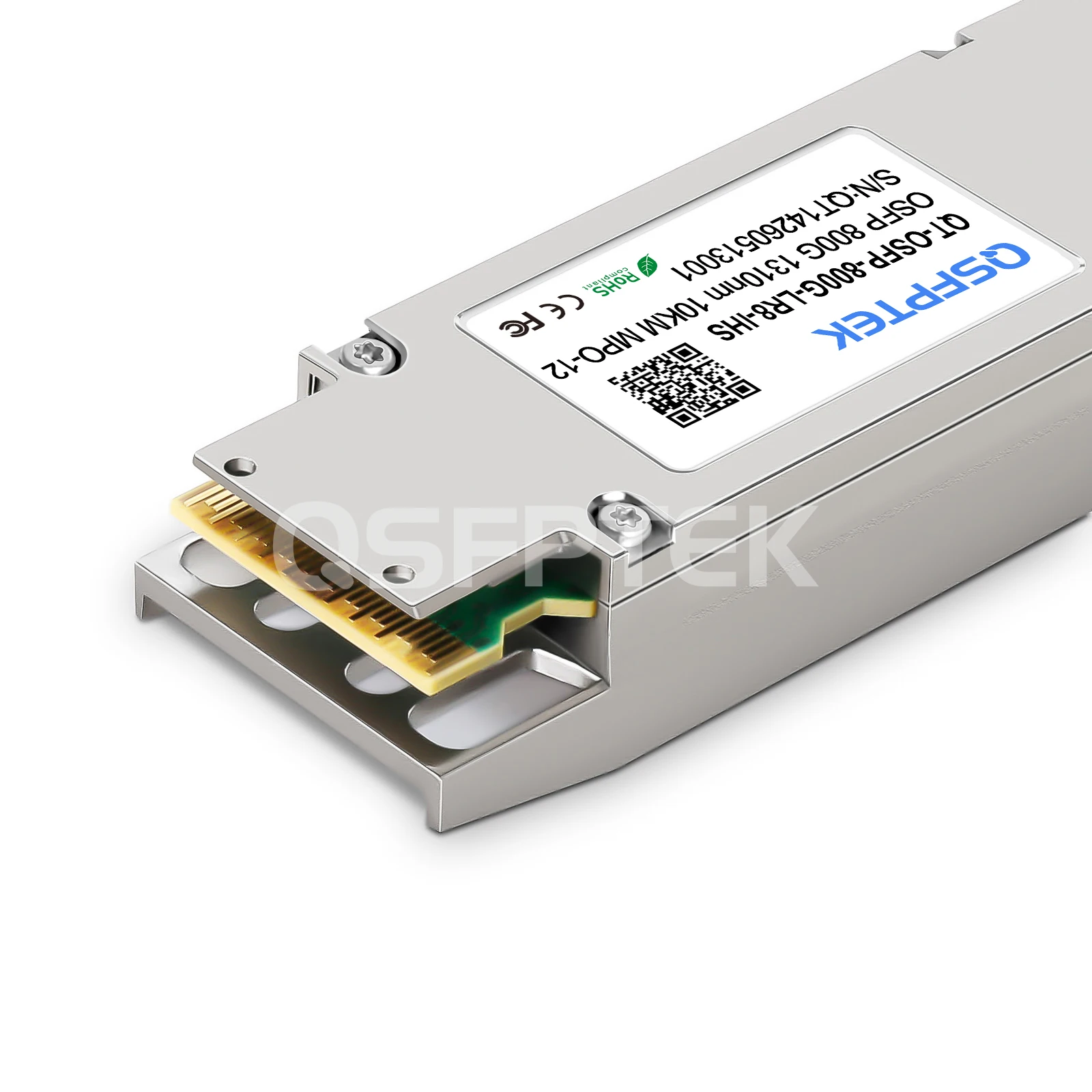

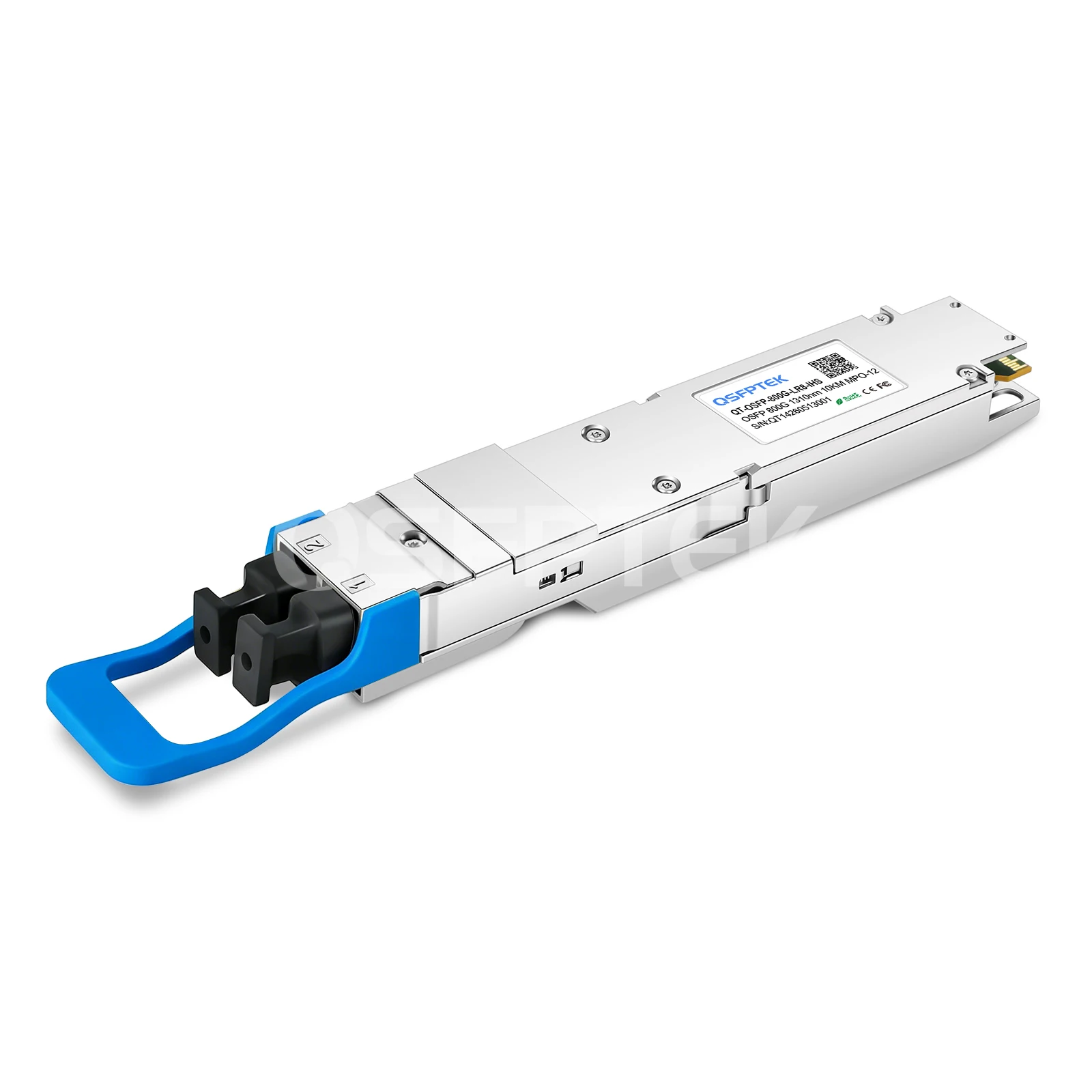

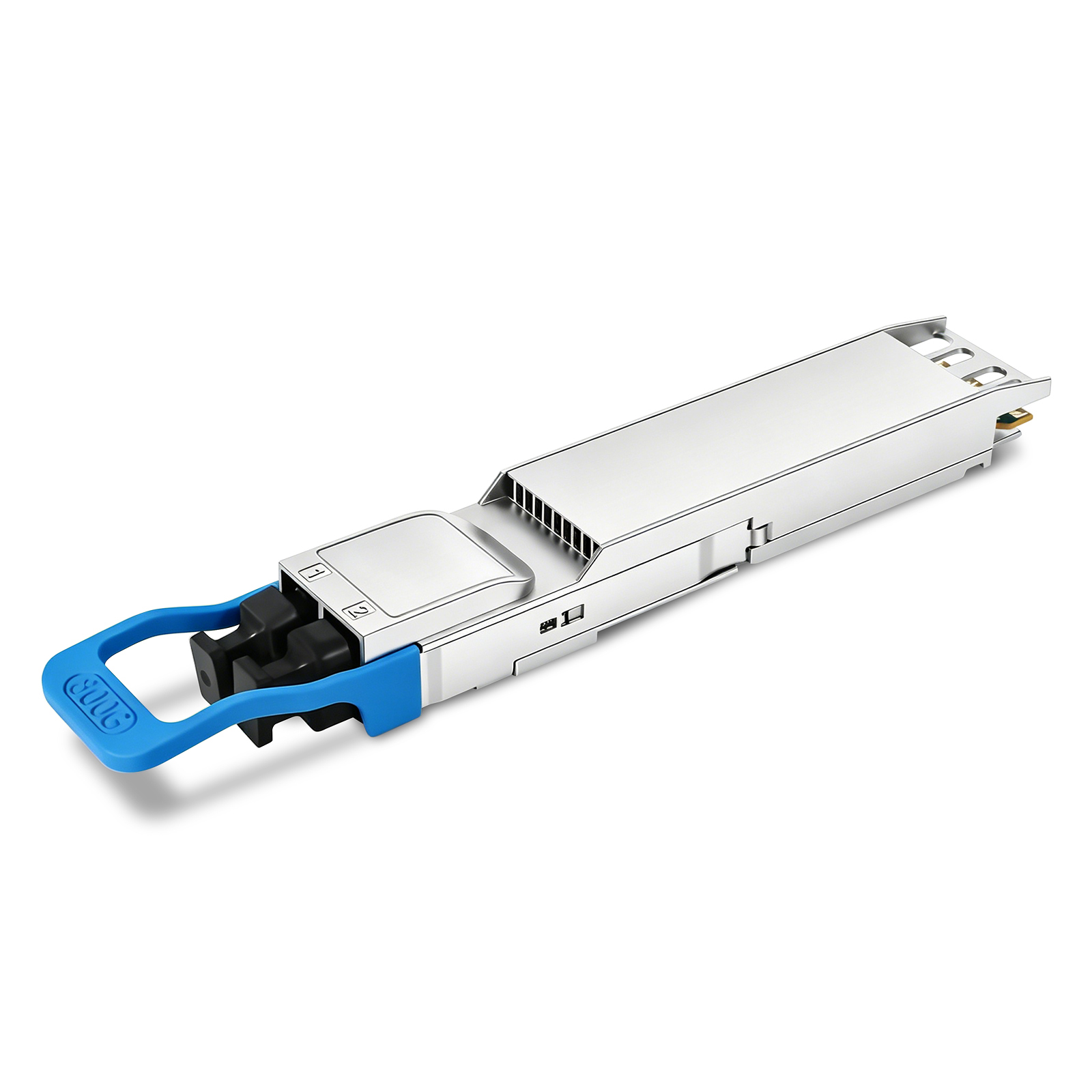

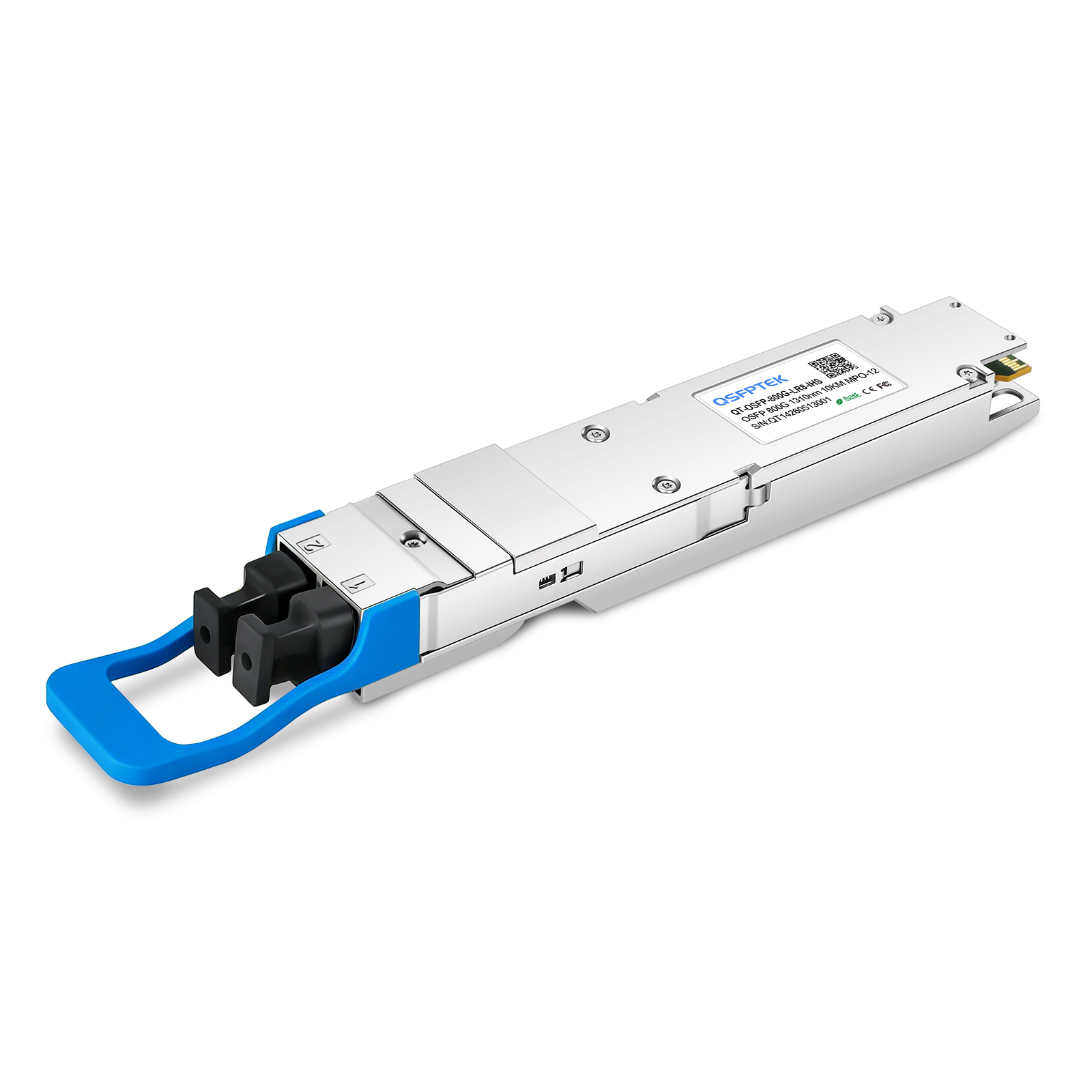

    NVIDIA/Mellanox Compatible 800GBASE-LR8 (2xLR4) Twin-port OSFP IHS/Closed Finned Top PAM4 1310nm 10km Dual MPO-12/APC DDM SMF InfiniBand NDR Optical Transceiver Module for Quantum-2 InfiniBand and Spectrum-4 Ethernet Air-Cooled Switches

    Product No: 203119
    19 Reviews
    16 Sold
    US$ 1,135.90
    Compatible
    Transceivers type
    28 in real-time stock, 04 Aug, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. 100% verified by NVIDIA QM9700/9790 for compatibility
2. Support InfiniBand NDR (IB) and Ethernet (ETH)
3. Closed finned top design for IB Quantum-2 or ETH Spectrum-4 air-cooled switches
4. Up to 10km over SMF with KP4 FEC
5. 8x 100G-PAM4 electrical to Dual 4x 100G-PAM4 optical parallel
6. Maximum power consumption <14.5W
    See more

    Specifications

    NVIDIA/Mellanox Compatible 800GBASE-LR8 (2xLR4) OSFP IHS/Closed Finned Top PAM4 InfiniBand NDR Optical Transceiver Module (1310nm, 10km, 2x MPO-12/APC Connectors, SMF, 0℃ to +70℃, DDM)



    NVIDIA/Mellanox compatible 800G LR8 OSFP is an InfiniBand NDR and Ethernet optical transceiver module with dual MPO-12/APC connectors. It enables the fiber link of 10km at 850Gb/s over MTP/MPO single-mode fiber (SMF). With the Pulse-amplitude Modulation (PAM4) modulation, the long reach 8-channel (LR8) OSFP adopts 8-channels of 100G-PAM4 electrical to dual 4x 100G-PAM4 optical parallel modulation.



    With a closed finned top design, the OSFP-IHS is offered for InfiniBand Quantum-2 or Ethernet Spectrum-4 air-cooled switches. Its main application is to link two switches together up to 10km meters. QSFPTEK NVIDIA Ethernet compatible optics are 100% tested in NVIDIA InfiniBand and Ethernet host devices, ideal for NVIDIA end-to-end InfiniBand NDR or Ethernet systems.



    Part Number QT-OSFP-800G-LR8-IHS Vendor Name QSFPTEK
    Form Factor Twin-port OSFP-IHS/Closed Finned Top Max Data Rate 850Gbps (8x 106.25Gbps)
    Wavelength 1310nm Distance 10km

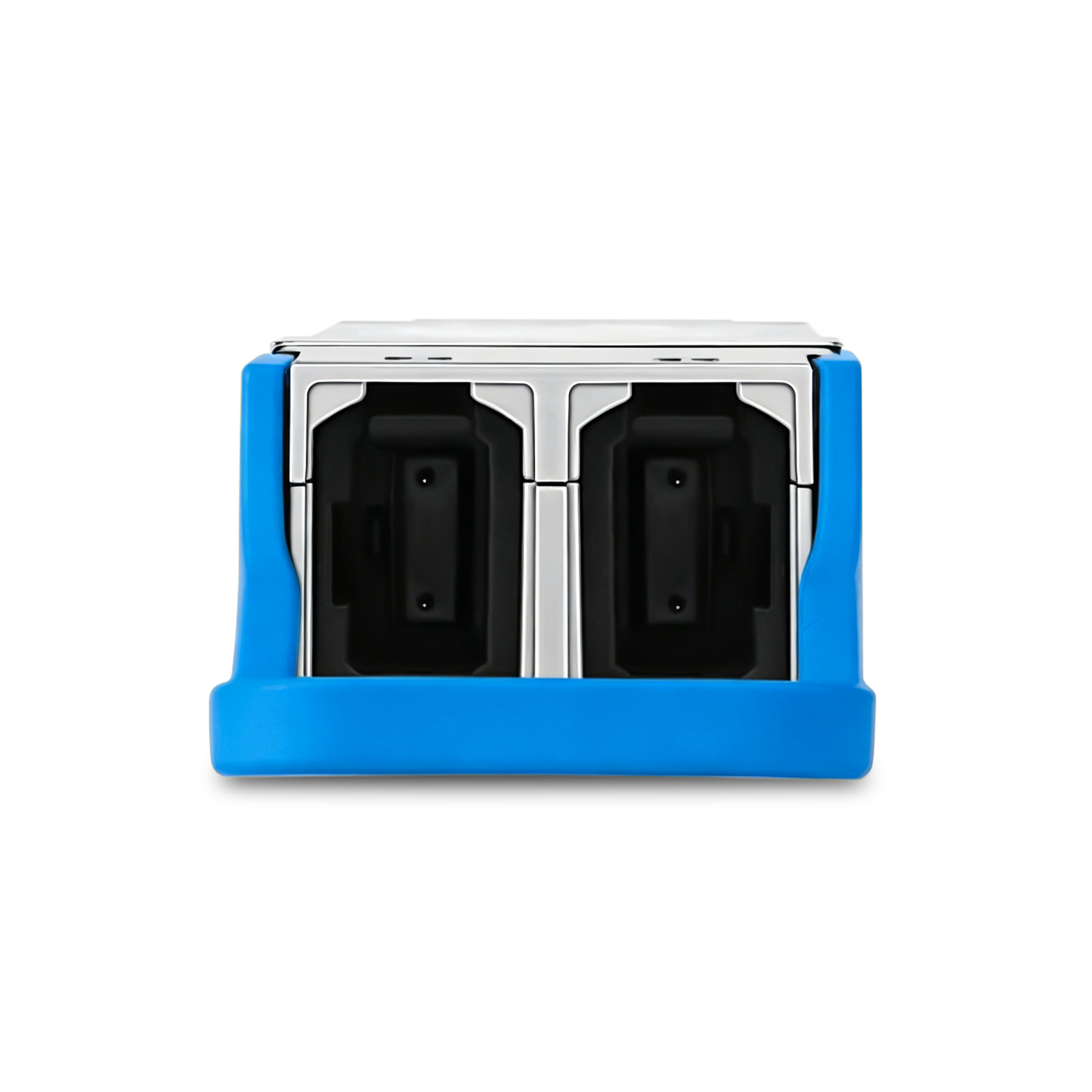

    Connector Dual MPO-12/APC Cable Type SMF
    Transmitter Type EML Receiver Type PIN PD
    TX Power -1.4 to 4.5 dBm Receiver Sensitivity < -7.7 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4.5 dBm
    Power Consumption <14.5W Modulation Format
    8x 100G-PAM4 electrical to Dual 4x 100G-PAM4 optical parallel
    Extinction Ratio >3.5dB CDR (Clock and Data Recovery) TX and RX Built-in CDR
    Application Quantum-2 InfiniBand and Spectrum-4 Ethernet Air-Cooled Switches MTBF 3289474 Hours
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols OSFP MSA, IEEE 802.3ck, CMIS Rev 5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Applications

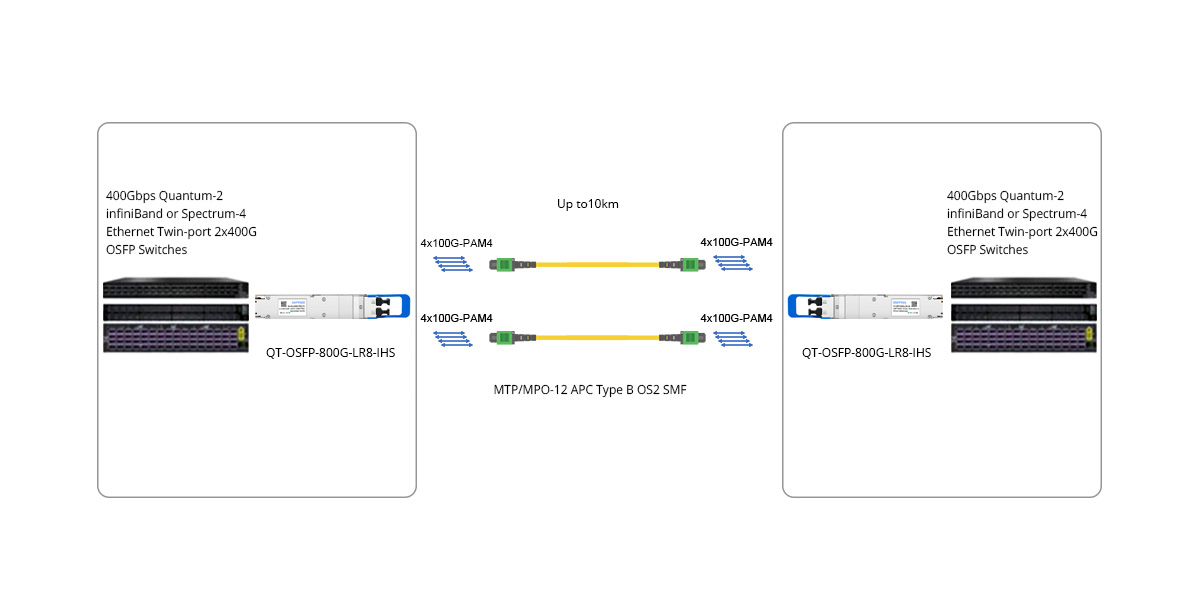

    Scenario 1: Twin-port 800G (2x400G) OSFP IB/ETH Switches Direct Connectivity or to Two switches at 400Gb/s

    Twin-port 800G (2x400G) OSFP IB/ETH Switches Direct Connectivity or to Two switches at 400Gb/s



    Product details

    100% Verified in the NVIDIA InfiniBand Environment to Ensure Interoperability



    Every 800G OSFP LR8 module undergoes rigorous compatibility tests and simulated transmission tests on the original NVIDIA Quantum-2 switches in the InfiniBand environment to ensure optics-to-device interoperability and perfect operation.

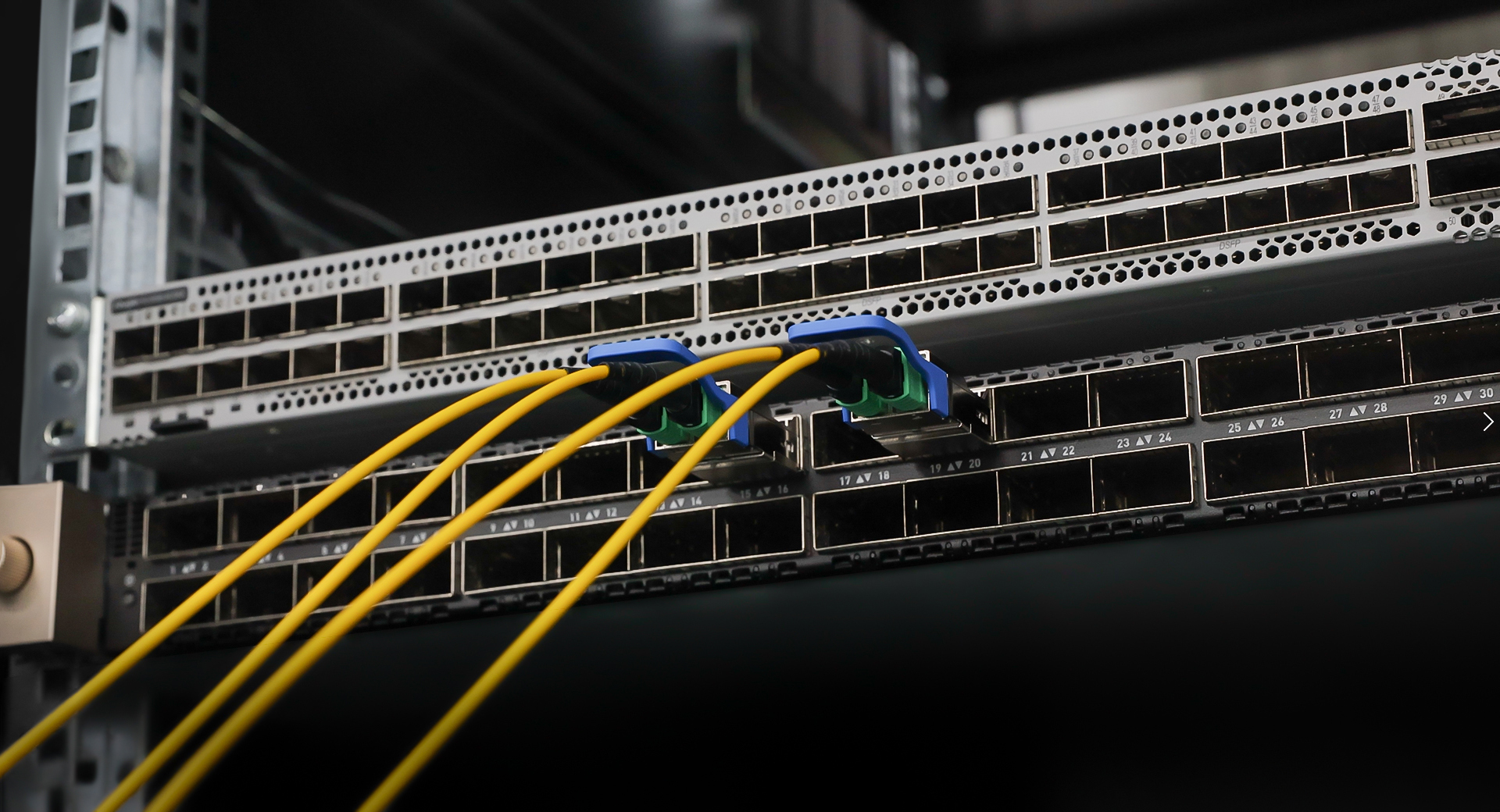

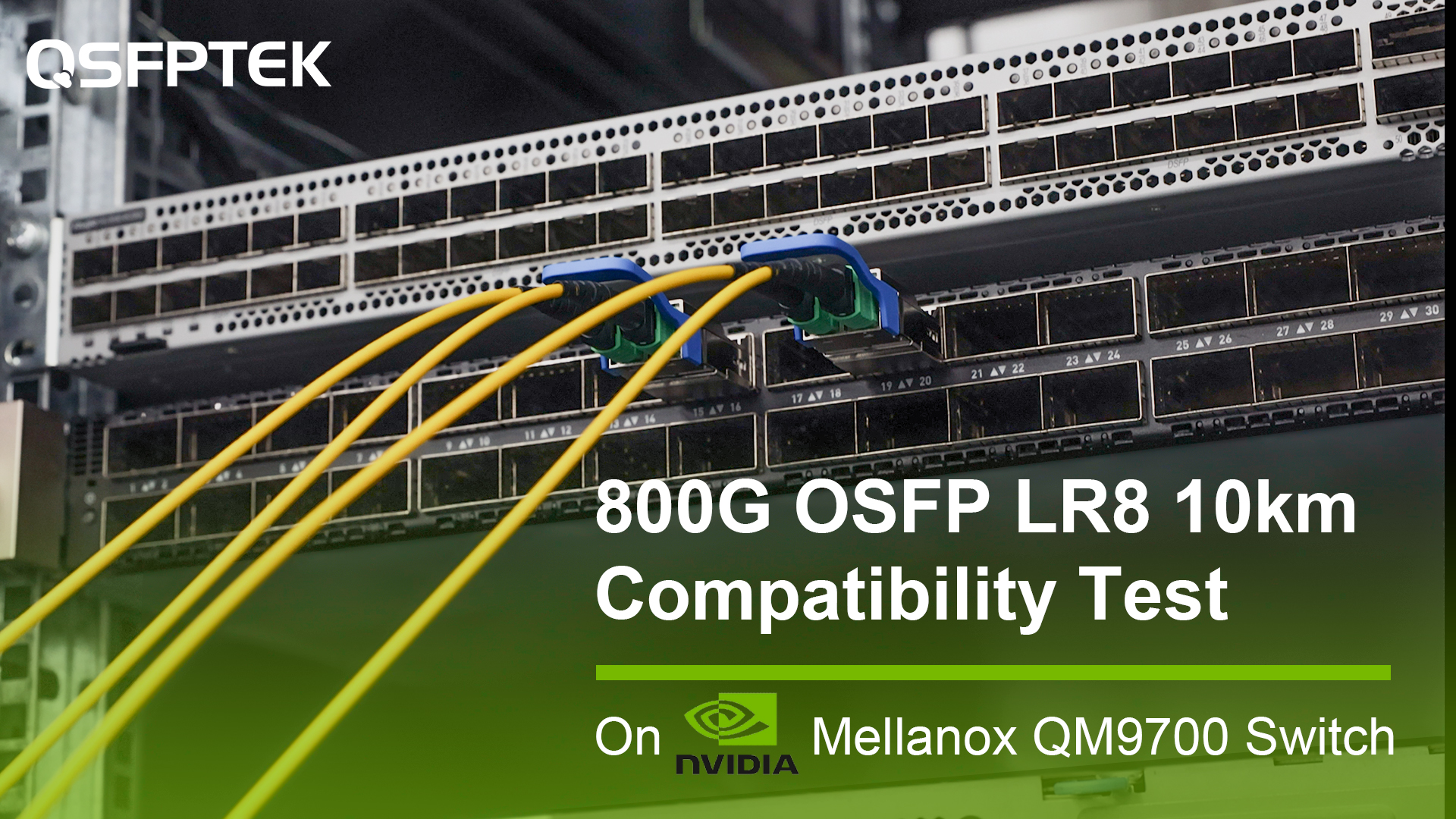

    QT-OSFP-800G-LR8-IHS compatibility test on NVIDIA QM9700



    Undergoes Comprehensive Performance Testing to Guarantee Optimal Reliability



    The QSFPTEK test center conducts complete testing procedures with advanced professional test equipment, including BER test, eye diagram test, Optical Spectrum test, jitter test, etc. Each module has been stringently tested by world-class test devices from Keysight and Anritsu to guarantee flawless operation and optimal reliability.



    Performance test devices
