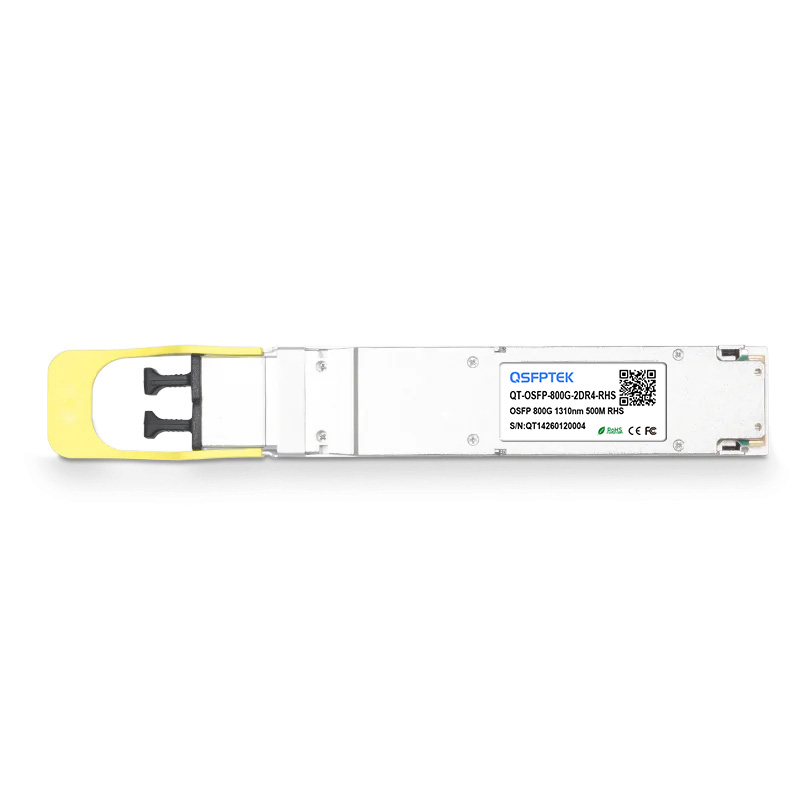

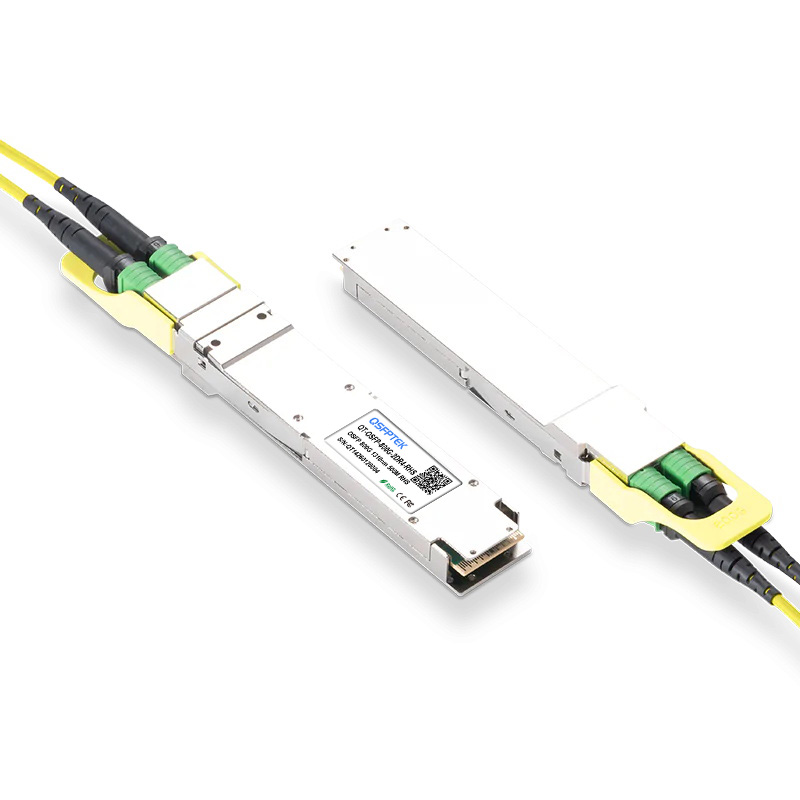

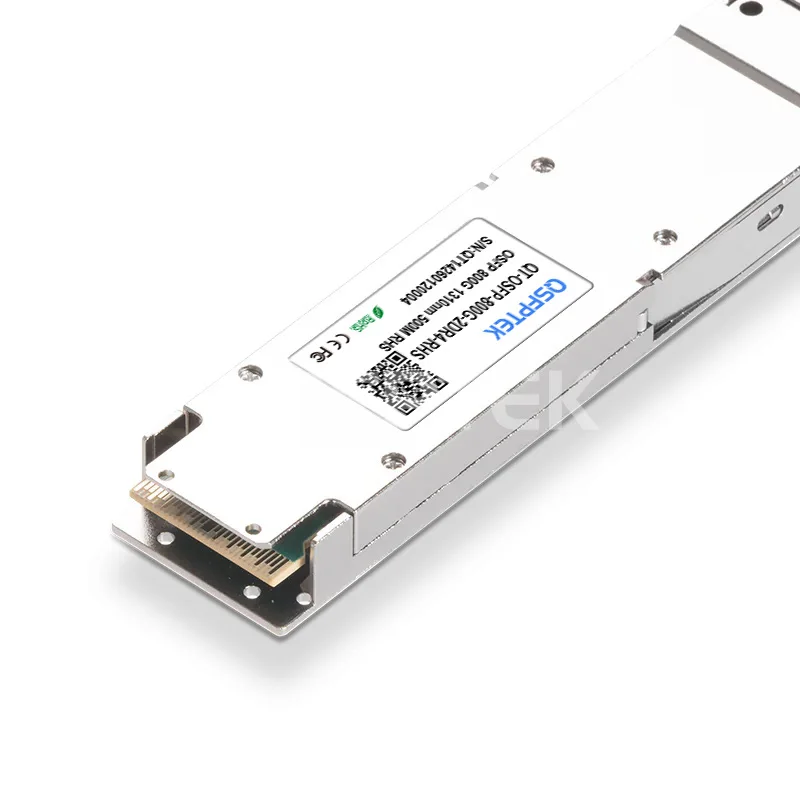

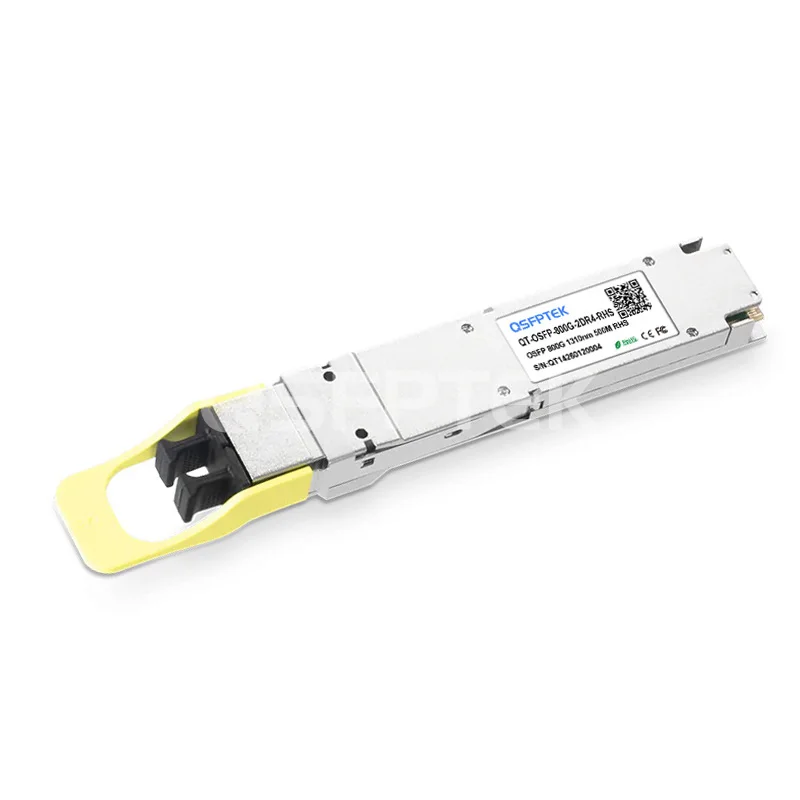

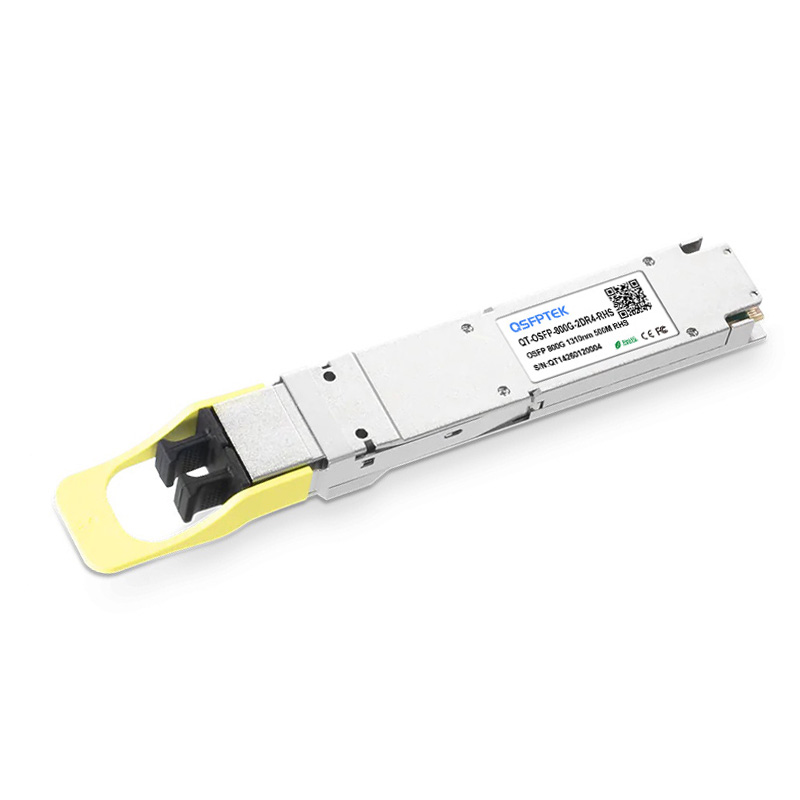

    NVIDIA/Mellanox MMS4X00-NM-FLT Compatible 800GBASE-DR8 (2xDR4) Twin-port OSFP RHS/Flat Top PAM4 1310nm 500m Dual MPO-12/APC DDM SMF InfiniBand NDR Optical Transceiver Module for Liquid-cooled and DGX H100 Cedar7 Systems

    Product No: 202944
    26 Reviews
    13 Sold
    US$ 799.00
    Compatible
    Transceivers type
    6 in real-time stock, 14 Jul, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. 100% verified by the original
2. Flat top design for DGX- H100 Cedar-7 or liquid-cooled
3. Support the InfiniBand NDR and Ethernet protocols
4. 8x 100G-PAM4 electrical to Dual 4x 100G-PAM4 optical Parallel
5. Maximum power consumption ≤14.5W
    See more

    Specifications

    NVIDIA/Mellanox MMS4X00-NM-FLT Compatible 800G DR8 OSFP RHS/Flat Top PAM4 Twin-port InfiniBand NDR Optical Transceiver Module (1310nm, 500m, 2x MPO-12/APC Connectors, SMF, 0℃ to +70℃, DDM)



    NVIDIA/Mellanox MMS4X00-NM-FLT compatible 800G DR8 (2x400G DR4) OSFP is an Infiniband and Ethernet twin-port transceiver module with dual MPO-12 APC connectors at 400Gb/s each. It enables the fiber link of 500m at 2x400Gb/s over single-mode fiber (SMF). With the Pulse-amplitude Modulation (PAM4) modulation, the 2xDR4 OSFP adopts 8-channels of 100G-PAM4 electrical modulation and two ports of 4-channel 100G-PAM4 optical Parallel modulation.



    With a flat top design, the OSFP-RHS is offered for Liquid-cooled systems and DGX H100 Cedar7 systems links. Its main application is to link the DGX H100 “Viking” CPU chassis to Cedar-7 complex to switches together up to 100 meters. QSFPTEK NVIDIA InfiniBand compatible optics are 100% tested in NVIDIA InfiniBand host devices, ideal for InfiniBand NDR end-to-end systems.



    Part Number QT-OSFP-800G-2DR4-RHS Vendor Name QSFPTEK
    Form Factor Twin-port OSFP-RHS/Flat Top Max Data Rate 850Gbps (8x 106.25Gbps)
    Wavelength 1310nm Distance 500m

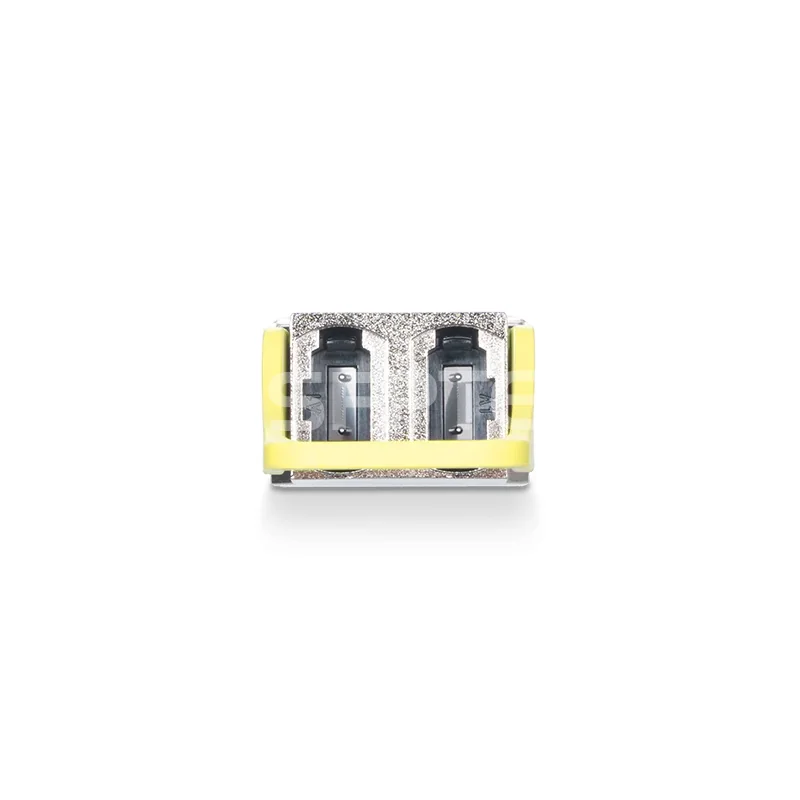

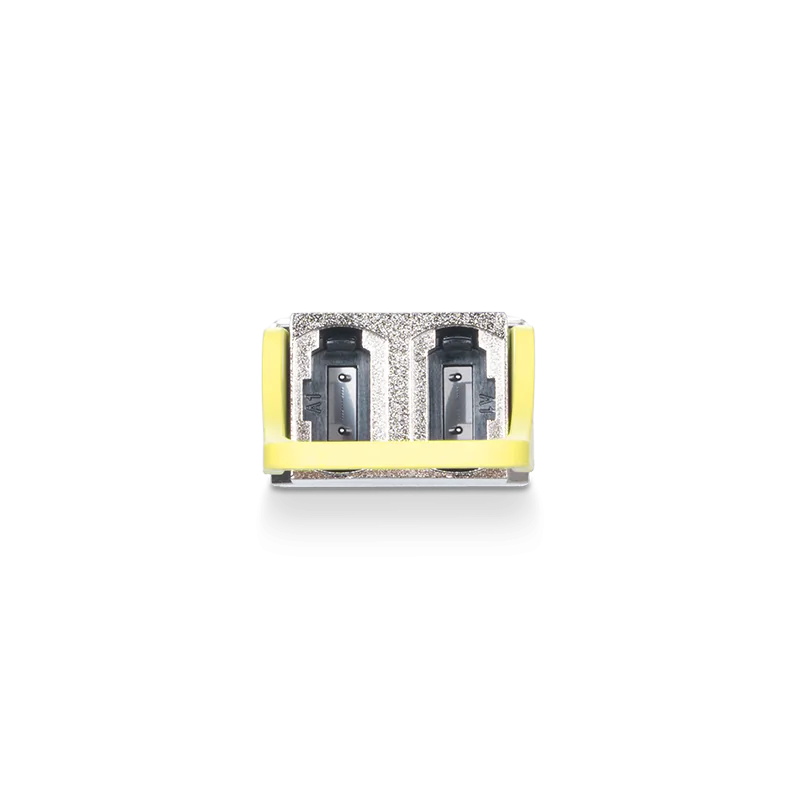

    Connector Dual MPO-12/APC Cable Type SMF
    Transmitter Type EML Receiver Type PIN PD
    TX Power -2.9 to 4 dBm Receiver Sensitivity < -5.9 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption ≤14.5W Modulation Format 8x 100G-PAM4 electrical to Dual 4x 100G-PAM4 optical Parallel
    Extinction Ratio >3.5dB CDR (Clock and Data Recovery) TX & RX Built-in DSP
    Application Liquid-cooled systems and DGX H100 Cedar7 systems links MTBF 4016064 Hours
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols OSFP MSA, IEEE 802.3ck-2022, CMIS Rev 5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Applications

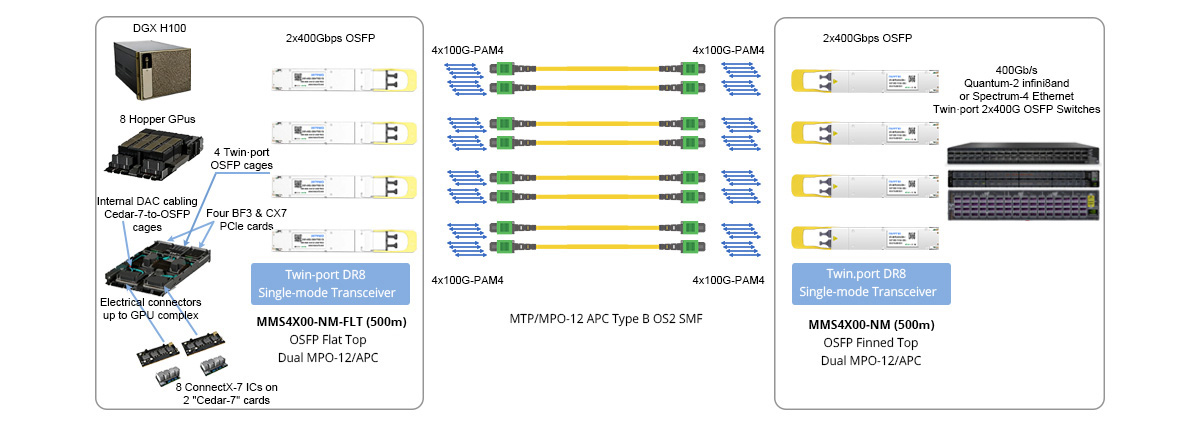

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to DGX H100 GPU Systems：

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to DGX H100 GPU Systems

    Product details

    Undergoes Comprehensive Performance Testing to Guarantee Optimal Reliability



    The QSFPTEK test center conducts complete testing procedures with advanced professional test equipment, including BER test, eye diagram test, Optical Spectrum test, jitter test, etc. Each module has been stringently tested by world-class test devices from Keysight and Anritsu to guarantee flawless operation and optimal reliability.



    Performance test devices





    Select a Proper Heat Dissipation Design for Your Needs

    Finned Top vs Flat Top

    Closed Finned Top 800G OSFP optics with Integrated Heat Sink (IHS) design are used for both Quantum-2 InfiniBand or Spectrum-4 Ethernet air-cooled and liquid-cooled systems. Flat top 800G OSFP optics with Riding Heat Sink (RHS) design are used in Liquid-cooled and DGX H100 Cedar7 Systems.
