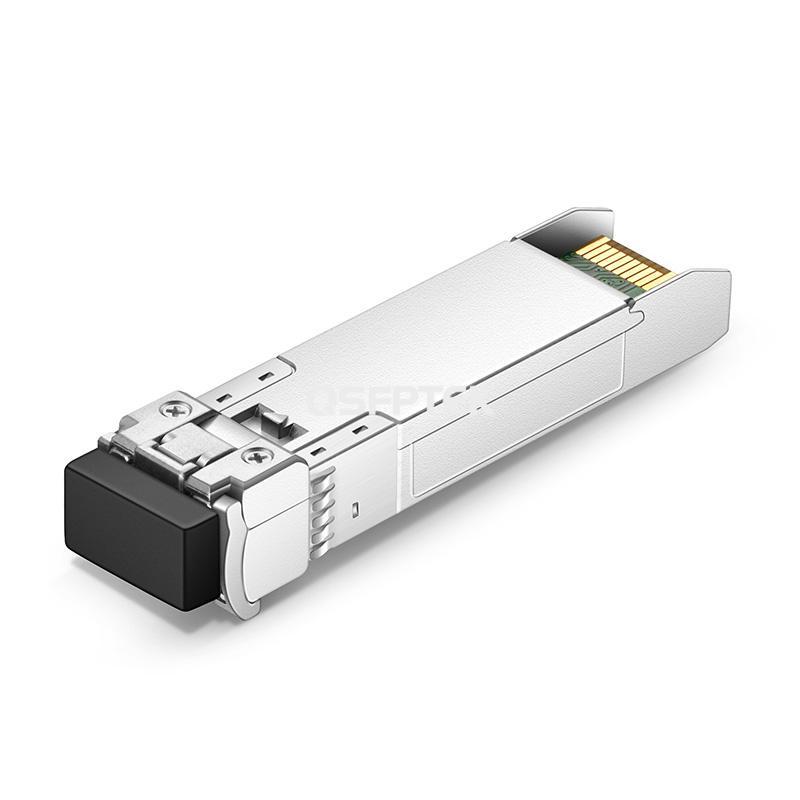

Dell GP-SFP-10GBX-D-40 Compatible 10GBASE-BX40-D BiDi SFP+ 1330nm-TX/1270nm-RX 40km DOM LC SMF Transceiver

Product No :7219
US$ 19.90  US$ 35.90
5439 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=2B6B0934FCBC5BE934DF2485E991F4B4
-
+
1. Support Simplex Fiber Transmission
2. DFB+PIN; Low Power Consumption <1.2W
3. Applied in Region Networks
4. Fully Compatible with 100+ Vendors
5. SFP+ MSA Compliant
See more

Specifications

Dell GP-SFP-10GBX-D-40 Compatible 10GBASE-BX40-D BiDi SFP+ Transceiver Module (SMF, 1330nm-TX/1270nm-RX, 40km, LC, DDM)



The Dell GP-SFP-10GBX-D-40 compatible SFP+ optical transceiver is equipped with an LC simplex connector, reaching a link up to 40km over G.652. This 10G BiDi SFP+ transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. QSFPTEK manufactured 10GBASE-BX BiDi SFP+ transceiver module is compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all Dell devices.



Model Name:

GP-SFP-10GBX-D-40

Vendor Name:

QSFPTEK

Form Factor:

SFP+

Data Rate:

10Gbps

Wavelength:

1330nm-TX/1270nm-RX

Distance:

40km

Connector:

LC Simplex

Cable Type:

OS2 SMF

Transmitter Type:

DFB

Receiver Type:

PIN

TX Power:

1~-5dBm

Receiver Sensitivity:

<-15dBm

Power Consumption:

<1W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1E-12

Protocols:

Fast Ethernet, Gigabit Fibre Channel, MSA Compliant, SFF-8472

Warranty:

5 Years

Quality Testing Program
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Double Your Network Capacity
    One strand is used to carry information in both directions.
  • 3. Protocols
    Compliant with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Connection 1: 10G BIDI Connectivity

10G BIDI Connectivity
