1. Rate: 10G; Connector: Duplex LC 2. DFB+PIN; Low Power Consumption <1.5W 3. Support Access Networks or Campus Networks 4. Fully Compatible with 100+ Vendors 5. SFP+ MSA CompliantSee more

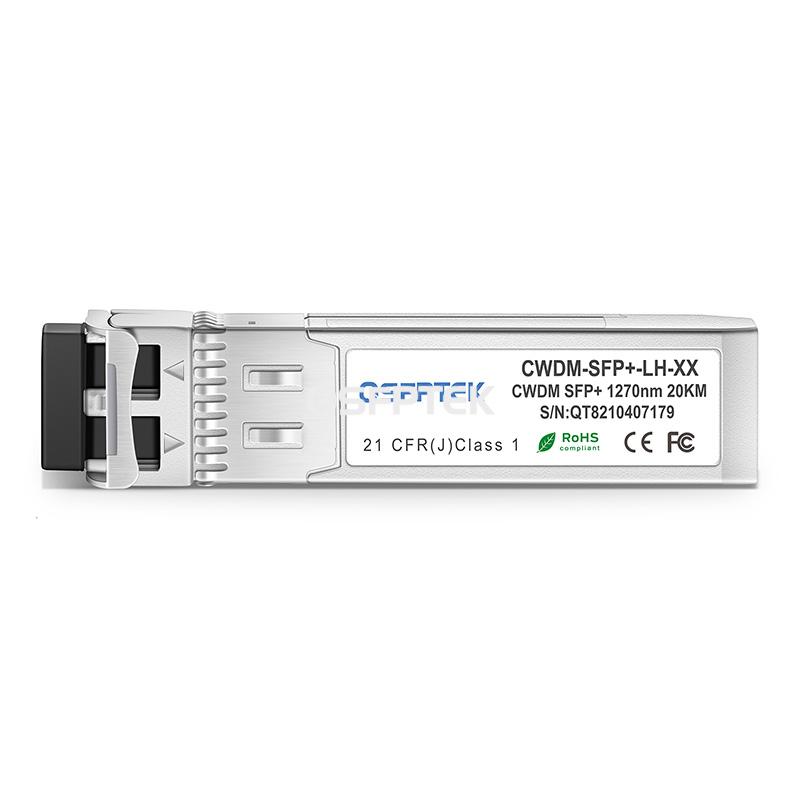

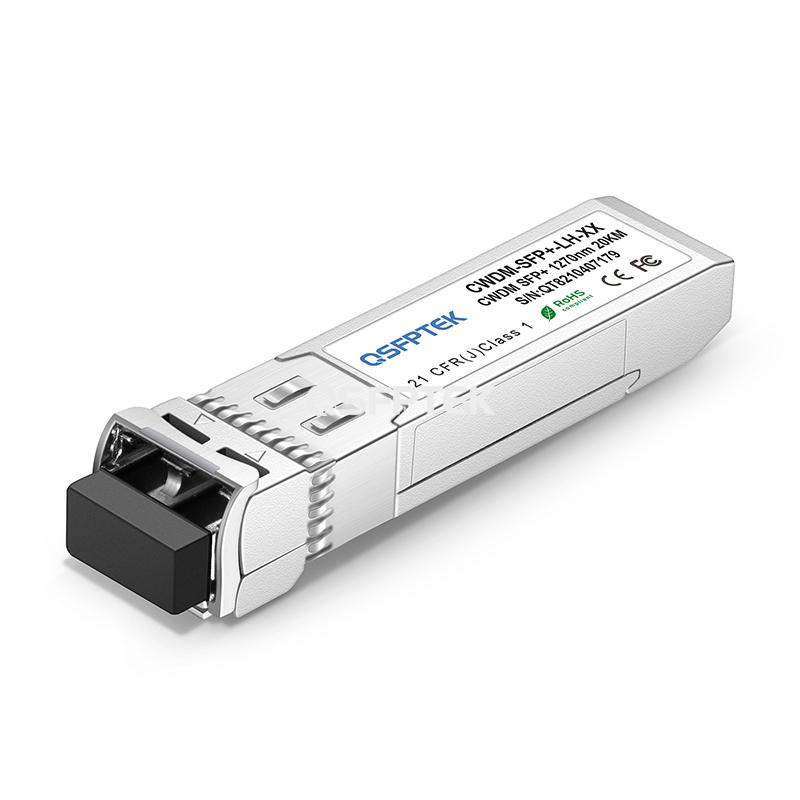

The CWDM-SFP10G-LR series SFP+ optical transceiver is equipped with an LC duplex connector, reaching a link up to 20km over G.652/655. This 10G CWDM SFP+ transceiver, operating at a CWDM wavelength from 1270nm to 1610nm as specified by the ITU-T, is designed to deploy in the CWDM networking equipment in metropolitan access networks or campus networks. QSFPTEK manufactured 10GBASE-CWDM SFP+ transceiver module is compliant with the SFF-8431 MSA and SFF8432 MSA. It's also fully compatible with almost all Cisco devices.
|Model Name: CWDM-SFP10G-1590-20||Vendor Name: QSFPTEK|
|Form Factor: SFP+||Data Rate: 9.95 to 11.3Gb/s bit rates|
|Wavelength: 1590nm||Distance: 20km@G.652|

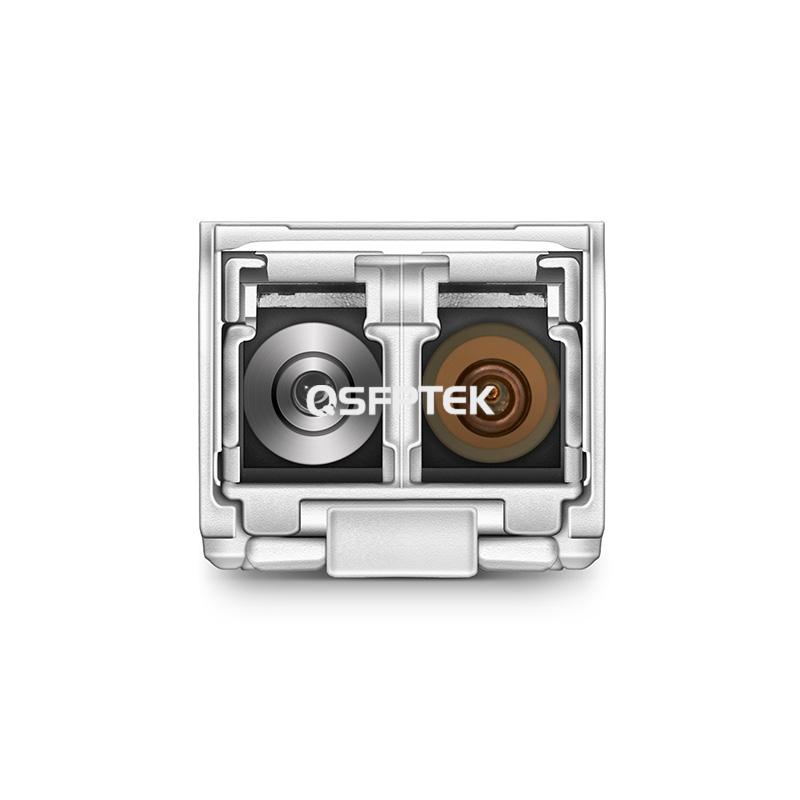

|Connector: LC Duplex||Cable Type: OS2 SMF|
|Transmitter Type: DFB||Receiver Type: PIN|
|TX Power: -5~0dBm||Receiver Sensitivity: <-15dBm|
|Power Consumption: <1.5W||Modulation Format: NRZ|
|DDM: Support||Bit Error Ratio (BER): 1E-12|
|Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432||Warranty: 3 Years|
Data Center and Campus network Solution for 10G Gigabit Ethernet Switches
