Add to Cart
1. Rate: 10G; Connector: Duplex LC 2. EML+APD; Low Power Consumption <1.5W 3. Support Metro, Regional and Long-Haul DWDM Networks 4. Fully Compatible with 100+ Vendors 5. SFP+ MSA CompliantSee more

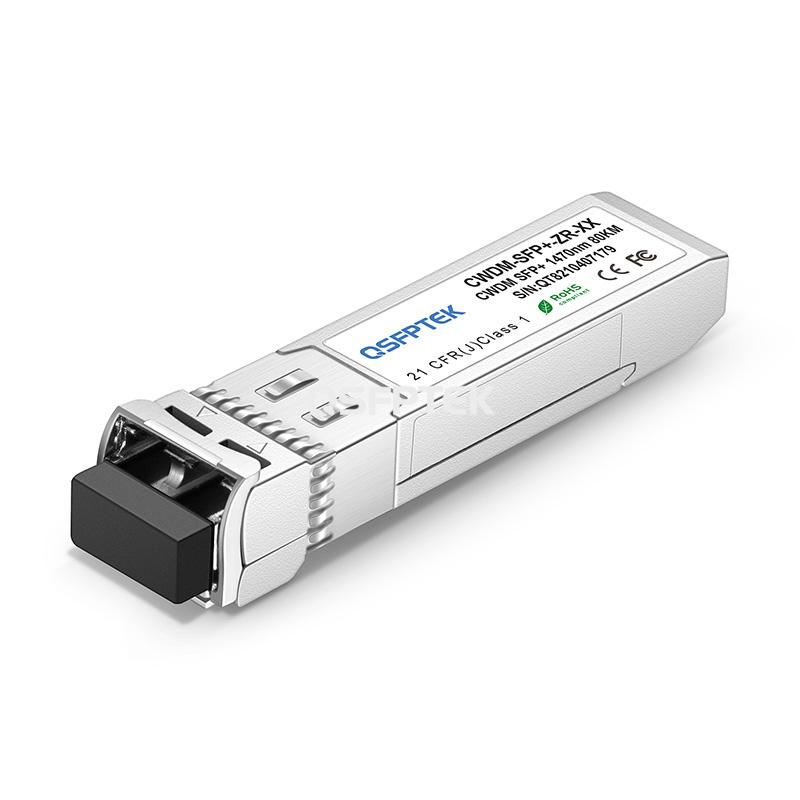

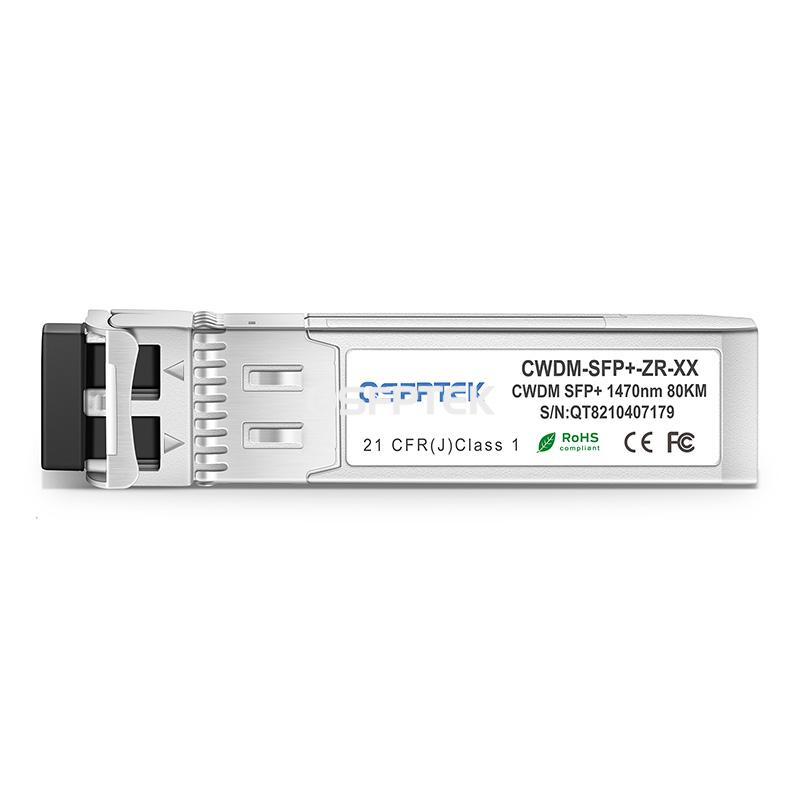

The CWDM-SFP10G-ZR series SFP+ optical transceiver is equipped with an LC duplex connector, reaching a link up to 80km over G.652/655. This 10G CWDM SFP+ transceiver, operating at a CWDM wavelength from 1470nm to 1610nm as specified by the ITU-T, is designed to deploy in the CWDM networking equipment in metropolitan access networks or long-haul networks. QSFPTEK manufactured 10GBASE-CWDM SFP+ transceiver module is compliant with the SFF-8431 MSA and SFF8432 MSA. It's also fully compatible with almost all Cisco devices.
| Model Name: CWDM-SFP10G-1570-80 | Vendor Name: QSFPTEK |
| Form Factor: SFP+ | Data Rate: 9.95 to 11.3Gb/s bit rates |
| Wavelength: 1570nm | Distance: 80km@G.652 |
| Connector: LC Duplex | Cable Type: OS2 SMF |
| Transmitter Type: EML | Receiver Type: APD |
| TX Power: 0~+5dBm | Receiver Sensitivity: <-24dBm |
| Power Consupumtion: <1.5W | Modulation Format: NRZ |
| DDM: Support | Bit Error Ratio (BER): 1E-12 |
| Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432 | Warranty: 3 Years |
5 stars
4 Reviews
4 stars
0 Reviews
3 stars
0 Reviews
2 stars
0 Reviews
1 stars
0 Reviews
CWDM-SFP+-ZR-XX.pdf
