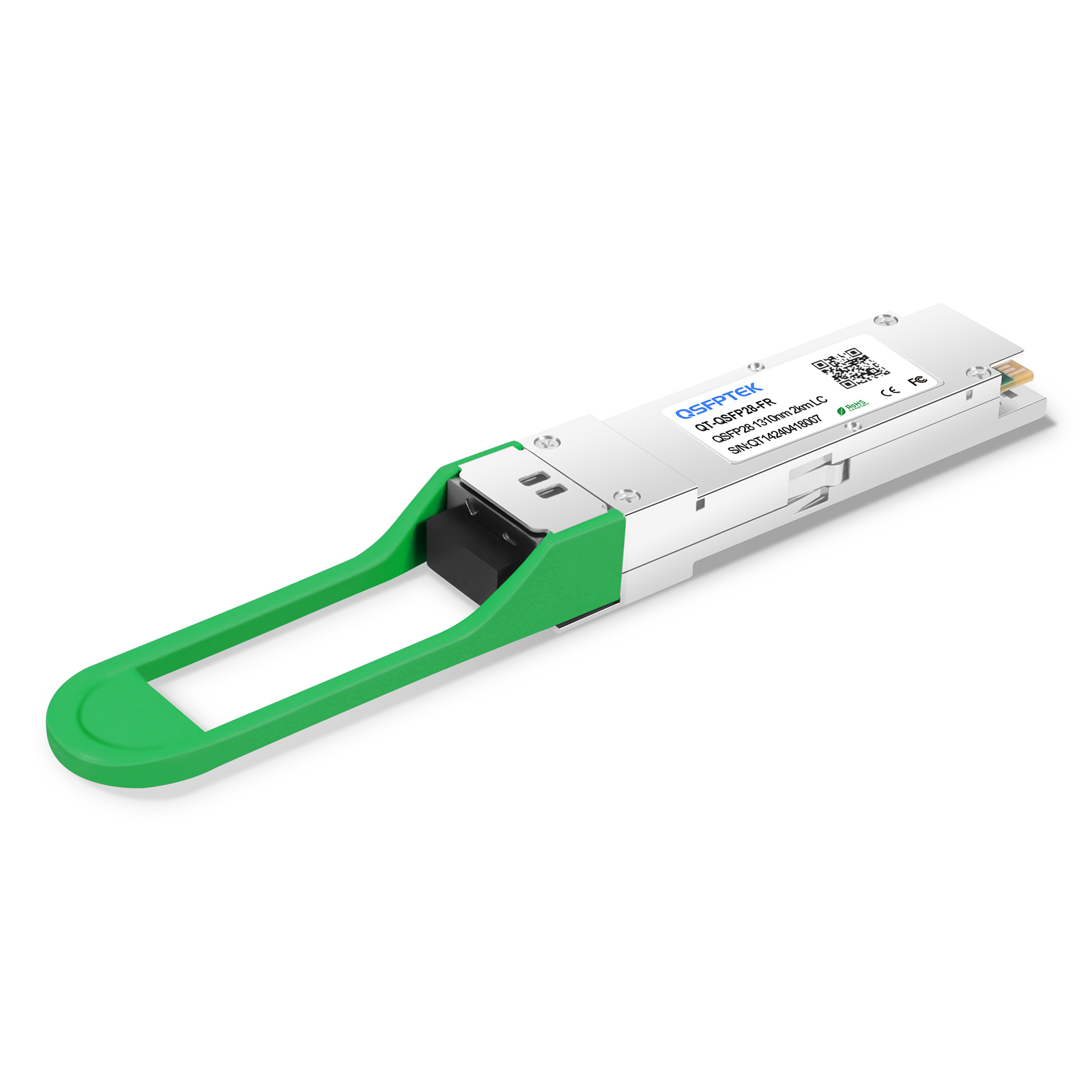

Generic QSFP-100G-FR 100GBASE-FR Single Lambda QSFP28 1310nm 2km Optical Transceiver Module

Product No :100104
US$ 219.00  US$ 259.00
100 in stock
1. Rate: 100G; Connector: LC; with DDM
2. EML+PIN; Low Power Consumption ≤3.5W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 100+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
See more

Specifications

Generic QSFP-100G-FR 100GBASE-IR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 2km, LC, DDM)



QSFP-100G-FR optical transceiver module is designed with duplex LC connectors, reaching a link up to 2km over single mode fiber(OS2). QSFPTEK manufactured the 100G DR can convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. This transceiver is compliant with QSFP28 MSA and 100G Lambda MSA standards. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in Data Center and 400G to 100G breakout applications.



Part Number:

QT-QSFP28-FR

Vendor Name:

QSFPTEK

Form Factor:

QSFP28

Data Rate:

103.125Gbps (4x 25.78Gbps)

Wavelength: 1310nm

Distance:

2km

Connector:

Duplex LC

Cable Type:

OS2 SMF

Transmitter:

EML

Receiver Type:

PIN

TX Power:

-2.4~4dBm

Receiver Sensitivity:

<-6.4dBm

Power Consumption:

≤4.5W

Modulation Format:

PAM4

DDM:

Support

Bit Error Ratio (BER):

5E-5

Protocols:

100G Lambda MSA 100G-FR Specification compliant, QSFP28 MSA

Warranty:

3 Years




Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost OEM devices.
  • 3. Protocols
    High-Speed Electrical Interface Compliant to IEEE 802.3cd
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

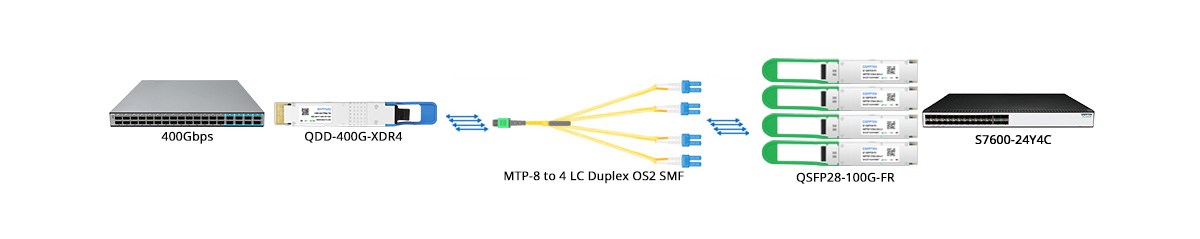

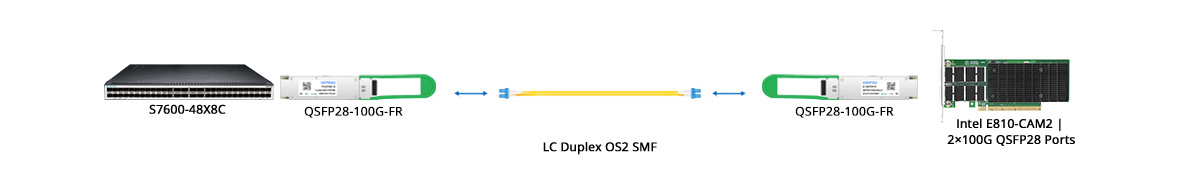

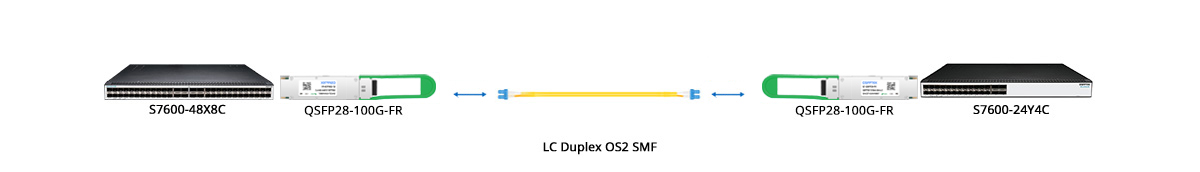

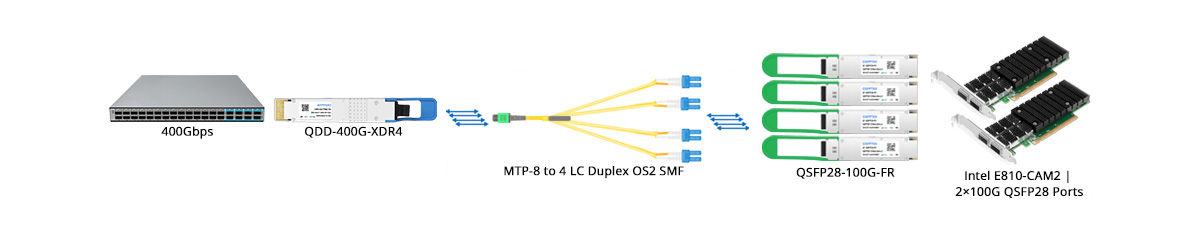

Applications

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.








100G QSFP28 Model Contrast Table



Part Number

QT-QSFP28-SR4

QT-QSFP28-PSM4

QT-QSFP28-IR4

QT-QSFP28-LR4

QT-QSFP28-CWDM-LR4

QT-QSFP28-ER4

QT-QSFP28-ZR4

DWDM-QSFP28-ZR-XX


Wavelength

850nm

1310nm

1271~1331nm

1310nm

1271~1331nm

1310nm

1310nm

DWDM CH13~60

Max Distance

100m

500m

2km

10km

10km

40km

80km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

CS Duplex

Tx Power(dBm)

-8.4~2.4

-5~2

-6.5~2.5

-4.3~4.5

-6.5~2.5

-2.9~4.5

2~6.5

-1~4dBm

Rx Sensitivity(dBm)

-10.3

-11.4

-11.5

-10.6

-13

-20.9

-28

-12.5

Max Power Consumption

1.8W

3.5W

3.5W

3.5W

3.5W

4.5W

6W

5W

Source

VCSEL+PIN

DFB+PIN

CWDM DFB+ PIN

EML+PIN

CWDM DFB +PIN

EML+APD

EML+APD

EML+APD

Operating Temperature

0~70°C

0~70°C

0~70°C

0~70°C

-40~85°C

0~70°C

0~70°C

-20~85°C

0~70°C

-40~85°C

0~70°C





Questions & Answers

more+
  • What is the laser level of 100G SR4? Can you provide a test report of the laser level of this module?
    Class I. Of course, you can contact our sales to get the report.
  • The transmission distance is less than 550m, should I use multi-mode?
    I'm afraid you should purchase the single-mode optics, like 100G LR4.
  • What is the Packaging Technology of the 100g lr4?
    BOX Packaging
