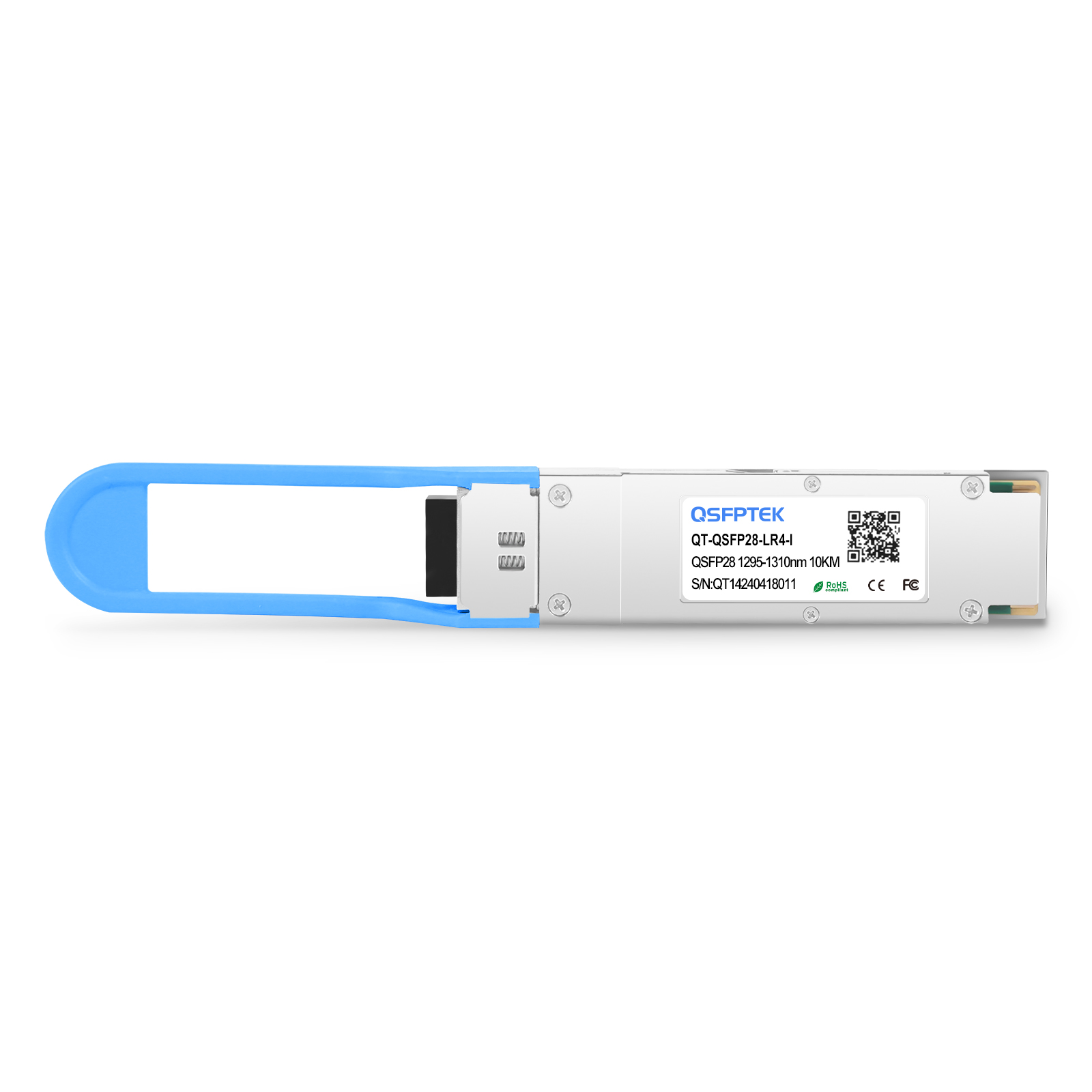

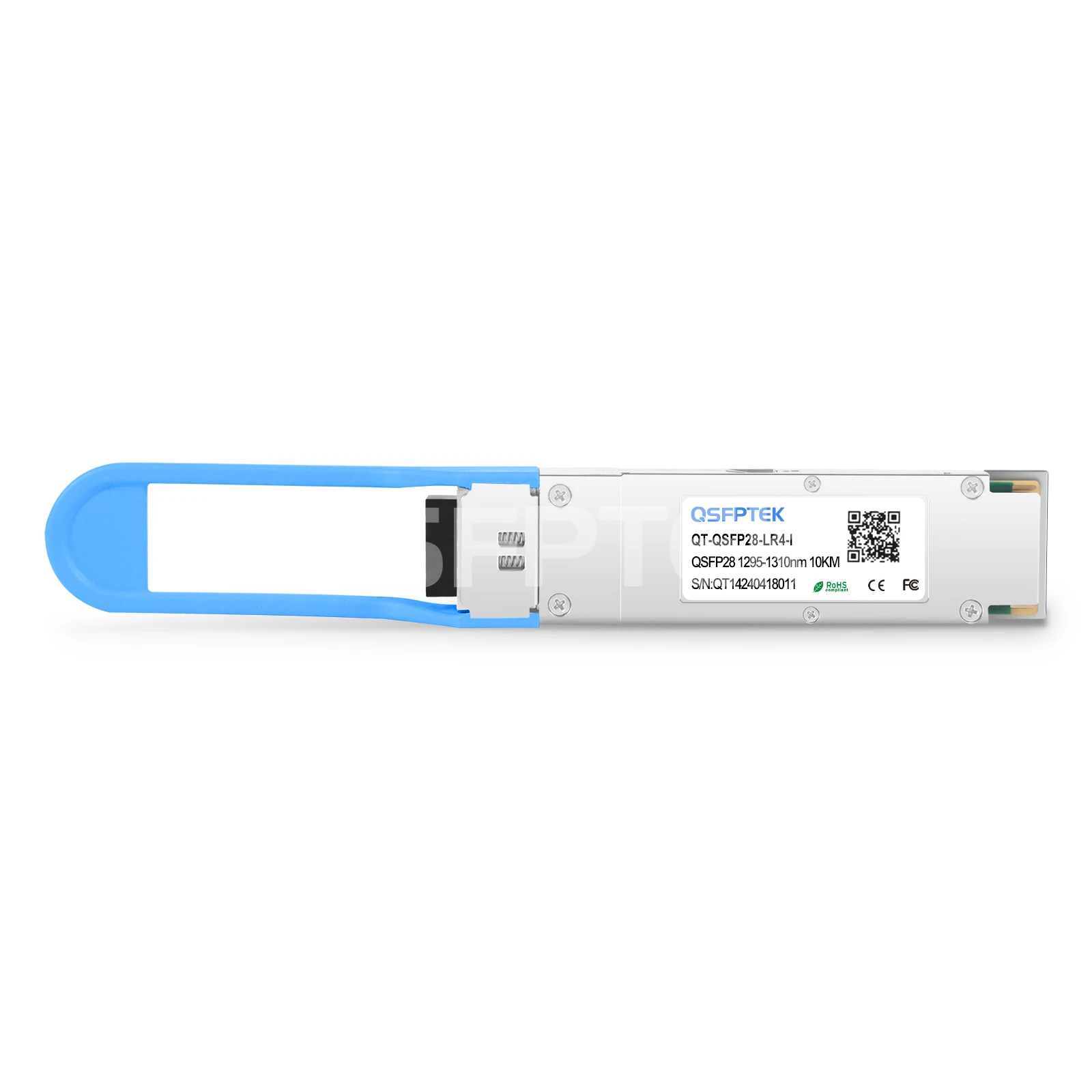

Generic Compatible 100GBASE-LR4 QSFP28 1310nm 10km LC SMF Optical Transceiver Module (Industrial Temp.)

Product No :100322
US$ 699.00  US$ 1099.00
3635 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=8EE71AB79EE8E467CA9D65B08E32E6AB
-
+
1. Rate: 100G; Connector: LC; with DDM
2. DFB+PIN; Low Power Consumption ≤3.5W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 200+ Vendors
5. Hot Pluggable QSFP36 MSA Compliant
6. Industrial Temperature Range -40°C to 85°C
See more

Specifications

Generic QSFP-100G-LR4-I Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module (Industrial, SMF, 1310nm, 10km, LC, DOM)



The Generic industrial temperature QSFP-100G-LR4-I compatible QSFP28 optical transceiver module is designed with duplex LC connectors, reaching a link up to 10km over single-mode fiber(SMF). QSFPTEK manufactured 100GBASE-LR4 QSFP28 transceiver module is compliant with IEEE 802.3ba 100GBASE-LR4, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in 100G telecom connections, data centers, high-performance computing networks, enterprise core and distribution layers, campus networks, etc.



Part Number

QT-QSFP28-LR4-IND

Vendor Name

QSFPTEK

Form Factor

QSFP28

Data Rate

103.1Gbps

Wavelength

1310nm

Distance

10km

Connector

Duplex LC

Cable Type

OS2 SMF

Transmitter

LAN WDM EML

Receiver Type

PIN

TX Power(100G)

-4.3~4.5dBm

Receiver Sensitivity(100G)

<-10.6dBm

Power Consumption

≤4W

Temperature

-40 to 85°C (-40 to 185°F)

DDM

Support

Bit Error Ratio (BER)

1.00E-12

Protocols

IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA

Warranty

5 Years

Quality Testing Program

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenario
    Fully compatible with most industry OEM devices. Ideal for 100G telecom connections, data centers, high-performance computing networks, enterprise cores, distribution layers, etc.
  • 3. Protocols
    Compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, and QSFP28 MSA standards.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



QSPFTEK LAB All Brands Switches Show






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack






Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



QSFPTEK Test Devices






100G QSFP28 Model Contrast Table



Part Number

QT-QSFP28-SR4

QT-QSFP28-PSM4

QT-QSFP28-IR4

QT-QSFP28-LR4

QT-QSFP28-CWDM-LR4

QT-QSFP28-ER4 (Rx SOA)

QT-QSFP28-ZR4

DWDM-QSFP28-ZR-XX


Wavelength

850nm

1310nm

1271~1331nm

1310nm

1271~1331nm

1310nm

1310nm

DWDM CH13~60

Max Distance

100m

500m

2km

10km

10km

40km

80km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

CS Duplex

Tx Power(dBm)

-8.4~+2.4

-9.4~+2

-6.5~+2.5

-4.3~+4.5

-6.5~+2.5

-2.9~+4.5

+2~+7

-1~+4

Rx Sensitivity(dBm)

-10.3

-12.66

-11.5

-10.6

-11.5

-20.9

-27

-12.5

Max Power Consumption

3.5W

3.5W

3.5W

4W

3.5W

4.5W

5.5W

5W

Source

VCSEL+PIN

DFB+PIN

CWDM DFB+ PIN

EML+PIN

CWDM DFB +PIN

4x EML+SOA+PIN

EML+SOA+PIN

EML+APD

Operating Temperature

0~70°C

0~70°C

0~70°C

0~70°C

-40~85°C

0~70°C

0~70°C

-20~85°C

0~70°C

-40~85°C

0~70°C



Questions & Answers

more+
  • What are the main application scenarios of 100G optical modules?
    The primary application of this transceiver is in data centers, Ethernet, and telecommunications settings, serving as a pivotal component for 100G connections within core switches, core routers, and 5G networks.
  • Would you please explain the FEC (Forward Error Correction)?
    FEC (Forward Error Correction) is an error correction method used to identify and rectify a limited number of errors in transmitted data, all without necessitating retransmission. This technique involves appending redundant bits to a bitstream, enhancing the decoder's ability to identify and rectify certain transmission errors, and eliminating the need for retransmission. Activation of this function is dependent on the configuration of the transmission device.
  • What is the Packaging Technology of the 100g lr4?
    BOX Packaging
