Home / Products / Transceivers / 400G/800G Transceivers / 400G QSFP-DD / 102618

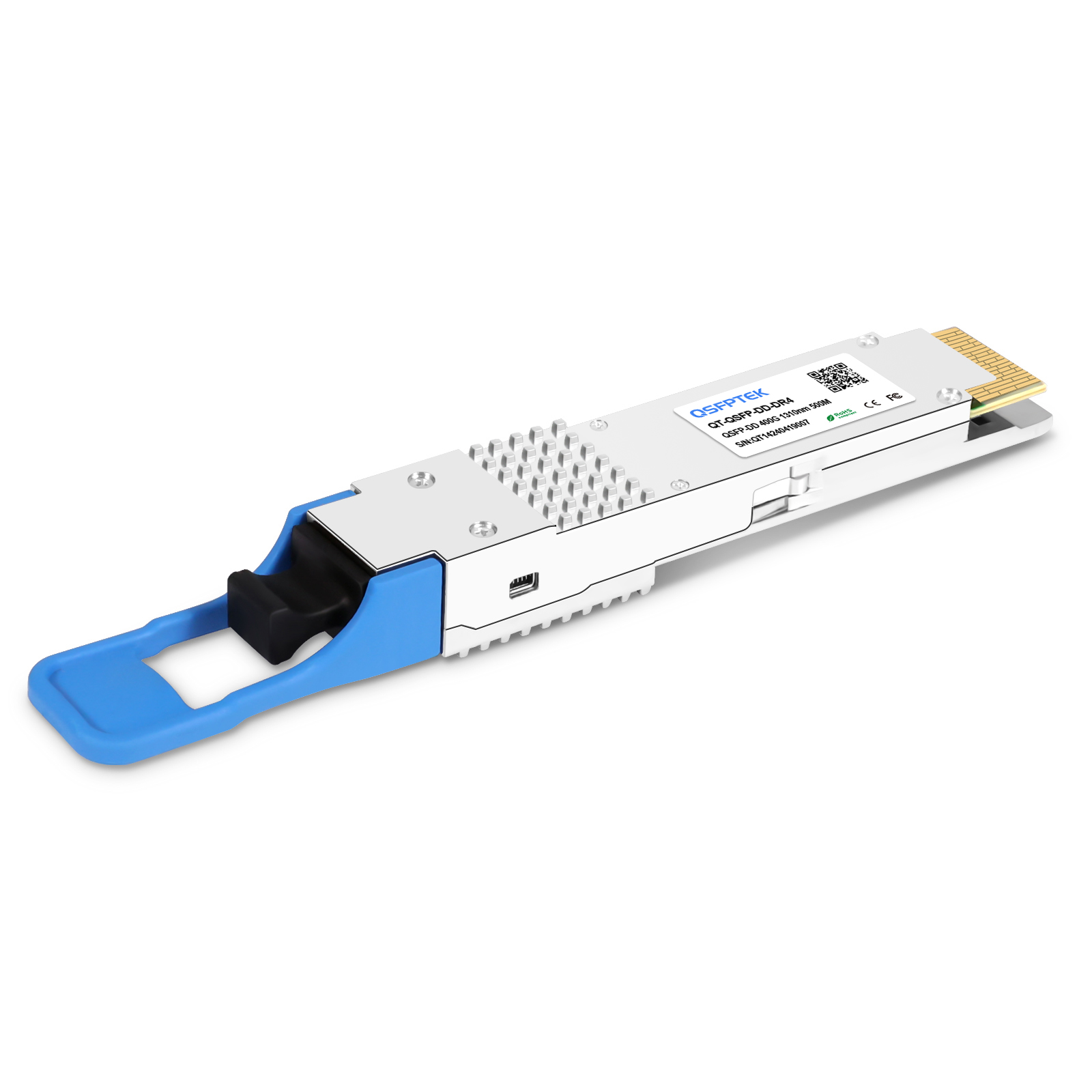

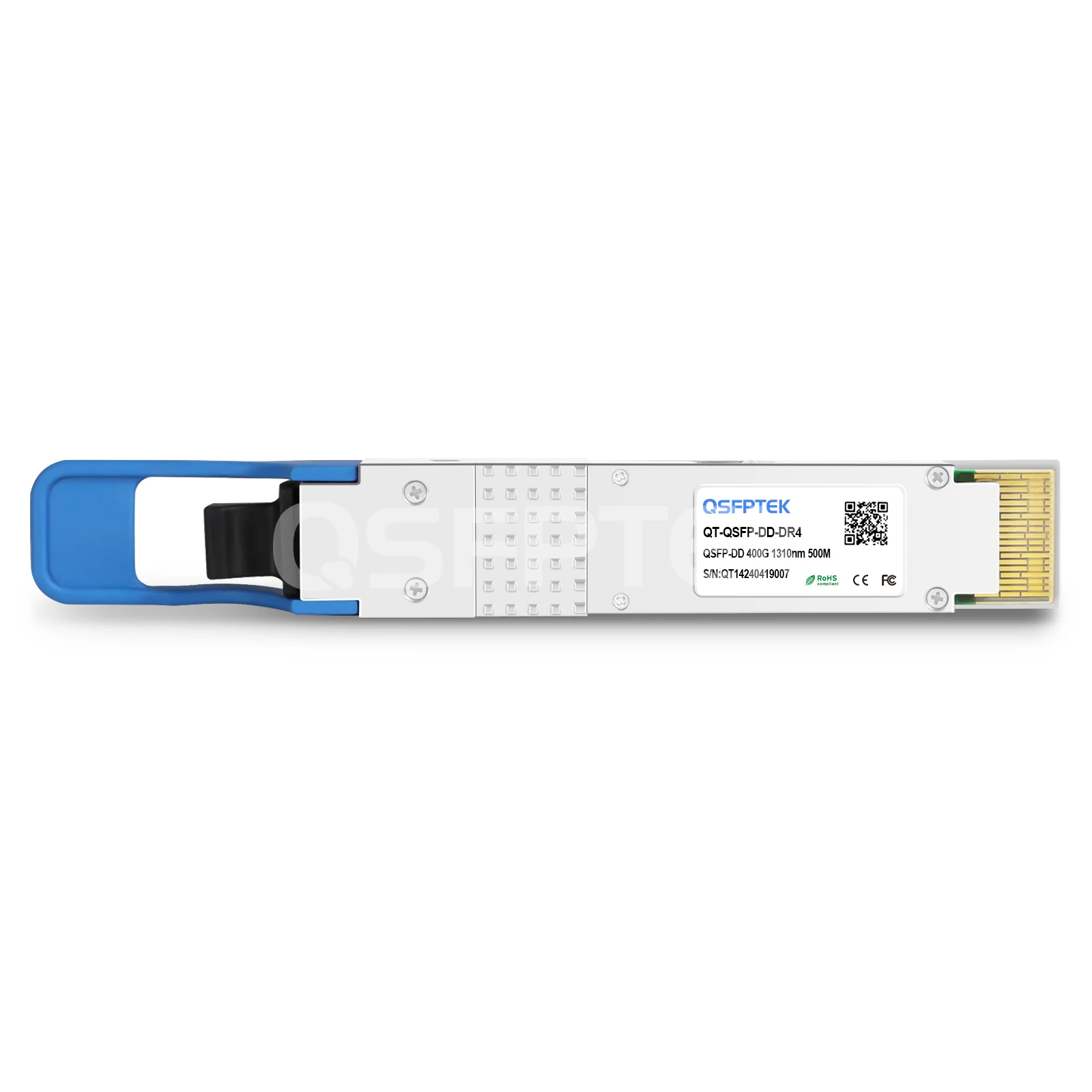

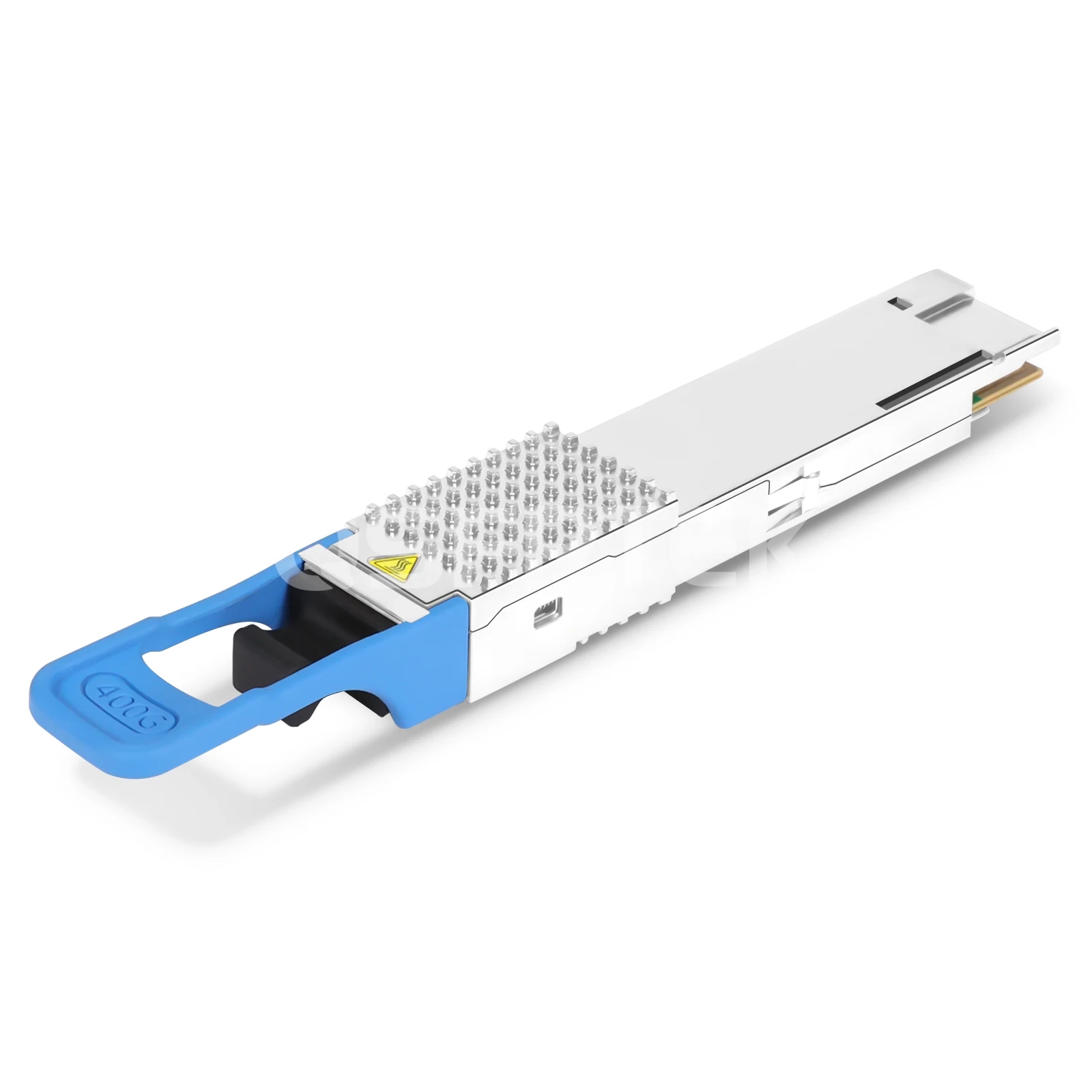

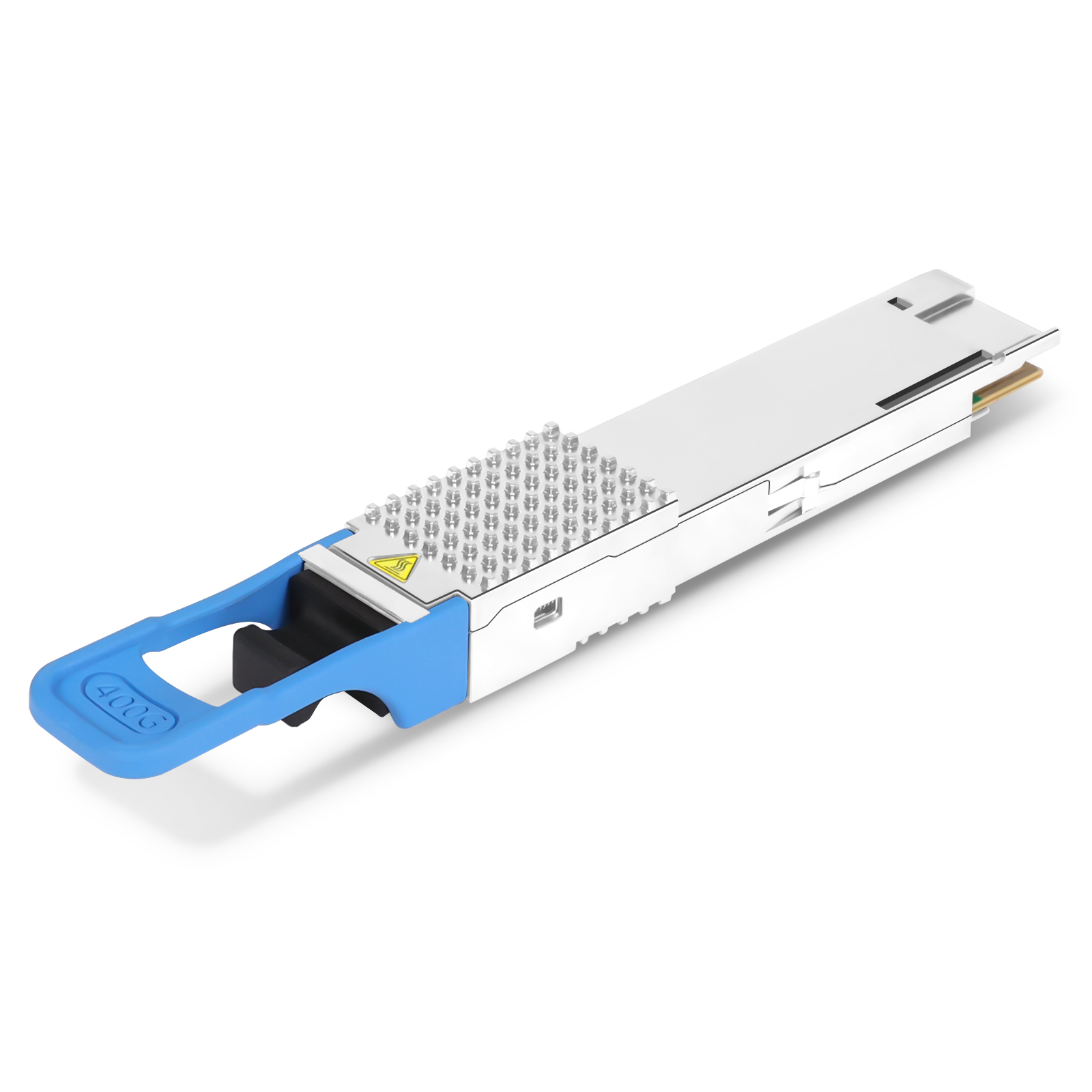

Arista QDD-400G-DR4 Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM MTP/MPO SMF Optical Transceiver Module

Product No :102618
US$ 436.90
Compatible
Transceivers type
34 in real-time stock, 19Jun, 2025

Free Shipping over US$ 79.8

Global warehouses in stock

-
+
Add to Cart Bulk Order Quotes
1. PAM4 modulation technology
2. EML + PIN, MTP/MPO-12 connector
3. Low power consumption ≤12W

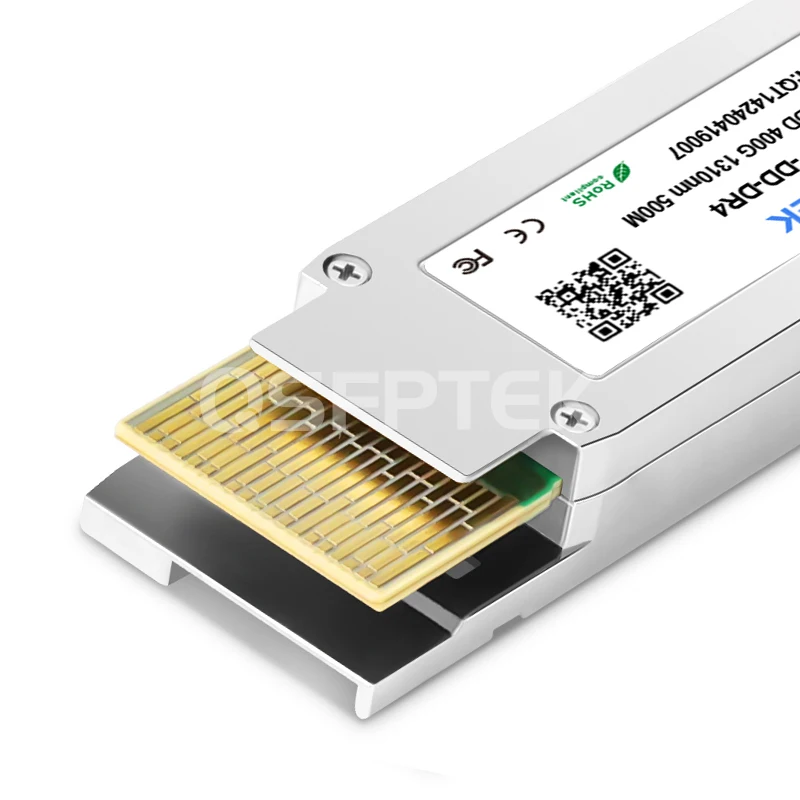

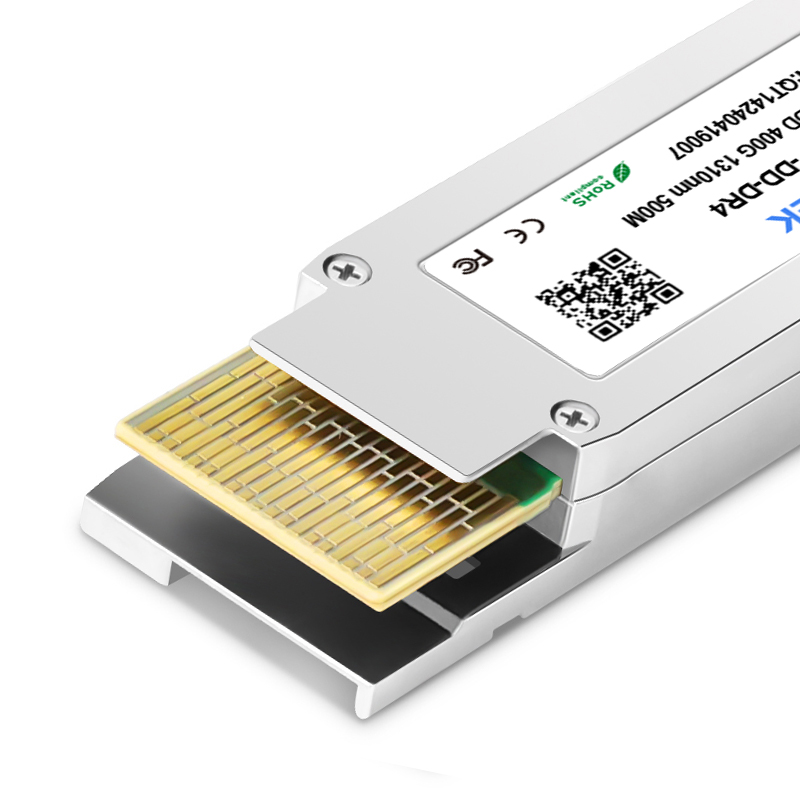

4. 8x 53.125Gb/s 400GAUI-8 electrical interface
5. Parallel 4 optical lanes, support 4x 100G breakout to QSFP28 100G-DR, 100G-FR, and 100G-LR
6. Applied in 400G Ethernet, Infiniband interconnects, data centers, high-performance computing networks
See more

Specifications

Arista QDD-400G-DR4 Compatible 400GBASE-DR4 QSFP-DD PAM4 Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO, DOM)



400GBASE-DR4 QSFP-DD transceiver is designed for 400G Ethernet interconnection, allowing link up length up to 500m over single-mode fiber (SMF) with MTP/MPO connector. It is compliant with the QSFP-DD MSA, IEEE 802.3bs standard. The 400GBASE DR4 module converts 8 channels of 50Gb/s (PAM4) electrical signals into four parallel lanes of optical signals, each lane capable of 100Gb/s. It supports 4x100G breakout to QSFP28 100G-DR, 100G-FR, and 100G-LR transceivers. Utilizing PAM4 modulation technology, 400GBASE-DR4 provides a cost-effective and low power consumption solution for 400G Ethernet applications, data centers, Infiniband interconnects, and high-performance computing networks.



Part Number

QT-QSFP-DD-DR4

Vendor Name

QSFPTEK

Form Factor

QSFP-DD

Interface Type

DR4

Max Data Rate

425Gbps (4x106.25Gb/s)

Wavelength

1310nm

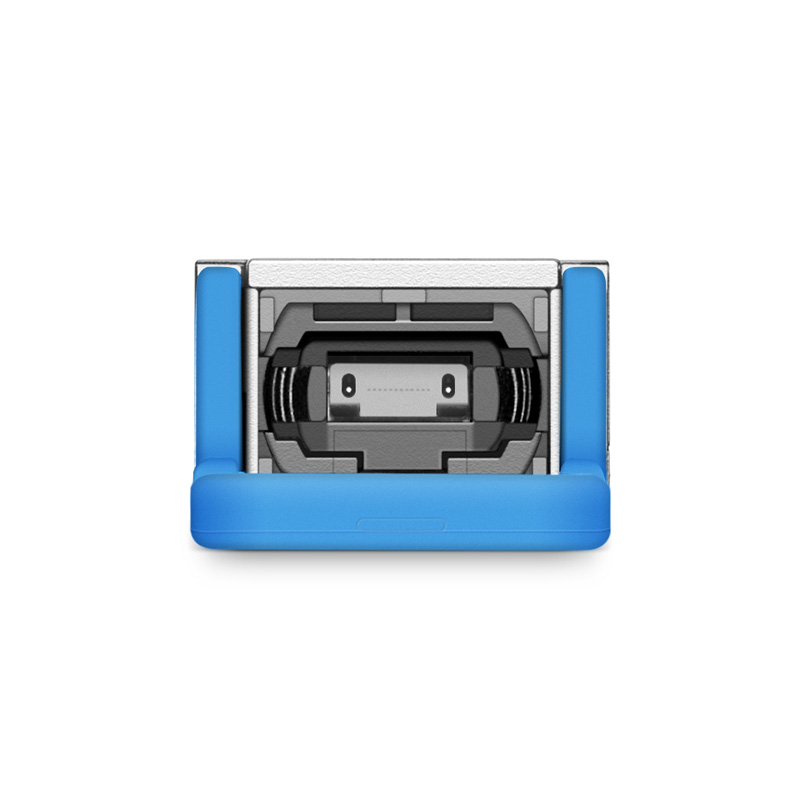

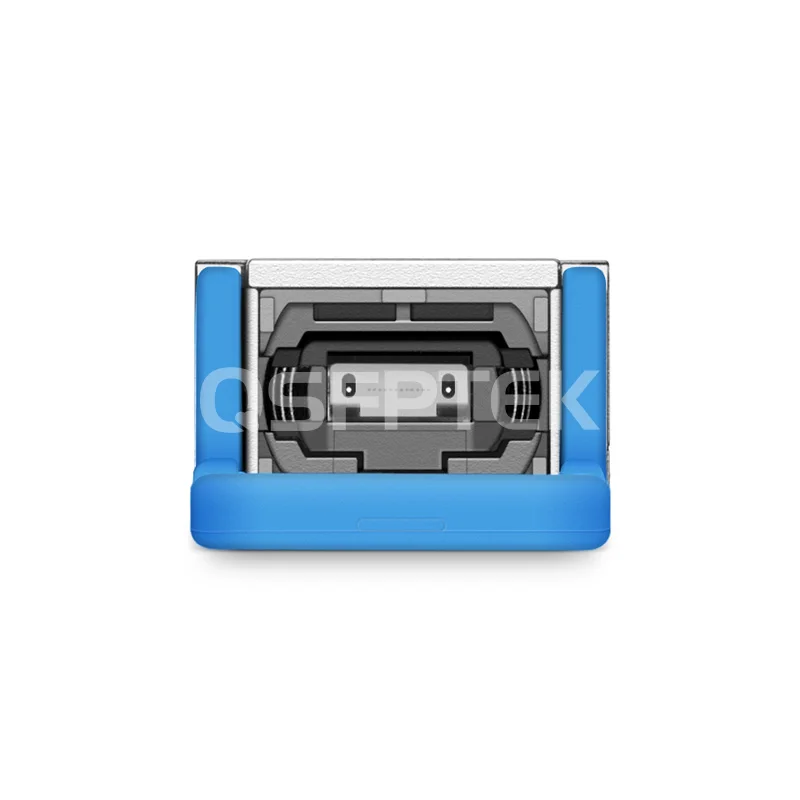

Connector

MTP/MPO-12

Cable Type

SMF

Max Cable Distance

500m

Modulation

PAM4

TX Power

-2.9 to 4 dBm

Receiver Sensitivity

< -5.9 dBm

Transmitter Type

EML

Receiver Type

PIN

Power Consumption

≤12W

Temperature Range

0 to 70°C (32 to 158°F)

DDM/DOM

Supported

Forward Error Correction (FEC)

Host FEC Supported

Protocols

QSFP-DD MSA, IEEE 802.3bs

Warranty

1 Year



Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. High Density and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at a trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Arista devices. Ideal for data centers, campus network, enterprise core layer, etc.
  • 3. Protocols
    Compliant with QSFP-DD MSA, IEEE 802.3bs.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Scenario 1: 400G to 400G Direct Connectivity


Related Products:

MTP-12 (Female) OS2 Elite Trunk SMF





Scenario 2: 400G to 4x 100G-DR Breakout Connectivity

Related Products:

QSFP-100G-DR-S 100GABSE-DR Single-Lambda QSFP28 1310nm 500m Duplex LC SMF Transceiver

Intel E810-CAM2 Based 100G Dual Port QSFP28 Network Interface Card

3m (10ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OS2 9/125 Single Mode Elite Breakout Cable





Scenario 3: 800G QSFP-DD to 2x 400G-DR4 Breakout Connectivity

Related Products:

QDD-800G-DR8 800GABSE-DR8 QSFP-DD PAM4 1310nm 500m MPO-16 APC SMF Transceiver





Scenario 4: 800G OSFP to 2x 400G-DR4 Breakout Connectivity

Related Products:

OSFP-800G-DR8 800GBASE-DR8 OSFP PAM4 1310nm 500m MPO-16 SMF Transceiver (Contact sales for quotation)

MTP-12 (Female) OS2 Elite Trunk SMF

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

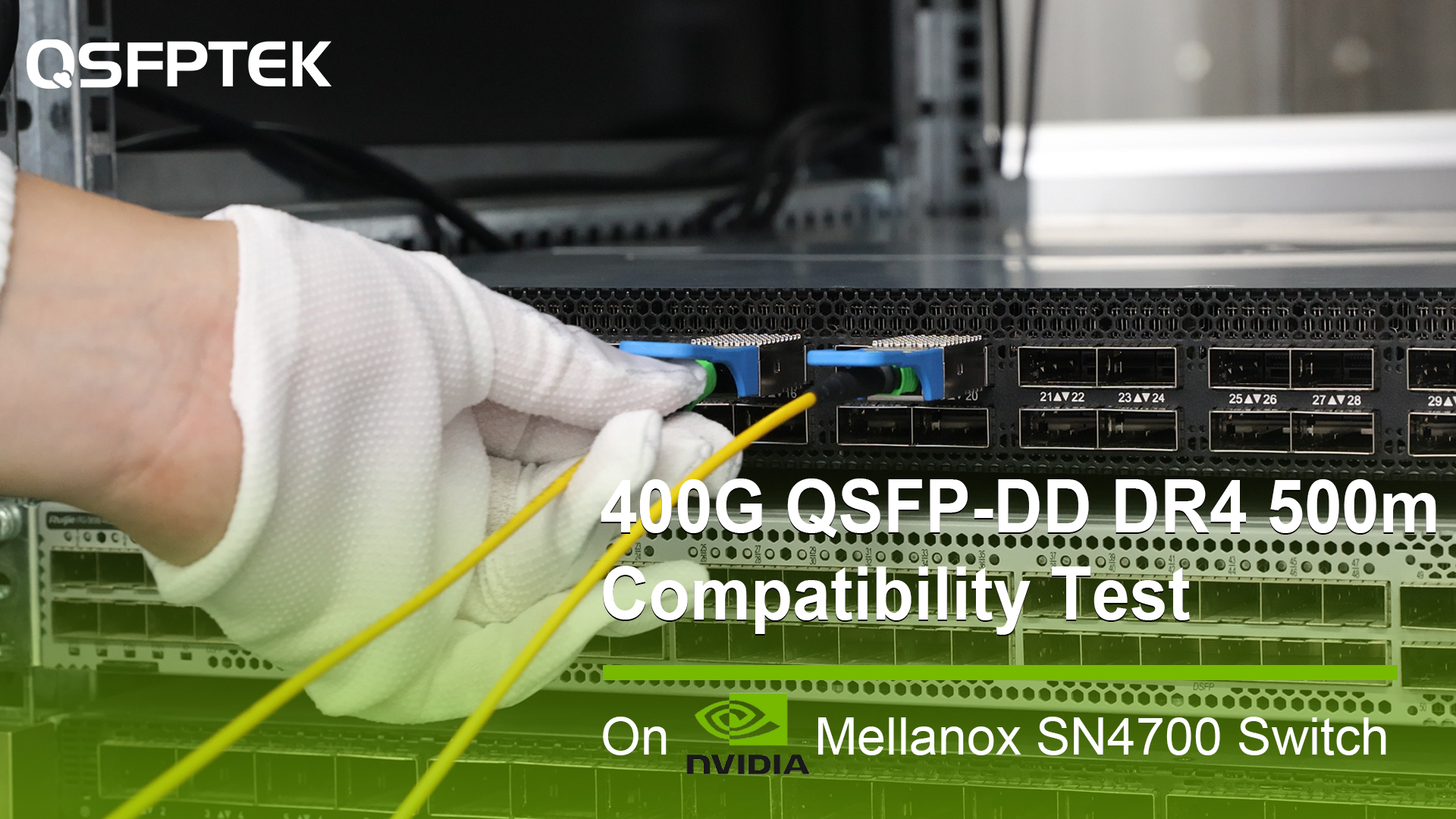

QDD-400G-DR4-S compatibility test





Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.







Short to Medium Reach 400G QSFP-DD Optics Contrast Table



Part Number

QT-QSFP-DD-SR4

QT-QSFP-DD-SR8

QT-QSFP-DD-DR4

QT-QSFP-DD-DR4+

QT-QSFP-DD-FR4


Center Wavelength

850nm

850nm

1310nm

1310nm

1310nm

Connector

MTP/MPO-12

MTP/MPO-16

MTP/MPO-12

MTP/MPO-12

Duplex LC

Cable Distance (Max.)

100m

100m

500m

2km

2km

Modulation

PAM4

PAM4

PAM4

PAM4

PAM4

Transmitter + Receiver Type

VCSEL 850nm + PIN

VCSEL 850nm + PIN

EML + PIN

EML + PIN

CWDM EML + PIN

TX Power

-4.6~4.0dBm

-6.5~4.0dBm

-2.9~4.0dBm

-3.1~4.0dBm

-3.2~3.5dBm

Receiver Sensitivity

<-6.3dBm

<-8.4dBm

<-5.9dBm

<-7.1dBm

<-7.3dBm

Power Consumption

≤8W

≤12W

≤12W

≤12W

≤12W

Temperature

0 to 70°C (32 to 158°F)

0 to 70°C (32 to 158°F)

0 to 70°C (32 to 158°F)

0 to 70°C (32 to 158°F)

0 to 70°C (32 to 158°F)

Application

Data Center

Data Center

400G to 2x200G Breakout

400G to 8x50G Breakout

Data Center

400G to 4x100G Breakout

800G to 2x400G Breakout

Data Center

400G to 4x100G Breakout

800G to 2x400G Breakout

Data Center

800G to 2x400G Breakout
