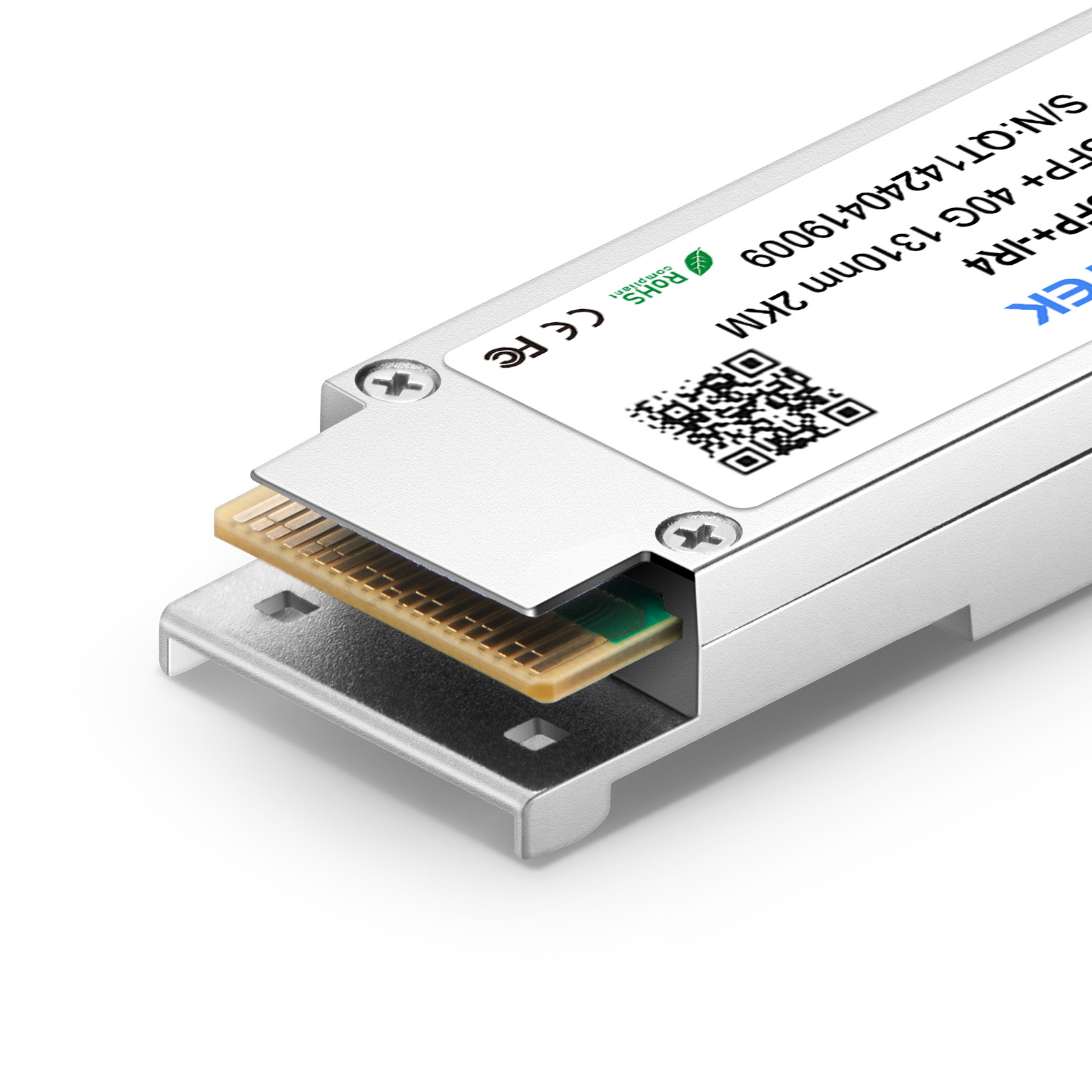

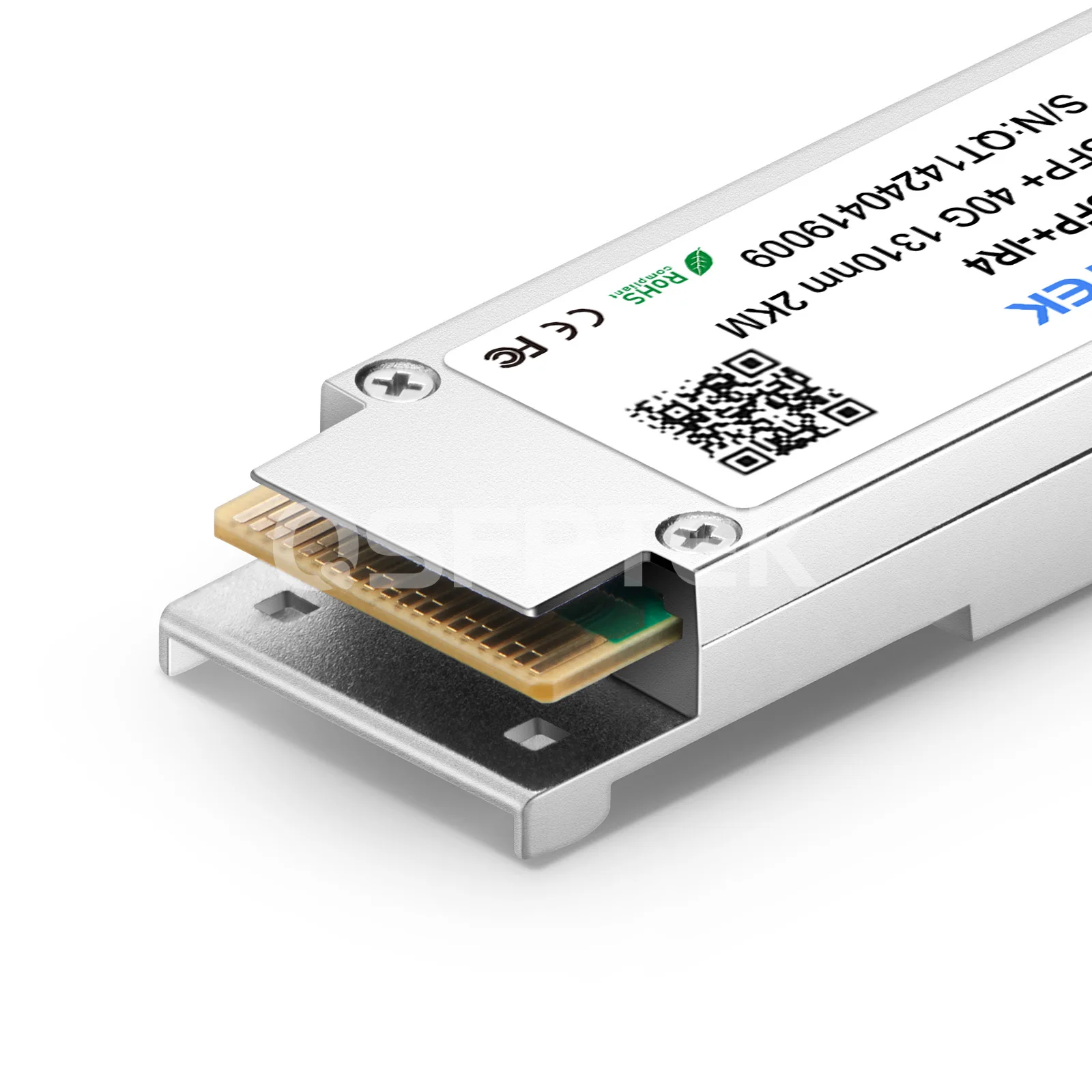

Mellanox MC2210511-IR4 Compatible 40GBASE-IR4 QSFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module

Product No :100340

US$ 83.90 ~~US$ 299.00~~

Specifications

Mellanox MC2210511-IR4 Compatible 40GBASE-LR4L QSFP+ Optical Transceiver Module (SMF, 1310nm, 2km, LC, DDM)

The Mellanox MC2210511-IR4 compatible 40G QSFP+ LR4L transceiver module is equipped with LC duplex connectors, reaching a link up to 2km over OS2 single-mode fiber (SMF). QSFPTEK manufactured Cisco WSP-Q40GLR4L compatible QSFP+ module is compliant with QSFP+ MSA standard. Besides, this module has been tested on host devices to ensure full compatibility with Cisco switches. The third-party 40G QSFP module is an ideal substitute for the OEM QSFP 40G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 40G Ethernet connectivity.

Model Name	QT-QSFP-IR4	Vendor Name	QSFPTEK
Form Factor	QSFP+	Data Rate	40 Gbps
Wavelength	1310nm	Distance	2km@OS2
Connector	LC Duplex	Cable Type	OS2 SMF
Transmitter Type	DFB CWDM	Receiver Type	PIN
TX Power	-7~2.3dBm	Receiver Sensitivity	<-11.5dBm
Power Consumption	<3.5W	Temperature	0 to 70°C (32 to 158°F)
DDM	Support	Bit Error Ratio (BER)	1E-12
Protocols	40G Ethernet, Fibre Channel, SATA/SAS3, MSA Compliant	Warranty	3 Years

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2. Wide Application Scenarios

Fully compatible with most industry OEM devices. Ideal for data centers, campus networks, metro networks, etc.
3. Protocols

Compliant with IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636, Infiniband 40G QDR standards.
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

Point to Point Solution for 40GBASE-LR4L Ethernet

Product details

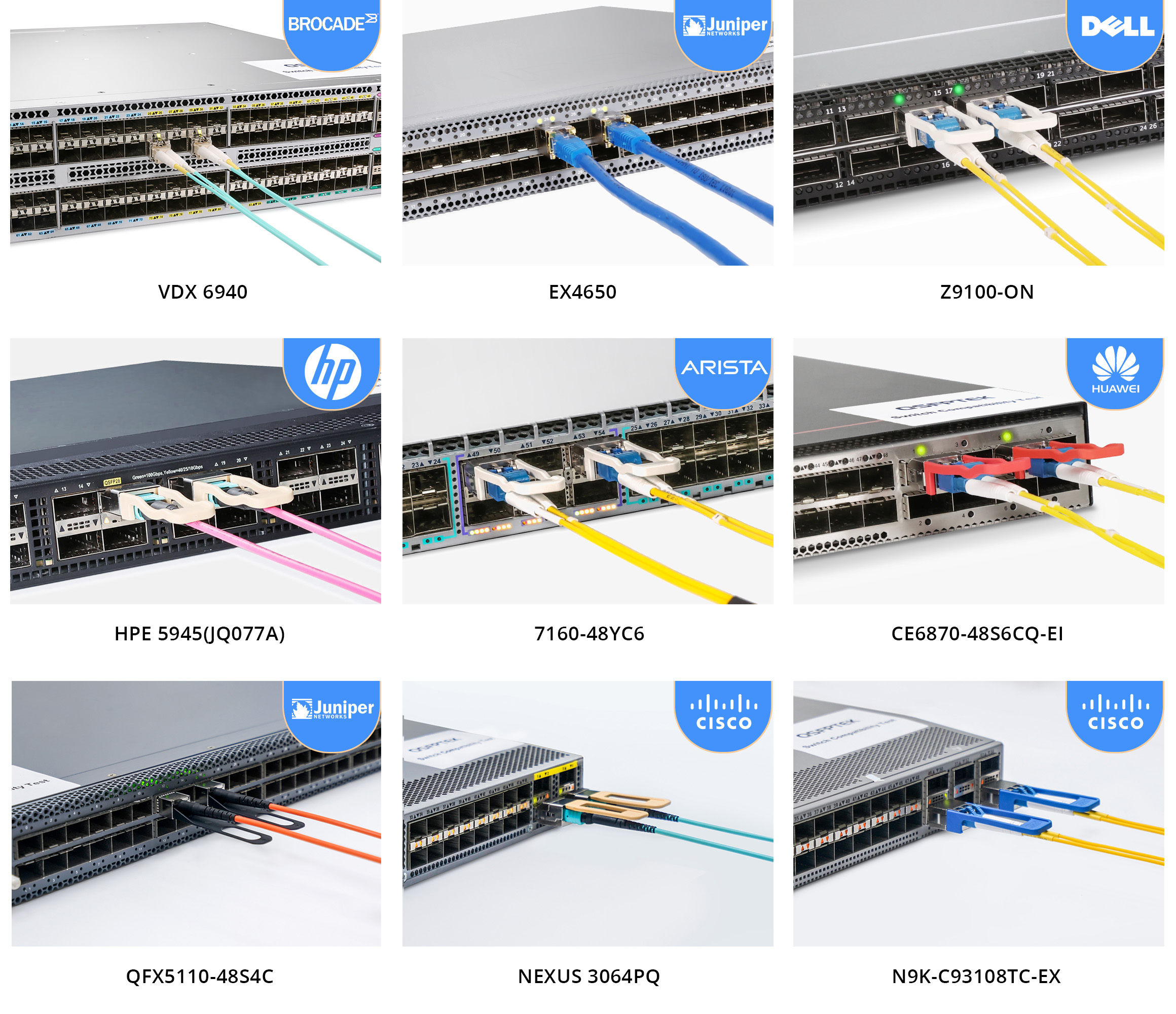

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

transceiver compatibility tests

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

Various Switch Tests

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

40G QSFP+ Model Contrast Table

Part Number	QT-QSFP+-SR4	QT-QSFP+-IR4	QT-QSFP+-PSM4	QT-QSFP+-LR4	QT-QSFP+-SH4	QT-QSFP+-ER4	QT-QSFP+-ZR4
Wavelength	850nm	CWDM	1310nm	CWDM	CWDM	CWDM	LWDM 1294~1310nm
Max Distance	150m	2km	10km	10km	20km	40km	80km
Cable Type	OM3/OM4 MMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF
Connector	MPO/MTP-12	LC Duplex	MPO/MTP-12	LC Duplex	LC Duplex	LC Duplex	LC Duplex
Tx Power(dBm)	-7 ~ 1	-7 ~ 2.3	-6 ~ -1	-7 ~ 2.3	-4 ~ 2.3	-2.7 ~ 4.5	-2.7 ~ 4.5
Rx Sensitivity(dBm)	-9.5	-11.5	-14.4	-13.7	-11.5	-19	-28
Power Consumption	<0.7W	<2.5W	<2.5W	< 2.5W	<3.5W	<3.5W	<5W
Source	VCSEL + PIN	DFB + PIN	4xDFB + PIN	DFB + PIN	DFB + PIN	DFB + PIN	4xDFB + APD
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C

Questions & Answers

more+

What is the difference between Cisco qspf-40g-lr4 and qsfp-40g-lr4-s?

They are actually the same one.
Does the qsfp-40g-sr4 transceivers allow 4x 10g connectivity?

Yes. The connectivity is achieved by using an 8-fibers OM4 MTP-LC Type B break-out cable, which connects the qfp-40g-sr4 transceivers to four sfp-10g-sr optical interfaces.
Can this module work at 80°C?

No, it can't. The working temperature range is 0 to 70°C.
