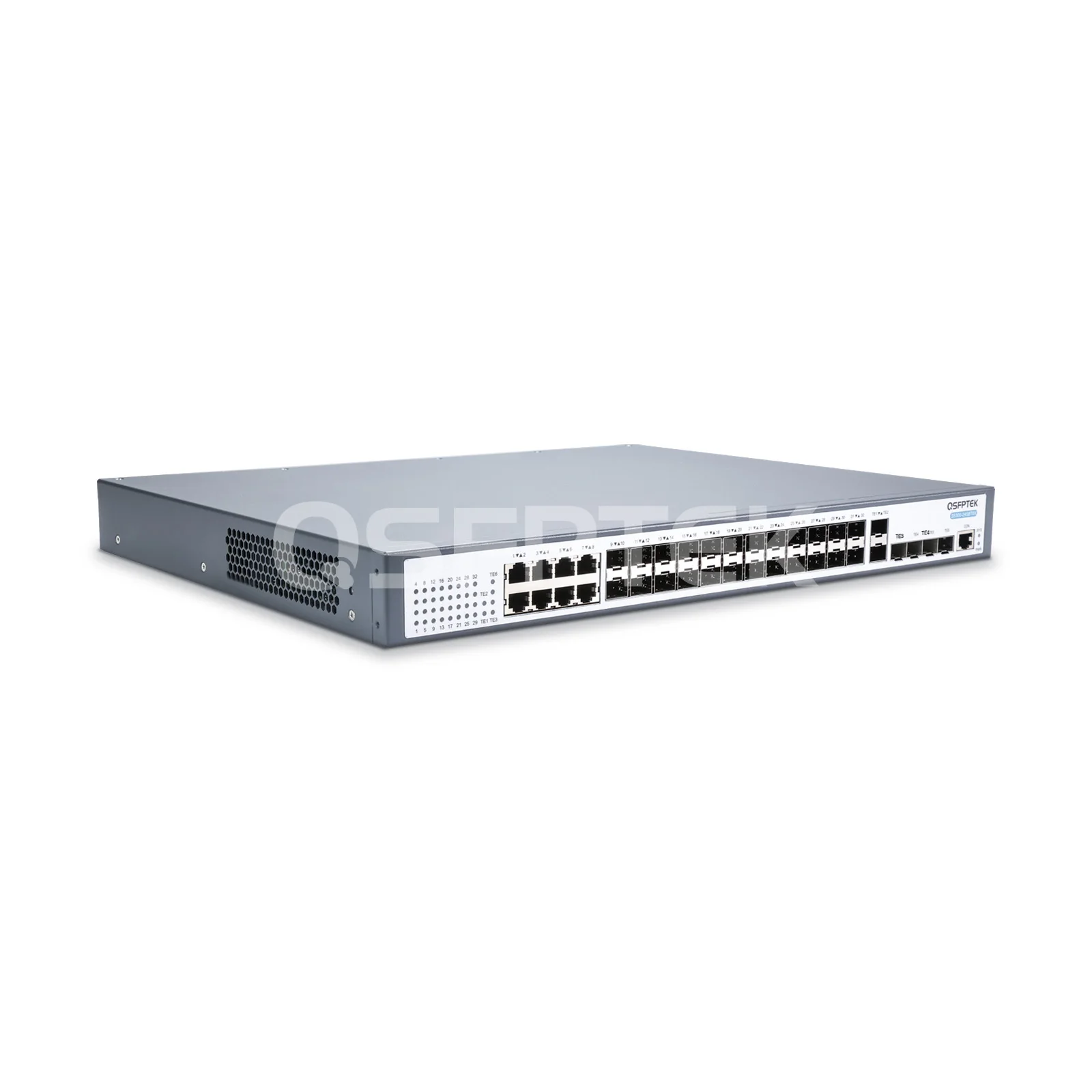

S5300-24S8T6X, 24-Port Gigabit Ethernet Managed L3 Switch, 24x 1G SFP, 8x 1G RJ45, with 6 x10GE SFP+ Uplinks, Support Stacking

Product No: 100506
157 Reviews
158 Sold
US$ 849.00  US$ 990.00
65 in real-time stock, 07 Jun, 2026
US/EU/Global warehouses in stock | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange
5-Year Warranty 14-Day Returns 90-Day Exchange
Warranty
Providing industry-leading limited lifetime warranty.
Please check our warranty policy for details.
Returns & Exchange
Exchanges caused by the customer's reasons will not be accepted.
Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
Please check our Return Policy for details.
-
+
1. Low-power and smart fans design support left-to-right airflow
2. industry-level EAPS and ERPS for 50ms recovery time

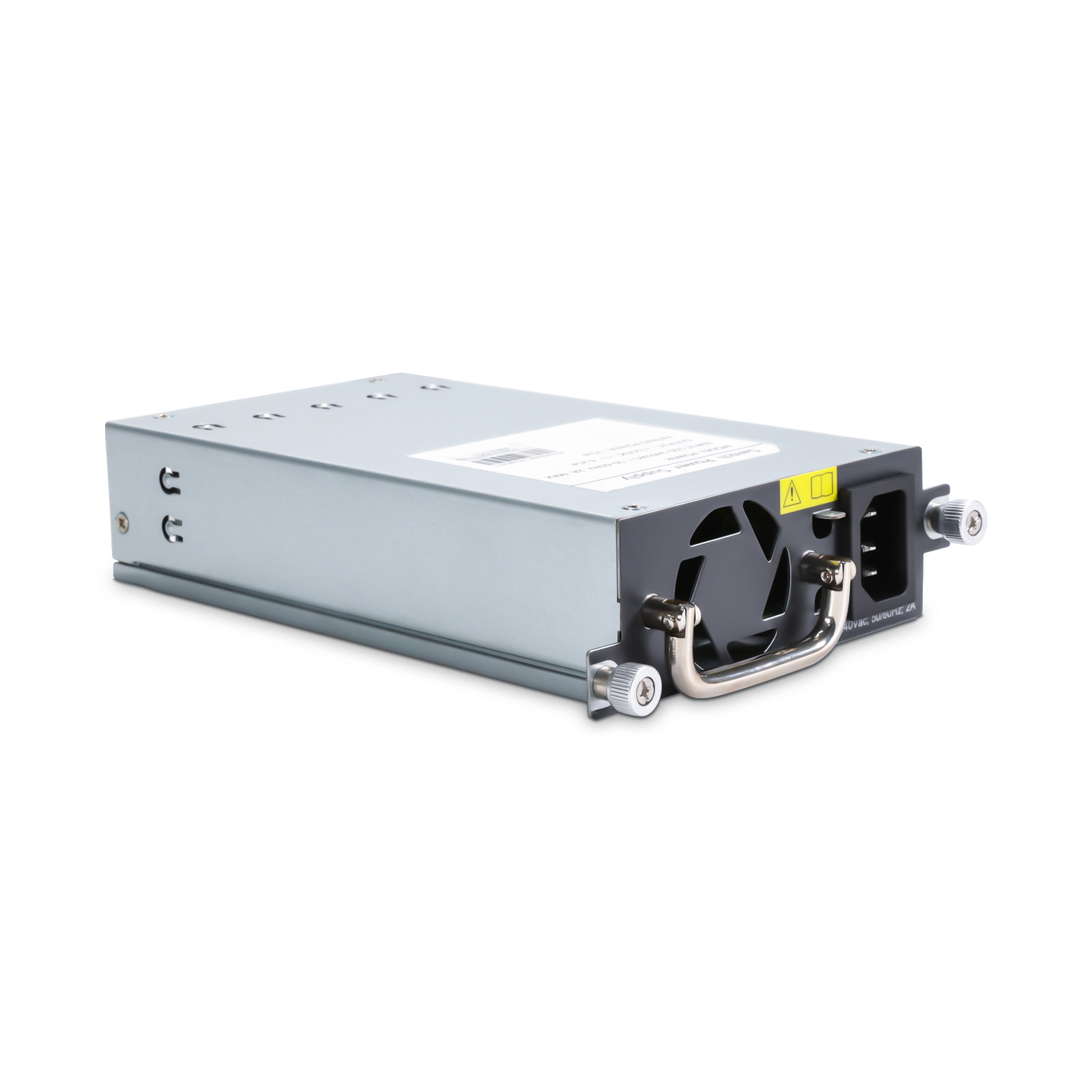

3. 1+1 redundancy hot-swap AC 220V power supply for long-lasting operation
4. Supports ACL, QinQ, QoS, ISSU, IPv6, VLAN, etc.
5. Supports CLI/WEB/Telnet/SSH/SSL/SNMP for management
6. Supports IEEE 802.1x, Radius,etc.for security
7. Supports LACP, BFD, MSTP, ERPS, VRRP, ISSU for reliability
See more

Specifications

24-Port Gigabit L3 Aggregation Ethernet Managed Fiber Optic Switch, 24x GE SFP Ports, 8x GE RJ45 with 6x 10GE SFP+ Uplinks, Support Stacking



The S5300-24S8T6X is a Ethernet-managed aggregation switch with 24x GE SFP ports, 8x GE RJ45, and 6x 10GE SFP+ uplink ports, supporting a switching capacity of up to 184 Gbps and a forwarding rate of 138 Mpps, for stable transmission. This 24-port SFP switch with the ability to support the stacking of up to eight S5300 Series switches, these layer 3 managed switches can be seamlessly treated as a single logical entity, facilitating convenient management. This managed network switch is equipped with 1+1 redundant hot-swappable power supplies and 2 built-in  intelligent fans to enhance network reliability. Effortlessly control and manage the switch through both CLI and WEB interfaces. The S5300-24S8T6X aggregation switch is an excellent choice for enterprise network requirements, campus networks, and SMBs.



Part Number S5300-24S8T6X Vendor Name QSFPTEK
Ports 24x 1G SFP | 8x 1G RJ45 | 6x 10G SFP+ Packet Buffer 2 MB
Switching Capacity 184 Gbps Forwarding Rate 138 Mpps
MAC Address 32K ARP Table 8189
VLAN IDs 4K Jumbo Frame 9K
Flash Memory 16 MB RAM 512 MB
Airflow Left-to-right Fan 2 built-in fans
Input Voltage 100 to 240 VAC, 50Hz±10% Power Supply 1 hot-swap AC power supply (default)
1+1 redundant power slots, DC optional
Stackability 8 MTBF >200,000 hours
Dimensions (H x W x D) 44.5 x 442.5 x 350 mm
(1.75 x 17.42 x 13.78")
Weight 5.5 kg
Operating Temperature -10 to 45℃ (14 to 113℉) Warranty 5 Years
Quality Testing Program
Quality Certifications

Features

  • 1. Comprehensive IPv6 Solutions
    Supports the IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6 and Path MTU discovery, IPv6 multicast with MLD and MLD Snooping support.
  • 2. Enhanced QoS
    Support CAR traffic restriction and 802.1P/DSCP priority re-marking, support SP, WRR, SP+WRR and other queue scheduling methods, support Tail-Drop, WRED and other congestion avoidance mechanisms.
  • 3. High-reliability
    Supports LACP, BFD, MSTP, ERPS, VRRP, ISSU for reliability. Supports redundant 1+1 power backup and static/LACP link aggregation, as well as cross-service card link aggregation.
  • 4. Easy Management and Maintenance
    Supports CLI/Telnet/SSH/SSL/SNMP/WEB for easy management.

Applications

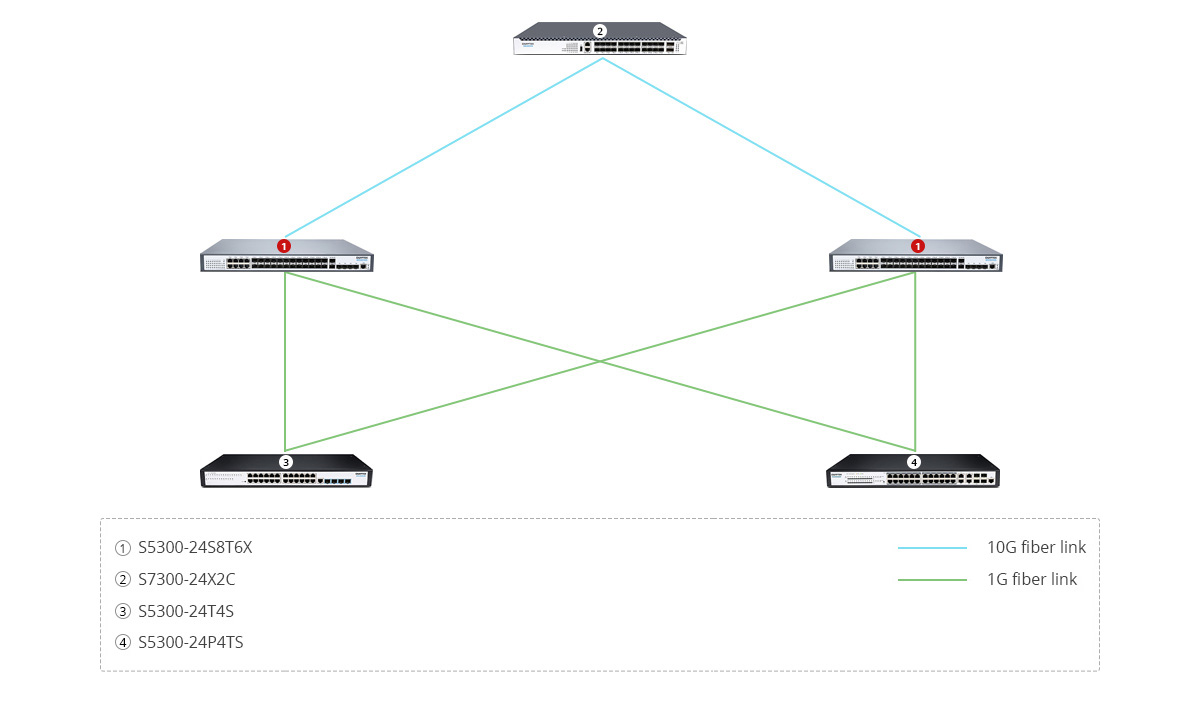

Scenario 1:



S5300-24S8T6X Scenario 1

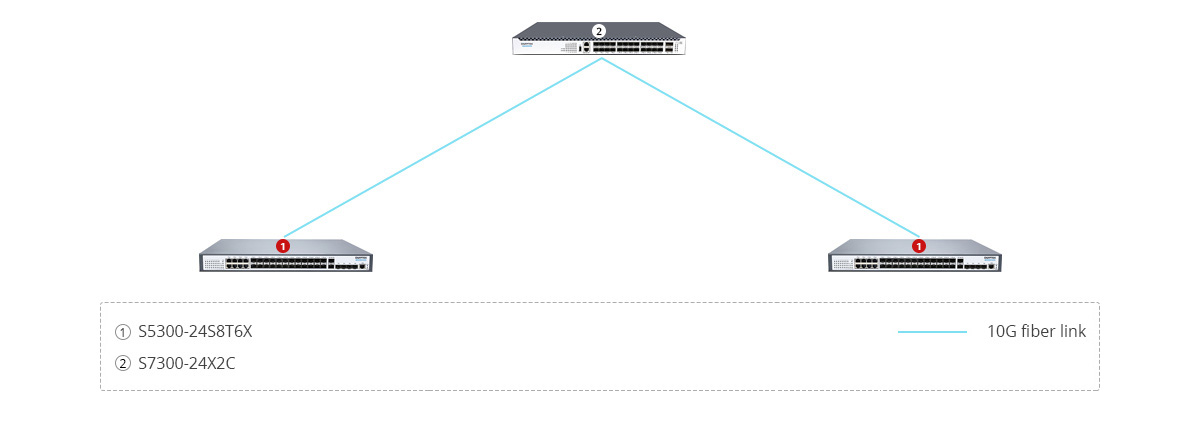

Scenario 2:

S5300-24S8T6X Scenario 2

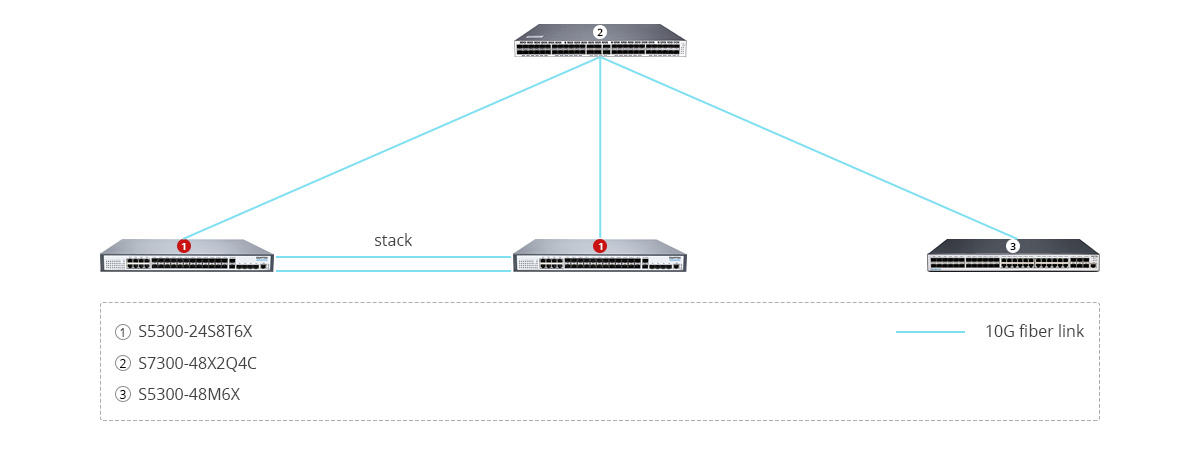

Scenario 3:



S5300-24S8T6X Scenario 3

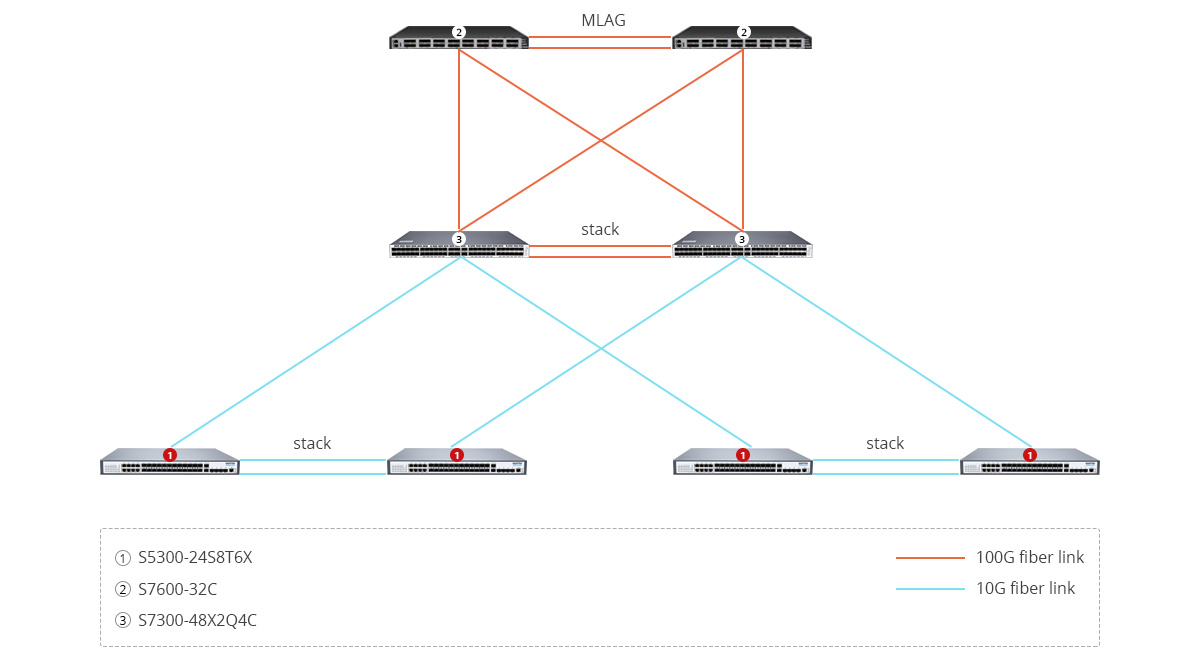

Scenario 4:



S5300-24S8T6X Scenario 4



Product details

1G/10G High-capacity Interface Combinations



S5300-24S8T6X switch is available in a variety of high-capacity interface combinations, including high-density 24x GE SFP ports and 8x 10/100/1000M RJ45, with 6x 10G SFP+ uplink ports, providing 184 Gbps switching capacity and 138 Mpps forwarding rate performance.



Smart Fans and Built-in Single AC Power Supply Design



Smart fans and the left-to-right  airflow design can intelligently adjust the operation of the fan to control energy consumption and increase the service life of the fan.



8 Units Stackability to Increase Network Capacity



Use 10G ports for stacking via transceiver or special cables to increase port capacity, the maximum stack number is up to 8. These switches can be logically regarded as a switch, which makes management more convenient.






QSFPTEK S5300/S5310 Series L3 Switches Options





Model S5300-24T6X S5310-48P6X S5300-48T6X S5300-48M6X S5300-24S8T6X
RJ45 Ports 24x 10/100/1000BASE-T 48x 10/100/1000BASE-T 48x 10/100/1000BASE-T 24x 10/100/1000BASE-T 8x 10/100/1000BASE-T
Fiber Ports 6x 10G SFP+ 6x 10G SFP+ 6x 10G SFP+ 24x 1G SFP | 6x 10G SFP+ 24x 1G SFP | 6x 10G SFP+
PoE Not Support IEEE 802.3af/at Not Support Not Support Not Support
Management Layer L3 Managed L3 Managed L3 Managed L3 Managed L3 Managed
Power Supply 1 Built-in AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
1 Hot-Swap AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
1 Built-in AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
1 Hot-Swap AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
1 Hot-Swap AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
Fan 2 Built-in Fans 3 Built-in Fans 2 Built-in Fans 2 Built-in Fans 2 Built-in Fans
Stackability 8 Units 8 Units 8 Units 8 Units 8 Units
Data Link Layer QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP
Routing Static routing, RIP v1/v2, OSPF, BGP Static routing, RIP v1/v2, OSPF, BGP Static routing, RIP v1/v2, OSPF, BGP Static routing, RIP v1/v2, OSPF, BGP Static routing, RIP v1/v2, OSPF, BGP
Security IGMP Snooping, DHCP snooping, Port security IGMP Snooping, DHCP snooping, Port security IGMP Snooping, DHCP snooping, Port security IGMP Snooping, DHCP snooping, Port security IGMP Snooping, DHCP snooping, Port security
IPv6 IPv6 Static Routing, RIPng, OSPFv3, BGP4+ IPv6 Static Routing, RIPng, OSPFv3, BGP4+ IPv6 Static Routing, RIPng, OSPFv3, BGP4+ IPv6 Static Routing, RIPng, OSPFv3, BGP4+ IPv6 Static Routing, RIPng, OSPFv3, BGP4+
Reliability BFD, QoS, LLDP, VRRP, PBR BFD, QoS, LLDP, VRRP, PBR BFD, QoS, LLDP, VRRP, PBR BFD, QoS, LLDP, VRRP, PBR BFD, QoS, LLDP, VRRP, PBR
