    Products / Network switches / Campus Switches / 1G/10G Switches / 101213

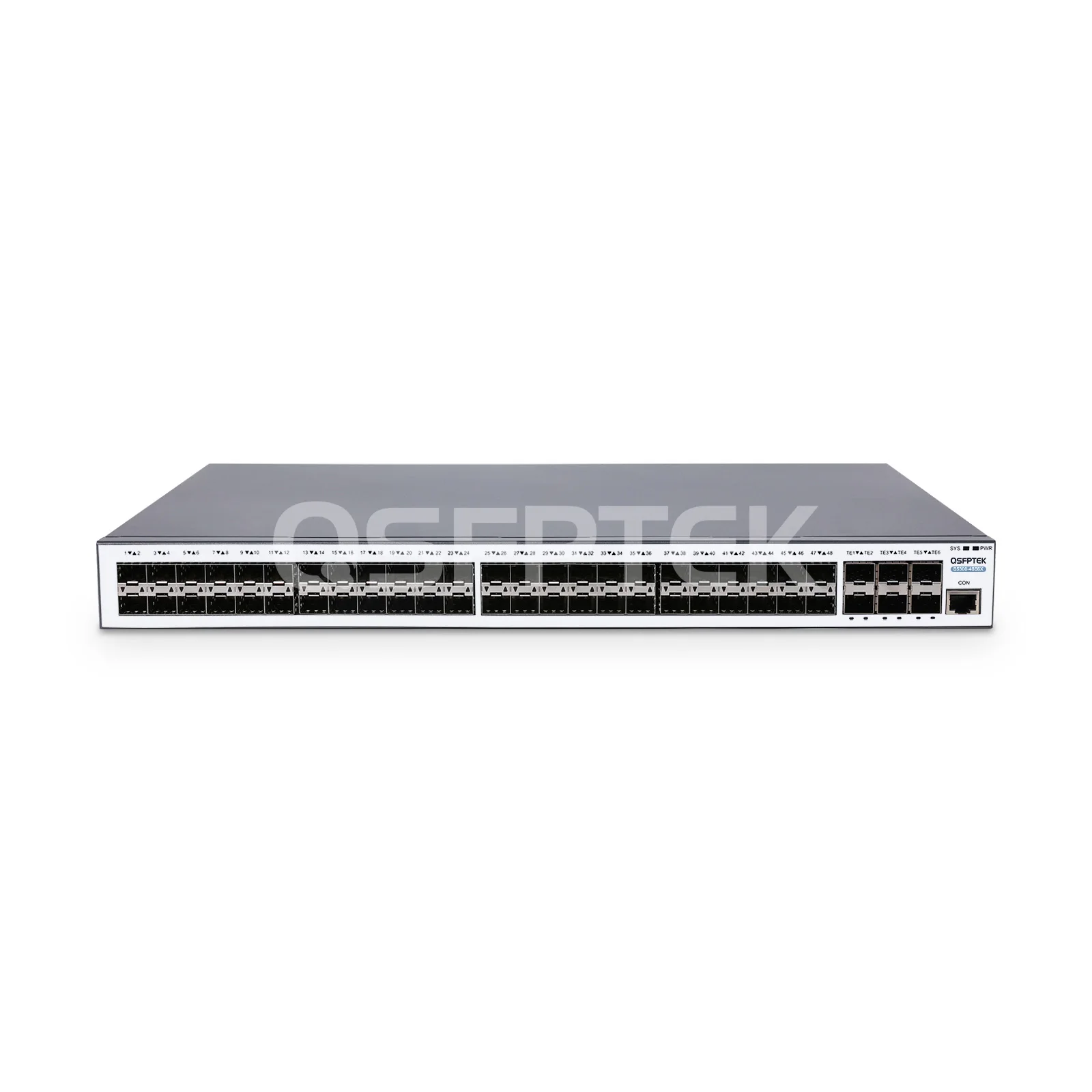

    Product image
    Product image
    Product image

    S5300-48S6X, 48-Port Gigabit Ethernet L2+ Managed Switch, 48x 1G SFP Ports, with 6x 10G SFP+ Uplinks, Support Stacking

    Product No: 101213
    0 Reviews
    163 Sold
    $768.90  $859.00
    Series
    Models
    80 in real-time stock, 23Oct, 2026
    US/EU/Global warehouses in stock | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange
    5-Year Warranty 14-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Low-power and 3 built-in smart fans design, support left-to-right airflow
2. Industry-level EAPS and ERPS for 50ms recovery time
3. Supports ACL, QinQ, QoS, ISSU, IPv6, VLAN, LACP, etc.
4. Supports CLI/WEB/Telnet/SSH/SSL/SNMP management
5. Supports IEEE 802.1x, Radius, Tacacs+, etc.for security
6. Supports LACP, BFD, MSTP, ERPS, VRRP, ISSU for reliability
7. Carrier-Level Ethernet Access Switch for carrier's IP MAN and enterprise networks
    See more

    Specifications

    S5300-48S6X, 48-Port Gigabit Ethernet L2+ Managed Switch, 48x 1G SFP Ports, with 6x 10G SFP+ Uplinks, Support Stacking



    The S5300-48S6X switch is an access switch for telecom IP and diskless working environments. This switch is built on new-generation high-performance hardware and offers powerful features, including ACL, flexible QinQ, 1:1 and N:1 VLAN swapping, Ethernet OAM, carrier-grade QoS, industrial-grade 10 Gigabit Ethernet ring, and support for Layer 3 routing protocols. These features enable this series of products to meet the application requirements of various complex scenarios.



    Part Number S5300-48S6X Vendor Name QSFPTEK
    Ports 48x 1G SFP | 6x 10G SFP+ Packet Buffer 2 MB
    Switching Capacity 216 Gbps Forwarding Rate 162 Mpps
    MAC Address 32K ARP Table 512
    VLAN IDs 4K Jumbo Frame 9K
    Flash Memory 16 MB RAM 512 MB
    Airflow Left-to-right Fan 3 built-in fans
    Input Voltage 100 to 240 VAC, 50Hz±10% Power Supply 1 built-in AC power supply (default)
    1+1 redundant power slots, DC optional
    Stackability 8 MTBF ＞200,000 hours
    Dimensions (H x W x D) 44 x 440 x 280 mm
    (1.73 x 17.32 x 11.02")    		 Weight 5 kg
    Operating Temperature -10 to 45℃ (14 to 113℉) Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    S7300-48X2Q4C, 48-Port Ethernet L3 Switch, 48x 10G SFP+, with 2x 40G QSFP+ and 4x 100G QSFP28 Uplinks, Support Stacking

    $2409.40 $2999.00
    123 Sold
    171 Reviews
    Hot

    S5300-48M6X, 48-Port Gigabit Ethernet Managed L3 Switch, 24x 1G RJ45 Ports, 24x 1G SFP Ports, with 6x 10G SFP+ Uplinks, Support Stacking

    $1316.00 $1499.00
    192 Sold
    157 Reviews

    Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

    $8.90 $11.90
    10.5K Sold
    119 Reviews

    LC UPC to LC UPC Duplex OM4 2.0mm LSZH Multimode Fiber Optic Patch Cable 1m

    $3.16
    8.6K Sold
    79 Reviews
    Hot

    S5300-24T4S, 24-Port Gigabit Ethernet L2+ Managed Switch, 24x 10/100/1000BASE-T RJ45 Ports, with 4x 1G SFP Uplinks, Fanless

    $203.90 $255.00
    190 Sold
    157 Reviews
    Hot

    S5300-24P4TS, 24-Port Gigabit Ethernet L2+ Managed Active 802.3af/at PoE+Switch, 24x 10/100/1000BASE-T RJ45 PoE+ Ports @370W, with 4x 1G RJ45/SFP Combo, Up to 100M Transmit, Support OSPF

    $437.90 $535.00
    170 Sold
    75 Reviews

    Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module

    $6.90 $8.00
    7.9K Sold
    64 Reviews
    Hot

    Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m MTP/MPO-12 MMF DDM Optical Transceiver Module

    $35.90 $59.90
    18.9K Sold
    160 Reviews
    Hot

    1m (3ft) MTP-12 UPC (Female) to MTP-12 UPC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    $47.60
    11.8K Sold
    79 Reviews

    Features

    • 1. Comprehensive IPv6 Solutions
      Supports the IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6 and Path MTU discovery, IPv6 multicast with MLD and MLD Snooping support.
    • 2. Enhanced QoS
      Support CAR traffic restriction and 802.1P/DSCP priority re-marking, support SP, WRR, SP+WRR and other queue scheduling methods, support Tail-Drop, WRED and other congestion avoidance mechanisms.
    • 3. High-reliability
      Supports LACP, BFD, MSTP, ERPS, VRRP, ISSU for reliability. Supports redundant 1+1 power backup and static/LACP link aggregation, as well as cross-service card link aggregation.
    • 4. Easy Management and Maintenance
      Supports CLI/Telnet/SSH/SSL/SNMP/WEB for easy management.

    Applications

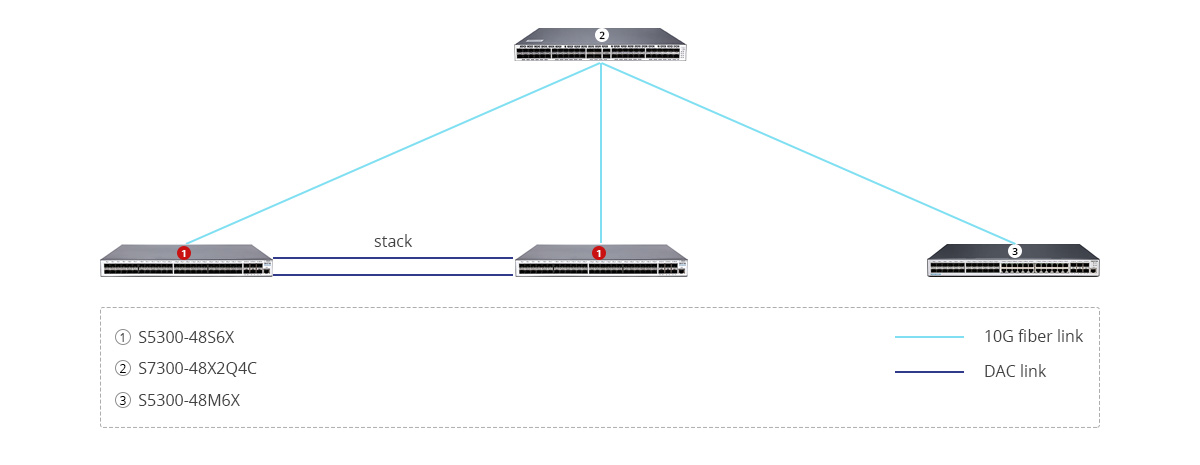

    Scenario 1:



    S5300-48S6X Scenario 1

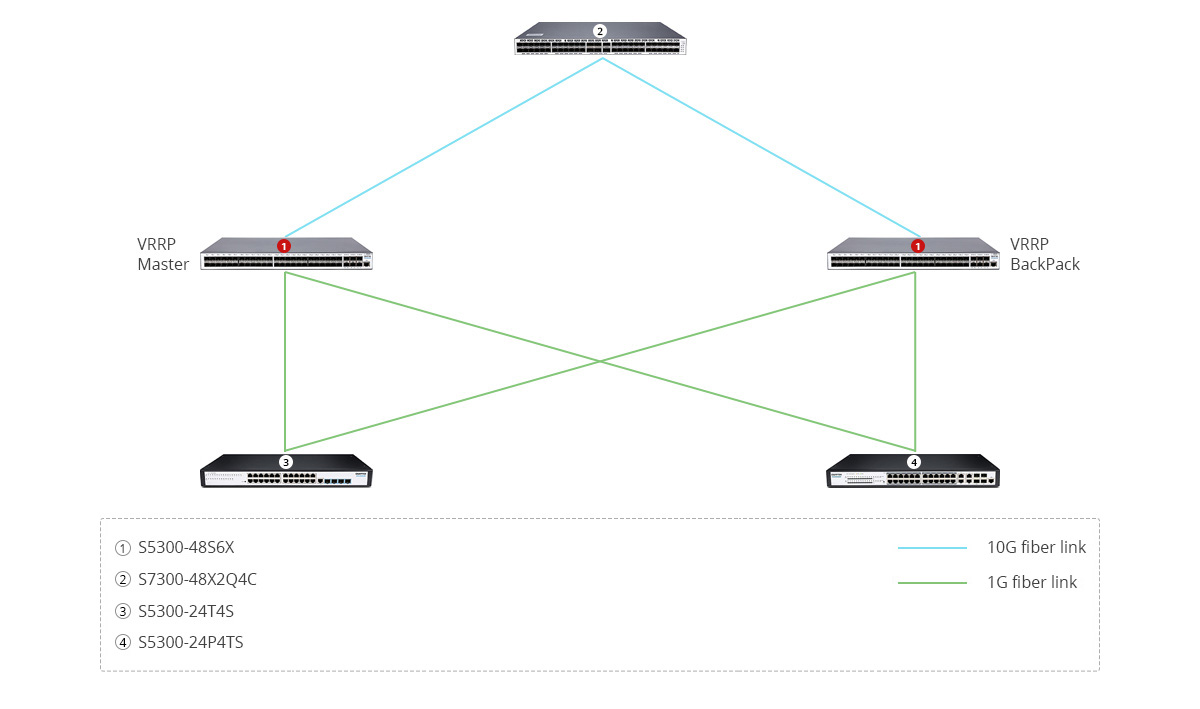

    Scenario 2:

    S5300-48S6X Scenario 2

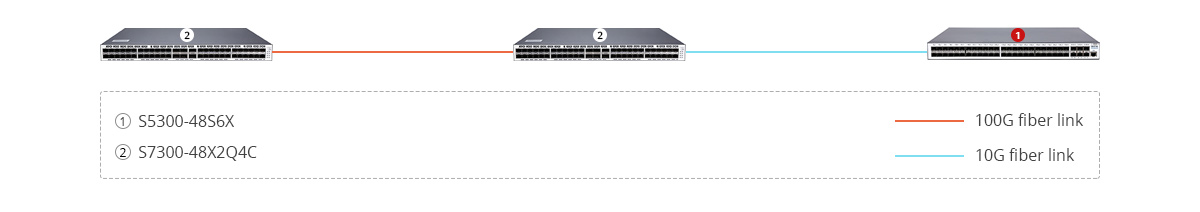

    Scenario 3:

    S5300-48S6X Scenario 3

    Product details

    1G/10G High-capacity Interface Combinations



    S5300-48S6X switch is available in a variety of high-capacity interface combinations, including high-density 48x GE SFP ports and 6x 10GE SFP+ uplink ports, providing 216 Gbps switching capacity and 162 Mpps forwarding performance.



    S5300-48S6X Network Switch

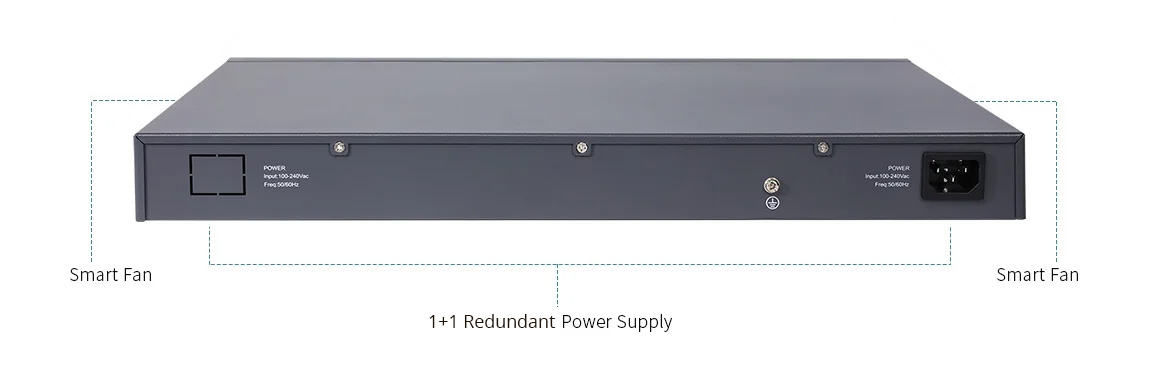

    Smart Fans and Redundant Power Design



    1+1 redundant power supplies ensure continuous availability. The airflow design from left to right can intelligently adjust the operation of the fan to control energy consumption and increase the service life of the fan.



    S5300-48S6X smart fans and ac power supply



    8 Units Stackability to Increase Network Capacity



    Use 10G ports for stacking via transceiver or special cables to increase port capacity, the maximum stack number is up to 8. These switches can be logically regarded as a switch, which makes management more convenient.

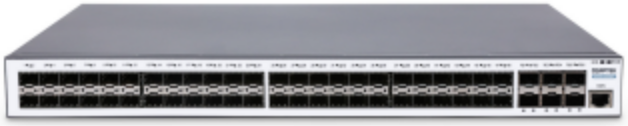

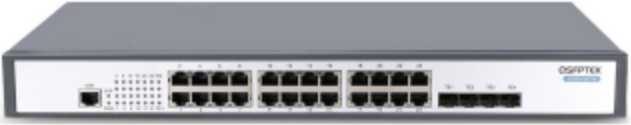

     QSFPTEK S5300 Series L2+ Stackable Switches Options



    Model S5300-24T4X S5300-16S8TS4X S5300-24P4X S5300-48P6X S5300-48T4X S5300-48S6X

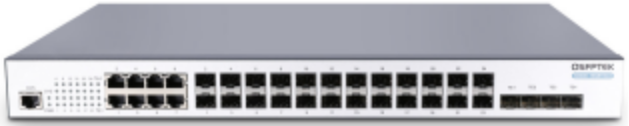

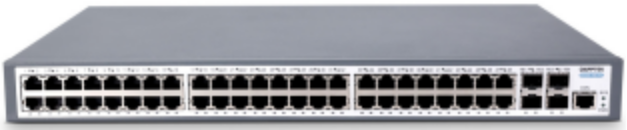

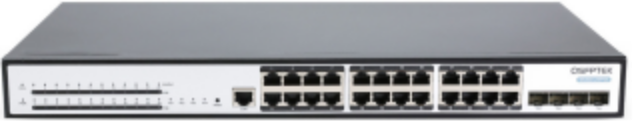

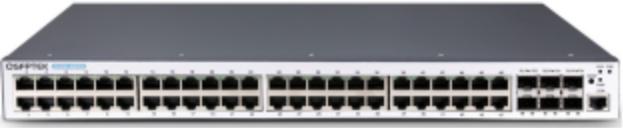

    Image 图片 图片 图片 图片 图片 图片
    RJ45 Ports 24x 10/100/1000BASE-T 8x 1G RJ45/SFP Combo 24x 10/100/1000BASE-T 48x 10/100/1000BASE-T 48x 10/100/1000BASE-T —
    Fiber Ports 4x 10G SFP+ 16x 1G SFP | 4x 10G SFP+ 4x 10G SFP+ 6x 10G SFP+ 4x 10G SFP+ 48x 1G SFP | 6x 10G SFP+
    PoE Not Support Not Support IEEE 802.3af/at IEEE 802.3af/at Not Support Not Support
    Management Layer L2+ Managed L2+ Managed L2+ Managed L2+ Managed L2+ Managed L2+ Managed
    Power Supply 1 Built-in AC Power Supply (default)
    1+1 Redundant Power Slots, DC Optional    		 1 Built-in AC Power Supply (default)
    1+1 Redundant Power Slots, DC Optional    		 1 Built-in AC Power Supply 1 + 1 Redundant Power Supplies (1 Built-in AC + 1 Built-in DC) 1 Built-in AC Power Supply (default)
    1+1 Redundant Power Slots, DC Optional    		 1 Built-in AC Power Supply (default)
    1+1 Redundant Power Slots, DC Optional
    Fan Fanless 2 Built-in Fans 2 Built-in Fans 2 Built-in Fans 2 Built-in Fans 3 Built-in Fans
    Stackability 2 Units 2 Units 2 Units 8 Units 2 Units 8 Units
    Data Link Layer QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP
    Routing Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF
    Security IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, MLD Snooping, DHCP snooping, Port Security IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, MLD Snooping, DHCP snooping, Port Security IGMP Snooping, MLD Snooping, DHCP Snooping, DAI, IPSG, Port Security
    IPv6 IPv6 Static Routing, RIPng,
    OSPFv3    		 ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Static Routing, RIPng,
    OSPFv3    		 IPv6 Static Routing, RIPng,
    OSPFv3    		 ICMPv6, DHCPv6, ACLv6, IPv6 Telnet ICMPv6, DHCPv6, ACLv6, IPv6 Telnet
    Reliability QoS, VRRP, ISSU VRRP, QoS, ISSU QoS, VRRP, ISSU QoS, VRRP, ISSU VRRP, QoS, ISSU VRRP, QoS, ISSU



    Questions & Answers

    • All (37)
    • The power supply specification on this page is only 100V-240V AC, can I use DC power supply on S5300-48M6X?
      Yes, S5300-48M6X supports DC: -36~-72V input voltage.
    • When one of the stacked units goes down, does it affect the entire stacked unit?
      No. When the master device in the stacked unit goes down, the standby device will be scheduled as the master device according to the preset master standby order. When the master device comes back into operation, the unit automatically resets itself as the master device and there will be no business interruption. It also supports BFD bi-directional link detection to achieve 50ms-level fault detection and service recovery, which greatly improves the reliability of the network.
    • Do S5300 Series Switches Support CLI or WEB Management?
      Yes, QSFPTEK S5300-48T6X and S5300-48M6X swtitches support CLI, Telnet, SSH, SNMP, WEB management.
