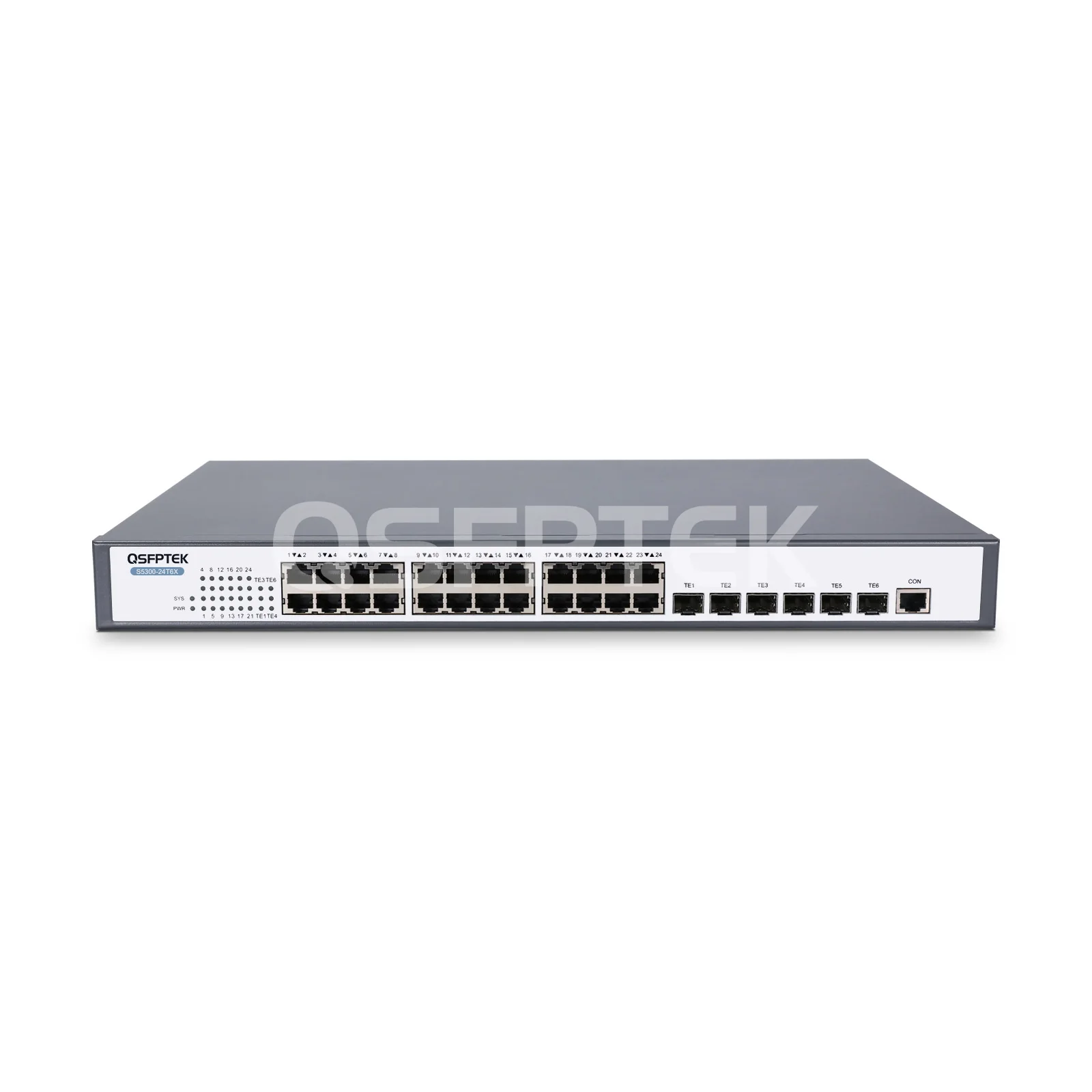

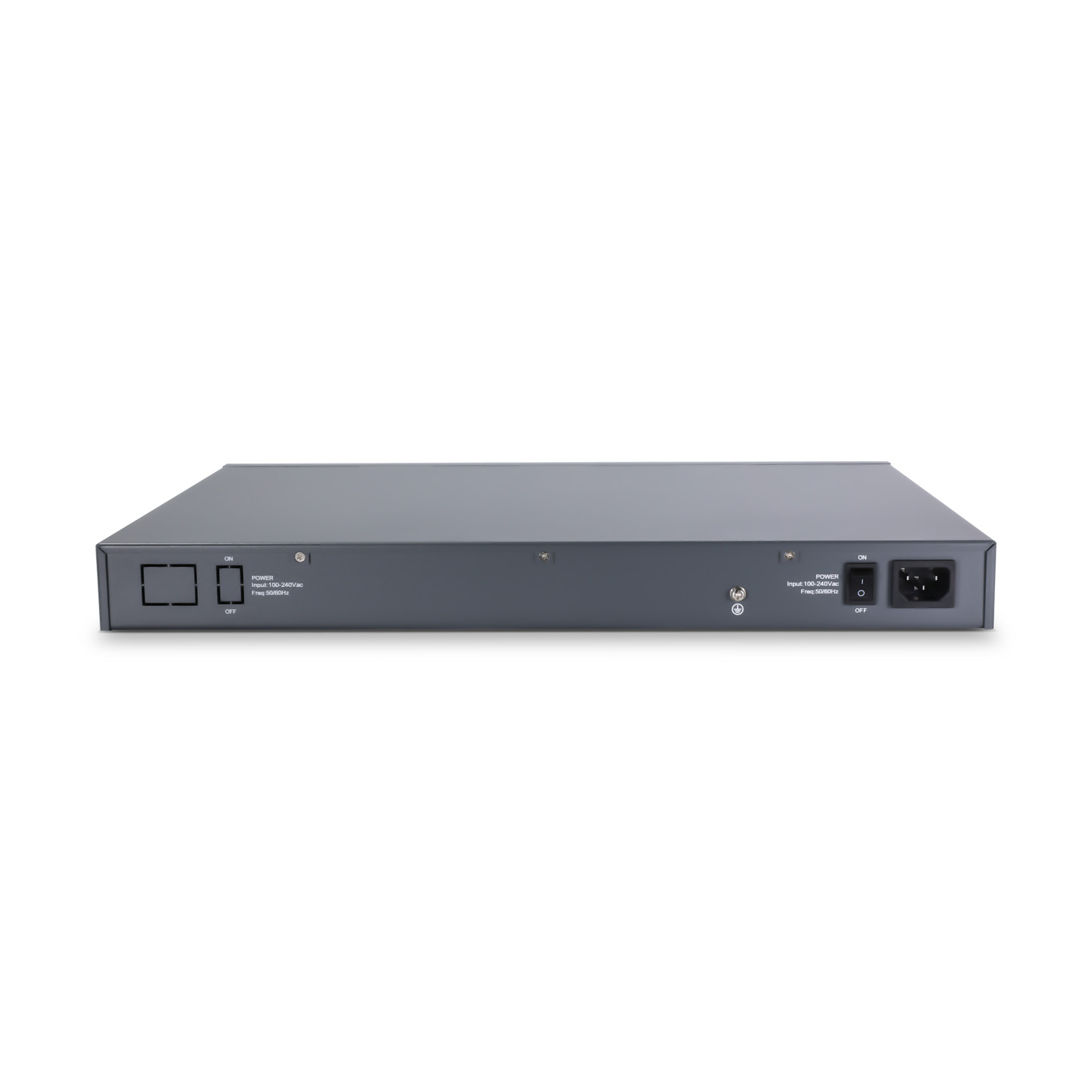

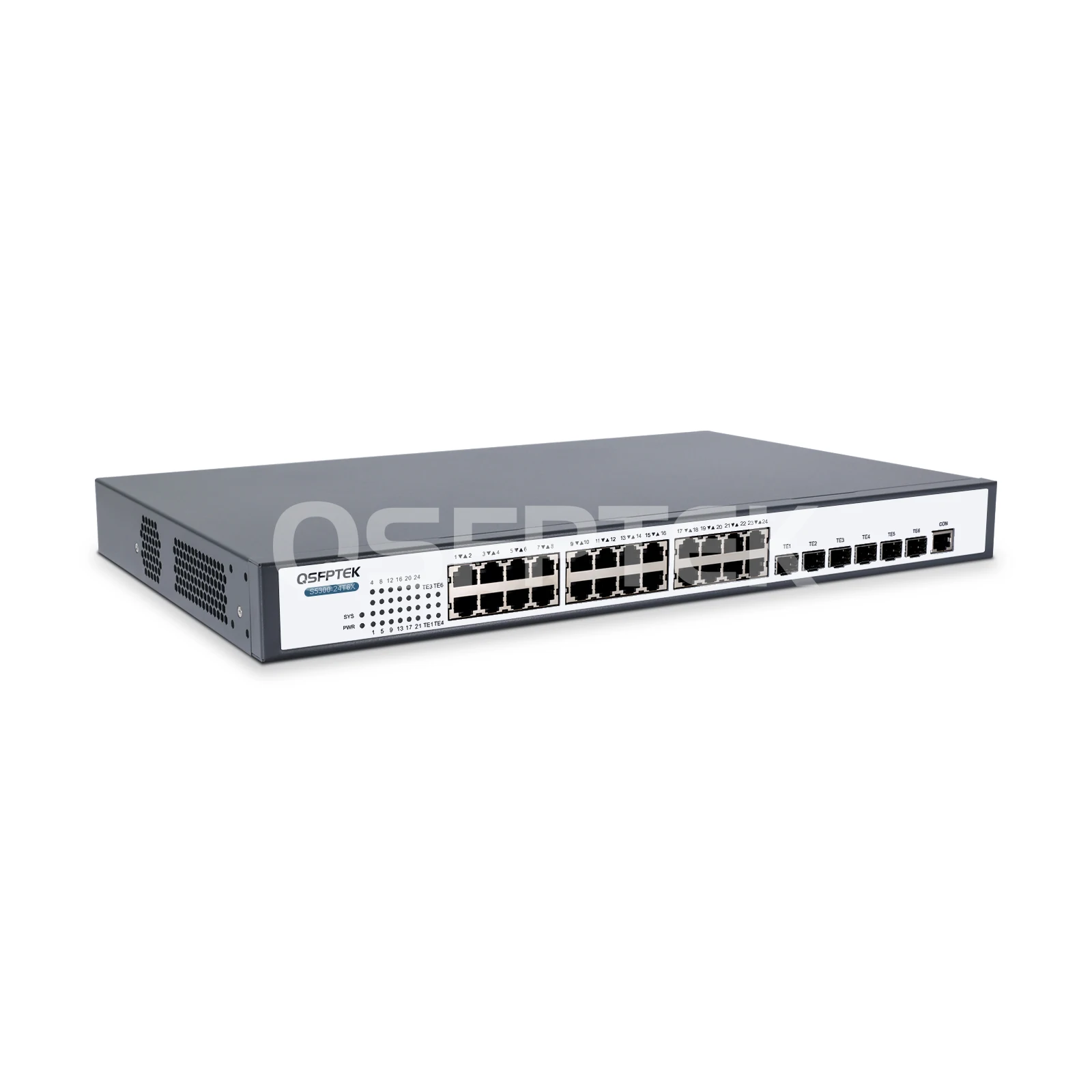

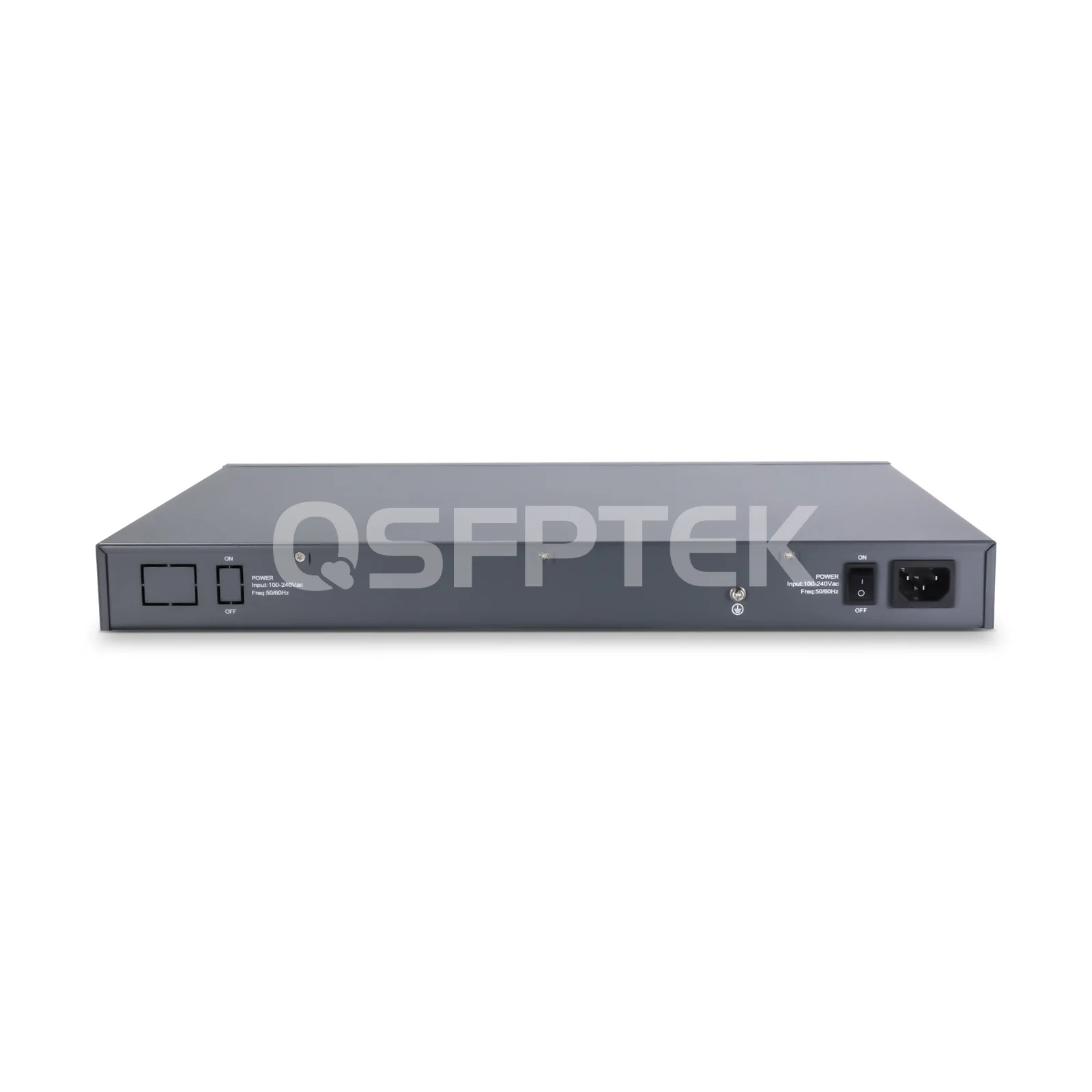

S5300-24T6X, 24-Port Gigabit Ethernet L3 Switch, 24x GE RJ45 Ports with 6x 10GE SFP+ Uplinks, Support Stacking

Product No :100505
US$ 473.90  US$ 539.00
100 in stock
1. 24x 10/100/1000BASE-T RJ45, 6x 10G SFP+ uplink ports.
2. Support stacking up to eight switches.
3. 2 smart fans support left-to-right airflow.
4. Support comprehensive Layer 3 features with advanced L3 routing protocols support including OSPF, BGP, RIP, etc.
5. Support STP/RSTP/MSTP/VRRP/LACP/ERPS/BFD for high reliability.
6. Support QoS/ACL/DHCP/DoS for high security.
See more

Specifications

S5300-24T6X, 24-Port Gigabit Ethernet L3 Switch, 24x GE RJ45 Ports with 6x 10GE SFP+ Uplinks, Support Stacking



QSFPTEK S5300-24T6X Gigabit L3 switch has 24x 10/100/1000BASE-T RJ45 and 6x 10G SFP+ uplink ports. It delivers 168 Gbps switching capacity and 126 Mpps forwarding rate. It features powerful stacking capability by supporting stacking up to 8 units, providing higher network bandwidth and reliability. It also supports mature IPv6 features, comprehensive security and reliability features, simple to deploy and manage. It can be used as an ideal and cost-effective access or aggregation layer switch for campus networks.



Ports

24x 100/100/1000BASE-T RJ45 | 6x 10G SFP+

Packet Buffer

2 MB

Switching Capacity

168 Gbps

Forwarding Rate

126 Mpps

MAC Address

32766

ARP Table

8191

VLAN IDs

4K

Jumbo Frame

9000 bytes

FLASH

16 MB

RAM

512 MB

Stackability

8 Units

Airflow

Left-to-Right

Power Supply

1

Fan Number

2 build-in fans

Max. Power Consumption

75W

MTBF

200,000 hours

Operating Temperature

0°~45°C (32°~113°F)

Weight

3.4kg

Dimensions (H×W×D)

4.4 x 44.0 x 35cm

(1.73 x 17.3 x 13.8 in.)

Warranty

5 Years

Features

  • Convenient and Secure Management
    Support SNMP v1/v2/v3, CLI, web management, Telnet and FTP connection, OAM, SSH2.0, SSL, etc. to make management more convenient. Support QoS, ACL, DHCP snooping, and DoS attack prevention to ensure high security.
  • Powerful Stacking Capability
    Support stacking up to eight switches to operate as a single module, providing higher port density and fault tolerance and increasing network bandwidth and reliability.
  • Comprehensive Layer 2/3 Functionality
    Support comprehensive L2 and L3 features, including L2 switching, L2 multicast, QoS, advanced L3 routing, OSPF, BGP, Bidirectional Forwarding Detection (BFD), and L3 multicast, etc.
  • Mature IPv6 Technology
    Support IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6, path MTU discovery, DHCPv6, etc. It enables a smooth transition from IPv4 to IPv6 network.

Applications

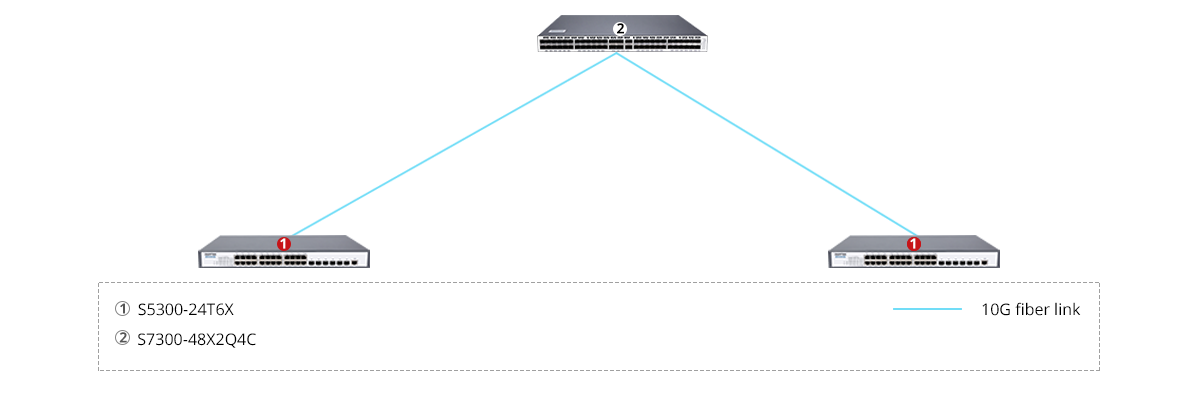

Scenario 1:

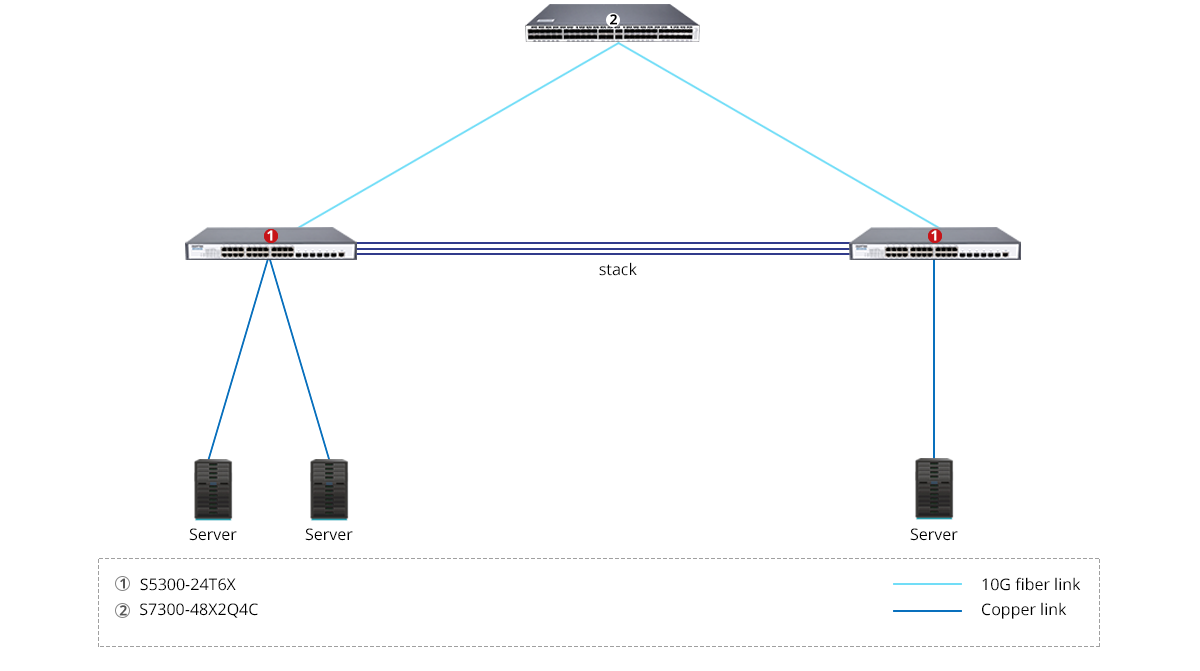

Scenario 2:

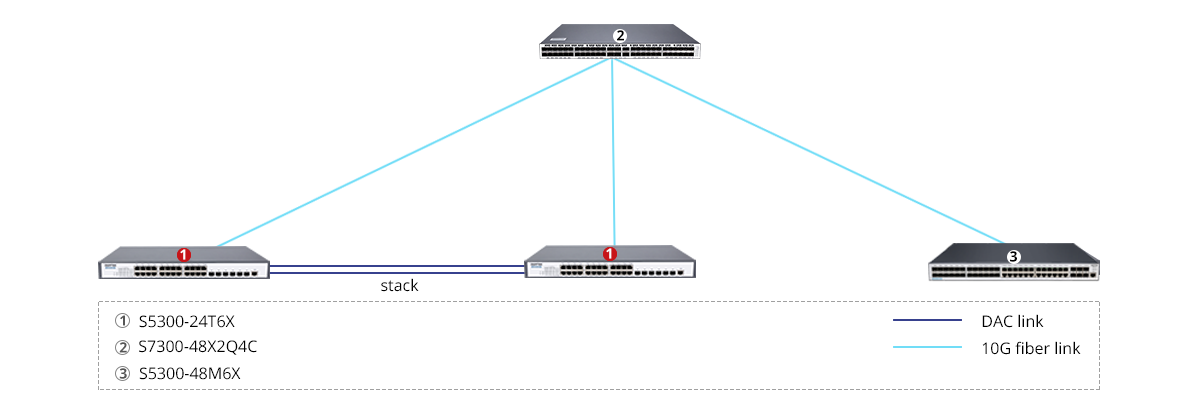

Scenario 3:

Related Products:



10G SFP+ Optical Transceiver Modules



10G SFP+ Passive Direct Attach Cables (DACs)



LC to LC Fiber Optic Patch Cables



S7300-48X2Q4C, 48-Port Ethernet L3 Campus Switch, 48x 10Gb SFP+, with 2x 40Gb QSFP+ and 4x 100Gb QSFP28 Uplinks, Stackable

Product details

High-density Gigabit Access Capability with 10GE Uplink



 S5300-24T6X switch provides 24x 10/100/1000BASE-T RJ45, allowing for high-density Gigabit access. 6x 10GE SFP+ uplink ports provide 10G high bandwidth to the backbone through the 10G SFP+ SR/LR modules. Its 216 Gbps switching capacity and 126 Mpps forwarding rate also help to ensure smooth and reliable data transfers. This can be used as an ideal access or aggregation layer switch for campus networks.

S5300-24T6X




Stacking Up to 8 Switches for Higher Bandwidth and Reliability



S5300-24T6X can stack up to eight switches to operate as a single module, providing higher port density and fault tolerance and increasing network bandwidth and reliability while staying cost-efficient. Perfect for small to medium-sized enterprises or campus applications.




Intelligent FAN Design, Energy-Saving Technology



S5300-24T6X switch features two smart fan designs and left-to-right airflow that optimizes air circulation inside the rack. This design meets heat dissipation requirements in equipment rooms. Real-time power consumption monitoring technology reduces power consumption and O&M costs.

Questions & Answers

more+
  • The power supply specification on this page is only 100V-240V AC, can I use DC power supply on S5300-48M6X?
    Yes, S5300-48M6X supports DC: -36~-72V input voltage.
  • When one of the stacked units goes down, does it affect the entire stacked unit?
    No. When the master device in the stacked unit goes down, the standby device will be scheduled as the master device according to the preset master standby order. When the master device comes back into operation, the unit automatically resets itself as the master device and there will be no business interruption. It also supports BFD bi-directional link detection to achieve 50ms-level fault detection and service recovery, which greatly improves the reliability of the network.
  • Do S5300 Series Switches Support CLI or WEB Management?
    Yes, QSFPTEK S5300-48T6X and S5300-48M6X swtitches support CLI, Telnet, SSH, SSL, SNMP, WEB management.
See more

Customer Reviews

Write a Review
Write a Review

Total score

(105 Reviews)

5 stars

104 Reviews

4 stars

1 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

  • Jaydev R. United States of America
    2023-03-23

    I recently purchased two S5300-24T4S switches from qsfptek and had a great experience. Their website provided a lot of information, but I still had some questions that were quickly and thoroughly answered by a knowledgeable sales rep. I was thrilled to find out that the switches were in stock, which was a major advantage for me. After my purchase, I was assigned an account manager who has been incredibly helpful with any technical questions that I have had. As for the switches themselves, they have exceeded my expectations in terms of performance and functionality. Overall, my experience with qsfptek has been fantastic, and they are now my go-to supplier for network equipment.

    Models 24x 1G RJ45, 4x 1G SFP | L2+

    Series1G/10G Switches

    0

    0

  • Laurence United States of America
    2023-03-20

    Purchasing from Amazon is my first choice at the beginning, but it seems prices are expensive because of the high commission, so I have to quit, was pleasantly surprised by the performance of the S7300-24X2C, delivering full 10G speed rate, you can also adjust the fan speed Intelligently

    Models24x 10GB SFP+, 2x 100Gb QSFP28 Uplink | L3

    Series1G/10G Switches

    0

    0

  • Edmond United States of America
    2023-03-20

    QT is a reliable team for a good choice, The whole shopping process from inquiry to after-sales service makes me feel comfortable. this switch is designed with many advantages including enough 48 ports, strong switching capacity, and a high-speed forwarding rate, fully compatible with my device, In a word, I am very satisfied with it.

    Models48x 100M/1000M/2.5GBASE-T RJ45, 4x 1G/10G SFP+ and 2x 40G QSFP+ Uplink | L3

    Series1G/10G Switches

    0

    0

  • Brendan United States of America
    2023-03-20

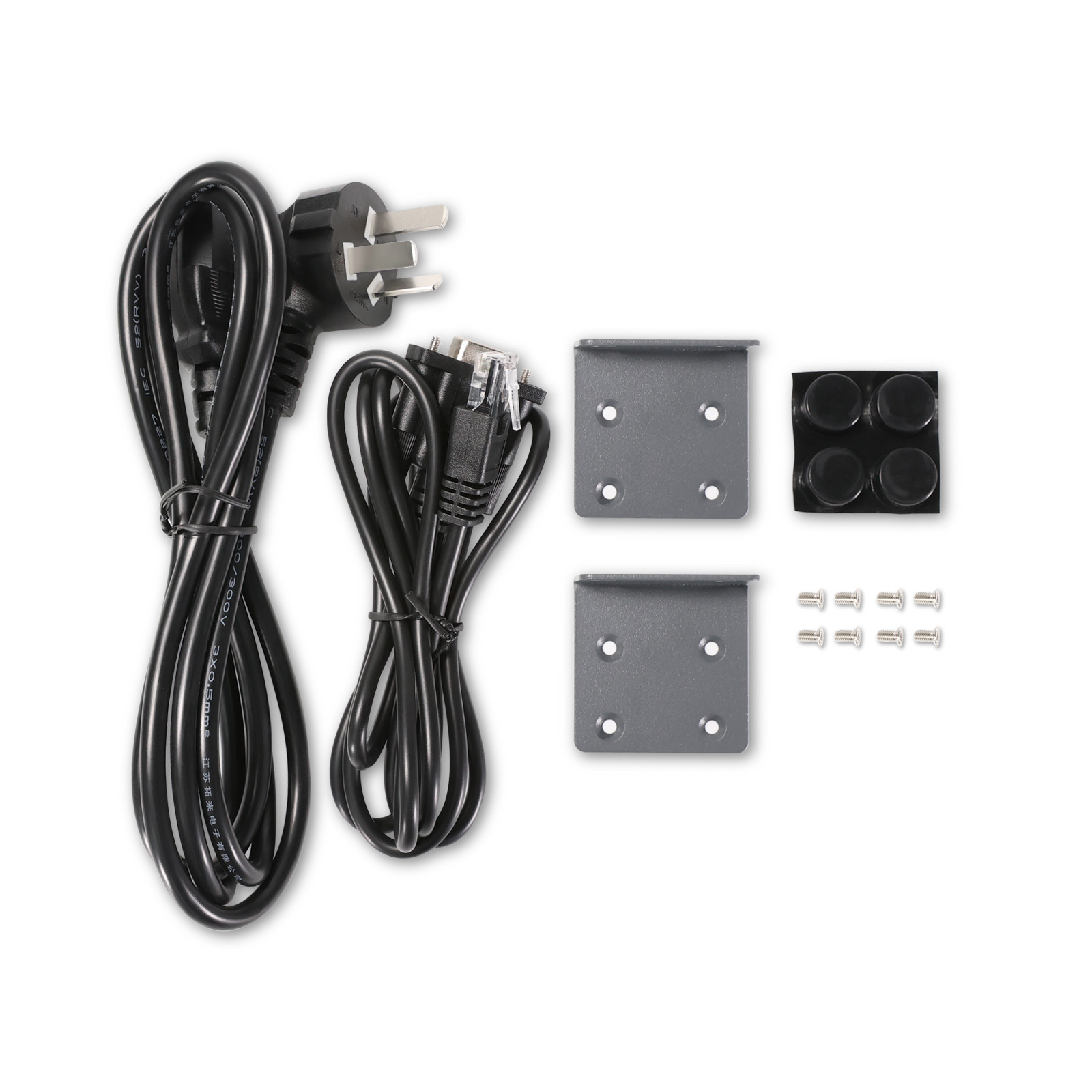

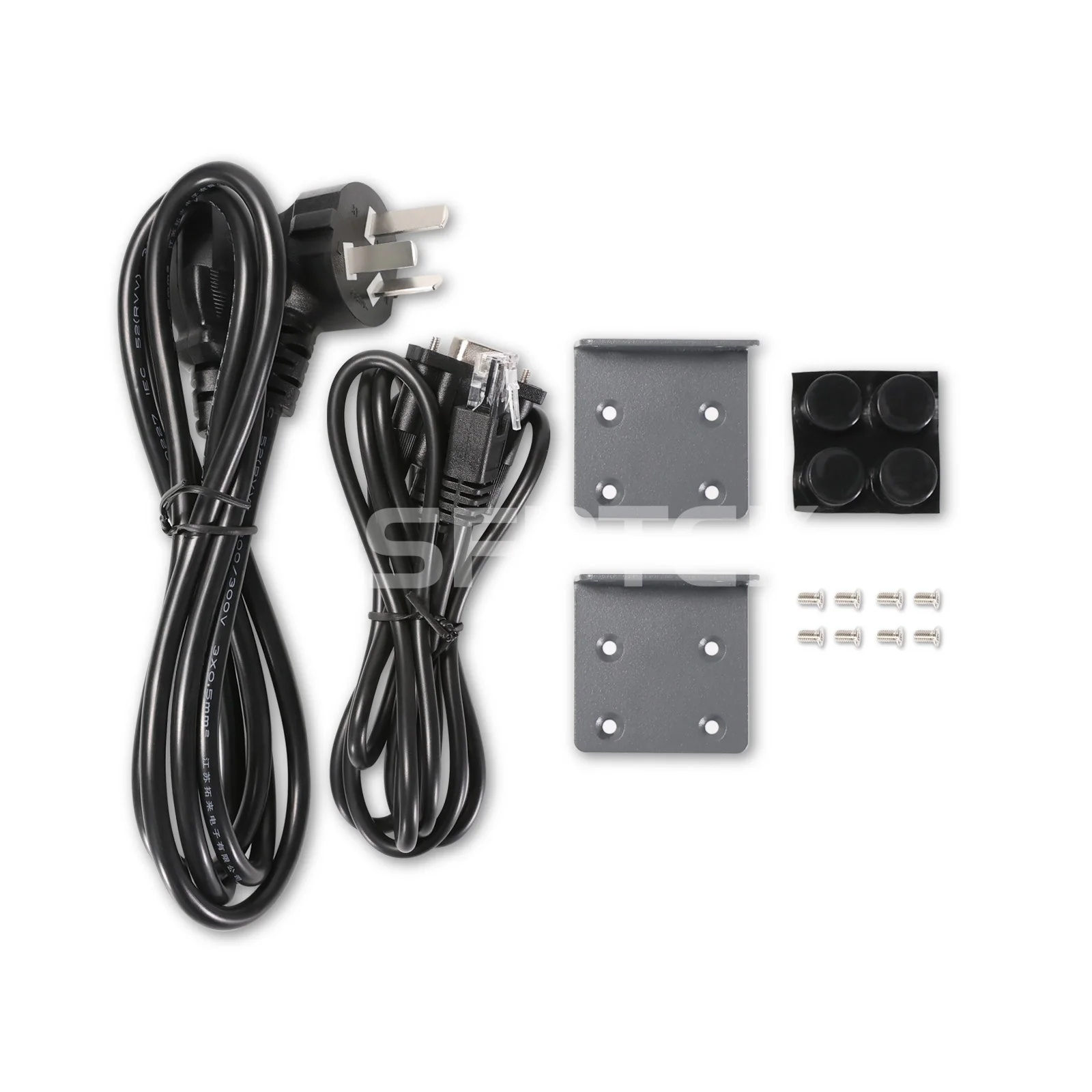

    As an access layer switch, it completely exceeded all my expectations. It is very similar to Cisco in configuration and works very well, the important thing is our technician gives high praise of it, there are also 1*console cable, 2*power cord, 1*grounding cable, 2*rack mount bracket, 6*screw, 4*rubber pad. Complete accessories!
