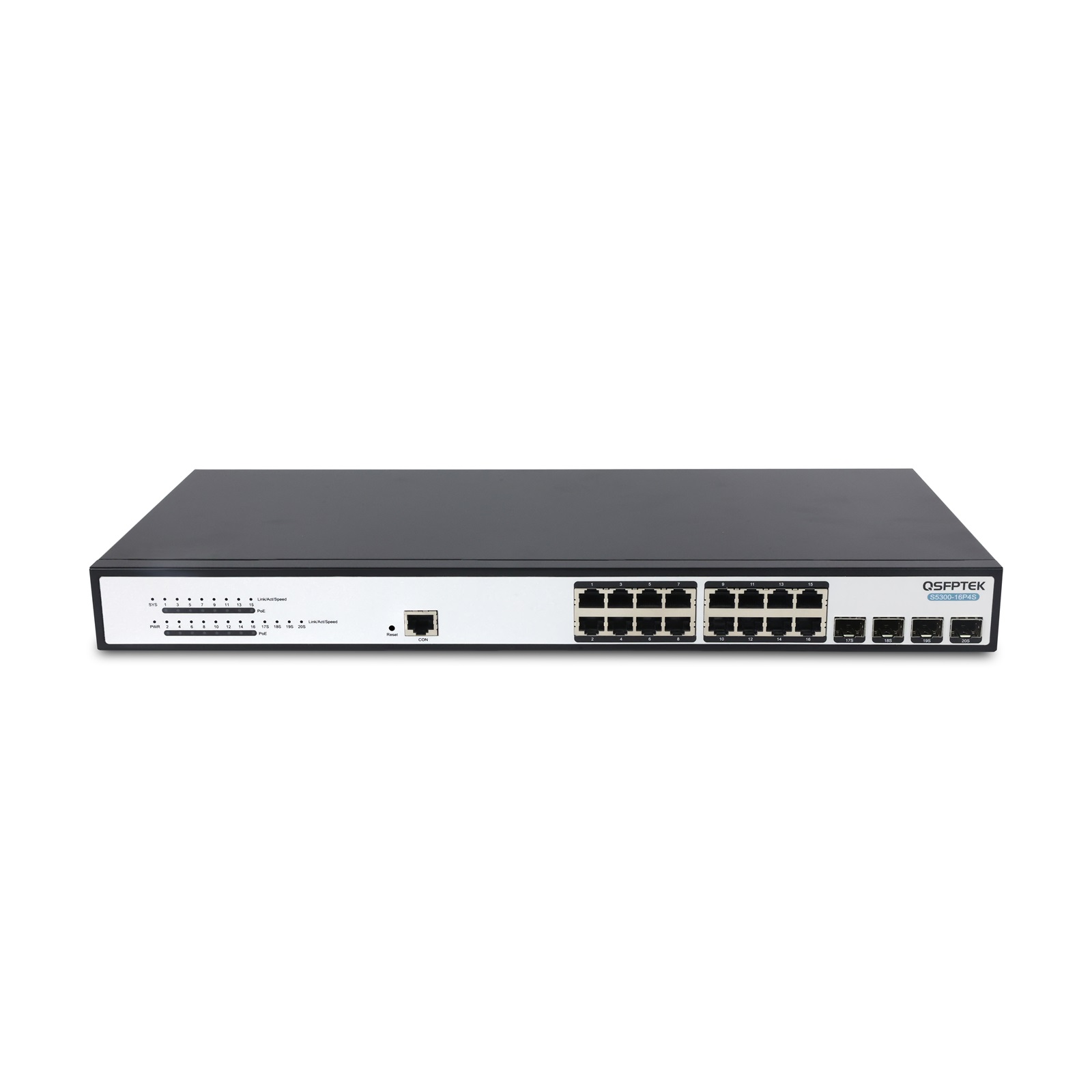

Name: S5300-16P4S, 16-Port Gigabit Ethernet L2+ Active 802.3af/at PoE+ Managed Switch for SMBs, 16x 10/100/1000BASE-T RJ45 PoE+ Ports @240W, with 4x 1G SFP Uplinks, Support ERPS
Brand: QSFPTEK
SKU: 203137
Price: 332.0 USD
Rating: 4.9 (75 reviews)

S5300-16P4S, 16-Port Gigabit Ethernet L2+ Active 802.3af/at PoE+ Managed Switch for SMBs, 16x 10/100/1000BASE-T RJ45 PoE+ Ports @240W, with 4x 1G SFP Uplinks, Support ERPS

Product No: 203137

75 Reviews

0 Sold

US$ 332.00

Series

PoE Switches

Models

100 in real-time stock, 23 Jun, 2026
US/EU/Global warehouses in stock | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange

5-Year Warranty 14-Day Returns 90-Day Exchange

Add to Cart Bulk Order Quotes

1. 16x 10/100/1000BASE-T RJ45 PoE+ and 4x 1G SFP ports
2. PoE provides data and power in one cable to ensure flexible deployment
3. Active PoE switch compliant with IEEE 802.3 af/at, protects your equipment from damage
4. Ideal for deployment in small to medium business and enterprise networks
5. Support SNMP, CLI, WEB, SSH for simple management
6. Support Anti-attack from DDoS and TCP/UDP Flood, IEEE 802.1x, Radius, Tacacs+ for security+
7. Supports LACP, ERPS, ISSU, STP, RSTP, MSTP for reliability
8. Supports Port Isolation, and ACL, QoS, DHCP-Snooping for access and traffic control

Specifications

S5300-16P4S, 16-Port Gigabit Ethernet L2+ Active 802.3af/at PoE+ Managed Switch for SMBs, 16x 10/100/1000BASE-T RJ45 PoE+ Ports @240W, with 4x 1G SFP Uplinks, Up to 100M Transmit, Support ERPS

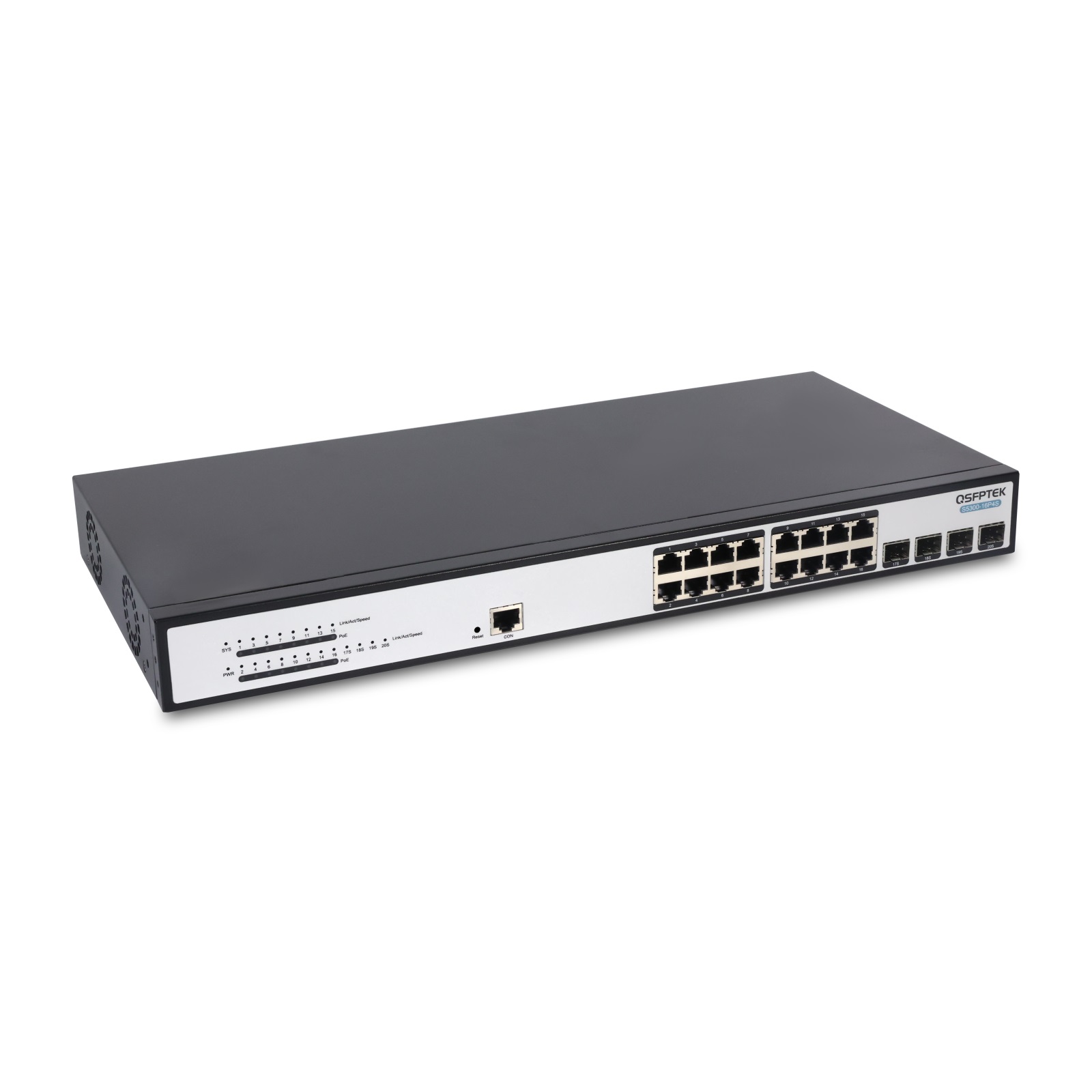

The S5300-16P4S 16-port gigabit switch has 16x 10/100/1000BASE-T RJ45 PoE ports and 4x 1Gb SFP uplink ports. The 16x RJ45 ports support IEEE802.3af/at (up to 30W by a single port) PoE/PoE+ standards and can be used in IP phones, wireless access points, or other end network devices standards-compliant PoE, PoE+.

As an L2+ Ethernet-managed access layer switch, it supports static routing, RIP, OSPF, etc. S5300-16P4S can be easily controlled and managed through SNMP, CLI, WEB, SSH, allowing for real-time monitoring and improved management efficiency. Also, multiple security features such as anti-attack from DDoS, TCP/UDP Flood, IEEE 802.1x, Radius, Tacacs+, etc safeguard your network robustness. S5300-16P4S switch enables non-professional technical personnel to operate networks with a simple, flexible and secure solution, ideal for deployment in small to medium businesses and enterprise networks.

Part Number	S5300-16P4S	Vendor Name	QSFPTEK
Ports	16x 10/100/1000BASE-T RJ45 PoE+ \| 4x 1G SFP	Buffer Size	4.1Mb
Switching Capacity	40 Gbps	Forwarding Rate	30 Mpps
MAC Address	8K	DRAM	128 MB
VLAN IDs	4K	Jumbo Frame	9K
Flash Memory	16 MB	Fan Number	2
Input Voltage	100 to 240 VAC, 50/60 Hz	Power Supply	1 built-in AC power supply (default)
Power Consumption	260W (full-load); 15W (no-load)	MTBF	>200,000 hours
Operating Temperature	-10 to 50℃ (14 to 122℉)	Weight	2.9 kg
Dimensions (H x W x D)	88 x 555 x 295mm (3.47 × 21.85 × 11.61'')	Warranty	5 years

Quality Testing Program

Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

1. Cost-effective L2+ POE+ switch

Support Layer 2 multicast routing protocol. Supports 240W of PoE+ power;

2. Security+

Anti-attack from DDoS and TCP/UDP Flood, and IEEE 802.1x, Radius, Tacacs+ for Security+

3. Reliability

Supports LACP, ERPS, ISSU, STP, RSTP, MSTP.

4. Management

Supports CLI, WEB, Telnet, FTP, SSH, SSL, SNMP.

Product details

L2+ Gigabit PoE/PoE+ Access Switch for Different Power Applications

S5300-8P2S has 8x 1G RJ45 PoE ports and 2x 1G SFP combo ports, providing high-density and converged copper and fiber connections.

Compliant with PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) standards, it can auto-negotiate to the power required by the PDs and deliver a max 15.4W or 30W per port power and 130W total PoE budget.

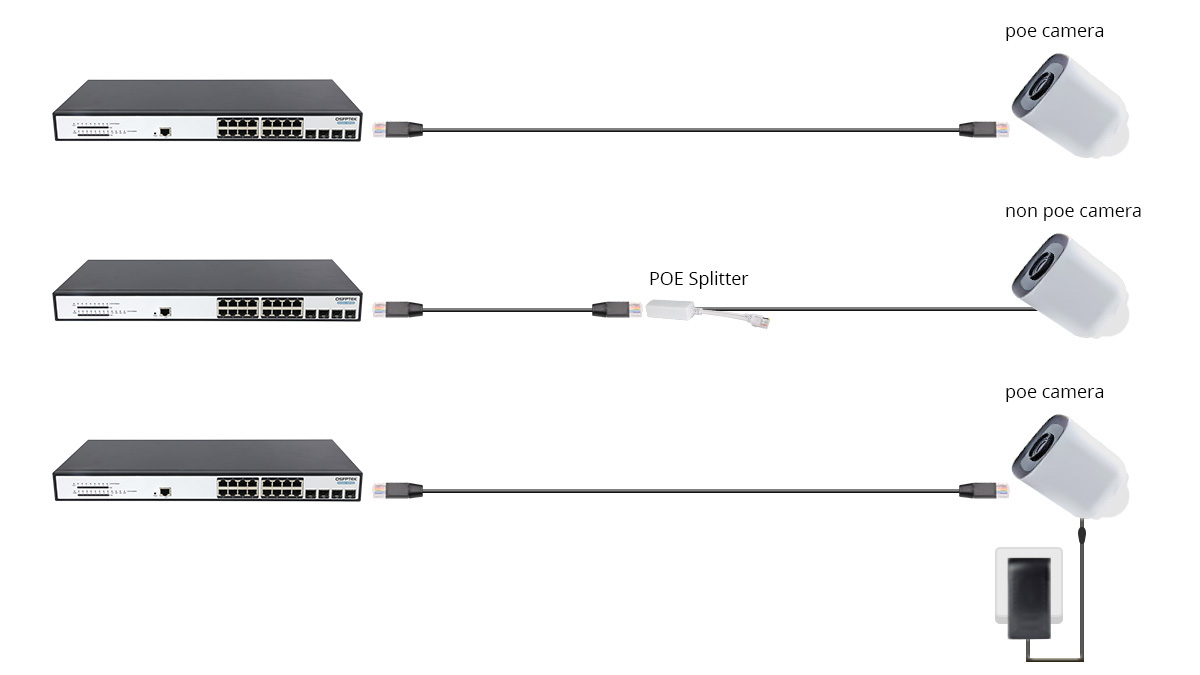

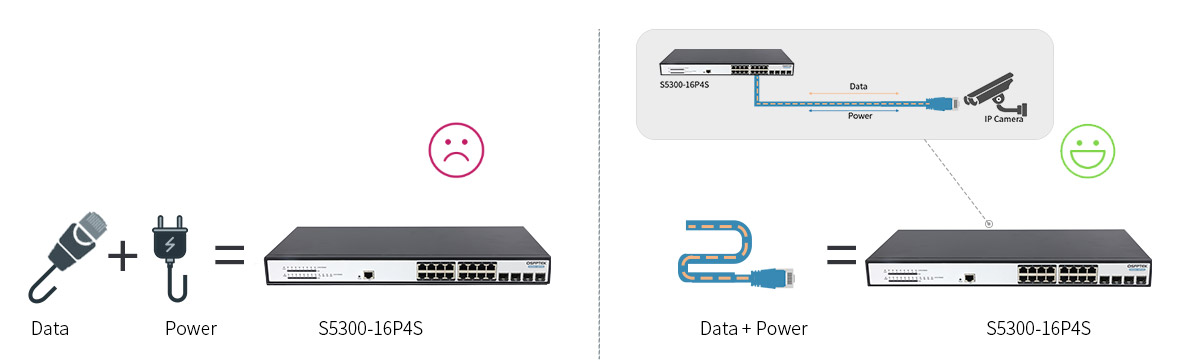

PoE and Non PoE Device Connection

PoE devices can be directly connected through cables. If non-PoE devices require simultaneous power and data transmission, a PoE splitter is needed. For data transmission only, an Ethernet cable can be used for direct connection. The PoE switch will identify whether the device is a PoE device, and if not, it will not deliver power to the device, preventing damage to the equipment.

Cater to Multiple Application Scenarios

PoE switches are widely used to power PDs such as IP phones, IP cameras, wireless APs. The most common applications are remote security solutions, VoIP solutions, surveillance solutions, wired and wireless deployment in almost all business scenarios.

Read reviews that mention

ALL (0)

This product works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent value fo ct works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent valur money!

S5300-16P4S, 16-Port Gigabit Ethernet L2+ Active 802.3af/at PoE+ Managed Switch for SMBs, 16x 10/100/1000BASE-T RJ45 PoE+ Ports @240W, with 4x 1G SFP Uplinks, Support ERPS

Specifications

S5300-16P4S, 16-Port Gigabit Ethernet L2+ Active 802.3af/at PoE+ Managed Switch for SMBs, 16x 10/100/1000BASE-T RJ45 PoE+ Ports @240W, with 4x 1G SFP Uplinks, Up to 100M Transmit, Support ERPS

Features

Applications

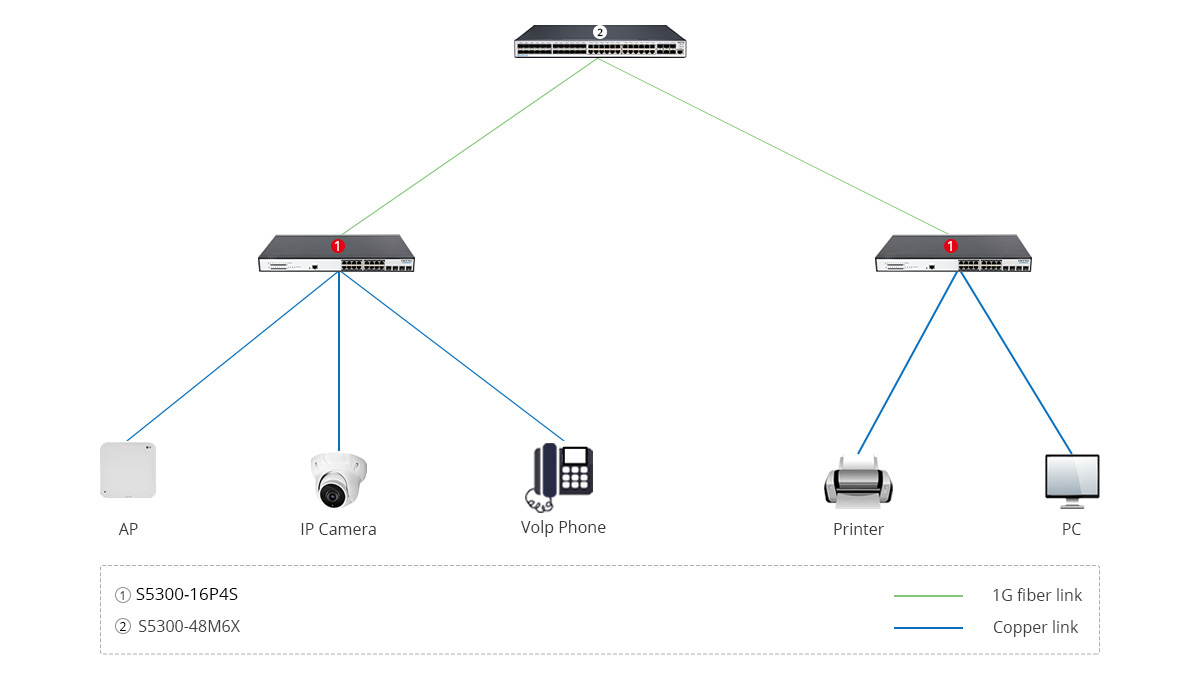

Scenario 1: Wifi6 Wireless Solution

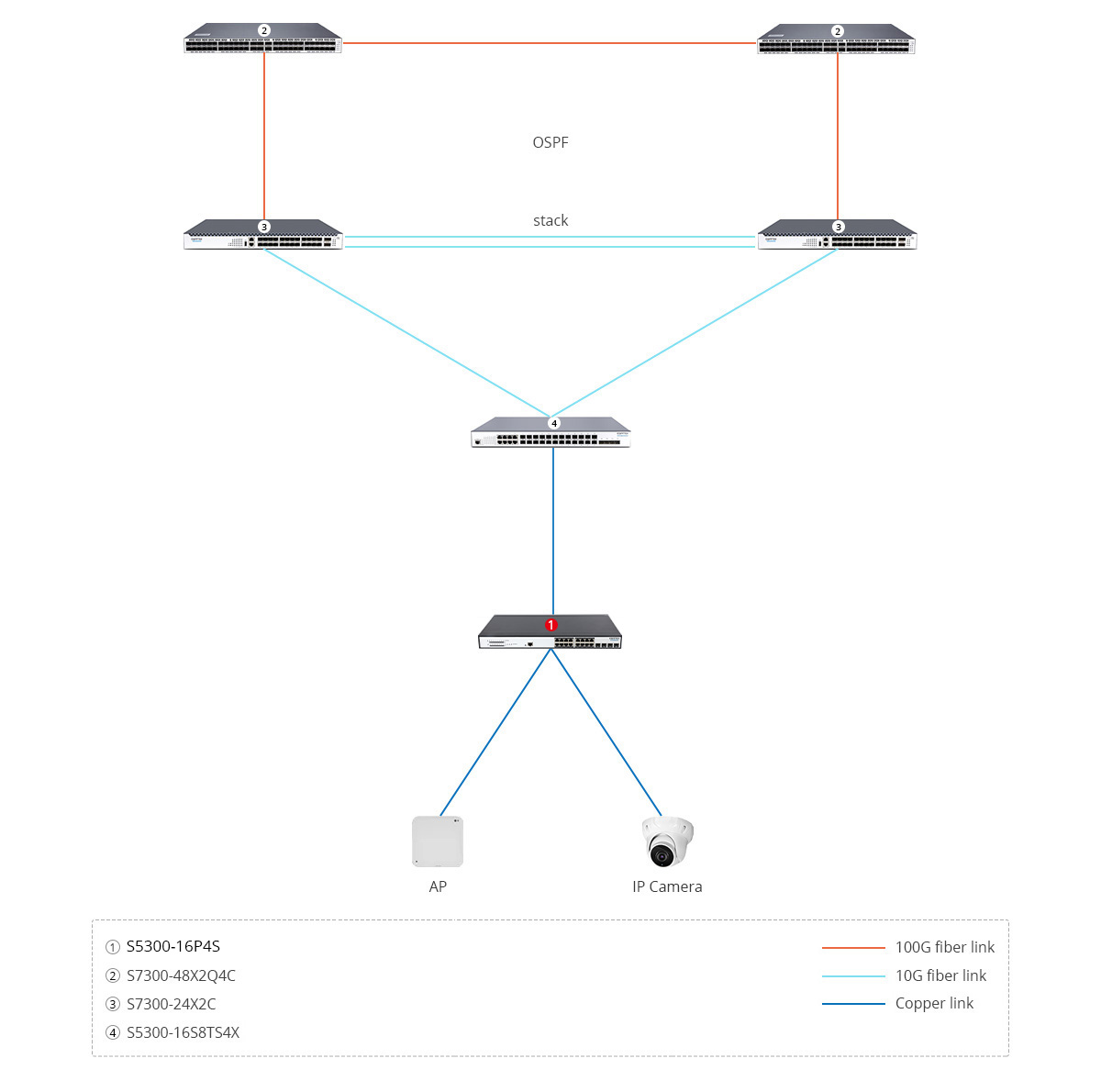

Scenario 2: Access Layer
