Intel E25GSFP28LR Compatible 25GBASE-LR SFP28 1310nm 10KM DDM LC SMF Optical Transceiver Module

Product No :101285
US$ 26.90  US$ 45.00
Transceivers type
5291 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

1. Rate: 25G; Connector: Duplex lC
2. DFB+PIN; Low Power Consumption <1W
3. Applied in Campus and Metro Network
4. Fully Compatible with 100+ Vendors
5. SFP28 MSA Compliant
See more

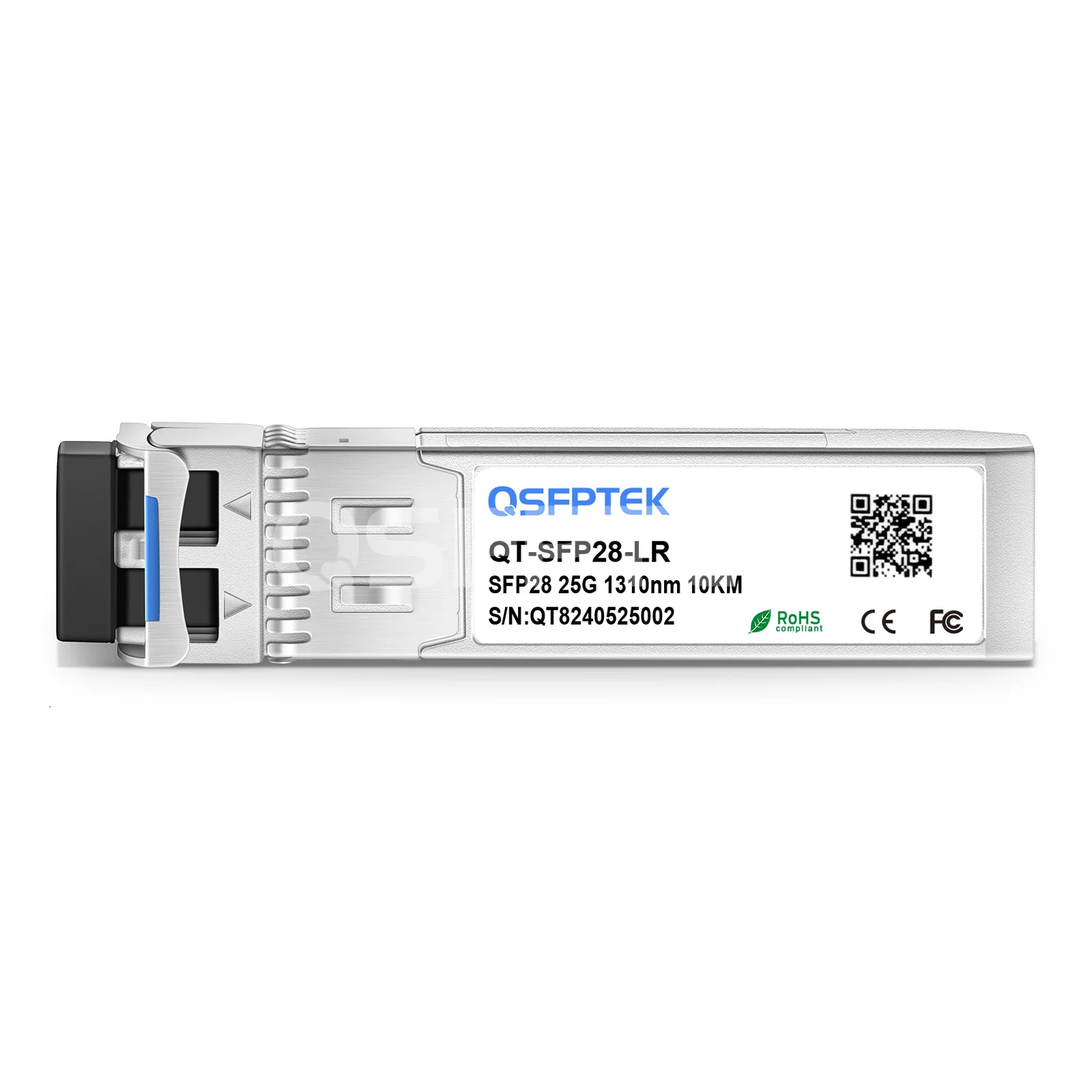

Intel E25GSFP28LR Compatible 25GBASE-LR SFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DDM)


The Intel E25GSFP28LR compatible 25G SFP28 transceiver module is equipped with LC duplex connectors, reaching a link up to 10km over OS2 single-mode fiber (SMF). This 25G optical transceiver comes with an SFP28 connector, enabling 25 Gbps bandwidth. DOM/DDM (digital diagnostics monitoring) function is supported on the 25G fiber optic transceiver to achieve real-time operating parameters monitoring.


QSFPTEK manufactured 25GBASE-LR SFP28 module is compliant with SFP28 MSA, IEEE 802.3by SFP28 specifications. Besides, the small form-factor pluggable 28 (SFP28) LR optic has been tested on host devices to ensure full compatibility with Cisco equipment, such as data center switches, enterprise routers, and server network interface cards (NICs). The third-party 25G SFP module is an ideal substitute to the Intel SFP-25G-LR SFP28 25G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 25G connectivity.


LR 25G SFP28 transceiver caters to 25 Gigabit Ethernet (25GbE) optical fiber connections, ideal for long-distance applications in the campus, metro networks, ISP operators, etc.


Model Name E25GSFP28LR Vendor Name QSFPTEK
Form Factor SFP28 Data Rate 25 Gbps
Wavelength 1310nm Distance 10km@OS2
Connector LC Duplex Cable Type OS2 SMF
Transmitter Type DFB Receiver Type PIN
TX Power -7~2dBm Receiver Sensitivity <-14dBm
Power Consumption <1W Modulation Format NRZ
DDM Support Bit Error Ratio (BER) 1E-12
Protocols IEEE 802.3ba, SFP28 MSA Warranty 5 Years
Quality Testing Program
Quality Certifications


  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Cisco devices. Ideal for metro and campus networks.
  • 3. Protocols
    Compliant with IEEE 802.3ba, SFP28 MSA.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.
