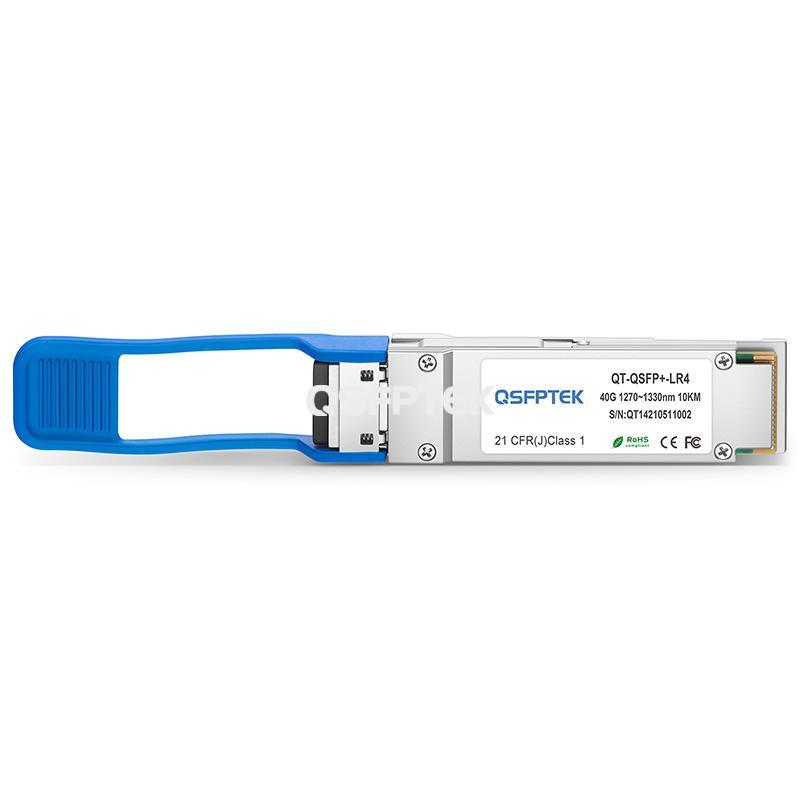

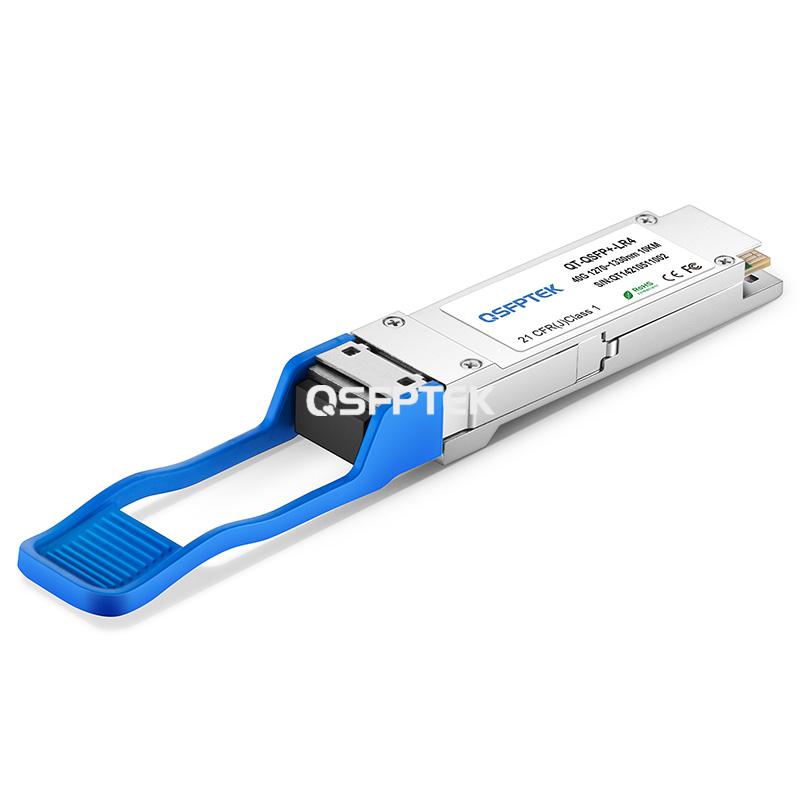

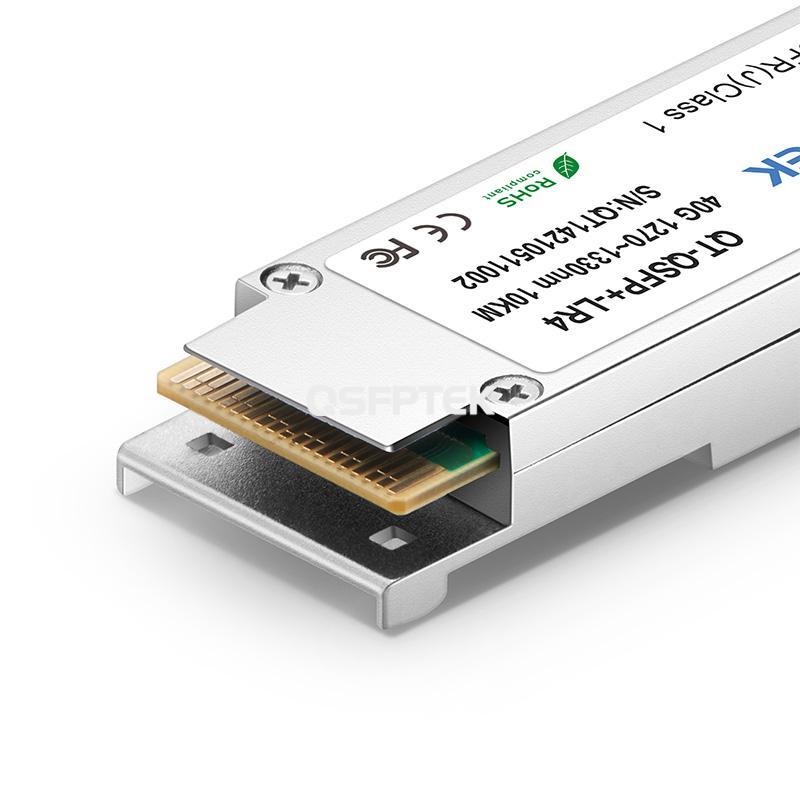

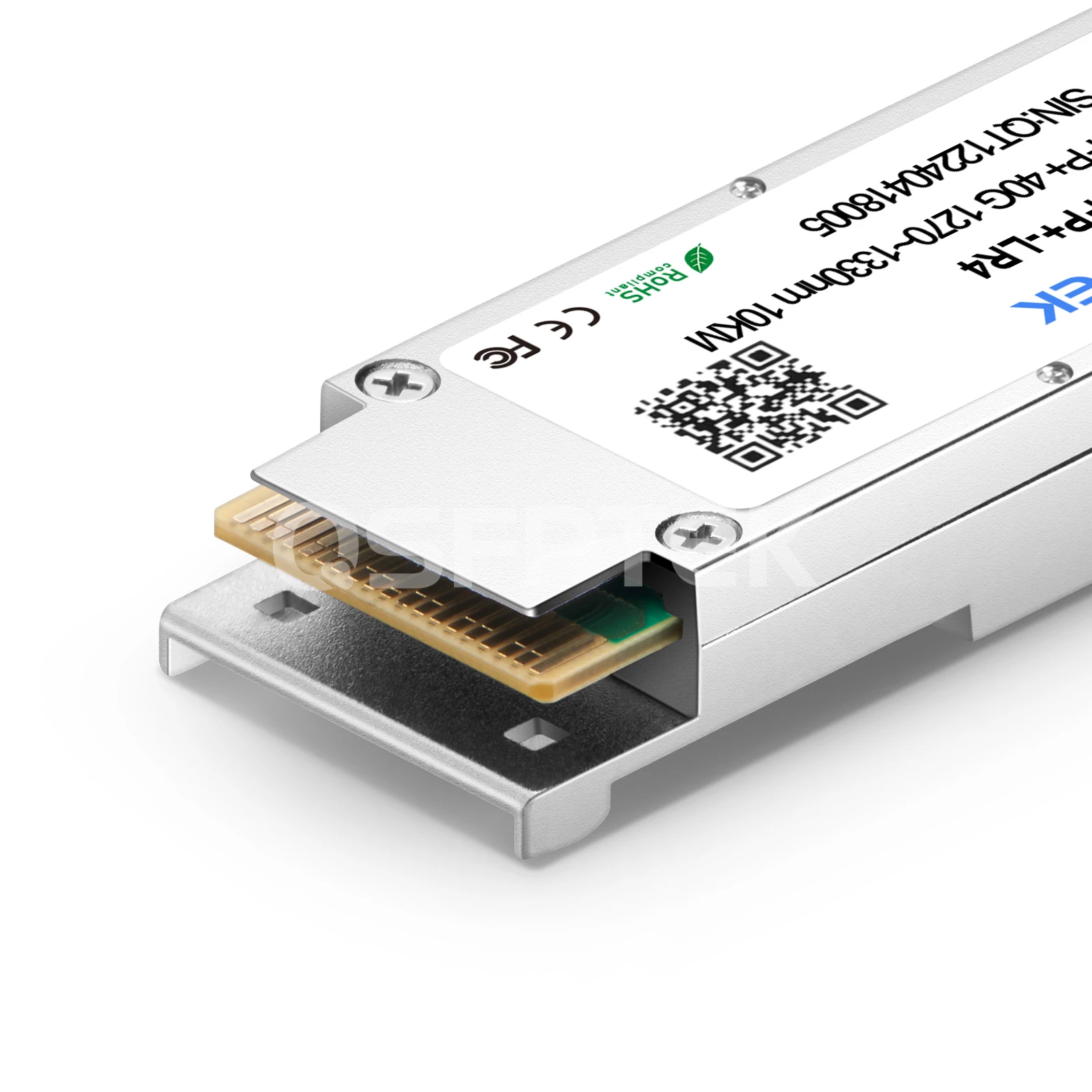

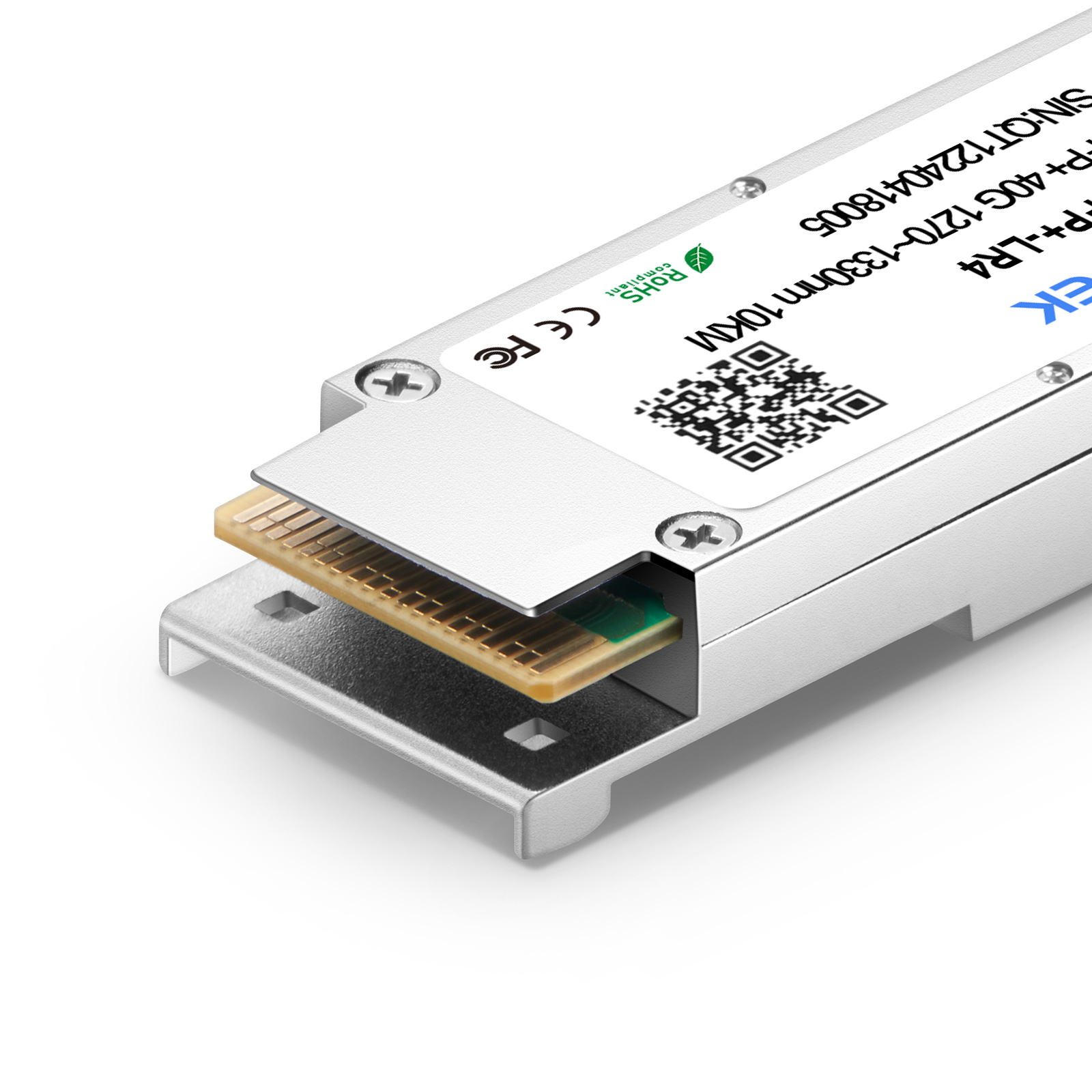

Arista Networks QSFPP-40GBASE-LR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km optical transceiver Module

Product No :74498
US$ 79.90  US$ 159.00
Compatible
Transceivers type
5837 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

-
+
Add to Cart Bulk Order Quotes
1. Rate: 40G; Connector: Duplex lC; with DDM
2. DFB+PIN; Low Power Consumption <2.5W
3. Applied in Campus Network and Data Center
4. Fully Compatible with 100+ Vendors
5. QSFP+ MSA Compliant
See more

Specifications

Arista Networks QSFPP-40GBASE-LR4 Compatible 40GBASE-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DDM)



The Arista Networks QSFPP-40GBASE-LR4 compatible 40G QSFP+ transceiver module is equipped with LC duplex connectors, reaching a link up to 10km over OS2 single-mode fiber (SMF). This 40G optical transceiver comes with a bidirectional 4-channel QSFP+ connector, enabling a total of 40 Gbps bandwidth by each channel carrying a 10 Gbps data rate. DOM/DDM (digital diagnostics monitoring) function is supported on the QSFP 40G fiber optic transceiver to achieve real-time operating parameters monitoring.



QSFPTEK manufactured 40GBASE-LR4 QSFP+ module is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 specifications. Besides, the QSFP LR4 optic has been tested on host devices to ensure full compatibility with Arista equipment, such as data center switches, enterprise routers, and server network interface cards (NICs). The third-party 40G SFP module is an ideal substitute to the Arista Networks QSFPP-40GBASE-LR4 QSFP+ 40G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 40G connectivity.



LR4 40G QSFP optics cater to 40 Gigabit Ethernet (40GbE) optical fiber connections, ideal for high-performance and long-distance applications in the data center, enterprise core and distribution layers, campus networks, metro networks, etc.



Model Name QSFPP-40GBASE-LR4 Vendor Name QSFPTEK
Form Factor QSFP+ Data Rate 40 Gbps
Wavelength 1310nm Distance 10km@OS2

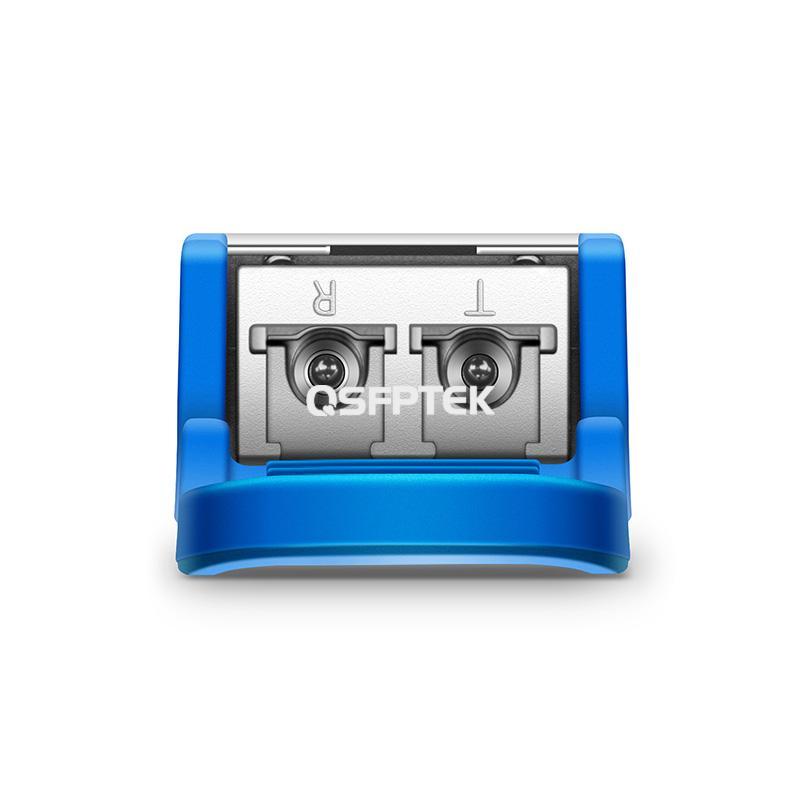

Connector LC Duplex Cable Type OS2 SMF
Transmitter Type DFB Receiver Type PIN
TX Power -7~2.3dBm Receiver Sensitivity <-13.7dBm
Power Consumption <2.5W Modulation Format NRZ
DDM Support Bit Error Ratio (BER) 1E-12
Protocols IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636, Infiniband 40G QDR Warranty 5 Years
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Arista devices. Ideal for data center, campus network, metro network, etc.
  • 3. Protocols
    Compliant with IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.
  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Arista devices. Ideal for data center, campus network, metro network, etc.
  • 3. Protocols
    Compliant with IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Connection 1: 40GBASE-LR4 Connectivity

40GBASE-LR4 Connectivity

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

S7600-24X2Q, 24-Port Ethernet L3+ 10G Switch, 24 x10Gb SFP+, with 2 x40Gb QSFP+ Uplinks, Support MLAG, VXLAN

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 10m

Connection 2: 40GBASE-LR4 Connectivity with NIC

40GBASE-LR4 Connectivity with NIC

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 10m

Intel XL710-BM2 Based Network Interface Card, 40G Dual-Port QSFP+, PCIe 3.0 X 8, Half & Full Bracket

Connection 3: 40GBASE-LR4 Connectivity with Adapter Panel

40GBASE-LR4 Connectivity with Adapter Panel

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

S7600-24X2Q, 24-Port Ethernet L3+ 10G Switch, 24 x10Gb SFP+, with 2 x40Gb QSFP+ Uplinks, Support MLAG, VXLAN

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 10m

High-Density Fiber Adapter Panel With 12x LC UPC Duplex Blue Adapter 24x OS2 Single Mode Fibers Ceramic Sleeve

1U 19" Modular Rack Mount Enclosure Unloaded, Holds up to 4 Fiber Adapter Panels, 96 Fibers (LC)

1U Horizontal Cable Management with 5 D-Rings, Rackmount, Single-Sided, 19 inch

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests





Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.







Various Switch Tests



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.







40G QSFP+ Model Contrast Table



Part Number

QT-QSFP+-SR4

QT-QSFP+-IR4

QT-QSFP+-PSM4

QT-QSFP+-LR4

QT-QSFP+-LR4-20

QT-QSFP+-ER4

QT-QSFP+-ZR4


Wavelength

850nm

CWDM

1310nm

CWDM

CWDM

CWDM

LWDM 1294~1310nm

Max Distance

150m

2km

10km

10km

20km

40km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

LC Duplex

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

Tx Power(dBm)

-7 ~ 1

-7 ~ 2.3

-6 ~ -1

-7 ~ 2.3

-4 ~ 2.3

-2.7 ~ 4.5

-2.7 ~ 4.5

Rx Sensitivity(dBm)

-9.5

-11.5

-14.4

-13.7

-11.5

-19

-28

Power Consumption

<0.7W

<2.5W

<2.5W

< 2.5W

<3.5W

<3.5W

<5W

Source

VCSEL + PIN

DFB + PIN

4xDFB + PIN

DFB + PIN

DFB + PIN

DFB + PIN

4xDFB + APD

Operating Temperature

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

Questions & Answers

more+
  • Can this module work at 80°C?
    No, it can't. The working temperature range is 0 to 70°C.
  • Does the qsfp-40g-sr4 transceivers allow 4x 10g connectivity?
    Yes. The connectivity is achieved by using an 8-fibers OM4 MTP-LC Type B break-out cable, which connects the qfp-40g-sr4 transceivers to four sfp-10g-sr optical interfaces.
  • What is the difference between Cisco qspf-40g-lr4 and qsfp-40g-lr4-s?
    They are actually the same one.
