    Products / Network switches / Campus Switches / 1G/10G Switches / 203141
    Product image
    Product image

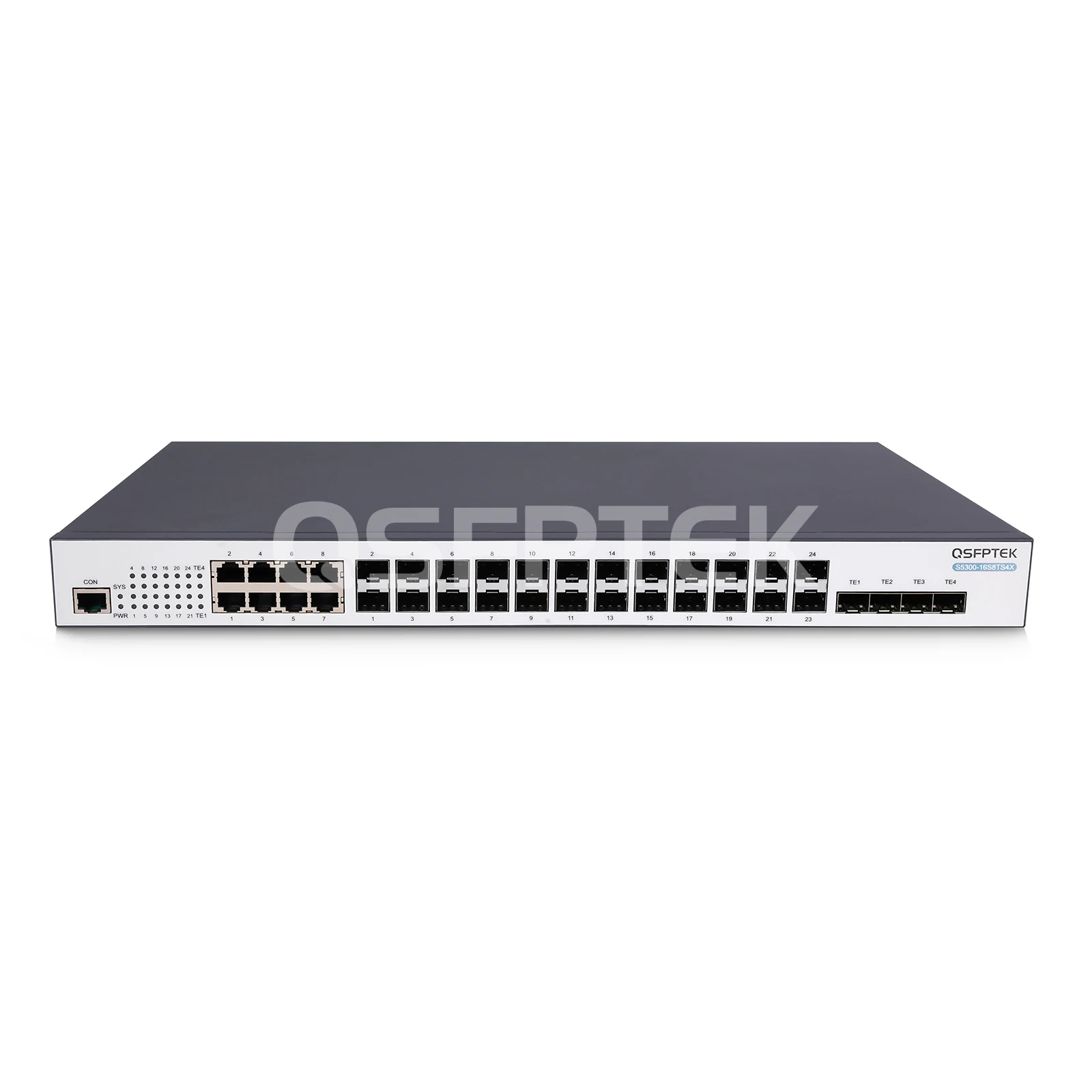

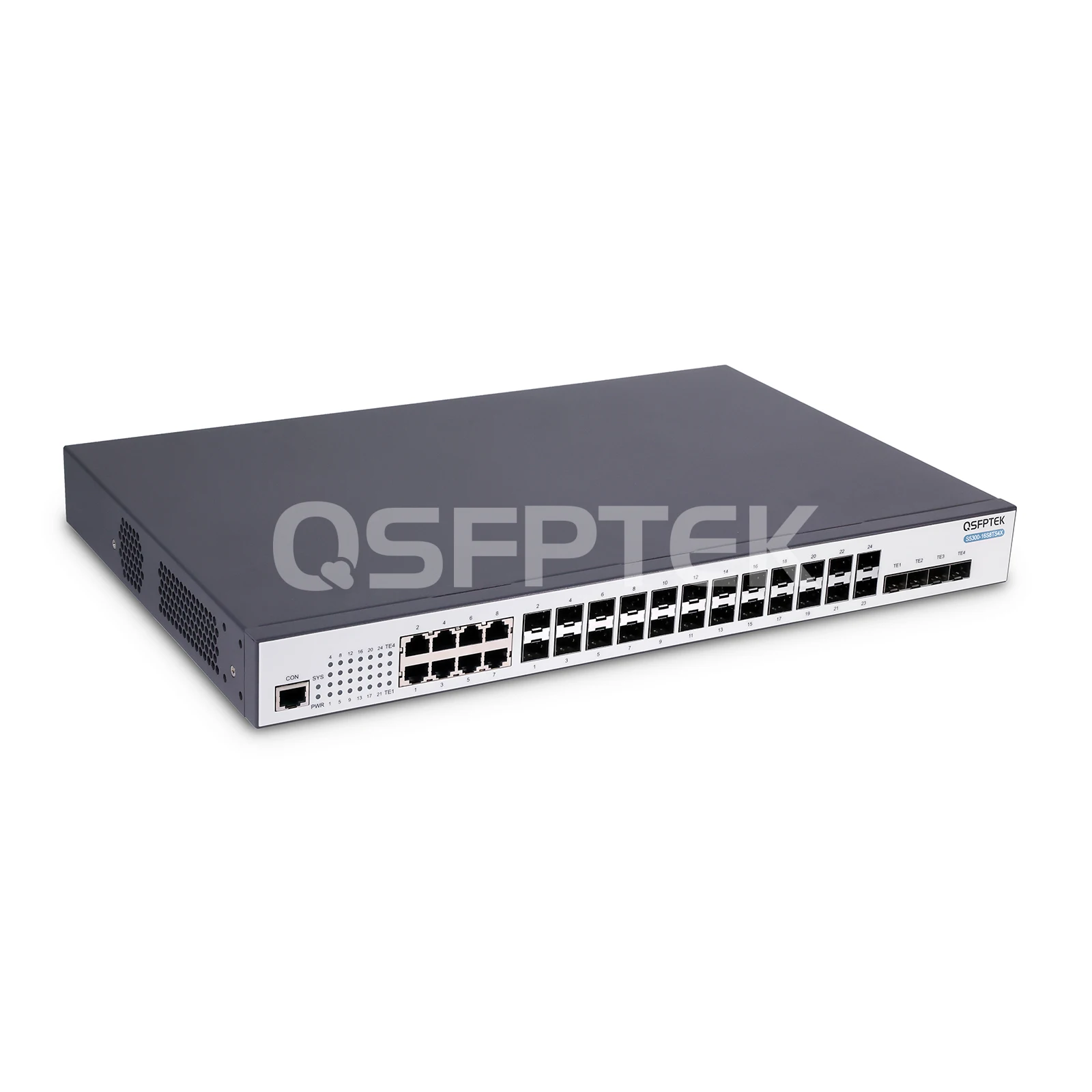

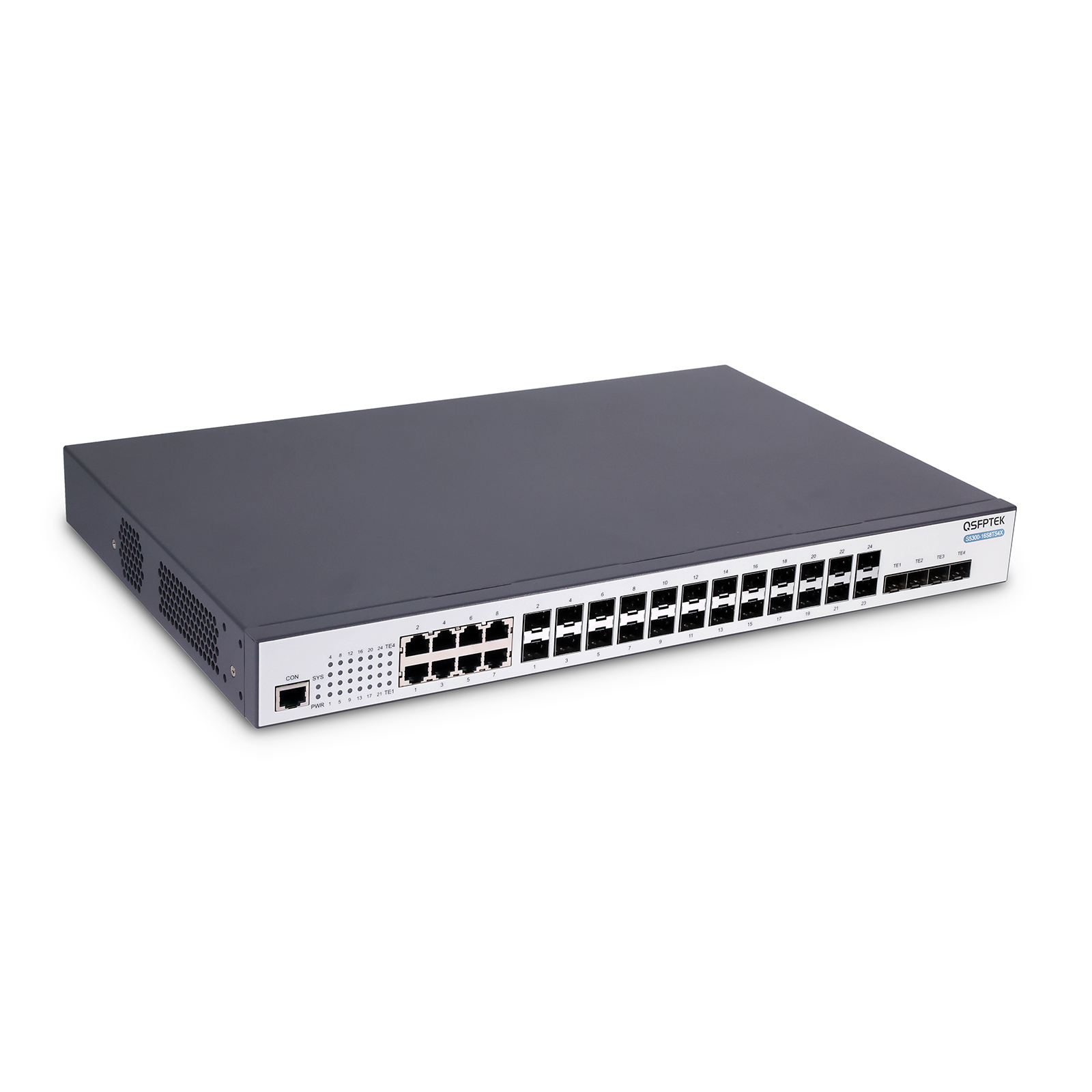

    S5300-16S8TS4X-DC, 16-Port Gigabit Ethernet Managed L2+ Switch, 16x 1G SFP, with 8x 1G RJ45/SFP Combo, 4x 10G SFP+ Uplinks, Support Stacking

    Product No: 203141
    0 Reviews
    121 Sold
    $563.90  $649.00
    Series
    Models
    70 in real-time stock, 31Oct, 2026
    US/EU/Global warehouses in stock | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange
    5-Year Warranty 14-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Support 2 Units of S5300-16S8TS4X Stacking
2. 1+1 redundant power supplies and 2 built-in smart fans
3. Rich L2+ Features: Static Routing, RIP, OSPF, VRRP
4. Support IPv4/v6 dual stack Protocol
5. Support LACP, MSTP, EAPS, ERPS, VRRP, ISSU for High Reliability
6. Anti-attack from DDoS and TCP/UDP Flood, and IEEE 802.1x, Radius, Tacacs+ for Security+
7. Supports Port Isolation, and ACL, QoS, DHCP Snooping for Access and Traffic Control
8. Support CLI/WEB/Telnet/SSH/SSL/SNMP for Flexible Management
    See more

    Specifications

    S5300-16S8TS4X, 16-Port Gigabit Ethernet Managed L2+ Switch, 16x 1G SFP, with 8x 1G RJ45/SFP Combo, 4x 10G SFP+ Uplinks, Support Stacking



    The S5300-16S8TS4X is a managed Gigabit access layer switch with 16x 1G SFP, 8x 1G RJ45/SFP combo, 4x 10G SFP+ uplink ports, supports stacking of up to 2 switches. It has built-in two intelligent fans, which can automatically adjust the fan speed to save on usage costs. The switch can be easily controlled and managed through both CLI and WEB interfaces, allowing for real-time monitoring and improved management efficiency. This makes the S5300-16S8TS4X an ideal choice for SMBs, enterprise networks, and campus networks.



    Part Number S5300-16S8TS4X Vendor Name QSFPTEK
    Ports 16x 1G SFP, 8x 1G RJ45/SFP Combo | 4x 10G SFP+ Packet Buffer 1.5 MB
    Switching Capacity 128 Gbps Forwarding Rate 96 Mpps
    MAC Address 16K ARP Table 2036
    VLAN IDs 4K Jumbo Frame 9K
    Flash Memory 16 MB RAM 256 MB
    Airflow Left-to-right Fan 2 built-in fans

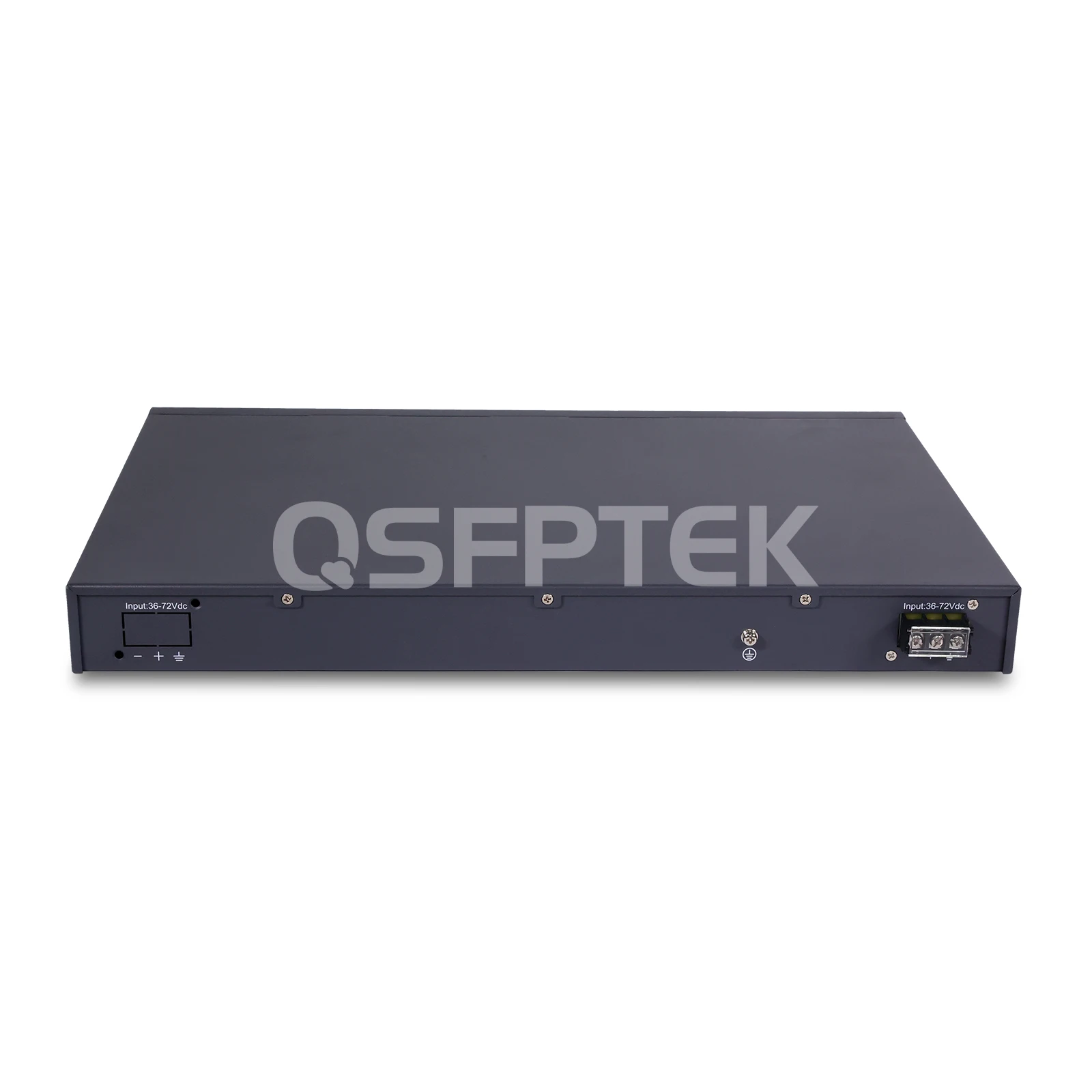

    Input Voltage 36-72V DC Power Supply 1 built-in DC power supply (default)
    1+1 redundant power slots, AC optional
    Stackability 2 MTBF ＞200,000 hours
    Dimensions (H x W x D) 44 x 440 x 280 mm
    (1.73 x 17.32 x 11.02")    		 Weight 3.5 kg
    Operating Temperature -10 to 45℃ (14 to 113℉) Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    S7300-24X2C, 24-Port Ethernet L3 Switch, 24x 10G SFP+, with 2x 100G QSFP28 Uplink, Support Stacking

    $1024.80 $1299.00
    107 Sold
    157 Reviews

    Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

    $8.90 $11.90
    10.5K Sold
    119 Reviews

    LC UPC to LC UPC Duplex OM4 2.0mm LSZH Multimode Fiber Optic Patch Cable 1m

    $3.16
    8.6K Sold
    79 Reviews
    Hot

    S5300-24T4S, 24-Port Gigabit Ethernet L2+ Managed Switch, 24x 10/100/1000BASE-T RJ45 Ports, with 4x 1G SFP Uplinks, Fanless

    $203.90 $255.00
    190 Sold
    157 Reviews
    Hot

    S5300-24P4TS, 24-Port Gigabit Ethernet L2+ Managed Active 802.3af/at PoE+Switch, 24x 10/100/1000BASE-T RJ45 PoE+ Ports @370W, with 4x 1G RJ45/SFP Combo, Up to 100M Transmit, Support OSPF

    $437.90 $535.00
    170 Sold
    75 Reviews

    Features

    • 1. High Port Density & Diversity
      24x 1G ports with 8 for SFP or RJ45 connection for access layer, 4x 10G ports uplink for aggregation layer.
    • 2. Cost-Effecitive
      Cost-effective stackable switch with VRRP, DHCP Server for SMB, enterprise, and campus networks.
    • 3. Easy Management
      Supports CLI, WEB, Telnet, FTP, SSH, SSL, SNMP, etc.
    • 4. High Reliabiliity
      Support LACP, MSTP, EAPS, ERPS, VRRP, ISSU, etc.

    Applications

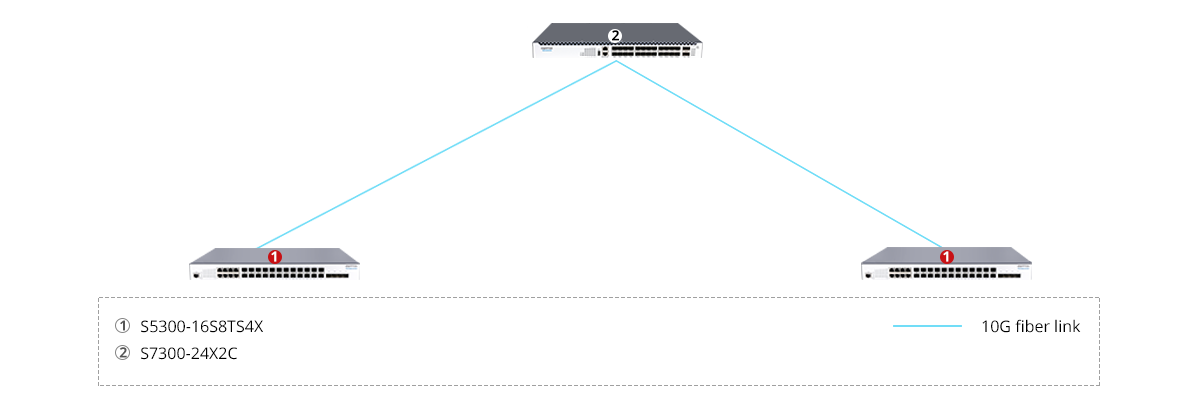

    Scenario 1:

     S5300-16S8TS4X Scenario 1





    Scenario 2:

    S5300-16S8TS4X Scenario 2



    Product details

    High Port Diversity Gigabit L2+ Access Switch with 6x 10G Uplinks



    S5300-16S8TS4X has 16x 1Gb SFP, 8x Gigabit RJ45/SFP Combo and 4 x 10Gb SFP+ uplinks, providing converged fiber and copper connections downlink to 1G access and uplink to 10G aggregation. With a switching capacity of 128 Gbps and a forwarding rate of 96 Mpps, it also meets high-performance requirements at the layer 2+ access.







    Support 2 Units Stacking to Expand Network Capacity and Simplify Management



    Use 10G uplink ports to stack two S5300-16S8TS4X into a logically one unit, making management more convenient and delivering a scalable solution for expanding the network environment.







    Applied for Traditional 3-Tier Architecture as Access Layer Switch



    S5300-16S8TS4X can be used as an access switch in the traditional 3-tier architecture to downlink end clients and uplink to 10G aggregation.





    Questions & Answers

    • All (37)
    • The power supply specification on this page is only 100V-240V AC, can I use DC power supply on S5300-48M6X?
      Yes, S5300-48M6X supports DC: -36~-72V input voltage.
    • When one of the stacked units goes down, does it affect the entire stacked unit?
      No. When the master device in the stacked unit goes down, the standby device will be scheduled as the master device according to the preset master standby order. When the master device comes back into operation, the unit automatically resets itself as the master device and there will be no business interruption. It also supports BFD bi-directional link detection to achieve 50ms-level fault detection and service recovery, which greatly improves the reliability of the network.
    • Do S5300 Series Switches Support CLI or WEB Management?
      Yes, QSFPTEK S5300-48T6X and S5300-48M6X swtitches support CLI, Telnet, SSH, SNMP, WEB management.
