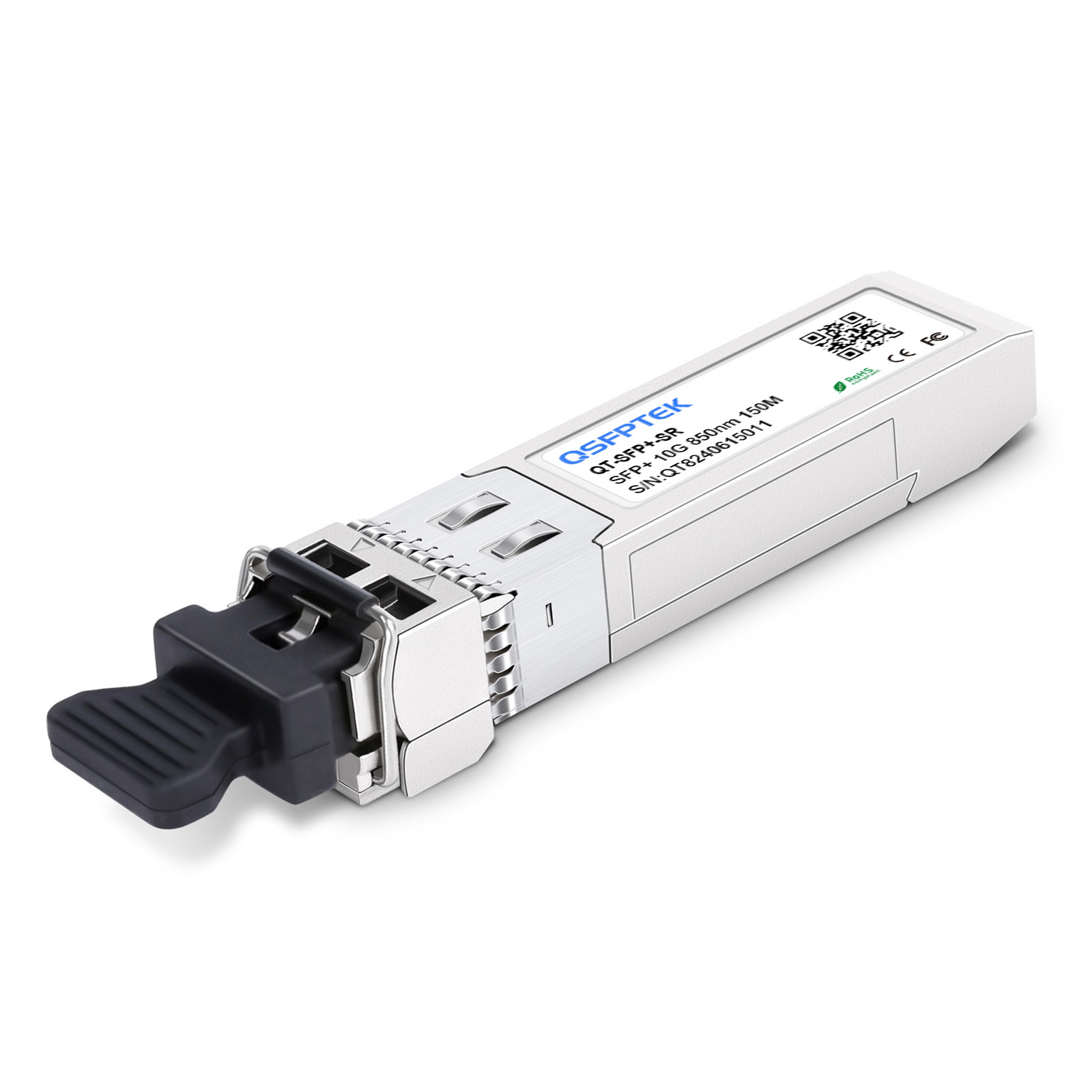

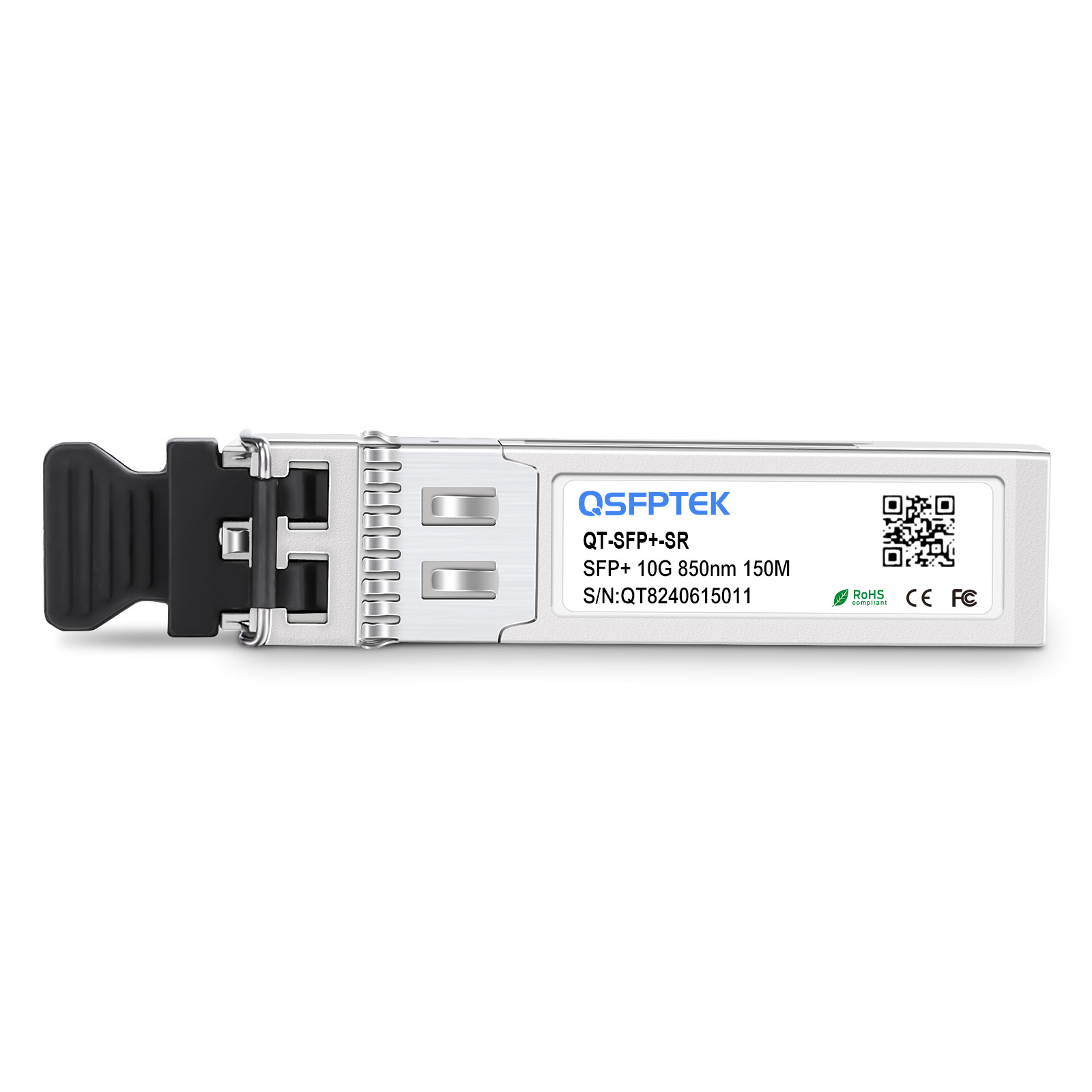

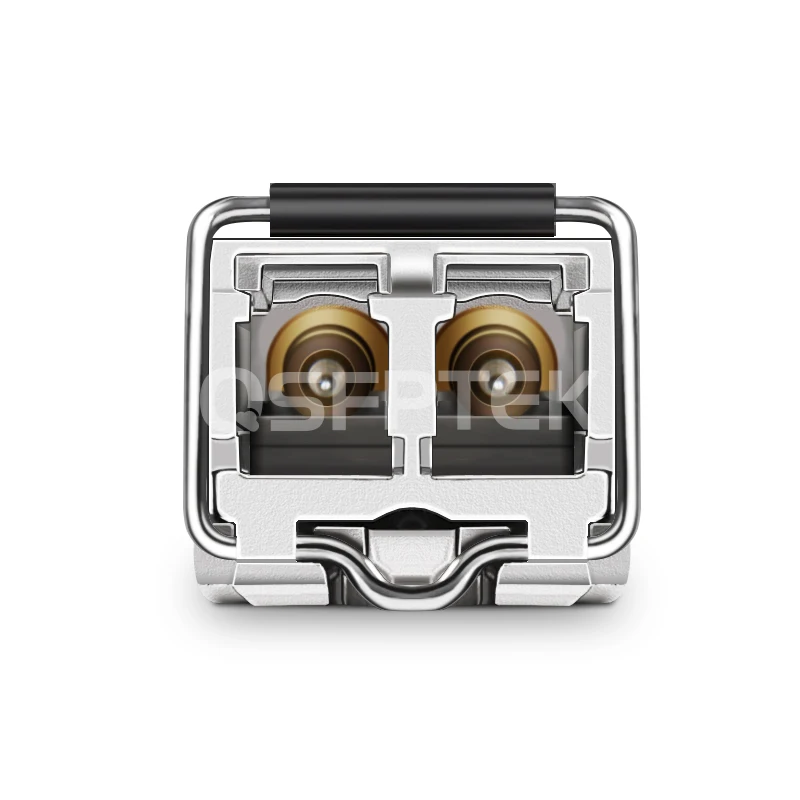

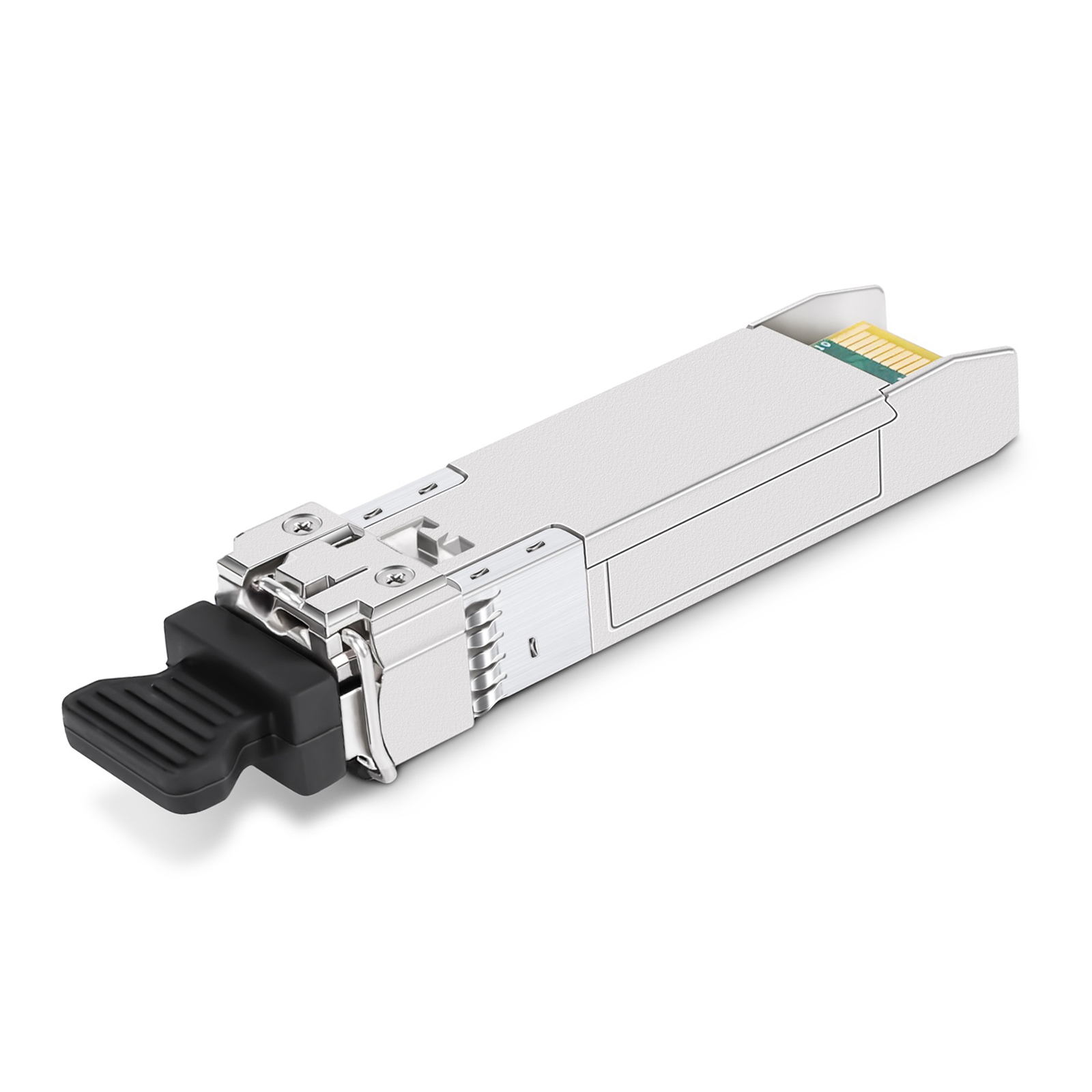

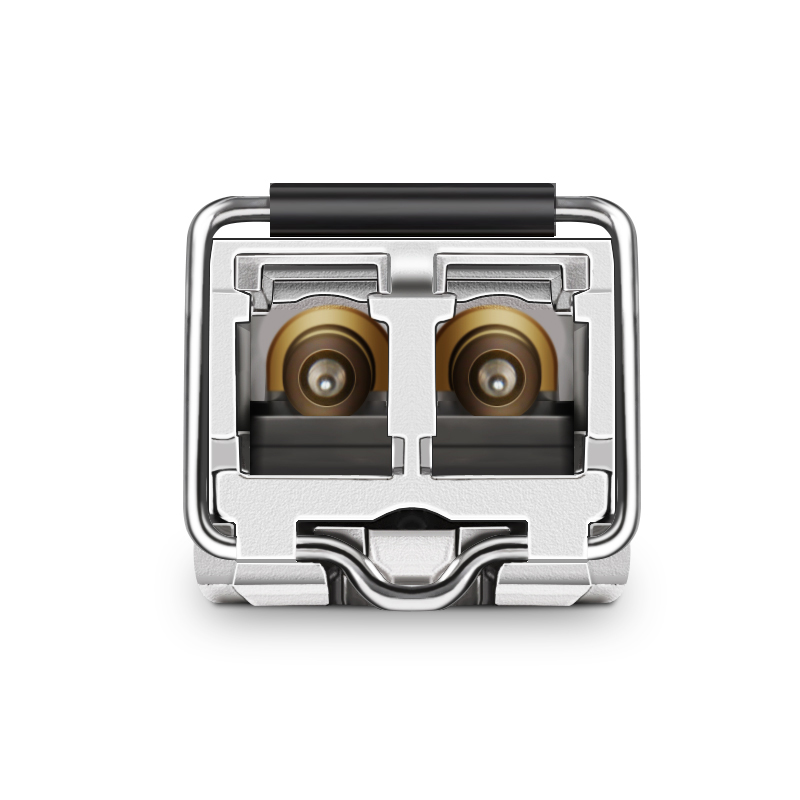

Dell SFP-10G-USR Compatible 10GBASE-USR SFP+ 850nm 150m DOM Duplex LC MMF Optical Transceiver Module

Product No :101659
US$ 9.90  US$ 11.90
1469 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=E0E25B0CCCAC8DEACE454FE3BBAFA92F
-
+
1. Support Max Data Rata 10.3125Gbps
2. Temperature ranges from 0 °C to 70°C
3. Compatible with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432
 Standard
4. Typical Power Consumption Lower than 1W
5. Connector: Duplex LC, Transmitter: VCSEL
See more

Specifications

Dell 10G-SFP-USR Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 150m, LC, DOM)



The 10G-SFP-USR optical transceiver module is equipped with 10G SFP+ ports which provide a data rate of up to 10Gbps over multimode fiber cables, reaching a link up to 300m over OM3 MMF, with a wavelength of 850nm. Support IEEE 802.3ae, SFF-8472, standards to ensure high performance. DOM (Digital Optical Monitoring) is supported to handle real-time monitoring. The 10G-SFP-USR transceiver is ideal for short-distance connections in data centers, enterprise networks, and other high-bandwidth applications.



Model Name:

10G-SFP-USR

Vendor Name:

QSFPTEK

Form Factor:

SFP+

Data Rate:

10Gbps

Wavelength:

850nm

Distance:

100m@OM3

Connector:

LC Duplex

Media:

MMF

Transmitter Type:

VCSEL

Receiver Type:

PIN

TX Power:

-7.3~-1dBm

Receiver Sensitivity:

<-11.1dBm

Power Consumption:

<0.8W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1.00E-12

Protocols:

IEEE 802.3ae, SFF-8472

Warranty:

5 Years

Quality Testing Program
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Simple Installation
    Easy to use, fully Compatible with Juniper Devices.
  • 3. Support Protocols
    Compliant with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432.
  • 4. Quality Certifications
    CertifIed by CE, FCC, ROSH, ISO9001 standard.

Product details

Seamlessly Achieve 10G to 40G Migration



Upgrade the Spine to 40G gear while maintaining the 10G Leaf architecture, achieving seamless 10G to 40G migration.








Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



QSPFTEK LAB All Brands Switches Show






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack






Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



QSFPTEK Test Devices






Part Number

QT-SFP+-T

QT-SFP+-IT

QT-SFP+-T-80

QT-SFP+-SR

QT-SFP+-IR

QT-SFP+-LR

QT-SFP+-LH

QT-SFP+-ER

QT-SFP+-ZR

QT-SFP+-ZR+


Wavelength

850nm

1310nm

1310nm

1310nm

1550nm

1550nm

1550nm

Max Distance

30m@Cat6a/7

80m@Cat6a/7

300m

2km

10km

20km

40km

80km

100km

Cable Type

Copper

Copper

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

RJ45

RJ45

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

Tx Power(dBm)

-6.5~-0.5

-8.2 ~ -0.5

-6.5~-0.5

-6~-1

-2~4

0 ~ 5

1 ~ 5

Rx Sensitivity(dBm)

-11.1

-12.6

-12.6

-14.4

-15.8

-24

-25

Power Consumption

<2.5W

<2.5W

<0.8W

<0.8W

<0.8W

< 1W

<1.5W

<1.5W

<1.5W

Source

VCSEL + PIN

FP + PIN

DFB + PIN

DFB + PIN

EML + PIN

EML + APD

EML + APD

Operating Temperature

0 to 70°C

-40 to 85°C (IND)

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

0 to 70°C

Questions & Answers

more+
  • Can this cable work at 1G? I want to plug it to 1G port.
    I'm sorry it won't be recognized on 1G Ports, this SFP+ cable is allready attached with dedicated 10G SFP+ Transceivers.
  • Can the 10G-T SFP+ be compatible with Cisco Meraki devices?
    Yes, you can choose Cisco compatible to use with Cisco Meraki devices.
  • Can I use the 10G SR modules on my Cisco C9200-48P switches?
    Yes, the Cisco coded 10GBASE-SR SFP+ is compatible with Cisco C9200-48P.
