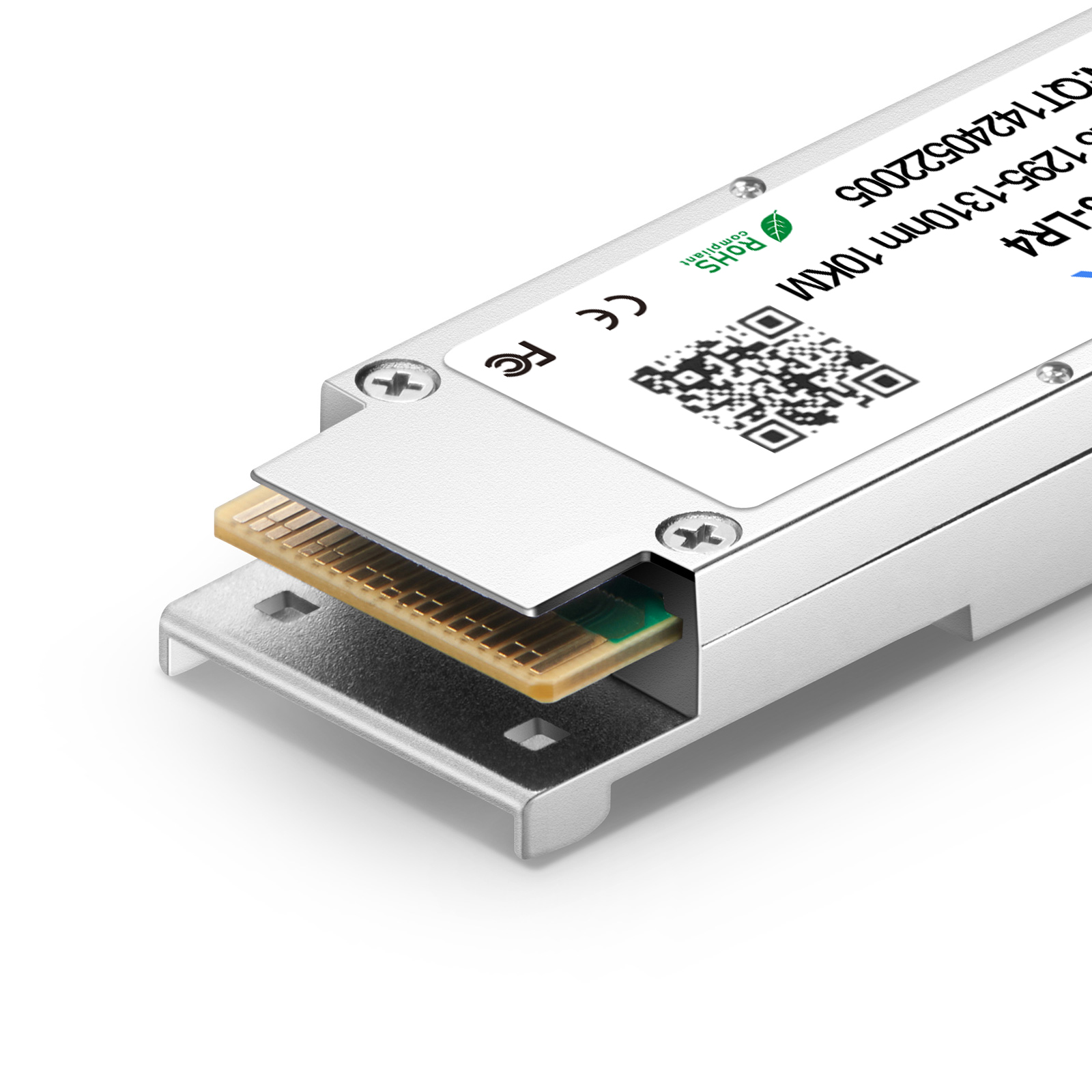

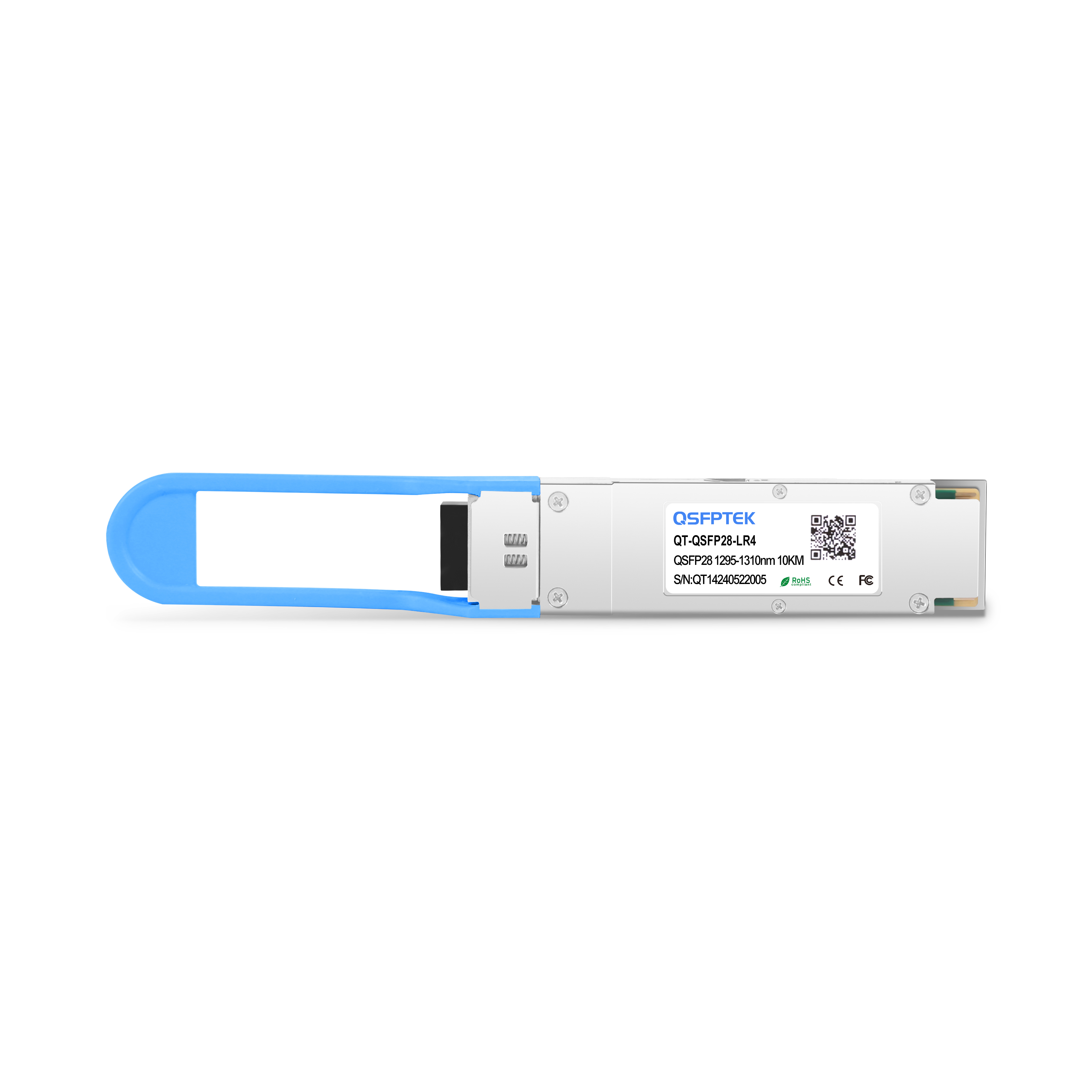

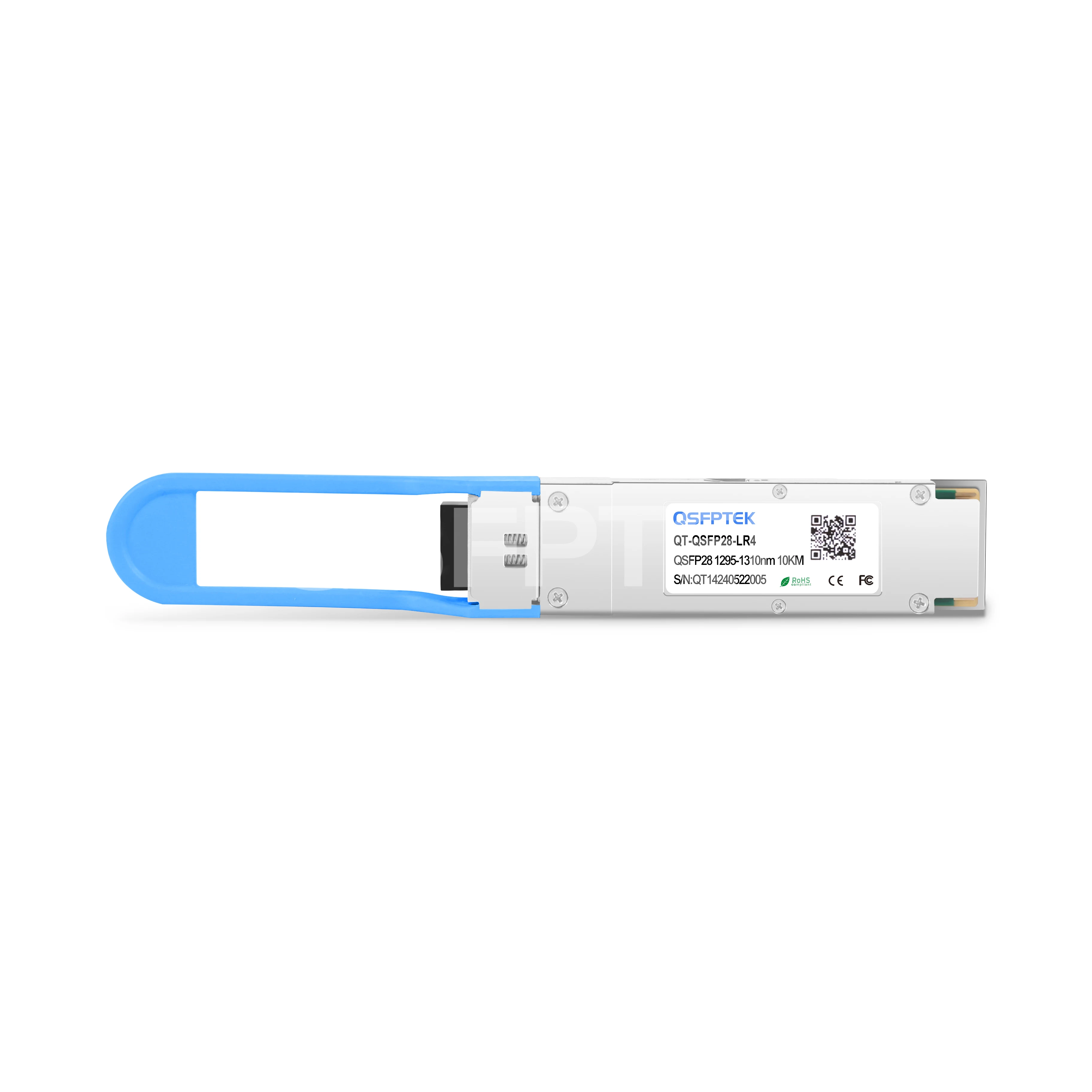

Edge-Core ET7402-LR4 Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF Optical Transceiver Module

Product No :99876

US$ 239.00 ~~US$ 299.00~~

Specifications

Edge-Core ET7402-LR4 Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DDM)

The ET7402-LR4 compatible optical transceiver module is designed with duplex LC connectors, reaching a link up to 10km over single-mode fiber(SMF). QSFPTEK manufactured 100GBASE-LR4 QSFP28 transceiver module is compliant with IEEE 802.3ba 100GBASE-LR4, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in 100G telecom connections, data centers, high-performance computing networks, enterprise core and distribution layers, campus networks, etc.

Part Number:	QT-QSFP28-LR4	Vendor Name:	QSFPTEK
Form Factor:	QSFP28	Data Rate:	103.125Gbps (4x 25.78Gbps)
Wavelength:	1295~1310nm	Distance:	10km@G.652
Connector:	Duplex LC	Cable Type:	OS2 SMF
Transmitter:	4x LAN WDM DML (DFB)	Receiver Type:	PIN
TX Power:	-4.3~4.5dBm	Receiver Sensitivity:	<-10.6dBm
Power Consumption:	≤3.5W	Modulation Format:	NRZ
DDM:	Support	Bit Error Ratio (BER):	1E-12 (without FEC)
Protocols:	IEEE 802.3ba, IEEE 802.3bm, SFF-8665, SFF-8636, 100G CWDM4 MSA, QSFP28 MSA	Warranty:	3 Years

Quality Certifications

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2. Wide Application Scenarios

Fully compatible with almost all Huawei devices. Ideal for 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers etc.
3. Protocols

Compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636.
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

Campus Network Solution for 100G Gigabit Ethernet Switches

Product details

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

transceiver compatibility tests

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

100G QSFP28 Model Contrast Table

Part Number	QT-QSFP28-SR4	QT-QSFP28-PSM4	QT-QSFP28-IR4	QT-QSFP28-LR4	QT-QSFP28-CWDM-LR4	QT-QSFP28-ER4	QT-QSFP28-ZR4	DWDM-QSFP28-ZR-XX
Wavelength	850nm	1310nm	1271~1331nm	1310nm	1271~1331nm	1310nm	1310nm	DWDM CH13~60
Max Distance	100m	500m	2km	10km	10km	40km	80km	80km
Cable Type	OM3/OM4 MMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF
Connector	MPO/MTP-12	MPO/MTP-12	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex	CS Duplex
Tx Power(dBm)	-8.4~2.4	-5~2	-6.5~2.5	-4.3~4.5	-6.5~2.5	-2.9~4.5	2~6.5	-1~4dBm
Rx Sensitivity(dBm)	-10.3	-11.4	-11.5	-10.6	-13	-20.9	-28	-12.5
Max Power Consumption	1.8W	3.5W	3.5W	3.5W	3.5W	4.5W	6W	5W
Source	VCSEL+PIN	DFB+PIN	CWDM DFB+ PIN	EML+PIN	CWDM DFB +PIN	EML+APD	EML+APD	EML+APD
Operating Temperature	0~70°C	0~70°C	0~70°C	0~70°C -40~85°C	0~70°C	0~70°C -20~85°C	0~70°C -40~85°C	0~70°C

Questions & Answers

more+

What is the laser level of 100G SR4? Can you provide a test report of the laser level of this module?

Class I. Of course, you can contact our sales to get the report.
The transmission distance is less than 550m, should I use multi-mode?

I'm afraid you should purchase the single-mode optics, like 100G LR4.
What is the Packaging Technology of the 100g lr4?

BOX Packaging
