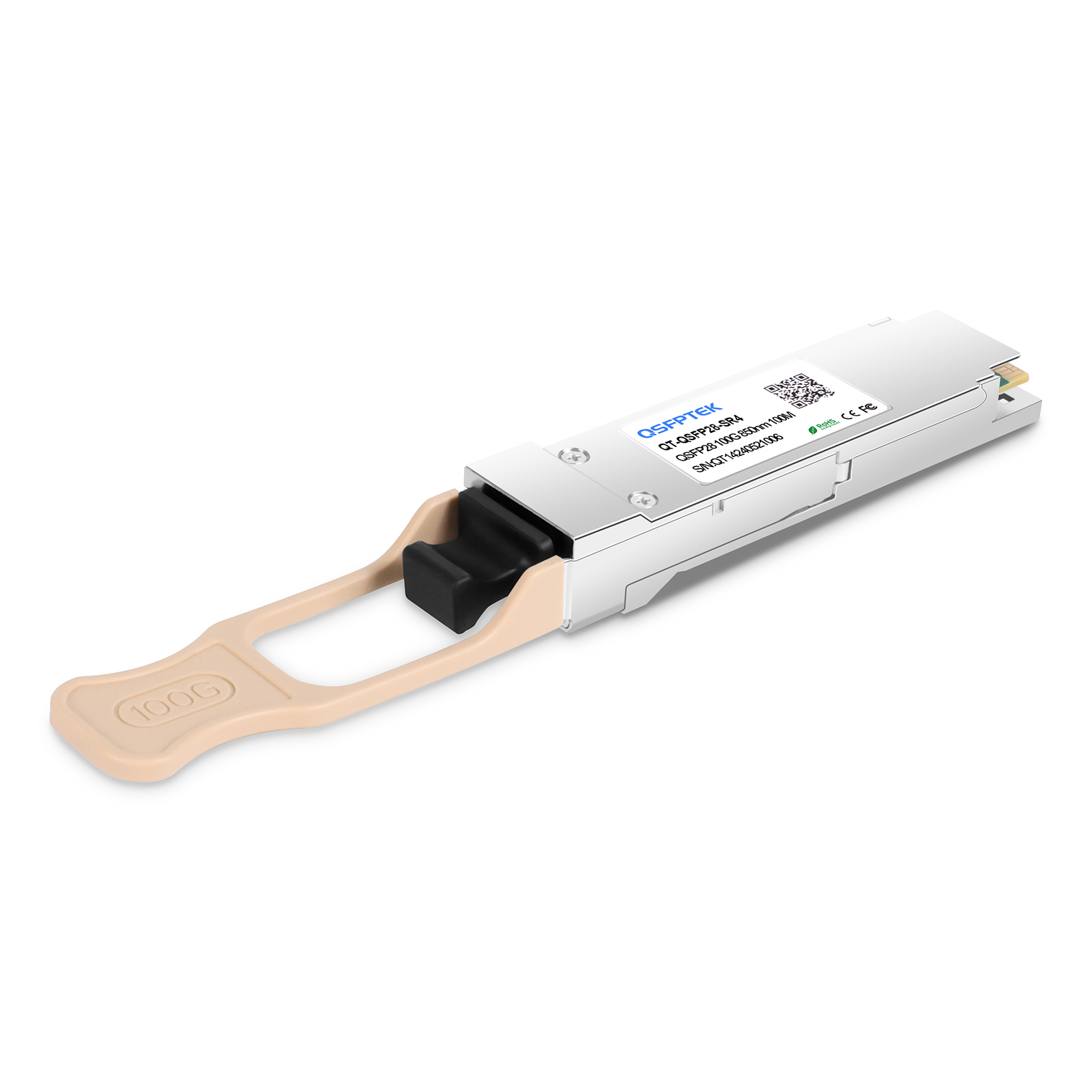

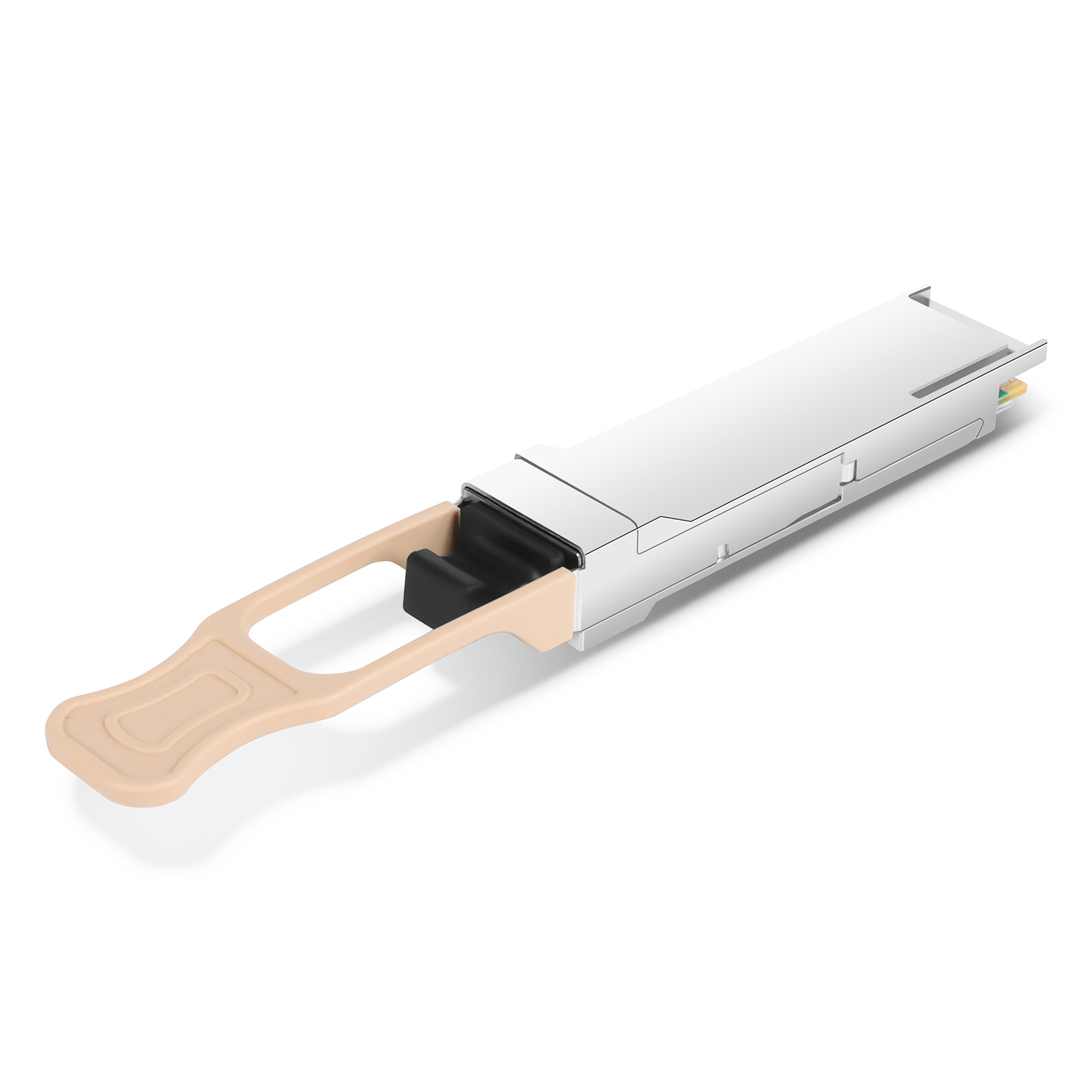

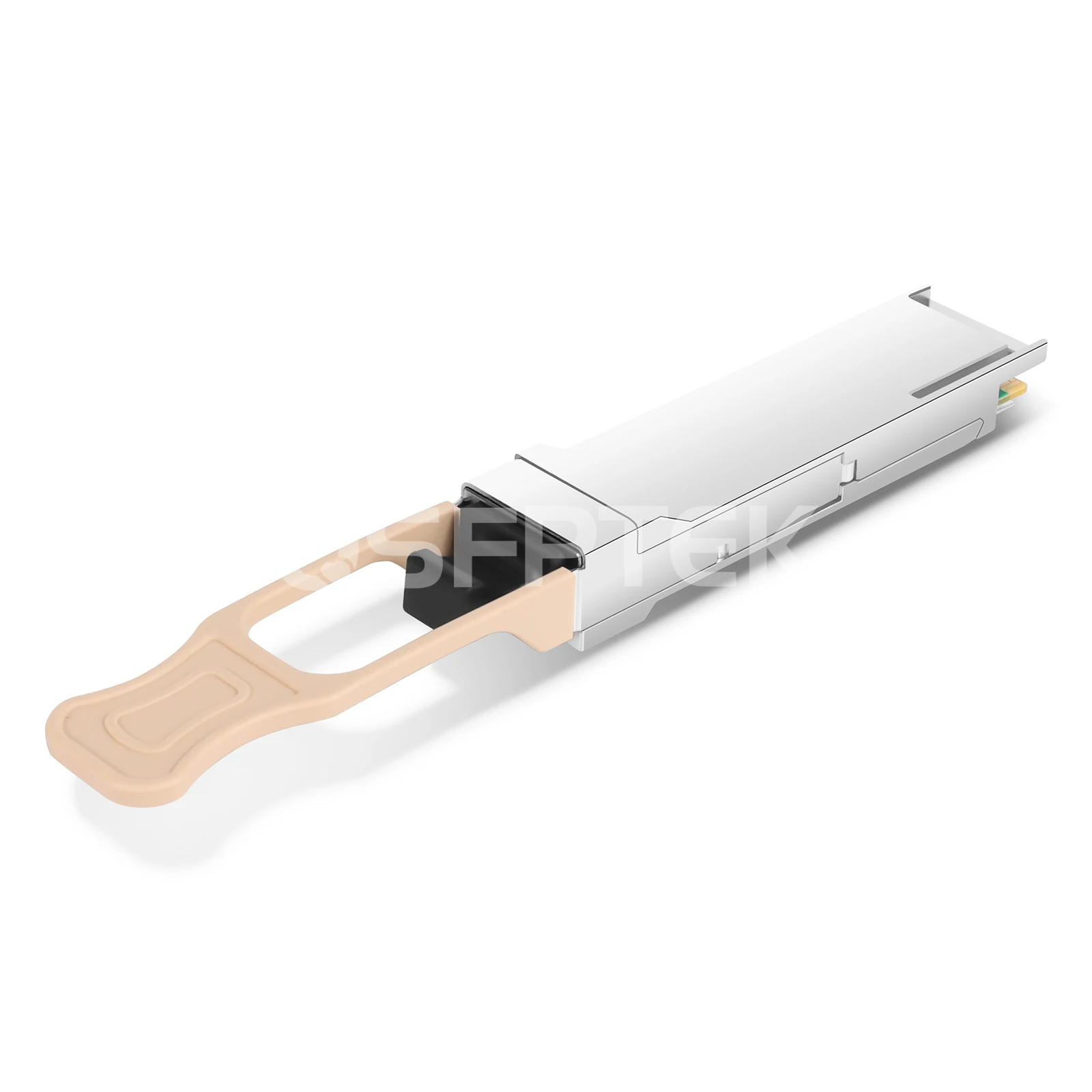

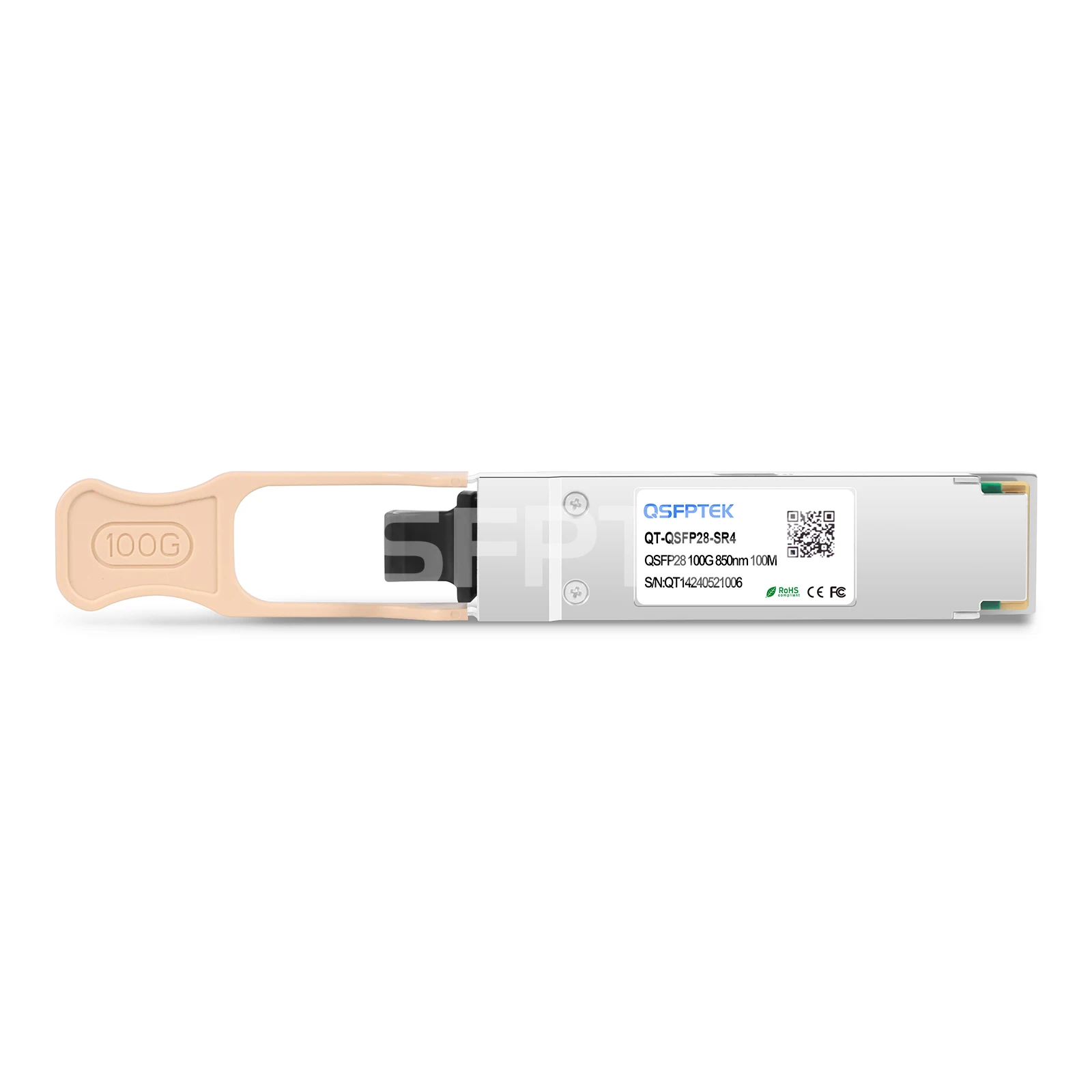

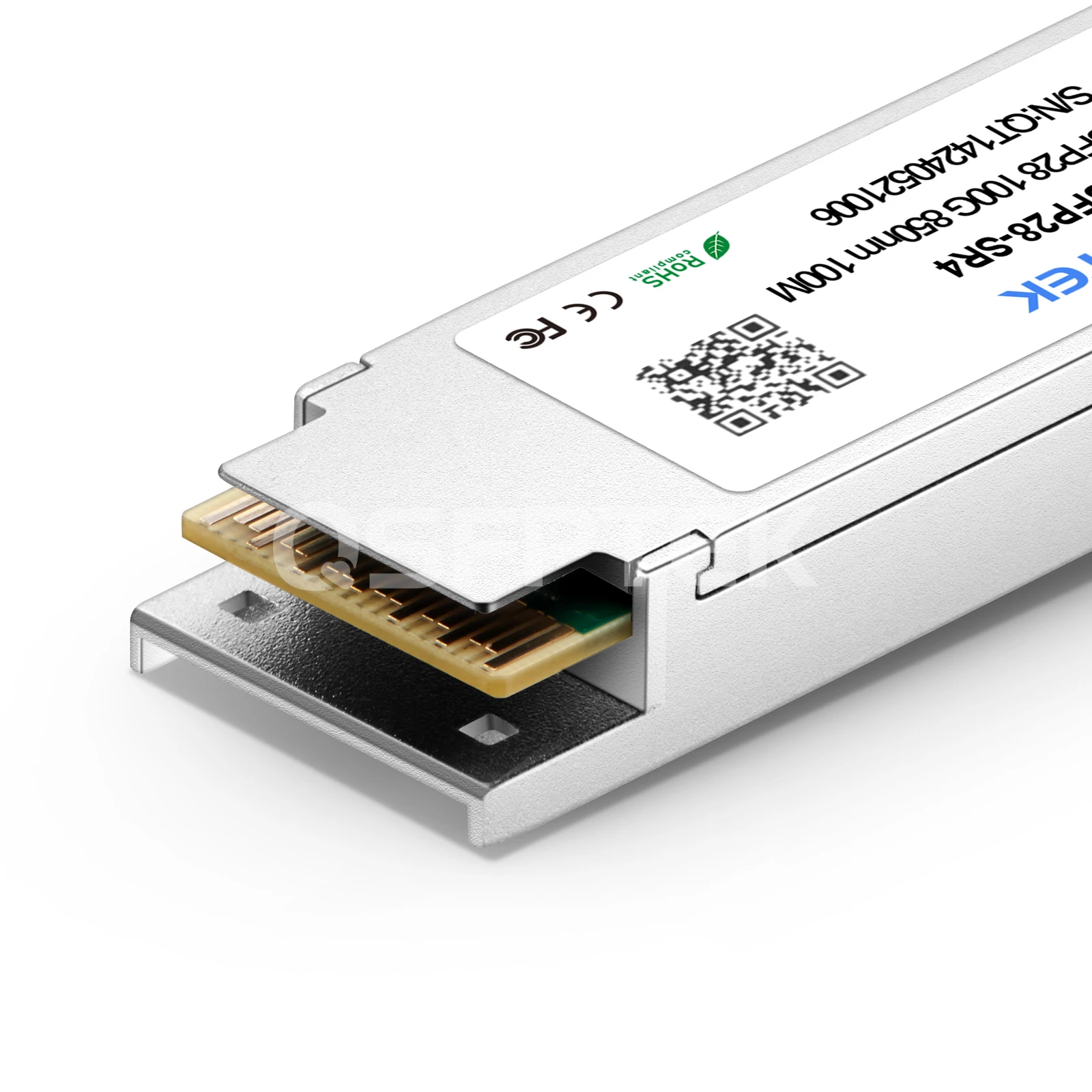

Edge-Core ET7402-SR4 Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module

Product No :99873

US$ 39.90 ~~US$ 59.90~~

Specifications

Edge-Core ET7402-SR Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module

The ET7402-SR compatible optical transceiver module is designed with MTP/MPO-12 male connectors, reaching a link up to 100m over OM4 (70m@OM3). QSFPTEK manufactured 100GBASE-SR4 QSFP28 transceiver module is compliant with IEEE 802.3bm, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in data centers, campus networks, an enterprise core layer, etc.

Part Number:	QSFP28-100G-SR4	Vendor Name:	QSFPTEK
Form Factor:	QSFP28	Data Rate:	100Gbps
Wavelength:	850nm	Distance:	100m@OM4/70m@OM3

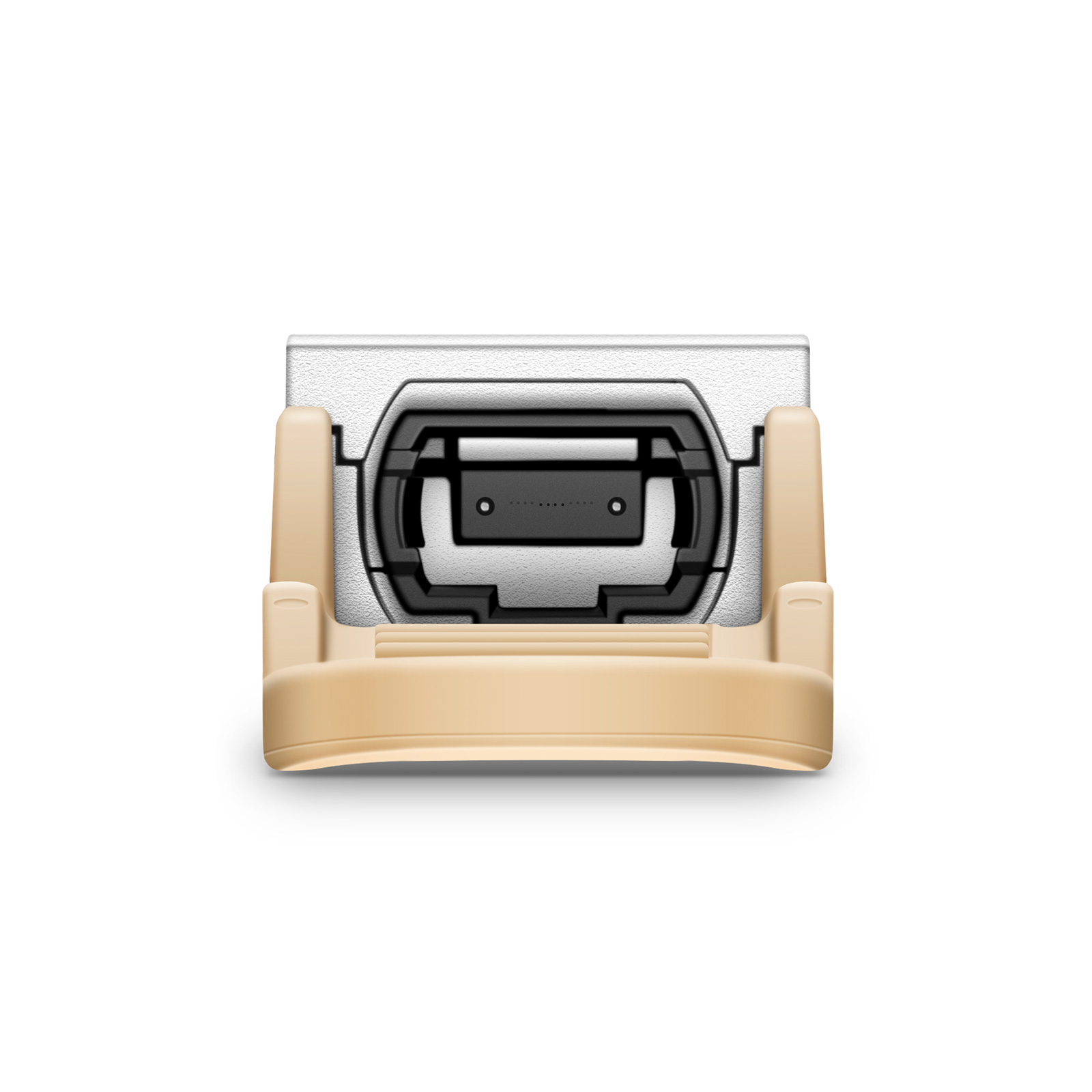

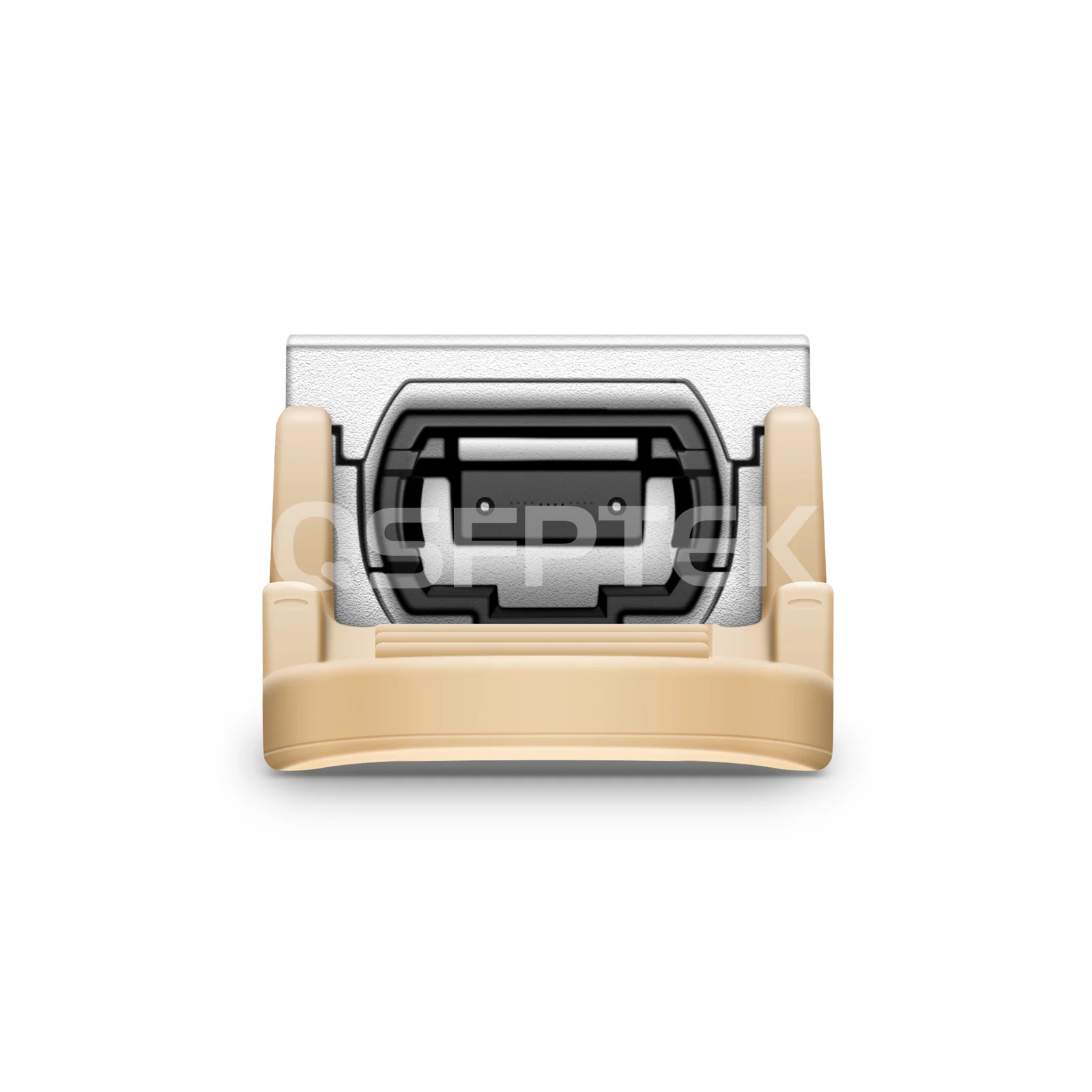

Connector:	MTP/MPO-12 Male	Cable Type:	OM4/OM3 MMF
Transmitter:	VCSEL 850nm	Receiver Type:	PIN
TX Power:	-7~1dBm	Receiver Sensitivity:	<-9.5dBm
Power Consumption:	P≤1.8W	Modulation Format:	NRZ
DDM:	Support	Bit Error Ratio (BER):	1.00E-12
Protocols: I	EEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI	Warranty:	3 Years

Quality Certifications

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2. Wide Application Scenarios

Fully compatible with almost all Huawei devices. Ideal for data centers, campus network, enterprise core layer, etc.
3. Protocols

Compliant with IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI.
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

Data Center and Campus Network Solution for 100G Gigabit Ethernet Switches

100G to 4X25G Break-out connection

Relative products:

SFP28-25G-SR(click here)

MTP to 4 LC UPC Duplex 8 Fibers OM4 Breakout Cable(click here)

The 100GBASE-SR Optical Module Connectivity Testing on Switches

Product details

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

transceiver compatibility tests

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

100G QSFP28 Model Contrast Table

Part Number	QT-QSFP28-SR4	QT-QSFP28-PSM4	QT-QSFP28-IR4	QT-QSFP28-LR4	QT-QSFP28-CWDM-LR4	QT-QSFP28-ER4	QT-QSFP28-ZR4	DWDM-QSFP28-ZR-XX
Wavelength	850nm	1310nm	1271~1331nm	1310nm	1271~1331nm	1310nm	1310nm	DWDM CH13~60
Max Distance	100m	500m	2km	10km	10km	40km	80km	80km
Cable Type	OM3/OM4 MMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF
Connector	MPO/MTP-12	MPO/MTP-12	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex	CS Duplex
Tx Power(dBm)	-8.4~2.4	-5~2	-6.5~2.5	-4.3~4.5	-6.5~2.5	-2.9~4.5	2~6.5	-1~4dBm
Rx Sensitivity(dBm)	-10.3	-11.4	-11.5	-10.6	-13	-20.9	-28	-12.5
Max Power Consumption	1.8W	3.5W	3.5W	3.5W	3.5W	4.5W	6W	5W
Source	VCSEL+PIN	DFB+PIN	CWDM DFB+ PIN	EML+PIN	CWDM DFB +PIN	EML+APD	EML+APD	EML+APD
Operating Temperature	0~70°C	0~70°C	0~70°C	0~70°C -40~85°C	0~70°C	0~70°C -20~85°C	0~70°C -40~85°C	0~70°C

Questions & Answers

more+

What is the laser level of 100G SR4? Can you provide a test report of the laser level of this module?

Class I. Of course, you can contact our sales to get the report.
The transmission distance is less than 550m, should I use multi-mode?

I'm afraid you should purchase the single-mode optics, like 100G LR4.
What is the Packaging Technology of the 100g lr4?

BOX Packaging
