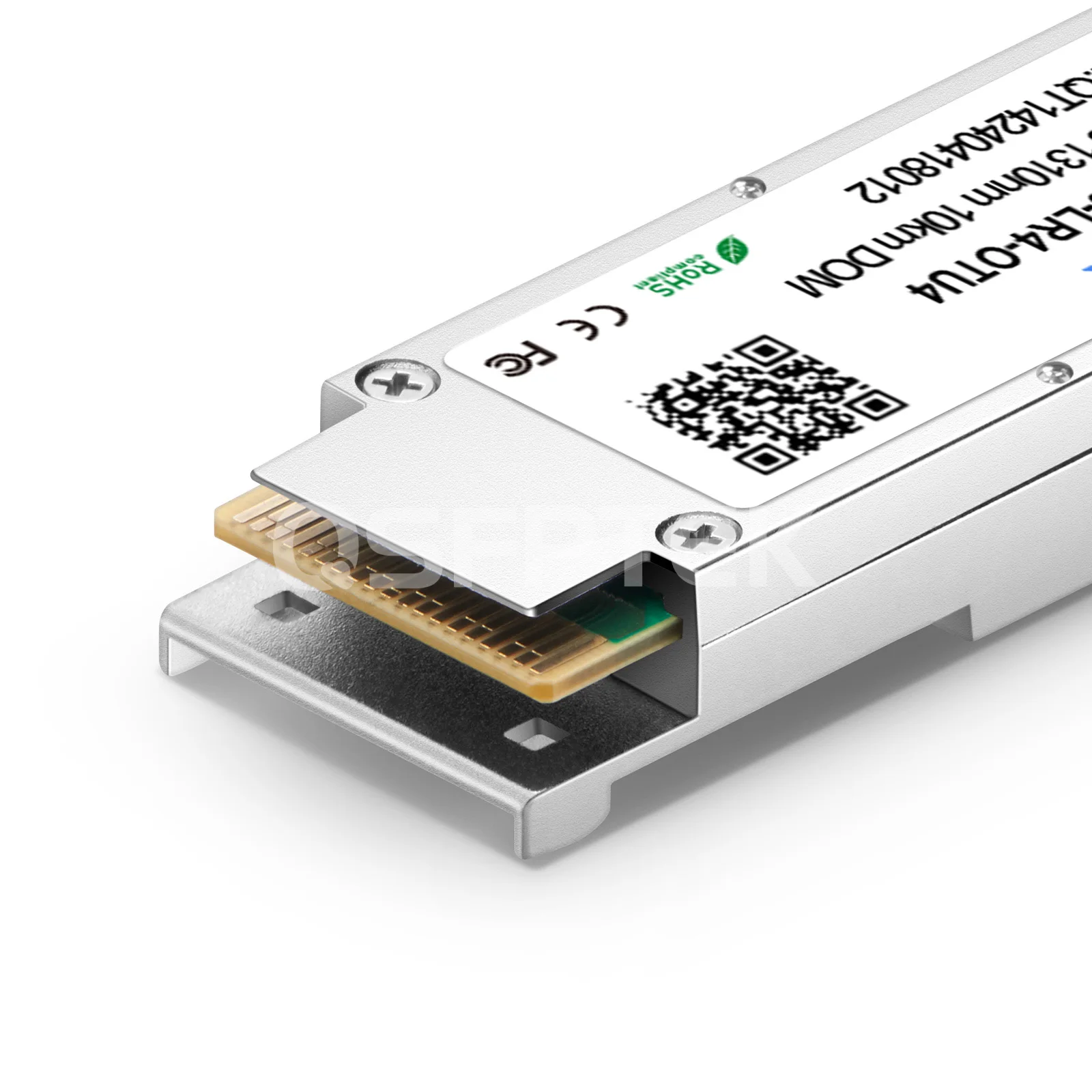

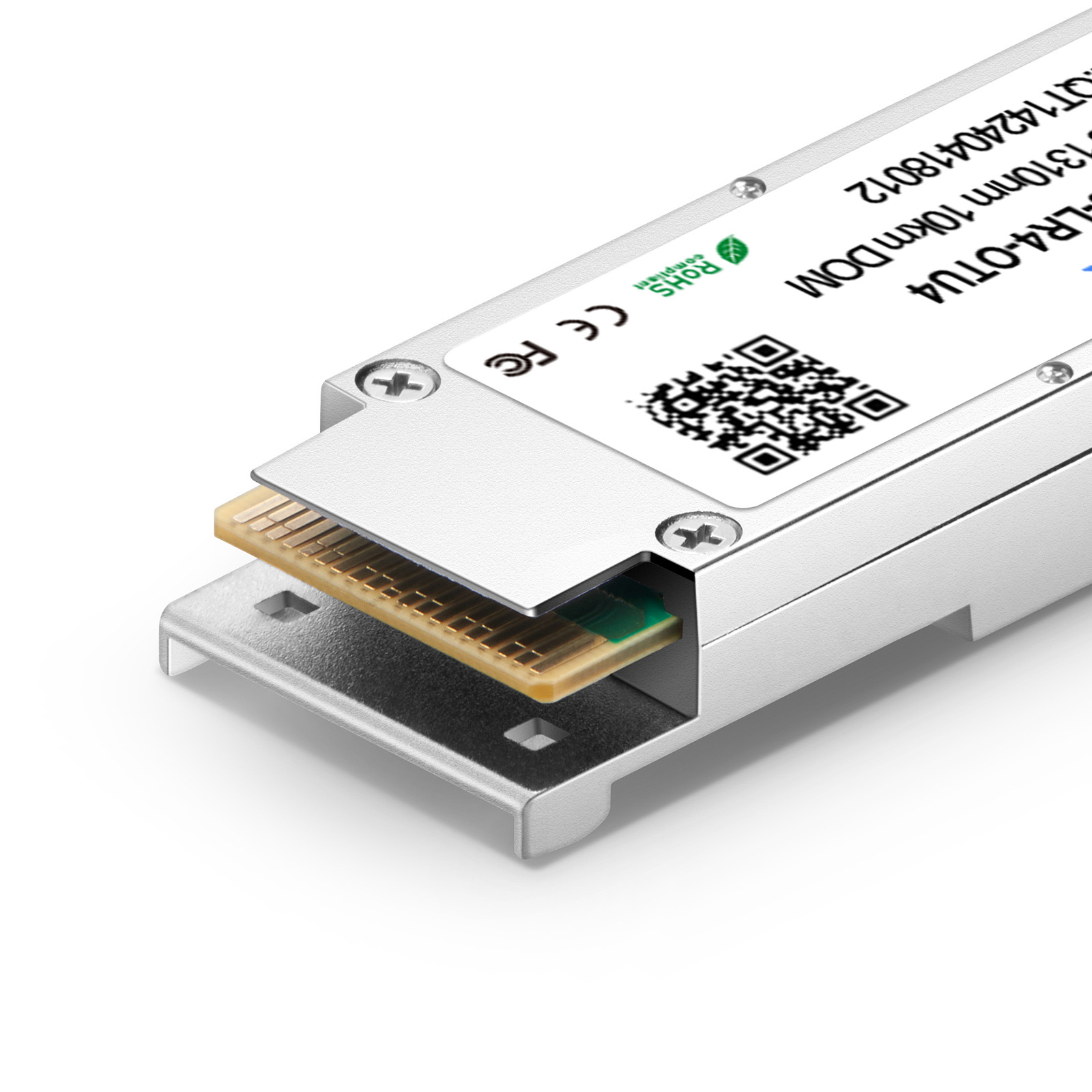

Arista QSFP-100/112G-LR4 Compatible 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

Product No :100300
US$ 935.00  US$ 1099.00
200 in stock
Free Shipping over US$ 84.9. US/EU Warehouses in stock, Overnight Shipping
1. Dual Rate: 100G&112G; Connector: LC; with DDM
2. DML+PIN; Low Power Consumption ≤3.5W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 200+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
See more

Specifications

Arista QSFP-100/112G-LR4 Compatible Dual Rate 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)



The Arista dual rate QSFP-100/112G-LR4 compatible QSFP28 optical transceiver module supports 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 10km over single-mode fiber (SMF) via duplex LC connectors. QSFPTEK QSFP-100/112G-LR4 module has great reliability, airtightness, and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standards. Digital diagnostics functions are also available via the I2C interface. The module is capable of 100G Ethernet, 112G OTN OTU4, telecom, service provider applications, and 5G wireless networks.



Part Number

QT-QSFP28-LR4-OUT4

Vendor Name

QSFPTEK

Form Factor

QSFP28

Data Rate

103.1Gbps and 112Gbps

Wavelength

1310nm

Distance

10km

Connector

Duplex LC

Cable Type

OS2 SMF

Transmitter

4 x LAN WDM DML TOSA

Receiver Type

4 x PIN ROSA

TX Power(100G)

-4.3~4.5dBm

Receiver Sensitivity(100G)

<-8.6dBm

Power Consumption

≤3.5W

Temperature

0 to 70°C (32 to 158°F)

DDM

Support

Bit Error Ratio (BER)

1.00E-12

Protocols

QSFP28 MSA Compliant

Warranty

3 Years

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenario
    Fully compatible with most industry OEM devices. Ideal for 100G telecom connections, data centers, high-performance computing networks, enterprise cores, distribution layers, etc.
  • 3. Protocols
    Compliant with IEEE 802.3ba 100GBASE-LR4, OTU4 4I1-9D1F, and QSFP28 MSA standard
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Campus Network Solution for 100G Gigabit Ethernet Switches

Related Products:

• LC UPC to LC UPC Duplex OS2 Single-mode Fiber Optic Patch Cable (SMF)

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.








100G QSFP28 Model Contrast Table



Part Number

QT-QSFP28-SR4

QT-QSFP28-PSM4

QT-QSFP28-IR4

QT-QSFP28-LR4

QT-QSFP28-CWDM-LR4

QT-QSFP28-ER4

QT-QSFP28-ZR4

DWDM-QSFP28-ZR-XX


Wavelength

850nm

1310nm

1271~1331nm

1310nm

1271~1331nm

1310nm

1310nm

DWDM CH13~60

Max Distance

100m

500m

2km

10km

10km

40km

80km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

CS Duplex

Tx Power(dBm)

-8.4~2.4

-5~2

-6.5~2.5

-4.3~4.5

-6.5~2.5

-2.9~4.5

2~6.5

-1~4dBm

Rx Sensitivity(dBm)

-10.3

-11.4

-11.5

-10.6

-13

-20.9

-28

-12.5

Max Power Consumption

1.8W

3.5W

3.5W

3.5W

3.5W

4.5W

6W

5W

Source

VCSEL+PIN

DFB+PIN

CWDM DFB+ PIN

EML+PIN

CWDM DFB +PIN

EML+APD

EML+APD

EML+APD

Operating Temperature

0~70°C

0~70°C

0~70°C

0~70°C

-40~85°C

0~70°C

0~70°C

-20~85°C

0~70°C

-40~85°C

0~70°C





Questions & Answers

more+
  • What is the laser level of 100G SR4? Can you provide a test report of the laser level of this module?
    Class I. Of course, you can contact our sales to get the report.
  • The transmission distance is less than 550m, should I use multi-mode?
    I'm afraid you should purchase the single-mode optics, like 100G LR4.
  • What is the Packaging Technology of the 100g lr4?
    BOX Packaging
