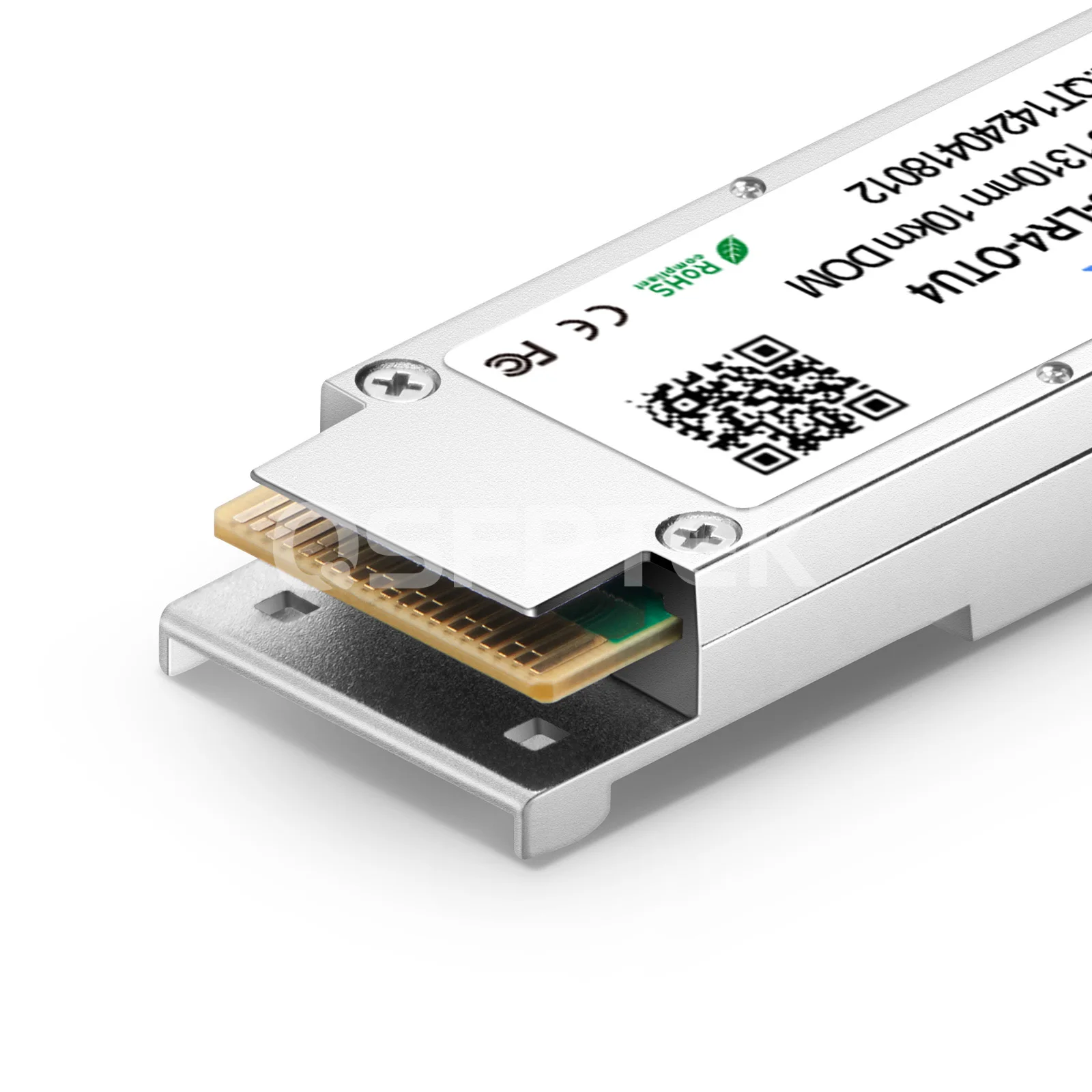

Cisco QSFP-100/112G-LR4 Compatible 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

Product No :100299

US$ 935.00 ~~US$ 1099.00~~

Specifications

Cisco QSFP-100/112G-LR4 Compatible Dual Rate 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

The Cisco dual rate QSFP-100/112G-LR4 compatible QSFP28 optical transceiver module supports 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 10km over single-mode fiber (SMF) via duplex LC connectors. QSFPTEK QSFP-100/112G-LR4 module has great reliability, airtightness, and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standards. Digital diagnostics functions are also available via the I2C interface. The module is capable of 100G Ethernet, 112G OTN OTU4, telecom, service provider applications, and 5G wireless networks.

Part Number	QT-QSFP28-LR4-OUT4	Vendor Name	QSFPTEK
Form Factor	QSFP28	Data Rate	103.1Gbps and 112Gbps
Wavelength	1310nm	Distance	10km
Connector	Duplex LC	Cable Type	OS2 SMF
Transmitter	4 x LAN WDM DML TOSA	Receiver Type	4 x PIN ROSA
TX Power(100G)	-4.3~4.5dBm	Receiver Sensitivity(100G)	<-8.6dBm
Power Consumption	≤3.5W	Temperature	0 to 70°C (32 to 158°F)
DDM	Support	Bit Error Ratio (BER)	1.00E-12
Protocols	QSFP28 MSA Compliant	Warranty	3 Years

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2. Wide Application Scenario

Fully compatible with most industry OEM devices. Ideal for 100G telecom connections, data centers, high-performance computing networks, enterprise cores, distribution layers, etc.
3. Protocols

Compliant with IEEE 802.3ba 100GBASE-LR4, OTU4 4I1-9D1F, and QSFP28 MSA standard
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

Campus Network Solution for 100G Gigabit Ethernet Switches

Product details

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

transceiver compatibility tests

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

100G QSFP28 Model Contrast Table

Part Number	QT-QSFP28-SR4	QT-QSFP28-PSM4	QT-QSFP28-IR4	QT-QSFP28-LR4	QT-QSFP28-CWDM-LR4	QT-QSFP28-ER4	QT-QSFP28-ZR4	DWDM-QSFP28-ZR-XX
Wavelength	850nm	1310nm	1271~1331nm	1310nm	1271~1331nm	1310nm	1310nm	DWDM CH13~60
Max Distance	100m	500m	2km	10km	10km	40km	80km	80km
Cable Type	OM3/OM4 MMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF
Connector	MPO/MTP-12	MPO/MTP-12	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex	CS Duplex
Tx Power(dBm)	-8.4~2.4	-5~2	-6.5~2.5	-4.3~4.5	-6.5~2.5	-2.9~4.5	2~6.5	-1~4dBm
Rx Sensitivity(dBm)	-10.3	-11.4	-11.5	-10.6	-13	-20.9	-28	-12.5
Max Power Consumption	1.8W	3.5W	3.5W	3.5W	3.5W	4.5W	6W	5W
Source	VCSEL+PIN	DFB+PIN	CWDM DFB+ PIN	EML+PIN	CWDM DFB +PIN	EML+APD	EML+APD	EML+APD
Operating Temperature	0~70°C	0~70°C	0~70°C	0~70°C -40~85°C	0~70°C	0~70°C -20~85°C	0~70°C -40~85°C	0~70°C

Questions & Answers

more+

What is the laser level of 100G SR4? Can you provide a test report of the laser level of this module?

Class I. Of course, you can contact our sales to get the report.
The transmission distance is less than 550m, should I use multi-mode?

I'm afraid you should purchase the single-mode optics, like 100G LR4.
What is the Packaging Technology of the 100g lr4?

BOX Packaging
