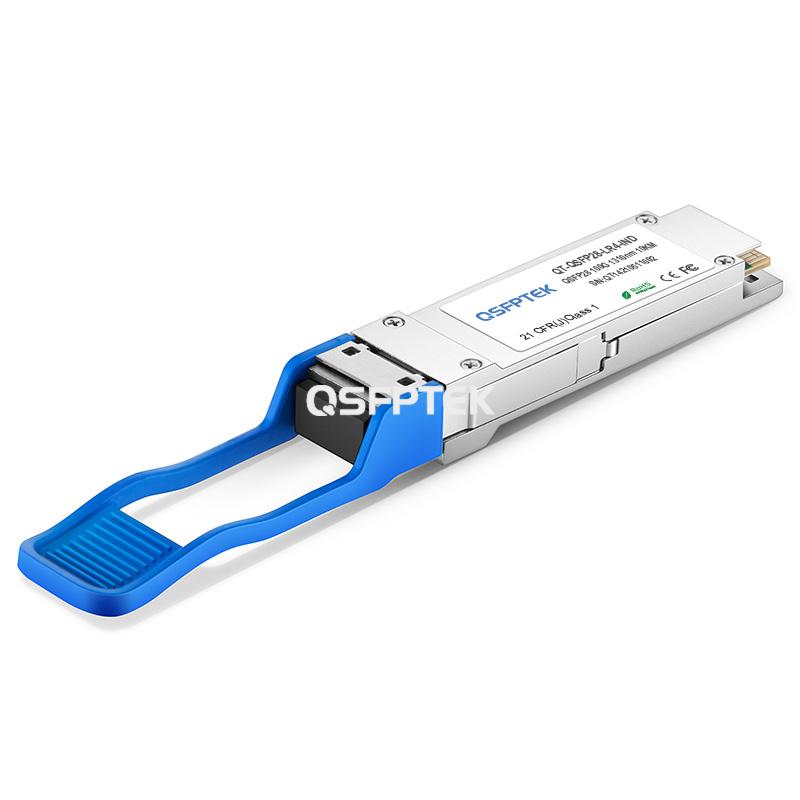

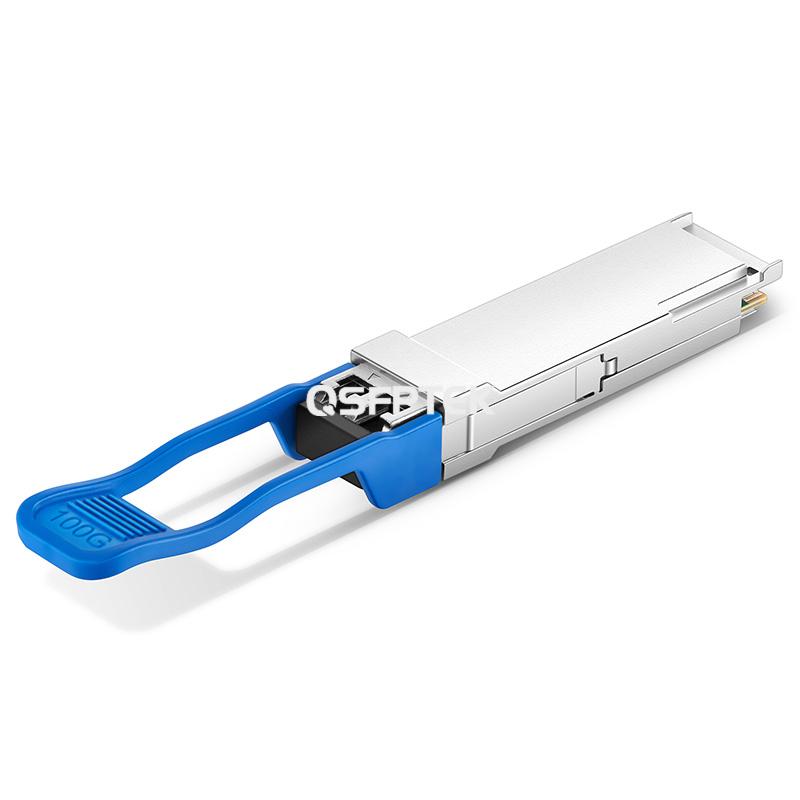

Huawei 02311KNU-I Compatible 100GBASE-LR4 QSFP28 1310nm 10km LC SMF Optical Transceiver Module (Industrial Temp.)

Product No :100325
US$ 935.00  US$ 1099.00
200 in stock
Free Shipping over US$ 84.9. US/EU Warehouses in stock, Overnight Shipping
1. Data Rate: 100G; Connector: LC; with DDM
2. EML+PIN; Low Power Consumption ≤4W
3. Industrial Temperature Range -40°C to 85°C
4. Compatible with 200+ Vendors
5. Applied in Campus Network, Data Center and Enterprise Core Layer
See more

Specifications

Huawei 02311KNU-I Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module (Industrial, SMF, 1310nm, 10km, LC, DOM)



The Huawei industrial temperature 02311KNU-I compatible QSFP28 optical transceiver module is designed with duplex LC connectors, reaching a link up to 10km over single-mode fiber(SMF). QSFPTEK manufactured 100GBASE-LR4 QSFP28 transceiver module is compliant with IEEE 802.3ba 100GBASE-LR4, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in 100G telecom connections, data centers, high-performance computing networks, enterprise core and distribution layers, campus networks, etc.



Part Number

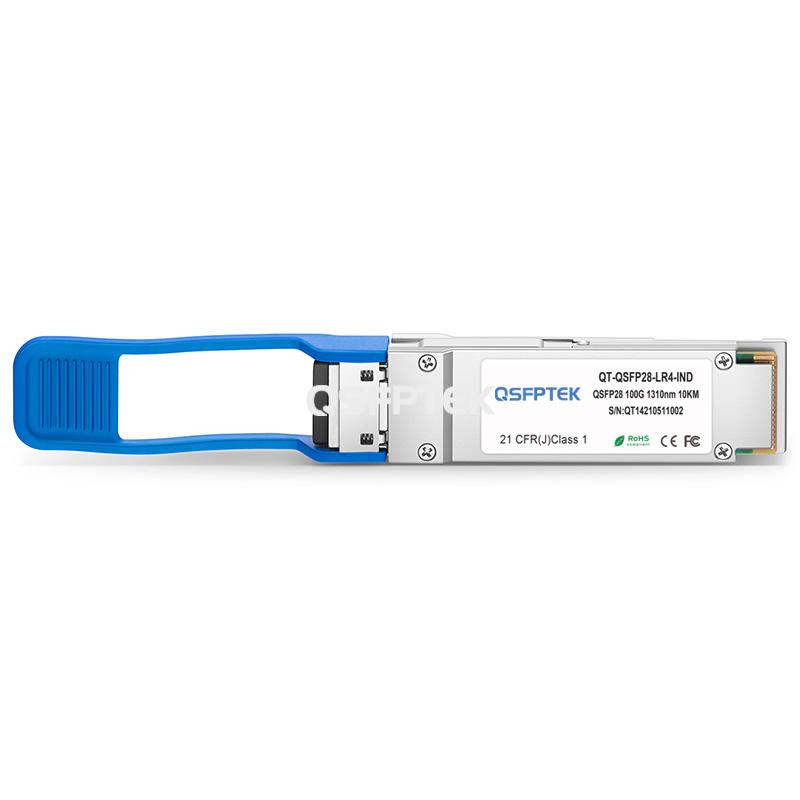

QT-QSFP28-LR4-IND

Vendor Name

QSFPTEK

Form Factor

QSFP28

Data Rate

103.1Gbps

Wavelength

1310nm

Distance

10km

Connector

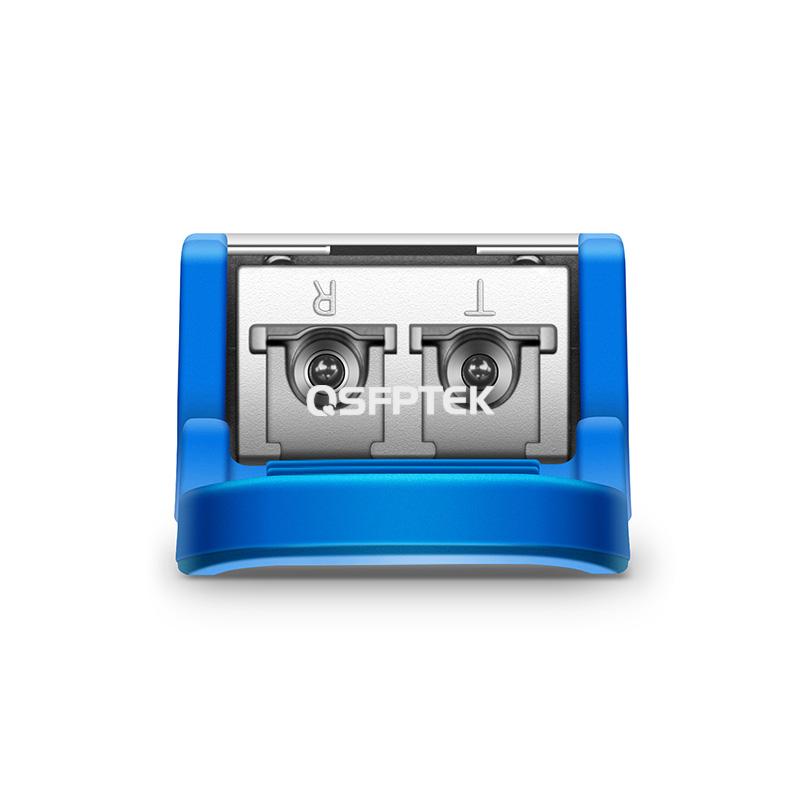

Duplex LC

Cable Type

OS2 SMF

Transmitter

LAN WDM EML

Receiver Type

PIN

TX Power(100G)

-4.3~4.5dBm

Receiver Sensitivity(100G)

<-10.6dBm

Power Consumption

≤4W

Temperature

-40 to 85°C (-40 to 185°F)

DDM

Support

Bit Error Ratio (BER)

1.00E-12

Protocols

IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA

Warranty

3 Years

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenario
    Fully compatible with most industry OEM devices. Ideal for 100G telecom connections, data centers, high-performance computing networks, enterprise cores, distribution layers, etc.
  • 3. Protocols
    Compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, and QSFP28 MSA standards.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

100GBASE-LR QSFP-100G-LR QSFP28 transceiver connectivity guide:

Related Products:

• LC UPC to LC UPC Duplex OS2 Single-mode Fiber Optic Patch Cable (SMF)

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.








100G QSFP28 Model Contrast Table



Part Number

QT-QSFP28-SR4

QT-QSFP28-PSM4

QT-QSFP28-IR4

QT-QSFP28-LR4

QT-QSFP28-CWDM-LR4

QT-QSFP28-ER4

QT-QSFP28-ZR4

DWDM-QSFP28-ZR-XX


Wavelength

850nm

1310nm

1271~1331nm

1310nm

1271~1331nm

1310nm

1310nm

DWDM CH13~60

Max Distance

100m

500m

2km

10km

10km

40km

80km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

CS Duplex

Tx Power(dBm)

-8.4~2.4

-5~2

-6.5~2.5

-4.3~4.5

-6.5~2.5

-2.9~4.5

2~6.5

-1~4dBm

Rx Sensitivity(dBm)

-10.3

-11.4

-11.5

-10.6

-13

-20.9

-28

-12.5

Max Power Consumption

1.8W

3.5W

3.5W

3.5W

3.5W

4.5W

6W

5W

Source

VCSEL+PIN

DFB+PIN

CWDM DFB+ PIN

EML+PIN

CWDM DFB +PIN

EML+APD

EML+APD

EML+APD

Operating Temperature

0~70°C

0~70°C

0~70°C

0~70°C

-40~85°C

0~70°C

0~70°C

-20~85°C

0~70°C

-40~85°C

0~70°C





Questions & Answers

more+
  • What is the laser level of 100G SR4? Can you provide a test report of the laser level of this module?
    Class I. Of course, you can contact our sales to get the report.
  • The transmission distance is less than 550m, should I use multi-mode?
    I'm afraid you should purchase the single-mode optics, like 100G LR4.
  • What is the Packaging Technology of the 100g lr4?
    BOX Packaging
