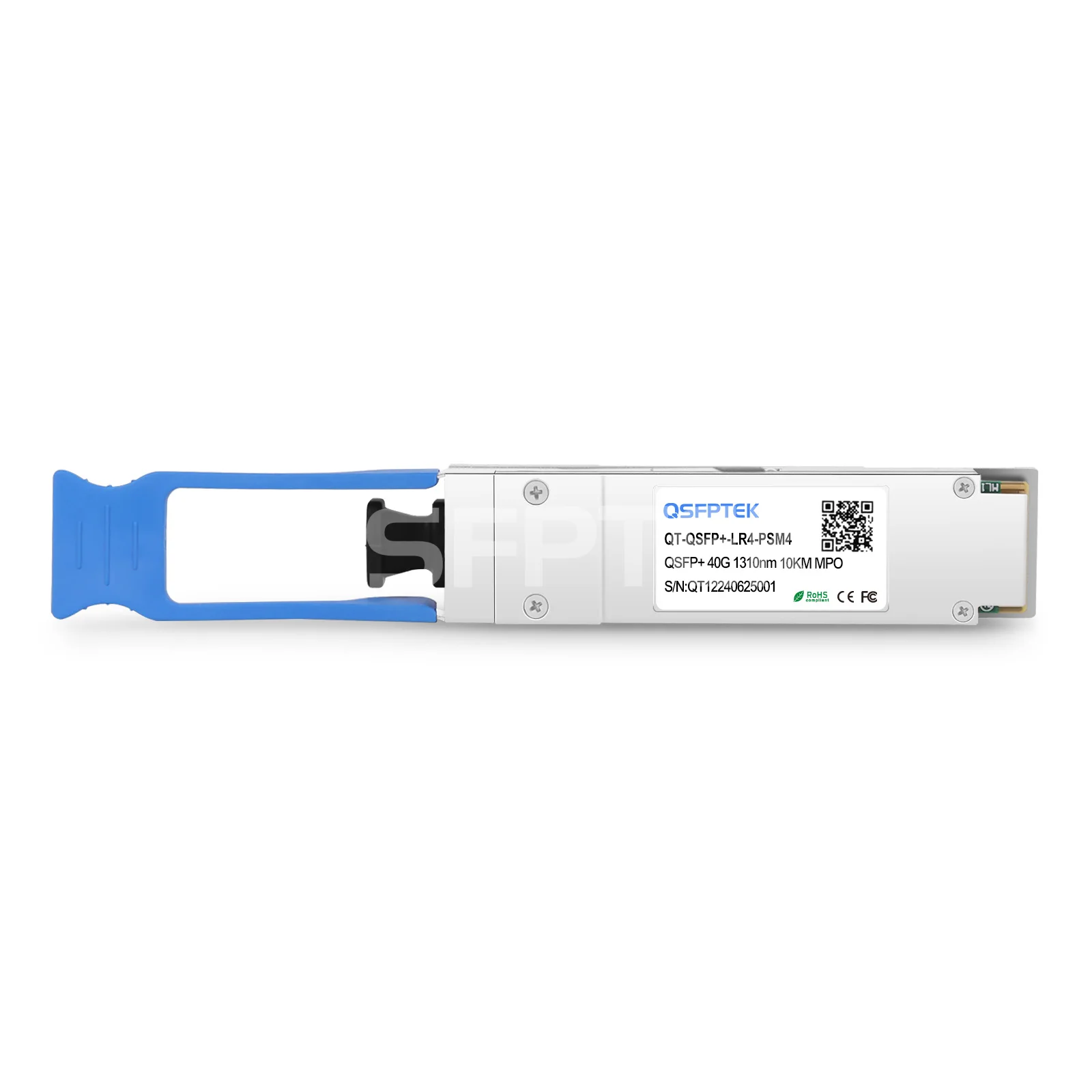

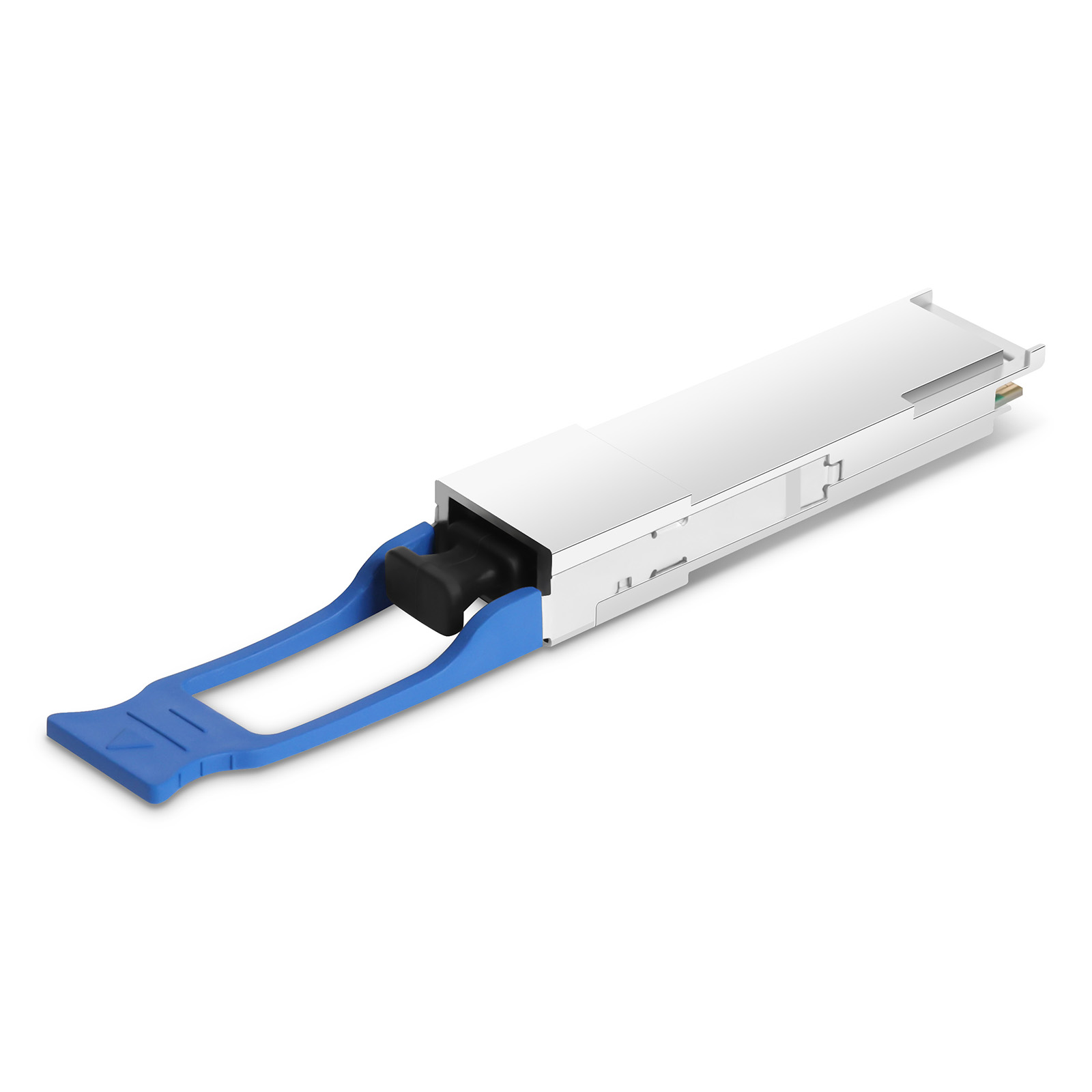

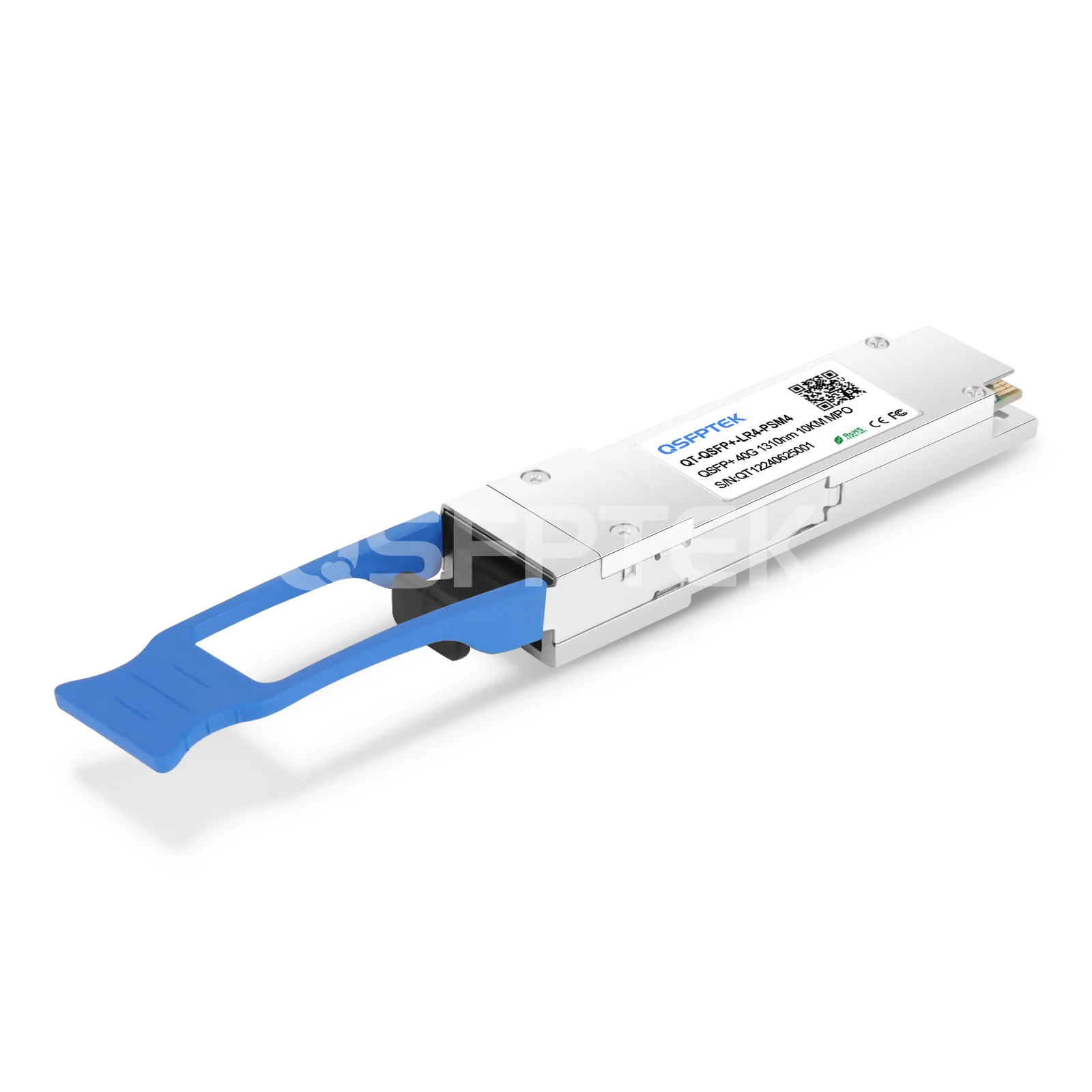

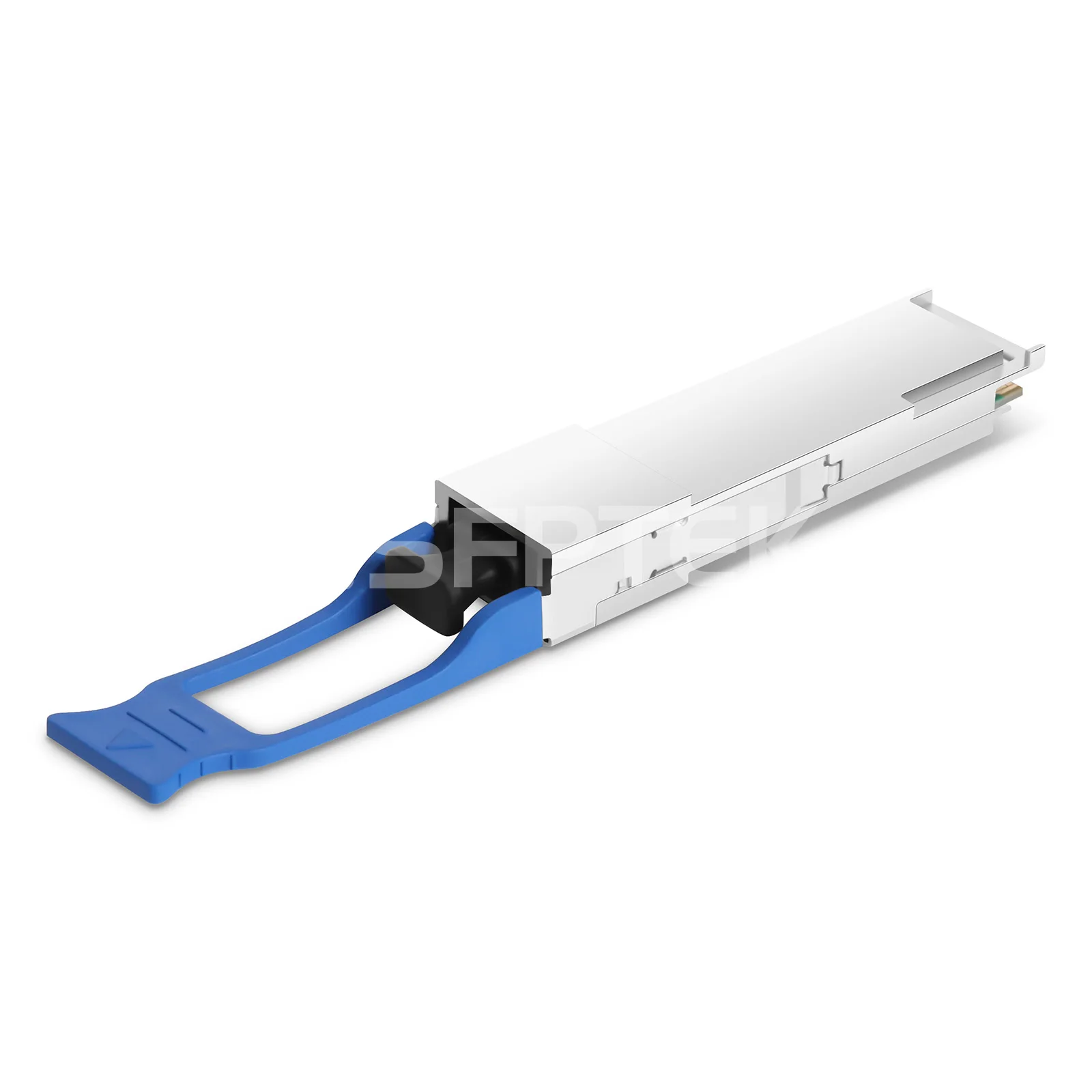

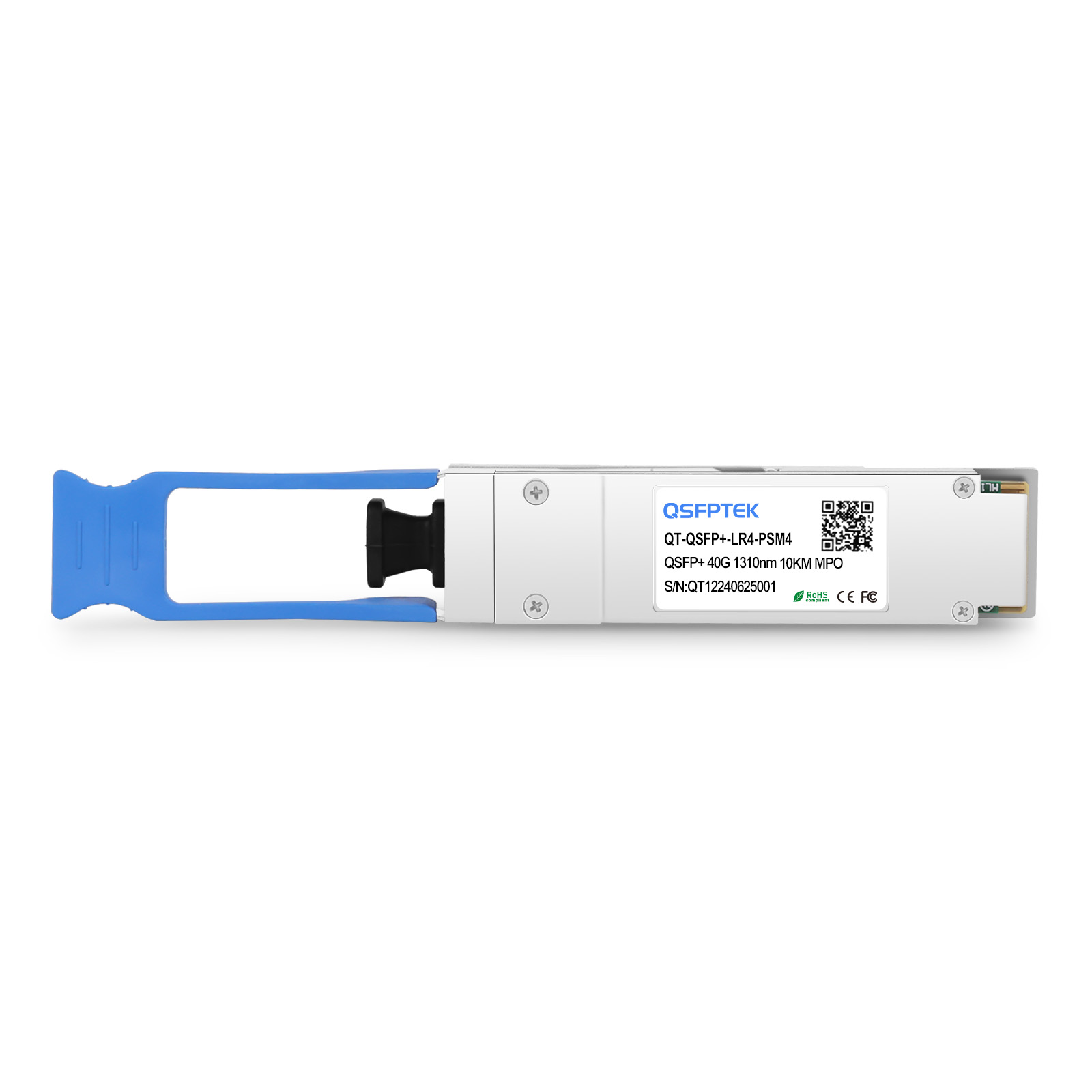

Intel E40GQSFPLR-2 Compatible 40GBASE-PSM4 QSFP+ 1310nm 10km MTP/MPO Optical Transceiver Module

Product No :100045

US$ 93.90 ~~US$ 119.00~~

Specifications

Intel E40GQSFPLR-2 Compatible 40GBASE-PSM4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, MPO, DDM)

The Intel E40GQSFPLR-2 compatible 40G QSFP+ transceiver module is equipped with MTP/MPO connector, reaching a link up to 10km over single-mode fiber (SMF). This 40G optical transceiver comes with a bidirectional 4-channel QSFP+ connector, enabling a total of 40 Gbps bandwidth by each channel carrying a 10 Gbps data rate. DOM/DDM (digital diagnostics monitoring) function is supported on the QSFP 40G fiber optic transceiver to achieve real-time operating parameters monitoring.

QSFPTEK manufactured 40GBASE-PSM4 QSFP+ module is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-PSM4 specifications. Besides, the QSFP PSM4 optic has been tested on host devices to ensure full compatibility with Intel equipment, such as data center switches, enterprise routers, and server network interface cards (NICs). The third-party 40G SFP module is an ideal substitute for the Intel E40GQSFPLR-2 QSFP+ 40G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 40G connectivity.

PSM4 40G QSFP optics cater to 40 Gigabit Ethernet (40GbE) optical fiber connections, ideal for high-performance and long-distance applications in the data center, enterprise core and distribution layers, campus networks, metro networks, etc.

Part Number	QT-QSFP+-PSM4	Vendor Name	QSFPTEK
Form Factor	QSFP+	Data Rate	40 Gbps
Wavelength	1310nm	Distance	10km

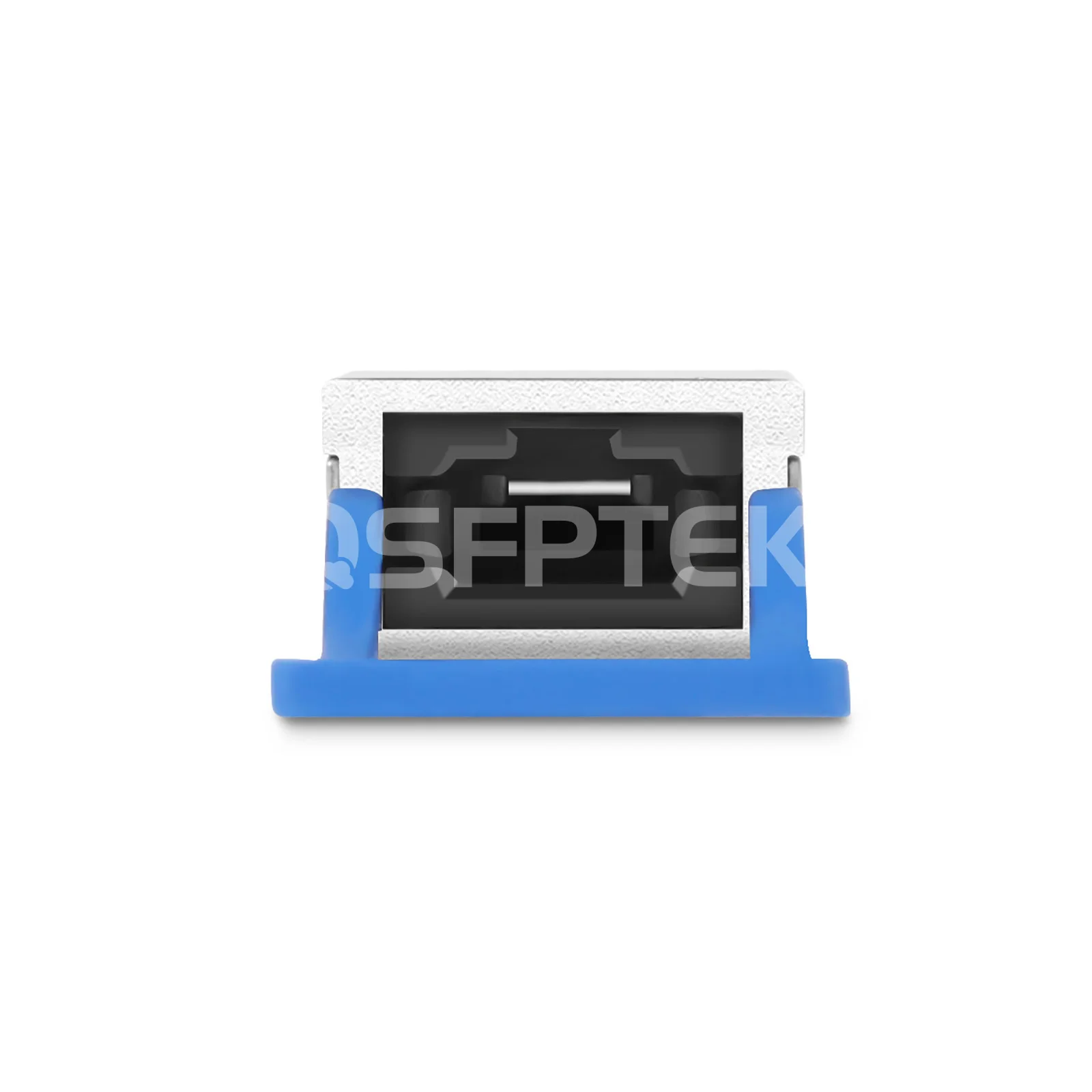

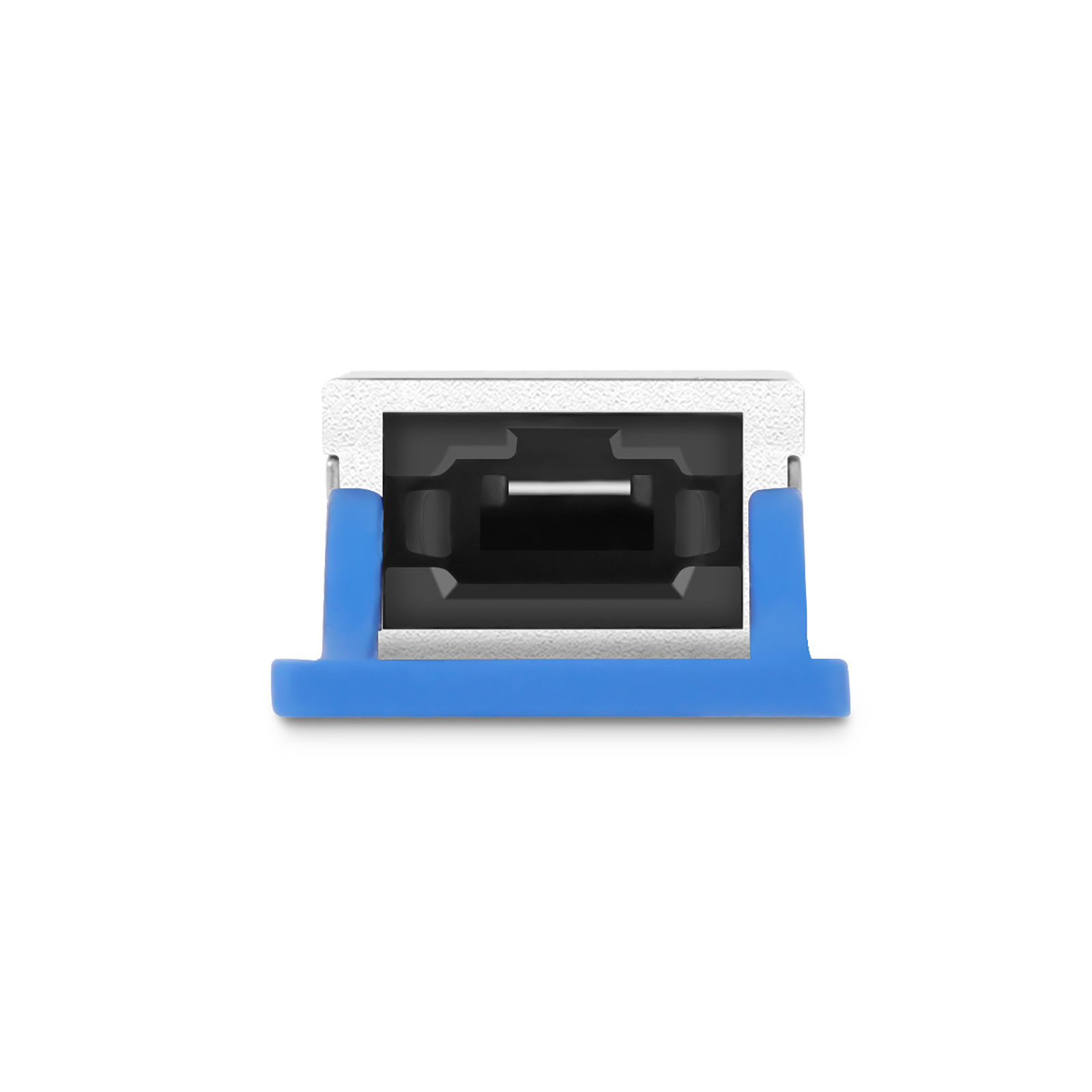

Connector	MTP/MPO-12 Male	Cable Type	SMF
Transmitter Type	4x DFB	Receiver Type	PIN
TX Power	-6~-1dBm	Receiver Sensitivity	<-14.4dBm
Power Consumption	<2.5W	Modulation Format	NRZ
DDM	Support	Bit Error Ratio (BER)	1E-12
Protocols	IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636, Infiniband 40G QDR	Warranty	3 Years

Quality Certifications

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2. Wide Application Scenarios

Fully compatible with almost all Intel devices. Ideal for data center, campus network, metro network, etc.
3. Protocols

Compliant with IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636.
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

Data Center 40 Gigabit Ethernet Direct Connection Solution:

Connect two 40GbE Switches with two 40GBASE-PSM4 optics over MTP OS2 SMF trunk cable

Product details

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

transceiver compatibility tests

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

Various Switch Tests

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

40G QSFP+ Model Contrast Table

Part Number	QT-QSFP+-SR4	QT-QSFP+-IR4	QT-QSFP+-PSM4	QT-QSFP+-LR4	QT-QSFP+-SH4	QT-QSFP+-ER4	QT-QSFP+-ZR4
Wavelength	850nm	CWDM	1310nm	CWDM	CWDM	CWDM	LWDM 1294~1310nm
Max Distance	150m	2km	10km	10km	20km	40km	80km
Cable Type	OM3/OM4 MMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF
Connector	MPO/MTP-12	LC Duplex	MPO/MTP-12	LC Duplex	LC Duplex	LC Duplex	LC Duplex
Tx Power(dBm)	-7 ~ 1	-7 ~ 2.3	-6 ~ -1	-7 ~ 2.3	-4 ~ 2.3	-2.7 ~ 4.5	-2.7 ~ 4.5
Rx Sensitivity(dBm)	-9.5	-11.5	-14.4	-13.7	-11.5	-19	-28
Power Consumption	<0.7W	<2.5W	<2.5W	< 2.5W	<3.5W	<3.5W	<5W
Source	VCSEL + PIN	DFB + PIN	4xDFB + PIN	DFB + PIN	DFB + PIN	DFB + PIN	4xDFB + APD
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C

Questions & Answers

more+

What is the difference between Cisco qspf-40g-lr4 and qsfp-40g-lr4-s?

They are actually the same one.
Does the qsfp-40g-sr4 transceivers allow 4x 10g connectivity?

Yes. The connectivity is achieved by using an 8-fibers OM4 MTP-LC Type B break-out cable, which connects the qfp-40g-sr4 transceivers to four sfp-10g-sr optical interfaces.
Can this module work at 80°C?

No, it can't. The working temperature range is 0 to 70°C.
