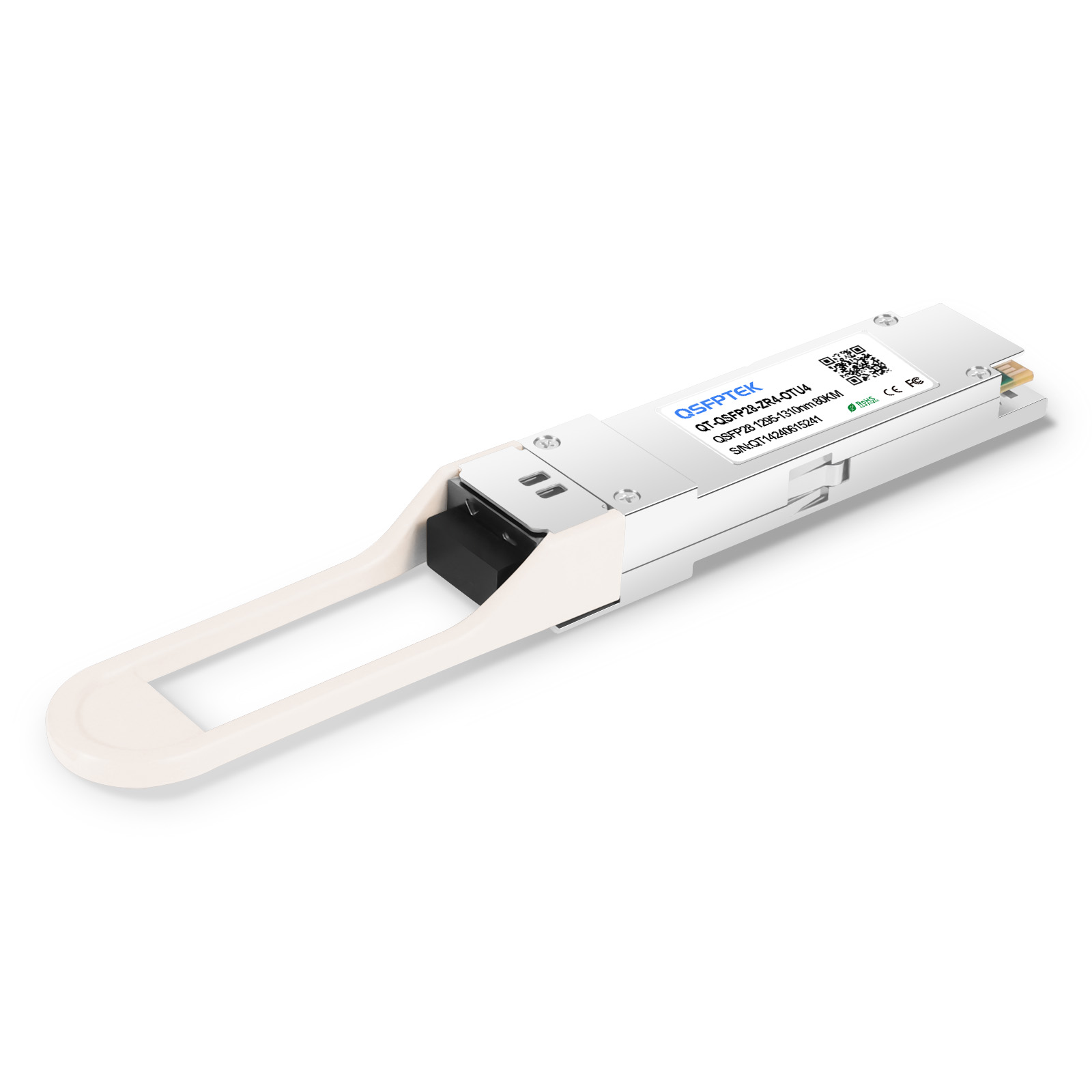

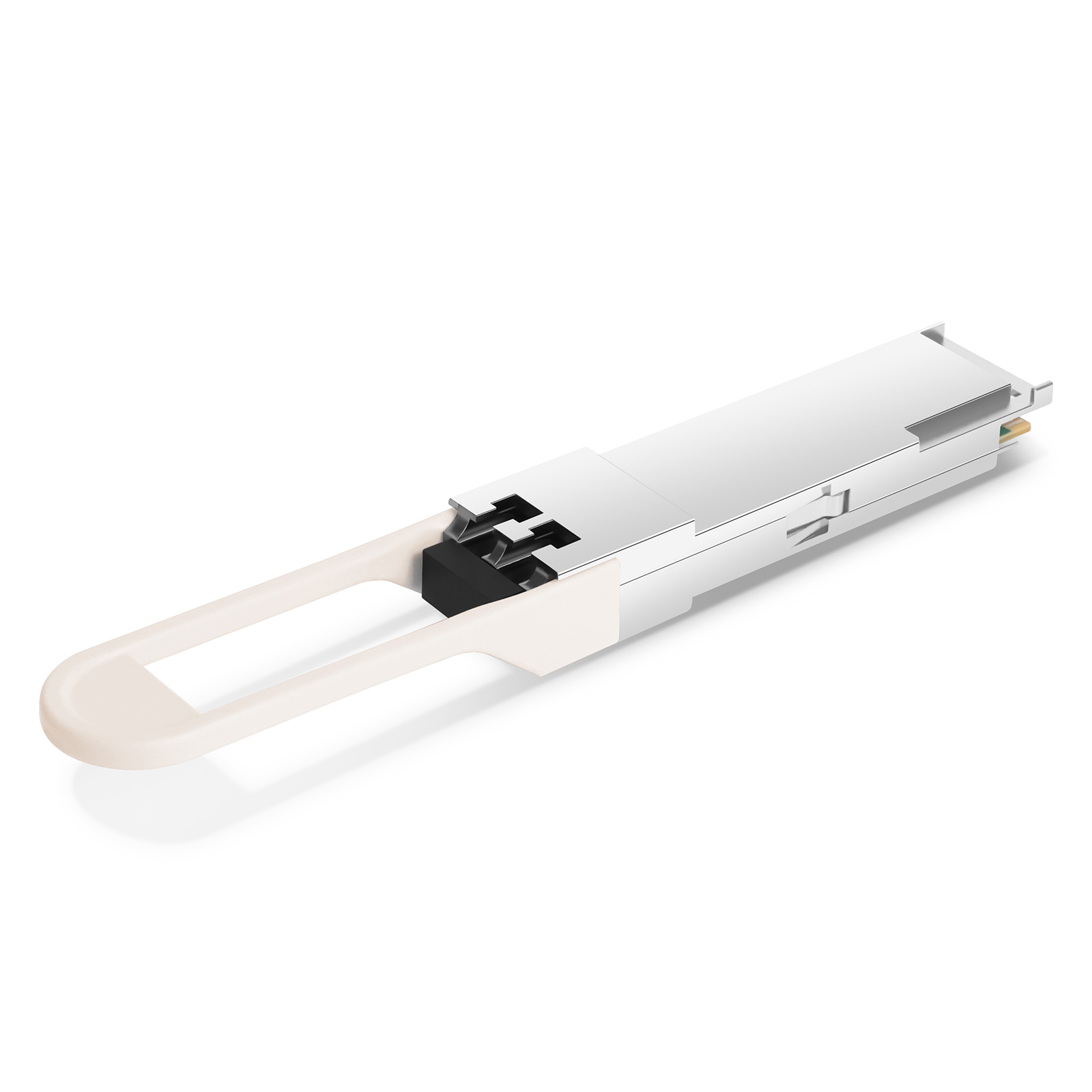

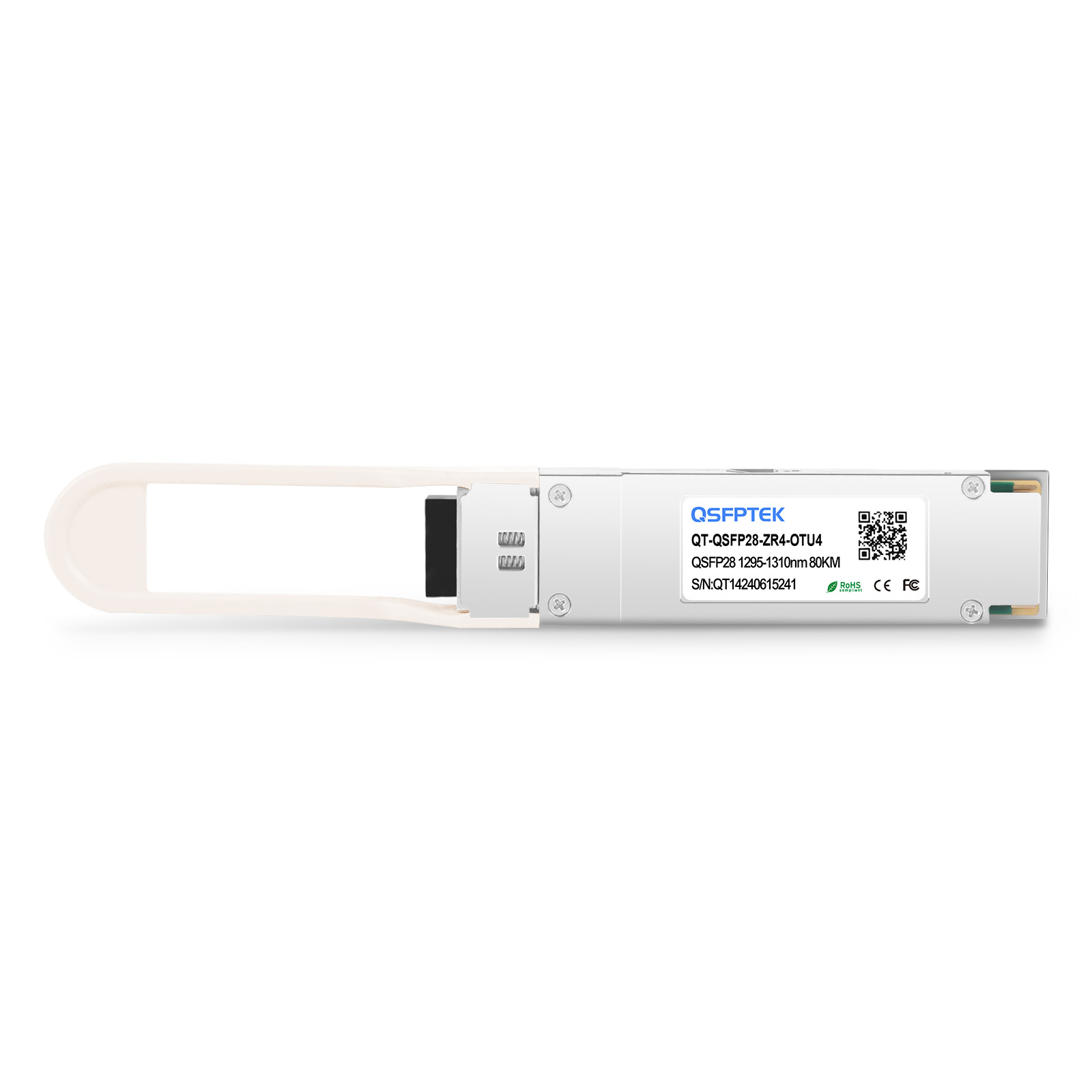

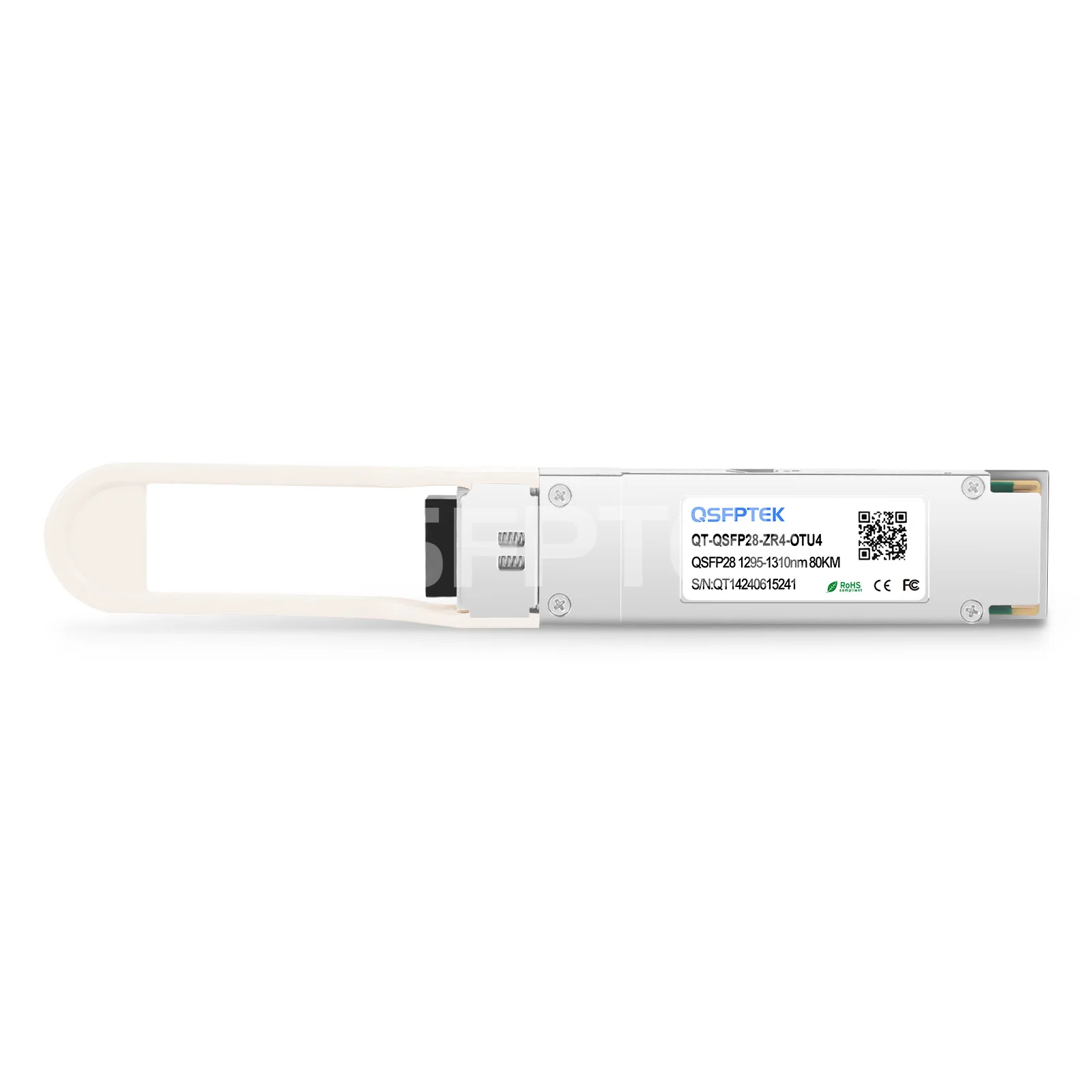

Juniper 100/112GBASE-ZR4 Compatible 100GBASE-ZR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 80km LC SMF Optical Transceiver Module

Product No :100382
US$ 2969.00
Compatible
Transceivers type
200 in stock
Free Shipping over US$ 84.9. US/EU Warehouses in Stock, Overnight Shipping.
Bulk Order Quotes Shop Online
1. Dual Rate: 100G&112G; Connector: LC; with DDM
2. DML+ APD; Low Power Consumption ≤6W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 200+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
See more

Specifications

Juniper 100/112GBASE-ZR4 Compatible Dual Rate 100GBASE-ZR4 and 112GBASE-OTU4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 80km, LC, DOM)



The Juniper dual rate 100/112GBASE-ZR4 compatible QSFP28 optical transceiver module supports 100GBASE Ethernet and 4x28G OTN client interfaces with link lengths up to 80km over single-mode fiber (SMF). This module is designed with duplex LC connectors. QSFPTEK QSFP-100/112G-ZR4 module has great reliability, airtightness, and heat dissipation performance. DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. The module is capable of 100G Ethernet, 112G OTN OTU4, telecom, service provider applications, and 5G wireless networks.



Part Number:

QT-QSFP28-ZR4-OTU4

Vendor Name:

QSFPTEK

Form Factor:

QSFP28

Data Rate:

Dual Rate 103.1Gbps and 112Gbps

Wavelength:

1310nm

Distance:

 80km

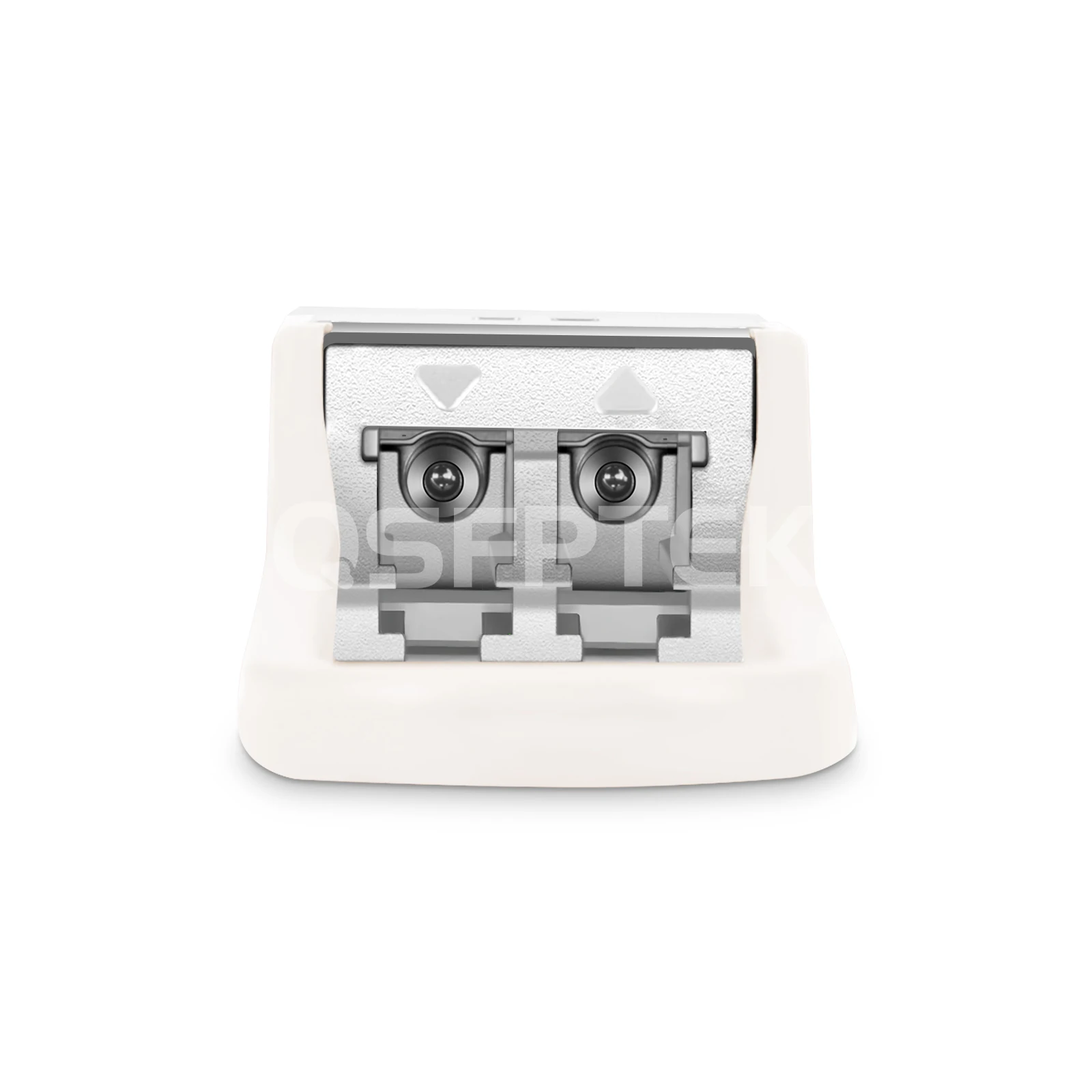

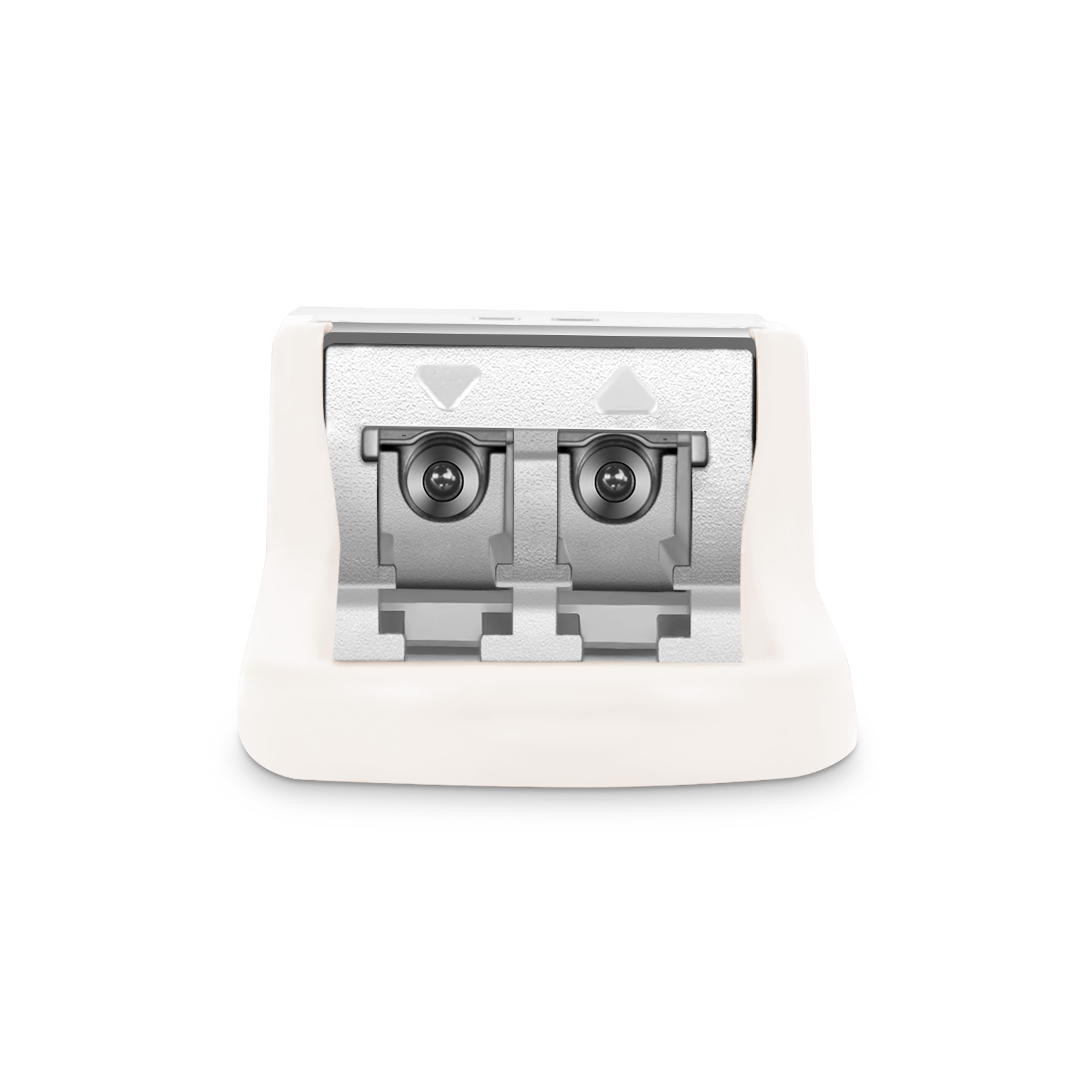

Connector:

Duplex LC

Cable Type:

OS2 SMF

Transmitter:

 EML

Receiver Type:

APD

TX Power(100G):

2~6.5dBm

Receiver Sensitivity(100G):

<-28dBm

Power Consumption:

≤6W

Temperature

0 to 70°C (32 to 158°F)

DDM:

Support

Bit Error Ratio (BER):

1.00E-12

Protocols:

QSFP28 MSA Compliant

Warranty:

3 Years



Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenario
    Fully compatible with most industry OEM devices. Ideal for 100G telecom connections, data centers, high-performance computing networks, enterprise cores, distribution layers, etc.
  • 3. Protocols
    Compliant with OTU4 4I1-9D1F and QSFP28 MSA standards.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests





Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.







Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.







100G QSFP28 Model Contrast Table



Part Number

QT-QSFP28-SR4

QT-QSFP28-PSM4

QT-QSFP28-IR4

QT-QSFP28-LR4

QT-QSFP28-CWDM-LR4

QT-QSFP28-ER4

QT-QSFP28-ZR4

DWDM-QSFP28-ZR-XX


Wavelength

850nm

1310nm

1271~1331nm

1310nm

1271~1331nm

1310nm

1310nm

DWDM CH13~60

Max Distance

100m

500m

2km

10km

10km

40km

80km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

CS Duplex

Tx Power(dBm)

-8.4~2.4

-5~2

-6.5~2.5

-4.3~4.5

-6.5~2.5

-2.9~4.5

2~6.5

-1~4dBm

Rx Sensitivity(dBm)

-10.3

-11.4

-11.5

-10.6

-13

-20.9

-28

-12.5

Max Power Consumption

1.8W

3.5W

3.5W

3.5W

3.5W

4.5W

6W

5W

Source

VCSEL+PIN

DFB+PIN

CWDM DFB+ PIN

EML+PIN

CWDM DFB +PIN

EML+APD

EML+APD

EML+APD

Operating Temperature

0~70°C

0~70°C

0~70°C

0~70°C

-40~85°C

0~70°C

0~70°C

-20~85°C

0~70°C

-40~85°C

0~70°C





Questions & Answers

more+
  • What is the laser level of 100G SR4? Can you provide a test report of the laser level of this module?
    Class I. Of course, you can contact our sales to get the report.
  • The transmission distance is less than 550m, should I use multi-mode?
    I'm afraid you should purchase the single-mode optics, like 100G LR4.
  • What is the Packaging Technology of the 100g lr4?
    BOX Packaging
