;jsessionid=0001E7074D7DCCBA607563B3F4377F951. Data Rate: 100G; Connector: LC; with DDM 2. Tx: EML / Rx: SOA+PIN; Low Power Consumption ≤5.5W 3. Extended Temperature Range -20 to 85ºC ( -4 to 185 °F) 4. Compatible with 200+ Vendors 5. Applied in Campus Network, Data Center and Enterprise Core LayerSee more

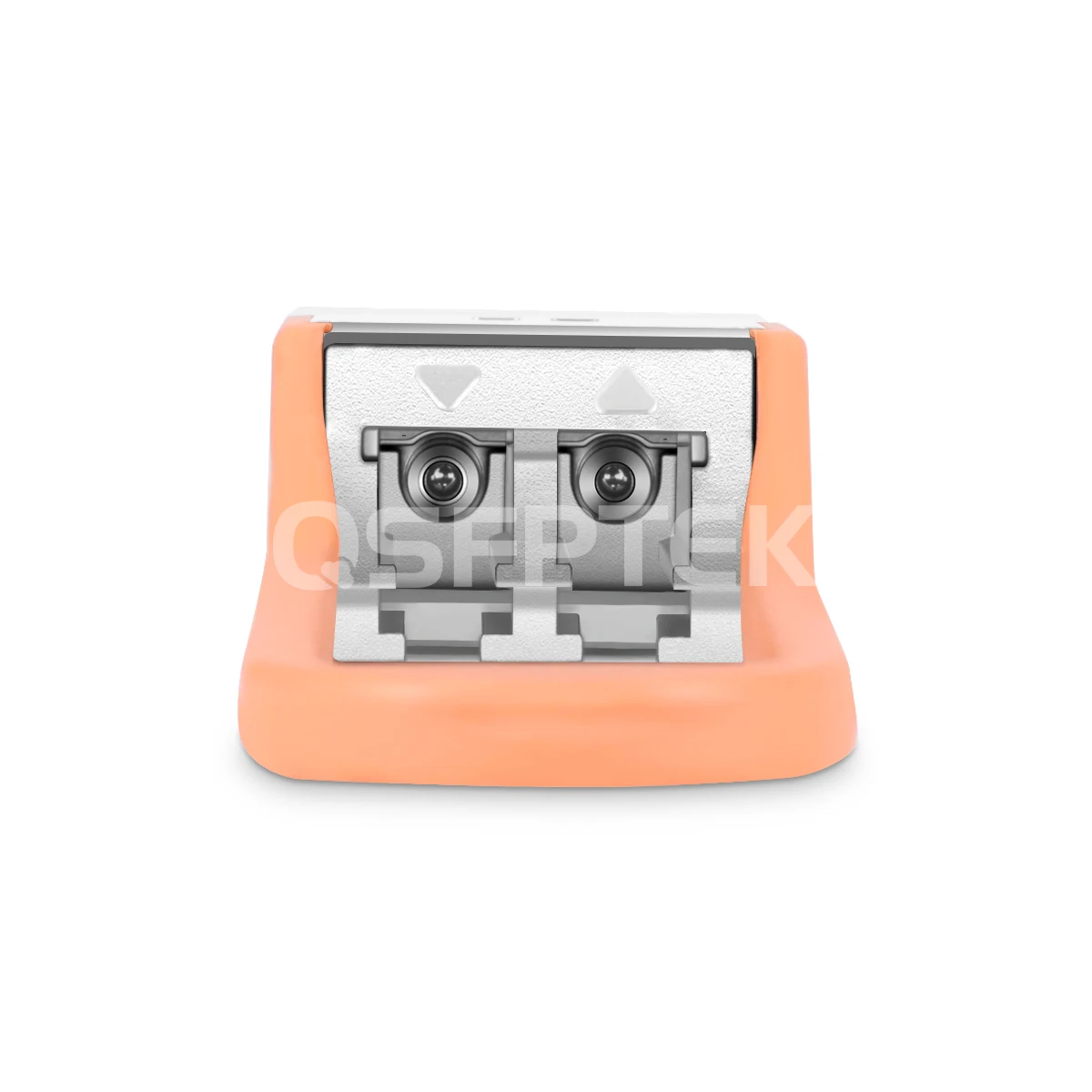

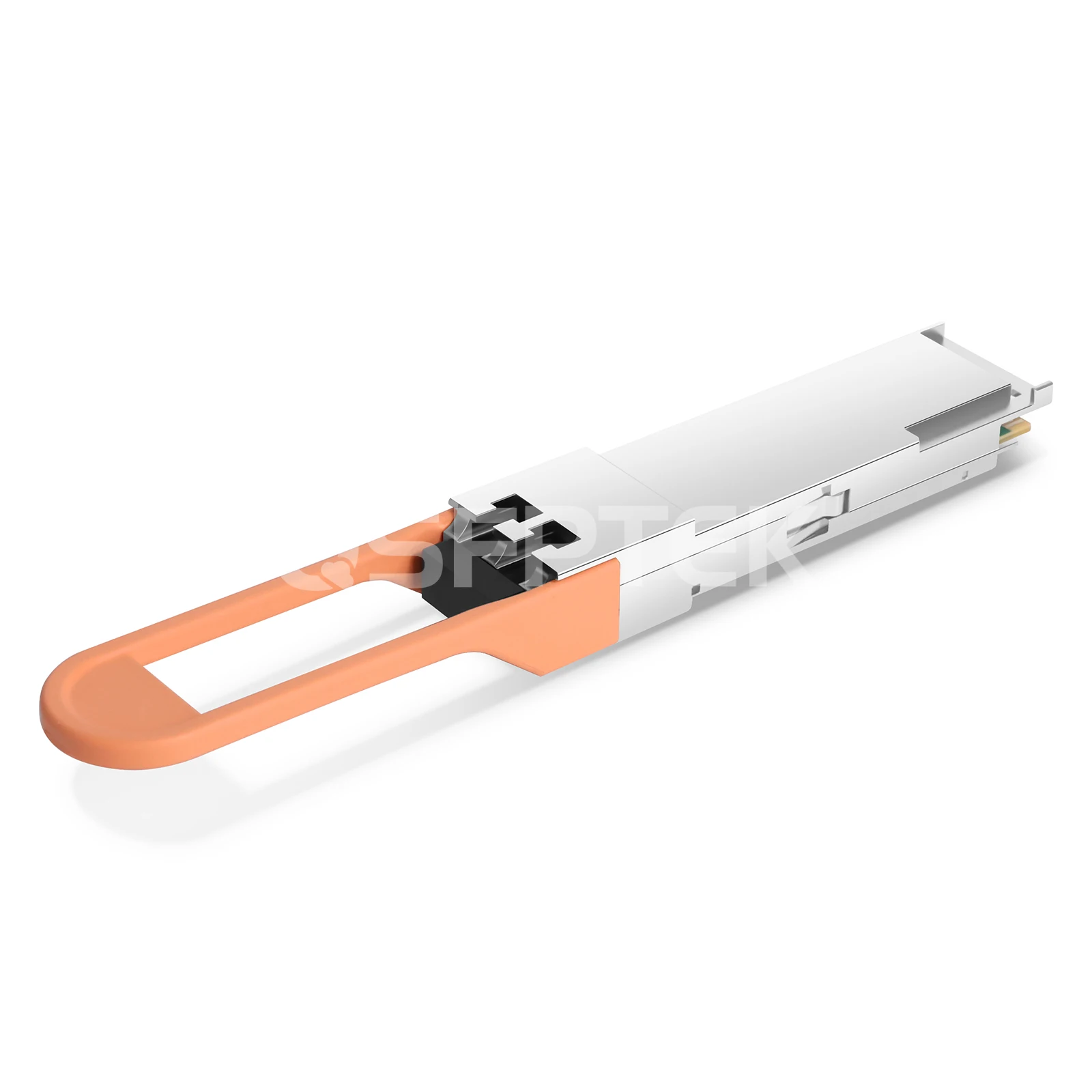

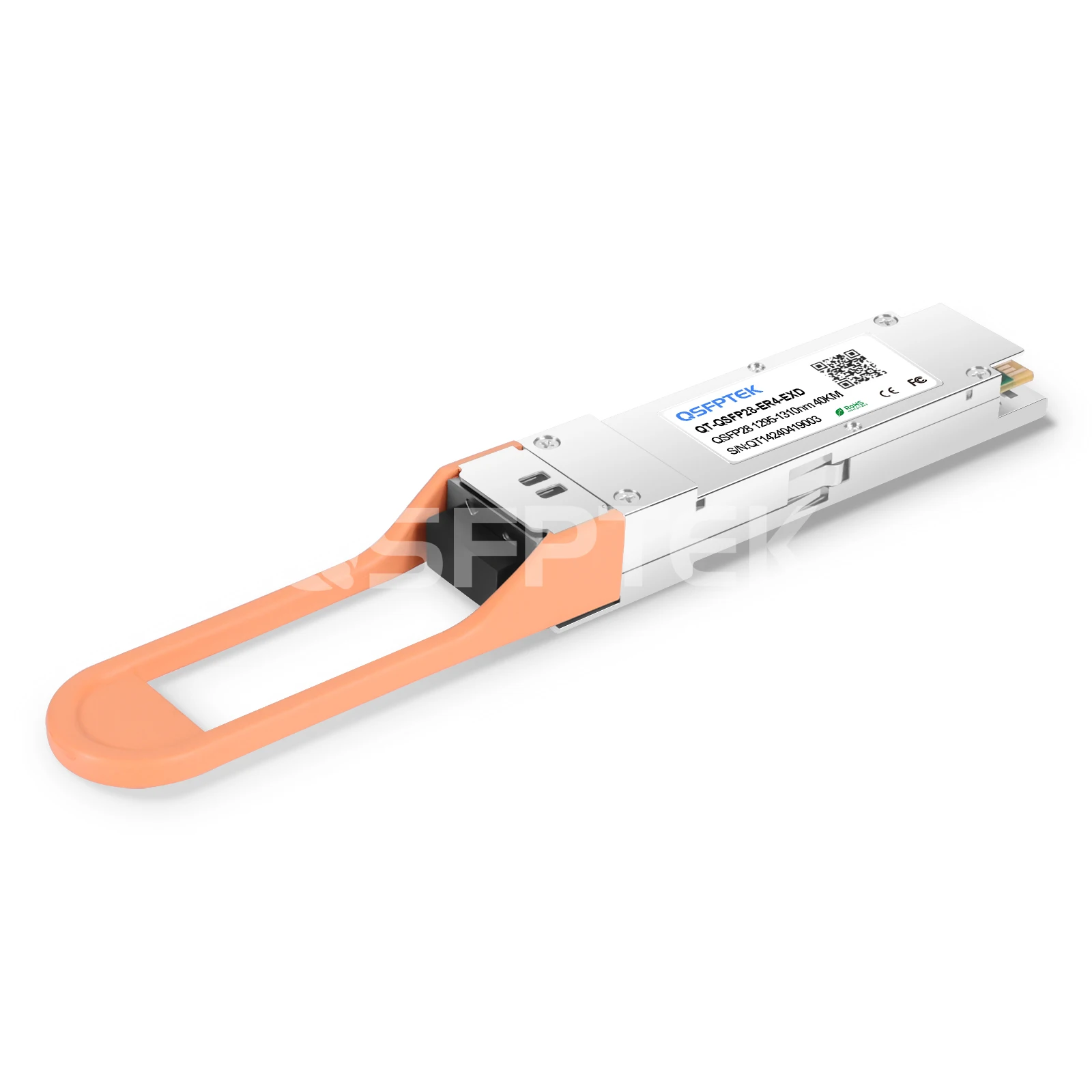

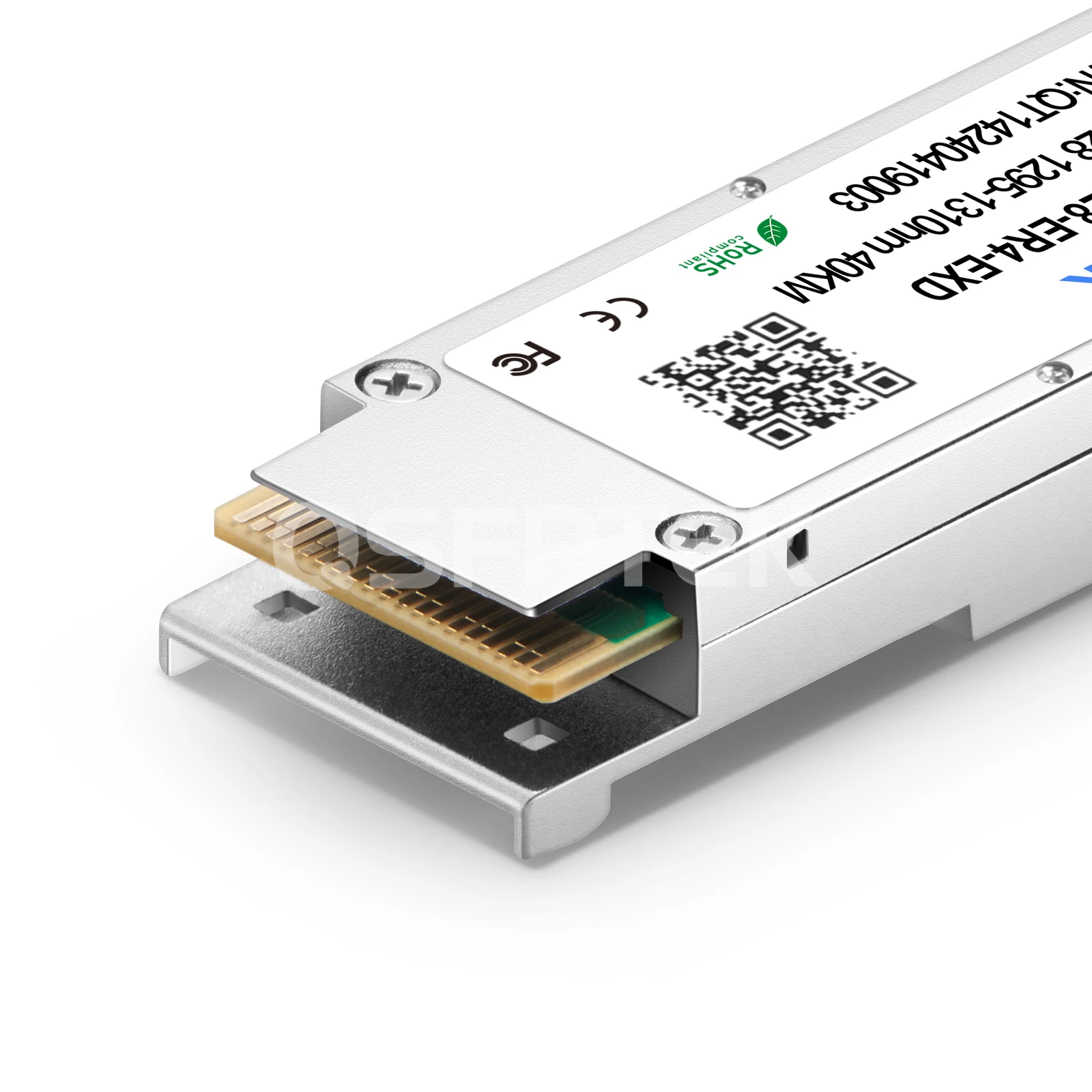

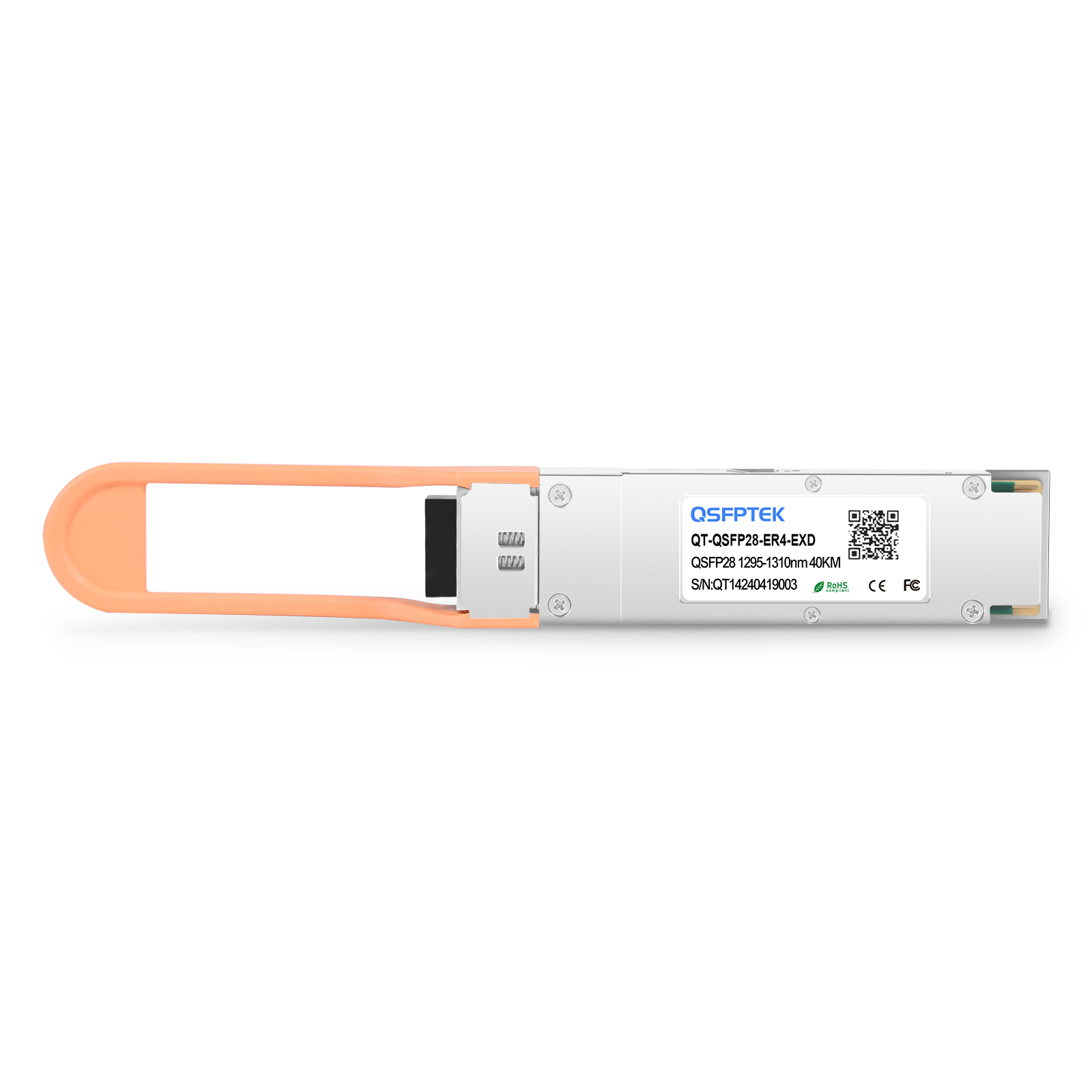

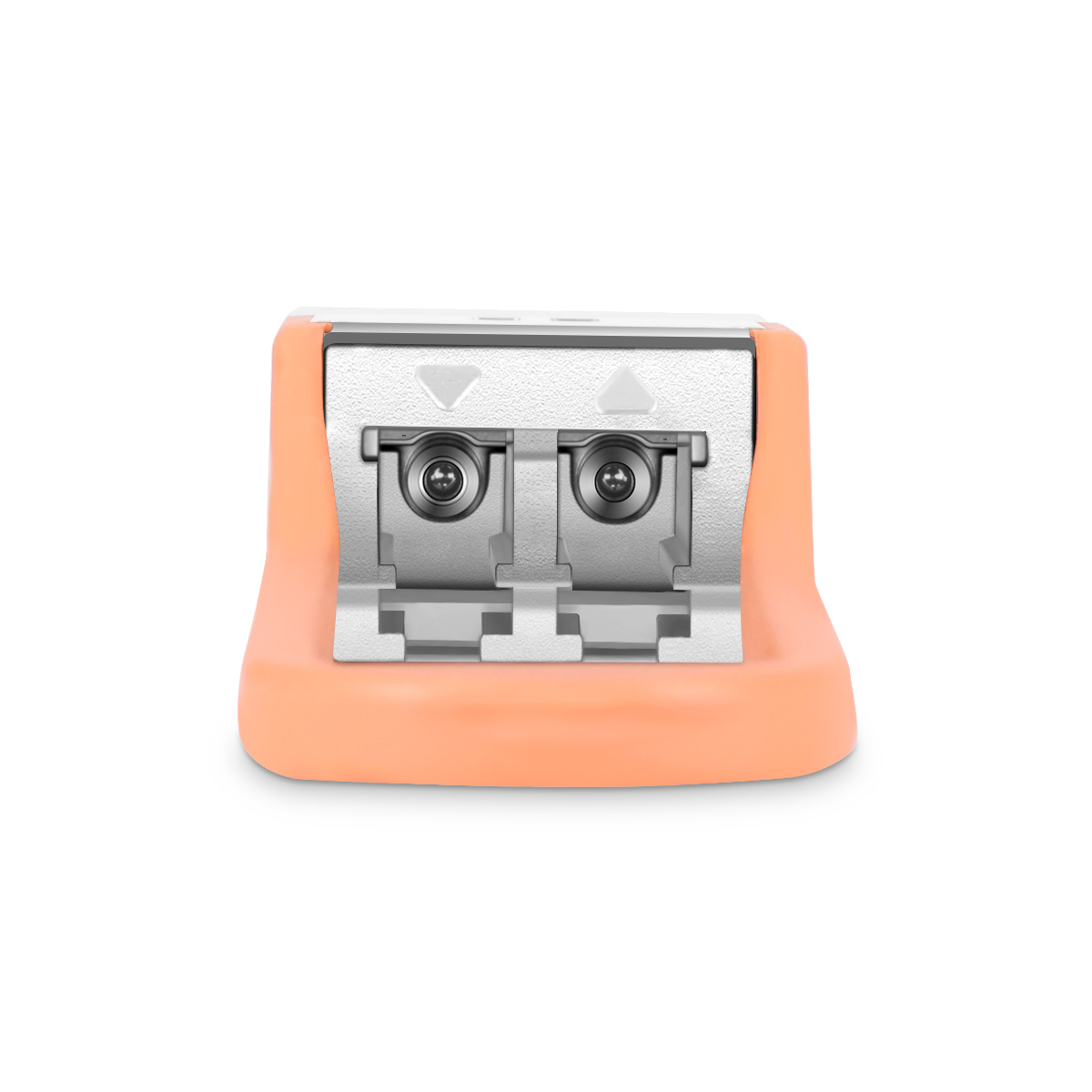

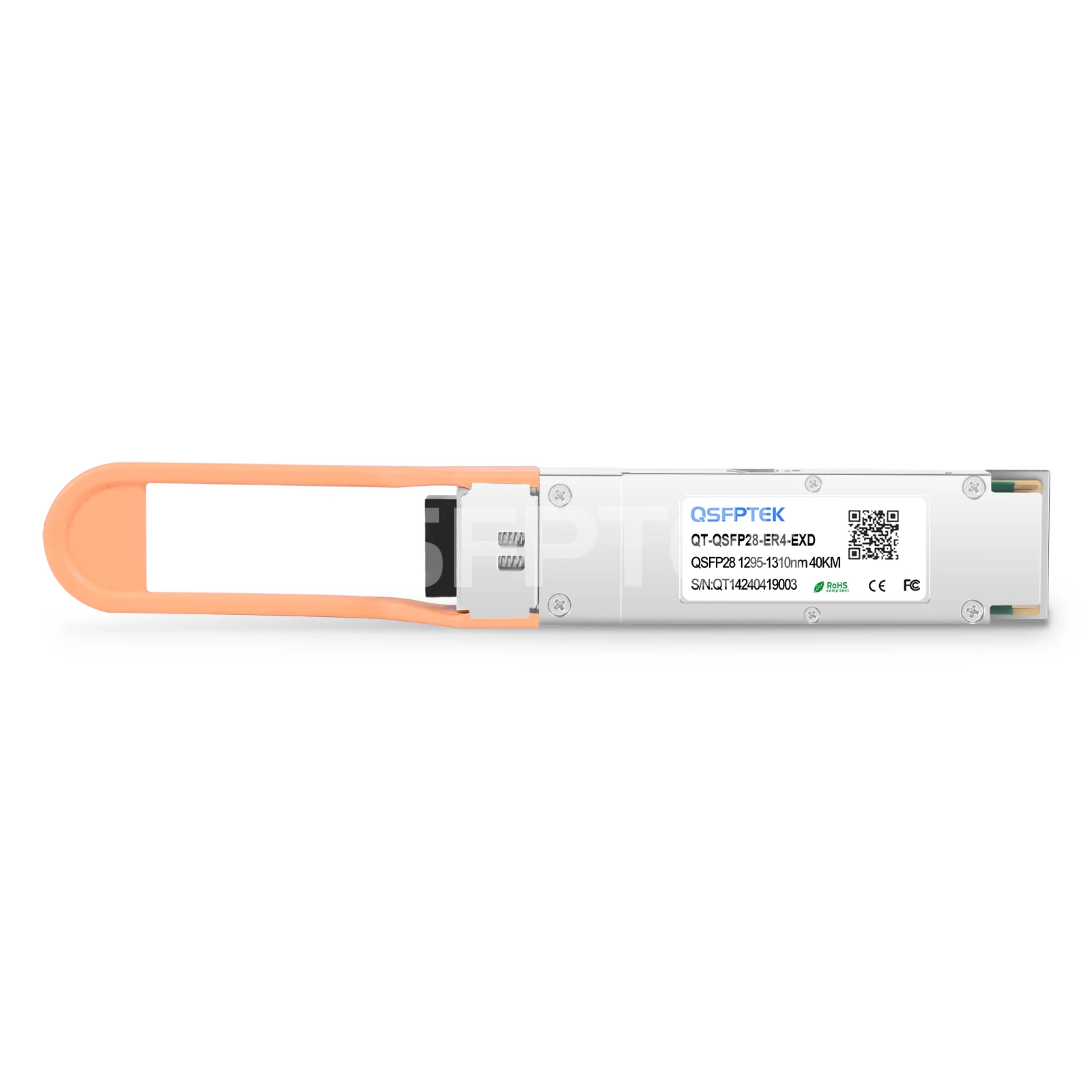

The Juniper extended temperature QSFP-100G-ER4 compatible 100GBASE-ER4L QSFP28 optical transceiver module is designed with duplex LC connectors, reaching a link up to 40km over single-mode fiber(SMF). QSFPTEK manufactured 100GBASE-ER4L QSFP28 transceiver module is compliant with IEEE 802.3bm, SFF-8636, and QSFP28 MSA standards. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in 100G telecom connections, data centers, high-performance computing networks, enterprise core and distribution layers, campus networks, etc.
Part Number: |
QT-QSFP28-ER4-EXD |
Vendor Name: |
QSFPTEK |
Form Factor: |
QSFP28 |
Data Rate: |
103.1Gbps |
Wavelength: |
1310nm |
Distance: |
40km |
Connector: |
Duplex LC |
Cable Type: |
OS2 SMF |
Transmitter: |
EML |
Receiver Type: |
SOA+PIN |
TX Power: |
-2.5~6.5dBm |
Receiver Sensitivity: |
<-20.5dBm |
Power Consumption: |
≤5.5W |
Temperature |
-20 to 85ºC ( -4 to 185 °F) |
DDM: |
Support |
Bit Error Ratio (BER): |
1.00E-12 |
Protocols: |
IEEE 802.3bm, SFF-8636, QSFP28 MSA Compliant |
Warranty: |
3 Years |
